Instance blend531
| Formatsⓘ | ams gms lp mod nl osil pip py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 20.64799000 (ANTIGONE) 20.03900000 (BARON) 20.52195000 (COUENNE) 20.03900000 (GUROBI) 20.74584105 (LINDO) 20.03900000 (SCIP) 21.52120000 (SHOT) |
| Referencesⓘ | Trespalacios, Francisco, Kolodziej, Scott P, Furman, Kevin C, and Sawaya, Nicolas W, Multiperiod Blend Scheduling Problem, 2013. |
| Sourceⓘ | MPBP-531.gms from minlp.org model 168 |
| Applicationⓘ | Multiperiod Blend Scheduling |
| Added to libraryⓘ | 25 Sep 2013 |
| Problem typeⓘ | MBQCP |
| #Variablesⓘ | 272 |
| #Binary Variablesⓘ | 104 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 105 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 208 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 736 |
| #Linear Constraintsⓘ | 704 |
| #Quadratic Constraintsⓘ | 32 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1898 |
| #Nonlinear Nonzeros in Jacobianⓘ | 358 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 292 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 0 |
| #Blocks in Hessian of Lagrangianⓘ | 16 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 3 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 8 |
| Average blocksize in Hessian of Lagrangianⓘ | 6.5625 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-02 |
| Maximal coefficientⓘ | 8.8800e+00 |
| Infeasibility of initial pointⓘ | 2.2 |

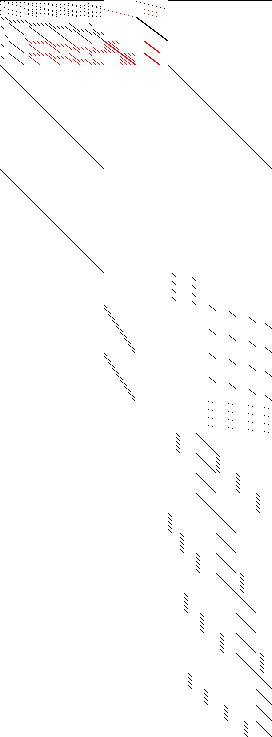

| Sparsity Jacobianⓘ |  |
| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 737 65 184 488 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 273 169 104 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 2107 1749 358 0
*
* Solve m using MINLP maximizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154
,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
,x168,x169,b170,b171,b172,b173,b174,b175,b176,b177,b178,b179,b180
,b181,b182,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193
,b194,b195,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206
,b207,b208,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219
,b220,b221,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232
,b233,b234,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245
,b246,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258
,b259,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271
,b272,b273;
Positive Variables x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34
,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51
,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68
,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85
,x86,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101
,x102,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114
,x115,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127
,x128,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140
,x141,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153
,x154,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166
,x167,x168,x169;
Binary Variables b170,b171,b172,b173,b174,b175,b176,b177,b178,b179,b180,b181
,b182,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193,b194
,b195,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206,b207
,b208,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219,b220
,b221,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232,b233
,b234,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245,b246
,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258,b259
,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271,b272
,b273;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709,e710,e711,e712,e713,e714
,e715,e716,e717,e718,e719,e720,e721,e722,e723,e724,e725,e726,e727
,e728,e729,e730,e731,e732,e733,e734,e735,e736,e737;
e1.. objvar + 0.87*x2 + 0.87*x3 + 0.87*x4 + 0.87*x5 - 7.42*x6 - 7.42*x7
- 7.42*x8 - 7.42*x9 + 1.06*x10 + 1.06*x11 + 1.06*x12 + 1.06*x13
+ 0.58*x14 + 0.58*x15 + 0.58*x16 + 0.58*x17 + 0.63*x18 + 0.63*x19
+ 0.63*x20 + 0.63*x21 + 0.32*x22 + 0.32*x23 + 0.32*x24 + 0.32*x25
+ 0.13*x26 + 0.13*x27 + 0.13*x28 + 0.13*x29 + 0.58*x30 + 0.58*x31
+ 0.58*x32 + 0.58*x33 + 0.29*x34 + 0.29*x35 + 0.29*x36 + 0.29*x37
+ 0.27*x38 + 0.27*x39 + 0.27*x40 + 0.27*x41 - 7.92*x42 - 7.92*x43
- 7.92*x44 - 7.92*x45 + 0.04*x46 + 0.04*x47 + 0.04*x48 + 0.04*x49
+ 0.11*x50 + 0.11*x51 + 0.11*x52 + 0.11*x53 + 0.88*x54 + 0.88*x55
+ 0.88*x56 + 0.88*x57 + 0.26*x58 + 0.26*x59 + 0.26*x60 + 0.26*x61
- 8.88*x62 - 8.88*x63 - 8.88*x64 - 8.88*x65 + 0.01*x66 + 0.01*x67
+ 0.01*x68 + 0.01*x69 + 0.18*x70 + 0.18*x71 + 0.18*x72 + 0.18*x73
+ 0.09*x74 + 0.09*x75 + 0.09*x76 + 0.09*x77 + 0.47*x78 + 0.47*x79
+ 0.47*x80 + 0.47*x81 - 8.2*x82 - 8.2*x83 - 8.2*x84 - 8.2*x85 - 0.27*x86
- 0.27*x87 - 0.27*x88 - 0.27*x89 + 0.32*x90 + 0.32*x91 + 0.32*x92
+ 0.32*x93 + 0.65*x94 + 0.65*x95 + 0.65*x96 + 0.65*x97 - 8.08*x98
- 8.08*x99 - 8.08*x100 - 8.08*x101 + 0.67*x102 + 0.67*x103 + 0.67*x104
+ 0.67*x105 + 0.19*b170 + 0.19*b171 + 0.19*b172 + 0.19*b173 + 0.46*b174
+ 0.46*b175 + 0.46*b176 + 0.46*b177 + 0.16*b178 + 0.16*b179 + 0.16*b180
+ 0.16*b181 + 0.64*b182 + 0.64*b183 + 0.64*b184 + 0.64*b185 + 0.19*b186
+ 0.19*b187 + 0.19*b188 + 0.19*b189 + 0.48*b190 + 0.48*b191 + 0.48*b192
+ 0.48*b193 + 0.59*b194 + 0.59*b195 + 0.59*b196 + 0.59*b197 + 0.38*b198
+ 0.38*b199 + 0.38*b200 + 0.38*b201 + 0.25*b202 + 0.25*b203 + 0.25*b204
+ 0.25*b205 + 0.62*b206 + 0.62*b207 + 0.62*b208 + 0.62*b209 + 0.82*b210
+ 0.82*b211 + 0.82*b212 + 0.82*b213 + 0.73*b214 + 0.73*b215 + 0.73*b216
+ 0.73*b217 + 0.58*b218 + 0.58*b219 + 0.58*b220 + 0.58*b221 + 0.91*b222
+ 0.91*b223 + 0.91*b224 + 0.91*b225 + 0.82*b226 + 0.82*b227 + 0.82*b228
+ 0.82*b229 + 0.59*b230 + 0.59*b231 + 0.59*b232 + 0.59*b233 + 0.43*b234
+ 0.43*b235 + 0.43*b236 + 0.43*b237 + 0.16*b238 + 0.16*b239 + 0.16*b240
+ 0.16*b241 + 0.42*b242 + 0.42*b243 + 0.42*b244 + 0.42*b245 + 0.6*b246
+ 0.6*b247 + 0.6*b248 + 0.6*b249 + 0.7*b250 + 0.7*b251 + 0.7*b252
+ 0.7*b253 + 0.64*b254 + 0.64*b255 + 0.64*b256 + 0.64*b257 + 0.07*b258
+ 0.07*b259 + 0.07*b260 + 0.07*b261 + 0.53*b262 + 0.53*b263 + 0.53*b264
+ 0.53*b265 + 0.41*b266 + 0.41*b267 + 0.41*b268 + 0.41*b269 + 0.72*b270
+ 0.72*b271 + 0.72*b272 + 0.72*b273 =E= 0;
e2.. x2 + x6 + x138 =E= 2.2;
e3.. x10 + x14 + x18 + x22 + x26 + x142 =E= 2;
e4.. - x10 + x30 + x34 + x38 + x42 + x46 - x50 - x70 - x90 + x146 =E= 1.2;
e5.. - x2 - x14 - x30 + x50 + x54 + x58 + x62 + x66 - x74 + x150 =E= 1.7;
e6.. - x18 - x34 - x54 + x70 + x74 + x78 + x82 + x86 - x94 + x154 =E= 1.6;
e7.. - x22 - x38 - x58 - x78 + x90 + x94 + x98 + x102 + x158 =E= 1.2;
e8.. - x6 - x42 - x62 - x82 - x98 + x162 =E= 0.34;
e9.. - x26 - x46 - x66 - x86 - x102 + x166 =E= 0.1;
e10.. x106*x146 - 0.6*x10 + 0.5*x30 + 0.5*x34 + 0.5*x38 + 0.5*x42 + 0.5*x46
- 0.8*x50 - 0.7*x70 - 0.7*x90 =E= 0.6;
e11.. x110*x150 - x2 - 0.6*x14 - 0.5*x30 + 0.8*x50 + 0.8*x54 + 0.8*x58
+ 0.8*x62 + 0.8*x66 - 0.7*x74 =E= 1.36;
e12.. x114*x154 - 0.6*x18 - 0.5*x34 - 0.8*x54 + 0.7*x70 + 0.7*x74 + 0.7*x78
+ 0.7*x82 + 0.7*x86 - 0.7*x94 =E= 1.12;
e13.. x118*x158 - 0.6*x22 - 0.5*x38 - 0.8*x58 - 0.7*x78 + 0.7*x90 + 0.7*x94
+ 0.7*x98 + 0.7*x102 =E= 0.84;
e14.. x122*x146 - 0.9*x10 + 0.1*x30 + 0.1*x34 + 0.1*x38 + 0.1*x42 + 0.1*x46
- 0.8*x50 - 0.1*x70 - 0.5*x90 =E= 0.12;
e15.. x126*x150 - 0.6*x2 - 0.9*x14 - 0.1*x30 + 0.8*x50 + 0.8*x54 + 0.8*x58
+ 0.8*x62 + 0.8*x66 - 0.1*x74 =E= 1.36;
e16.. x130*x154 - 0.9*x18 - 0.1*x34 - 0.8*x54 + 0.1*x70 + 0.1*x74 + 0.1*x78
+ 0.1*x82 + 0.1*x86 - 0.5*x94 =E= 0.16;
e17.. x134*x158 - 0.9*x22 - 0.1*x38 - 0.8*x58 - 0.1*x78 + 0.5*x90 + 0.5*x94
+ 0.5*x98 + 0.5*x102 =E= 0.6;
e18.. x3 + x7 - x138 + x139 =E= 0.1;
e19.. x4 + x8 - x139 + x140 =E= 0.2;
e20.. x5 + x9 - x140 + x141 =E= 0.8;
e21.. x11 + x15 + x19 + x23 + x27 - x142 + x143 =E= 0.1;
e22.. x12 + x16 + x20 + x24 + x28 - x143 + x144 =E= 0.4;
e23.. x13 + x17 + x21 + x25 + x29 - x144 + x145 =E= 0.8;
e24.. - x11 + x31 + x35 + x39 + x43 + x47 - x51 - x71 - x91 - x146 + x147
=E= 0;
e25.. - x12 + x32 + x36 + x40 + x44 + x48 - x52 - x72 - x92 - x147 + x148
=E= 0;
e26.. - x13 + x33 + x37 + x41 + x45 + x49 - x53 - x73 - x93 - x148 + x149
=E= 0;
e27.. - x3 - x15 - x31 + x51 + x55 + x59 + x63 + x67 - x75 - x150 + x151 =E= 0
;
e28.. - x4 - x16 - x32 + x52 + x56 + x60 + x64 + x68 - x76 - x151 + x152 =E= 0
;
e29.. - x5 - x17 - x33 + x53 + x57 + x61 + x65 + x69 - x77 - x152 + x153 =E= 0
;
e30.. - x19 - x35 - x55 + x71 + x75 + x79 + x83 + x87 - x95 - x154 + x155
=E= 0;
e31.. - x20 - x36 - x56 + x72 + x76 + x80 + x84 + x88 - x96 - x155 + x156
=E= 0;
e32.. - x21 - x37 - x57 + x73 + x77 + x81 + x85 + x89 - x97 - x156 + x157
=E= 0;
e33.. - x23 - x39 - x59 - x79 + x91 + x95 + x99 + x103 - x158 + x159 =E= 0;
e34.. - x24 - x40 - x60 - x80 + x92 + x96 + x100 + x104 - x159 + x160 =E= 0;
e35.. - x25 - x41 - x61 - x81 + x93 + x97 + x101 + x105 - x160 + x161 =E= 0;
e36.. - x7 - x43 - x63 - x83 - x99 - x162 + x163 =E= -0.53;
e37.. - x8 - x44 - x64 - x84 - x100 - x163 + x164 =E= -0.66;
e38.. - x9 - x45 - x65 - x85 - x101 - x164 + x165 =E= -0.29;
e39.. - x27 - x47 - x67 - x87 - x103 - x166 + x167 =E= -0.42;
e40.. - x28 - x48 - x68 - x88 - x104 - x167 + x168 =E= -0.63;
e41.. - x29 - x49 - x69 - x89 - x105 - x168 + x169 =E= -0.43;
e42.. x107*x147 - (x106*x146 + x110*x51 + x114*x71 + x118*x91 - (x106*x31 +
x106*x35 + x106*x39 + x106*x43 + x106*x47)) - 0.6*x11 =E= 0;
e43.. x108*x148 - (x107*x147 + x111*x52 + x115*x72 + x119*x92 - (x107*x32 +
x107*x36 + x107*x40 + x107*x44 + x107*x48)) - 0.6*x12 =E= 0;
e44.. x109*x149 - (x108*x148 + x112*x53 + x116*x73 + x120*x93 - (x108*x33 +
x108*x37 + x108*x41 + x108*x45 + x108*x49)) - 0.6*x13 =E= 0;
e45.. x111*x151 - (x110*x150 + x106*x31 + x114*x75 - (x110*x51 + x110*x55 +
x110*x59 + x110*x63 + x110*x67)) - x3 - 0.6*x15 =E= 0;
e46.. x112*x152 - (x111*x151 + x107*x32 + x115*x76 - (x111*x52 + x111*x56 +
x111*x60 + x111*x64 + x111*x68)) - x4 - 0.6*x16 =E= 0;
e47.. x113*x153 - (x112*x152 + x108*x33 + x116*x77 - (x112*x53 + x112*x57 +
x112*x61 + x112*x65 + x112*x69)) - x5 - 0.6*x17 =E= 0;
e48.. x115*x155 - (x114*x154 + x106*x35 + x110*x55 + x118*x95 - (x114*x71 +
x114*x75 + x114*x79 + x114*x83 + x114*x87)) - 0.6*x19 =E= 0;
e49.. x116*x156 - (x115*x155 + x107*x36 + x111*x56 + x119*x96 - (x115*x72 +
x115*x76 + x115*x80 + x115*x84 + x115*x88)) - 0.6*x20 =E= 0;
e50.. x117*x157 - (x116*x156 + x108*x37 + x112*x57 + x120*x97 - (x116*x73 +
x116*x77 + x116*x81 + x116*x85 + x116*x89)) - 0.6*x21 =E= 0;
e51.. x119*x159 - (x118*x158 + x106*x39 + x110*x59 + x114*x79 - (x118*x91 +
x118*x95 + x118*x99 + x118*x103)) - 0.6*x23 =E= 0;
e52.. x120*x160 - (x119*x159 + x107*x40 + x111*x60 + x115*x80 - (x119*x92 +
x119*x96 + x119*x100 + x119*x104)) - 0.6*x24 =E= 0;
e53.. x121*x161 - (x120*x160 + x108*x41 + x112*x61 + x116*x81 - (x120*x93 +
x120*x97 + x120*x101 + x120*x105)) - 0.6*x25 =E= 0;
e54.. x123*x147 - (x122*x146 + x126*x51 + x130*x71 + x134*x91 - (x122*x31 +
x122*x35 + x122*x39 + x122*x43 + x122*x47)) - 0.9*x11 =E= 0;
e55.. x124*x148 - (x123*x147 + x127*x52 + x131*x72 + x135*x92 - (x123*x32 +
x123*x36 + x123*x40 + x123*x44 + x123*x48)) - 0.9*x12 =E= 0;
e56.. x125*x149 - (x124*x148 + x128*x53 + x132*x73 + x136*x93 - (x124*x33 +
x124*x37 + x124*x41 + x124*x45 + x124*x49)) - 0.9*x13 =E= 0;
e57.. x127*x151 - (x126*x150 + x122*x31 + x130*x75 - (x126*x51 + x126*x55 +
x126*x59 + x126*x63 + x126*x67)) - 0.6*x3 - 0.9*x15 =E= 0;
e58.. x128*x152 - (x127*x151 + x123*x32 + x131*x76 - (x127*x52 + x127*x56 +
x127*x60 + x127*x64 + x127*x68)) - 0.6*x4 - 0.9*x16 =E= 0;
e59.. x129*x153 - (x128*x152 + x124*x33 + x132*x77 - (x128*x53 + x128*x57 +
x128*x61 + x128*x65 + x128*x69)) - 0.6*x5 - 0.9*x17 =E= 0;
e60.. x131*x155 - (x130*x154 + x122*x35 + x126*x55 + x134*x95 - (x130*x71 +
x130*x75 + x130*x79 + x130*x83 + x130*x87)) - 0.9*x19 =E= 0;
e61.. x132*x156 - (x131*x155 + x123*x36 + x127*x56 + x135*x96 - (x131*x72 +
x131*x76 + x131*x80 + x131*x84 + x131*x88)) - 0.9*x20 =E= 0;
e62.. x133*x157 - (x132*x156 + x124*x37 + x128*x57 + x136*x97 - (x132*x73 +
x132*x77 + x132*x81 + x132*x85 + x132*x89)) - 0.9*x21 =E= 0;
e63.. x135*x159 - (x134*x158 + x122*x39 + x126*x59 + x130*x79 - (x134*x91 +
x134*x95 + x134*x99 + x134*x103)) - 0.9*x23 =E= 0;
e64.. x136*x160 - (x135*x159 + x123*x40 + x127*x60 + x131*x80 - (x135*x92 +
x135*x96 + x135*x100 + x135*x104)) - 0.9*x24 =E= 0;
e65.. x137*x161 - (x136*x160 + x124*x41 + x128*x61 + x132*x81 - (x136*x93 +
x136*x97 + x136*x101 + x136*x105)) - 0.9*x25 =E= 0;
e66.. x2 - b170 =L= 0;
e67.. x3 - b171 =L= 0;
e68.. x4 - b172 =L= 0;
e69.. x5 - b173 =L= 0;
e70.. x6 - b174 =L= 0;
e71.. x7 - b175 =L= 0;
e72.. x8 - b176 =L= 0;
e73.. x9 - b177 =L= 0;
e74.. x10 - b178 =L= 0;
e75.. x11 - b179 =L= 0;
e76.. x12 - b180 =L= 0;
e77.. x13 - b181 =L= 0;
e78.. x14 - b182 =L= 0;
e79.. x15 - b183 =L= 0;
e80.. x16 - b184 =L= 0;
e81.. x17 - b185 =L= 0;
e82.. x18 - b186 =L= 0;
e83.. x19 - b187 =L= 0;
e84.. x20 - b188 =L= 0;
e85.. x21 - b189 =L= 0;
e86.. x22 - b190 =L= 0;
e87.. x23 - b191 =L= 0;
e88.. x24 - b192 =L= 0;
e89.. x25 - b193 =L= 0;
e90.. x26 - b194 =L= 0;
e91.. x27 - b195 =L= 0;
e92.. x28 - b196 =L= 0;
e93.. x29 - b197 =L= 0;
e94.. x30 - b198 =L= 0;
e95.. x31 - b199 =L= 0;
e96.. x32 - b200 =L= 0;
e97.. x33 - b201 =L= 0;
e98.. x34 - b202 =L= 0;
e99.. x35 - b203 =L= 0;
e100.. x36 - b204 =L= 0;
e101.. x37 - b205 =L= 0;
e102.. x38 - b206 =L= 0;
e103.. x39 - b207 =L= 0;
e104.. x40 - b208 =L= 0;
e105.. x41 - b209 =L= 0;
e106.. x42 - b210 =L= 0;
e107.. x43 - b211 =L= 0;
e108.. x44 - b212 =L= 0;
e109.. x45 - b213 =L= 0;
e110.. x46 - b214 =L= 0;
e111.. x47 - b215 =L= 0;
e112.. x48 - b216 =L= 0;
e113.. x49 - b217 =L= 0;
e114.. x50 - b218 =L= 0;
e115.. x51 - b219 =L= 0;
e116.. x52 - b220 =L= 0;
e117.. x53 - b221 =L= 0;
e118.. x54 - b222 =L= 0;
e119.. x55 - b223 =L= 0;
e120.. x56 - b224 =L= 0;
e121.. x57 - b225 =L= 0;
e122.. x58 - b226 =L= 0;
e123.. x59 - b227 =L= 0;
e124.. x60 - b228 =L= 0;
e125.. x61 - b229 =L= 0;
e126.. x62 - b230 =L= 0;
e127.. x63 - b231 =L= 0;
e128.. x64 - b232 =L= 0;
e129.. x65 - b233 =L= 0;
e130.. x66 - b234 =L= 0;
e131.. x67 - b235 =L= 0;
e132.. x68 - b236 =L= 0;
e133.. x69 - b237 =L= 0;
e134.. x70 - b238 =L= 0;
e135.. x71 - b239 =L= 0;
e136.. x72 - b240 =L= 0;
e137.. x73 - b241 =L= 0;
e138.. x74 - b242 =L= 0;
e139.. x75 - b243 =L= 0;
e140.. x76 - b244 =L= 0;
e141.. x77 - b245 =L= 0;
e142.. x78 - b246 =L= 0;
e143.. x79 - b247 =L= 0;
e144.. x80 - b248 =L= 0;
e145.. x81 - b249 =L= 0;
e146.. x82 - b250 =L= 0;
e147.. x83 - b251 =L= 0;
e148.. x84 - b252 =L= 0;
e149.. x85 - b253 =L= 0;
e150.. x86 - b254 =L= 0;
e151.. x87 - b255 =L= 0;
e152.. x88 - b256 =L= 0;
e153.. x89 - b257 =L= 0;
e154.. x90 - b258 =L= 0;
e155.. x91 - b259 =L= 0;
e156.. x92 - b260 =L= 0;
e157.. x93 - b261 =L= 0;
e158.. x94 - b262 =L= 0;
e159.. x95 - b263 =L= 0;
e160.. x96 - b264 =L= 0;
e161.. x97 - b265 =L= 0;
e162.. x98 - b266 =L= 0;
e163.. x99 - b267 =L= 0;
e164.. x100 - b268 =L= 0;
e165.. x101 - b269 =L= 0;
e166.. x102 - b270 =L= 0;
e167.. x103 - b271 =L= 0;
e168.. x104 - b272 =L= 0;
e169.. x105 - b273 =L= 0;
e170.. x2 =G= 0;
e171.. x3 =G= 0;
e172.. x4 =G= 0;
e173.. x5 =G= 0;
e174.. x6 =G= 0;
e175.. x7 =G= 0;
e176.. x8 =G= 0;
e177.. x9 =G= 0;
e178.. x10 =G= 0;
e179.. x11 =G= 0;
e180.. x12 =G= 0;
e181.. x13 =G= 0;
e182.. x14 =G= 0;
e183.. x15 =G= 0;
e184.. x16 =G= 0;
e185.. x17 =G= 0;
e186.. x18 =G= 0;
e187.. x19 =G= 0;
e188.. x20 =G= 0;
e189.. x21 =G= 0;
e190.. x22 =G= 0;
e191.. x23 =G= 0;
e192.. x24 =G= 0;
e193.. x25 =G= 0;
e194.. x26 =G= 0;
e195.. x27 =G= 0;
e196.. x28 =G= 0;
e197.. x29 =G= 0;
e198.. x30 =G= 0;
e199.. x31 =G= 0;
e200.. x32 =G= 0;
e201.. x33 =G= 0;
e202.. x34 =G= 0;
e203.. x35 =G= 0;
e204.. x36 =G= 0;
e205.. x37 =G= 0;
e206.. x38 =G= 0;
e207.. x39 =G= 0;
e208.. x40 =G= 0;
e209.. x41 =G= 0;
e210.. x42 =G= 0;
e211.. x43 =G= 0;
e212.. x44 =G= 0;
e213.. x45 =G= 0;
e214.. x46 =G= 0;
e215.. x47 =G= 0;
e216.. x48 =G= 0;
e217.. x49 =G= 0;
e218.. x50 =G= 0;
e219.. x51 =G= 0;
e220.. x52 =G= 0;
e221.. x53 =G= 0;
e222.. x54 =G= 0;
e223.. x55 =G= 0;
e224.. x56 =G= 0;
e225.. x57 =G= 0;
e226.. x58 =G= 0;
e227.. x59 =G= 0;
e228.. x60 =G= 0;
e229.. x61 =G= 0;
e230.. x62 =G= 0;
e231.. x63 =G= 0;
e232.. x64 =G= 0;
e233.. x65 =G= 0;
e234.. x66 =G= 0;
e235.. x67 =G= 0;
e236.. x68 =G= 0;
e237.. x69 =G= 0;
e238.. x70 =G= 0;
e239.. x71 =G= 0;
e240.. x72 =G= 0;
e241.. x73 =G= 0;
e242.. x74 =G= 0;
e243.. x75 =G= 0;
e244.. x76 =G= 0;
e245.. x77 =G= 0;
e246.. x78 =G= 0;
e247.. x79 =G= 0;
e248.. x80 =G= 0;
e249.. x81 =G= 0;
e250.. x82 =G= 0;
e251.. x83 =G= 0;
e252.. x84 =G= 0;
e253.. x85 =G= 0;
e254.. x86 =G= 0;
e255.. x87 =G= 0;
e256.. x88 =G= 0;
e257.. x89 =G= 0;
e258.. x90 =G= 0;
e259.. x91 =G= 0;
e260.. x92 =G= 0;
e261.. x93 =G= 0;
e262.. x94 =G= 0;
e263.. x95 =G= 0;
e264.. x96 =G= 0;
e265.. x97 =G= 0;
e266.. x98 =G= 0;
e267.. x99 =G= 0;
e268.. x100 =G= 0;
e269.. x101 =G= 0;
e270.. x102 =G= 0;
e271.. x103 =G= 0;
e272.. x104 =G= 0;
e273.. x105 =G= 0;
e274.. b174 =L= 1.4;
e275.. b175 =L= 1.4;
e276.. b176 =L= 1.4;
e277.. b177 =L= 1.4;
e278.. b194 =L= 1.1;
e279.. b195 =L= 1.1;
e280.. b196 =L= 1.1;
e281.. b197 =L= 1.1;
e282.. b174 =L= 0.9;
e283.. b175 =L= 0.9;
e284.. b176 =L= 0.9;
e285.. b177 =L= 0.9;
e286.. b194 =L= 1.7;
e287.. b195 =L= 1.7;
e288.. b196 =L= 1.7;
e289.. b197 =L= 1.7;
e290.. - b174 =G= -1;
e291.. - b175 =G= -1;
e292.. - b176 =G= -1;
e293.. - b177 =G= -1;
e294.. - b194 =G= -1.3;
e295.. - b195 =G= -1.3;
e296.. - b196 =G= -1.3;
e297.. - b197 =G= -1.3;
e298.. - b174 =G= -1.4;
e299.. - b175 =G= -1.4;
e300.. - b176 =G= -1.4;
e301.. - b177 =G= -1.4;
e302.. - b194 =G= -0.7;
e303.. - b195 =G= -0.7;
e304.. - b196 =G= -0.7;
e305.. - b197 =G= -0.7;
e306.. - x106 + b211 =L= 0.4;
e307.. - x107 + b212 =L= 0.4;
e308.. - x108 + b213 =L= 0.4;
e309.. - x106 + b215 =L= 0.5;
e310.. - x107 + b216 =L= 0.5;
e311.. - x108 + b217 =L= 0.5;
e312.. - x110 + b231 =L= 0.4;
e313.. - x111 + b232 =L= 0.4;
e314.. - x112 + b233 =L= 0.4;
e315.. - x110 + b235 =L= 0.5;
e316.. - x111 + b236 =L= 0.5;
e317.. - x112 + b237 =L= 0.5;
e318.. - x114 + b251 =L= 0.4;
e319.. - x115 + b252 =L= 0.4;
e320.. - x116 + b253 =L= 0.4;
e321.. - x114 + b255 =L= 0.5;
e322.. - x115 + b256 =L= 0.5;
e323.. - x116 + b257 =L= 0.5;
e324.. - x118 + b267 =L= 0.4;
e325.. - x119 + b268 =L= 0.4;
e326.. - x120 + b269 =L= 0.4;
e327.. - x118 + b271 =L= 0.5;
e328.. - x119 + b272 =L= 0.5;
e329.. - x120 + b273 =L= 0.5;
e330.. - x122 + b211 =L= 0.3;
e331.. - x123 + b212 =L= 0.3;
e332.. - x124 + b213 =L= 0.3;
e333.. - x122 + b215 =L= 0.8;
e334.. - x123 + b216 =L= 0.8;
e335.. - x124 + b217 =L= 0.8;
e336.. - x126 + b231 =L= 0.3;
e337.. - x127 + b232 =L= 0.3;
e338.. - x128 + b233 =L= 0.3;
e339.. - x126 + b235 =L= 0.8;
e340.. - x127 + b236 =L= 0.8;
e341.. - x128 + b237 =L= 0.8;
e342.. - x130 + b251 =L= 0.3;
e343.. - x131 + b252 =L= 0.3;
e344.. - x132 + b253 =L= 0.3;
e345.. - x130 + b255 =L= 0.8;
e346.. - x131 + b256 =L= 0.8;
e347.. - x132 + b257 =L= 0.8;
e348.. - x134 + b267 =L= 0.3;
e349.. - x135 + b268 =L= 0.3;
e350.. - x136 + b269 =L= 0.3;
e351.. - x134 + b271 =L= 0.8;
e352.. - x135 + b272 =L= 0.8;
e353.. - x136 + b273 =L= 0.8;
e354.. - x106 - b211 =G= -2;
e355.. - x107 - b212 =G= -2;
e356.. - x108 - b213 =G= -2;
e357.. - x106 - b215 =G= -1.9;
e358.. - x107 - b216 =G= -1.9;
e359.. - x108 - b217 =G= -1.9;
e360.. - x110 - b231 =G= -2;
e361.. - x111 - b232 =G= -2;
e362.. - x112 - b233 =G= -2;
e363.. - x110 - b235 =G= -1.9;
e364.. - x111 - b236 =G= -1.9;
e365.. - x112 - b237 =G= -1.9;
e366.. - x114 - b251 =G= -2;
e367.. - x115 - b252 =G= -2;
e368.. - x116 - b253 =G= -2;
e369.. - x114 - b255 =G= -1.9;
e370.. - x115 - b256 =G= -1.9;
e371.. - x116 - b257 =G= -1.9;
e372.. - x118 - b267 =G= -2;
e373.. - x119 - b268 =G= -2;
e374.. - x120 - b269 =G= -2;
e375.. - x118 - b271 =G= -1.9;
e376.. - x119 - b272 =G= -1.9;
e377.. - x120 - b273 =G= -1.9;
e378.. - x122 - b211 =G= -2;
e379.. - x123 - b212 =G= -2;
e380.. - x124 - b213 =G= -2;
e381.. - x122 - b215 =G= -1.6;
e382.. - x123 - b216 =G= -1.6;
e383.. - x124 - b217 =G= -1.6;
e384.. - x126 - b231 =G= -2;
e385.. - x127 - b232 =G= -2;
e386.. - x128 - b233 =G= -2;
e387.. - x126 - b235 =G= -1.6;
e388.. - x127 - b236 =G= -1.6;
e389.. - x128 - b237 =G= -1.6;
e390.. - x130 - b251 =G= -2;
e391.. - x131 - b252 =G= -2;
e392.. - x132 - b253 =G= -2;
e393.. - x130 - b255 =G= -1.6;
e394.. - x131 - b256 =G= -1.6;
e395.. - x132 - b257 =G= -1.6;
e396.. - x134 - b267 =G= -2;
e397.. - x135 - b268 =G= -2;
e398.. - x136 - b269 =G= -2;
e399.. - x134 - b271 =G= -1.6;
e400.. - x135 - b272 =G= -1.6;
e401.. - x136 - b273 =G= -1.6;
e402.. b210 =L= 0.9;
e403.. b214 =L= 1;
e404.. b230 =L= 1.2;
e405.. b234 =L= 1.3;
e406.. b250 =L= 1.1;
e407.. b254 =L= 1.2;
e408.. b266 =L= 1.1;
e409.. b270 =L= 1.2;
e410.. b210 =L= 0.4;
e411.. b214 =L= 0.9;
e412.. b230 =L= 1.1;
e413.. b234 =L= 1.6;
e414.. b250 =L= 0.4;
e415.. b254 =L= 0.9;
e416.. b266 =L= 0.8;
e417.. b270 =L= 1.3;
e418.. - b210 =G= -1.5;
e419.. - b214 =G= -1.4;
e420.. - b230 =G= -1.2;
e421.. - b234 =G= -1.1;
e422.. - b250 =G= -1.3;
e423.. - b254 =G= -1.2;
e424.. - b266 =G= -1.3;
e425.. - b270 =G= -1.2;
e426.. - b210 =G= -1.9;
e427.. - b214 =G= -1.5;
e428.. - b230 =G= -1.2;
e429.. - b234 =G= -0.8;
e430.. - b250 =G= -1.9;
e431.. - b254 =G= -1.5;
e432.. - b266 =G= -1.5;
e433.. - b270 =G= -1.1;
e434.. b178 + b198 =L= 1;
e435.. b179 + b199 =L= 1;
e436.. b180 + b200 =L= 1;
e437.. b181 + b201 =L= 1;
e438.. b178 + b202 =L= 1;
e439.. b179 + b203 =L= 1;
e440.. b180 + b204 =L= 1;
e441.. b181 + b205 =L= 1;
e442.. b178 + b206 =L= 1;
e443.. b179 + b207 =L= 1;
e444.. b180 + b208 =L= 1;
e445.. b181 + b209 =L= 1;
e446.. b178 + b210 =L= 1;
e447.. b179 + b211 =L= 1;
e448.. b180 + b212 =L= 1;
e449.. b181 + b213 =L= 1;
e450.. b178 + b214 =L= 1;
e451.. b179 + b215 =L= 1;
e452.. b180 + b216 =L= 1;
e453.. b181 + b217 =L= 1;
e454.. b198 + b218 =L= 1;
e455.. b199 + b219 =L= 1;
e456.. b200 + b220 =L= 1;
e457.. b201 + b221 =L= 1;
e458.. b202 + b218 =L= 1;
e459.. b203 + b219 =L= 1;
e460.. b204 + b220 =L= 1;
e461.. b205 + b221 =L= 1;
e462.. b206 + b218 =L= 1;
e463.. b207 + b219 =L= 1;
e464.. b208 + b220 =L= 1;
e465.. b209 + b221 =L= 1;
e466.. b210 + b218 =L= 1;
e467.. b211 + b219 =L= 1;
e468.. b212 + b220 =L= 1;
e469.. b213 + b221 =L= 1;
e470.. b214 + b218 =L= 1;
e471.. b215 + b219 =L= 1;
e472.. b216 + b220 =L= 1;
e473.. b217 + b221 =L= 1;
e474.. b198 + b238 =L= 1;
e475.. b199 + b239 =L= 1;
e476.. b200 + b240 =L= 1;
e477.. b201 + b241 =L= 1;
e478.. b202 + b238 =L= 1;
e479.. b203 + b239 =L= 1;
e480.. b204 + b240 =L= 1;
e481.. b205 + b241 =L= 1;
e482.. b206 + b238 =L= 1;
e483.. b207 + b239 =L= 1;
e484.. b208 + b240 =L= 1;
e485.. b209 + b241 =L= 1;
e486.. b210 + b238 =L= 1;
e487.. b211 + b239 =L= 1;
e488.. b212 + b240 =L= 1;
e489.. b213 + b241 =L= 1;
e490.. b214 + b238 =L= 1;
e491.. b215 + b239 =L= 1;
e492.. b216 + b240 =L= 1;
e493.. b217 + b241 =L= 1;
e494.. b198 + b258 =L= 1;
e495.. b199 + b259 =L= 1;
e496.. b200 + b260 =L= 1;
e497.. b201 + b261 =L= 1;
e498.. b202 + b258 =L= 1;
e499.. b203 + b259 =L= 1;
e500.. b204 + b260 =L= 1;
e501.. b205 + b261 =L= 1;
e502.. b206 + b258 =L= 1;
e503.. b207 + b259 =L= 1;
e504.. b208 + b260 =L= 1;
e505.. b209 + b261 =L= 1;
e506.. b210 + b258 =L= 1;
e507.. b211 + b259 =L= 1;
e508.. b212 + b260 =L= 1;
e509.. b213 + b261 =L= 1;
e510.. b214 + b258 =L= 1;
e511.. b215 + b259 =L= 1;
e512.. b216 + b260 =L= 1;
e513.. b217 + b261 =L= 1;
e514.. b170 + b218 =L= 1;
e515.. b171 + b219 =L= 1;
e516.. b172 + b220 =L= 1;
e517.. b173 + b221 =L= 1;
e518.. b170 + b222 =L= 1;
e519.. b171 + b223 =L= 1;
e520.. b172 + b224 =L= 1;
e521.. b173 + b225 =L= 1;
e522.. b170 + b226 =L= 1;
e523.. b171 + b227 =L= 1;
e524.. b172 + b228 =L= 1;
e525.. b173 + b229 =L= 1;
e526.. b170 + b230 =L= 1;
e527.. b171 + b231 =L= 1;
e528.. b172 + b232 =L= 1;
e529.. b173 + b233 =L= 1;
e530.. b170 + b234 =L= 1;
e531.. b171 + b235 =L= 1;
e532.. b172 + b236 =L= 1;
e533.. b173 + b237 =L= 1;
e534.. b182 + b218 =L= 1;
e535.. b183 + b219 =L= 1;
e536.. b184 + b220 =L= 1;
e537.. b185 + b221 =L= 1;
e538.. b182 + b222 =L= 1;
e539.. b183 + b223 =L= 1;
e540.. b184 + b224 =L= 1;
e541.. b185 + b225 =L= 1;
e542.. b182 + b226 =L= 1;
e543.. b183 + b227 =L= 1;
e544.. b184 + b228 =L= 1;
e545.. b185 + b229 =L= 1;
e546.. b182 + b230 =L= 1;
e547.. b183 + b231 =L= 1;
e548.. b184 + b232 =L= 1;
e549.. b185 + b233 =L= 1;
e550.. b182 + b234 =L= 1;
e551.. b183 + b235 =L= 1;
e552.. b184 + b236 =L= 1;
e553.. b185 + b237 =L= 1;
e554.. b198 + b218 =L= 1;
e555.. b199 + b219 =L= 1;
e556.. b200 + b220 =L= 1;
e557.. b201 + b221 =L= 1;
e558.. b198 + b222 =L= 1;
e559.. b199 + b223 =L= 1;
e560.. b200 + b224 =L= 1;
e561.. b201 + b225 =L= 1;
e562.. b198 + b226 =L= 1;
e563.. b199 + b227 =L= 1;
e564.. b200 + b228 =L= 1;
e565.. b201 + b229 =L= 1;
e566.. b198 + b230 =L= 1;
e567.. b199 + b231 =L= 1;
e568.. b200 + b232 =L= 1;
e569.. b201 + b233 =L= 1;
e570.. b198 + b234 =L= 1;
e571.. b199 + b235 =L= 1;
e572.. b200 + b236 =L= 1;
e573.. b201 + b237 =L= 1;
e574.. b218 + b242 =L= 1;
e575.. b219 + b243 =L= 1;
e576.. b220 + b244 =L= 1;
e577.. b221 + b245 =L= 1;
e578.. b222 + b242 =L= 1;
e579.. b223 + b243 =L= 1;
e580.. b224 + b244 =L= 1;
e581.. b225 + b245 =L= 1;
e582.. b226 + b242 =L= 1;
e583.. b227 + b243 =L= 1;
e584.. b228 + b244 =L= 1;
e585.. b229 + b245 =L= 1;
e586.. b230 + b242 =L= 1;
e587.. b231 + b243 =L= 1;
e588.. b232 + b244 =L= 1;
e589.. b233 + b245 =L= 1;
e590.. b234 + b242 =L= 1;
e591.. b235 + b243 =L= 1;
e592.. b236 + b244 =L= 1;
e593.. b237 + b245 =L= 1;
e594.. b186 + b238 =L= 1;
e595.. b187 + b239 =L= 1;
e596.. b188 + b240 =L= 1;
e597.. b189 + b241 =L= 1;
e598.. b186 + b242 =L= 1;
e599.. b187 + b243 =L= 1;
e600.. b188 + b244 =L= 1;
e601.. b189 + b245 =L= 1;
e602.. b186 + b246 =L= 1;
e603.. b187 + b247 =L= 1;
e604.. b188 + b248 =L= 1;
e605.. b189 + b249 =L= 1;
e606.. b186 + b250 =L= 1;
e607.. b187 + b251 =L= 1;
e608.. b188 + b252 =L= 1;
e609.. b189 + b253 =L= 1;
e610.. b186 + b254 =L= 1;
e611.. b187 + b255 =L= 1;
e612.. b188 + b256 =L= 1;
e613.. b189 + b257 =L= 1;
e614.. b202 + b238 =L= 1;
e615.. b203 + b239 =L= 1;
e616.. b204 + b240 =L= 1;
e617.. b205 + b241 =L= 1;
e618.. b202 + b242 =L= 1;
e619.. b203 + b243 =L= 1;
e620.. b204 + b244 =L= 1;
e621.. b205 + b245 =L= 1;
e622.. b202 + b246 =L= 1;
e623.. b203 + b247 =L= 1;
e624.. b204 + b248 =L= 1;
e625.. b205 + b249 =L= 1;
e626.. b202 + b250 =L= 1;
e627.. b203 + b251 =L= 1;
e628.. b204 + b252 =L= 1;
e629.. b205 + b253 =L= 1;
e630.. b202 + b254 =L= 1;
e631.. b203 + b255 =L= 1;
e632.. b204 + b256 =L= 1;
e633.. b205 + b257 =L= 1;
e634.. b222 + b238 =L= 1;
e635.. b223 + b239 =L= 1;
e636.. b224 + b240 =L= 1;
e637.. b225 + b241 =L= 1;
e638.. b222 + b242 =L= 1;
e639.. b223 + b243 =L= 1;
e640.. b224 + b244 =L= 1;
e641.. b225 + b245 =L= 1;
e642.. b222 + b246 =L= 1;
e643.. b223 + b247 =L= 1;
e644.. b224 + b248 =L= 1;
e645.. b225 + b249 =L= 1;
e646.. b222 + b250 =L= 1;
e647.. b223 + b251 =L= 1;
e648.. b224 + b252 =L= 1;
e649.. b225 + b253 =L= 1;
e650.. b222 + b254 =L= 1;
e651.. b223 + b255 =L= 1;
e652.. b224 + b256 =L= 1;
e653.. b225 + b257 =L= 1;
e654.. b238 + b262 =L= 1;
e655.. b239 + b263 =L= 1;
e656.. b240 + b264 =L= 1;
e657.. b241 + b265 =L= 1;
e658.. b242 + b262 =L= 1;
e659.. b243 + b263 =L= 1;
e660.. b244 + b264 =L= 1;
e661.. b245 + b265 =L= 1;
e662.. b246 + b262 =L= 1;
e663.. b247 + b263 =L= 1;
e664.. b248 + b264 =L= 1;
e665.. b249 + b265 =L= 1;
e666.. b250 + b262 =L= 1;
e667.. b251 + b263 =L= 1;
e668.. b252 + b264 =L= 1;
e669.. b253 + b265 =L= 1;
e670.. b254 + b262 =L= 1;
e671.. b255 + b263 =L= 1;
e672.. b256 + b264 =L= 1;
e673.. b257 + b265 =L= 1;
e674.. b190 + b258 =L= 1;
e675.. b191 + b259 =L= 1;
e676.. b192 + b260 =L= 1;
e677.. b193 + b261 =L= 1;
e678.. b190 + b262 =L= 1;
e679.. b191 + b263 =L= 1;
e680.. b192 + b264 =L= 1;
e681.. b193 + b265 =L= 1;
e682.. b190 + b266 =L= 1;
e683.. b191 + b267 =L= 1;
e684.. b192 + b268 =L= 1;
e685.. b193 + b269 =L= 1;
e686.. b190 + b270 =L= 1;
e687.. b191 + b271 =L= 1;
e688.. b192 + b272 =L= 1;
e689.. b193 + b273 =L= 1;
e690.. b206 + b258 =L= 1;
e691.. b207 + b259 =L= 1;
e692.. b208 + b260 =L= 1;
e693.. b209 + b261 =L= 1;
e694.. b206 + b262 =L= 1;
e695.. b207 + b263 =L= 1;
e696.. b208 + b264 =L= 1;
e697.. b209 + b265 =L= 1;
e698.. b206 + b266 =L= 1;
e699.. b207 + b267 =L= 1;
e700.. b208 + b268 =L= 1;
e701.. b209 + b269 =L= 1;
e702.. b206 + b270 =L= 1;
e703.. b207 + b271 =L= 1;
e704.. b208 + b272 =L= 1;
e705.. b209 + b273 =L= 1;
e706.. b226 + b258 =L= 1;
e707.. b227 + b259 =L= 1;
e708.. b228 + b260 =L= 1;
e709.. b229 + b261 =L= 1;
e710.. b226 + b262 =L= 1;
e711.. b227 + b263 =L= 1;
e712.. b228 + b264 =L= 1;
e713.. b229 + b265 =L= 1;
e714.. b226 + b266 =L= 1;
e715.. b227 + b267 =L= 1;
e716.. b228 + b268 =L= 1;
e717.. b229 + b269 =L= 1;
e718.. b226 + b270 =L= 1;
e719.. b227 + b271 =L= 1;
e720.. b228 + b272 =L= 1;
e721.. b229 + b273 =L= 1;
e722.. b246 + b258 =L= 1;
e723.. b247 + b259 =L= 1;
e724.. b248 + b260 =L= 1;
e725.. b249 + b261 =L= 1;
e726.. b246 + b262 =L= 1;
e727.. b247 + b263 =L= 1;
e728.. b248 + b264 =L= 1;
e729.. b249 + b265 =L= 1;
e730.. b246 + b266 =L= 1;
e731.. b247 + b267 =L= 1;
e732.. b248 + b268 =L= 1;
e733.. b249 + b269 =L= 1;
e734.. b246 + b270 =L= 1;
e735.. b247 + b271 =L= 1;
e736.. b248 + b272 =L= 1;
e737.. b249 + b273 =L= 1;
* set non-default bounds
x2.up = 1;
x3.up = 1;
x4.up = 1;
x5.up = 1;
x6.up = 1;
x7.up = 1;
x8.up = 1;
x9.up = 1;
x10.up = 1;
x11.up = 1;
x12.up = 1;
x13.up = 1;
x14.up = 1;
x15.up = 1;
x16.up = 1;
x17.up = 1;
x18.up = 1;
x19.up = 1;
x20.up = 1;
x21.up = 1;
x22.up = 1;
x23.up = 1;
x24.up = 1;
x25.up = 1;
x26.up = 1;
x27.up = 1;
x28.up = 1;
x29.up = 1;
x30.up = 1;
x31.up = 1;
x32.up = 1;
x33.up = 1;
x34.up = 1;
x35.up = 1;
x36.up = 1;
x37.up = 1;
x38.up = 1;
x39.up = 1;
x40.up = 1;
x41.up = 1;
x42.up = 1;
x43.up = 1;
x44.up = 1;
x45.up = 1;
x46.up = 1;
x47.up = 1;
x48.up = 1;
x49.up = 1;
x50.up = 1;
x51.up = 1;
x52.up = 1;
x53.up = 1;
x54.up = 1;
x55.up = 1;
x56.up = 1;
x57.up = 1;
x58.up = 1;
x59.up = 1;
x60.up = 1;
x61.up = 1;
x62.up = 1;
x63.up = 1;
x64.up = 1;
x65.up = 1;
x66.up = 1;
x67.up = 1;
x68.up = 1;
x69.up = 1;
x70.up = 1;
x71.up = 1;
x72.up = 1;
x73.up = 1;
x74.up = 1;
x75.up = 1;
x76.up = 1;
x77.up = 1;
x78.up = 1;
x79.up = 1;
x80.up = 1;
x81.up = 1;
x82.up = 1;
x83.up = 1;
x84.up = 1;
x85.up = 1;
x86.up = 1;
x87.up = 1;
x88.up = 1;
x89.up = 1;
x90.up = 1;
x91.up = 1;
x92.up = 1;
x93.up = 1;
x94.up = 1;
x95.up = 1;
x96.up = 1;
x97.up = 1;
x98.up = 1;
x99.up = 1;
x100.up = 1;
x101.up = 1;
x102.up = 1;
x103.up = 1;
x104.up = 1;
x105.up = 1;
x106.up = 1;
x107.up = 1;
x108.up = 1;
x109.up = 1;
x110.up = 1;
x111.up = 1;
x112.up = 1;
x113.up = 1;
x114.up = 1;
x115.up = 1;
x116.up = 1;
x117.up = 1;
x118.up = 1;
x119.up = 1;
x120.up = 1;
x121.up = 1;
x122.up = 1;
x123.up = 1;
x124.up = 1;
x125.up = 1;
x126.up = 1;
x127.up = 1;
x128.up = 1;
x129.up = 1;
x130.up = 1;
x131.up = 1;
x132.up = 1;
x133.up = 1;
x134.up = 1;
x135.up = 1;
x136.up = 1;
x137.up = 1;
x138.up = 2;
x139.up = 2;
x140.up = 2;
x141.up = 2;
x142.up = 2;
x143.up = 2;
x144.up = 2;
x145.up = 2;
x146.up = 2;
x147.up = 2;
x148.up = 2;
x149.up = 2;
x150.up = 2;
x151.up = 2;
x152.up = 2;
x153.up = 2;
x154.up = 2;
x155.up = 2;
x156.up = 2;
x157.up = 2;
x158.up = 2;
x159.up = 2;
x160.up = 2;
x161.up = 2;
x162.up = 2;
x163.up = 2;
x164.up = 2;
x165.up = 2;
x166.up = 2;
x167.up = 2;
x168.up = 2;
x169.up = 2;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
