Instance camshape200
| Formatsⓘ | ams gms lp mod nl osil pip py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | -4.63229055 (ANTIGONE) -4.97559754 (BARON) -5.06045236 (COUENNE) -5.13074847 (GUROBI) -4.86514453 (LINDO) -4.83985638 (SCIP) -6.26747796 (SHOT) |
| Referencesⓘ | Anitescu, M and Serban, R, A Sparse Superlinearly Convergent SQP with Applications to Two-Dimensional Shape Optimization, Tech. Rep. ANL/MCS-P706-0198, Argonne National Laboratory, 1998. Dolan, E D and More, J J, Benchmarking Optimization Software with COPS, Tech. Rep. ANL/MCS-246, Mathematics and Computer Science Division, 2000. |
| Sourceⓘ | GAMS Model Library model camshape, Constrained Optimization Problem Set (COPS) |
| Applicationⓘ | Shape Optimization |
| Added to libraryⓘ | 31 Jul 2001 |
| Problem typeⓘ | QCP |
| #Variablesⓘ | 399 |
| #Binary Variablesⓘ | 0 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 200 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 200 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 400 |
| #Linear Constraintsⓘ | 199 |
| #Quadratic Constraintsⓘ | 201 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1196 |
| #Nonlinear Nonzeros in Jacobianⓘ | 599 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 795 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 1 |
| #Blocks in Hessian of Lagrangianⓘ | 1 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 200 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 200 |
| Average blocksize in Hessian of Lagrangianⓘ | 200.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.5708e-02 |
| Maximal coefficientⓘ | 4.0000e+00 |
| Infeasibility of initial pointⓘ | 0.7358 |

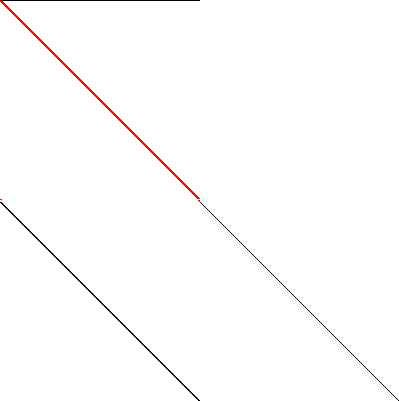

| Sparsity Jacobianⓘ |  |

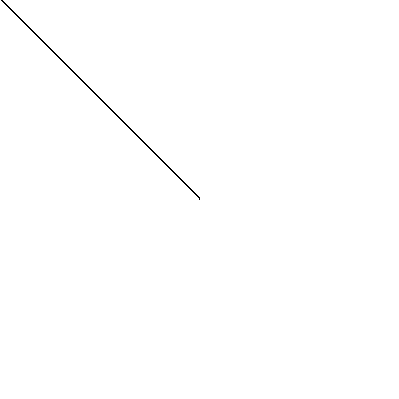

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 401 200 0 201 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 400 400 0 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1397 798 599 0
*
* Solve m using NLP minimizing objvar;
Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18,x19
,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35,x36
,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311
,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324
,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337
,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349,x350
,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362,x363
,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375,x376
,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388,x389
,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,objvar;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401;
e1.. - 0.015707963267949*x1 - 0.015707963267949*x2 - 0.015707963267949*x3
- 0.015707963267949*x4 - 0.015707963267949*x5 - 0.015707963267949*x6
- 0.015707963267949*x7 - 0.015707963267949*x8 - 0.015707963267949*x9
- 0.015707963267949*x10 - 0.015707963267949*x11 - 0.015707963267949*x12
- 0.015707963267949*x13 - 0.015707963267949*x14 - 0.015707963267949*x15
- 0.015707963267949*x16 - 0.015707963267949*x17 - 0.015707963267949*x18
- 0.015707963267949*x19 - 0.015707963267949*x20 - 0.015707963267949*x21
- 0.015707963267949*x22 - 0.015707963267949*x23 - 0.015707963267949*x24
- 0.015707963267949*x25 - 0.015707963267949*x26 - 0.015707963267949*x27
- 0.015707963267949*x28 - 0.015707963267949*x29 - 0.015707963267949*x30
- 0.015707963267949*x31 - 0.015707963267949*x32 - 0.015707963267949*x33
- 0.015707963267949*x34 - 0.015707963267949*x35 - 0.015707963267949*x36
- 0.015707963267949*x37 - 0.015707963267949*x38 - 0.015707963267949*x39
- 0.015707963267949*x40 - 0.015707963267949*x41 - 0.015707963267949*x42
- 0.015707963267949*x43 - 0.015707963267949*x44 - 0.015707963267949*x45
- 0.015707963267949*x46 - 0.015707963267949*x47 - 0.015707963267949*x48
- 0.015707963267949*x49 - 0.015707963267949*x50 - 0.015707963267949*x51
- 0.015707963267949*x52 - 0.015707963267949*x53 - 0.015707963267949*x54
- 0.015707963267949*x55 - 0.015707963267949*x56 - 0.015707963267949*x57
- 0.015707963267949*x58 - 0.015707963267949*x59 - 0.015707963267949*x60
- 0.015707963267949*x61 - 0.015707963267949*x62 - 0.015707963267949*x63
- 0.015707963267949*x64 - 0.015707963267949*x65 - 0.015707963267949*x66
- 0.015707963267949*x67 - 0.015707963267949*x68 - 0.015707963267949*x69
- 0.015707963267949*x70 - 0.015707963267949*x71 - 0.015707963267949*x72
- 0.015707963267949*x73 - 0.015707963267949*x74 - 0.015707963267949*x75
- 0.015707963267949*x76 - 0.015707963267949*x77 - 0.015707963267949*x78
- 0.015707963267949*x79 - 0.015707963267949*x80 - 0.015707963267949*x81
- 0.015707963267949*x82 - 0.015707963267949*x83 - 0.015707963267949*x84
- 0.015707963267949*x85 - 0.015707963267949*x86 - 0.015707963267949*x87
- 0.015707963267949*x88 - 0.015707963267949*x89 - 0.015707963267949*x90
- 0.015707963267949*x91 - 0.015707963267949*x92 - 0.015707963267949*x93
- 0.015707963267949*x94 - 0.015707963267949*x95 - 0.015707963267949*x96
- 0.015707963267949*x97 - 0.015707963267949*x98 - 0.015707963267949*x99
- 0.015707963267949*x100 - 0.015707963267949*x101
- 0.015707963267949*x102 - 0.015707963267949*x103
- 0.015707963267949*x104 - 0.015707963267949*x105
- 0.015707963267949*x106 - 0.015707963267949*x107
- 0.015707963267949*x108 - 0.015707963267949*x109
- 0.015707963267949*x110 - 0.015707963267949*x111
- 0.015707963267949*x112 - 0.015707963267949*x113
- 0.015707963267949*x114 - 0.015707963267949*x115
- 0.015707963267949*x116 - 0.015707963267949*x117
- 0.015707963267949*x118 - 0.015707963267949*x119
- 0.015707963267949*x120 - 0.015707963267949*x121
- 0.015707963267949*x122 - 0.015707963267949*x123
- 0.015707963267949*x124 - 0.015707963267949*x125
- 0.015707963267949*x126 - 0.015707963267949*x127
- 0.015707963267949*x128 - 0.015707963267949*x129
- 0.015707963267949*x130 - 0.015707963267949*x131
- 0.015707963267949*x132 - 0.015707963267949*x133
- 0.015707963267949*x134 - 0.015707963267949*x135
- 0.015707963267949*x136 - 0.015707963267949*x137
- 0.015707963267949*x138 - 0.015707963267949*x139
- 0.015707963267949*x140 - 0.015707963267949*x141
- 0.015707963267949*x142 - 0.015707963267949*x143
- 0.015707963267949*x144 - 0.015707963267949*x145
- 0.015707963267949*x146 - 0.015707963267949*x147
- 0.015707963267949*x148 - 0.015707963267949*x149
- 0.015707963267949*x150 - 0.015707963267949*x151
- 0.015707963267949*x152 - 0.015707963267949*x153
- 0.015707963267949*x154 - 0.015707963267949*x155
- 0.015707963267949*x156 - 0.015707963267949*x157
- 0.015707963267949*x158 - 0.015707963267949*x159
- 0.015707963267949*x160 - 0.015707963267949*x161
- 0.015707963267949*x162 - 0.015707963267949*x163
- 0.015707963267949*x164 - 0.015707963267949*x165
- 0.015707963267949*x166 - 0.015707963267949*x167
- 0.015707963267949*x168 - 0.015707963267949*x169
- 0.015707963267949*x170 - 0.015707963267949*x171
- 0.015707963267949*x172 - 0.015707963267949*x173
- 0.015707963267949*x174 - 0.015707963267949*x175
- 0.015707963267949*x176 - 0.015707963267949*x177
- 0.015707963267949*x178 - 0.015707963267949*x179
- 0.015707963267949*x180 - 0.015707963267949*x181
- 0.015707963267949*x182 - 0.015707963267949*x183
- 0.015707963267949*x184 - 0.015707963267949*x185
- 0.015707963267949*x186 - 0.015707963267949*x187
- 0.015707963267949*x188 - 0.015707963267949*x189
- 0.015707963267949*x190 - 0.015707963267949*x191
- 0.015707963267949*x192 - 0.015707963267949*x193
- 0.015707963267949*x194 - 0.015707963267949*x195
- 0.015707963267949*x196 - 0.015707963267949*x197
- 0.015707963267949*x198 - 0.015707963267949*x199
- 0.015707963267949*x200 - objvar =E= 0;
e2.. (-x1*x2) - x2*x3 + 1.99996091355262*x1*x3 =L= 0;
e3.. (-x2*x3) - x3*x4 + 1.99996091355262*x2*x4 =L= 0;
e4.. (-x3*x4) - x4*x5 + 1.99996091355262*x3*x5 =L= 0;
e5.. (-x4*x5) - x5*x6 + 1.99996091355262*x4*x6 =L= 0;
e6.. (-x5*x6) - x6*x7 + 1.99996091355262*x5*x7 =L= 0;
e7.. (-x6*x7) - x7*x8 + 1.99996091355262*x6*x8 =L= 0;
e8.. (-x7*x8) - x8*x9 + 1.99996091355262*x7*x9 =L= 0;
e9.. (-x8*x9) - x9*x10 + 1.99996091355262*x8*x10 =L= 0;
e10.. (-x9*x10) - x10*x11 + 1.99996091355262*x9*x11 =L= 0;
e11.. (-x10*x11) - x11*x12 + 1.99996091355262*x10*x12 =L= 0;
e12.. (-x11*x12) - x12*x13 + 1.99996091355262*x11*x13 =L= 0;
e13.. (-x12*x13) - x13*x14 + 1.99996091355262*x12*x14 =L= 0;
e14.. (-x13*x14) - x14*x15 + 1.99996091355262*x13*x15 =L= 0;
e15.. (-x14*x15) - x15*x16 + 1.99996091355262*x14*x16 =L= 0;
e16.. (-x15*x16) - x16*x17 + 1.99996091355262*x15*x17 =L= 0;
e17.. (-x16*x17) - x17*x18 + 1.99996091355262*x16*x18 =L= 0;
e18.. (-x17*x18) - x18*x19 + 1.99996091355262*x17*x19 =L= 0;
e19.. (-x18*x19) - x19*x20 + 1.99996091355262*x18*x20 =L= 0;
e20.. (-x19*x20) - x20*x21 + 1.99996091355262*x19*x21 =L= 0;
e21.. (-x20*x21) - x21*x22 + 1.99996091355262*x20*x22 =L= 0;
e22.. (-x21*x22) - x22*x23 + 1.99996091355262*x21*x23 =L= 0;
e23.. (-x22*x23) - x23*x24 + 1.99996091355262*x22*x24 =L= 0;
e24.. (-x23*x24) - x24*x25 + 1.99996091355262*x23*x25 =L= 0;
e25.. (-x24*x25) - x25*x26 + 1.99996091355262*x24*x26 =L= 0;
e26.. (-x25*x26) - x26*x27 + 1.99996091355262*x25*x27 =L= 0;
e27.. (-x26*x27) - x27*x28 + 1.99996091355262*x26*x28 =L= 0;
e28.. (-x27*x28) - x28*x29 + 1.99996091355262*x27*x29 =L= 0;
e29.. (-x28*x29) - x29*x30 + 1.99996091355262*x28*x30 =L= 0;
e30.. (-x29*x30) - x30*x31 + 1.99996091355262*x29*x31 =L= 0;
e31.. (-x30*x31) - x31*x32 + 1.99996091355262*x30*x32 =L= 0;
e32.. (-x31*x32) - x32*x33 + 1.99996091355262*x31*x33 =L= 0;
e33.. (-x32*x33) - x33*x34 + 1.99996091355262*x32*x34 =L= 0;
e34.. (-x33*x34) - x34*x35 + 1.99996091355262*x33*x35 =L= 0;
e35.. (-x34*x35) - x35*x36 + 1.99996091355262*x34*x36 =L= 0;
e36.. (-x35*x36) - x36*x37 + 1.99996091355262*x35*x37 =L= 0;
e37.. (-x36*x37) - x37*x38 + 1.99996091355262*x36*x38 =L= 0;
e38.. (-x37*x38) - x38*x39 + 1.99996091355262*x37*x39 =L= 0;
e39.. (-x38*x39) - x39*x40 + 1.99996091355262*x38*x40 =L= 0;
e40.. (-x39*x40) - x40*x41 + 1.99996091355262*x39*x41 =L= 0;
e41.. (-x40*x41) - x41*x42 + 1.99996091355262*x40*x42 =L= 0;
e42.. (-x41*x42) - x42*x43 + 1.99996091355262*x41*x43 =L= 0;
e43.. (-x42*x43) - x43*x44 + 1.99996091355262*x42*x44 =L= 0;
e44.. (-x43*x44) - x44*x45 + 1.99996091355262*x43*x45 =L= 0;
e45.. (-x44*x45) - x45*x46 + 1.99996091355262*x44*x46 =L= 0;
e46.. (-x45*x46) - x46*x47 + 1.99996091355262*x45*x47 =L= 0;
e47.. (-x46*x47) - x47*x48 + 1.99996091355262*x46*x48 =L= 0;
e48.. (-x47*x48) - x48*x49 + 1.99996091355262*x47*x49 =L= 0;
e49.. (-x48*x49) - x49*x50 + 1.99996091355262*x48*x50 =L= 0;
e50.. (-x49*x50) - x50*x51 + 1.99996091355262*x49*x51 =L= 0;
e51.. (-x50*x51) - x51*x52 + 1.99996091355262*x50*x52 =L= 0;
e52.. (-x51*x52) - x52*x53 + 1.99996091355262*x51*x53 =L= 0;
e53.. (-x52*x53) - x53*x54 + 1.99996091355262*x52*x54 =L= 0;
e54.. (-x53*x54) - x54*x55 + 1.99996091355262*x53*x55 =L= 0;
e55.. (-x54*x55) - x55*x56 + 1.99996091355262*x54*x56 =L= 0;
e56.. (-x55*x56) - x56*x57 + 1.99996091355262*x55*x57 =L= 0;
e57.. (-x56*x57) - x57*x58 + 1.99996091355262*x56*x58 =L= 0;
e58.. (-x57*x58) - x58*x59 + 1.99996091355262*x57*x59 =L= 0;
e59.. (-x58*x59) - x59*x60 + 1.99996091355262*x58*x60 =L= 0;
e60.. (-x59*x60) - x60*x61 + 1.99996091355262*x59*x61 =L= 0;
e61.. (-x60*x61) - x61*x62 + 1.99996091355262*x60*x62 =L= 0;
e62.. (-x61*x62) - x62*x63 + 1.99996091355262*x61*x63 =L= 0;
e63.. (-x62*x63) - x63*x64 + 1.99996091355262*x62*x64 =L= 0;
e64.. (-x63*x64) - x64*x65 + 1.99996091355262*x63*x65 =L= 0;
e65.. (-x64*x65) - x65*x66 + 1.99996091355262*x64*x66 =L= 0;
e66.. (-x65*x66) - x66*x67 + 1.99996091355262*x65*x67 =L= 0;
e67.. (-x66*x67) - x67*x68 + 1.99996091355262*x66*x68 =L= 0;
e68.. (-x67*x68) - x68*x69 + 1.99996091355262*x67*x69 =L= 0;
e69.. (-x68*x69) - x69*x70 + 1.99996091355262*x68*x70 =L= 0;
e70.. (-x69*x70) - x70*x71 + 1.99996091355262*x69*x71 =L= 0;
e71.. (-x70*x71) - x71*x72 + 1.99996091355262*x70*x72 =L= 0;
e72.. (-x71*x72) - x72*x73 + 1.99996091355262*x71*x73 =L= 0;
e73.. (-x72*x73) - x73*x74 + 1.99996091355262*x72*x74 =L= 0;
e74.. (-x73*x74) - x74*x75 + 1.99996091355262*x73*x75 =L= 0;
e75.. (-x74*x75) - x75*x76 + 1.99996091355262*x74*x76 =L= 0;
e76.. (-x75*x76) - x76*x77 + 1.99996091355262*x75*x77 =L= 0;
e77.. (-x76*x77) - x77*x78 + 1.99996091355262*x76*x78 =L= 0;
e78.. (-x77*x78) - x78*x79 + 1.99996091355262*x77*x79 =L= 0;
e79.. (-x78*x79) - x79*x80 + 1.99996091355262*x78*x80 =L= 0;
e80.. (-x79*x80) - x80*x81 + 1.99996091355262*x79*x81 =L= 0;
e81.. (-x80*x81) - x81*x82 + 1.99996091355262*x80*x82 =L= 0;
e82.. (-x81*x82) - x82*x83 + 1.99996091355262*x81*x83 =L= 0;
e83.. (-x82*x83) - x83*x84 + 1.99996091355262*x82*x84 =L= 0;
e84.. (-x83*x84) - x84*x85 + 1.99996091355262*x83*x85 =L= 0;
e85.. (-x84*x85) - x85*x86 + 1.99996091355262*x84*x86 =L= 0;
e86.. (-x85*x86) - x86*x87 + 1.99996091355262*x85*x87 =L= 0;
e87.. (-x86*x87) - x87*x88 + 1.99996091355262*x86*x88 =L= 0;
e88.. (-x87*x88) - x88*x89 + 1.99996091355262*x87*x89 =L= 0;
e89.. (-x88*x89) - x89*x90 + 1.99996091355262*x88*x90 =L= 0;
e90.. (-x89*x90) - x90*x91 + 1.99996091355262*x89*x91 =L= 0;
e91.. (-x90*x91) - x91*x92 + 1.99996091355262*x90*x92 =L= 0;
e92.. (-x91*x92) - x92*x93 + 1.99996091355262*x91*x93 =L= 0;
e93.. (-x92*x93) - x93*x94 + 1.99996091355262*x92*x94 =L= 0;
e94.. (-x93*x94) - x94*x95 + 1.99996091355262*x93*x95 =L= 0;
e95.. (-x94*x95) - x95*x96 + 1.99996091355262*x94*x96 =L= 0;
e96.. (-x95*x96) - x96*x97 + 1.99996091355262*x95*x97 =L= 0;
e97.. (-x96*x97) - x97*x98 + 1.99996091355262*x96*x98 =L= 0;
e98.. (-x97*x98) - x98*x99 + 1.99996091355262*x97*x99 =L= 0;
e99.. (-x98*x99) - x99*x100 + 1.99996091355262*x98*x100 =L= 0;
e100.. (-x99*x100) - x100*x101 + 1.99996091355262*x99*x101 =L= 0;
e101.. (-x100*x101) - x101*x102 + 1.99996091355262*x100*x102 =L= 0;
e102.. (-x101*x102) - x102*x103 + 1.99996091355262*x101*x103 =L= 0;
e103.. (-x102*x103) - x103*x104 + 1.99996091355262*x102*x104 =L= 0;
e104.. (-x103*x104) - x104*x105 + 1.99996091355262*x103*x105 =L= 0;
e105.. (-x104*x105) - x105*x106 + 1.99996091355262*x104*x106 =L= 0;
e106.. (-x105*x106) - x106*x107 + 1.99996091355262*x105*x107 =L= 0;
e107.. (-x106*x107) - x107*x108 + 1.99996091355262*x106*x108 =L= 0;
e108.. (-x107*x108) - x108*x109 + 1.99996091355262*x107*x109 =L= 0;
e109.. (-x108*x109) - x109*x110 + 1.99996091355262*x108*x110 =L= 0;
e110.. (-x109*x110) - x110*x111 + 1.99996091355262*x109*x111 =L= 0;
e111.. (-x110*x111) - x111*x112 + 1.99996091355262*x110*x112 =L= 0;
e112.. (-x111*x112) - x112*x113 + 1.99996091355262*x111*x113 =L= 0;
e113.. (-x112*x113) - x113*x114 + 1.99996091355262*x112*x114 =L= 0;
e114.. (-x113*x114) - x114*x115 + 1.99996091355262*x113*x115 =L= 0;
e115.. (-x114*x115) - x115*x116 + 1.99996091355262*x114*x116 =L= 0;
e116.. (-x115*x116) - x116*x117 + 1.99996091355262*x115*x117 =L= 0;
e117.. (-x116*x117) - x117*x118 + 1.99996091355262*x116*x118 =L= 0;
e118.. (-x117*x118) - x118*x119 + 1.99996091355262*x117*x119 =L= 0;
e119.. (-x118*x119) - x119*x120 + 1.99996091355262*x118*x120 =L= 0;
e120.. (-x119*x120) - x120*x121 + 1.99996091355262*x119*x121 =L= 0;
e121.. (-x120*x121) - x121*x122 + 1.99996091355262*x120*x122 =L= 0;
e122.. (-x121*x122) - x122*x123 + 1.99996091355262*x121*x123 =L= 0;
e123.. (-x122*x123) - x123*x124 + 1.99996091355262*x122*x124 =L= 0;
e124.. (-x123*x124) - x124*x125 + 1.99996091355262*x123*x125 =L= 0;
e125.. (-x124*x125) - x125*x126 + 1.99996091355262*x124*x126 =L= 0;
e126.. (-x125*x126) - x126*x127 + 1.99996091355262*x125*x127 =L= 0;
e127.. (-x126*x127) - x127*x128 + 1.99996091355262*x126*x128 =L= 0;
e128.. (-x127*x128) - x128*x129 + 1.99996091355262*x127*x129 =L= 0;
e129.. (-x128*x129) - x129*x130 + 1.99996091355262*x128*x130 =L= 0;
e130.. (-x129*x130) - x130*x131 + 1.99996091355262*x129*x131 =L= 0;
e131.. (-x130*x131) - x131*x132 + 1.99996091355262*x130*x132 =L= 0;
e132.. (-x131*x132) - x132*x133 + 1.99996091355262*x131*x133 =L= 0;
e133.. (-x132*x133) - x133*x134 + 1.99996091355262*x132*x134 =L= 0;
e134.. (-x133*x134) - x134*x135 + 1.99996091355262*x133*x135 =L= 0;
e135.. (-x134*x135) - x135*x136 + 1.99996091355262*x134*x136 =L= 0;
e136.. (-x135*x136) - x136*x137 + 1.99996091355262*x135*x137 =L= 0;
e137.. (-x136*x137) - x137*x138 + 1.99996091355262*x136*x138 =L= 0;
e138.. (-x137*x138) - x138*x139 + 1.99996091355262*x137*x139 =L= 0;
e139.. (-x138*x139) - x139*x140 + 1.99996091355262*x138*x140 =L= 0;
e140.. (-x139*x140) - x140*x141 + 1.99996091355262*x139*x141 =L= 0;
e141.. (-x140*x141) - x141*x142 + 1.99996091355262*x140*x142 =L= 0;
e142.. (-x141*x142) - x142*x143 + 1.99996091355262*x141*x143 =L= 0;
e143.. (-x142*x143) - x143*x144 + 1.99996091355262*x142*x144 =L= 0;
e144.. (-x143*x144) - x144*x145 + 1.99996091355262*x143*x145 =L= 0;
e145.. (-x144*x145) - x145*x146 + 1.99996091355262*x144*x146 =L= 0;
e146.. (-x145*x146) - x146*x147 + 1.99996091355262*x145*x147 =L= 0;
e147.. (-x146*x147) - x147*x148 + 1.99996091355262*x146*x148 =L= 0;
e148.. (-x147*x148) - x148*x149 + 1.99996091355262*x147*x149 =L= 0;
e149.. (-x148*x149) - x149*x150 + 1.99996091355262*x148*x150 =L= 0;
e150.. (-x149*x150) - x150*x151 + 1.99996091355262*x149*x151 =L= 0;
e151.. (-x150*x151) - x151*x152 + 1.99996091355262*x150*x152 =L= 0;
e152.. (-x151*x152) - x152*x153 + 1.99996091355262*x151*x153 =L= 0;
e153.. (-x152*x153) - x153*x154 + 1.99996091355262*x152*x154 =L= 0;
e154.. (-x153*x154) - x154*x155 + 1.99996091355262*x153*x155 =L= 0;
e155.. (-x154*x155) - x155*x156 + 1.99996091355262*x154*x156 =L= 0;
e156.. (-x155*x156) - x156*x157 + 1.99996091355262*x155*x157 =L= 0;
e157.. (-x156*x157) - x157*x158 + 1.99996091355262*x156*x158 =L= 0;
e158.. (-x157*x158) - x158*x159 + 1.99996091355262*x157*x159 =L= 0;
e159.. (-x158*x159) - x159*x160 + 1.99996091355262*x158*x160 =L= 0;
e160.. (-x159*x160) - x160*x161 + 1.99996091355262*x159*x161 =L= 0;
e161.. (-x160*x161) - x161*x162 + 1.99996091355262*x160*x162 =L= 0;
e162.. (-x161*x162) - x162*x163 + 1.99996091355262*x161*x163 =L= 0;
e163.. (-x162*x163) - x163*x164 + 1.99996091355262*x162*x164 =L= 0;
e164.. (-x163*x164) - x164*x165 + 1.99996091355262*x163*x165 =L= 0;
e165.. (-x164*x165) - x165*x166 + 1.99996091355262*x164*x166 =L= 0;
e166.. (-x165*x166) - x166*x167 + 1.99996091355262*x165*x167 =L= 0;
e167.. (-x166*x167) - x167*x168 + 1.99996091355262*x166*x168 =L= 0;
e168.. (-x167*x168) - x168*x169 + 1.99996091355262*x167*x169 =L= 0;
e169.. (-x168*x169) - x169*x170 + 1.99996091355262*x168*x170 =L= 0;
e170.. (-x169*x170) - x170*x171 + 1.99996091355262*x169*x171 =L= 0;
e171.. (-x170*x171) - x171*x172 + 1.99996091355262*x170*x172 =L= 0;
e172.. (-x171*x172) - x172*x173 + 1.99996091355262*x171*x173 =L= 0;
e173.. (-x172*x173) - x173*x174 + 1.99996091355262*x172*x174 =L= 0;
e174.. (-x173*x174) - x174*x175 + 1.99996091355262*x173*x175 =L= 0;
e175.. (-x174*x175) - x175*x176 + 1.99996091355262*x174*x176 =L= 0;
e176.. (-x175*x176) - x176*x177 + 1.99996091355262*x175*x177 =L= 0;
e177.. (-x176*x177) - x177*x178 + 1.99996091355262*x176*x178 =L= 0;
e178.. (-x177*x178) - x178*x179 + 1.99996091355262*x177*x179 =L= 0;
e179.. (-x178*x179) - x179*x180 + 1.99996091355262*x178*x180 =L= 0;
e180.. (-x179*x180) - x180*x181 + 1.99996091355262*x179*x181 =L= 0;
e181.. (-x180*x181) - x181*x182 + 1.99996091355262*x180*x182 =L= 0;
e182.. (-x181*x182) - x182*x183 + 1.99996091355262*x181*x183 =L= 0;
e183.. (-x182*x183) - x183*x184 + 1.99996091355262*x182*x184 =L= 0;
e184.. (-x183*x184) - x184*x185 + 1.99996091355262*x183*x185 =L= 0;
e185.. (-x184*x185) - x185*x186 + 1.99996091355262*x184*x186 =L= 0;
e186.. (-x185*x186) - x186*x187 + 1.99996091355262*x185*x187 =L= 0;
e187.. (-x186*x187) - x187*x188 + 1.99996091355262*x186*x188 =L= 0;
e188.. (-x187*x188) - x188*x189 + 1.99996091355262*x187*x189 =L= 0;
e189.. (-x188*x189) - x189*x190 + 1.99996091355262*x188*x190 =L= 0;
e190.. (-x189*x190) - x190*x191 + 1.99996091355262*x189*x191 =L= 0;
e191.. (-x190*x191) - x191*x192 + 1.99996091355262*x190*x192 =L= 0;
e192.. (-x191*x192) - x192*x193 + 1.99996091355262*x191*x193 =L= 0;
e193.. (-x192*x193) - x193*x194 + 1.99996091355262*x192*x194 =L= 0;
e194.. (-x193*x194) - x194*x195 + 1.99996091355262*x193*x195 =L= 0;
e195.. (-x194*x195) - x195*x196 + 1.99996091355262*x194*x196 =L= 0;
e196.. (-x195*x196) - x196*x197 + 1.99996091355262*x195*x197 =L= 0;
e197.. (-x196*x197) - x197*x198 + 1.99996091355262*x196*x198 =L= 0;
e198.. (-x197*x198) - x198*x199 + 1.99996091355262*x197*x199 =L= 0;
e199.. (-x198*x199) - x199*x200 + 1.99996091355262*x198*x200 =L= 0;
e200.. (-x1*x2) - x1 + 1.99996091355262*x2 =L= 0;
e201.. (-x199*x200) - 2*x200 + 3.99992182710524*x199 =L= 0;
e202.. 1.99996091355262*sqr(x200) - 4*x200 =L= 0;
e203.. x1 - x2 + x201 =E= 0;
e204.. x2 - x3 + x202 =E= 0;
e205.. x3 - x4 + x203 =E= 0;
e206.. x4 - x5 + x204 =E= 0;
e207.. x5 - x6 + x205 =E= 0;
e208.. x6 - x7 + x206 =E= 0;
e209.. x7 - x8 + x207 =E= 0;
e210.. x8 - x9 + x208 =E= 0;
e211.. x9 - x10 + x209 =E= 0;
e212.. x10 - x11 + x210 =E= 0;
e213.. x11 - x12 + x211 =E= 0;
e214.. x12 - x13 + x212 =E= 0;
e215.. x13 - x14 + x213 =E= 0;
e216.. x14 - x15 + x214 =E= 0;
e217.. x15 - x16 + x215 =E= 0;
e218.. x16 - x17 + x216 =E= 0;
e219.. x17 - x18 + x217 =E= 0;
e220.. x18 - x19 + x218 =E= 0;
e221.. x19 - x20 + x219 =E= 0;
e222.. x20 - x21 + x220 =E= 0;
e223.. x21 - x22 + x221 =E= 0;
e224.. x22 - x23 + x222 =E= 0;
e225.. x23 - x24 + x223 =E= 0;
e226.. x24 - x25 + x224 =E= 0;
e227.. x25 - x26 + x225 =E= 0;
e228.. x26 - x27 + x226 =E= 0;
e229.. x27 - x28 + x227 =E= 0;
e230.. x28 - x29 + x228 =E= 0;
e231.. x29 - x30 + x229 =E= 0;
e232.. x30 - x31 + x230 =E= 0;
e233.. x31 - x32 + x231 =E= 0;
e234.. x32 - x33 + x232 =E= 0;
e235.. x33 - x34 + x233 =E= 0;
e236.. x34 - x35 + x234 =E= 0;
e237.. x35 - x36 + x235 =E= 0;
e238.. x36 - x37 + x236 =E= 0;
e239.. x37 - x38 + x237 =E= 0;
e240.. x38 - x39 + x238 =E= 0;
e241.. x39 - x40 + x239 =E= 0;
e242.. x40 - x41 + x240 =E= 0;
e243.. x41 - x42 + x241 =E= 0;
e244.. x42 - x43 + x242 =E= 0;
e245.. x43 - x44 + x243 =E= 0;
e246.. x44 - x45 + x244 =E= 0;
e247.. x45 - x46 + x245 =E= 0;
e248.. x46 - x47 + x246 =E= 0;
e249.. x47 - x48 + x247 =E= 0;
e250.. x48 - x49 + x248 =E= 0;
e251.. x49 - x50 + x249 =E= 0;
e252.. x50 - x51 + x250 =E= 0;
e253.. x51 - x52 + x251 =E= 0;
e254.. x52 - x53 + x252 =E= 0;
e255.. x53 - x54 + x253 =E= 0;
e256.. x54 - x55 + x254 =E= 0;
e257.. x55 - x56 + x255 =E= 0;
e258.. x56 - x57 + x256 =E= 0;
e259.. x57 - x58 + x257 =E= 0;
e260.. x58 - x59 + x258 =E= 0;
e261.. x59 - x60 + x259 =E= 0;
e262.. x60 - x61 + x260 =E= 0;
e263.. x61 - x62 + x261 =E= 0;
e264.. x62 - x63 + x262 =E= 0;
e265.. x63 - x64 + x263 =E= 0;
e266.. x64 - x65 + x264 =E= 0;
e267.. x65 - x66 + x265 =E= 0;
e268.. x66 - x67 + x266 =E= 0;
e269.. x67 - x68 + x267 =E= 0;
e270.. x68 - x69 + x268 =E= 0;
e271.. x69 - x70 + x269 =E= 0;
e272.. x70 - x71 + x270 =E= 0;
e273.. x71 - x72 + x271 =E= 0;
e274.. x72 - x73 + x272 =E= 0;
e275.. x73 - x74 + x273 =E= 0;
e276.. x74 - x75 + x274 =E= 0;
e277.. x75 - x76 + x275 =E= 0;
e278.. x76 - x77 + x276 =E= 0;
e279.. x77 - x78 + x277 =E= 0;
e280.. x78 - x79 + x278 =E= 0;
e281.. x79 - x80 + x279 =E= 0;
e282.. x80 - x81 + x280 =E= 0;
e283.. x81 - x82 + x281 =E= 0;
e284.. x82 - x83 + x282 =E= 0;
e285.. x83 - x84 + x283 =E= 0;
e286.. x84 - x85 + x284 =E= 0;
e287.. x85 - x86 + x285 =E= 0;
e288.. x86 - x87 + x286 =E= 0;
e289.. x87 - x88 + x287 =E= 0;
e290.. x88 - x89 + x288 =E= 0;
e291.. x89 - x90 + x289 =E= 0;
e292.. x90 - x91 + x290 =E= 0;
e293.. x91 - x92 + x291 =E= 0;
e294.. x92 - x93 + x292 =E= 0;
e295.. x93 - x94 + x293 =E= 0;
e296.. x94 - x95 + x294 =E= 0;
e297.. x95 - x96 + x295 =E= 0;
e298.. x96 - x97 + x296 =E= 0;
e299.. x97 - x98 + x297 =E= 0;
e300.. x98 - x99 + x298 =E= 0;
e301.. x99 - x100 + x299 =E= 0;
e302.. x100 - x101 + x300 =E= 0;
e303.. x101 - x102 + x301 =E= 0;
e304.. x102 - x103 + x302 =E= 0;
e305.. x103 - x104 + x303 =E= 0;
e306.. x104 - x105 + x304 =E= 0;
e307.. x105 - x106 + x305 =E= 0;
e308.. x106 - x107 + x306 =E= 0;
e309.. x107 - x108 + x307 =E= 0;
e310.. x108 - x109 + x308 =E= 0;
e311.. x109 - x110 + x309 =E= 0;
e312.. x110 - x111 + x310 =E= 0;
e313.. x111 - x112 + x311 =E= 0;
e314.. x112 - x113 + x312 =E= 0;
e315.. x113 - x114 + x313 =E= 0;
e316.. x114 - x115 + x314 =E= 0;
e317.. x115 - x116 + x315 =E= 0;
e318.. x116 - x117 + x316 =E= 0;
e319.. x117 - x118 + x317 =E= 0;
e320.. x118 - x119 + x318 =E= 0;
e321.. x119 - x120 + x319 =E= 0;
e322.. x120 - x121 + x320 =E= 0;
e323.. x121 - x122 + x321 =E= 0;
e324.. x122 - x123 + x322 =E= 0;
e325.. x123 - x124 + x323 =E= 0;
e326.. x124 - x125 + x324 =E= 0;
e327.. x125 - x126 + x325 =E= 0;
e328.. x126 - x127 + x326 =E= 0;
e329.. x127 - x128 + x327 =E= 0;
e330.. x128 - x129 + x328 =E= 0;
e331.. x129 - x130 + x329 =E= 0;
e332.. x130 - x131 + x330 =E= 0;
e333.. x131 - x132 + x331 =E= 0;
e334.. x132 - x133 + x332 =E= 0;
e335.. x133 - x134 + x333 =E= 0;
e336.. x134 - x135 + x334 =E= 0;
e337.. x135 - x136 + x335 =E= 0;
e338.. x136 - x137 + x336 =E= 0;
e339.. x137 - x138 + x337 =E= 0;
e340.. x138 - x139 + x338 =E= 0;
e341.. x139 - x140 + x339 =E= 0;
e342.. x140 - x141 + x340 =E= 0;
e343.. x141 - x142 + x341 =E= 0;
e344.. x142 - x143 + x342 =E= 0;
e345.. x143 - x144 + x343 =E= 0;
e346.. x144 - x145 + x344 =E= 0;
e347.. x145 - x146 + x345 =E= 0;
e348.. x146 - x147 + x346 =E= 0;
e349.. x147 - x148 + x347 =E= 0;
e350.. x148 - x149 + x348 =E= 0;
e351.. x149 - x150 + x349 =E= 0;
e352.. x150 - x151 + x350 =E= 0;
e353.. x151 - x152 + x351 =E= 0;
e354.. x152 - x153 + x352 =E= 0;
e355.. x153 - x154 + x353 =E= 0;
e356.. x154 - x155 + x354 =E= 0;
e357.. x155 - x156 + x355 =E= 0;
e358.. x156 - x157 + x356 =E= 0;
e359.. x157 - x158 + x357 =E= 0;
e360.. x158 - x159 + x358 =E= 0;
e361.. x159 - x160 + x359 =E= 0;
e362.. x160 - x161 + x360 =E= 0;
e363.. x161 - x162 + x361 =E= 0;
e364.. x162 - x163 + x362 =E= 0;
e365.. x163 - x164 + x363 =E= 0;
e366.. x164 - x165 + x364 =E= 0;
e367.. x165 - x166 + x365 =E= 0;
e368.. x166 - x167 + x366 =E= 0;
e369.. x167 - x168 + x367 =E= 0;
e370.. x168 - x169 + x368 =E= 0;
e371.. x169 - x170 + x369 =E= 0;
e372.. x170 - x171 + x370 =E= 0;
e373.. x171 - x172 + x371 =E= 0;
e374.. x172 - x173 + x372 =E= 0;
e375.. x173 - x174 + x373 =E= 0;
e376.. x174 - x175 + x374 =E= 0;
e377.. x175 - x176 + x375 =E= 0;
e378.. x176 - x177 + x376 =E= 0;
e379.. x177 - x178 + x377 =E= 0;
e380.. x178 - x179 + x378 =E= 0;
e381.. x179 - x180 + x379 =E= 0;
e382.. x180 - x181 + x380 =E= 0;
e383.. x181 - x182 + x381 =E= 0;
e384.. x182 - x183 + x382 =E= 0;
e385.. x183 - x184 + x383 =E= 0;
e386.. x184 - x185 + x384 =E= 0;
e387.. x185 - x186 + x385 =E= 0;
e388.. x186 - x187 + x386 =E= 0;
e389.. x187 - x188 + x387 =E= 0;
e390.. x188 - x189 + x388 =E= 0;
e391.. x189 - x190 + x389 =E= 0;
e392.. x190 - x191 + x390 =E= 0;
e393.. x191 - x192 + x391 =E= 0;
e394.. x192 - x193 + x392 =E= 0;
e395.. x193 - x194 + x393 =E= 0;
e396.. x194 - x195 + x394 =E= 0;
e397.. x195 - x196 + x395 =E= 0;
e398.. x196 - x197 + x396 =E= 0;
e399.. x197 - x198 + x397 =E= 0;
e400.. x198 - x199 + x398 =E= 0;
e401.. x199 - x200 + x399 =E= 0;
* set non-default bounds
x1.lo = 1; x1.up = 1.00003908797519;
x2.lo = 1; x2.up = 2;
x3.lo = 1; x3.up = 2;
x4.lo = 1; x4.up = 2;
x5.lo = 1; x5.up = 2;
x6.lo = 1; x6.up = 2;
x7.lo = 1; x7.up = 2;
x8.lo = 1; x8.up = 2;
x9.lo = 1; x9.up = 2;
x10.lo = 1; x10.up = 2;
x11.lo = 1; x11.up = 2;
x12.lo = 1; x12.up = 2;
x13.lo = 1; x13.up = 2;
x14.lo = 1; x14.up = 2;
x15.lo = 1; x15.up = 2;
x16.lo = 1; x16.up = 2;
x17.lo = 1; x17.up = 2;
x18.lo = 1; x18.up = 2;
x19.lo = 1; x19.up = 2;
x20.lo = 1; x20.up = 2;
x21.lo = 1; x21.up = 2;
x22.lo = 1; x22.up = 2;
x23.lo = 1; x23.up = 2;
x24.lo = 1; x24.up = 2;
x25.lo = 1; x25.up = 2;
x26.lo = 1; x26.up = 2;
x27.lo = 1; x27.up = 2;
x28.lo = 1; x28.up = 2;
x29.lo = 1; x29.up = 2;
x30.lo = 1; x30.up = 2;
x31.lo = 1; x31.up = 2;
x32.lo = 1; x32.up = 2;
x33.lo = 1; x33.up = 2;
x34.lo = 1; x34.up = 2;
x35.lo = 1; x35.up = 2;
x36.lo = 1; x36.up = 2;
x37.lo = 1; x37.up = 2;
x38.lo = 1; x38.up = 2;
x39.lo = 1; x39.up = 2;
x40.lo = 1; x40.up = 2;
x41.lo = 1; x41.up = 2;
x42.lo = 1; x42.up = 2;
x43.lo = 1; x43.up = 2;
x44.lo = 1; x44.up = 2;
x45.lo = 1; x45.up = 2;
x46.lo = 1; x46.up = 2;
x47.lo = 1; x47.up = 2;
x48.lo = 1; x48.up = 2;
x49.lo = 1; x49.up = 2;
x50.lo = 1; x50.up = 2;
x51.lo = 1; x51.up = 2;
x52.lo = 1; x52.up = 2;
x53.lo = 1; x53.up = 2;
x54.lo = 1; x54.up = 2;
x55.lo = 1; x55.up = 2;
x56.lo = 1; x56.up = 2;
x57.lo = 1; x57.up = 2;
x58.lo = 1; x58.up = 2;
x59.lo = 1; x59.up = 2;
x60.lo = 1; x60.up = 2;
x61.lo = 1; x61.up = 2;
x62.lo = 1; x62.up = 2;
x63.lo = 1; x63.up = 2;
x64.lo = 1; x64.up = 2;
x65.lo = 1; x65.up = 2;
x66.lo = 1; x66.up = 2;
x67.lo = 1; x67.up = 2;
x68.lo = 1; x68.up = 2;
x69.lo = 1; x69.up = 2;
x70.lo = 1; x70.up = 2;
x71.lo = 1; x71.up = 2;
x72.lo = 1; x72.up = 2;
x73.lo = 1; x73.up = 2;
x74.lo = 1; x74.up = 2;
x75.lo = 1; x75.up = 2;
x76.lo = 1; x76.up = 2;
x77.lo = 1; x77.up = 2;
x78.lo = 1; x78.up = 2;
x79.lo = 1; x79.up = 2;
x80.lo = 1; x80.up = 2;
x81.lo = 1; x81.up = 2;
x82.lo = 1; x82.up = 2;
x83.lo = 1; x83.up = 2;
x84.lo = 1; x84.up = 2;
x85.lo = 1; x85.up = 2;
x86.lo = 1; x86.up = 2;
x87.lo = 1; x87.up = 2;
x88.lo = 1; x88.up = 2;
x89.lo = 1; x89.up = 2;
x90.lo = 1; x90.up = 2;
x91.lo = 1; x91.up = 2;
x92.lo = 1; x92.up = 2;
x93.lo = 1; x93.up = 2;
x94.lo = 1; x94.up = 2;
x95.lo = 1; x95.up = 2;
x96.lo = 1; x96.up = 2;
x97.lo = 1; x97.up = 2;
x98.lo = 1; x98.up = 2;
x99.lo = 1; x99.up = 2;
x100.lo = 1; x100.up = 2;
x101.lo = 1; x101.up = 2;
x102.lo = 1; x102.up = 2;
x103.lo = 1; x103.up = 2;
x104.lo = 1; x104.up = 2;
x105.lo = 1; x105.up = 2;
x106.lo = 1; x106.up = 2;
x107.lo = 1; x107.up = 2;
x108.lo = 1; x108.up = 2;
x109.lo = 1; x109.up = 2;
x110.lo = 1; x110.up = 2;
x111.lo = 1; x111.up = 2;
x112.lo = 1; x112.up = 2;
x113.lo = 1; x113.up = 2;
x114.lo = 1; x114.up = 2;
x115.lo = 1; x115.up = 2;
x116.lo = 1; x116.up = 2;
x117.lo = 1; x117.up = 2;
x118.lo = 1; x118.up = 2;
x119.lo = 1; x119.up = 2;
x120.lo = 1; x120.up = 2;
x121.lo = 1; x121.up = 2;
x122.lo = 1; x122.up = 2;
x123.lo = 1; x123.up = 2;
x124.lo = 1; x124.up = 2;
x125.lo = 1; x125.up = 2;
x126.lo = 1; x126.up = 2;
x127.lo = 1; x127.up = 2;
x128.lo = 1; x128.up = 2;
x129.lo = 1; x129.up = 2;
x130.lo = 1; x130.up = 2;
x131.lo = 1; x131.up = 2;
x132.lo = 1; x132.up = 2;
x133.lo = 1; x133.up = 2;
x134.lo = 1; x134.up = 2;
x135.lo = 1; x135.up = 2;
x136.lo = 1; x136.up = 2;
x137.lo = 1; x137.up = 2;
x138.lo = 1; x138.up = 2;
x139.lo = 1; x139.up = 2;
x140.lo = 1; x140.up = 2;
x141.lo = 1; x141.up = 2;
x142.lo = 1; x142.up = 2;
x143.lo = 1; x143.up = 2;
x144.lo = 1; x144.up = 2;
x145.lo = 1; x145.up = 2;
x146.lo = 1; x146.up = 2;
x147.lo = 1; x147.up = 2;
x148.lo = 1; x148.up = 2;
x149.lo = 1; x149.up = 2;
x150.lo = 1; x150.up = 2;
x151.lo = 1; x151.up = 2;
x152.lo = 1; x152.up = 2;
x153.lo = 1; x153.up = 2;
x154.lo = 1; x154.up = 2;
x155.lo = 1; x155.up = 2;
x156.lo = 1; x156.up = 2;
x157.lo = 1; x157.up = 2;
x158.lo = 1; x158.up = 2;
x159.lo = 1; x159.up = 2;
x160.lo = 1; x160.up = 2;
x161.lo = 1; x161.up = 2;
x162.lo = 1; x162.up = 2;
x163.lo = 1; x163.up = 2;
x164.lo = 1; x164.up = 2;
x165.lo = 1; x165.up = 2;
x166.lo = 1; x166.up = 2;
x167.lo = 1; x167.up = 2;
x168.lo = 1; x168.up = 2;
x169.lo = 1; x169.up = 2;
x170.lo = 1; x170.up = 2;
x171.lo = 1; x171.up = 2;
x172.lo = 1; x172.up = 2;
x173.lo = 1; x173.up = 2;
x174.lo = 1; x174.up = 2;
x175.lo = 1; x175.up = 2;
x176.lo = 1; x176.up = 2;
x177.lo = 1; x177.up = 2;
x178.lo = 1; x178.up = 2;
x179.lo = 1; x179.up = 2;
x180.lo = 1; x180.up = 2;
x181.lo = 1; x181.up = 2;
x182.lo = 1; x182.up = 2;
x183.lo = 1; x183.up = 2;
x184.lo = 1; x184.up = 2;
x185.lo = 1; x185.up = 2;
x186.lo = 1; x186.up = 2;
x187.lo = 1; x187.up = 2;
x188.lo = 1; x188.up = 2;
x189.lo = 1; x189.up = 2;
x190.lo = 1; x190.up = 2;
x191.lo = 1; x191.up = 2;
x192.lo = 1; x192.up = 2;
x193.lo = 1; x193.up = 2;
x194.lo = 1; x194.up = 2;
x195.lo = 1; x195.up = 2;
x196.lo = 1; x196.up = 2;
x197.lo = 1; x197.up = 2;
x198.lo = 1; x198.up = 2;
x199.lo = 1; x199.up = 2;
x200.lo = 1.99062211148182; x200.up = 2;
x202.lo = -0.00937788851817849; x202.up = 0.00937788851817849;
x203.lo = -0.00937788851817849; x203.up = 0.00937788851817849;
x204.lo = -0.00937788851817849; x204.up = 0.00937788851817849;
x205.lo = -0.00937788851817849; x205.up = 0.00937788851817849;
x206.lo = -0.00937788851817849; x206.up = 0.00937788851817849;
x207.lo = -0.00937788851817849; x207.up = 0.00937788851817849;
x208.lo = -0.00937788851817849; x208.up = 0.00937788851817849;
x209.lo = -0.00937788851817849; x209.up = 0.00937788851817849;
x210.lo = -0.00937788851817849; x210.up = 0.00937788851817849;
x211.lo = -0.00937788851817849; x211.up = 0.00937788851817849;
x212.lo = -0.00937788851817849; x212.up = 0.00937788851817849;
x213.lo = -0.00937788851817849; x213.up = 0.00937788851817849;
x214.lo = -0.00937788851817849; x214.up = 0.00937788851817849;
x215.lo = -0.00937788851817849; x215.up = 0.00937788851817849;
x216.lo = -0.00937788851817849; x216.up = 0.00937788851817849;
x217.lo = -0.00937788851817849; x217.up = 0.00937788851817849;
x218.lo = -0.00937788851817849; x218.up = 0.00937788851817849;
x219.lo = -0.00937788851817849; x219.up = 0.00937788851817849;
x220.lo = -0.00937788851817849; x220.up = 0.00937788851817849;
x221.lo = -0.00937788851817849; x221.up = 0.00937788851817849;
x222.lo = -0.00937788851817849; x222.up = 0.00937788851817849;
x223.lo = -0.00937788851817849; x223.up = 0.00937788851817849;
x224.lo = -0.00937788851817849; x224.up = 0.00937788851817849;
x225.lo = -0.00937788851817849; x225.up = 0.00937788851817849;
x226.lo = -0.00937788851817849; x226.up = 0.00937788851817849;
x227.lo = -0.00937788851817849; x227.up = 0.00937788851817849;
x228.lo = -0.00937788851817849; x228.up = 0.00937788851817849;
x229.lo = -0.00937788851817849; x229.up = 0.00937788851817849;
x230.lo = -0.00937788851817849; x230.up = 0.00937788851817849;
x231.lo = -0.00937788851817849; x231.up = 0.00937788851817849;
x232.lo = -0.00937788851817849; x232.up = 0.00937788851817849;
x233.lo = -0.00937788851817849; x233.up = 0.00937788851817849;
x234.lo = -0.00937788851817849; x234.up = 0.00937788851817849;
x235.lo = -0.00937788851817849; x235.up = 0.00937788851817849;
x236.lo = -0.00937788851817849; x236.up = 0.00937788851817849;
x237.lo = -0.00937788851817849; x237.up = 0.00937788851817849;
x238.lo = -0.00937788851817849; x238.up = 0.00937788851817849;
x239.lo = -0.00937788851817849; x239.up = 0.00937788851817849;
x240.lo = -0.00937788851817849; x240.up = 0.00937788851817849;
x241.lo = -0.00937788851817849; x241.up = 0.00937788851817849;
x242.lo = -0.00937788851817849; x242.up = 0.00937788851817849;
x243.lo = -0.00937788851817849; x243.up = 0.00937788851817849;
x244.lo = -0.00937788851817849; x244.up = 0.00937788851817849;
x245.lo = -0.00937788851817849; x245.up = 0.00937788851817849;
x246.lo = -0.00937788851817849; x246.up = 0.00937788851817849;
x247.lo = -0.00937788851817849; x247.up = 0.00937788851817849;
x248.lo = -0.00937788851817849; x248.up = 0.00937788851817849;
x249.lo = -0.00937788851817849; x249.up = 0.00937788851817849;
x250.lo = -0.00937788851817849; x250.up = 0.00937788851817849;
x251.lo = -0.00937788851817849; x251.up = 0.00937788851817849;
x252.lo = -0.00937788851817849; x252.up = 0.00937788851817849;
x253.lo = -0.00937788851817849; x253.up = 0.00937788851817849;
x254.lo = -0.00937788851817849; x254.up = 0.00937788851817849;
x255.lo = -0.00937788851817849; x255.up = 0.00937788851817849;
x256.lo = -0.00937788851817849; x256.up = 0.00937788851817849;
x257.lo = -0.00937788851817849; x257.up = 0.00937788851817849;
x258.lo = -0.00937788851817849; x258.up = 0.00937788851817849;
x259.lo = -0.00937788851817849; x259.up = 0.00937788851817849;
x260.lo = -0.00937788851817849; x260.up = 0.00937788851817849;
x261.lo = -0.00937788851817849; x261.up = 0.00937788851817849;
x262.lo = -0.00937788851817849; x262.up = 0.00937788851817849;
x263.lo = -0.00937788851817849; x263.up = 0.00937788851817849;
x264.lo = -0.00937788851817849; x264.up = 0.00937788851817849;
x265.lo = -0.00937788851817849; x265.up = 0.00937788851817849;
x266.lo = -0.00937788851817849; x266.up = 0.00937788851817849;
x267.lo = -0.00937788851817849; x267.up = 0.00937788851817849;
x268.lo = -0.00937788851817849; x268.up = 0.00937788851817849;
x269.lo = -0.00937788851817849; x269.up = 0.00937788851817849;
x270.lo = -0.00937788851817849; x270.up = 0.00937788851817849;
x271.lo = -0.00937788851817849; x271.up = 0.00937788851817849;
x272.lo = -0.00937788851817849; x272.up = 0.00937788851817849;
x273.lo = -0.00937788851817849; x273.up = 0.00937788851817849;
x274.lo = -0.00937788851817849; x274.up = 0.00937788851817849;
x275.lo = -0.00937788851817849; x275.up = 0.00937788851817849;
x276.lo = -0.00937788851817849; x276.up = 0.00937788851817849;
x277.lo = -0.00937788851817849; x277.up = 0.00937788851817849;
x278.lo = -0.00937788851817849; x278.up = 0.00937788851817849;
x279.lo = -0.00937788851817849; x279.up = 0.00937788851817849;
x280.lo = -0.00937788851817849; x280.up = 0.00937788851817849;
x281.lo = -0.00937788851817849; x281.up = 0.00937788851817849;
x282.lo = -0.00937788851817849; x282.up = 0.00937788851817849;
x283.lo = -0.00937788851817849; x283.up = 0.00937788851817849;
x284.lo = -0.00937788851817849; x284.up = 0.00937788851817849;
x285.lo = -0.00937788851817849; x285.up = 0.00937788851817849;
x286.lo = -0.00937788851817849; x286.up = 0.00937788851817849;
x287.lo = -0.00937788851817849; x287.up = 0.00937788851817849;
x288.lo = -0.00937788851817849; x288.up = 0.00937788851817849;
x289.lo = -0.00937788851817849; x289.up = 0.00937788851817849;
x290.lo = -0.00937788851817849; x290.up = 0.00937788851817849;
x291.lo = -0.00937788851817849; x291.up = 0.00937788851817849;
x292.lo = -0.00937788851817849; x292.up = 0.00937788851817849;
x293.lo = -0.00937788851817849; x293.up = 0.00937788851817849;
x294.lo = -0.00937788851817849; x294.up = 0.00937788851817849;
x295.lo = -0.00937788851817849; x295.up = 0.00937788851817849;
x296.lo = -0.00937788851817849; x296.up = 0.00937788851817849;
x297.lo = -0.00937788851817849; x297.up = 0.00937788851817849;
x298.lo = -0.00937788851817849; x298.up = 0.00937788851817849;
x299.lo = -0.00937788851817849; x299.up = 0.00937788851817849;
x300.lo = -0.00937788851817849; x300.up = 0.00937788851817849;
x301.lo = -0.00937788851817849; x301.up = 0.00937788851817849;
x302.lo = -0.00937788851817849; x302.up = 0.00937788851817849;
x303.lo = -0.00937788851817849; x303.up = 0.00937788851817849;
x304.lo = -0.00937788851817849; x304.up = 0.00937788851817849;
x305.lo = -0.00937788851817849; x305.up = 0.00937788851817849;
x306.lo = -0.00937788851817849; x306.up = 0.00937788851817849;
x307.lo = -0.00937788851817849; x307.up = 0.00937788851817849;
x308.lo = -0.00937788851817849; x308.up = 0.00937788851817849;
x309.lo = -0.00937788851817849; x309.up = 0.00937788851817849;
x310.lo = -0.00937788851817849; x310.up = 0.00937788851817849;
x311.lo = -0.00937788851817849; x311.up = 0.00937788851817849;
x312.lo = -0.00937788851817849; x312.up = 0.00937788851817849;
x313.lo = -0.00937788851817849; x313.up = 0.00937788851817849;
x314.lo = -0.00937788851817849; x314.up = 0.00937788851817849;
x315.lo = -0.00937788851817849; x315.up = 0.00937788851817849;
x316.lo = -0.00937788851817849; x316.up = 0.00937788851817849;
x317.lo = -0.00937788851817849; x317.up = 0.00937788851817849;
x318.lo = -0.00937788851817849; x318.up = 0.00937788851817849;
x319.lo = -0.00937788851817849; x319.up = 0.00937788851817849;
x320.lo = -0.00937788851817849; x320.up = 0.00937788851817849;
x321.lo = -0.00937788851817849; x321.up = 0.00937788851817849;
x322.lo = -0.00937788851817849; x322.up = 0.00937788851817849;
x323.lo = -0.00937788851817849; x323.up = 0.00937788851817849;
x324.lo = -0.00937788851817849; x324.up = 0.00937788851817849;
x325.lo = -0.00937788851817849; x325.up = 0.00937788851817849;
x326.lo = -0.00937788851817849; x326.up = 0.00937788851817849;
x327.lo = -0.00937788851817849; x327.up = 0.00937788851817849;
x328.lo = -0.00937788851817849; x328.up = 0.00937788851817849;
x329.lo = -0.00937788851817849; x329.up = 0.00937788851817849;
x330.lo = -0.00937788851817849; x330.up = 0.00937788851817849;
x331.lo = -0.00937788851817849; x331.up = 0.00937788851817849;
x332.lo = -0.00937788851817849; x332.up = 0.00937788851817849;
x333.lo = -0.00937788851817849; x333.up = 0.00937788851817849;
x334.lo = -0.00937788851817849; x334.up = 0.00937788851817849;
x335.lo = -0.00937788851817849; x335.up = 0.00937788851817849;
x336.lo = -0.00937788851817849; x336.up = 0.00937788851817849;
x337.lo = -0.00937788851817849; x337.up = 0.00937788851817849;
x338.lo = -0.00937788851817849; x338.up = 0.00937788851817849;
x339.lo = -0.00937788851817849; x339.up = 0.00937788851817849;
x340.lo = -0.00937788851817849; x340.up = 0.00937788851817849;
x341.lo = -0.00937788851817849; x341.up = 0.00937788851817849;
x342.lo = -0.00937788851817849; x342.up = 0.00937788851817849;
x343.lo = -0.00937788851817849; x343.up = 0.00937788851817849;
x344.lo = -0.00937788851817849; x344.up = 0.00937788851817849;
x345.lo = -0.00937788851817849; x345.up = 0.00937788851817849;
x346.lo = -0.00937788851817849; x346.up = 0.00937788851817849;
x347.lo = -0.00937788851817849; x347.up = 0.00937788851817849;
x348.lo = -0.00937788851817849; x348.up = 0.00937788851817849;
x349.lo = -0.00937788851817849; x349.up = 0.00937788851817849;
x350.lo = -0.00937788851817849; x350.up = 0.00937788851817849;
x351.lo = -0.00937788851817849; x351.up = 0.00937788851817849;
x352.lo = -0.00937788851817849; x352.up = 0.00937788851817849;
x353.lo = -0.00937788851817849; x353.up = 0.00937788851817849;
x354.lo = -0.00937788851817849; x354.up = 0.00937788851817849;
x355.lo = -0.00937788851817849; x355.up = 0.00937788851817849;
x356.lo = -0.00937788851817849; x356.up = 0.00937788851817849;
x357.lo = -0.00937788851817849; x357.up = 0.00937788851817849;
x358.lo = -0.00937788851817849; x358.up = 0.00937788851817849;
x359.lo = -0.00937788851817849; x359.up = 0.00937788851817849;
x360.lo = -0.00937788851817849; x360.up = 0.00937788851817849;
x361.lo = -0.00937788851817849; x361.up = 0.00937788851817849;
x362.lo = -0.00937788851817849; x362.up = 0.00937788851817849;
x363.lo = -0.00937788851817849; x363.up = 0.00937788851817849;
x364.lo = -0.00937788851817849; x364.up = 0.00937788851817849;
x365.lo = -0.00937788851817849; x365.up = 0.00937788851817849;
x366.lo = -0.00937788851817849; x366.up = 0.00937788851817849;
x367.lo = -0.00937788851817849; x367.up = 0.00937788851817849;
x368.lo = -0.00937788851817849; x368.up = 0.00937788851817849;
x369.lo = -0.00937788851817849; x369.up = 0.00937788851817849;
x370.lo = -0.00937788851817849; x370.up = 0.00937788851817849;
x371.lo = -0.00937788851817849; x371.up = 0.00937788851817849;
x372.lo = -0.00937788851817849; x372.up = 0.00937788851817849;
x373.lo = -0.00937788851817849; x373.up = 0.00937788851817849;
x374.lo = -0.00937788851817849; x374.up = 0.00937788851817849;
x375.lo = -0.00937788851817849; x375.up = 0.00937788851817849;
x376.lo = -0.00937788851817849; x376.up = 0.00937788851817849;
x377.lo = -0.00937788851817849; x377.up = 0.00937788851817849;
x378.lo = -0.00937788851817849; x378.up = 0.00937788851817849;
x379.lo = -0.00937788851817849; x379.up = 0.00937788851817849;
x380.lo = -0.00937788851817849; x380.up = 0.00937788851817849;
x381.lo = -0.00937788851817849; x381.up = 0.00937788851817849;
x382.lo = -0.00937788851817849; x382.up = 0.00937788851817849;
x383.lo = -0.00937788851817849; x383.up = 0.00937788851817849;
x384.lo = -0.00937788851817849; x384.up = 0.00937788851817849;
x385.lo = -0.00937788851817849; x385.up = 0.00937788851817849;
x386.lo = -0.00937788851817849; x386.up = 0.00937788851817849;
x387.lo = -0.00937788851817849; x387.up = 0.00937788851817849;
x388.lo = -0.00937788851817849; x388.up = 0.00937788851817849;
x389.lo = -0.00937788851817849; x389.up = 0.00937788851817849;
x390.lo = -0.00937788851817849; x390.up = 0.00937788851817849;
x391.lo = -0.00937788851817849; x391.up = 0.00937788851817849;
x392.lo = -0.00937788851817849; x392.up = 0.00937788851817849;
x393.lo = -0.00937788851817849; x393.up = 0.00937788851817849;
x394.lo = -0.00937788851817849; x394.up = 0.00937788851817849;
x395.lo = -0.00937788851817849; x395.up = 0.00937788851817849;
x396.lo = -0.00937788851817849; x396.up = 0.00937788851817849;
x397.lo = -0.00937788851817849; x397.up = 0.00937788851817849;
x398.lo = -0.00937788851817849; x398.up = 0.00937788851817849;
x399.lo = -0.00937788851817849; x399.up = 0.00937788851817849;
* set non-default levels
x1.l = 1.00003908797519;
x2.l = 1.5;
x3.l = 1.5;
x4.l = 1.5;
x5.l = 1.5;
x6.l = 1.5;
x7.l = 1.5;
x8.l = 1.5;
x9.l = 1.5;
x10.l = 1.5;
x11.l = 1.5;
x12.l = 1.5;
x13.l = 1.5;
x14.l = 1.5;
x15.l = 1.5;
x16.l = 1.5;
x17.l = 1.5;
x18.l = 1.5;
x19.l = 1.5;
x20.l = 1.5;
x21.l = 1.5;
x22.l = 1.5;
x23.l = 1.5;
x24.l = 1.5;
x25.l = 1.5;
x26.l = 1.5;
x27.l = 1.5;
x28.l = 1.5;
x29.l = 1.5;
x30.l = 1.5;
x31.l = 1.5;
x32.l = 1.5;
x33.l = 1.5;
x34.l = 1.5;
x35.l = 1.5;
x36.l = 1.5;
x37.l = 1.5;
x38.l = 1.5;
x39.l = 1.5;
x40.l = 1.5;
x41.l = 1.5;
x42.l = 1.5;
x43.l = 1.5;
x44.l = 1.5;
x45.l = 1.5;
x46.l = 1.5;
x47.l = 1.5;
x48.l = 1.5;
x49.l = 1.5;
x50.l = 1.5;
x51.l = 1.5;
x52.l = 1.5;
x53.l = 1.5;
x54.l = 1.5;
x55.l = 1.5;
x56.l = 1.5;
x57.l = 1.5;
x58.l = 1.5;
x59.l = 1.5;
x60.l = 1.5;
x61.l = 1.5;
x62.l = 1.5;
x63.l = 1.5;
x64.l = 1.5;
x65.l = 1.5;
x66.l = 1.5;
x67.l = 1.5;
x68.l = 1.5;
x69.l = 1.5;
x70.l = 1.5;
x71.l = 1.5;
x72.l = 1.5;
x73.l = 1.5;
x74.l = 1.5;
x75.l = 1.5;
x76.l = 1.5;
x77.l = 1.5;
x78.l = 1.5;
x79.l = 1.5;
x80.l = 1.5;
x81.l = 1.5;
x82.l = 1.5;
x83.l = 1.5;
x84.l = 1.5;
x85.l = 1.5;
x86.l = 1.5;
x87.l = 1.5;
x88.l = 1.5;
x89.l = 1.5;
x90.l = 1.5;
x91.l = 1.5;
x92.l = 1.5;
x93.l = 1.5;
x94.l = 1.5;
x95.l = 1.5;
x96.l = 1.5;
x97.l = 1.5;
x98.l = 1.5;
x99.l = 1.5;
x100.l = 1.5;
x101.l = 1.5;
x102.l = 1.5;
x103.l = 1.5;
x104.l = 1.5;
x105.l = 1.5;
x106.l = 1.5;
x107.l = 1.5;
x108.l = 1.5;
x109.l = 1.5;
x110.l = 1.5;
x111.l = 1.5;
x112.l = 1.5;
x113.l = 1.5;
x114.l = 1.5;
x115.l = 1.5;
x116.l = 1.5;
x117.l = 1.5;
x118.l = 1.5;
x119.l = 1.5;
x120.l = 1.5;
x121.l = 1.5;
x122.l = 1.5;
x123.l = 1.5;
x124.l = 1.5;
x125.l = 1.5;
x126.l = 1.5;
x127.l = 1.5;
x128.l = 1.5;
x129.l = 1.5;
x130.l = 1.5;
x131.l = 1.5;
x132.l = 1.5;
x133.l = 1.5;
x134.l = 1.5;
x135.l = 1.5;
x136.l = 1.5;
x137.l = 1.5;
x138.l = 1.5;
x139.l = 1.5;
x140.l = 1.5;
x141.l = 1.5;
x142.l = 1.5;
x143.l = 1.5;
x144.l = 1.5;
x145.l = 1.5;
x146.l = 1.5;
x147.l = 1.5;
x148.l = 1.5;
x149.l = 1.5;
x150.l = 1.5;
x151.l = 1.5;
x152.l = 1.5;
x153.l = 1.5;
x154.l = 1.5;
x155.l = 1.5;
x156.l = 1.5;
x157.l = 1.5;
x158.l = 1.5;
x159.l = 1.5;
x160.l = 1.5;
x161.l = 1.5;
x162.l = 1.5;
x163.l = 1.5;
x164.l = 1.5;
x165.l = 1.5;
x166.l = 1.5;
x167.l = 1.5;
x168.l = 1.5;
x169.l = 1.5;
x170.l = 1.5;
x171.l = 1.5;
x172.l = 1.5;
x173.l = 1.5;
x174.l = 1.5;
x175.l = 1.5;
x176.l = 1.5;
x177.l = 1.5;
x178.l = 1.5;
x179.l = 1.5;
x180.l = 1.5;
x181.l = 1.5;
x182.l = 1.5;
x183.l = 1.5;
x184.l = 1.5;
x185.l = 1.5;
x186.l = 1.5;
x187.l = 1.5;
x188.l = 1.5;
x189.l = 1.5;
x190.l = 1.5;
x191.l = 1.5;
x192.l = 1.5;
x193.l = 1.5;
x194.l = 1.5;
x195.l = 1.5;
x196.l = 1.5;
x197.l = 1.5;
x198.l = 1.5;
x199.l = 1.5;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set NLP $set NLP NLP
Solve m using %NLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
