Instance crudeoil_li01
| Formatsⓘ | ams gms lp mod nl osil pip py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 5155.94559900 (ANTIGONE) 5175.85102000 (BARON) 5147.43966000 (COUENNE) 5122.56454000 (GUROBI) 5197.45933400 (LINDO) 5137.85826500 (SCIP) 5252.00000000 (SHOT) |
| Referencesⓘ | Li, Jie, Li, Wenkai, Karimi, I A, and Srinivasan, Rajagopalan, Improving the robustness and efficiency of crude scheduling algorithms, AIChE Journal, 53:10, 2007, 2659-2680. Li, Jie, Misener, Ruth, and Floudas, C A, Continuous-time modeling and global optimization approach for scheduling of crude oil operations, AIChE Journal, 58:1, 2012, 205-226. |
| Sourceⓘ | ANTIGONE test library model Other_MIQCQP/ex01 |
| Applicationⓘ | Crude Oil Scheduling |
| Added to libraryⓘ | 12 Sep 2013 |
| Problem typeⓘ | MBQCP |
| #Variablesⓘ | 344 |
| #Binary Variablesⓘ | 48 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 60 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 40 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 695 |
| #Linear Constraintsⓘ | 639 |
| #Quadratic Constraintsⓘ | 56 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1981 |
| #Nonlinear Nonzeros in Jacobianⓘ | 112 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 112 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 0 |
| #Blocks in Hessian of Lagrangianⓘ | 16 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 3 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 4 |
| Average blocksize in Hessian of Lagrangianⓘ | 3.75 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 4.5000e-03 |
| Maximal coefficientⓘ | 8.5000e+02 |
| Infeasibility of initial pointⓘ | 810 |

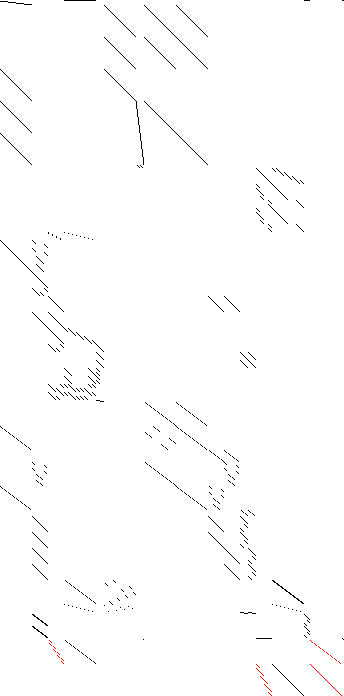

| Sparsity Jacobianⓘ |  |

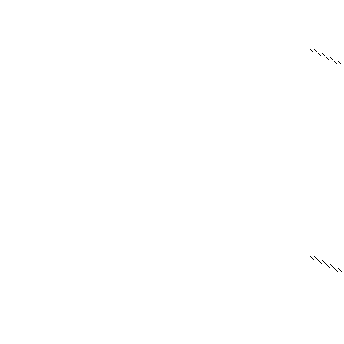

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 696 177 207 312 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 345 297 48 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 2022 1910 112 0
*
* Solve m using MINLP maximizing objvar;
Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17,b18,b19
,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34,b35,b36
,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,x49,x50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311
,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324
,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337
,x338,x339,x340,x341,x342,x343,x344,objvar;
Positive Variables x49,x50,x51,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62
,x63,x64,x65,x66,x67,x68,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79
,x80,x81,x82,x83,x84,x85,x86,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96
,x97,x98,x99,x100,x101,x102,x103,x104,x105,x106,x107,x108,x109,x110
,x111,x112,x113,x114,x115,x116,x117,x118,x119,x120,x121,x122,x123
,x124,x125,x126,x127,x128,x129,x130,x131,x132,x133,x134,x135,x136
,x137,x138,x139,x140,x141,x142,x143,x144,x145,x146,x147,x148,x149
,x150,x151,x152,x153,x154,x155,x156,x157,x158,x159,x160,x161,x162
,x163,x164,x165,x166,x167,x168,x169,x170,x171,x172,x173,x174,x175
,x176,x177,x178,x179,x180,x181,x182,x183,x184,x185,x186,x187,x188
,x189,x190,x191,x192,x193,x194,x195,x196,x197,x198,x199,x200,x201
,x202,x203,x204,x205,x206,x207,x208,x209,x210,x211,x212,x213,x214
,x215,x216,x217,x218,x219,x220,x221,x222,x223,x224,x225,x226,x227
,x228,x229,x230,x231,x232,x233,x234,x235,x236,x237,x238,x239,x240
,x241,x242,x243,x244,x245,x246,x247,x248,x249,x250,x251,x252,x253
,x254,x255,x256,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282
,x283,x284,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295
,x296,x297,x298,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308
,x309,x310,x343,x344;
Binary Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17
,b18,b19,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34
,b35,b36,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696;
e1.. b1 + b2 + b3 + b4 + b5 + b6 + b7 + b8 =E= 1;
e2.. b9 + b10 + b11 + b12 + b13 + b14 + b15 + b16 =E= 1;
e3.. b17 + b18 + b19 + b20 + b21 + b22 + b23 + b24 =E= 1;
e4.. b25 + b26 + b27 + b28 + b29 + b30 + b31 + b32 =E= 1;
e5.. - x105 - 1.25*x145 + 1.25*x177 =L= 0;
e6.. - x106 - 1.25*x146 + 1.25*x178 =L= 0;
e7.. - x107 - 1.25*x147 + 1.25*x179 =L= 0;
e8.. - x108 - 1.25*x148 + 1.25*x180 =L= 0;
e9.. - x109 - 1.25*x149 + 1.25*x181 =L= 0;
e10.. - x110 - 1.25*x150 + 1.25*x182 =L= 0;
e11.. - x111 - 1.25*x151 + 1.25*x183 =L= 0;
e12.. - x112 - 1.25*x152 + 1.25*x184 =L= 0;
e13.. - x113 - 1.25*x153 + 1.25*x185 =L= 0;
e14.. - x114 - 1.25*x154 + 1.25*x186 =L= 0;
e15.. - x115 - 1.25*x155 + 1.25*x187 =L= 0;
e16.. - x116 - 1.25*x156 + 1.25*x188 =L= 0;
e17.. - x117 - 1.25*x157 + 1.25*x189 =L= 0;
e18.. - x118 - 1.25*x158 + 1.25*x190 =L= 0;
e19.. - x119 - 1.25*x159 + 1.25*x191 =L= 0;
e20.. - x120 - 1.25*x160 + 1.25*x192 =L= 0;
e21.. - x121 - 1.25*x161 + 1.25*x193 =L= 0;
e22.. - x122 - 1.25*x162 + 1.25*x194 =L= 0;
e23.. - x123 - 1.25*x163 + 1.25*x195 =L= 0;
e24.. - x124 - 1.25*x164 + 1.25*x196 =L= 0;
e25.. - x125 - 1.25*x165 + 1.25*x197 =L= 0;
e26.. - x126 - 1.25*x166 + 1.25*x198 =L= 0;
e27.. - x127 - 1.25*x167 + 1.25*x199 =L= 0;
e28.. - x128 - 1.25*x168 + 1.25*x200 =L= 0;
e29.. - x129 - 1.25*x169 + 1.25*x201 =L= 0;
e30.. - x130 - 1.25*x170 + 1.25*x202 =L= 0;
e31.. - x131 - 1.25*x171 + 1.25*x203 =L= 0;
e32.. - x132 - 1.25*x172 + 1.25*x204 =L= 0;
e33.. - x133 - 1.25*x173 + 1.25*x205 =L= 0;
e34.. - x134 - 1.25*x174 + 1.25*x206 =L= 0;
e35.. - x135 - 1.25*x175 + 1.25*x207 =L= 0;
e36.. - x136 - 1.25*x176 + 1.25*x208 =L= 0;
e37.. x105 + 50*x145 - 50*x177 =L= 0;
e38.. x106 + 50*x146 - 50*x178 =L= 0;
e39.. x107 + 50*x147 - 50*x179 =L= 0;
e40.. x108 + 50*x148 - 50*x180 =L= 0;
e41.. x109 + 50*x149 - 50*x181 =L= 0;
e42.. x110 + 50*x150 - 50*x182 =L= 0;
e43.. x111 + 50*x151 - 50*x183 =L= 0;
e44.. x112 + 50*x152 - 50*x184 =L= 0;
e45.. x113 + 50*x153 - 50*x185 =L= 0;
e46.. x114 + 50*x154 - 50*x186 =L= 0;
e47.. x115 + 50*x155 - 50*x187 =L= 0;
e48.. x116 + 50*x156 - 50*x188 =L= 0;
e49.. x117 + 50*x157 - 50*x189 =L= 0;
e50.. x118 + 50*x158 - 50*x190 =L= 0;
e51.. x119 + 50*x159 - 50*x191 =L= 0;
e52.. x120 + 50*x160 - 50*x192 =L= 0;
e53.. x121 + 50*x161 - 50*x193 =L= 0;
e54.. x122 + 50*x162 - 50*x194 =L= 0;
e55.. x123 + 50*x163 - 50*x195 =L= 0;
e56.. x124 + 50*x164 - 50*x196 =L= 0;
e57.. x125 + 50*x165 - 50*x197 =L= 0;
e58.. x126 + 50*x166 - 50*x198 =L= 0;
e59.. x127 + 50*x167 - 50*x199 =L= 0;
e60.. x128 + 50*x168 - 50*x200 =L= 0;
e61.. x129 + 50*x169 - 50*x201 =L= 0;
e62.. x130 + 50*x170 - 50*x202 =L= 0;
e63.. x131 + 50*x171 - 50*x203 =L= 0;
e64.. x132 + 50*x172 - 50*x204 =L= 0;
e65.. x133 + 50*x173 - 50*x205 =L= 0;
e66.. x134 + 50*x174 - 50*x206 =L= 0;
e67.. x135 + 50*x175 - 50*x207 =L= 0;
e68.. x136 + 50*x176 - 50*x208 =L= 0;
e69.. - 10*b1 + x105 =E= 0;
e70.. - 10*b2 + x106 =E= 0;
e71.. - 10*b3 + x107 =E= 0;
e72.. - 10*b4 + x108 =E= 0;
e73.. - 10*b5 + x109 =E= 0;
e74.. - 10*b6 + x110 =E= 0;
e75.. - 10*b7 + x111 =E= 0;
e76.. - 10*b8 + x112 =E= 0;
e77.. - 300*b9 + x113 =E= 0;
e78.. - 300*b10 + x114 =E= 0;
e79.. - 300*b11 + x115 =E= 0;
e80.. - 300*b12 + x116 =E= 0;
e81.. - 300*b13 + x117 =E= 0;
e82.. - 300*b14 + x118 =E= 0;
e83.. - 300*b15 + x119 =E= 0;
e84.. - 300*b16 + x120 =E= 0;
e85.. - 300*b17 + x121 =E= 0;
e86.. - 300*b18 + x122 =E= 0;
e87.. - 300*b19 + x123 =E= 0;
e88.. - 300*b20 + x124 =E= 0;
e89.. - 300*b21 + x125 =E= 0;
e90.. - 300*b22 + x126 =E= 0;
e91.. - 300*b23 + x127 =E= 0;
e92.. - 300*b24 + x128 =E= 0;
e93.. - 340*b25 + x129 =E= 0;
e94.. - 340*b26 + x130 =E= 0;
e95.. - 340*b27 + x131 =E= 0;
e96.. - 340*b28 + x132 =E= 0;
e97.. - 340*b29 + x133 =E= 0;
e98.. - 340*b30 + x134 =E= 0;
e99.. - 340*b31 + x135 =E= 0;
e100.. - 340*b32 + x136 =E= 0;
e101.. 72*b1 + x137 - x145 =L= 72;
e102.. 72*b2 + x137 - x146 =L= 72;
e103.. 72*b3 + x137 - x147 =L= 72;
e104.. 72*b4 + x137 - x148 =L= 72;
e105.. 72*b5 + x137 - x149 =L= 72;
e106.. 72*b6 + x137 - x150 =L= 72;
e107.. 72*b7 + x137 - x151 =L= 72;
e108.. 72*b8 + x137 - x152 =L= 72;
e109.. 72*b9 + x138 - x153 =L= 72;
e110.. 72*b10 + x138 - x154 =L= 72;
e111.. 72*b11 + x138 - x155 =L= 72;
e112.. 72*b12 + x138 - x156 =L= 72;
e113.. 72*b13 + x138 - x157 =L= 72;
e114.. 72*b14 + x138 - x158 =L= 72;
e115.. 72*b15 + x138 - x159 =L= 72;
e116.. 72*b16 + x138 - x160 =L= 72;
e117.. 72*b17 + x139 - x161 =L= 72;
e118.. 72*b18 + x139 - x162 =L= 72;
e119.. 72*b19 + x139 - x163 =L= 72;
e120.. 72*b20 + x139 - x164 =L= 72;
e121.. 72*b21 + x139 - x165 =L= 72;
e122.. 72*b22 + x139 - x166 =L= 72;
e123.. 72*b23 + x139 - x167 =L= 72;
e124.. 72*b24 + x139 - x168 =L= 72;
e125.. 72*b25 + x140 - x169 =L= 72;
e126.. 72*b26 + x140 - x170 =L= 72;
e127.. 72*b27 + x140 - x171 =L= 72;
e128.. 72*b28 + x140 - x172 =L= 72;
e129.. 72*b29 + x140 - x173 =L= 72;
e130.. 72*b30 + x140 - x174 =L= 72;
e131.. 72*b31 + x140 - x175 =L= 72;
e132.. 72*b32 + x140 - x176 =L= 72;
e133.. - 72*b1 + x141 - x177 =G= -72;
e134.. - 72*b2 + x141 - x178 =G= -72;
e135.. - 72*b3 + x141 - x179 =G= -72;
e136.. - 72*b4 + x141 - x180 =G= -72;
e137.. - 72*b5 + x141 - x181 =G= -72;
e138.. - 72*b6 + x141 - x182 =G= -72;
e139.. - 72*b7 + x141 - x183 =G= -72;
e140.. - 72*b8 + x141 - x184 =G= -72;
e141.. - 72*b9 + x142 - x185 =G= -72;
e142.. - 72*b10 + x142 - x186 =G= -72;
e143.. - 72*b11 + x142 - x187 =G= -72;
e144.. - 72*b12 + x142 - x188 =G= -72;
e145.. - 72*b13 + x142 - x189 =G= -72;
e146.. - 72*b14 + x142 - x190 =G= -72;
e147.. - 72*b15 + x142 - x191 =G= -72;
e148.. - 72*b16 + x142 - x192 =G= -72;
e149.. - 72*b17 + x143 - x193 =G= -72;
e150.. - 72*b18 + x143 - x194 =G= -72;
e151.. - 72*b19 + x143 - x195 =G= -72;
e152.. - 72*b20 + x143 - x196 =G= -72;
e153.. - 72*b21 + x143 - x197 =G= -72;
e154.. - 72*b22 + x143 - x198 =G= -72;
e155.. - 72*b23 + x143 - x199 =G= -72;
e156.. - 72*b24 + x143 - x200 =G= -72;
e157.. - 72*b25 + x144 - x201 =G= -72;
e158.. - 72*b26 + x144 - x202 =G= -72;
e159.. - 72*b27 + x144 - x203 =G= -72;
e160.. - 72*b28 + x144 - x204 =G= -72;
e161.. - 72*b29 + x144 - x205 =G= -72;
e162.. - 72*b30 + x144 - x206 =G= -72;
e163.. - 72*b31 + x144 - x207 =G= -72;
e164.. - 72*b32 + x144 - x208 =G= -72;
e165.. x138 - x141 =G= 0;
e166.. x139 - x142 =G= 0;
e167.. x140 - x143 =G= 0;
e168.. - x257 + x273 + x277 =E= 0;
e169.. - x258 + x274 + x278 =E= 0;
e170.. - x259 + x275 + x279 =E= 0;
e171.. - x260 + x276 + x280 =E= 0;
e172.. - x261 + x281 + x285 =E= 0;
e173.. - x262 + x282 + x286 =E= 0;
e174.. - x263 + x283 + x287 =E= 0;
e175.. - x264 + x284 + x288 =E= 0;
e176.. - x265 + x289 + x293 =E= 0;
e177.. - x266 + x290 + x294 =E= 0;
e178.. - x267 + x291 + x295 =E= 0;
e179.. - x268 + x292 + x296 =E= 0;
e180.. - x269 + x297 + x301 =E= 0;
e181.. - x270 + x298 + x302 =E= 0;
e182.. - x271 + x299 + x303 =E= 0;
e183.. - x272 + x300 + x304 =E= 0;
e184.. 0.2*x257 - x273 =L= 0;
e185.. 0.2*x258 - x274 =L= 0;
e186.. 0.2*x259 - x275 =L= 0;
e187.. 0.2*x260 - x276 =L= 0;
e188.. 0.2*x257 - x277 =L= 0;
e189.. 0.2*x258 - x278 =L= 0;
e190.. 0.2*x259 - x279 =L= 0;
e191.. 0.2*x260 - x280 =L= 0;
e192.. 0.2*x261 - x281 =L= 0;
e193.. 0.2*x262 - x282 =L= 0;
e194.. 0.2*x263 - x283 =L= 0;
e195.. 0.2*x264 - x284 =L= 0;
e196.. 0.2*x261 - x285 =L= 0;
e197.. 0.2*x262 - x286 =L= 0;
e198.. 0.2*x263 - x287 =L= 0;
e199.. 0.2*x264 - x288 =L= 0;
e200.. 0.2*x269 - x297 =L= 0;
e201.. 0.2*x270 - x298 =L= 0;
e202.. 0.2*x271 - x299 =L= 0;
e203.. 0.2*x272 - x300 =L= 0;
e204.. 0.2*x269 - x301 =L= 0;
e205.. 0.2*x270 - x302 =L= 0;
e206.. 0.2*x271 - x303 =L= 0;
e207.. 0.2*x272 - x304 =L= 0;
e208.. - 0.8*x257 + x273 =L= 0;
e209.. - 0.8*x258 + x274 =L= 0;
e210.. - 0.8*x259 + x275 =L= 0;
e211.. - 0.8*x260 + x276 =L= 0;
e212.. - 0.8*x257 + x277 =L= 0;
e213.. - 0.8*x258 + x278 =L= 0;
e214.. - 0.8*x259 + x279 =L= 0;
e215.. - 0.8*x260 + x280 =L= 0;
e216.. - 0.8*x261 + x281 =L= 0;
e217.. - 0.8*x262 + x282 =L= 0;
e218.. - 0.8*x263 + x283 =L= 0;
e219.. - 0.8*x264 + x284 =L= 0;
e220.. - 0.8*x261 + x285 =L= 0;
e221.. - 0.8*x262 + x286 =L= 0;
e222.. - 0.8*x263 + x287 =L= 0;
e223.. - 0.8*x264 + x288 =L= 0;
e224.. - 0.8*x269 + x297 =L= 0;
e225.. - 0.8*x270 + x298 =L= 0;
e226.. - 0.8*x271 + x299 =L= 0;
e227.. - 0.8*x272 + x300 =L= 0;
e228.. - 0.8*x269 + x301 =L= 0;
e229.. - 0.8*x270 + x302 =L= 0;
e230.. - 0.8*x271 + x303 =L= 0;
e231.. - 0.8*x272 + x304 =L= 0;
e232.. - 0.666666666666667*x49 + x65 =E= 0;
e233.. - 0.333333333333333*x49 + x69 =E= 0;
e234.. - 0.333333333333333*x53 + x73 =E= 0;
e235.. - 0.666666666666667*x53 + x77 =E= 0;
e236.. - 0.2*x57 + x81 =E= 0;
e237.. - 0.8*x57 + x85 =E= 0;
e238.. - 0.433333333333333*x61 + x89 =E= 0;
e239.. - 0.566666666666667*x61 + x93 =E= 0;
e240.. b1 + b33 =L= 1;
e241.. b2 + b34 =L= 1;
e242.. b3 + b35 =L= 1;
e243.. b4 + b36 =L= 1;
e244.. b5 + b45 =L= 1;
e245.. b6 + b46 =L= 1;
e246.. b7 + b47 =L= 1;
e247.. b8 + b48 =L= 1;
e248.. b9 + b33 =L= 1;
e249.. b10 + b34 =L= 1;
e250.. b11 + b35 =L= 1;
e251.. b12 + b36 =L= 1;
e252.. b13 + b45 =L= 1;
e253.. b14 + b46 =L= 1;
e254.. b15 + b47 =L= 1;
e255.. b16 + b48 =L= 1;
e256.. b17 + b37 =L= 1;
e257.. b18 + b38 =L= 1;
e258.. b19 + b39 =L= 1;
e259.. b20 + b40 =L= 1;
e260.. b21 + b41 =L= 1;
e261.. b22 + b42 =L= 1;
e262.. b23 + b43 =L= 1;
e263.. b24 + b44 =L= 1;
e264.. b25 + b37 =L= 1;
e265.. b26 + b38 =L= 1;
e266.. b27 + b39 =L= 1;
e267.. b28 + b40 =L= 1;
e268.. b29 + b41 =L= 1;
e269.. b30 + b42 =L= 1;
e270.. b31 + b43 =L= 1;
e271.. b32 + b44 =L= 1;
e272.. b33 =L= 2;
e273.. b34 =L= 2;
e274.. b35 =L= 2;
e275.. b36 =L= 2;
e276.. b37 =L= 2;
e277.. b38 =L= 2;
e278.. b39 =L= 2;
e279.. b40 =L= 2;
e280.. b41 =L= 2;
e281.. b42 =L= 2;
e282.. b43 =L= 2;
e283.. b44 =L= 2;
e284.. b45 =L= 2;
e285.. b46 =L= 2;
e286.. b47 =L= 2;
e287.. b48 =L= 2;
e288.. b33 + b45 =L= 2;
e289.. b34 + b46 =L= 2;
e290.. b35 + b47 =L= 2;
e291.. b36 + b48 =L= 2;
e292.. b37 + b41 =L= 2;
e293.. b38 + b42 =L= 2;
e294.. b39 + b43 =L= 2;
e295.. b40 + b44 =L= 2;
e296.. x49 + 12.5*x209 - 12.5*x225 =L= 0;
e297.. x50 + 12.5*x210 - 12.5*x226 =L= 0;
e298.. x51 + 12.5*x211 - 12.5*x227 =L= 0;
e299.. x52 + 12.5*x212 - 12.5*x228 =L= 0;
e300.. x53 + 12.5*x213 - 12.5*x229 =L= 0;
e301.. x54 + 12.5*x214 - 12.5*x230 =L= 0;
e302.. x55 + 12.5*x215 - 12.5*x231 =L= 0;
e303.. x56 + 12.5*x216 - 12.5*x232 =L= 0;
e304.. x57 + 12.5*x217 - 12.5*x233 =L= 0;
e305.. x58 + 12.5*x218 - 12.5*x234 =L= 0;
e306.. x59 + 12.5*x219 - 12.5*x235 =L= 0;
e307.. x60 + 12.5*x220 - 12.5*x236 =L= 0;
e308.. x61 + 12.5*x221 - 12.5*x237 =L= 0;
e309.. x62 + 12.5*x222 - 12.5*x238 =L= 0;
e310.. x63 + 12.5*x223 - 12.5*x239 =L= 0;
e311.. x64 + 12.5*x224 - 12.5*x240 =L= 0;
e312.. - 250*b33 + x49 =L= 0;
e313.. - 560*b34 + x50 =L= 0;
e314.. - 650*b35 + x51 =L= 0;
e315.. - 650*b36 + x52 =L= 0;
e316.. - 250*b37 + x53 =L= 0;
e317.. - 650*b38 + x54 =L= 0;
e318.. - 650*b39 + x55 =L= 0;
e319.. - 650*b40 + x56 =L= 0;
e320.. - 200*b41 + x57 =L= 0;
e321.. - 840*b42 + x58 =L= 0;
e322.. - 850*b43 + x59 =L= 0;
e323.. - 850*b44 + x60 =L= 0;
e324.. - 250*b45 + x61 =L= 0;
e325.. - 560*b46 + x62 =L= 0;
e326.. - 650*b47 + x63 =L= 0;
e327.. - 650*b48 + x64 =L= 0;
e328.. x49 - x65 - x69 =E= 0;
e329.. x50 - x66 - x70 =E= 0;
e330.. x51 - x67 - x71 =E= 0;
e331.. x52 - x68 - x72 =E= 0;
e332.. x53 - x73 - x77 =E= 0;
e333.. x54 - x74 - x78 =E= 0;
e334.. x55 - x75 - x79 =E= 0;
e335.. x56 - x76 - x80 =E= 0;
e336.. x57 - x81 - x85 =E= 0;
e337.. x58 - x82 - x86 =E= 0;
e338.. x59 - x83 - x87 =E= 0;
e339.. x60 - x84 - x88 =E= 0;
e340.. x61 - x89 - x93 =E= 0;
e341.. x62 - x90 - x94 =E= 0;
e342.. x63 - x91 - x95 =E= 0;
e343.. x64 - x92 - x96 =E= 0;
e344.. - x49 - x61 + x97 =E= 0;
e345.. - x50 - x62 + x98 =E= 0;
e346.. - x51 - x63 + x99 =E= 0;
e347.. - x52 - x64 + x100 =E= 0;
e348.. - x53 - x57 + x101 =E= 0;
e349.. - x54 - x58 + x102 =E= 0;
e350.. - x55 - x59 + x103 =E= 0;
e351.. - x56 - x60 + x104 =E= 0;
e352.. - x97 - 6.25*x241 + 6.25*x249 =L= 0;
e353.. - x98 - 6.25*x242 + 6.25*x250 =L= 0;
e354.. - x99 - 6.25*x243 + 6.25*x251 =L= 0;
e355.. - x100 - 6.25*x244 + 6.25*x252 =L= 0;
e356.. - x101 - 6.25*x245 + 6.25*x253 =L= 0;
e357.. - x102 - 6.25*x246 + 6.25*x254 =L= 0;
e358.. - x103 - 6.25*x247 + 6.25*x255 =L= 0;
e359.. - x104 - 6.25*x248 + 6.25*x256 =L= 0;
e360.. x97 + 12.5*x241 - 12.5*x249 =L= 0;
e361.. x98 + 12.5*x242 - 12.5*x250 =L= 0;
e362.. x99 + 12.5*x243 - 12.5*x251 =L= 0;
e363.. x100 + 12.5*x244 - 12.5*x252 =L= 0;
e364.. x101 + 12.5*x245 - 12.5*x253 =L= 0;
e365.. x102 + 12.5*x246 - 12.5*x254 =L= 0;
e366.. x103 + 12.5*x247 - 12.5*x255 =L= 0;
e367.. x104 + 12.5*x248 - 12.5*x256 =L= 0;
e368.. - x65 - x89 + 0.3*x97 =L= 0;
e369.. - x66 - x90 + 0.3*x98 =L= 0;
e370.. - x67 - x91 + 0.3*x99 =L= 0;
e371.. - x68 - x92 + 0.3*x100 =L= 0;
e372.. - x69 - x93 + 0.3*x97 =L= 0;
e373.. - x70 - x94 + 0.3*x98 =L= 0;
e374.. - x71 - x95 + 0.3*x99 =L= 0;
e375.. - x72 - x96 + 0.3*x100 =L= 0;
e376.. x65 + x89 - 0.7*x97 =L= 0;
e377.. x66 + x90 - 0.7*x98 =L= 0;
e378.. x67 + x91 - 0.7*x99 =L= 0;
e379.. x68 + x92 - 0.7*x100 =L= 0;
e380.. x69 + x93 - 0.7*x97 =L= 0;
e381.. x70 + x94 - 0.7*x98 =L= 0;
e382.. x71 + x95 - 0.7*x99 =L= 0;
e383.. x72 + x96 - 0.7*x100 =L= 0;
e384.. 0.0045*x49 + 0.0045*x61 - 0.005*x65 - 0.006*x69 - 0.005*x89
- 0.006*x93 =L= 0;
e385.. 0.0045*x50 + 0.0045*x62 - 0.005*x66 - 0.006*x70 - 0.005*x90
- 0.006*x94 =L= 0;
e386.. 0.0045*x51 + 0.0045*x63 - 0.005*x67 - 0.006*x71 - 0.005*x91
- 0.006*x95 =L= 0;
e387.. 0.0045*x52 + 0.0045*x64 - 0.005*x68 - 0.006*x72 - 0.005*x92
- 0.006*x96 =L= 0;
e388.. 0.014*x53 + 0.014*x57 - 0.0165*x73 - 0.0145*x77 - 0.0165*x81
- 0.0145*x85 =L= 0;
e389.. 0.014*x54 + 0.014*x58 - 0.0165*x74 - 0.0145*x78 - 0.0165*x82
- 0.0145*x86 =L= 0;
e390.. 0.014*x55 + 0.014*x59 - 0.0165*x75 - 0.0145*x79 - 0.0165*x83
- 0.0145*x87 =L= 0;
e391.. 0.014*x56 + 0.014*x60 - 0.0165*x76 - 0.0145*x80 - 0.0165*x84
- 0.0145*x88 =L= 0;
e392.. - 0.006*x49 - 0.006*x61 + 0.005*x65 + 0.006*x69 + 0.005*x89 + 0.006*x93
=L= 0;
e393.. - 0.006*x50 - 0.006*x62 + 0.005*x66 + 0.006*x70 + 0.005*x90 + 0.006*x94
=L= 0;
e394.. - 0.006*x51 - 0.006*x63 + 0.005*x67 + 0.006*x71 + 0.005*x91 + 0.006*x95
=L= 0;
e395.. - 0.006*x52 - 0.006*x64 + 0.005*x68 + 0.006*x72 + 0.005*x92 + 0.006*x96
=L= 0;
e396.. - 0.0153*x53 - 0.0153*x57 + 0.0165*x73 + 0.0145*x77 + 0.0165*x81
+ 0.0145*x85 =L= 0;
e397.. - 0.0153*x54 - 0.0153*x58 + 0.0165*x74 + 0.0145*x78 + 0.0165*x82
+ 0.0145*x86 =L= 0;
e398.. - 0.0153*x55 - 0.0153*x59 + 0.0165*x75 + 0.0145*x79 + 0.0165*x83
+ 0.0145*x87 =L= 0;
e399.. - 0.0153*x56 - 0.0153*x60 + 0.0165*x76 + 0.0145*x80 + 0.0165*x84
+ 0.0145*x88 =L= 0;
e400.. x97 + x98 + x99 + x100 =E= 550;
e401.. x101 + x102 + x103 + x104 =E= 550;
e402.. x146 - x177 =G= 0;
e403.. x147 - x178 =G= 0;
e404.. x148 - x179 =G= 0;
e405.. x150 - x181 =G= 0;
e406.. x151 - x182 =G= 0;
e407.. x152 - x183 =G= 0;
e408.. x154 - x185 =G= 0;
e409.. x155 - x186 =G= 0;
e410.. x156 - x187 =G= 0;
e411.. x158 - x189 =G= 0;
e412.. x159 - x190 =G= 0;
e413.. x160 - x191 =G= 0;
e414.. x162 - x193 =G= 0;
e415.. x163 - x194 =G= 0;
e416.. x164 - x195 =G= 0;
e417.. x166 - x197 =G= 0;
e418.. x167 - x198 =G= 0;
e419.. x168 - x199 =G= 0;
e420.. x170 - x201 =G= 0;
e421.. x171 - x202 =G= 0;
e422.. x172 - x203 =G= 0;
e423.. x174 - x205 =G= 0;
e424.. x175 - x206 =G= 0;
e425.. x176 - x207 =G= 0;
e426.. - 72*b1 + x154 - x177 =G= -72;
e427.. - 72*b2 + x155 - x178 =G= -72;
e428.. - 72*b3 + x156 - x179 =G= -72;
e429.. - 72*b5 + x158 - x181 =G= -72;
e430.. - 72*b6 + x159 - x182 =G= -72;
e431.. - 72*b7 + x160 - x183 =G= -72;
e432.. - 72*b9 + x146 - x185 =G= -72;
e433.. - 72*b10 + x147 - x186 =G= -72;
e434.. - 72*b11 + x148 - x187 =G= -72;
e435.. - 72*b13 + x150 - x189 =G= -72;
e436.. - 72*b14 + x151 - x190 =G= -72;
e437.. - 72*b15 + x152 - x191 =G= -72;
e438.. - 72*b17 + x170 - x193 =G= -72;
e439.. - 72*b18 + x171 - x194 =G= -72;
e440.. - 72*b19 + x172 - x195 =G= -72;
e441.. - 72*b21 + x174 - x197 =G= -72;
e442.. - 72*b22 + x175 - x198 =G= -72;
e443.. - 72*b23 + x176 - x199 =G= -72;
e444.. - 72*b25 + x162 - x201 =G= -72;
e445.. - 72*b26 + x163 - x202 =G= -72;
e446.. - 72*b27 + x164 - x203 =G= -72;
e447.. - 72*b29 + x166 - x205 =G= -72;
e448.. - 72*b30 + x167 - x206 =G= -72;
e449.. - 72*b31 + x168 - x207 =G= -72;
e450.. x210 - x225 =G= 0;
e451.. x211 - x226 =G= 0;
e452.. x212 - x227 =G= 0;
e453.. x214 - x229 =G= 0;
e454.. x215 - x230 =G= 0;
e455.. x216 - x231 =G= 0;
e456.. x218 - x233 =G= 0;
e457.. x219 - x234 =G= 0;
e458.. x220 - x235 =G= 0;
e459.. x222 - x237 =G= 0;
e460.. x223 - x238 =G= 0;
e461.. x224 - x239 =G= 0;
e462.. - 72*b33 + x146 - x225 =G= -72;
e463.. - 72*b34 + x147 - x226 =G= -72;
e464.. - 72*b35 + x148 - x227 =G= -72;
e465.. - 72*b45 + x150 - x237 =G= -72;
e466.. - 72*b46 + x151 - x238 =G= -72;
e467.. - 72*b47 + x152 - x239 =G= -72;
e468.. - 72*b33 + x154 - x225 =G= -72;
e469.. - 72*b34 + x155 - x226 =G= -72;
e470.. - 72*b35 + x156 - x227 =G= -72;
e471.. - 72*b45 + x158 - x237 =G= -72;
e472.. - 72*b46 + x159 - x238 =G= -72;
e473.. - 72*b47 + x160 - x239 =G= -72;
e474.. - 72*b37 + x162 - x229 =G= -72;
e475.. - 72*b38 + x163 - x230 =G= -72;
e476.. - 72*b39 + x164 - x231 =G= -72;
e477.. - 72*b41 + x166 - x233 =G= -72;
e478.. - 72*b42 + x167 - x234 =G= -72;
e479.. - 72*b43 + x168 - x235 =G= -72;
e480.. - 72*b37 + x170 - x229 =G= -72;
e481.. - 72*b38 + x171 - x230 =G= -72;
e482.. - 72*b39 + x172 - x231 =G= -72;
e483.. - 72*b41 + x174 - x233 =G= -72;
e484.. - 72*b42 + x175 - x234 =G= -72;
e485.. - 72*b43 + x176 - x235 =G= -72;
e486.. - 80*b1 - x177 + x210 =G= -72;
e487.. - 80*b2 - x178 + x211 =G= -72;
e488.. - 80*b3 - x179 + x212 =G= -72;
e489.. - 80*b5 - x181 + x222 =G= -72;
e490.. - 80*b6 - x182 + x223 =G= -72;
e491.. - 80*b7 - x183 + x224 =G= -72;
e492.. - 80*b9 - x185 + x210 =G= -72;
e493.. - 80*b10 - x186 + x211 =G= -72;
e494.. - 80*b11 - x187 + x212 =G= -72;
e495.. - 80*b13 - x189 + x222 =G= -72;
e496.. - 80*b14 - x190 + x223 =G= -72;
e497.. - 80*b15 - x191 + x224 =G= -72;
e498.. - 80*b17 - x193 + x214 =G= -72;
e499.. - 80*b18 - x194 + x215 =G= -72;
e500.. - 80*b19 - x195 + x216 =G= -72;
e501.. - 80*b21 - x197 + x218 =G= -72;
e502.. - 80*b22 - x198 + x219 =G= -72;
e503.. - 80*b23 - x199 + x220 =G= -72;
e504.. - 80*b25 - x201 + x214 =G= -72;
e505.. - 80*b26 - x202 + x215 =G= -72;
e506.. - 80*b27 - x203 + x216 =G= -72;
e507.. - 80*b29 - x205 + x218 =G= -72;
e508.. - 80*b30 - x206 + x219 =G= -72;
e509.. - 80*b31 - x207 + x220 =G= -72;
e510.. x242 - x249 =G= 0;
e511.. x243 - x250 =G= 0;
e512.. x244 - x251 =G= 0;
e513.. x246 - x253 =G= 0;
e514.. x247 - x254 =G= 0;
e515.. x248 - x255 =G= 0;
e516.. - 72*b33 - x209 + x241 =G= -72;
e517.. - 72*b34 - x210 + x242 =G= -72;
e518.. - 72*b35 - x211 + x243 =G= -72;
e519.. - 72*b36 - x212 + x244 =G= -72;
e520.. - 72*b37 - x213 + x245 =G= -72;
e521.. - 72*b38 - x214 + x246 =G= -72;
e522.. - 72*b39 - x215 + x247 =G= -72;
e523.. - 72*b40 - x216 + x248 =G= -72;
e524.. - 72*b41 - x217 + x245 =G= -72;
e525.. - 72*b42 - x218 + x246 =G= -72;
e526.. - 72*b43 - x219 + x247 =G= -72;
e527.. - 72*b44 - x220 + x248 =G= -72;
e528.. - 72*b45 - x221 + x241 =G= -72;
e529.. - 72*b46 - x222 + x242 =G= -72;
e530.. - 72*b47 - x223 + x243 =G= -72;
e531.. - 72*b48 - x224 + x244 =G= -72;
e532.. 72*b33 - x209 + x241 =L= 72;
e533.. 72*b34 - x210 + x242 =L= 72;
e534.. 72*b35 - x211 + x243 =L= 72;
e535.. 72*b36 - x212 + x244 =L= 72;
e536.. 72*b37 - x213 + x245 =L= 72;
e537.. 72*b38 - x214 + x246 =L= 72;
e538.. 72*b39 - x215 + x247 =L= 72;
e539.. 72*b40 - x216 + x248 =L= 72;
e540.. 72*b41 - x217 + x245 =L= 72;
e541.. 72*b42 - x218 + x246 =L= 72;
e542.. 72*b43 - x219 + x247 =L= 72;
e543.. 72*b44 - x220 + x248 =L= 72;
e544.. 72*b45 - x221 + x241 =L= 72;
e545.. 72*b46 - x222 + x242 =L= 72;
e546.. 72*b47 - x223 + x243 =L= 72;
e547.. 72*b48 - x224 + x244 =L= 72;
e548.. - 72*b33 - x225 + x249 =G= -72;
e549.. - 72*b34 - x226 + x250 =G= -72;
e550.. - 72*b35 - x227 + x251 =G= -72;
e551.. - 72*b36 - x228 + x252 =G= -72;
e552.. - 72*b37 - x229 + x253 =G= -72;
e553.. - 72*b38 - x230 + x254 =G= -72;
e554.. - 72*b39 - x231 + x255 =G= -72;
e555.. - 72*b40 - x232 + x256 =G= -72;
e556.. - 72*b41 - x233 + x253 =G= -72;
e557.. - 72*b42 - x234 + x254 =G= -72;
e558.. - 72*b43 - x235 + x255 =G= -72;
e559.. - 72*b44 - x236 + x256 =G= -72;
e560.. - 72*b45 - x237 + x249 =G= -72;
e561.. - 72*b46 - x238 + x250 =G= -72;
e562.. - 72*b47 - x239 + x251 =G= -72;
e563.. - 72*b48 - x240 + x252 =G= -72;
e564.. 72*b33 - x225 + x249 =L= 72;
e565.. 72*b34 - x226 + x250 =L= 72;
e566.. 72*b35 - x227 + x251 =L= 72;
e567.. 72*b36 - x228 + x252 =L= 72;
e568.. 72*b37 - x229 + x253 =L= 72;
e569.. 72*b38 - x230 + x254 =L= 72;
e570.. 72*b39 - x231 + x255 =L= 72;
e571.. 72*b40 - x232 + x256 =L= 72;
e572.. 72*b41 - x233 + x253 =L= 72;
e573.. 72*b42 - x234 + x254 =L= 72;
e574.. 72*b43 - x235 + x255 =L= 72;
e575.. 72*b44 - x236 + x256 =L= 72;
e576.. 72*b45 - x237 + x249 =L= 72;
e577.. 72*b46 - x238 + x250 =L= 72;
e578.. 72*b47 - x239 + x251 =L= 72;
e579.. 72*b48 - x240 + x252 =L= 72;
e580.. x66 - x114 - x273 + x274 =E= 0;
e581.. x67 - x115 - x274 + x275 =E= 0;
e582.. x68 - x116 - x275 + x276 =E= 0;
e583.. x70 - x106 - x277 + x278 =E= 0;
e584.. x71 - x107 - x278 + x279 =E= 0;
e585.. x72 - x108 - x279 + x280 =E= 0;
e586.. x74 - x130 - x281 + x282 =E= 0;
e587.. x75 - x131 - x282 + x283 =E= 0;
e588.. x76 - x132 - x283 + x284 =E= 0;
e589.. x78 - x122 - x285 + x286 =E= 0;
e590.. x79 - x123 - x286 + x287 =E= 0;
e591.. x80 - x124 - x287 + x288 =E= 0;
e592.. x82 - x134 - x289 + x290 =E= 0;
e593.. x83 - x135 - x290 + x291 =E= 0;
e594.. x84 - x136 - x291 + x292 =E= 0;
e595.. x86 - x126 - x293 + x294 =E= 0;
e596.. x87 - x127 - x294 + x295 =E= 0;
e597.. x88 - x128 - x295 + x296 =E= 0;
e598.. x90 - x118 - x297 + x298 =E= 0;
e599.. x91 - x119 - x298 + x299 =E= 0;
e600.. x92 - x120 - x299 + x300 =E= 0;
e601.. x94 - x110 - x301 + x302 =E= 0;
e602.. x95 - x111 - x302 + x303 =E= 0;
e603.. x96 - x112 - x303 + x304 =E= 0;
e604.. x65 - x113 + x273 =E= 200;
e605.. x69 - x105 + x277 =E= 100;
e606.. x73 - x129 + x281 =E= 100;
e607.. x77 - x121 + x285 =E= 200;
e608.. x81 - x133 + x289 =E= 50;
e609.. x85 - x125 + x293 =E= 200;
e610.. x89 - x117 + x297 =E= 130;
e611.. x93 - x109 + x301 =E= 170;
e612.. - x241 - x242 - x243 - x244 + x249 + x250 + x251 + x252 =E= 72;
e613.. - x245 - x246 - x247 - x248 + x253 + x254 + x255 + x256 =E= 72;
e614.. - b33 + b34 + x305 =G= 0;
e615.. - b34 + b35 + x306 =G= 0;
e616.. - b35 + b36 + x307 =G= 0;
e617.. - b37 + b38 + x308 =G= 0;
e618.. - b38 + b39 + x309 =G= 0;
e619.. - b39 + b40 + x310 =G= 0;
e620.. - b41 + b42 + x308 =G= 0;
e621.. - b42 + b43 + x309 =G= 0;
e622.. - b43 + b44 + x310 =G= 0;
e623.. - b45 + b46 + x305 =G= 0;
e624.. - b46 + b47 + x306 =G= 0;
e625.. - b47 + b48 + x307 =G= 0;
e626.. b33 - b34 + x305 =G= 0;
e627.. b34 - b35 + x306 =G= 0;
e628.. b35 - b36 + x307 =G= 0;
e629.. b37 - b38 + x308 =G= 0;
e630.. b38 - b39 + x309 =G= 0;
e631.. b39 - b40 + x310 =G= 0;
e632.. b41 - b42 + x308 =G= 0;
e633.. b42 - b43 + x309 =G= 0;
e634.. b43 - b44 + x310 =G= 0;
e635.. b45 - b46 + x305 =G= 0;
e636.. b46 - b47 + x306 =G= 0;
e637.. b47 - b48 + x307 =G= 0;
e638.. 0.2*x257 + 0.2*x258 + 0.2*x259 + 0.2*x260 + 0.2*x261 + 0.2*x262
+ 0.2*x263 + 0.2*x264 + 0.2*x265 + 0.2*x266 + 0.2*x267 + 0.2*x268
+ 0.2*x269 + 0.2*x270 + 0.2*x271 + 0.2*x272 + x343 =G= 970;
e639.. - 12.5*x144 + x344 =G= -400;
e640.. - 3*x65 - 3*x66 - 3*x67 - 3*x68 - 4.5*x69 - 4.5*x70 - 4.5*x71 - 4.5*x72
- 5*x73 - 5*x74 - 5*x75 - 5*x76 - 6*x77 - 6*x78 - 6*x79 - 6*x80 - 5*x81
- 5*x82 - 5*x83 - 5*x84 - 6*x85 - 6*x86 - 6*x87 - 6*x88 - 3*x89 - 3*x90
- 3*x91 - 3*x92 - 4.5*x93 - 4.5*x94 - 4.5*x95 - 4.5*x96 + 5*x305
+ 5*x306 + 5*x307 + 5*x308 + 5*x309 + 5*x310 + 1.8*x343 + x344 + objvar
=E= 0;
e641.. -x311*x50 + x66 =E= 0;
e642.. -x312*x51 + x67 =E= 0;
e643.. -x313*x52 + x68 =E= 0;
e644.. -x315*x50 + x70 =E= 0;
e645.. -x316*x51 + x71 =E= 0;
e646.. -x317*x52 + x72 =E= 0;
e647.. -x319*x54 + x74 =E= 0;
e648.. -x320*x55 + x75 =E= 0;
e649.. -x321*x56 + x76 =E= 0;
e650.. -x323*x54 + x78 =E= 0;
e651.. -x324*x55 + x79 =E= 0;
e652.. -x325*x56 + x80 =E= 0;
e653.. -x327*x58 + x82 =E= 0;
e654.. -x328*x59 + x83 =E= 0;
e655.. -x329*x60 + x84 =E= 0;
e656.. -x331*x58 + x86 =E= 0;
e657.. -x332*x59 + x87 =E= 0;
e658.. -x333*x60 + x88 =E= 0;
e659.. -x335*x62 + x90 =E= 0;
e660.. -x336*x63 + x91 =E= 0;
e661.. -x337*x64 + x92 =E= 0;
e662.. -x339*x62 + x94 =E= 0;
e663.. -x340*x63 + x95 =E= 0;
e664.. -x341*x64 + x96 =E= 0;
e665.. -x311*x257 + x273 =E= 0;
e666.. -x312*x258 + x274 =E= 0;
e667.. -x313*x259 + x275 =E= 0;
e668.. -x314*x260 + x276 =E= 0;
e669.. -x315*x257 + x277 =E= 0;
e670.. -x316*x258 + x278 =E= 0;
e671.. -x317*x259 + x279 =E= 0;
e672.. -x318*x260 + x280 =E= 0;
e673.. -x319*x261 + x281 =E= 0;
e674.. -x320*x262 + x282 =E= 0;
e675.. -x321*x263 + x283 =E= 0;
e676.. -x322*x264 + x284 =E= 0;
e677.. -x323*x261 + x285 =E= 0;
e678.. -x324*x262 + x286 =E= 0;
e679.. -x325*x263 + x287 =E= 0;
e680.. -x326*x264 + x288 =E= 0;
e681.. -x327*x265 + x289 =E= 0;
e682.. -x328*x266 + x290 =E= 0;
e683.. -x329*x267 + x291 =E= 0;
e684.. -x330*x268 + x292 =E= 0;
e685.. -x331*x265 + x293 =E= 0;
e686.. -x332*x266 + x294 =E= 0;
e687.. -x333*x267 + x295 =E= 0;
e688.. -x334*x268 + x296 =E= 0;
e689.. -x335*x269 + x297 =E= 0;
e690.. -x336*x270 + x298 =E= 0;
e691.. -x337*x271 + x299 =E= 0;
e692.. -x338*x272 + x300 =E= 0;
e693.. -x339*x269 + x301 =E= 0;
e694.. -x340*x270 + x302 =E= 0;
e695.. -x341*x271 + x303 =E= 0;
e696.. -x342*x272 + x304 =E= 0;
* set non-default bounds
x49.up = 250;
x50.up = 560;
x51.up = 650;
x52.up = 650;
x53.up = 250;
x54.up = 650;
x55.up = 650;
x56.up = 650;
x57.up = 200;
x58.up = 840;
x59.up = 850;
x60.up = 850;
x61.up = 250;
x62.up = 560;
x63.up = 650;
x64.up = 650;
x105.up = 10;
x106.up = 10;
x107.up = 10;
x108.up = 10;
x109.up = 10;
x110.up = 10;
x111.up = 10;
x112.up = 10;
x113.up = 300;
x114.up = 300;
x115.up = 300;
x116.up = 300;
x117.up = 300;
x118.up = 300;
x119.up = 300;
x120.up = 300;
x121.up = 300;
x122.up = 300;
x123.up = 300;
x124.up = 300;
x125.up = 300;
x126.up = 300;
x127.up = 300;
x128.up = 300;
x129.up = 340;
x130.up = 340;
x131.up = 340;
x132.up = 340;
x133.up = 340;
x134.up = 340;
x135.up = 340;
x136.up = 340;
x137.up = 72;
x138.up = 72;
x139.up = 72;
x140.up = 72;
x141.up = 72;
x142.up = 72;
x143.up = 72;
x144.up = 72;
x145.up = 72;
x146.up = 72;
x147.up = 72;
x148.up = 72;
x149.up = 72;
x150.up = 72;
x151.up = 72;
x152.up = 72;
x153.up = 72;
x154.up = 72;
x155.up = 72;
x156.up = 72;
x157.up = 72;
x158.up = 72;
x159.up = 72;
x160.up = 72;
x161.up = 72;
x162.up = 72;
x163.up = 72;
x164.up = 72;
x165.up = 72;
x166.up = 72;
x167.up = 72;
x168.up = 72;
x169.up = 72;
x170.up = 72;
x171.up = 72;
x172.up = 72;
x173.up = 72;
x174.up = 72;
x175.up = 72;
x176.up = 72;
x177.up = 72;
x178.up = 72;
x179.up = 72;
x180.up = 72;
x181.up = 72;
x182.up = 72;
x183.up = 72;
x184.up = 72;
x185.up = 72;
x186.up = 72;
x187.up = 72;
x188.up = 72;
x189.up = 72;
x190.up = 72;
x191.up = 72;
x192.up = 72;
x193.up = 72;
x194.up = 72;
x195.up = 72;
x196.up = 72;
x197.up = 72;
x198.up = 72;
x199.up = 72;
x200.up = 72;
x201.up = 72;
x202.up = 72;
x203.up = 72;
x204.up = 72;
x205.up = 72;
x206.up = 72;
x207.up = 72;
x208.up = 72;
x209.up = 72;
x210.up = 72;
x211.up = 72;
x212.up = 72;
x213.up = 72;
x214.up = 72;
x215.up = 72;
x216.up = 72;
x217.up = 72;
x218.up = 72;
x219.up = 72;
x220.up = 72;
x221.up = 72;
x222.up = 72;
x223.up = 72;
x224.up = 72;
x225.up = 72;
x226.up = 72;
x227.up = 72;
x228.up = 72;
x229.up = 72;
x230.up = 72;
x231.up = 72;
x232.up = 72;
x233.up = 72;
x234.up = 72;
x235.up = 72;
x236.up = 72;
x237.up = 72;
x238.up = 72;
x239.up = 72;
x240.up = 72;
x241.up = 72;
x242.up = 72;
x243.up = 72;
x244.up = 72;
x245.up = 72;
x246.up = 72;
x247.up = 72;
x248.up = 72;
x249.up = 72;
x250.up = 72;
x251.up = 72;
x252.up = 72;
x253.up = 72;
x254.up = 72;
x255.up = 72;
x256.up = 72;
x257.lo = 50; x257.up = 610;
x258.lo = 50; x258.up = 700;
x259.lo = 50; x259.up = 700;
x260.lo = 50; x260.up = 700;
x261.lo = 50; x261.up = 700;
x262.lo = 50; x262.up = 700;
x263.lo = 50; x263.up = 700;
x264.lo = 50; x264.up = 700;
x265.lo = 50; x265.up = 890;
x266.lo = 50; x266.up = 900;
x267.lo = 50; x267.up = 900;
x268.lo = 50; x268.up = 900;
x269.lo = 50; x269.up = 610;
x270.lo = 50; x270.up = 700;
x271.lo = 50; x271.up = 700;
x272.lo = 50; x272.up = 700;
x305.up = 1;
x306.up = 1;
x307.up = 1;
x308.up = 1;
x309.up = 1;
x310.up = 1;
x311.lo = 0.645161290322581; x311.up = 0.833333333333333;
x312.lo = 0.0460829493087558; x312.up = 0.952380952380952;
x313.lo = 0.0032916392363397; x313.up = 0.952380952380952;
x314.lo = 0.000235117088309978; x314.up = 0.952380952380952;
x315.lo = 0.166666666666667; x315.up = 0.354838709677419;
x316.lo = 0.0119047619047619; x316.up = 0.444444444444444;
x317.lo = 0.000850340136054422; x317.up = 0.444444444444444;
x318.lo = 6.07385811467444E-5; x318.up = 0.444444444444444;
x319.lo = 0.166666666666667; x319.up = 0.6875;
x320.lo = 0.0119047619047619; x320.up = 0.914529914529915;
x321.lo = 0.000850340136054422; x321.up = 0.914529914529915;
x322.lo = 6.07385811467444E-5; x322.up = 0.914529914529915;
x323.lo = 0.3125; x323.up = 0.833333333333333;
x324.lo = 0.0223214285714286; x324.up = 0.952380952380952;
x325.lo = 0.00159438775510204; x325.up = 0.952380952380952;
x326.lo = 0.000113884839650146; x326.up = 0.952380952380952;
x327.lo = 0.0909090909090909; x327.up = 0.661016949152542;
x328.lo = 0.00505050505050505; x328.up = 0.897435897435897;
x329.lo = 0.000280583613916947; x329.up = 0.897435897435897;
x330.lo = 1.55879785509415E-5; x330.up = 0.897435897435897;
x331.lo = 0.338983050847458; x331.up = 0.909090909090909;
x332.lo = 0.0188323917137476; x332.up = 0.971428571428571;
x333.lo = 0.00104624398409709; x333.up = 0.971428571428571;
x334.lo = 5.81246657831718E-5; x334.up = 0.971428571428571;
x335.lo = 0.419354838709677; x335.up = 0.716666666666667;
x336.lo = 0.0299539170506912; x336.up = 0.919047619047619;
x337.lo = 0.0021395655036208; x337.up = 0.919047619047619;
x338.lo = 0.000152826107401486; x338.up = 0.919047619047619;
x339.lo = 0.283333333333333; x339.up = 0.580645161290323;
x340.lo = 0.0202380952380952; x340.up = 0.638888888888889;
x341.lo = 0.00144557823129252; x341.up = 0.638888888888889;
x342.lo = 0.000103255587949465; x342.up = 0.638888888888889;
x343.up = 1200;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
