Instance crudeoil_pooling_ct2
Scheduling of the unloading crude of incoming marine vessels to a refinery and transfer of the crudes from storage to charging tanks to the crude oil distillation units. Continuous time formulation. Maximization of gross margin.
| Formatsⓘ | ams gms lp mod nl osil pip py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 10246.21997000 (ANTIGONE) 10246.21996000 (BARON) 10550.36388000 (COUENNE) 10246.21996000 (GUROBI) 10426.90102000 (LINDO) 10246.21996000 (SCIP) 10616.00000000 (SHOT) |
| Referencesⓘ | Castro, Pedro, Crude Oil Pooling Problem, 2016. |
| Sourceⓘ | CT_MINLP_EX2_5_4a73d31.gms from minlp.org model 270 |
| Applicationⓘ | Pooling Problem |
| Added to libraryⓘ | 12 Sep 2017 |
| Problem typeⓘ | MBQCP |
| #Variablesⓘ | 403 |
| #Binary Variablesⓘ | 108 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 70 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 84 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 732 |
| #Linear Constraintsⓘ | 662 |
| #Quadratic Constraintsⓘ | 70 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 2439 |
| #Nonlinear Nonzeros in Jacobianⓘ | 140 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 140 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 0 |
| #Blocks in Hessian of Lagrangianⓘ | 15 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 4 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 6 |
| Average blocksize in Hessian of Lagrangianⓘ | 4.666667 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 2.0000e-03 |
| Maximal coefficientⓘ | 1.0000e+03 |
| Infeasibility of initial pointⓘ | 1000 |

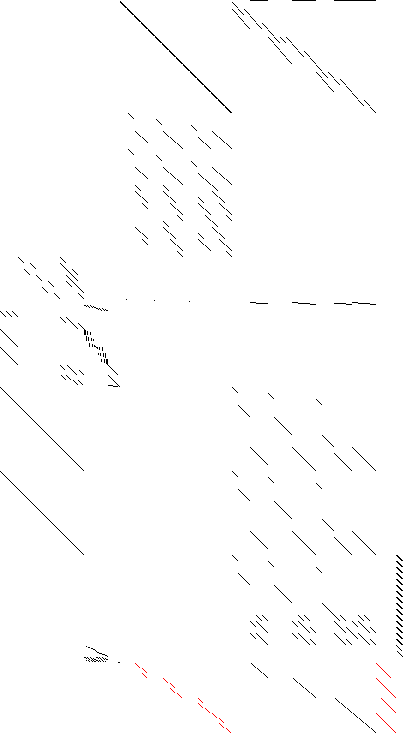

| Sparsity Jacobianⓘ |  |

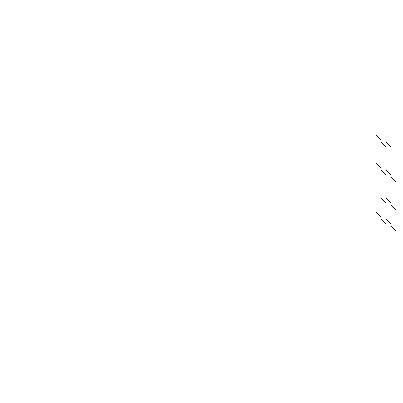

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 733 209 266 258 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 404 296 108 0 0 0 0 0
* FX 2
*
* Nonzero counts
* Total const NL DLL
* 2524 2384 140 0
*
* Solve m using MINLP maximizing objvar;
Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17,b18,b19
,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34,b35,b36
,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,b49,b50,b51,b52,b53
,b54,b55,b56,b57,b58,b59,b60,b61,b62,b63,b64,b65,b66,b67,b68,b69,b70
,b71,b72,b73,b74,b75,b76,b77,b78,b79,b80,b81,b82,b83,b84,b85,b86,b87
,b88,b89,b90,b91,b92,b93,b94,b95,b96,b97,b98,b99,b100,b101,b102,b103
,b104,b105,b106,b107,b108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311
,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324
,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337
,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349,x350
,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362,x363
,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375,x376
,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388,x389
,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401,x402
,x403,objvar;
Positive Variables x109,x110,x111,x112,x113,x114,x115,x116,x117,x118,x119
,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129,x130,x131,x132
,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142,x143,x144,x145
,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155,x156,x157,x158
,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168,x169,x170,x171
,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181,x182,x183,x184
,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194,x195,x196,x197
,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207,x208,x209,x210
,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220,x221,x222,x223
,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233,x234,x235,x236
,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246,x247,x248,x249
,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259,x260,x261,x262
,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272,x273,x274,x275
,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285,x286,x287,x288
,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298,x299,x300,x301
,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311,x312,x313,x314
,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324,x325,x326,x327
,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337,x338,x339,x340
,x341,x342,x343,x344,x345,x346,x347,x348,x349,x350,x351,x352,x353
,x354,x355,x356,x357,x358,x359,x360,x361,x362,x363,x364,x365,x366
,x367,x368,x369,x370,x371,x372,x373,x374,x375,x376,x377,x378,x379
,x380,x381,x382,x383,x384,x385,x386,x387,x388,x389,x390,x391,x392
,x393,x394,x395,x396,x398,x399,x400,x401,x402;
Binary Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17
,b18,b19,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34
,b35,b36,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,b49,b50,b51
,b52,b53,b54,b55,b56,b57,b58,b59,b60,b61,b62,b63,b64,b65,b66,b67,b68
,b69,b70,b71,b72,b73,b74,b75,b76,b77,b78,b79,b80,b81,b82,b83,b84,b85
,b86,b87,b88,b89,b90,b91,b92,b93,b94,b95,b96,b97,b98,b99,b100,b101
,b102,b103,b104,b105,b106,b107,b108;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709,e710,e711,e712,e713,e714
,e715,e716,e717,e718,e719,e720,e721,e722,e723,e724,e725,e726,e727
,e728,e729,e730,e731,e732,e733;
e1.. - x251 - x252 - x253 - x254 - x255 - x256 - x257 - x258 - x259 - x260
- x261 - x262 - x263 - x264 - x265 - x266 - x267 - x268 - 3*x293 - 3*x294
- 3*x295 - 3*x296 - 3*x297 - 3*x298 - 3*x299 - 3*x300 - 3*x301 - 3*x302
- 3*x303 - 3*x304 - 3*x305 - 3*x306 - 3*x307 - 3*x308 - 3*x309 - 3*x310
- 3*x311 - 3*x312 - 3*x313 - 3*x314 - 3*x315 - 3*x316 - 5*x335 - 5*x336
- 5*x337 - 5*x338 - 5*x339 - 5*x340 - 5*x341 - 5*x342 - 5*x343 - 5*x344
- 5*x345 - 5*x346 - 5*x347 - 5*x348 - 5*x349 - 5*x350 - 5*x351 - 5*x352
- 1.67*x353 - 1.67*x354 - 1.67*x355 - 1.67*x356 - 1.67*x357 - 1.67*x358
- 3*x359 - 3*x360 - 3*x361 - 3*x362 - 3*x363 - 3*x364 - 3*x365 - 3*x366
- 3*x367 - 3*x368 - 3*x369 - 3*x370 - 4.33*x371 - 4.33*x372 - 4.33*x373
- 4.33*x374 - 4.33*x375 - 4.33*x376 + objvar =E= 0;
e2.. x121 =E= 1000;
e3.. - x121 + x122 + x233 =E= 0;
e4.. - x122 + x123 + x234 =E= 0;
e5.. - x123 + x124 + x235 =E= 0;
e6.. - x124 + x125 + x236 =E= 0;
e7.. - x125 + x126 + x237 =E= 0;
e8.. - x126 + x127 + x238 =E= 0;
e9.. x128 =E= 200;
e10.. - x128 + x129 - x233 + x239 + x245 =E= 0;
e11.. - x129 + x130 - x234 + x240 + x246 =E= 0;
e12.. - x130 + x131 - x235 + x241 + x247 =E= 0;
e13.. - x131 + x132 - x236 + x242 + x248 =E= 0;
e14.. - x132 + x133 - x237 + x243 + x249 =E= 0;
e15.. - x133 + x134 - x238 + x244 + x250 =E= 0;
e16.. x135 =E= 0;
e17.. - x135 + x136 - x239 + x251 =E= 0;
e18.. - x136 + x137 - x240 + x252 =E= 0;
e19.. - x137 + x138 - x241 + x253 =E= 0;
e20.. - x138 + x139 - x242 + x254 =E= 0;
e21.. - x139 + x140 - x243 + x255 =E= 0;
e22.. - x140 + x141 - x244 + x256 =E= 0;
e23.. x142 =E= 0;
e24.. - x142 + x143 - x245 + x257 + x263 =E= 0;
e25.. - x143 + x144 - x246 + x258 + x264 =E= 0;
e26.. - x144 + x145 - x247 + x259 + x265 =E= 0;
e27.. - x145 + x146 - x248 + x260 + x266 =E= 0;
e28.. - x146 + x147 - x249 + x261 + x267 =E= 0;
e29.. - x147 + x148 - x250 + x262 + x268 =E= 0;
e30.. x149 =E= 1000;
e31.. - x149 + x150 + x269 =E= 0;
e32.. - x150 + x151 + x270 =E= 0;
e33.. - x151 + x152 + x271 =E= 0;
e34.. - x152 + x153 + x272 =E= 0;
e35.. - x153 + x154 + x273 =E= 0;
e36.. - x154 + x155 + x274 =E= 0;
e37.. x156 =E= 500;
e38.. - x156 + x157 - x269 + x275 + x281 + x287 =E= 0;
e39.. - x157 + x158 - x270 + x276 + x282 + x288 =E= 0;
e40.. - x158 + x159 - x271 + x277 + x283 + x289 =E= 0;
e41.. - x159 + x160 - x272 + x278 + x284 + x290 =E= 0;
e42.. - x160 + x161 - x273 + x279 + x285 + x291 =E= 0;
e43.. - x161 + x162 - x274 + x280 + x286 + x292 =E= 0;
e44.. x163 =E= 0;
e45.. - x163 + x164 - x275 + x293 =E= 0;
e46.. - x164 + x165 - x276 + x294 =E= 0;
e47.. - x165 + x166 - x277 + x295 =E= 0;
e48.. - x166 + x167 - x278 + x296 =E= 0;
e49.. - x167 + x168 - x279 + x297 =E= 0;
e50.. - x168 + x169 - x280 + x298 =E= 0;
e51.. x170 =E= 0;
e52.. - x170 + x171 - x281 + x299 + x305 =E= 0;
e53.. - x171 + x172 - x282 + x300 + x306 =E= 0;
e54.. - x172 + x173 - x283 + x301 + x307 =E= 0;
e55.. - x173 + x174 - x284 + x302 + x308 =E= 0;
e56.. - x174 + x175 - x285 + x303 + x309 =E= 0;
e57.. - x175 + x176 - x286 + x304 + x310 =E= 0;
e58.. x177 =E= 0;
e59.. - x177 + x178 - x287 + x311 =E= 0;
e60.. - x178 + x179 - x288 + x312 =E= 0;
e61.. - x179 + x180 - x289 + x313 =E= 0;
e62.. - x180 + x181 - x290 + x314 =E= 0;
e63.. - x181 + x182 - x291 + x315 =E= 0;
e64.. - x182 + x183 - x292 + x316 =E= 0;
e65.. x184 =E= 1000;
e66.. - x184 + x185 + x317 =E= 0;
e67.. - x185 + x186 + x318 =E= 0;
e68.. - x186 + x187 + x319 =E= 0;
e69.. - x187 + x188 + x320 =E= 0;
e70.. - x188 + x189 + x321 =E= 0;
e71.. - x189 + x190 + x322 =E= 0;
e72.. x191 =E= 700;
e73.. - x191 + x192 - x317 + x323 + x329 =E= 0;
e74.. - x192 + x193 - x318 + x324 + x330 =E= 0;
e75.. - x193 + x194 - x319 + x325 + x331 =E= 0;
e76.. - x194 + x195 - x320 + x326 + x332 =E= 0;
e77.. - x195 + x196 - x321 + x327 + x333 =E= 0;
e78.. - x196 + x197 - x322 + x328 + x334 =E= 0;
e79.. x198 =E= 0;
e80.. - x198 + x199 - x323 + x335 + x341 =E= 0;
e81.. - x199 + x200 - x324 + x336 + x342 =E= 0;
e82.. - x200 + x201 - x325 + x337 + x343 =E= 0;
e83.. - x201 + x202 - x326 + x338 + x344 =E= 0;
e84.. - x202 + x203 - x327 + x339 + x345 =E= 0;
e85.. - x203 + x204 - x328 + x340 + x346 =E= 0;
e86.. x205 =E= 0;
e87.. - x205 + x206 - x329 + x347 =E= 0;
e88.. - x206 + x207 - x330 + x348 =E= 0;
e89.. - x207 + x208 - x331 + x349 =E= 0;
e90.. - x208 + x209 - x332 + x350 =E= 0;
e91.. - x209 + x210 - x333 + x351 =E= 0;
e92.. - x210 + x211 - x334 + x352 =E= 0;
e93.. x212 =E= 300;
e94.. - x212 + x213 + x353 =E= 0;
e95.. - x213 + x214 + x354 =E= 0;
e96.. - x214 + x215 + x355 =E= 0;
e97.. - x215 + x216 + x356 =E= 0;
e98.. - x216 + x217 + x357 =E= 0;
e99.. - x217 + x218 + x358 =E= 0;
e100.. x219 =E= 500;
e101.. - x219 + x220 + x359 + x365 =E= 0;
e102.. - x220 + x221 + x360 + x366 =E= 0;
e103.. - x221 + x222 + x361 + x367 =E= 0;
e104.. - x222 + x223 + x362 + x368 =E= 0;
e105.. - x223 + x224 + x363 + x369 =E= 0;
e106.. - x224 + x225 + x364 + x370 =E= 0;
e107.. x226 =E= 300;
e108.. - x226 + x227 + x371 =E= 0;
e109.. - x227 + x228 + x372 =E= 0;
e110.. - x228 + x229 + x373 =E= 0;
e111.. - x229 + x230 + x374 =E= 0;
e112.. - x230 + x231 + x375 =E= 0;
e113.. - x231 + x232 + x376 =E= 0;
e114.. x129 =L= 1000;
e115.. x130 =L= 1000;
e116.. x131 =L= 1000;
e117.. x132 =L= 1000;
e118.. x133 =L= 1000;
e119.. x134 =L= 1000;
e120.. x157 =L= 1000;
e121.. x158 =L= 1000;
e122.. x159 =L= 1000;
e123.. x160 =L= 1000;
e124.. x161 =L= 1000;
e125.. x162 =L= 1000;
e126.. x192 =L= 1000;
e127.. x193 =L= 1000;
e128.. x194 =L= 1000;
e129.. x195 =L= 1000;
e130.. x196 =L= 1000;
e131.. x197 =L= 1000;
e132.. x136 + x164 + x213 =L= 1000;
e133.. x137 + x165 + x214 =L= 1000;
e134.. x138 + x166 + x215 =L= 1000;
e135.. x139 + x167 + x216 =L= 1000;
e136.. x140 + x168 + x217 =L= 1000;
e137.. x141 + x169 + x218 =L= 1000;
e138.. x143 + x171 + x199 + x220 =L= 1000;
e139.. x144 + x172 + x200 + x221 =L= 1000;
e140.. x145 + x173 + x201 + x222 =L= 1000;
e141.. x146 + x174 + x202 + x223 =L= 1000;
e142.. x147 + x175 + x203 + x224 =L= 1000;
e143.. x148 + x176 + x204 + x225 =L= 1000;
e144.. x178 + x206 + x227 =L= 1000;
e145.. x179 + x207 + x228 =L= 1000;
e146.. x180 + x208 + x229 =L= 1000;
e147.. x181 + x209 + x230 =L= 1000;
e148.. x182 + x210 + x231 =L= 1000;
e149.. x183 + x211 + x232 =L= 1000;
e150.. x129 =G= 0;
e151.. x130 =G= 0;
e152.. x131 =G= 0;
e153.. x132 =G= 0;
e154.. x133 =G= 0;
e155.. x134 =G= 0;
e156.. x157 =G= 0;
e157.. x158 =G= 0;
e158.. x159 =G= 0;
e159.. x160 =G= 0;
e160.. x161 =G= 0;
e161.. x162 =G= 0;
e162.. x192 =G= 0;
e163.. x193 =G= 0;
e164.. x194 =G= 0;
e165.. x195 =G= 0;
e166.. x196 =G= 0;
e167.. x197 =G= 0;
e168.. x136 + x164 + x213 =G= 0;
e169.. x137 + x165 + x214 =G= 0;
e170.. x138 + x166 + x215 =G= 0;
e171.. x139 + x167 + x216 =G= 0;
e172.. x140 + x168 + x217 =G= 0;
e173.. x141 + x169 + x218 =G= 0;
e174.. x143 + x171 + x199 + x220 =G= 0;
e175.. x144 + x172 + x200 + x221 =G= 0;
e176.. x145 + x173 + x201 + x222 =G= 0;
e177.. x146 + x174 + x202 + x223 =G= 0;
e178.. x147 + x175 + x203 + x224 =G= 0;
e179.. x148 + x176 + x204 + x225 =G= 0;
e180.. x178 + x206 + x227 =G= 0;
e181.. x179 + x207 + x228 =G= 0;
e182.. x180 + x208 + x229 =G= 0;
e183.. x181 + x209 + x230 =G= 0;
e184.. x182 + x210 + x231 =G= 0;
e185.. x183 + x211 + x232 =G= 0;
e186.. - 0.01*x136 + 0.01*x164 - 0.0033*x213 =L= 0;
e187.. - 0.01*x137 + 0.01*x165 - 0.0033*x214 =L= 0;
e188.. - 0.01*x138 + 0.01*x166 - 0.0033*x215 =L= 0;
e189.. - 0.01*x139 + 0.01*x167 - 0.0033*x216 =L= 0;
e190.. - 0.01*x140 + 0.01*x168 - 0.0033*x217 =L= 0;
e191.. - 0.01*x141 + 0.01*x169 - 0.0033*x218 =L= 0;
e192.. 0.002*x136 - 0.018*x164 - 0.0047*x213 =L= 0;
e193.. 0.002*x137 - 0.018*x165 - 0.0047*x214 =L= 0;
e194.. 0.002*x138 - 0.018*x166 - 0.0047*x215 =L= 0;
e195.. 0.002*x139 - 0.018*x167 - 0.0047*x216 =L= 0;
e196.. 0.002*x140 - 0.018*x168 - 0.0047*x217 =L= 0;
e197.. 0.002*x141 - 0.018*x169 - 0.0047*x218 =L= 0;
e198.. - 0.025*x143 - 0.005*x171 + 0.015*x199 - 0.005*x220 =L= 0;
e199.. - 0.025*x144 - 0.005*x172 + 0.015*x200 - 0.005*x221 =L= 0;
e200.. - 0.025*x145 - 0.005*x173 + 0.015*x201 - 0.005*x222 =L= 0;
e201.. - 0.025*x146 - 0.005*x174 + 0.015*x202 - 0.005*x223 =L= 0;
e202.. - 0.025*x147 - 0.005*x175 + 0.015*x203 - 0.005*x224 =L= 0;
e203.. - 0.025*x148 - 0.005*x176 + 0.015*x204 - 0.005*x225 =L= 0;
e204.. 0.013*x143 - 0.007*x171 - 0.017*x199 - 0.004*x220 =L= 0;
e205.. 0.013*x144 - 0.007*x172 - 0.017*x200 - 0.004*x221 =L= 0;
e206.. 0.013*x145 - 0.007*x173 - 0.017*x201 - 0.004*x222 =L= 0;
e207.. 0.013*x146 - 0.007*x174 - 0.017*x202 - 0.004*x223 =L= 0;
e208.. 0.013*x147 - 0.007*x175 - 0.017*x203 - 0.004*x224 =L= 0;
e209.. 0.013*x148 - 0.007*x176 - 0.017*x204 - 0.004*x225 =L= 0;
e210.. - 0.018*x178 + 0.002*x206 - 0.0047*x227 =L= 0;
e211.. - 0.018*x179 + 0.002*x207 - 0.0047*x228 =L= 0;
e212.. - 0.018*x180 + 0.002*x208 - 0.0047*x229 =L= 0;
e213.. - 0.018*x181 + 0.002*x209 - 0.0047*x230 =L= 0;
e214.. - 0.018*x182 + 0.002*x210 - 0.0047*x231 =L= 0;
e215.. - 0.018*x183 + 0.002*x211 - 0.0047*x232 =L= 0;
e216.. 0.002*x178 - 0.008*x206 - 0.0047*x227 =L= 0;
e217.. 0.002*x179 - 0.008*x207 - 0.0047*x228 =L= 0;
e218.. 0.002*x180 - 0.008*x208 - 0.0047*x229 =L= 0;
e219.. 0.002*x181 - 0.008*x209 - 0.0047*x230 =L= 0;
e220.. 0.002*x182 - 0.008*x210 - 0.0047*x231 =L= 0;
e221.. 0.002*x183 - 0.008*x211 - 0.0047*x232 =L= 0;
e222.. 0.02*x164 + 0.0067*x213 =G= 0;
e223.. 0.02*x165 + 0.0067*x214 =G= 0;
e224.. 0.02*x166 + 0.0067*x215 =G= 0;
e225.. 0.02*x167 + 0.0067*x216 =G= 0;
e226.. 0.02*x168 + 0.0067*x217 =G= 0;
e227.. 0.02*x169 + 0.0067*x218 =G= 0;
e228.. 0.01*x136 - 0.01*x164 + 0.0033*x213 =G= 0;
e229.. 0.01*x137 - 0.01*x165 + 0.0033*x214 =G= 0;
e230.. 0.01*x138 - 0.01*x166 + 0.0033*x215 =G= 0;
e231.. 0.01*x139 - 0.01*x167 + 0.0033*x216 =G= 0;
e232.. 0.01*x140 - 0.01*x168 + 0.0033*x217 =G= 0;
e233.. 0.01*x141 - 0.01*x169 + 0.0033*x218 =G= 0;
e234.. - 0.015*x143 + 0.005*x171 + 0.025*x199 + 0.005*x220 =G= 0;
e235.. - 0.015*x144 + 0.005*x172 + 0.025*x200 + 0.005*x221 =G= 0;
e236.. - 0.015*x145 + 0.005*x173 + 0.025*x201 + 0.005*x222 =G= 0;
e237.. - 0.015*x146 + 0.005*x174 + 0.025*x202 + 0.005*x223 =G= 0;
e238.. - 0.015*x147 + 0.005*x175 + 0.025*x203 + 0.005*x224 =G= 0;
e239.. - 0.015*x148 + 0.005*x176 + 0.025*x204 + 0.005*x225 =G= 0;
e240.. 0.022*x143 + 0.002*x171 - 0.008*x199 + 0.005*x220 =G= 0;
e241.. 0.022*x144 + 0.002*x172 - 0.008*x200 + 0.005*x221 =G= 0;
e242.. 0.022*x145 + 0.002*x173 - 0.008*x201 + 0.005*x222 =G= 0;
e243.. 0.022*x146 + 0.002*x174 - 0.008*x202 + 0.005*x223 =G= 0;
e244.. 0.022*x147 + 0.002*x175 - 0.008*x203 + 0.005*x224 =G= 0;
e245.. 0.022*x148 + 0.002*x176 - 0.008*x204 + 0.005*x225 =G= 0;
e246.. - 0.01*x178 + 0.01*x206 + 0.0033*x227 =G= 0;
e247.. - 0.01*x179 + 0.01*x207 + 0.0033*x228 =G= 0;
e248.. - 0.01*x180 + 0.01*x208 + 0.0033*x229 =G= 0;
e249.. - 0.01*x181 + 0.01*x209 + 0.0033*x230 =G= 0;
e250.. - 0.01*x182 + 0.01*x210 + 0.0033*x231 =G= 0;
e251.. - 0.01*x183 + 0.01*x211 + 0.0033*x232 =G= 0;
e252.. 0.01*x178 + 0.0033*x227 =G= 0;
e253.. 0.01*x179 + 0.0033*x228 =G= 0;
e254.. 0.01*x180 + 0.0033*x229 =G= 0;
e255.. 0.01*x181 + 0.0033*x230 =G= 0;
e256.. 0.01*x182 + 0.0033*x231 =G= 0;
e257.. 0.01*x183 + 0.0033*x232 =G= 0;
e258.. b19 + b61 =L= 1;
e259.. b20 + b62 =L= 1;
e260.. b21 + b63 =L= 1;
e261.. b22 + b64 =L= 1;
e262.. b23 + b65 =L= 1;
e263.. b24 + b66 =L= 1;
e264.. b31 + b61 =L= 1;
e265.. b32 + b62 =L= 1;
e266.. b33 + b63 =L= 1;
e267.. b34 + b64 =L= 1;
e268.. b35 + b65 =L= 1;
e269.. b36 + b66 =L= 1;
e270.. b25 + b67 + b73 =L= 1;
e271.. b26 + b68 + b74 =L= 1;
e272.. b27 + b69 + b75 =L= 1;
e273.. b28 + b70 + b76 =L= 1;
e274.. b29 + b71 + b77 =L= 1;
e275.. b30 + b72 + b78 =L= 1;
e276.. b37 + b67 + b73 =L= 1;
e277.. b38 + b68 + b74 =L= 1;
e278.. b39 + b69 + b75 =L= 1;
e279.. b40 + b70 + b76 =L= 1;
e280.. b41 + b71 + b77 =L= 1;
e281.. b42 + b72 + b78 =L= 1;
e282.. b49 + b67 + b73 =L= 1;
e283.. b50 + b68 + b74 =L= 1;
e284.. b51 + b69 + b75 =L= 1;
e285.. b52 + b70 + b76 =L= 1;
e286.. b53 + b71 + b77 =L= 1;
e287.. b54 + b72 + b78 =L= 1;
e288.. b43 + b79 =L= 1;
e289.. b44 + b80 =L= 1;
e290.. b45 + b81 =L= 1;
e291.. b46 + b82 =L= 1;
e292.. b47 + b83 =L= 1;
e293.. b48 + b84 =L= 1;
e294.. b55 + b79 =L= 1;
e295.. b56 + b80 =L= 1;
e296.. b57 + b81 =L= 1;
e297.. b58 + b82 =L= 1;
e298.. b59 + b83 =L= 1;
e299.. b60 + b84 =L= 1;
e300.. x127 =E= 0;
e301.. x155 =E= 0;
e302.. x190 =E= 0;
e303.. x251 + x252 + x253 + x254 + x255 + x256 + x293 + x294 + x295 + x296
+ x297 + x298 + x353 + x354 + x355 + x356 + x357 + x358 =E= 1000;
e304.. x257 + x258 + x259 + x260 + x261 + x262 + x263 + x264 + x265 + x266
+ x267 + x268 + x299 + x300 + x301 + x302 + x303 + x304 + x305 + x306
+ x307 + x308 + x309 + x310 + x335 + x336 + x337 + x338 + x339 + x340
+ x341 + x342 + x343 + x344 + x345 + x346 + x359 + x360 + x361 + x362
+ x363 + x364 + x365 + x366 + x367 + x368 + x369 + x370 =E= 1000;
e305.. x311 + x312 + x313 + x314 + x315 + x316 + x347 + x348 + x349 + x350
+ x351 + x352 + x371 + x372 + x373 + x374 + x375 + x376 =E= 1000;
e306.. b85 + b86 + b88 + b91 =E= 1;
e307.. b87 + b89 + b92 + b94 =E= 1;
e308.. b90 + b93 + b95 + b96 =E= 1;
e309.. b97 + b98 + b100 + b103 =E= 1;
e310.. b99 + b101 + b104 + b106 =E= 1;
e311.. b102 + b105 + b107 + b108 =E= 1;
e312.. b1 + b7 + b13 =L= 1;
e313.. b2 + b8 + b14 =L= 1;
e314.. b3 + b9 + b15 =L= 1;
e315.. b4 + b10 + b16 =L= 1;
e316.. b5 + b11 + b17 =L= 1;
e317.. b6 + b12 + b18 =L= 1;
e318.. b61 + b67 =E= 1;
e319.. b62 + b68 =E= 1;
e320.. b63 + b69 =E= 1;
e321.. b64 + b70 =E= 1;
e322.. b65 + b71 =E= 1;
e323.. b66 + b72 =E= 1;
e324.. b73 + b79 =E= 1;
e325.. b74 + b80 =E= 1;
e326.. b75 + b81 =E= 1;
e327.. b76 + b82 =E= 1;
e328.. b77 + b83 =E= 1;
e329.. b78 + b84 =E= 1;
e330.. b1 - b85 =L= 0;
e331.. b2 - b85 - b86 =L= 0;
e332.. b3 - b85 - b86 - b88 =L= 0;
e333.. b4 - b85 - b86 - b88 - b91 =L= 0;
e334.. b5 - b85 - b86 - b88 - b91 =L= 0;
e335.. b6 - b85 - b86 - b88 - b91 =L= 0;
e336.. b7 =L= 0;
e337.. b8 - b87 =L= 0;
e338.. b9 - b87 - b89 =L= 0;
e339.. b10 - b87 - b89 - b92 =L= 0;
e340.. b11 - b87 - b89 - b92 - b94 =L= 0;
e341.. b12 - b87 - b89 - b92 - b94 =L= 0;
e342.. b13 =L= 0;
e343.. b14 =L= 0;
e344.. b15 - b90 =L= 0;
e345.. b16 - b90 - b93 =L= 0;
e346.. b17 - b90 - b93 - b95 =L= 0;
e347.. b18 - b90 - b93 - b95 - b96 =L= 0;
e348.. b1 - b97 - b98 - b100 - b103 =L= 0;
e349.. b2 - b98 - b100 - b103 =L= 0;
e350.. b3 - b100 - b103 =L= 0;
e351.. b4 - b103 =L= 0;
e352.. b5 =L= 0;
e353.. b6 =L= 0;
e354.. b7 - b99 - b101 - b104 - b106 =L= 0;
e355.. b8 - b99 - b101 - b104 - b106 =L= 0;
e356.. b9 - b101 - b104 - b106 =L= 0;
e357.. b10 - b104 - b106 =L= 0;
e358.. b11 - b106 =L= 0;
e359.. b12 =L= 0;
e360.. b13 - b102 - b105 - b107 - b108 =L= 0;
e361.. b14 - b102 - b105 - b107 - b108 =L= 0;
e362.. b15 - b102 - b105 - b107 - b108 =L= 0;
e363.. b16 - b105 - b107 - b108 =L= 0;
e364.. b17 - b107 - b108 =L= 0;
e365.. b18 - b108 =L= 0;
e366.. - b61 - b68 + x109 =G= -1;
e367.. - b62 - b69 + x110 =G= -1;
e368.. - b63 - b70 + x111 =G= -1;
e369.. - b64 - b71 + x112 =G= -1;
e370.. - b65 - b72 + x113 =G= -1;
e371.. - b73 - b80 + x114 =G= -1;
e372.. - b74 - b81 + x115 =G= -1;
e373.. - b75 - b82 + x116 =G= -1;
e374.. - b76 - b83 + x117 =G= -1;
e375.. - b77 - b84 + x118 =G= -1;
e376.. - b62 - b67 + x109 =G= -1;
e377.. - b63 - b68 + x110 =G= -1;
e378.. - b64 - b69 + x111 =G= -1;
e379.. - b65 - b70 + x112 =G= -1;
e380.. - b66 - b71 + x113 =G= -1;
e381.. - b74 - b79 + x114 =G= -1;
e382.. - b75 - b80 + x115 =G= -1;
e383.. - b76 - b81 + x116 =G= -1;
e384.. - b77 - b82 + x117 =G= -1;
e385.. - b78 - b83 + x118 =G= -1;
e386.. x109 + x110 + x111 + x112 + x113 - x119 =E= -1;
e387.. x114 + x115 + x116 + x117 + x118 - x120 =E= -1;
e388.. - 1000*b1 + x233 =L= 0;
e389.. - 1000*b2 + x234 =L= 0;
e390.. - 1000*b3 + x235 =L= 0;
e391.. - 1000*b4 + x236 =L= 0;
e392.. - 1000*b5 + x237 =L= 0;
e393.. - 1000*b6 + x238 =L= 0;
e394.. - 1000*b7 + x269 =L= 0;
e395.. - 1000*b8 + x270 =L= 0;
e396.. - 1000*b9 + x271 =L= 0;
e397.. - 1000*b10 + x272 =L= 0;
e398.. - 1000*b11 + x273 =L= 0;
e399.. - 1000*b12 + x274 =L= 0;
e400.. - 1000*b13 + x317 =L= 0;
e401.. - 1000*b14 + x318 =L= 0;
e402.. - 1000*b15 + x319 =L= 0;
e403.. - 1000*b16 + x320 =L= 0;
e404.. - 1000*b17 + x321 =L= 0;
e405.. - 1000*b18 + x322 =L= 0;
e406.. - 1000*b19 + x239 =L= 0;
e407.. - 1000*b20 + x240 =L= 0;
e408.. - 1000*b21 + x241 =L= 0;
e409.. - 1000*b22 + x242 =L= 0;
e410.. - 1000*b23 + x243 =L= 0;
e411.. - 1000*b24 + x244 =L= 0;
e412.. - 1000*b25 + x245 =L= 0;
e413.. - 1000*b26 + x246 =L= 0;
e414.. - 1000*b27 + x247 =L= 0;
e415.. - 1000*b28 + x248 =L= 0;
e416.. - 1000*b29 + x249 =L= 0;
e417.. - 1000*b30 + x250 =L= 0;
e418.. - 1000*b31 + x275 =L= 0;
e419.. - 1000*b32 + x276 =L= 0;
e420.. - 1000*b33 + x277 =L= 0;
e421.. - 1000*b34 + x278 =L= 0;
e422.. - 1000*b35 + x279 =L= 0;
e423.. - 1000*b36 + x280 =L= 0;
e424.. - 1000*b37 + x281 =L= 0;
e425.. - 1000*b38 + x282 =L= 0;
e426.. - 1000*b39 + x283 =L= 0;
e427.. - 1000*b40 + x284 =L= 0;
e428.. - 1000*b41 + x285 =L= 0;
e429.. - 1000*b42 + x286 =L= 0;
e430.. - 1000*b43 + x287 =L= 0;
e431.. - 1000*b44 + x288 =L= 0;
e432.. - 1000*b45 + x289 =L= 0;
e433.. - 1000*b46 + x290 =L= 0;
e434.. - 1000*b47 + x291 =L= 0;
e435.. - 1000*b48 + x292 =L= 0;
e436.. - 1000*b49 + x323 =L= 0;
e437.. - 1000*b50 + x324 =L= 0;
e438.. - 1000*b51 + x325 =L= 0;
e439.. - 1000*b52 + x326 =L= 0;
e440.. - 1000*b53 + x327 =L= 0;
e441.. - 1000*b54 + x328 =L= 0;
e442.. - 1000*b55 + x329 =L= 0;
e443.. - 1000*b56 + x330 =L= 0;
e444.. - 1000*b57 + x331 =L= 0;
e445.. - 1000*b58 + x332 =L= 0;
e446.. - 1000*b59 + x333 =L= 0;
e447.. - 1000*b60 + x334 =L= 0;
e448.. - 1000*b61 + x251 + x293 + x353 =L= 0;
e449.. - 1000*b62 + x252 + x294 + x354 =L= 0;
e450.. - 1000*b63 + x253 + x295 + x355 =L= 0;
e451.. - 1000*b64 + x254 + x296 + x356 =L= 0;
e452.. - 1000*b65 + x255 + x297 + x357 =L= 0;
e453.. - 1000*b66 + x256 + x298 + x358 =L= 0;
e454.. - 1000*b67 + x257 + x299 + x335 + x359 =L= 0;
e455.. - 1000*b68 + x258 + x300 + x336 + x360 =L= 0;
e456.. - 1000*b69 + x259 + x301 + x337 + x361 =L= 0;
e457.. - 1000*b70 + x260 + x302 + x338 + x362 =L= 0;
e458.. - 1000*b71 + x261 + x303 + x339 + x363 =L= 0;
e459.. - 1000*b72 + x262 + x304 + x340 + x364 =L= 0;
e460.. - 1000*b73 + x263 + x305 + x341 + x365 =L= 0;
e461.. - 1000*b74 + x264 + x306 + x342 + x366 =L= 0;
e462.. - 1000*b75 + x265 + x307 + x343 + x367 =L= 0;
e463.. - 1000*b76 + x266 + x308 + x344 + x368 =L= 0;
e464.. - 1000*b77 + x267 + x309 + x345 + x369 =L= 0;
e465.. - 1000*b78 + x268 + x310 + x346 + x370 =L= 0;
e466.. - 1000*b79 + x311 + x347 + x371 =L= 0;
e467.. - 1000*b80 + x312 + x348 + x372 =L= 0;
e468.. - 1000*b81 + x313 + x349 + x373 =L= 0;
e469.. - 1000*b82 + x314 + x350 + x374 =L= 0;
e470.. - 1000*b83 + x315 + x351 + x375 =L= 0;
e471.. - 1000*b84 + x316 + x352 + x376 =L= 0;
e472.. - b1 + x233 =G= 0;
e473.. - b2 + x234 =G= 0;
e474.. - b3 + x235 =G= 0;
e475.. - b4 + x236 =G= 0;
e476.. - b5 + x237 =G= 0;
e477.. - b6 + x238 =G= 0;
e478.. - b7 + x269 =G= 0;
e479.. - b8 + x270 =G= 0;
e480.. - b9 + x271 =G= 0;
e481.. - b10 + x272 =G= 0;
e482.. - b11 + x273 =G= 0;
e483.. - b12 + x274 =G= 0;
e484.. - b13 + x317 =G= 0;
e485.. - b14 + x318 =G= 0;
e486.. - b15 + x319 =G= 0;
e487.. - b16 + x320 =G= 0;
e488.. - b17 + x321 =G= 0;
e489.. - b18 + x322 =G= 0;
e490.. - b19 + x239 =G= 0;
e491.. - b20 + x240 =G= 0;
e492.. - b21 + x241 =G= 0;
e493.. - b22 + x242 =G= 0;
e494.. - b23 + x243 =G= 0;
e495.. - b24 + x244 =G= 0;
e496.. - b25 + x245 =G= 0;
e497.. - b26 + x246 =G= 0;
e498.. - b27 + x247 =G= 0;
e499.. - b28 + x248 =G= 0;
e500.. - b29 + x249 =G= 0;
e501.. - b30 + x250 =G= 0;
e502.. - b31 + x275 =G= 0;
e503.. - b32 + x276 =G= 0;
e504.. - b33 + x277 =G= 0;
e505.. - b34 + x278 =G= 0;
e506.. - b35 + x279 =G= 0;
e507.. - b36 + x280 =G= 0;
e508.. - b37 + x281 =G= 0;
e509.. - b38 + x282 =G= 0;
e510.. - b39 + x283 =G= 0;
e511.. - b40 + x284 =G= 0;
e512.. - b41 + x285 =G= 0;
e513.. - b42 + x286 =G= 0;
e514.. - b43 + x287 =G= 0;
e515.. - b44 + x288 =G= 0;
e516.. - b45 + x289 =G= 0;
e517.. - b46 + x290 =G= 0;
e518.. - b47 + x291 =G= 0;
e519.. - b48 + x292 =G= 0;
e520.. - b49 + x323 =G= 0;
e521.. - b50 + x324 =G= 0;
e522.. - b51 + x325 =G= 0;
e523.. - b52 + x326 =G= 0;
e524.. - b53 + x327 =G= 0;
e525.. - b54 + x328 =G= 0;
e526.. - b55 + x329 =G= 0;
e527.. - b56 + x330 =G= 0;
e528.. - b57 + x331 =G= 0;
e529.. - b58 + x332 =G= 0;
e530.. - b59 + x333 =G= 0;
e531.. - b60 + x334 =G= 0;
e532.. - b61 + x251 + x293 + x353 =G= 0;
e533.. - b62 + x252 + x294 + x354 =G= 0;
e534.. - b63 + x253 + x295 + x355 =G= 0;
e535.. - b64 + x254 + x296 + x356 =G= 0;
e536.. - b65 + x255 + x297 + x357 =G= 0;
e537.. - b66 + x256 + x298 + x358 =G= 0;
e538.. - b67 + x257 + x299 + x335 + x359 =G= 0;
e539.. - b68 + x258 + x300 + x336 + x360 =G= 0;
e540.. - b69 + x259 + x301 + x337 + x361 =G= 0;
e541.. - b70 + x260 + x302 + x338 + x362 =G= 0;
e542.. - b71 + x261 + x303 + x339 + x363 =G= 0;
e543.. - b72 + x262 + x304 + x340 + x364 =G= 0;
e544.. - b73 + x263 + x305 + x341 + x365 =G= 0;
e545.. - b74 + x264 + x306 + x342 + x366 =G= 0;
e546.. - b75 + x265 + x307 + x343 + x367 =G= 0;
e547.. - b76 + x266 + x308 + x344 + x368 =G= 0;
e548.. - b77 + x267 + x309 + x345 + x369 =G= 0;
e549.. - b78 + x268 + x310 + x346 + x370 =G= 0;
e550.. - b79 + x311 + x347 + x371 =G= 0;
e551.. - b80 + x312 + x348 + x372 =G= 0;
e552.. - b81 + x313 + x349 + x373 =G= 0;
e553.. - b82 + x314 + x350 + x374 =G= 0;
e554.. - b83 + x315 + x351 + x375 =G= 0;
e555.. - b84 + x316 + x352 + x376 =G= 0;
e556.. - 0.002*x233 - x397 + x398 =G= 0;
e557.. - 0.002*x234 - x398 + x399 =G= 0;
e558.. - 0.002*x235 - x399 + x400 =G= 0;
e559.. - 0.002*x236 - x400 + x401 =G= 0;
e560.. - 0.002*x237 - x401 + x402 =G= 0;
e561.. - 0.002*x238 - x402 + x403 =G= 0;
e562.. - 0.002*x269 - x397 + x398 =G= 0;
e563.. - 0.002*x270 - x398 + x399 =G= 0;
e564.. - 0.002*x271 - x399 + x400 =G= 0;
e565.. - 0.002*x272 - x400 + x401 =G= 0;
e566.. - 0.002*x273 - x401 + x402 =G= 0;
e567.. - 0.002*x274 - x402 + x403 =G= 0;
e568.. - 0.002*x317 - x397 + x398 =G= 0;
e569.. - 0.002*x318 - x398 + x399 =G= 0;
e570.. - 0.002*x319 - x399 + x400 =G= 0;
e571.. - 0.002*x320 - x400 + x401 =G= 0;
e572.. - 0.002*x321 - x401 + x402 =G= 0;
e573.. - 0.002*x322 - x402 + x403 =G= 0;
e574.. - 0.002*x239 - x397 + x398 =G= 0;
e575.. - 0.002*x240 - x398 + x399 =G= 0;
e576.. - 0.002*x241 - x399 + x400 =G= 0;
e577.. - 0.002*x242 - x400 + x401 =G= 0;
e578.. - 0.002*x243 - x401 + x402 =G= 0;
e579.. - 0.002*x244 - x402 + x403 =G= 0;
e580.. - 0.002*x245 - x397 + x398 =G= 0;
e581.. - 0.002*x246 - x398 + x399 =G= 0;
e582.. - 0.002*x247 - x399 + x400 =G= 0;
e583.. - 0.002*x248 - x400 + x401 =G= 0;
e584.. - 0.002*x249 - x401 + x402 =G= 0;
e585.. - 0.002*x250 - x402 + x403 =G= 0;
e586.. - 0.002*x275 - x397 + x398 =G= 0;
e587.. - 0.002*x276 - x398 + x399 =G= 0;
e588.. - 0.002*x277 - x399 + x400 =G= 0;
e589.. - 0.002*x278 - x400 + x401 =G= 0;
e590.. - 0.002*x279 - x401 + x402 =G= 0;
e591.. - 0.002*x280 - x402 + x403 =G= 0;
e592.. - 0.002*x281 - x397 + x398 =G= 0;
e593.. - 0.002*x282 - x398 + x399 =G= 0;
e594.. - 0.002*x283 - x399 + x400 =G= 0;
e595.. - 0.002*x284 - x400 + x401 =G= 0;
e596.. - 0.002*x285 - x401 + x402 =G= 0;
e597.. - 0.002*x286 - x402 + x403 =G= 0;
e598.. - 0.002*x287 - x397 + x398 =G= 0;
e599.. - 0.002*x288 - x398 + x399 =G= 0;
e600.. - 0.002*x289 - x399 + x400 =G= 0;
e601.. - 0.002*x290 - x400 + x401 =G= 0;
e602.. - 0.002*x291 - x401 + x402 =G= 0;
e603.. - 0.002*x292 - x402 + x403 =G= 0;
e604.. - 0.002*x323 - x397 + x398 =G= 0;
e605.. - 0.002*x324 - x398 + x399 =G= 0;
e606.. - 0.002*x325 - x399 + x400 =G= 0;
e607.. - 0.002*x326 - x400 + x401 =G= 0;
e608.. - 0.002*x327 - x401 + x402 =G= 0;
e609.. - 0.002*x328 - x402 + x403 =G= 0;
e610.. - 0.002*x329 - x397 + x398 =G= 0;
e611.. - 0.002*x330 - x398 + x399 =G= 0;
e612.. - 0.002*x331 - x399 + x400 =G= 0;
e613.. - 0.002*x332 - x400 + x401 =G= 0;
e614.. - 0.002*x333 - x401 + x402 =G= 0;
e615.. - 0.002*x334 - x402 + x403 =G= 0;
e616.. - 0.002*x257 - 0.002*x263 - 0.002*x299 - 0.002*x305 - 0.002*x335
- 0.002*x341 - 0.002*x359 - 0.002*x365 - x397 + x398 =G= 0;
e617.. - 0.002*x258 - 0.002*x264 - 0.002*x300 - 0.002*x306 - 0.002*x336
- 0.002*x342 - 0.002*x360 - 0.002*x366 - x398 + x399 =G= 0;
e618.. - 0.002*x259 - 0.002*x265 - 0.002*x301 - 0.002*x307 - 0.002*x337
- 0.002*x343 - 0.002*x361 - 0.002*x367 - x399 + x400 =G= 0;
e619.. - 0.002*x260 - 0.002*x266 - 0.002*x302 - 0.002*x308 - 0.002*x338
- 0.002*x344 - 0.002*x362 - 0.002*x368 - x400 + x401 =G= 0;
e620.. - 0.002*x261 - 0.002*x267 - 0.002*x303 - 0.002*x309 - 0.002*x339
- 0.002*x345 - 0.002*x363 - 0.002*x369 - x401 + x402 =G= 0;
e621.. - 0.002*x262 - 0.002*x268 - 0.002*x304 - 0.002*x310 - 0.002*x340
- 0.002*x346 - 0.002*x364 - 0.002*x370 - x402 + x403 =G= 0;
e622.. - 0.002*x251 - 0.002*x257 - 0.002*x293 - 0.002*x299 - 0.002*x335
- 0.002*x353 - 0.002*x359 - x397 + x398 =G= 0;
e623.. - 0.002*x252 - 0.002*x258 - 0.002*x294 - 0.002*x300 - 0.002*x336
- 0.002*x354 - 0.002*x360 - x398 + x399 =G= 0;
e624.. - 0.002*x253 - 0.002*x259 - 0.002*x295 - 0.002*x301 - 0.002*x337
- 0.002*x355 - 0.002*x361 - x399 + x400 =G= 0;
e625.. - 0.002*x254 - 0.002*x260 - 0.002*x296 - 0.002*x302 - 0.002*x338
- 0.002*x356 - 0.002*x362 - x400 + x401 =G= 0;
e626.. - 0.002*x255 - 0.002*x261 - 0.002*x297 - 0.002*x303 - 0.002*x339
- 0.002*x357 - 0.002*x363 - x401 + x402 =G= 0;
e627.. - 0.002*x256 - 0.002*x262 - 0.002*x298 - 0.002*x304 - 0.002*x340
- 0.002*x358 - 0.002*x364 - x402 + x403 =G= 0;
e628.. - 0.002*x263 - 0.002*x305 - 0.002*x311 - 0.002*x341 - 0.002*x347
- 0.002*x365 - 0.002*x371 - x397 + x398 =G= 0;
e629.. - 0.002*x264 - 0.002*x306 - 0.002*x312 - 0.002*x342 - 0.002*x348
- 0.002*x366 - 0.002*x372 - x398 + x399 =G= 0;
e630.. - 0.002*x265 - 0.002*x307 - 0.002*x313 - 0.002*x343 - 0.002*x349
- 0.002*x367 - 0.002*x373 - x399 + x400 =G= 0;
e631.. - 0.002*x266 - 0.002*x308 - 0.002*x314 - 0.002*x344 - 0.002*x350
- 0.002*x368 - 0.002*x374 - x400 + x401 =G= 0;
e632.. - 0.002*x267 - 0.002*x309 - 0.002*x315 - 0.002*x345 - 0.002*x351
- 0.002*x369 - 0.002*x375 - x401 + x402 =G= 0;
e633.. - 0.002*x268 - 0.002*x310 - 0.002*x316 - 0.002*x346 - 0.002*x352
- 0.002*x370 - 0.002*x376 - x402 + x403 =G= 0;
e634.. - 0.02*x251 - 0.02*x257 - 0.02*x293 - 0.02*x299 - 0.02*x335 - 0.02*x353
- 0.02*x359 - x397 + x398 =L= 0;
e635.. - 0.02*x252 - 0.02*x258 - 0.02*x294 - 0.02*x300 - 0.02*x336 - 0.02*x354
- 0.02*x360 - x398 + x399 =L= 0;
e636.. - 0.02*x253 - 0.02*x259 - 0.02*x295 - 0.02*x301 - 0.02*x337 - 0.02*x355
- 0.02*x361 - x399 + x400 =L= 0;
e637.. - 0.02*x254 - 0.02*x260 - 0.02*x296 - 0.02*x302 - 0.02*x338 - 0.02*x356
- 0.02*x362 - x400 + x401 =L= 0;
e638.. - 0.02*x255 - 0.02*x261 - 0.02*x297 - 0.02*x303 - 0.02*x339 - 0.02*x357
- 0.02*x363 - x401 + x402 =L= 0;
e639.. - 0.02*x256 - 0.02*x262 - 0.02*x298 - 0.02*x304 - 0.02*x340 - 0.02*x358
- 0.02*x364 - x402 + x403 =L= 0;
e640.. - 0.02*x263 - 0.02*x305 - 0.02*x311 - 0.02*x341 - 0.02*x347 - 0.02*x365
- 0.02*x371 - x397 + x398 =L= 0;
e641.. - 0.02*x264 - 0.02*x306 - 0.02*x312 - 0.02*x342 - 0.02*x348 - 0.02*x366
- 0.02*x372 - x398 + x399 =L= 0;
e642.. - 0.02*x265 - 0.02*x307 - 0.02*x313 - 0.02*x343 - 0.02*x349 - 0.02*x367
- 0.02*x373 - x399 + x400 =L= 0;
e643.. - 0.02*x266 - 0.02*x308 - 0.02*x314 - 0.02*x344 - 0.02*x350 - 0.02*x368
- 0.02*x374 - x400 + x401 =L= 0;
e644.. - 0.02*x267 - 0.02*x309 - 0.02*x315 - 0.02*x345 - 0.02*x351 - 0.02*x369
- 0.02*x375 - x401 + x402 =L= 0;
e645.. - 0.02*x268 - 0.02*x310 - 0.02*x316 - 0.02*x346 - 0.02*x352 - 0.02*x370
- 0.02*x376 - x402 + x403 =L= 0;
e646.. x397 =G= 0;
e647.. - 3*b87 + x398 =G= 0;
e648.. - 3*b89 - 6*b90 + x399 =G= 0;
e649.. - 3*b92 - 6*b93 + x400 =G= 0;
e650.. - 3*b94 - 6*b95 + x401 =G= 0;
e651.. - 6*b96 + x402 =G= 0;
e652.. - 2*b97 + x398 =G= 0;
e653.. - 2*b98 - 5*b99 + x399 =G= 0;
e654.. - 2*b100 - 5*b101 - 8*b102 + x400 =G= 0;
e655.. - 2*b103 - 5*b104 - 8*b105 + x401 =G= 0;
e656.. - 5*b106 - 8*b107 + x402 =G= 0;
e657.. - 8*b108 + x403 =G= 0;
e658.. b85 + 2*b86 + 3*b88 + 4*b91 - 2*b97 - 3*b98 - 4*b100 - 5*b103 =L= -1;
e659.. 2*b87 + 3*b89 + 4*b92 + 5*b94 - 3*b99 - 4*b101 - 5*b104 - 6*b106
=L= -1;
e660.. 3*b90 + 4*b93 + 5*b95 + 6*b96 - 4*b102 - 5*b105 - 6*b107 - 7*b108
=L= -1;
e661.. - 2*b87 - 3*b89 - 4*b92 - 5*b94 + 2*b97 + 3*b98 + 4*b100 + 5*b103 =L= 0
;
e662.. - 3*b90 - 4*b93 - 5*b95 - 6*b96 + 3*b99 + 4*b101 + 5*b104 + 6*b106
=L= 0;
e663.. x119 + x120 =L= 5;
e664.. -x377*x136 + x252 =E= 0;
e665.. -x378*x137 + x253 =E= 0;
e666.. -x379*x138 + x254 =E= 0;
e667.. -x380*x139 + x255 =E= 0;
e668.. -x381*x140 + x256 =E= 0;
e669.. -x382*x143 + x258 =E= 0;
e670.. -x383*x144 + x259 =E= 0;
e671.. -x384*x145 + x260 =E= 0;
e672.. -x385*x146 + x261 =E= 0;
e673.. -x386*x147 + x262 =E= 0;
e674.. -x387*x143 + x264 =E= 0;
e675.. -x388*x144 + x265 =E= 0;
e676.. -x389*x145 + x266 =E= 0;
e677.. -x390*x146 + x267 =E= 0;
e678.. -x391*x147 + x268 =E= 0;
e679.. -x377*x164 + x294 =E= 0;
e680.. -x378*x165 + x295 =E= 0;
e681.. -x379*x166 + x296 =E= 0;
e682.. -x380*x167 + x297 =E= 0;
e683.. -x381*x168 + x298 =E= 0;
e684.. -x382*x171 + x300 =E= 0;
e685.. -x383*x172 + x301 =E= 0;
e686.. -x384*x173 + x302 =E= 0;
e687.. -x385*x174 + x303 =E= 0;
e688.. -x386*x175 + x304 =E= 0;
e689.. -x387*x171 + x306 =E= 0;
e690.. -x388*x172 + x307 =E= 0;
e691.. -x389*x173 + x308 =E= 0;
e692.. -x390*x174 + x309 =E= 0;
e693.. -x391*x175 + x310 =E= 0;
e694.. -x392*x178 + x312 =E= 0;
e695.. -x393*x179 + x313 =E= 0;
e696.. -x394*x180 + x314 =E= 0;
e697.. -x395*x181 + x315 =E= 0;
e698.. -x396*x182 + x316 =E= 0;
e699.. -x382*x199 + x336 =E= 0;
e700.. -x383*x200 + x337 =E= 0;
e701.. -x384*x201 + x338 =E= 0;
e702.. -x385*x202 + x339 =E= 0;
e703.. -x386*x203 + x340 =E= 0;
e704.. -x387*x199 + x342 =E= 0;
e705.. -x388*x200 + x343 =E= 0;
e706.. -x389*x201 + x344 =E= 0;
e707.. -x390*x202 + x345 =E= 0;
e708.. -x391*x203 + x346 =E= 0;
e709.. -x392*x206 + x348 =E= 0;
e710.. -x393*x207 + x349 =E= 0;
e711.. -x394*x208 + x350 =E= 0;
e712.. -x395*x209 + x351 =E= 0;
e713.. -x396*x210 + x352 =E= 0;
e714.. -x377*x213 + x354 =E= 0;
e715.. -x378*x214 + x355 =E= 0;
e716.. -x379*x215 + x356 =E= 0;
e717.. -x380*x216 + x357 =E= 0;
e718.. -x381*x217 + x358 =E= 0;
e719.. -x382*x220 + x360 =E= 0;
e720.. -x383*x221 + x361 =E= 0;
e721.. -x384*x222 + x362 =E= 0;
e722.. -x385*x223 + x363 =E= 0;
e723.. -x386*x224 + x364 =E= 0;
e724.. -x387*x220 + x366 =E= 0;
e725.. -x388*x221 + x367 =E= 0;
e726.. -x389*x222 + x368 =E= 0;
e727.. -x390*x223 + x369 =E= 0;
e728.. -x391*x224 + x370 =E= 0;
e729.. -x392*x227 + x372 =E= 0;
e730.. -x393*x228 + x373 =E= 0;
e731.. -x394*x229 + x374 =E= 0;
e732.. -x395*x230 + x375 =E= 0;
e733.. -x396*x231 + x376 =E= 0;
* set non-default bounds
x136.up = 1000;
x137.up = 1000;
x138.up = 1000;
x139.up = 1000;
x140.up = 1000;
x143.up = 1000;
x144.up = 1000;
x145.up = 1000;
x146.up = 1000;
x147.up = 1000;
x164.up = 1000;
x165.up = 1000;
x166.up = 1000;
x167.up = 1000;
x168.up = 1000;
x171.up = 1000;
x172.up = 1000;
x173.up = 1000;
x174.up = 1000;
x175.up = 1000;
x178.up = 1000;
x179.up = 1000;
x180.up = 1000;
x181.up = 1000;
x182.up = 1000;
x199.up = 1000;
x200.up = 1000;
x201.up = 1000;
x202.up = 1000;
x203.up = 1000;
x206.up = 1000;
x207.up = 1000;
x208.up = 1000;
x209.up = 1000;
x210.up = 1000;
x213.up = 300;
x214.up = 300;
x215.up = 300;
x216.up = 300;
x217.up = 300;
x220.up = 500;
x221.up = 500;
x222.up = 500;
x223.up = 500;
x224.up = 500;
x227.up = 300;
x228.up = 300;
x229.up = 300;
x230.up = 300;
x231.up = 300;
x377.up = 1;
x378.up = 1;
x379.up = 1;
x380.up = 1;
x381.up = 1;
x382.up = 1;
x383.up = 1;
x384.up = 1;
x385.up = 1;
x386.up = 1;
x387.up = 1;
x388.up = 1;
x389.up = 1;
x390.up = 1;
x391.up = 1;
x392.up = 1;
x393.up = 1;
x394.up = 1;
x395.up = 1;
x396.up = 1;
x397.fx = 0;
x403.fx = 10;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
