Instance heatexch_gen3
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 55971.30719000 (ANTIGONE) 56002.61806000 (BARON) 47405.42947000 (COUENNE) 52452.55572000 (LINDO) 783.01806450 (SHOT) |
| Referencesⓘ | Escobar, Marcelo and Grossmann, I E, Mixed-Integer Nonlinear Programming Models for Optimal Simultaneous Synthesis of Heat Exchangers Network, 2010. |
| Sourceⓘ | General_Model_Case3.gms from minlp.org model 93 |
| Applicationⓘ | Heat Exchanger Network |
| Added to libraryⓘ | 25 Sep 2013 |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 580 |
| #Binary Variablesⓘ | 60 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 510 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | nonlinear |
| Objective curvatureⓘ | concave |
| #Nonzeros in Objectiveⓘ | 155 |
| #Nonlinear Nonzeros in Objectiveⓘ | 85 |
| #Constraintsⓘ | 510 |
| #Linear Constraintsⓘ | 270 |
| #Quadratic Constraintsⓘ | 120 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 120 |
| Operands in Gen. Nonlin. Functionsⓘ | div log vcpower |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1940 |
| #Nonlinear Nonzeros in Jacobianⓘ | 730 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 850 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 230 |
| #Blocks in Hessian of Lagrangianⓘ | 200 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 1 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 11 |
| Average blocksize in Hessian of Lagrangianⓘ | 2.55 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-06 |
| Maximal coefficientⓘ | 4.0000e+03 |
| Infeasibility of initial pointⓘ | 1.923e+05 |

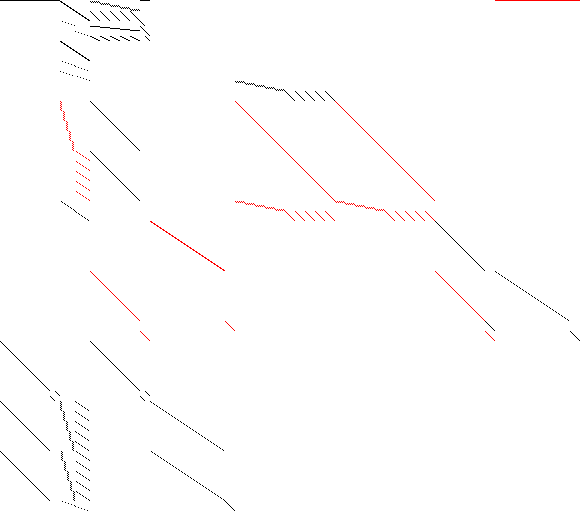

| Sparsity Jacobianⓘ |  |

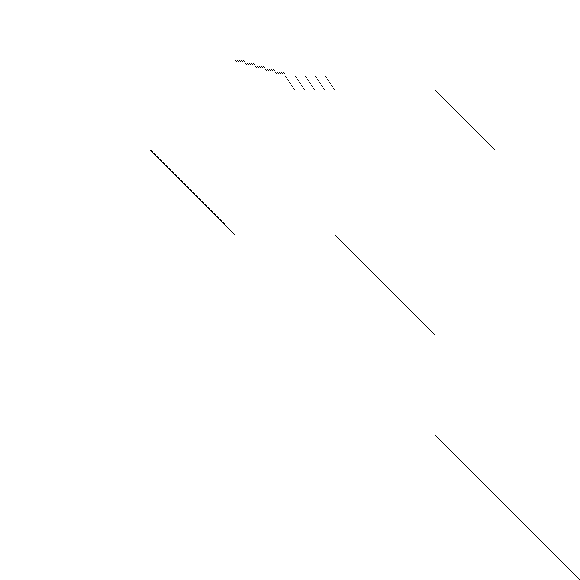

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 511 311 30 170 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 581 521 60 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 2096 1281 815 0
*
* Solve m using MINLP minimizing objvar;
Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17,b18,b19
,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34,b35,b36
,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,b49,b50,b51,b52,b53
,b54,b55,b56,b57,b58,b59,b60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311
,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324
,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337
,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349,x350
,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362,x363
,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375,x376
,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388,x389
,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401,x402
,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413,x414,x415
,x416,x417,x418,x419,x420,x421,x422,x423,x424,x425,x426,x427,x428
,x429,x430,x431,x432,x433,x434,x435,x436,x437,x438,x439,x440,x441
,x442,x443,x444,x445,x446,x447,x448,x449,x450,x451,x452,x453,x454
,x455,x456,x457,x458,x459,x460,x461,x462,x463,x464,x465,x466,x467
,x468,x469,x470,x471,x472,x473,x474,x475,x476,x477,x478,x479,x480
,x481,x482,x483,x484,x485,x486,x487,x488,x489,x490,x491,x492,x493
,x494,x495,x496,x497,x498,x499,x500,x501,x502,x503,x504,x505,x506
,x507,x508,x509,x510,x511,x512,x513,x514,x515,x516,x517,x518,x519
,x520,x521,x522,x523,x524,x525,x526,x527,x528,x529,x530,x531,x532
,x533,x534,x535,x536,x537,x538,x539,x540,x541,x542,x543,x544,x545
,x546,x547,x548,x549,x550,x551,x552,x553,x554,x555,x556,x557,x558
,x559,x560,x561,x562,x563,x564,x565,x566,x567,x568,x569,x570,x571
,x572,x573,x574,x575,x576,x577,x578,x579,x580,objvar;
Positive Variables x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x236,x237,x238,x239,x240
,x241,x242,x243,x244,x245,x246,x247,x248,x249,x250,x251,x252,x253
,x254,x255,x256,x257,x258,x259,x260,x261,x262,x263,x264,x265,x266
,x267,x268,x269,x270,x271,x272,x273,x274,x275,x276,x277,x278,x279
,x280,x281,x282,x283,x284,x285,x286,x287,x288,x289,x290,x291,x292
,x293,x294,x295,x296,x297,x298,x299,x300,x301,x302,x303,x304,x305
,x306,x307,x308,x309,x310,x311,x312,x313,x314,x315,x316,x317,x318
,x319,x320,x321,x322,x323,x324,x325,x326,x327,x328,x329,x330,x331
,x332,x333,x334,x335,x436,x437,x438,x439,x440,x441,x442,x443,x444
,x445,x446,x447,x448,x449,x450,x451,x452,x453,x454,x455,x456,x457
,x458,x459,x460,x461,x462,x463,x464,x465,x466,x467,x468,x469,x470
,x471,x472,x473,x474,x475,x476,x477,x478,x479,x480,x481,x482,x483
,x484,x485,x486,x487,x488,x489,x490,x491,x492,x493,x494,x495,x496
,x497,x498,x499,x500,x501,x502,x503,x504,x505,x506,x507,x508,x509
,x510,x511,x512,x513,x514,x515,x516,x517,x518,x519,x520,x521,x522
,x523,x524,x525,x526,x527,x528,x529,x530,x531,x532,x533,x534,x535
,x536,x537,x538,x539,x540,x541,x542,x543,x544,x545,x546,x547,x548
,x549,x550,x551,x552,x553,x554,x555,x556,x557,x558,x559,x560,x561
,x562,x563,x564,x565,x566,x567,x568,x569,x570,x571,x572,x573,x574
,x575,x576,x577,x578,x579,x580;
Binary Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17
,b18,b19,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34
,b35,b36,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,b49,b50,b51
,b52,b53,b54,b55,b56,b57,b58,b59,b60;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511;
e1.. 8.8*x61 - 8.8*x62 - x91 - x93 - x95 - x97 - x99 =E= 0;
e2.. 8.8*x62 - 8.8*x63 - x92 - x94 - x96 - x98 - x100 =E= 0;
e3.. 10.6*x64 - 10.6*x65 - x101 - x103 - x105 - x107 - x109 =E= 0;
e4.. 10.6*x65 - 10.6*x66 - x102 - x104 - x106 - x108 - x110 =E= 0;
e5.. 14.8*x67 - 14.8*x68 - x111 - x113 - x115 - x117 - x119 =E= 0;
e6.. 14.8*x68 - 14.8*x69 - x112 - x114 - x116 - x118 - x120 =E= 0;
e7.. 12.6*x70 - 12.6*x71 - x121 - x123 - x125 - x127 - x129 =E= 0;
e8.. 12.6*x71 - 12.6*x72 - x122 - x124 - x126 - x128 - x130 =E= 0;
e9.. 17.7*x73 - 17.7*x74 - x131 - x133 - x135 - x137 - x139 =E= 0;
e10.. 17.7*x74 - 17.7*x75 - x132 - x134 - x136 - x138 - x140 =E= 0;
e11.. 7.6*x76 - 7.6*x77 - x91 - x101 - x111 - x121 - x131 =E= 0;
e12.. 7.6*x77 - 7.6*x78 - x92 - x102 - x112 - x122 - x132 =E= 0;
e13.. 6.1*x79 - 6.1*x80 - x93 - x103 - x113 - x123 - x133 =E= 0;
e14.. 6.1*x80 - 6.1*x81 - x94 - x104 - x114 - x124 - x134 =E= 0;
e15.. 8.4*x82 - 8.4*x83 - x95 - x105 - x115 - x125 - x135 =E= 0;
e16.. 8.4*x83 - 8.4*x84 - x96 - x106 - x116 - x126 - x136 =E= 0;
e17.. 17.3*x85 - 17.3*x86 - x97 - x107 - x117 - x127 - x137 =E= 0;
e18.. 17.3*x86 - 17.3*x87 - x98 - x108 - x118 - x128 - x138 =E= 0;
e19.. 13.9*x88 - 13.9*x89 - x99 - x109 - x119 - x129 - x139 =E= 0;
e20.. 13.9*x89 - 13.9*x90 - x100 - x110 - x120 - x130 - x140 =E= 0;
e21.. 8.8*x63 - x141 =E= 821.04;
e22.. 10.6*x66 - x142 =E= 1460.68;
e23.. 14.8*x69 - x143 =E= 970.88;
e24.. 12.6*x72 - x144 =E= 1876.14;
e25.. 17.7*x75 - x145 =E= 1161.12;
e26.. - x91 - x92 - x93 - x94 - x95 - x96 - x97 - x98 - x99 - x100 - x141
=E= -586.96;
e27.. - x101 - x102 - x103 - x104 - x105 - x106 - x107 - x108 - x109 - x110
- x142 =E= -1177.66;
e28.. - x111 - x112 - x113 - x114 - x115 - x116 - x117 - x118 - x119 - x120
- x143 =E= -2384.28;
e29.. - x121 - x122 - x123 - x124 - x125 - x126 - x127 - x128 - x129 - x130
- x144 =E= -1539.72;
e30.. - x131 - x132 - x133 - x134 - x135 - x136 - x137 - x138 - x139 - x140
- x145 =E= -2359.41;
e31.. - 7.6*x76 - x146 =E= -1216;
e32.. - 6.1*x79 - x147 =E= -1352.37;
e33.. - 8.4*x82 - x148 =E= -1857.24;
e34.. - 17.3*x85 - x149 =E= -3056.91;
e35.. - 13.9*x88 - x150 =E= -2841.16;
e36.. - x91 - x92 - x101 - x102 - x111 - x112 - x121 - x122 - x131 - x132
- x146 =E= -760;
e37.. - x93 - x94 - x103 - x104 - x113 - x114 - x123 - x124 - x133 - x134
- x147 =E= -647.21;
e38.. - x95 - x96 - x105 - x106 - x115 - x116 - x125 - x126 - x135 - x136
- x148 =E= -1539.72;
e39.. - x97 - x98 - x107 - x108 - x117 - x118 - x127 - x128 - x137 - x138
- x149 =E= -1634.85;
e40.. - x99 - x100 - x109 - x110 - x119 - x120 - x129 - x130 - x139 - x140
- x150 =E= -1544.29;
e41.. x61 - x62 =G= 0;
e42.. x62 - x63 =G= 0;
e43.. x64 - x65 =G= 0;
e44.. x65 - x66 =G= 0;
e45.. x67 - x68 =G= 0;
e46.. x68 - x69 =G= 0;
e47.. x70 - x71 =G= 0;
e48.. x71 - x72 =G= 0;
e49.. x73 - x74 =G= 0;
e50.. x74 - x75 =G= 0;
e51.. x76 - x77 =G= 0;
e52.. x77 - x78 =G= 0;
e53.. x79 - x80 =G= 0;
e54.. x80 - x81 =G= 0;
e55.. x82 - x83 =G= 0;
e56.. x83 - x84 =G= 0;
e57.. x85 - x86 =G= 0;
e58.. x86 - x87 =G= 0;
e59.. x88 - x89 =G= 0;
e60.. x89 - x90 =G= 0;
e61.. x63 =G= 93.3;
e62.. x66 =G= 137.8;
e63.. x69 =G= 65.6;
e64.. x72 =G= 148.9;
e65.. x75 =G= 65.6;
e66.. - x76 =G= -160;
e67.. - x79 =G= -221.7;
e68.. - x82 =G= -221.1;
e69.. - x85 =G= -176.7;
e70.. - x88 =G= -204.4;
e71.. - x61 =E= -160;
e72.. - x64 =E= -248.9;
e73.. - x67 =E= -226.7;
e74.. - x70 =E= -271.1;
e75.. - x73 =E= -198.9;
e76.. - x78 =E= -60;
e77.. - x81 =E= -115.6;
e78.. - x84 =E= -37.8;
e79.. - x87 =E= -82.2;
e80.. - x90 =E= -93.3;
e81.. - x236 - x238 - x240 - x242 - x244 =E= -8.8;
e82.. - x237 - x239 - x241 - x243 - x245 =E= -8.8;
e83.. - x246 - x248 - x250 - x252 - x254 =E= -10.6;
e84.. - x247 - x249 - x251 - x253 - x255 =E= -10.6;
e85.. - x256 - x258 - x260 - x262 - x264 =E= -14.8;
e86.. - x257 - x259 - x261 - x263 - x265 =E= -14.8;
e87.. - x266 - x268 - x270 - x272 - x274 =E= -12.6;
e88.. - x267 - x269 - x271 - x273 - x275 =E= -12.6;
e89.. - x276 - x278 - x280 - x282 - x284 =E= -17.7;
e90.. - x277 - x279 - x281 - x283 - x285 =E= -17.7;
e91.. - x286 - x296 - x306 - x316 - x326 =E= -7.6;
e92.. - x287 - x297 - x307 - x317 - x327 =E= -7.6;
e93.. - x288 - x298 - x308 - x318 - x328 =E= -6.1;
e94.. - x289 - x299 - x309 - x319 - x329 =E= -6.1;
e95.. - x290 - x300 - x310 - x320 - x330 =E= -8.4;
e96.. - x291 - x301 - x311 - x321 - x331 =E= -8.4;
e97.. - x292 - x302 - x312 - x322 - x332 =E= -17.3;
e98.. - x293 - x303 - x313 - x323 - x333 =E= -17.3;
e99.. - x294 - x304 - x314 - x324 - x334 =E= -13.9;
e100.. - x295 - x305 - x315 - x325 - x335 =E= -13.9;
e101.. -x236*(x61 - x336) + x91 =E= 0;
e102.. -x237*(x62 - x337) + x92 =E= 0;
e103.. -x238*(x61 - x338) + x93 =E= 0;
e104.. -x239*(x62 - x339) + x94 =E= 0;
e105.. -x240*(x61 - x340) + x95 =E= 0;
e106.. -x241*(x62 - x341) + x96 =E= 0;
e107.. -x242*(x61 - x342) + x97 =E= 0;
e108.. -x243*(x62 - x343) + x98 =E= 0;
e109.. -x244*(x61 - x344) + x99 =E= 0;
e110.. -x245*(x62 - x345) + x100 =E= 0;
e111.. -x246*(x64 - x346) + x101 =E= 0;
e112.. -x247*(x65 - x347) + x102 =E= 0;
e113.. -x248*(x64 - x348) + x103 =E= 0;
e114.. -x249*(x65 - x349) + x104 =E= 0;
e115.. -x250*(x64 - x350) + x105 =E= 0;
e116.. -x251*(x65 - x351) + x106 =E= 0;
e117.. -x252*(x64 - x352) + x107 =E= 0;
e118.. -x253*(x65 - x353) + x108 =E= 0;
e119.. -x254*(x64 - x354) + x109 =E= 0;
e120.. -x255*(x65 - x355) + x110 =E= 0;
e121.. -x256*(x67 - x356) + x111 =E= 0;
e122.. -x257*(x68 - x357) + x112 =E= 0;
e123.. -x258*(x67 - x358) + x113 =E= 0;
e124.. -x259*(x68 - x359) + x114 =E= 0;
e125.. -x260*(x67 - x360) + x115 =E= 0;
e126.. -x261*(x68 - x361) + x116 =E= 0;
e127.. -x262*(x67 - x362) + x117 =E= 0;
e128.. -x263*(x68 - x363) + x118 =E= 0;
e129.. -x264*(x67 - x364) + x119 =E= 0;
e130.. -x265*(x68 - x365) + x120 =E= 0;
e131.. -x266*(x70 - x366) + x121 =E= 0;
e132.. -x267*(x71 - x367) + x122 =E= 0;
e133.. -x268*(x70 - x368) + x123 =E= 0;
e134.. -x269*(x71 - x369) + x124 =E= 0;
e135.. -x270*(x70 - x370) + x125 =E= 0;
e136.. -x271*(x71 - x371) + x126 =E= 0;
e137.. -x272*(x70 - x372) + x127 =E= 0;
e138.. -x273*(x71 - x373) + x128 =E= 0;
e139.. -x274*(x70 - x374) + x129 =E= 0;
e140.. -x275*(x71 - x375) + x130 =E= 0;
e141.. -x276*(x73 - x376) + x131 =E= 0;
e142.. -x277*(x74 - x377) + x132 =E= 0;
e143.. -x278*(x73 - x378) + x133 =E= 0;
e144.. -x279*(x74 - x379) + x134 =E= 0;
e145.. -x280*(x73 - x380) + x135 =E= 0;
e146.. -x281*(x74 - x381) + x136 =E= 0;
e147.. -x282*(x73 - x382) + x137 =E= 0;
e148.. -x283*(x74 - x383) + x138 =E= 0;
e149.. -x284*(x73 - x384) + x139 =E= 0;
e150.. -x285*(x74 - x385) + x140 =E= 0;
e151.. -x286*(x386 - x77) + x91 =E= 0;
e152.. -x287*(x387 - x78) + x92 =E= 0;
e153.. -x288*(x388 - x80) + x93 =E= 0;
e154.. -x289*(x389 - x81) + x94 =E= 0;
e155.. -x290*(x390 - x83) + x95 =E= 0;
e156.. -x291*(x391 - x84) + x96 =E= 0;
e157.. -x292*(x392 - x86) + x97 =E= 0;
e158.. -x293*(x393 - x87) + x98 =E= 0;
e159.. -x294*(x394 - x89) + x99 =E= 0;
e160.. -x295*(x395 - x90) + x100 =E= 0;
e161.. -x296*(x396 - x77) + x101 =E= 0;
e162.. -x297*(x397 - x78) + x102 =E= 0;
e163.. -x298*(x398 - x80) + x103 =E= 0;
e164.. -x299*(x399 - x81) + x104 =E= 0;
e165.. -x300*(x400 - x83) + x105 =E= 0;
e166.. -x301*(x401 - x84) + x106 =E= 0;
e167.. -x302*(x402 - x86) + x107 =E= 0;
e168.. -x303*(x403 - x87) + x108 =E= 0;
e169.. -x304*(x404 - x89) + x109 =E= 0;
e170.. -x305*(x405 - x90) + x110 =E= 0;
e171.. -x306*(x406 - x77) + x111 =E= 0;
e172.. -x307*(x407 - x78) + x112 =E= 0;
e173.. -x308*(x408 - x80) + x113 =E= 0;
e174.. -x309*(x409 - x81) + x114 =E= 0;
e175.. -x310*(x410 - x83) + x115 =E= 0;
e176.. -x311*(x411 - x84) + x116 =E= 0;
e177.. -x312*(x412 - x86) + x117 =E= 0;
e178.. -x313*(x413 - x87) + x118 =E= 0;
e179.. -x314*(x414 - x89) + x119 =E= 0;
e180.. -x315*(x415 - x90) + x120 =E= 0;
e181.. -x316*(x416 - x77) + x121 =E= 0;
e182.. -x317*(x417 - x78) + x122 =E= 0;
e183.. -x318*(x418 - x80) + x123 =E= 0;
e184.. -x319*(x419 - x81) + x124 =E= 0;
e185.. -x320*(x420 - x83) + x125 =E= 0;
e186.. -x321*(x421 - x84) + x126 =E= 0;
e187.. -x322*(x422 - x86) + x127 =E= 0;
e188.. -x323*(x423 - x87) + x128 =E= 0;
e189.. -x324*(x424 - x89) + x129 =E= 0;
e190.. -x325*(x425 - x90) + x130 =E= 0;
e191.. -x326*(x426 - x77) + x131 =E= 0;
e192.. -x327*(x427 - x78) + x132 =E= 0;
e193.. -x328*(x428 - x80) + x133 =E= 0;
e194.. -x329*(x429 - x81) + x134 =E= 0;
e195.. -x330*(x430 - x83) + x135 =E= 0;
e196.. -x331*(x431 - x84) + x136 =E= 0;
e197.. -x332*(x432 - x86) + x137 =E= 0;
e198.. -x333*(x433 - x87) + x138 =E= 0;
e199.. -x334*(x434 - x89) + x139 =E= 0;
e200.. -x335*(x435 - x90) + x140 =E= 0;
e201.. -(x236*x336 + x238*x338 + x240*x340 + x242*x342 + x244*x344) + 8.8*x62
=E= 0;
e202.. -(x237*x337 + x239*x339 + x241*x341 + x243*x343 + x245*x345) + 8.8*x63
=E= 0;
e203.. -(x246*x346 + x248*x348 + x250*x350 + x252*x352 + x254*x354) + 10.6*x65
=E= 0;
e204.. -(x247*x347 + x249*x349 + x251*x351 + x253*x353 + x255*x355) + 10.6*x66
=E= 0;
e205.. -(x256*x356 + x258*x358 + x260*x360 + x262*x362 + x264*x364) + 14.8*x68
=E= 0;
e206.. -(x257*x357 + x259*x359 + x261*x361 + x263*x363 + x265*x365) + 14.8*x69
=E= 0;
e207.. -(x266*x366 + x268*x368 + x270*x370 + x272*x372 + x274*x374) + 12.6*x71
=E= 0;
e208.. -(x267*x367 + x269*x369 + x271*x371 + x273*x373 + x275*x375) + 12.6*x72
=E= 0;
e209.. -(x276*x376 + x278*x378 + x280*x380 + x282*x382 + x284*x384) + 17.7*x74
=E= 0;
e210.. -(x277*x377 + x279*x379 + x281*x381 + x283*x383 + x285*x385) + 17.7*x75
=E= 0;
e211.. -(x286*x386 + x296*x396 + x306*x406 + x316*x416 + x326*x426) + 7.6*x76
=E= 0;
e212.. -(x287*x387 + x297*x397 + x307*x407 + x317*x417 + x327*x427) + 7.6*x77
=E= 0;
e213.. -(x288*x388 + x298*x398 + x308*x408 + x318*x418 + x328*x428) + 6.1*x79
=E= 0;
e214.. -(x289*x389 + x299*x399 + x309*x409 + x319*x419 + x329*x429) + 6.1*x80
=E= 0;
e215.. -(x290*x390 + x300*x400 + x310*x410 + x320*x420 + x330*x430) + 8.4*x82
=E= 0;
e216.. -(x291*x391 + x301*x401 + x311*x411 + x321*x421 + x331*x431) + 8.4*x83
=E= 0;
e217.. -(x292*x392 + x302*x402 + x312*x412 + x322*x422 + x332*x432) + 17.3*x85
=E= 0;
e218.. -(x293*x393 + x303*x403 + x313*x413 + x323*x423 + x333*x433) + 17.3*x86
=E= 0;
e219.. -(x294*x394 + x304*x404 + x314*x414 + x324*x424 + x334*x434) + 13.9*x88
=E= 0;
e220.. -(x295*x395 + x305*x405 + x315*x415 + x325*x425 + x335*x435) + 13.9*x89
=E= 0;
e221.. -(x151 - x152)/log(x151/(1e-6 + x152)) + x436 =E= 0;
e222.. -(x152 - x153)/log(x152/(1e-6 + x153)) + x437 =E= 0;
e223.. -(x154 - x155)/log(x154/(1e-6 + x155)) + x438 =E= 0;
e224.. -(x155 - x156)/log(x155/(1e-6 + x156)) + x439 =E= 0;
e225.. -(x157 - x158)/log(x157/(1e-6 + x158)) + x440 =E= 0;
e226.. -(x158 - x159)/log(x158/(1e-6 + x159)) + x441 =E= 0;
e227.. -(x160 - x161)/log(x160/(1e-6 + x161)) + x442 =E= 0;
e228.. -(x161 - x162)/log(x161/(1e-6 + x162)) + x443 =E= 0;
e229.. -(x163 - x164)/log(x163/(1e-6 + x164)) + x444 =E= 0;
e230.. -(x164 - x165)/log(x164/(1e-6 + x165)) + x445 =E= 0;
e231.. -(x166 - x167)/log(x166/(1e-6 + x167)) + x446 =E= 0;
e232.. -(x167 - x168)/log(x167/(1e-6 + x168)) + x447 =E= 0;
e233.. -(x169 - x170)/log(x169/(1e-6 + x170)) + x448 =E= 0;
e234.. -(x170 - x171)/log(x170/(1e-6 + x171)) + x449 =E= 0;
e235.. -(x172 - x173)/log(x172/(1e-6 + x173)) + x450 =E= 0;
e236.. -(x173 - x174)/log(x173/(1e-6 + x174)) + x451 =E= 0;
e237.. -(x175 - x176)/log(x175/(1e-6 + x176)) + x452 =E= 0;
e238.. -(x176 - x177)/log(x176/(1e-6 + x177)) + x453 =E= 0;
e239.. -(x178 - x179)/log(x178/(1e-6 + x179)) + x454 =E= 0;
e240.. -(x179 - x180)/log(x179/(1e-6 + x180)) + x455 =E= 0;
e241.. -(x181 - x182)/log(x181/(1e-6 + x182)) + x456 =E= 0;
e242.. -(x182 - x183)/log(x182/(1e-6 + x183)) + x457 =E= 0;
e243.. -(x184 - x185)/log(x184/(1e-6 + x185)) + x458 =E= 0;
e244.. -(x185 - x186)/log(x185/(1e-6 + x186)) + x459 =E= 0;
e245.. -(x187 - x188)/log(x187/(1e-6 + x188)) + x460 =E= 0;
e246.. -(x188 - x189)/log(x188/(1e-6 + x189)) + x461 =E= 0;
e247.. -(x190 - x191)/log(x190/(1e-6 + x191)) + x462 =E= 0;
e248.. -(x191 - x192)/log(x191/(1e-6 + x192)) + x463 =E= 0;
e249.. -(x193 - x194)/log(x193/(1e-6 + x194)) + x464 =E= 0;
e250.. -(x194 - x195)/log(x194/(1e-6 + x195)) + x465 =E= 0;
e251.. -(x196 - x197)/log(x196/(1e-6 + x197)) + x466 =E= 0;
e252.. -(x197 - x198)/log(x197/(1e-6 + x198)) + x467 =E= 0;
e253.. -(x199 - x200)/log(x199/(1e-6 + x200)) + x468 =E= 0;
e254.. -(x200 - x201)/log(x200/(1e-6 + x201)) + x469 =E= 0;
e255.. -(x202 - x203)/log(x202/(1e-6 + x203)) + x470 =E= 0;
e256.. -(x203 - x204)/log(x203/(1e-6 + x204)) + x471 =E= 0;
e257.. -(x205 - x206)/log(x205/(1e-6 + x206)) + x472 =E= 0;
e258.. -(x206 - x207)/log(x206/(1e-6 + x207)) + x473 =E= 0;
e259.. -(x208 - x209)/log(x208/(1e-6 + x209)) + x474 =E= 0;
e260.. -(x209 - x210)/log(x209/(1e-6 + x210)) + x475 =E= 0;
e261.. -(x211 - x212)/log(x211/(1e-6 + x212)) + x476 =E= 0;
e262.. -(x212 - x213)/log(x212/(1e-6 + x213)) + x477 =E= 0;
e263.. -(x214 - x215)/log(x214/(1e-6 + x215)) + x478 =E= 0;
e264.. -(x215 - x216)/log(x215/(1e-6 + x216)) + x479 =E= 0;
e265.. -(x217 - x218)/log(x217/(1e-6 + x218)) + x480 =E= 0;
e266.. -(x218 - x219)/log(x218/(1e-6 + x219)) + x481 =E= 0;
e267.. -(x220 - x221)/log(x220/(1e-6 + x221)) + x482 =E= 0;
e268.. -(x221 - x222)/log(x221/(1e-6 + x222)) + x483 =E= 0;
e269.. -(x223 - x224)/log(x223/(1e-6 + x224)) + x484 =E= 0;
e270.. -(x224 - x225)/log(x224/(1e-6 + x225)) + x485 =E= 0;
e271.. -1.17647058823529*x91/(0.01 + x436) + x496 =E= 0;
e272.. -1.17647058823529*x92/(0.01 + x437) + x497 =E= 0;
e273.. -1.17647058823529*x93/(0.01 + x438) + x499 =E= 0;
e274.. -1.17647058823529*x94/(0.01 + x439) + x500 =E= 0;
e275.. -1.17647058823529*x95/(0.01 + x440) + x502 =E= 0;
e276.. -1.17647058823529*x96/(0.01 + x441) + x503 =E= 0;
e277.. -1.17647058823529*x97/(0.01 + x442) + x505 =E= 0;
e278.. -1.17647058823529*x98/(0.01 + x443) + x506 =E= 0;
e279.. -1.17647058823529*x99/(0.01 + x444) + x508 =E= 0;
e280.. -1.17647058823529*x100/(0.01 + x445) + x509 =E= 0;
e281.. -1.17647058823529*x101/(0.01 + x446) + x511 =E= 0;
e282.. -1.17647058823529*x102/(0.01 + x447) + x512 =E= 0;
e283.. -1.17647058823529*x103/(0.01 + x448) + x514 =E= 0;
e284.. -1.17647058823529*x104/(0.01 + x449) + x515 =E= 0;
e285.. -1.17647058823529*x105/(0.01 + x450) + x517 =E= 0;
e286.. -1.17647058823529*x106/(0.01 + x451) + x518 =E= 0;
e287.. -1.17647058823529*x107/(0.01 + x452) + x520 =E= 0;
e288.. -1.17647058823529*x108/(0.01 + x453) + x521 =E= 0;
e289.. -1.17647058823529*x109/(0.01 + x454) + x523 =E= 0;
e290.. -1.17647058823529*x110/(0.01 + x455) + x524 =E= 0;
e291.. -1.17647058823529*x111/(0.01 + x456) + x526 =E= 0;
e292.. -1.17647058823529*x112/(0.01 + x457) + x527 =E= 0;
e293.. -1.17647058823529*x113/(0.01 + x458) + x529 =E= 0;
e294.. -1.17647058823529*x114/(0.01 + x459) + x530 =E= 0;
e295.. -1.17647058823529*x115/(0.01 + x460) + x532 =E= 0;
e296.. -1.17647058823529*x116/(0.01 + x461) + x533 =E= 0;
e297.. -1.17647058823529*x117/(0.01 + x462) + x535 =E= 0;
e298.. -1.17647058823529*x118/(0.01 + x463) + x536 =E= 0;
e299.. -1.17647058823529*x119/(0.01 + x464) + x538 =E= 0;
e300.. -1.17647058823529*x120/(0.01 + x465) + x539 =E= 0;
e301.. -1.17647058823529*x121/(0.01 + x466) + x541 =E= 0;
e302.. -1.17647058823529*x122/(0.01 + x467) + x542 =E= 0;
e303.. -1.17647058823529*x123/(0.01 + x468) + x544 =E= 0;
e304.. -1.17647058823529*x124/(0.01 + x469) + x545 =E= 0;
e305.. -1.17647058823529*x125/(0.01 + x470) + x547 =E= 0;
e306.. -1.17647058823529*x126/(0.01 + x471) + x548 =E= 0;
e307.. -1.17647058823529*x127/(0.01 + x472) + x550 =E= 0;
e308.. -1.17647058823529*x128/(0.01 + x473) + x551 =E= 0;
e309.. -1.17647058823529*x129/(0.01 + x474) + x553 =E= 0;
e310.. -1.17647058823529*x130/(0.01 + x475) + x554 =E= 0;
e311.. -1.17647058823529*x131/(0.01 + x476) + x556 =E= 0;
e312.. -1.17647058823529*x132/(0.01 + x477) + x557 =E= 0;
e313.. -1.17647058823529*x133/(0.01 + x478) + x559 =E= 0;
e314.. -1.17647058823529*x134/(0.01 + x479) + x560 =E= 0;
e315.. -1.17647058823529*x135/(0.01 + x480) + x562 =E= 0;
e316.. -1.17647058823529*x136/(0.01 + x481) + x563 =E= 0;
e317.. -1.17647058823529*x137/(0.01 + x482) + x565 =E= 0;
e318.. -1.17647058823529*x138/(0.01 + x483) + x566 =E= 0;
e319.. -1.17647058823529*x139/(0.01 + x484) + x568 =E= 0;
e320.. -1.17647058823529*x140/(0.01 + x485) + x569 =E= 0;
e321.. -(-68.3 + x226)/log(0.0146412882190148*x226) + x486 =E= 0;
e322.. -(-112.8 + x227)/log(0.00886524814835773*x227) + x487 =E= 0;
e323.. -(-40.6 + x228)/log(0.0246305412652576*x228) + x488 =E= 0;
e324.. -(-123.9 + x229)/log(0.00807102495503612*x229) + x489 =E= 0;
e325.. -(-40.6 + x230)/log(0.0246305412652576*x230) + x490 =E= 0;
e326.. -(-80 + x231)/log(0.01249999984375*x231) + x491 =E= 0;
e327.. -(-18.3 + x232)/log(0.0546448057571144*x232) + x492 =E= 0;
e328.. -(-18.9 + x233)/log(0.0529100501105793*x233) + x493 =E= 0;
e329.. -(-63.3 + x234)/log(0.0157977880600665*x234) + x494 =E= 0;
e330.. -(-35.6 + x235)/log(0.0280898868514077*x235) + x495 =E= 0;
e331.. -1.17647058823529*x141/(0.01 + x486) + x571 =E= 0;
e332.. -1.17647058823529*x142/(0.01 + x487) + x572 =E= 0;
e333.. -1.17647058823529*x143/(0.01 + x488) + x573 =E= 0;
e334.. -1.17647058823529*x144/(0.01 + x489) + x574 =E= 0;
e335.. -1.17647058823529*x145/(0.01 + x490) + x575 =E= 0;
e336.. -0.882352941176471*x146/(0.01 + x491) + x576 =E= 0;
e337.. -0.882352941176471*x147/(0.01 + x492) + x577 =E= 0;
e338.. -0.882352941176471*x148/(0.01 + x493) + x578 =E= 0;
e339.. -0.882352941176471*x149/(0.01 + x494) + x579 =E= 0;
e340.. -0.882352941176471*x150/(0.01 + x495) + x580 =E= 0;
e341.. - 586.96*b1 + x91 =L= 0;
e342.. - 586.96*b2 + x92 =L= 0;
e343.. - 586.96*b3 + x93 =L= 0;
e344.. - 586.96*b4 + x94 =L= 0;
e345.. - 586.96*b5 + x95 =L= 0;
e346.. - 586.96*b6 + x96 =L= 0;
e347.. - 586.96*b7 + x97 =L= 0;
e348.. - 586.96*b8 + x98 =L= 0;
e349.. - 586.96*b9 + x99 =L= 0;
e350.. - 586.96*b10 + x100 =L= 0;
e351.. - 760*b11 + x101 =L= 0;
e352.. - 760*b12 + x102 =L= 0;
e353.. - 647.21*b13 + x103 =L= 0;
e354.. - 647.21*b14 + x104 =L= 0;
e355.. - 1177.66*b15 + x105 =L= 0;
e356.. - 1177.66*b16 + x106 =L= 0;
e357.. - 1177.66*b17 + x107 =L= 0;
e358.. - 1177.66*b18 + x108 =L= 0;
e359.. - 1177.66*b19 + x109 =L= 0;
e360.. - 1177.66*b20 + x110 =L= 0;
e361.. - 760*b21 + x111 =L= 0;
e362.. - 760*b22 + x112 =L= 0;
e363.. - 647.21*b23 + x113 =L= 0;
e364.. - 647.21*b24 + x114 =L= 0;
e365.. - 1539.72*b25 + x115 =L= 0;
e366.. - 1539.72*b26 + x116 =L= 0;
e367.. - 1634.85*b27 + x117 =L= 0;
e368.. - 1634.85*b28 + x118 =L= 0;
e369.. - 1544.29*b29 + x119 =L= 0;
e370.. - 1544.29*b30 + x120 =L= 0;
e371.. - 760*b31 + x121 =L= 0;
e372.. - 760*b32 + x122 =L= 0;
e373.. - 647.21*b33 + x123 =L= 0;
e374.. - 647.21*b34 + x124 =L= 0;
e375.. - 1539.72*b35 + x125 =L= 0;
e376.. - 1539.72*b36 + x126 =L= 0;
e377.. - 1539.72*b37 + x127 =L= 0;
e378.. - 1539.72*b38 + x128 =L= 0;
e379.. - 1539.72*b39 + x129 =L= 0;
e380.. - 1539.72*b40 + x130 =L= 0;
e381.. - 760*b41 + x131 =L= 0;
e382.. - 760*b42 + x132 =L= 0;
e383.. - 647.21*b43 + x133 =L= 0;
e384.. - 647.21*b44 + x134 =L= 0;
e385.. - 1539.72*b45 + x135 =L= 0;
e386.. - 1539.72*b46 + x136 =L= 0;
e387.. - 1634.85*b47 + x137 =L= 0;
e388.. - 1634.85*b48 + x138 =L= 0;
e389.. - 1544.29*b49 + x139 =L= 0;
e390.. - 1544.29*b50 + x140 =L= 0;
e391.. - 760*b56 + x146 =L= 0;
e392.. - 647.21*b57 + x147 =L= 0;
e393.. - 1539.72*b58 + x148 =L= 0;
e394.. - 1634.85*b59 + x149 =L= 0;
e395.. - 1544.29*b60 + x150 =L= 0;
e396.. - 586.96*b51 + x141 =L= 0;
e397.. - 1177.66*b52 + x142 =L= 0;
e398.. - 2384.28*b53 + x143 =L= 0;
e399.. - 1539.72*b54 + x144 =L= 0;
e400.. - 2359.41*b55 + x145 =L= 0;
e401.. 66.7*b1 - x61 + x76 + x151 =L= 66.7;
e402.. 66.7*b2 - x62 + x77 + x152 =L= 66.7;
e403.. 128.4*b3 - x61 + x79 + x154 =L= 128.4;
e404.. 128.4*b4 - x62 + x80 + x155 =L= 128.4;
e405.. 127.8*b5 - x61 + x82 + x157 =L= 127.8;
e406.. 127.8*b6 - x62 + x83 + x158 =L= 127.8;
e407.. 83.4*b7 - x61 + x85 + x160 =L= 83.4;
e408.. 83.4*b8 - x62 + x86 + x161 =L= 83.4;
e409.. 111.1*b9 - x61 + x88 + x163 =L= 111.1;
e410.. 111.1*b10 - x62 + x89 + x164 =L= 111.1;
e411.. 22.2*b11 - x64 + x76 + x166 =L= 22.2;
e412.. 22.2*b12 - x65 + x77 + x167 =L= 22.2;
e413.. 83.9*b13 - x64 + x79 + x169 =L= 83.9;
e414.. 83.9*b14 - x65 + x80 + x170 =L= 83.9;
e415.. 83.3*b15 - x64 + x82 + x172 =L= 83.3;
e416.. 83.3*b16 - x65 + x83 + x173 =L= 83.3;
e417.. 38.9*b17 - x64 + x85 + x175 =L= 38.9;
e418.. 38.9*b18 - x65 + x86 + x176 =L= 38.9;
e419.. 66.6*b19 - x64 + x88 + x178 =L= 66.6;
e420.. 66.6*b20 - x65 + x89 + x179 =L= 66.6;
e421.. 94.4*b21 - x67 + x76 + x181 =L= 94.4;
e422.. 94.4*b22 - x68 + x77 + x182 =L= 94.4;
e423.. 156.1*b23 - x67 + x79 + x184 =L= 156.1;
e424.. 156.1*b24 - x68 + x80 + x185 =L= 156.1;
e425.. 155.5*b25 - x67 + x82 + x187 =L= 155.5;
e426.. 155.5*b26 - x68 + x83 + x188 =L= 155.5;
e427.. 111.1*b27 - x67 + x85 + x190 =L= 111.1;
e428.. 111.1*b28 - x68 + x86 + x191 =L= 111.1;
e429.. 138.8*b29 - x67 + x88 + x193 =L= 138.8;
e430.. 138.8*b30 - x68 + x89 + x194 =L= 138.8;
e431.. 11.1*b31 - x70 + x76 + x196 =L= 11.1;
e432.. 11.1*b32 - x71 + x77 + x197 =L= 11.1;
e433.. 72.8*b33 - x70 + x79 + x199 =L= 72.8;
e434.. 72.8*b34 - x71 + x80 + x200 =L= 72.8;
e435.. 72.2*b35 - x70 + x82 + x202 =L= 72.2;
e436.. 72.2*b36 - x71 + x83 + x203 =L= 72.2;
e437.. 27.8*b37 - x70 + x85 + x205 =L= 27.8;
e438.. 27.8*b38 - x71 + x86 + x206 =L= 27.8;
e439.. 55.5*b39 - x70 + x88 + x208 =L= 55.5;
e440.. 55.5*b40 - x71 + x89 + x209 =L= 55.5;
e441.. 94.4*b41 - x73 + x76 + x211 =L= 94.4;
e442.. 94.4*b42 - x74 + x77 + x212 =L= 94.4;
e443.. 156.1*b43 - x73 + x79 + x214 =L= 156.1;
e444.. 156.1*b44 - x74 + x80 + x215 =L= 156.1;
e445.. 155.5*b45 - x73 + x82 + x217 =L= 155.5;
e446.. 155.5*b46 - x74 + x83 + x218 =L= 155.5;
e447.. 111.1*b47 - x73 + x85 + x220 =L= 111.1;
e448.. 111.1*b48 - x74 + x86 + x221 =L= 111.1;
e449.. 138.8*b49 - x73 + x88 + x223 =L= 138.8;
e450.. 138.8*b50 - x74 + x89 + x224 =L= 138.8;
e451.. 66.7*b1 - x62 + x77 + x152 =L= 66.7;
e452.. 66.7*b2 - x63 + x78 + x153 =L= 66.7;
e453.. 128.4*b3 - x62 + x80 + x155 =L= 128.4;
e454.. 128.4*b4 - x63 + x81 + x156 =L= 128.4;
e455.. 127.8*b5 - x62 + x83 + x158 =L= 127.8;
e456.. 127.8*b6 - x63 + x84 + x159 =L= 127.8;
e457.. 83.4*b7 - x62 + x86 + x161 =L= 83.4;
e458.. 83.4*b8 - x63 + x87 + x162 =L= 83.4;
e459.. 111.1*b9 - x62 + x89 + x164 =L= 111.1;
e460.. 111.1*b10 - x63 + x90 + x165 =L= 111.1;
e461.. 22.2*b11 - x65 + x77 + x167 =L= 22.2;
e462.. 22.2*b12 - x66 + x78 + x168 =L= 22.2;
e463.. 83.9*b13 - x65 + x80 + x170 =L= 83.9;
e464.. 83.9*b14 - x66 + x81 + x171 =L= 83.9;
e465.. 83.3*b15 - x65 + x83 + x173 =L= 83.3;
e466.. 83.3*b16 - x66 + x84 + x174 =L= 83.3;
e467.. 38.9*b17 - x65 + x86 + x176 =L= 38.9;
e468.. 38.9*b18 - x66 + x87 + x177 =L= 38.9;
e469.. 66.6*b19 - x65 + x89 + x179 =L= 66.6;
e470.. 66.6*b20 - x66 + x90 + x180 =L= 66.6;
e471.. 94.4*b21 - x68 + x77 + x182 =L= 94.4;
e472.. 94.4*b22 - x69 + x78 + x183 =L= 94.4;
e473.. 156.1*b23 - x68 + x80 + x185 =L= 156.1;
e474.. 156.1*b24 - x69 + x81 + x186 =L= 156.1;
e475.. 155.5*b25 - x68 + x83 + x188 =L= 155.5;
e476.. 155.5*b26 - x69 + x84 + x189 =L= 155.5;
e477.. 111.1*b27 - x68 + x86 + x191 =L= 111.1;
e478.. 111.1*b28 - x69 + x87 + x192 =L= 111.1;
e479.. 138.8*b29 - x68 + x89 + x194 =L= 138.8;
e480.. 138.8*b30 - x69 + x90 + x195 =L= 138.8;
e481.. 11.1*b31 - x71 + x77 + x197 =L= 11.1;
e482.. 11.1*b32 - x72 + x78 + x198 =L= 11.1;
e483.. 72.8*b33 - x71 + x80 + x200 =L= 72.8;
e484.. 72.8*b34 - x72 + x81 + x201 =L= 72.8;
e485.. 72.2*b35 - x71 + x83 + x203 =L= 72.2;
e486.. 72.2*b36 - x72 + x84 + x204 =L= 72.2;
e487.. 27.8*b37 - x71 + x86 + x206 =L= 27.8;
e488.. 27.8*b38 - x72 + x87 + x207 =L= 27.8;
e489.. 55.5*b39 - x71 + x89 + x209 =L= 55.5;
e490.. 55.5*b40 - x72 + x90 + x210 =L= 55.5;
e491.. 94.4*b41 - x74 + x77 + x212 =L= 94.4;
e492.. 94.4*b42 - x75 + x78 + x213 =L= 94.4;
e493.. 156.1*b43 - x74 + x80 + x215 =L= 156.1;
e494.. 156.1*b44 - x75 + x81 + x216 =L= 156.1;
e495.. 155.5*b45 - x74 + x83 + x218 =L= 155.5;
e496.. 155.5*b46 - x75 + x84 + x219 =L= 155.5;
e497.. 111.1*b47 - x74 + x86 + x221 =L= 111.1;
e498.. 111.1*b48 - x75 + x87 + x222 =L= 111.1;
e499.. 138.8*b49 - x74 + x89 + x224 =L= 138.8;
e500.. 138.8*b50 - x75 + x90 + x225 =L= 138.8;
e501.. - x63 + x226 =L= -40;
e502.. - x66 + x227 =L= -40;
e503.. - x69 + x228 =L= -40;
e504.. - x72 + x229 =L= -40;
e505.. - x75 + x230 =L= -40;
e506.. x76 + x231 =L= 240;
e507.. x79 + x232 =L= 240;
e508.. x82 + x233 =L= 240;
e509.. x85 + x234 =L= 240;
e510.. x88 + x235 =L= 240;
e511.. -(146*(0.01 + x496)**0.6 + 146*(0.01 + x497)**0.6 + 146*(0.01 + x498)**
0.6 + 146*(0.01 + x499)**0.6 + 146*(0.01 + x500)**0.6 + 146*(0.01 + x501
)**0.6 + 146*(0.01 + x502)**0.6 + 146*(0.01 + x503)**0.6 + 146*(0.01 +
x504)**0.6 + 146*(0.01 + x505)**0.6 + 146*(0.01 + x506)**0.6 + 146*(0.01
+ x507)**0.6 + 146*(0.01 + x508)**0.6 + 146*(0.01 + x509)**0.6 + 146*(
0.01 + x510)**0.6 + 146*(0.01 + x511)**0.6 + 146*(0.01 + x512)**0.6 +
146*(0.01 + x513)**0.6 + 146*(0.01 + x514)**0.6 + 146*(0.01 + x515)**0.6
+ 146*(0.01 + x516)**0.6 + 146*(0.01 + x517)**0.6 + 146*(0.01 + x518)**
0.6 + 146*(0.01 + x519)**0.6 + 146*(0.01 + x520)**0.6 + 146*(0.01 + x521
)**0.6 + 146*(0.01 + x522)**0.6 + 146*(0.01 + x523)**0.6 + 146*(0.01 +
x524)**0.6 + 146*(0.01 + x525)**0.6 + 146*(0.01 + x526)**0.6 + 146*(0.01
+ x527)**0.6 + 146*(0.01 + x528)**0.6 + 146*(0.01 + x529)**0.6 + 146*(
0.01 + x530)**0.6 + 146*(0.01 + x531)**0.6 + 146*(0.01 + x532)**0.6 +
146*(0.01 + x533)**0.6 + 146*(0.01 + x534)**0.6 + 146*(0.01 + x535)**0.6
+ 146*(0.01 + x536)**0.6 + 146*(0.01 + x537)**0.6 + 146*(0.01 + x538)**
0.6 + 146*(0.01 + x539)**0.6 + 146*(0.01 + x540)**0.6 + 146*(0.01 + x541
)**0.6 + 146*(0.01 + x542)**0.6 + 146*(0.01 + x543)**0.6 + 146*(0.01 +
x544)**0.6 + 146*(0.01 + x545)**0.6 + 146*(0.01 + x546)**0.6 + 146*(0.01
+ x547)**0.6 + 146*(0.01 + x548)**0.6 + 146*(0.01 + x549)**0.6 + 146*(
0.01 + x550)**0.6 + 146*(0.01 + x551)**0.6 + 146*(0.01 + x552)**0.6 +
146*(0.01 + x553)**0.6 + 146*(0.01 + x554)**0.6 + 146*(0.01 + x555)**0.6
+ 146*(0.01 + x556)**0.6 + 146*(0.01 + x557)**0.6 + 146*(0.01 + x558)**
0.6 + 146*(0.01 + x559)**0.6 + 146*(0.01 + x560)**0.6 + 146*(0.01 + x561
)**0.6 + 146*(0.01 + x562)**0.6 + 146*(0.01 + x563)**0.6 + 146*(0.01 +
x564)**0.6 + 146*(0.01 + x565)**0.6 + 146*(0.01 + x566)**0.6 + 146*(0.01
+ x567)**0.6 + 146*(0.01 + x568)**0.6 + 146*(0.01 + x569)**0.6 + 146*(
0.01 + x570)**0.6 + 146*(0.01 + x571)**0.6 + 146*(0.01 + x572)**0.6 +
146*(0.01 + x573)**0.6 + 146*(0.01 + x574)**0.6 + 146*(0.01 + x575)**0.6
+ 146*(0.01 + x576)**0.6 + 146*(0.01 + x577)**0.6 + 146*(0.01 + x578)**
0.6 + 146*(0.01 + x579)**0.6 + 146*(0.01 + x580)**0.6) - 4000*b1
- 4000*b2 - 4000*b3 - 4000*b4 - 4000*b5 - 4000*b6 - 4000*b7 - 4000*b8
- 4000*b9 - 4000*b10 - 4000*b11 - 4000*b12 - 4000*b13 - 4000*b14
- 4000*b15 - 4000*b16 - 4000*b17 - 4000*b18 - 4000*b19 - 4000*b20
- 4000*b21 - 4000*b22 - 4000*b23 - 4000*b24 - 4000*b25 - 4000*b26
- 4000*b27 - 4000*b28 - 4000*b29 - 4000*b30 - 4000*b31 - 4000*b32
- 4000*b33 - 4000*b34 - 4000*b35 - 4000*b36 - 4000*b37 - 4000*b38
- 4000*b39 - 4000*b40 - 4000*b41 - 4000*b42 - 4000*b43 - 4000*b44
- 4000*b45 - 4000*b46 - 4000*b47 - 4000*b48 - 4000*b49 - 4000*b50
- 4000*b51 - 4000*b52 - 4000*b53 - 4000*b54 - 4000*b55 - 4000*b56
- 4000*b57 - 4000*b58 - 4000*b59 - 4000*b60 - 10*x141 - 10*x142
- 10*x143 - 10*x144 - 10*x145 - 200*x146 - 200*x147 - 200*x148
- 200*x149 - 200*x150 + objvar =E= 0;
* set non-default bounds
x61.lo = 93.3; x61.up = 160;
x62.lo = 93.3; x62.up = 160;
x63.lo = 93.3; x63.up = 160;
x64.lo = 137.8; x64.up = 248.9;
x65.lo = 137.8; x65.up = 248.9;
x66.lo = 137.8; x66.up = 248.9;
x67.lo = 65.6; x67.up = 226.7;
x68.lo = 65.6; x68.up = 226.7;
x69.lo = 65.6; x69.up = 226.7;
x70.lo = 148.9; x70.up = 271.1;
x71.lo = 148.9; x71.up = 271.1;
x72.lo = 148.9; x72.up = 271.1;
x73.lo = 65.6; x73.up = 198.9;
x74.lo = 65.6; x74.up = 198.9;
x75.lo = 65.6; x75.up = 198.9;
x76.lo = 60; x76.up = 160;
x77.lo = 60; x77.up = 160;
x78.lo = 60; x78.up = 160;
x79.lo = 115.6; x79.up = 221.7;
x80.lo = 115.6; x80.up = 221.7;
x81.lo = 115.6; x81.up = 221.7;
x82.lo = 37.8; x82.up = 221.1;
x83.lo = 37.8; x83.up = 221.1;
x84.lo = 37.8; x84.up = 221.1;
x85.lo = 82.2; x85.up = 176.7;
x86.lo = 82.2; x86.up = 176.7;
x87.lo = 82.2; x87.up = 176.7;
x88.lo = 93.3; x88.up = 204.4;
x89.lo = 93.3; x89.up = 204.4;
x90.lo = 93.3; x90.up = 204.4;
x151.lo = 10;
x152.lo = 10;
x153.lo = 10;
x154.lo = 10;
x155.lo = 10;
x156.lo = 10;
x157.lo = 10;
x158.lo = 10;
x159.lo = 10;
x160.lo = 10;
x161.lo = 10;
x162.lo = 10;
x163.lo = 10;
x164.lo = 10;
x165.lo = 10;
x166.lo = 10;
x167.lo = 10;
x168.lo = 10;
x169.lo = 10;
x170.lo = 10;
x171.lo = 10;
x172.lo = 10;
x173.lo = 10;
x174.lo = 10;
x175.lo = 10;
x176.lo = 10;
x177.lo = 10;
x178.lo = 10;
x179.lo = 10;
x180.lo = 10;
x181.lo = 10;
x182.lo = 10;
x183.lo = 10;
x184.lo = 10;
x185.lo = 10;
x186.lo = 10;
x187.lo = 10;
x188.lo = 10;
x189.lo = 10;
x190.lo = 10;
x191.lo = 10;
x192.lo = 10;
x193.lo = 10;
x194.lo = 10;
x195.lo = 10;
x196.lo = 10;
x197.lo = 10;
x198.lo = 10;
x199.lo = 10;
x200.lo = 10;
x201.lo = 10;
x202.lo = 10;
x203.lo = 10;
x204.lo = 10;
x205.lo = 10;
x206.lo = 10;
x207.lo = 10;
x208.lo = 10;
x209.lo = 10;
x210.lo = 10;
x211.lo = 10;
x212.lo = 10;
x213.lo = 10;
x214.lo = 10;
x215.lo = 10;
x216.lo = 10;
x217.lo = 10;
x218.lo = 10;
x219.lo = 10;
x220.lo = 10;
x221.lo = 10;
x222.lo = 10;
x223.lo = 10;
x224.lo = 10;
x225.lo = 10;
x226.lo = 10;
x227.lo = 10;
x228.lo = 10;
x229.lo = 10;
x230.lo = 10;
x231.lo = 10;
x232.lo = 10;
x233.lo = 10;
x234.lo = 10;
x235.lo = 10;
x236.up = 8.8;
x237.up = 8.8;
x238.up = 8.8;
x239.up = 8.8;
x240.up = 8.8;
x241.up = 8.8;
x242.up = 8.8;
x243.up = 8.8;
x244.up = 8.8;
x245.up = 8.8;
x246.up = 10.6;
x247.up = 10.6;
x248.up = 10.6;
x249.up = 10.6;
x250.up = 10.6;
x251.up = 10.6;
x252.up = 10.6;
x253.up = 10.6;
x254.up = 10.6;
x255.up = 10.6;
x256.up = 14.8;
x257.up = 14.8;
x258.up = 14.8;
x259.up = 14.8;
x260.up = 14.8;
x261.up = 14.8;
x262.up = 14.8;
x263.up = 14.8;
x264.up = 14.8;
x265.up = 14.8;
x266.up = 12.6;
x267.up = 12.6;
x268.up = 12.6;
x269.up = 12.6;
x270.up = 12.6;
x271.up = 12.6;
x272.up = 12.6;
x273.up = 12.6;
x274.up = 12.6;
x275.up = 12.6;
x276.up = 17.7;
x277.up = 17.7;
x278.up = 17.7;
x279.up = 17.7;
x280.up = 17.7;
x281.up = 17.7;
x282.up = 17.7;
x283.up = 17.7;
x284.up = 17.7;
x285.up = 17.7;
x286.up = 7.6;
x287.up = 7.6;
x288.up = 6.1;
x289.up = 6.1;
x290.up = 8.4;
x291.up = 8.4;
x292.up = 17.3;
x293.up = 17.3;
x294.up = 13.9;
x295.up = 13.9;
x296.up = 7.6;
x297.up = 7.6;
x298.up = 6.1;
x299.up = 6.1;
x300.up = 8.4;
x301.up = 8.4;
x302.up = 17.3;
x303.up = 17.3;
x304.up = 13.9;
x305.up = 13.9;
x306.up = 7.6;
x307.up = 7.6;
x308.up = 6.1;
x309.up = 6.1;
x310.up = 8.4;
x311.up = 8.4;
x312.up = 17.3;
x313.up = 17.3;
x314.up = 13.9;
x315.up = 13.9;
x316.up = 7.6;
x317.up = 7.6;
x318.up = 6.1;
x319.up = 6.1;
x320.up = 8.4;
x321.up = 8.4;
x322.up = 17.3;
x323.up = 17.3;
x324.up = 13.9;
x325.up = 13.9;
x326.up = 7.6;
x327.up = 7.6;
x328.up = 6.1;
x329.up = 6.1;
x330.up = 8.4;
x331.up = 8.4;
x332.up = 17.3;
x333.up = 17.3;
x334.up = 13.9;
x335.up = 13.9;
x336.lo = 93.3; x336.up = 160;
x337.lo = 93.3; x337.up = 160;
x338.lo = 93.3; x338.up = 160;
x339.lo = 93.3; x339.up = 160;
x340.lo = 93.3; x340.up = 160;
x341.lo = 93.3; x341.up = 160;
x342.lo = 93.3; x342.up = 160;
x343.lo = 93.3; x343.up = 160;
x344.lo = 93.3; x344.up = 160;
x345.lo = 93.3; x345.up = 160;
x346.lo = 137.8; x346.up = 248.9;
x347.lo = 137.8; x347.up = 248.9;
x348.lo = 137.8; x348.up = 248.9;
x349.lo = 137.8; x349.up = 248.9;
x350.lo = 137.8; x350.up = 248.9;
x351.lo = 137.8; x351.up = 248.9;
x352.lo = 137.8; x352.up = 248.9;
x353.lo = 137.8; x353.up = 248.9;
x354.lo = 137.8; x354.up = 248.9;
x355.lo = 137.8; x355.up = 248.9;
x356.lo = 65.6; x356.up = 226.7;
x357.lo = 65.6; x357.up = 226.7;
x358.lo = 65.6; x358.up = 226.7;
x359.lo = 65.6; x359.up = 226.7;
x360.lo = 65.6; x360.up = 226.7;
x361.lo = 65.6; x361.up = 226.7;
x362.lo = 65.6; x362.up = 226.7;
x363.lo = 65.6; x363.up = 226.7;
x364.lo = 65.6; x364.up = 226.7;
x365.lo = 65.6; x365.up = 226.7;
x366.lo = 148.9; x366.up = 271.1;
x367.lo = 148.9; x367.up = 271.1;
x368.lo = 148.9; x368.up = 271.1;
x369.lo = 148.9; x369.up = 271.1;
x370.lo = 148.9; x370.up = 271.1;
x371.lo = 148.9; x371.up = 271.1;
x372.lo = 148.9; x372.up = 271.1;
x373.lo = 148.9; x373.up = 271.1;
x374.lo = 148.9; x374.up = 271.1;
x375.lo = 148.9; x375.up = 271.1;
x376.lo = 65.6; x376.up = 198.9;
x377.lo = 65.6; x377.up = 198.9;
x378.lo = 65.6; x378.up = 198.9;
x379.lo = 65.6; x379.up = 198.9;
x380.lo = 65.6; x380.up = 198.9;
x381.lo = 65.6; x381.up = 198.9;
x382.lo = 65.6; x382.up = 198.9;
x383.lo = 65.6; x383.up = 198.9;
x384.lo = 65.6; x384.up = 198.9;
x385.lo = 65.6; x385.up = 198.9;
x386.lo = 60; x386.up = 160;
x387.lo = 60; x387.up = 160;
x388.lo = 115.6; x388.up = 221.7;
x389.lo = 115.6; x389.up = 221.7;
x390.lo = 37.8; x390.up = 221.1;
x391.lo = 37.8; x391.up = 221.1;
x392.lo = 82.2; x392.up = 176.7;
x393.lo = 82.2; x393.up = 176.7;
x394.lo = 93.3; x394.up = 204.4;
x395.lo = 93.3; x395.up = 204.4;
x396.lo = 60; x396.up = 160;
x397.lo = 60; x397.up = 160;
x398.lo = 115.6; x398.up = 221.7;
x399.lo = 115.6; x399.up = 221.7;
x400.lo = 37.8; x400.up = 221.1;
x401.lo = 37.8; x401.up = 221.1;
x402.lo = 82.2; x402.up = 176.7;
x403.lo = 82.2; x403.up = 176.7;
x404.lo = 93.3; x404.up = 204.4;
x405.lo = 93.3; x405.up = 204.4;
x406.lo = 60; x406.up = 160;
x407.lo = 60; x407.up = 160;
x408.lo = 115.6; x408.up = 221.7;
x409.lo = 115.6; x409.up = 221.7;
x410.lo = 37.8; x410.up = 221.1;
x411.lo = 37.8; x411.up = 221.1;
x412.lo = 82.2; x412.up = 176.7;
x413.lo = 82.2; x413.up = 176.7;
x414.lo = 93.3; x414.up = 204.4;
x415.lo = 93.3; x415.up = 204.4;
x416.lo = 60; x416.up = 160;
x417.lo = 60; x417.up = 160;
x418.lo = 115.6; x418.up = 221.7;
x419.lo = 115.6; x419.up = 221.7;
x420.lo = 37.8; x420.up = 221.1;
x421.lo = 37.8; x421.up = 221.1;
x422.lo = 82.2; x422.up = 176.7;
x423.lo = 82.2; x423.up = 176.7;
x424.lo = 93.3; x424.up = 204.4;
x425.lo = 93.3; x425.up = 204.4;
x426.lo = 60; x426.up = 160;
x427.lo = 60; x427.up = 160;
x428.lo = 115.6; x428.up = 221.7;
x429.lo = 115.6; x429.up = 221.7;
x430.lo = 37.8; x430.up = 221.1;
x431.lo = 37.8; x431.up = 221.1;
x432.lo = 82.2; x432.up = 176.7;
x433.lo = 82.2; x433.up = 176.7;
x434.lo = 93.3; x434.up = 204.4;
x435.lo = 93.3; x435.up = 204.4;
* set non-default levels
x61.l = 160;
x62.l = 160;
x63.l = 160;
x64.l = 248.9;
x65.l = 248.9;
x66.l = 248.9;
x67.l = 226.7;
x68.l = 226.7;
x69.l = 226.7;
x70.l = 271.1;
x71.l = 271.1;
x72.l = 271.1;
x73.l = 198.9;
x74.l = 198.9;
x75.l = 198.9;
x91.l = 586.96;
x92.l = 586.96;
x93.l = 586.96;
x94.l = 586.96;
x95.l = 586.96;
x96.l = 586.96;
x97.l = 586.96;
x98.l = 586.96;
x99.l = 586.96;
x100.l = 586.96;
x101.l = 760;
x102.l = 760;
x103.l = 647.21;
x104.l = 647.21;
x105.l = 1177.66;
x106.l = 1177.66;
x107.l = 1177.66;
x108.l = 1177.66;
x109.l = 1177.66;
x110.l = 1177.66;
x111.l = 760;
x112.l = 760;
x113.l = 647.21;
x114.l = 647.21;
x115.l = 1539.72;
x116.l = 1539.72;
x117.l = 1634.85;
x118.l = 1634.85;
x119.l = 1544.29;
x120.l = 1544.29;
x121.l = 760;
x122.l = 760;
x123.l = 647.21;
x124.l = 647.21;
x125.l = 1539.72;
x126.l = 1539.72;
x127.l = 1539.72;
x128.l = 1539.72;
x129.l = 1539.72;
x130.l = 1539.72;
x131.l = 760;
x132.l = 760;
x133.l = 647.21;
x134.l = 647.21;
x135.l = 1539.72;
x136.l = 1539.72;
x137.l = 1634.85;
x138.l = 1634.85;
x139.l = 1544.29;
x140.l = 1544.29;
x151.l = 100;
x152.l = 100;
x153.l = 100;
x154.l = 44.4;
x155.l = 44.4;
x156.l = 44.4;
x157.l = 122.2;
x158.l = 122.2;
x159.l = 122.2;
x160.l = 77.8;
x161.l = 77.8;
x162.l = 77.8;
x163.l = 66.7;
x164.l = 66.7;
x165.l = 66.7;
x166.l = 188.9;
x167.l = 188.9;
x168.l = 188.9;
x169.l = 133.3;
x170.l = 133.3;
x171.l = 133.3;
x172.l = 211.1;
x173.l = 211.1;
x174.l = 211.1;
x175.l = 166.7;
x176.l = 166.7;
x177.l = 166.7;
x178.l = 155.6;
x179.l = 155.6;
x180.l = 155.6;
x181.l = 166.7;
x182.l = 166.7;
x183.l = 166.7;
x184.l = 111.1;
x185.l = 111.1;
x186.l = 111.1;
x187.l = 188.9;
x188.l = 188.9;
x189.l = 188.9;
x190.l = 144.5;
x191.l = 144.5;
x192.l = 144.5;
x193.l = 133.4;
x194.l = 133.4;
x195.l = 133.4;
x196.l = 211.1;
x197.l = 211.1;
x198.l = 211.1;
x199.l = 155.5;
x200.l = 155.5;
x201.l = 155.5;
x202.l = 233.3;
x203.l = 233.3;
x204.l = 233.3;
x205.l = 188.9;
x206.l = 188.9;
x207.l = 188.9;
x208.l = 177.8;
x209.l = 177.8;
x210.l = 177.8;
x211.l = 138.9;
x212.l = 138.9;
x213.l = 138.9;
x214.l = 83.3;
x215.l = 83.3;
x216.l = 83.3;
x217.l = 161.1;
x218.l = 161.1;
x219.l = 161.1;
x220.l = 116.7;
x221.l = 116.7;
x222.l = 116.7;
x223.l = 105.6;
x224.l = 105.6;
x225.l = 105.6;
x226.l = 120;
x227.l = 208.9;
x228.l = 186.7;
x229.l = 231.1;
x230.l = 158.9;
x231.l = 180;
x232.l = 124.4;
x233.l = 202.2;
x234.l = 157.8;
x235.l = 146.7;
x236.l = 8.8;
x237.l = 8.8;
x238.l = 8.8;
x239.l = 8.8;
x240.l = 8.8;
x241.l = 8.8;
x242.l = 8.8;
x243.l = 8.8;
x244.l = 8.8;
x245.l = 8.8;
x246.l = 10.6;
x247.l = 10.6;
x248.l = 10.6;
x249.l = 10.6;
x250.l = 10.6;
x251.l = 10.6;
x252.l = 10.6;
x253.l = 10.6;
x254.l = 10.6;
x255.l = 10.6;
x256.l = 14.8;
x257.l = 14.8;
x258.l = 14.8;
x259.l = 14.8;
x260.l = 14.8;
x261.l = 14.8;
x262.l = 14.8;
x263.l = 14.8;
x264.l = 14.8;
x265.l = 14.8;
x266.l = 12.6;
x267.l = 12.6;
x268.l = 12.6;
x269.l = 12.6;
x270.l = 12.6;
x271.l = 12.6;
x272.l = 12.6;
x273.l = 12.6;
x274.l = 12.6;
x275.l = 12.6;
x276.l = 17.7;
x277.l = 17.7;
x278.l = 17.7;
x279.l = 17.7;
x280.l = 17.7;
x281.l = 17.7;
x282.l = 17.7;
x283.l = 17.7;
x284.l = 17.7;
x285.l = 17.7;
x286.l = 7.6;
x287.l = 7.6;
x288.l = 6.1;
x289.l = 6.1;
x290.l = 8.4;
x291.l = 8.4;
x292.l = 17.3;
x293.l = 17.3;
x294.l = 13.9;
x295.l = 13.9;
x296.l = 7.6;
x297.l = 7.6;
x298.l = 6.1;
x299.l = 6.1;
x300.l = 8.4;
x301.l = 8.4;
x302.l = 17.3;
x303.l = 17.3;
x304.l = 13.9;
x305.l = 13.9;
x306.l = 7.6;
x307.l = 7.6;
x308.l = 6.1;
x309.l = 6.1;
x310.l = 8.4;
x311.l = 8.4;
x312.l = 17.3;
x313.l = 17.3;
x314.l = 13.9;
x315.l = 13.9;
x316.l = 7.6;
x317.l = 7.6;
x318.l = 6.1;
x319.l = 6.1;
x320.l = 8.4;
x321.l = 8.4;
x322.l = 17.3;
x323.l = 17.3;
x324.l = 13.9;
x325.l = 13.9;
x326.l = 7.6;
x327.l = 7.6;
x328.l = 6.1;
x329.l = 6.1;
x330.l = 8.4;
x331.l = 8.4;
x332.l = 17.3;
x333.l = 17.3;
x334.l = 13.9;
x335.l = 13.9;
x336.l = 160;
x337.l = 160;
x338.l = 160;
x339.l = 160;
x340.l = 160;
x341.l = 160;
x342.l = 160;
x343.l = 160;
x344.l = 160;
x345.l = 160;
x346.l = 248.9;
x347.l = 248.9;
x348.l = 248.9;
x349.l = 248.9;
x350.l = 248.9;
x351.l = 248.9;
x352.l = 248.9;
x353.l = 248.9;
x354.l = 248.9;
x355.l = 248.9;
x356.l = 226.7;
x357.l = 226.7;
x358.l = 226.7;
x359.l = 226.7;
x360.l = 226.7;
x361.l = 226.7;
x362.l = 226.7;
x363.l = 226.7;
x364.l = 226.7;
x365.l = 226.7;
x366.l = 271.1;
x367.l = 271.1;
x368.l = 271.1;
x369.l = 271.1;
x370.l = 271.1;
x371.l = 271.1;
x372.l = 271.1;
x373.l = 271.1;
x374.l = 271.1;
x375.l = 271.1;
x376.l = 198.9;
x377.l = 198.9;
x378.l = 198.9;
x379.l = 198.9;
x380.l = 198.9;
x381.l = 198.9;
x382.l = 198.9;
x383.l = 198.9;
x384.l = 198.9;
x385.l = 198.9;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
