Instance nuclearve
| Formatsⓘ | ams gms lp mod nl osil pip py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | -1.03764054 (LINDO) |
| Referencesⓘ | Quist, Arie J, van Geemert, R, Hoogenboom, J E, Illes, Tibor, de Klerk, E, Roos, C, and Terlaky, Tamas, Finding Optimal Nuclear Reactor Core Reload Patterns Using Nonlinear Optimization and Search Heuristics, Engineering Optimization, 32:2, 1999, 143-176. |
| Sourceⓘ | MacMINLP model c-reload.mod with c-reload-14e.dat |
| Applicationⓘ | Nuclear Reactor Core Reload Pattern |
| Added to libraryⓘ | 01 May 2001 |
| Problem typeⓘ | MBQCP |
| #Variablesⓘ | 351 |
| #Binary Variablesⓘ | 168 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 351 |
| #Nonlinear Binary Variablesⓘ | 168 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 1 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 317 |
| #Linear Constraintsⓘ | 50 |
| #Quadratic Constraintsⓘ | 267 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 3383 |
| #Nonlinear Nonzeros in Jacobianⓘ | 2864 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 840 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 0 |
| #Blocks in Hessian of Lagrangianⓘ | 9 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 15 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 161 |
| Average blocksize in Hessian of Lagrangianⓘ | 39.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 3.0000e-03 |
| Maximal coefficientⓘ | 1.2500e+00 |
| Infeasibility of initial pointⓘ | 1.071 |

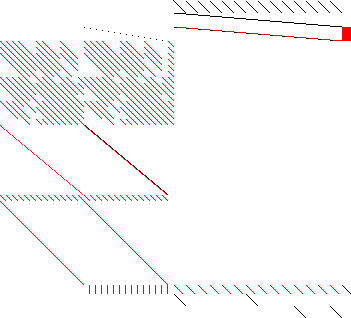

| Sparsity Jacobianⓘ |  |

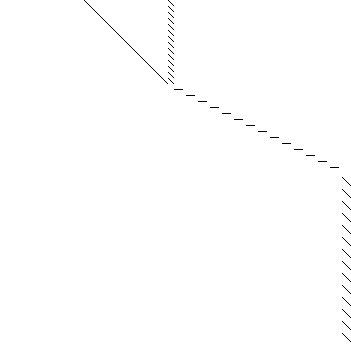

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 318 234 0 84 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 352 184 168 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 3385 521 2864 0
*
* Solve m using MINLP minimizing objvar;
Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18,x19
,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35,x36
,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,b175,b176,b177,b178,b179,b180,b181
,b182,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193,b194
,b195,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206,b207
,b208,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219,b220
,b221,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232,b233
,b234,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245,b246
,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258,b259
,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271,b272
,b273,b274,b275,b276,b277,b278,b279,b280,b281,b282,b283,b284,b285
,b286,b287,b288,b289,b290,b291,b292,b293,b294,b295,b296,b297,b298
,b299,b300,b301,b302,b303,b304,b305,b306,b307,b308,b309,b310,b311
,b312,b313,b314,b315,b316,b317,b318,b319,b320,b321,b322,b323,b324
,b325,b326,b327,b328,b329,b330,b331,b332,b333,b334,b335,b336,b337
,b338,b339,b340,b341,b342,objvar,x344,x345,x346,x347,x348,x349,x350
,x351,x352;
Positive Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34
,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51
,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68
,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85
,x86,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101
,x102,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114
,x115,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127
,x128,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140
,x141,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153
,x154,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166
,x167,x168,x169,x170,x171,x172,x173,x174;
Binary Variables b175,b176,b177,b178,b179,b180,b181,b182,b183,b184,b185,b186
,b187,b188,b189,b190,b191,b192,b193,b194,b195,b196,b197,b198,b199
,b200,b201,b202,b203,b204,b205,b206,b207,b208,b209,b210,b211,b212
,b213,b214,b215,b216,b217,b218,b219,b220,b221,b222,b223,b224,b225
,b226,b227,b228,b229,b230,b231,b232,b233,b234,b235,b236,b237,b238
,b239,b240,b241,b242,b243,b244,b245,b246,b247,b248,b249,b250,b251
,b252,b253,b254,b255,b256,b257,b258,b259,b260,b261,b262,b263,b264
,b265,b266,b267,b268,b269,b270,b271,b272,b273,b274,b275,b276,b277
,b278,b279,b280,b281,b282,b283,b284,b285,b286,b287,b288,b289,b290
,b291,b292,b293,b294,b295,b296,b297,b298,b299,b300,b301,b302,b303
,b304,b305,b306,b307,b308,b309,b310,b311,b312,b313,b314,b315,b316
,b317,b318,b319,b320,b321,b322,b323,b324,b325,b326,b327,b328,b329
,b330,b331,b332,b333,b334,b335,b336,b337,b338,b339,b340,b341,b342;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318;
e1.. - x174 - objvar =E= 0;
e2.. 0.5*b175 + b187 + b199 + b211 + b223 + b235 + 0.5*b247 + b259 + b271
+ b283 + 0.5*b295 + b307 + b319 + 0.5*b331 =E= 1;
e3.. 0.5*b176 + b188 + b200 + b212 + b224 + b236 + 0.5*b248 + b260 + b272
+ b284 + 0.5*b296 + b308 + b320 + 0.5*b332 =E= 1;
e4.. 0.5*b177 + b189 + b201 + b213 + b225 + b237 + 0.5*b249 + b261 + b273
+ b285 + 0.5*b297 + b309 + b321 + 0.5*b333 =E= 1;
e5.. 0.5*b178 + b190 + b202 + b214 + b226 + b238 + 0.5*b250 + b262 + b274
+ b286 + 0.5*b298 + b310 + b322 + 0.5*b334 =E= 1;
e6.. 0.5*b179 + b191 + b203 + b215 + b227 + b239 + 0.5*b251 + b263 + b275
+ b287 + 0.5*b299 + b311 + b323 + 0.5*b335 =E= 1;
e7.. 0.5*b180 + b192 + b204 + b216 + b228 + b240 + 0.5*b252 + b264 + b276
+ b288 + 0.5*b300 + b312 + b324 + 0.5*b336 =E= 1;
e8.. 0.5*b181 + b193 + b205 + b217 + b229 + b241 + 0.5*b253 + b265 + b277
+ b289 + 0.5*b301 + b313 + b325 + 0.5*b337 =E= 1;
e9.. 0.5*b182 + b194 + b206 + b218 + b230 + b242 + 0.5*b254 + b266 + b278
+ b290 + 0.5*b302 + b314 + b326 + 0.5*b338 =E= 1;
e10.. 0.5*b183 + b195 + b207 + b219 + b231 + b243 + 0.5*b255 + b267 + b279
+ b291 + 0.5*b303 + b315 + b327 + 0.5*b339 =E= 1;
e11.. 0.5*b184 + b196 + b208 + b220 + b232 + b244 + 0.5*b256 + b268 + b280
+ b292 + 0.5*b304 + b316 + b328 + 0.5*b340 =E= 1;
e12.. 0.5*b185 + b197 + b209 + b221 + b233 + b245 + 0.5*b257 + b269 + b281
+ b293 + 0.5*b305 + b317 + b329 + 0.5*b341 =E= 1;
e13.. 0.5*b186 + b198 + b210 + b222 + b234 + b246 + 0.5*b258 + b270 + b282
+ b294 + 0.5*b306 + b318 + b330 + 0.5*b342 =E= 1;
e14.. b175 + b176 + b177 + b178 + b179 + b180 + b181 + b182 + b183 + b184
+ b185 + b186 =E= 1;
e15.. b187 + b188 + b189 + b190 + b191 + b192 + b193 + b194 + b195 + b196
+ b197 + b198 =E= 1;
e16.. b199 + b200 + b201 + b202 + b203 + b204 + b205 + b206 + b207 + b208
+ b209 + b210 =E= 1;
e17.. b211 + b212 + b213 + b214 + b215 + b216 + b217 + b218 + b219 + b220
+ b221 + b222 =E= 1;
e18.. b223 + b224 + b225 + b226 + b227 + b228 + b229 + b230 + b231 + b232
+ b233 + b234 =E= 1;
e19.. b235 + b236 + b237 + b238 + b239 + b240 + b241 + b242 + b243 + b244
+ b245 + b246 =E= 1;
e20.. b247 + b248 + b249 + b250 + b251 + b252 + b253 + b254 + b255 + b256
+ b257 + b258 =E= 1;
e21.. b259 + b260 + b261 + b262 + b263 + b264 + b265 + b266 + b267 + b268
+ b269 + b270 =E= 1;
e22.. b271 + b272 + b273 + b274 + b275 + b276 + b277 + b278 + b279 + b280
+ b281 + b282 =E= 1;
e23.. b283 + b284 + b285 + b286 + b287 + b288 + b289 + b290 + b291 + b292
+ b293 + b294 =E= 1;
e24.. b295 + b296 + b297 + b298 + b299 + b300 + b301 + b302 + b303 + b304
+ b305 + b306 =E= 1;
e25.. b307 + b308 + b309 + b310 + b311 + b312 + b313 + b314 + b315 + b316
+ b317 + b318 =E= 1;
e26.. b319 + b320 + b321 + b322 + b323 + b324 + b325 + b326 + b327 + b328
+ b329 + b330 =E= 1;
e27.. b331 + b332 + b333 + b334 + b335 + b336 + b337 + b338 + b339 + b340
+ b341 + b342 =E= 1;
e28.. -(b178*x344 + b179*x345 + b180*x346 + b181*x347 + b182*x348 + b183*x349
+ b184*x350 + b185*x351 + b186*x352) + x85 - 1.25*b175 - 1.25*b176
- 1.25*b177 =E= 0;
e29.. -(b190*x344 + b191*x345 + b192*x346 + b193*x347 + b194*x348 + b195*x349
+ b196*x350 + b197*x351 + b198*x352) + x91 - 1.25*b187 - 1.25*b188
- 1.25*b189 =E= 0;
e30.. -(b202*x344 + b203*x345 + b204*x346 + b205*x347 + b206*x348 + b207*x349
+ b208*x350 + b209*x351 + b210*x352) + x97 - 1.25*b199 - 1.25*b200
- 1.25*b201 =E= 0;
e31.. -(b214*x344 + b215*x345 + b216*x346 + b217*x347 + b218*x348 + b219*x349
+ b220*x350 + b221*x351 + b222*x352) + x103 - 1.25*b211 - 1.25*b212
- 1.25*b213 =E= 0;
e32.. -(b226*x344 + b227*x345 + b228*x346 + b229*x347 + b230*x348 + b231*x349
+ b232*x350 + b233*x351 + b234*x352) + x109 - 1.25*b223 - 1.25*b224
- 1.25*b225 =E= 0;
e33.. -(b238*x344 + b239*x345 + b240*x346 + b241*x347 + b242*x348 + b243*x349
+ b244*x350 + b245*x351 + b246*x352) + x115 - 1.25*b235 - 1.25*b236
- 1.25*b237 =E= 0;
e34.. -(b250*x344 + b251*x345 + b252*x346 + b253*x347 + b254*x348 + b255*x349
+ b256*x350 + b257*x351 + b258*x352) + x121 - 1.25*b247 - 1.25*b248
- 1.25*b249 =E= 0;
e35.. -(b262*x344 + b263*x345 + b264*x346 + b265*x347 + b266*x348 + b267*x349
+ b268*x350 + b269*x351 + b270*x352) + x127 - 1.25*b259 - 1.25*b260
- 1.25*b261 =E= 0;
e36.. -(b274*x344 + b275*x345 + b276*x346 + b277*x347 + b278*x348 + b279*x349
+ b280*x350 + b281*x351 + b282*x352) + x133 - 1.25*b271 - 1.25*b272
- 1.25*b273 =E= 0;
e37.. -(b286*x344 + b287*x345 + b288*x346 + b289*x347 + b290*x348 + b291*x349
+ b292*x350 + b293*x351 + b294*x352) + x139 - 1.25*b283 - 1.25*b284
- 1.25*b285 =E= 0;
e38.. -(b298*x344 + b299*x345 + b300*x346 + b301*x347 + b302*x348 + b303*x349
+ b304*x350 + b305*x351 + b306*x352) + x145 - 1.25*b295 - 1.25*b296
- 1.25*b297 =E= 0;
e39.. -(b310*x344 + b311*x345 + b312*x346 + b313*x347 + b314*x348 + b315*x349
+ b316*x350 + b317*x351 + b318*x352) + x151 - 1.25*b307 - 1.25*b308
- 1.25*b309 =E= 0;
e40.. -(b322*x344 + b323*x345 + b324*x346 + b325*x347 + b326*x348 + b327*x349
+ b328*x350 + b329*x351 + b330*x352) + x157 - 1.25*b319 - 1.25*b320
- 1.25*b321 =E= 0;
e41.. -(b334*x344 + b335*x345 + b336*x346 + b337*x347 + b338*x348 + b339*x349
+ b340*x350 + b341*x351 + b342*x352) + x163 - 1.25*b331 - 1.25*b332
- 1.25*b333 =E= 0;
e42.. 0.701*x85*x1 + 0.2*x91*x7 + 0.023*x97*x13 + 0.007*x103*x19 + 0.039*x121*
x37 + 0.02*x127*x43 + 0.003*x145*x61 - x1*x169 =E= 0;
e43.. 0.701*x86*x2 + 0.2*x92*x8 + 0.023*x98*x14 + 0.007*x104*x20 + 0.039*x122*
x38 + 0.02*x128*x44 + 0.003*x146*x62 - x2*x170 =E= 0;
e44.. 0.701*x87*x3 + 0.2*x93*x9 + 0.023*x99*x15 + 0.007*x105*x21 + 0.039*x123*
x39 + 0.02*x129*x45 + 0.003*x147*x63 - x3*x171 =E= 0;
e45.. 0.701*x88*x4 + 0.2*x94*x10 + 0.023*x100*x16 + 0.007*x106*x22 + 0.039*x124
*x40 + 0.02*x130*x46 + 0.003*x148*x64 - x4*x172 =E= 0;
e46.. 0.701*x89*x5 + 0.2*x95*x11 + 0.023*x101*x17 + 0.007*x107*x23 + 0.039*x125
*x41 + 0.02*x131*x47 + 0.003*x149*x65 - x5*x173 =E= 0;
e47.. 0.701*x90*x6 + 0.2*x96*x12 + 0.023*x102*x18 + 0.007*x108*x24 + 0.039*x126
*x42 + 0.02*x132*x48 + 0.003*x150*x66 - x6*x174 =E= 0;
e48.. 0.1*x85*x1 + 0.662*x91*x7 + 0.088*x97*x13 + 0.015*x103*x19 + 0.007*x109*
x25 + 0.071*x121*x37 + 0.037*x127*x43 + 0.01*x133*x49 + 0.007*x145*x61 +
0.003*x151*x67 - x7*x169 =E= 0;
e49.. 0.1*x86*x2 + 0.662*x92*x8 + 0.088*x98*x14 + 0.015*x104*x20 + 0.007*x110*
x26 + 0.071*x122*x38 + 0.037*x128*x44 + 0.01*x134*x50 + 0.007*x146*x62 +
0.003*x152*x68 - x8*x170 =E= 0;
e50.. 0.1*x87*x3 + 0.662*x93*x9 + 0.088*x99*x15 + 0.015*x105*x21 + 0.007*x111*
x27 + 0.071*x123*x39 + 0.037*x129*x45 + 0.01*x135*x51 + 0.007*x147*x63 +
0.003*x153*x69 - x9*x171 =E= 0;
e51.. 0.1*x88*x4 + 0.662*x94*x10 + 0.088*x100*x16 + 0.015*x106*x22 + 0.007*x112
*x28 + 0.071*x124*x40 + 0.037*x130*x46 + 0.01*x136*x52 + 0.007*x148*x64
+ 0.003*x154*x70 - x10*x172 =E= 0;
e52.. 0.1*x89*x5 + 0.662*x95*x11 + 0.088*x101*x17 + 0.015*x107*x23 + 0.007*x113
*x29 + 0.071*x125*x41 + 0.037*x131*x47 + 0.01*x137*x53 + 0.007*x149*x65
+ 0.003*x155*x71 - x11*x173 =E= 0;
e53.. 0.1*x90*x6 + 0.662*x96*x12 + 0.088*x102*x18 + 0.015*x108*x24 + 0.007*x114
*x30 + 0.071*x126*x42 + 0.037*x132*x48 + 0.01*x138*x54 + 0.007*x150*x66
+ 0.003*x156*x72 - x12*x174 =E= 0;
e54.. 0.015*x85*x1 + 0.102*x91*x7 + 0.619*x97*x13 + 0.085*x103*x19 + 0.015*x109
*x25 + 0.007*x115*x31 + 0.036*x121*x37 + 0.064*x127*x43 + 0.029*x133*x49
+ 0.01*x139*x55 + 0.008*x145*x61 + 0.007*x151*x67 + 0.003*x157*x73 - x13
*x169 =E= 0;
e55.. 0.015*x86*x2 + 0.102*x92*x8 + 0.619*x98*x14 + 0.085*x104*x20 + 0.015*x110
*x26 + 0.007*x116*x32 + 0.036*x122*x38 + 0.064*x128*x44 + 0.029*x134*x50
+ 0.01*x140*x56 + 0.008*x146*x62 + 0.007*x152*x68 + 0.003*x158*x74 - x14
*x170 =E= 0;
e56.. 0.015*x87*x3 + 0.102*x93*x9 + 0.619*x99*x15 + 0.085*x105*x21 + 0.015*x111
*x27 + 0.007*x117*x33 + 0.036*x123*x39 + 0.064*x129*x45 + 0.029*x135*x51
+ 0.01*x141*x57 + 0.008*x147*x63 + 0.007*x153*x69 + 0.003*x159*x75 - x15
*x171 =E= 0;
e57.. 0.015*x88*x4 + 0.102*x94*x10 + 0.619*x100*x16 + 0.085*x106*x22 + 0.015*
x112*x28 + 0.007*x118*x34 + 0.036*x124*x40 + 0.064*x130*x46 + 0.029*x136*
x52 + 0.01*x142*x58 + 0.008*x148*x64 + 0.007*x154*x70 + 0.003*x160*x76 -
x16*x172 =E= 0;
e58.. 0.015*x89*x5 + 0.102*x95*x11 + 0.619*x101*x17 + 0.085*x107*x23 + 0.015*
x113*x29 + 0.007*x119*x35 + 0.036*x125*x41 + 0.064*x131*x47 + 0.029*x137*
x53 + 0.01*x143*x59 + 0.008*x149*x65 + 0.007*x155*x71 + 0.003*x161*x77 -
x17*x173 =E= 0;
e59.. 0.015*x90*x6 + 0.102*x96*x12 + 0.619*x102*x18 + 0.085*x108*x24 + 0.015*
x114*x30 + 0.007*x120*x36 + 0.036*x126*x42 + 0.064*x132*x48 + 0.029*x138*
x54 + 0.01*x144*x60 + 0.008*x150*x66 + 0.007*x156*x72 + 0.003*x162*x78 -
x18*x174 =E= 0;
e60.. 0.022*x91*x7 + 0.085*x97*x13 + 0.616*x103*x19 + 0.085*x109*x25 + 0.015*
x115*x31 + 0.01*x121*x37 + 0.039*x127*x43 + 0.064*x133*x49 + 0.029*x139*
x55 + 0.008*x151*x67 + 0.007*x157*x73 - x19*x169 =E= 0;
e61.. 0.022*x92*x8 + 0.085*x98*x14 + 0.616*x104*x20 + 0.085*x110*x26 + 0.015*
x116*x32 + 0.01*x122*x38 + 0.039*x128*x44 + 0.064*x134*x50 + 0.029*x140*
x56 + 0.008*x152*x68 + 0.007*x158*x74 - x20*x170 =E= 0;
e62.. 0.022*x93*x9 + 0.085*x99*x15 + 0.616*x105*x21 + 0.085*x111*x27 + 0.015*
x117*x33 + 0.01*x123*x39 + 0.039*x129*x45 + 0.064*x135*x51 + 0.029*x141*
x57 + 0.008*x153*x69 + 0.007*x159*x75 - x21*x171 =E= 0;
e63.. 0.022*x94*x10 + 0.085*x100*x16 + 0.616*x106*x22 + 0.085*x112*x28 + 0.015*
x118*x34 + 0.01*x124*x40 + 0.039*x130*x46 + 0.064*x136*x52 + 0.029*x142*
x58 + 0.008*x154*x70 + 0.007*x160*x76 - x22*x172 =E= 0;
e64.. 0.022*x95*x11 + 0.085*x101*x17 + 0.616*x107*x23 + 0.085*x113*x29 + 0.015*
x119*x35 + 0.01*x125*x41 + 0.039*x131*x47 + 0.064*x137*x53 + 0.029*x143*
x59 + 0.008*x155*x71 + 0.007*x161*x77 - x23*x173 =E= 0;
e65.. 0.022*x96*x12 + 0.085*x102*x18 + 0.616*x108*x24 + 0.085*x114*x30 + 0.015*
x120*x36 + 0.01*x126*x42 + 0.039*x132*x48 + 0.064*x138*x54 + 0.029*x144*
x60 + 0.008*x156*x72 + 0.007*x162*x78 - x24*x174 =E= 0;
e66.. 0.015*x97*x13 + 0.085*x103*x19 + 0.616*x109*x25 + 0.085*x115*x31 + 0.007*
x121*x37 + 0.01*x127*x43 + 0.036*x133*x49 + 0.064*x139*x55 + 0.003*x145*
x61 + 0.008*x157*x73 - x25*x169 =E= 0;
e67.. 0.015*x98*x14 + 0.085*x104*x20 + 0.616*x110*x26 + 0.085*x116*x32 + 0.007*
x122*x38 + 0.01*x128*x44 + 0.036*x134*x50 + 0.064*x140*x56 + 0.003*x146*
x62 + 0.008*x158*x74 - x26*x170 =E= 0;
e68.. 0.015*x99*x15 + 0.085*x105*x21 + 0.616*x111*x27 + 0.085*x117*x33 + 0.007*
x123*x39 + 0.01*x129*x45 + 0.036*x135*x51 + 0.064*x141*x57 + 0.003*x147*
x63 + 0.008*x159*x75 - x27*x171 =E= 0;
e69.. 0.015*x100*x16 + 0.085*x106*x22 + 0.616*x112*x28 + 0.085*x118*x34 + 0.007
*x124*x40 + 0.01*x130*x46 + 0.036*x136*x52 + 0.064*x142*x58 + 0.003*x148*
x64 + 0.008*x160*x76 - x28*x172 =E= 0;
e70.. 0.015*x101*x17 + 0.085*x107*x23 + 0.616*x113*x29 + 0.085*x119*x35 + 0.007
*x125*x41 + 0.01*x131*x47 + 0.036*x137*x53 + 0.064*x143*x59 + 0.003*x149*
x65 + 0.008*x161*x77 - x29*x173 =E= 0;
e71.. 0.015*x102*x18 + 0.085*x108*x24 + 0.616*x114*x30 + 0.085*x120*x36 + 0.007
*x126*x42 + 0.01*x132*x48 + 0.036*x138*x54 + 0.064*x144*x60 + 0.003*x150*
x66 + 0.008*x162*x78 - x30*x174 =E= 0;
e72.. 0.015*x103*x19 + 0.085*x109*x25 + 0.616*x115*x31 + 0.007*x127*x43 + 0.01*
x133*x49 + 0.036*x139*x55 + 0.003*x151*x67 - x31*x169 =E= 0;
e73.. 0.015*x104*x20 + 0.085*x110*x26 + 0.616*x116*x32 + 0.007*x128*x44 + 0.01*
x134*x50 + 0.036*x140*x56 + 0.003*x152*x68 - x32*x170 =E= 0;
e74.. 0.015*x105*x21 + 0.085*x111*x27 + 0.616*x117*x33 + 0.007*x129*x45 + 0.01*
x135*x51 + 0.036*x141*x57 + 0.003*x153*x69 - x33*x171 =E= 0;
e75.. 0.015*x106*x22 + 0.085*x112*x28 + 0.616*x118*x34 + 0.007*x130*x46 + 0.01*
x136*x52 + 0.036*x142*x58 + 0.003*x154*x70 - x34*x172 =E= 0;
e76.. 0.015*x107*x23 + 0.085*x113*x29 + 0.616*x119*x35 + 0.007*x131*x47 + 0.01*
x137*x53 + 0.036*x143*x59 + 0.003*x155*x71 - x35*x173 =E= 0;
e77.. 0.015*x108*x24 + 0.085*x114*x30 + 0.616*x120*x36 + 0.007*x132*x48 + 0.01*
x138*x54 + 0.036*x144*x60 + 0.003*x156*x72 - x36*x174 =E= 0;
e78.. 0.046*x85*x1 + 0.128*x91*x7 + 0.065*x97*x13 + 0.013*x103*x19 + 0.007*x109
*x25 + 0.56*x121*x37 + 0.119*x127*x43 + 0.016*x133*x49 + 0.029*x145*x61
+ 0.014*x151*x67 + 0.003*x163*x79 - x37*x169 =E= 0;
e79.. 0.046*x86*x2 + 0.128*x92*x8 + 0.065*x98*x14 + 0.013*x104*x20 + 0.007*x110
*x26 + 0.56*x122*x38 + 0.119*x128*x44 + 0.016*x134*x50 + 0.029*x146*x62
+ 0.014*x152*x68 + 0.003*x164*x80 - x38*x170 =E= 0;
e80.. 0.046*x87*x3 + 0.128*x93*x9 + 0.065*x99*x15 + 0.013*x105*x21 + 0.007*x111
*x27 + 0.56*x123*x39 + 0.119*x129*x45 + 0.016*x135*x51 + 0.029*x147*x63
+ 0.014*x153*x69 + 0.003*x165*x81 - x39*x171 =E= 0;
e81.. 0.046*x88*x4 + 0.128*x94*x10 + 0.065*x100*x16 + 0.013*x106*x22 + 0.007*
x112*x28 + 0.56*x124*x40 + 0.119*x130*x46 + 0.016*x136*x52 + 0.029*x148*
x64 + 0.014*x154*x70 + 0.003*x166*x82 - x40*x172 =E= 0;
e82.. 0.046*x89*x5 + 0.128*x95*x11 + 0.065*x101*x17 + 0.013*x107*x23 + 0.007*
x113*x29 + 0.56*x125*x41 + 0.119*x131*x47 + 0.016*x137*x53 + 0.029*x149*
x65 + 0.014*x155*x71 + 0.003*x167*x83 - x41*x173 =E= 0;
e83.. 0.046*x90*x6 + 0.128*x96*x12 + 0.065*x102*x18 + 0.013*x108*x24 + 0.007*
x114*x30 + 0.56*x126*x42 + 0.119*x132*x48 + 0.016*x138*x54 + 0.029*x150*
x66 + 0.014*x156*x72 + 0.003*x168*x84 - x42*x174 =E= 0;
e84.. 0.01*x85*x1 + 0.044*x91*x7 + 0.078*x97*x13 + 0.032*x103*x19 + 0.01*x109*
x25 + 0.007*x115*x31 + 0.056*x121*x37 + 0.589*x127*x43 + 0.056*x133*x49
+ 0.008*x139*x55 + 0.056*x145*x61 + 0.037*x151*x67 + 0.007*x157*x73 +
0.007*x163*x79 - x43*x169 =E= 0;
e85.. 0.01*x86*x2 + 0.044*x92*x8 + 0.078*x98*x14 + 0.032*x104*x20 + 0.01*x110*
x26 + 0.007*x116*x32 + 0.056*x122*x38 + 0.589*x128*x44 + 0.056*x134*x50
+ 0.008*x140*x56 + 0.056*x146*x62 + 0.037*x152*x68 + 0.007*x158*x74 +
0.007*x164*x80 - x44*x170 =E= 0;
e86.. 0.01*x87*x3 + 0.044*x93*x9 + 0.078*x99*x15 + 0.032*x105*x21 + 0.01*x111*
x27 + 0.007*x117*x33 + 0.056*x123*x39 + 0.589*x129*x45 + 0.056*x135*x51
+ 0.008*x141*x57 + 0.056*x147*x63 + 0.037*x153*x69 + 0.007*x159*x75 +
0.007*x165*x81 - x45*x171 =E= 0;
e87.. 0.01*x88*x4 + 0.044*x94*x10 + 0.078*x100*x16 + 0.032*x106*x22 + 0.01*x112
*x28 + 0.007*x118*x34 + 0.056*x124*x40 + 0.589*x130*x46 + 0.056*x136*x52
+ 0.008*x142*x58 + 0.056*x148*x64 + 0.037*x154*x70 + 0.007*x160*x76 +
0.007*x166*x82 - x46*x172 =E= 0;
e88.. 0.01*x89*x5 + 0.044*x95*x11 + 0.078*x101*x17 + 0.032*x107*x23 + 0.01*x113
*x29 + 0.007*x119*x35 + 0.056*x125*x41 + 0.589*x131*x47 + 0.056*x137*x53
+ 0.008*x143*x59 + 0.056*x149*x65 + 0.037*x155*x71 + 0.007*x161*x77 +
0.007*x167*x83 - x47*x173 =E= 0;
e89.. 0.01*x90*x6 + 0.044*x96*x12 + 0.078*x102*x18 + 0.032*x108*x24 + 0.01*x114
*x30 + 0.007*x120*x36 + 0.056*x126*x42 + 0.589*x132*x48 + 0.056*x138*x54
+ 0.008*x144*x60 + 0.056*x150*x66 + 0.037*x156*x72 + 0.007*x162*x78 +
0.007*x168*x84 - x48*x174 =E= 0;
e90.. 0.01*x91*x7 + 0.043*x97*x13 + 0.064*x103*x19 + 0.029*x109*x25 + 0.01*x115
*x31 + 0.008*x121*x37 + 0.063*x127*x43 + 0.563*x133*x49 + 0.056*x139*x55
+ 0.029*x145*x61 + 0.056*x151*x67 + 0.029*x157*x73 + 0.008*x163*x79 -
x49*x169 =E= 0;
e91.. 0.01*x92*x8 + 0.043*x98*x14 + 0.064*x104*x20 + 0.029*x110*x26 + 0.01*x116
*x32 + 0.008*x122*x38 + 0.063*x128*x44 + 0.563*x134*x50 + 0.056*x140*x56
+ 0.029*x146*x62 + 0.056*x152*x68 + 0.029*x158*x74 + 0.008*x164*x80 -
x50*x170 =E= 0;
e92.. 0.01*x93*x9 + 0.043*x99*x15 + 0.064*x105*x21 + 0.029*x111*x27 + 0.01*x117
*x33 + 0.008*x123*x39 + 0.063*x129*x45 + 0.563*x135*x51 + 0.056*x141*x57
+ 0.029*x147*x63 + 0.056*x153*x69 + 0.029*x159*x75 + 0.008*x165*x81 -
x51*x171 =E= 0;
e93.. 0.01*x94*x10 + 0.043*x100*x16 + 0.064*x106*x22 + 0.029*x112*x28 + 0.01*
x118*x34 + 0.008*x124*x40 + 0.063*x130*x46 + 0.563*x136*x52 + 0.056*x142*
x58 + 0.029*x148*x64 + 0.056*x154*x70 + 0.029*x160*x76 + 0.008*x166*x82
- x52*x172 =E= 0;
e94.. 0.01*x95*x11 + 0.043*x101*x17 + 0.064*x107*x23 + 0.029*x113*x29 + 0.01*
x119*x35 + 0.008*x125*x41 + 0.063*x131*x47 + 0.563*x137*x53 + 0.056*x143*
x59 + 0.029*x149*x65 + 0.056*x155*x71 + 0.029*x161*x77 + 0.008*x167*x83
- x53*x173 =E= 0;
e95.. 0.01*x96*x12 + 0.043*x102*x18 + 0.064*x108*x24 + 0.029*x114*x30 + 0.01*
x120*x36 + 0.008*x126*x42 + 0.063*x132*x48 + 0.563*x138*x54 + 0.056*x144*
x60 + 0.029*x150*x66 + 0.056*x156*x72 + 0.029*x162*x78 + 0.008*x168*x84
- x54*x174 =E= 0;
e96.. 0.01*x97*x13 + 0.036*x103*x19 + 0.064*x109*x25 + 0.029*x115*x31 + 0.015*
x127*x43 + 0.056*x133*x49 + 0.56*x139*x55 + 0.007*x145*x61 + 0.032*x151*
x67 + 0.056*x157*x73 - x55*x169 =E= 0;
e97.. 0.01*x98*x14 + 0.036*x104*x20 + 0.064*x110*x26 + 0.029*x116*x32 + 0.015*
x128*x44 + 0.056*x134*x50 + 0.56*x140*x56 + 0.007*x146*x62 + 0.032*x152*
x68 + 0.056*x158*x74 - x56*x170 =E= 0;
e98.. 0.01*x99*x15 + 0.036*x105*x21 + 0.064*x111*x27 + 0.029*x117*x33 + 0.015*
x129*x45 + 0.056*x135*x51 + 0.56*x141*x57 + 0.007*x147*x63 + 0.032*x153*
x69 + 0.056*x159*x75 - x57*x171 =E= 0;
e99.. 0.01*x100*x16 + 0.036*x106*x22 + 0.064*x112*x28 + 0.029*x118*x34 + 0.015*
x130*x46 + 0.056*x136*x52 + 0.56*x142*x58 + 0.007*x148*x64 + 0.032*x154*
x70 + 0.056*x160*x76 - x58*x172 =E= 0;
e100.. 0.01*x101*x17 + 0.036*x107*x23 + 0.064*x113*x29 + 0.029*x119*x35 + 0.015
*x131*x47 + 0.056*x137*x53 + 0.56*x143*x59 + 0.007*x149*x65 + 0.032*x155
*x71 + 0.056*x161*x77 - x59*x173 =E= 0;
e101.. 0.01*x102*x18 + 0.036*x108*x24 + 0.064*x114*x30 + 0.029*x120*x36 + 0.015
*x132*x48 + 0.056*x138*x54 + 0.56*x144*x60 + 0.007*x150*x66 + 0.032*x156
*x72 + 0.056*x162*x78 - x60*x174 =E= 0;
e102.. 0.003*x85*x1 + 0.014*x91*x7 + 0.016*x97*x13 + 0.014*x103*x19 + 0.006*
x109*x25 + 0.029*x121*x37 + 0.112*x127*x43 + 0.058*x133*x49 + 0.007*x139
*x55 + 0.56*x145*x61 + 0.112*x151*x67 + 0.016*x157*x73 + 0.029*x163*x79
- x61*x169 =E= 0;
e103.. 0.003*x86*x2 + 0.014*x92*x8 + 0.016*x98*x14 + 0.014*x104*x20 + 0.006*
x110*x26 + 0.029*x122*x38 + 0.112*x128*x44 + 0.058*x134*x50 + 0.007*x140
*x56 + 0.56*x146*x62 + 0.112*x152*x68 + 0.016*x158*x74 + 0.029*x164*x80
- x62*x170 =E= 0;
e104.. 0.003*x87*x3 + 0.014*x93*x9 + 0.016*x99*x15 + 0.014*x105*x21 + 0.006*
x111*x27 + 0.029*x123*x39 + 0.112*x129*x45 + 0.058*x135*x51 + 0.007*x141
*x57 + 0.56*x147*x63 + 0.112*x153*x69 + 0.016*x159*x75 + 0.029*x165*x81
- x63*x171 =E= 0;
e105.. 0.003*x88*x4 + 0.014*x94*x10 + 0.016*x100*x16 + 0.014*x106*x22 + 0.006*
x112*x28 + 0.029*x124*x40 + 0.112*x130*x46 + 0.058*x136*x52 + 0.007*x142
*x58 + 0.56*x148*x64 + 0.112*x154*x70 + 0.016*x160*x76 + 0.029*x166*x82
- x64*x172 =E= 0;
e106.. 0.003*x89*x5 + 0.014*x95*x11 + 0.016*x101*x17 + 0.014*x107*x23 + 0.006*
x113*x29 + 0.029*x125*x41 + 0.112*x131*x47 + 0.058*x137*x53 + 0.007*x143
*x59 + 0.56*x149*x65 + 0.112*x155*x71 + 0.016*x161*x77 + 0.029*x167*x83
- x65*x173 =E= 0;
e107.. 0.003*x90*x6 + 0.014*x96*x12 + 0.016*x102*x18 + 0.014*x108*x24 + 0.006*
x114*x30 + 0.029*x126*x42 + 0.112*x132*x48 + 0.058*x138*x54 + 0.007*x144
*x60 + 0.56*x150*x66 + 0.112*x156*x72 + 0.016*x162*x78 + 0.029*x168*x84
- x66*x174 =E= 0;
e108.. 0.003*x91*x7 + 0.007*x97*x13 + 0.015*x103*x19 + 0.003*x115*x31 + 0.007*
x121*x37 + 0.037*x127*x43 + 0.063*x133*x49 + 0.032*x139*x55 + 0.056*x145
*x61 + 0.589*x151*x67 + 0.056*x157*x73 + 0.056*x163*x79 - x67*x169 =E= 0
;
e109.. 0.003*x92*x8 + 0.007*x98*x14 + 0.015*x104*x20 + 0.003*x116*x32 + 0.007*
x122*x38 + 0.037*x128*x44 + 0.063*x134*x50 + 0.032*x140*x56 + 0.056*x146
*x62 + 0.589*x152*x68 + 0.056*x158*x74 + 0.056*x164*x80 - x68*x170 =E= 0
;
e110.. 0.003*x93*x9 + 0.007*x99*x15 + 0.015*x105*x21 + 0.003*x117*x33 + 0.007*
x123*x39 + 0.037*x129*x45 + 0.063*x135*x51 + 0.032*x141*x57 + 0.056*x147
*x63 + 0.589*x153*x69 + 0.056*x159*x75 + 0.056*x165*x81 - x69*x171 =E= 0
;
e111.. 0.003*x94*x10 + 0.007*x100*x16 + 0.015*x106*x22 + 0.003*x118*x34 + 0.007
*x124*x40 + 0.037*x130*x46 + 0.063*x136*x52 + 0.032*x142*x58 + 0.056*
x148*x64 + 0.589*x154*x70 + 0.056*x160*x76 + 0.056*x166*x82 - x70*x172
=E= 0;
e112.. 0.003*x95*x11 + 0.007*x101*x17 + 0.015*x107*x23 + 0.003*x119*x35 + 0.007
*x125*x41 + 0.037*x131*x47 + 0.063*x137*x53 + 0.032*x143*x59 + 0.056*
x149*x65 + 0.589*x155*x71 + 0.056*x161*x77 + 0.056*x167*x83 - x71*x173
=E= 0;
e113.. 0.003*x96*x12 + 0.007*x102*x18 + 0.015*x108*x24 + 0.003*x120*x36 + 0.007
*x126*x42 + 0.037*x132*x48 + 0.063*x138*x54 + 0.032*x144*x60 + 0.056*
x150*x66 + 0.589*x156*x72 + 0.056*x162*x78 + 0.056*x168*x84 - x72*x174
=E= 0;
e114.. 0.003*x97*x13 + 0.007*x103*x19 + 0.008*x109*x25 + 0.007*x127*x43 + 0.036
*x133*x49 + 0.056*x139*x55 + 0.008*x145*x61 + 0.063*x151*x67 + 0.563*
x157*x73 + 0.029*x163*x79 - x73*x169 =E= 0;
e115.. 0.003*x98*x14 + 0.007*x104*x20 + 0.008*x110*x26 + 0.007*x128*x44 + 0.036
*x134*x50 + 0.056*x140*x56 + 0.008*x146*x62 + 0.063*x152*x68 + 0.563*
x158*x74 + 0.029*x164*x80 - x74*x170 =E= 0;
e116.. 0.003*x99*x15 + 0.007*x105*x21 + 0.008*x111*x27 + 0.007*x129*x45 + 0.036
*x135*x51 + 0.056*x141*x57 + 0.008*x147*x63 + 0.063*x153*x69 + 0.563*
x159*x75 + 0.029*x165*x81 - x75*x171 =E= 0;
e117.. 0.003*x100*x16 + 0.007*x106*x22 + 0.008*x112*x28 + 0.007*x130*x46 +
0.036*x136*x52 + 0.056*x142*x58 + 0.008*x148*x64 + 0.063*x154*x70 +
0.563*x160*x76 + 0.029*x166*x82 - x76*x172 =E= 0;
e118.. 0.003*x101*x17 + 0.007*x107*x23 + 0.008*x113*x29 + 0.007*x131*x47 +
0.036*x137*x53 + 0.056*x143*x59 + 0.008*x149*x65 + 0.063*x155*x71 +
0.563*x161*x77 + 0.029*x167*x83 - x77*x173 =E= 0;
e119.. 0.003*x102*x18 + 0.007*x108*x24 + 0.008*x114*x30 + 0.007*x132*x48 +
0.036*x138*x54 + 0.056*x144*x60 + 0.008*x150*x66 + 0.063*x156*x72 +
0.563*x162*x78 + 0.029*x168*x84 - x78*x174 =E= 0;
e120.. 0.007*x109*x25 + 0.003*x121*x37 + 0.014*x127*x43 + 0.016*x133*x49 +
0.007*x139*x55 + 0.029*x145*x61 + 0.112*x151*x67 + 0.058*x157*x73 + 0.56
*x163*x79 - x79*x169 =E= 0;
e121.. 0.007*x110*x26 + 0.003*x122*x38 + 0.014*x128*x44 + 0.016*x134*x50 +
0.007*x140*x56 + 0.029*x146*x62 + 0.112*x152*x68 + 0.058*x158*x74 + 0.56
*x164*x80 - x80*x170 =E= 0;
e122.. 0.007*x111*x27 + 0.003*x123*x39 + 0.014*x129*x45 + 0.016*x135*x51 +
0.007*x141*x57 + 0.029*x147*x63 + 0.112*x153*x69 + 0.058*x159*x75 + 0.56
*x165*x81 - x81*x171 =E= 0;
e123.. 0.007*x112*x28 + 0.003*x124*x40 + 0.014*x130*x46 + 0.016*x136*x52 +
0.007*x142*x58 + 0.029*x148*x64 + 0.112*x154*x70 + 0.058*x160*x76 + 0.56
*x166*x82 - x82*x172 =E= 0;
e124.. 0.007*x113*x29 + 0.003*x125*x41 + 0.014*x131*x47 + 0.016*x137*x53 +
0.007*x143*x59 + 0.029*x149*x65 + 0.112*x155*x71 + 0.058*x161*x77 + 0.56
*x167*x83 - x83*x173 =E= 0;
e125.. 0.007*x114*x30 + 0.003*x126*x42 + 0.014*x132*x48 + 0.016*x138*x54 +
0.007*x144*x60 + 0.029*x150*x66 + 0.112*x156*x72 + 0.058*x162*x78 + 0.56
*x168*x84 - x84*x174 =E= 0;
e126.. -(x85 - 0.15288*x85*x1) + x86 =E= 0;
e127.. -(x86 - 0.15288*x86*x2) + x87 =E= 0;
e128.. -(x87 - 0.15288*x87*x3) + x88 =E= 0;
e129.. -(x88 - 0.15288*x88*x4) + x89 =E= 0;
e130.. -(x89 - 0.15288*x89*x5) + x90 =E= 0;
e131.. -(x91 - 0.15288*x91*x7) + x92 =E= 0;
e132.. -(x92 - 0.15288*x92*x8) + x93 =E= 0;
e133.. -(x93 - 0.15288*x93*x9) + x94 =E= 0;
e134.. -(x94 - 0.15288*x94*x10) + x95 =E= 0;
e135.. -(x95 - 0.15288*x95*x11) + x96 =E= 0;
e136.. -(x97 - 0.15288*x97*x13) + x98 =E= 0;
e137.. -(x98 - 0.15288*x98*x14) + x99 =E= 0;
e138.. -(x99 - 0.15288*x99*x15) + x100 =E= 0;
e139.. -(x100 - 0.15288*x100*x16) + x101 =E= 0;
e140.. -(x101 - 0.15288*x101*x17) + x102 =E= 0;
e141.. -(x103 - 0.15288*x103*x19) + x104 =E= 0;
e142.. -(x104 - 0.15288*x104*x20) + x105 =E= 0;
e143.. -(x105 - 0.15288*x105*x21) + x106 =E= 0;
e144.. -(x106 - 0.15288*x106*x22) + x107 =E= 0;
e145.. -(x107 - 0.15288*x107*x23) + x108 =E= 0;
e146.. -(x109 - 0.15288*x109*x25) + x110 =E= 0;
e147.. -(x110 - 0.15288*x110*x26) + x111 =E= 0;
e148.. -(x111 - 0.15288*x111*x27) + x112 =E= 0;
e149.. -(x112 - 0.15288*x112*x28) + x113 =E= 0;
e150.. -(x113 - 0.15288*x113*x29) + x114 =E= 0;
e151.. -(x115 - 0.15288*x115*x31) + x116 =E= 0;
e152.. -(x116 - 0.15288*x116*x32) + x117 =E= 0;
e153.. -(x117 - 0.15288*x117*x33) + x118 =E= 0;
e154.. -(x118 - 0.15288*x118*x34) + x119 =E= 0;
e155.. -(x119 - 0.15288*x119*x35) + x120 =E= 0;
e156.. -(x121 - 0.15288*x121*x37) + x122 =E= 0;
e157.. -(x122 - 0.15288*x122*x38) + x123 =E= 0;
e158.. -(x123 - 0.15288*x123*x39) + x124 =E= 0;
e159.. -(x124 - 0.15288*x124*x40) + x125 =E= 0;
e160.. -(x125 - 0.15288*x125*x41) + x126 =E= 0;
e161.. -(x127 - 0.15288*x127*x43) + x128 =E= 0;
e162.. -(x128 - 0.15288*x128*x44) + x129 =E= 0;
e163.. -(x129 - 0.15288*x129*x45) + x130 =E= 0;
e164.. -(x130 - 0.15288*x130*x46) + x131 =E= 0;
e165.. -(x131 - 0.15288*x131*x47) + x132 =E= 0;
e166.. -(x133 - 0.15288*x133*x49) + x134 =E= 0;
e167.. -(x134 - 0.15288*x134*x50) + x135 =E= 0;
e168.. -(x135 - 0.15288*x135*x51) + x136 =E= 0;
e169.. -(x136 - 0.15288*x136*x52) + x137 =E= 0;
e170.. -(x137 - 0.15288*x137*x53) + x138 =E= 0;
e171.. -(x139 - 0.15288*x139*x55) + x140 =E= 0;
e172.. -(x140 - 0.15288*x140*x56) + x141 =E= 0;
e173.. -(x141 - 0.15288*x141*x57) + x142 =E= 0;
e174.. -(x142 - 0.15288*x142*x58) + x143 =E= 0;
e175.. -(x143 - 0.15288*x143*x59) + x144 =E= 0;
e176.. -(x145 - 0.15288*x145*x61) + x146 =E= 0;
e177.. -(x146 - 0.15288*x146*x62) + x147 =E= 0;
e178.. -(x147 - 0.15288*x147*x63) + x148 =E= 0;
e179.. -(x148 - 0.15288*x148*x64) + x149 =E= 0;
e180.. -(x149 - 0.15288*x149*x65) + x150 =E= 0;
e181.. -(x151 - 0.15288*x151*x67) + x152 =E= 0;
e182.. -(x152 - 0.15288*x152*x68) + x153 =E= 0;
e183.. -(x153 - 0.15288*x153*x69) + x154 =E= 0;
e184.. -(x154 - 0.15288*x154*x70) + x155 =E= 0;
e185.. -(x155 - 0.15288*x155*x71) + x156 =E= 0;
e186.. -(x157 - 0.15288*x157*x73) + x158 =E= 0;
e187.. -(x158 - 0.15288*x158*x74) + x159 =E= 0;
e188.. -(x159 - 0.15288*x159*x75) + x160 =E= 0;
e189.. -(x160 - 0.15288*x160*x76) + x161 =E= 0;
e190.. -(x161 - 0.15288*x161*x77) + x162 =E= 0;
e191.. -(x163 - 0.15288*x163*x79) + x164 =E= 0;
e192.. -(x164 - 0.15288*x164*x80) + x165 =E= 0;
e193.. -(x165 - 0.15288*x165*x81) + x166 =E= 0;
e194.. -(x166 - 0.15288*x166*x82) + x167 =E= 0;
e195.. -(x167 - 0.15288*x167*x83) + x168 =E= 0;
e196.. 0.5*x85*x1 + x91*x7 + x97*x13 + x103*x19 + x109*x25 + x115*x31 + 0.5*
x121*x37 + x127*x43 + x133*x49 + x139*x55 + 0.5*x145*x61 + x151*x67 +
x157*x73 + 0.5*x163*x79 =E= 1;
e197.. 0.5*x86*x2 + x92*x8 + x98*x14 + x104*x20 + x110*x26 + x116*x32 + 0.5*
x122*x38 + x128*x44 + x134*x50 + x140*x56 + 0.5*x146*x62 + x152*x68 +
x158*x74 + 0.5*x164*x80 =E= 1;
e198.. 0.5*x87*x3 + x93*x9 + x99*x15 + x105*x21 + x111*x27 + x117*x33 + 0.5*
x123*x39 + x129*x45 + x135*x51 + x141*x57 + 0.5*x147*x63 + x153*x69 +
x159*x75 + 0.5*x165*x81 =E= 1;
e199.. 0.5*x88*x4 + x94*x10 + x100*x16 + x106*x22 + x112*x28 + x118*x34 + 0.5*
x124*x40 + x130*x46 + x136*x52 + x142*x58 + 0.5*x148*x64 + x154*x70 +
x160*x76 + 0.5*x166*x82 =E= 1;
e200.. 0.5*x89*x5 + x95*x11 + x101*x17 + x107*x23 + x113*x29 + x119*x35 + 0.5*
x125*x41 + x131*x47 + x137*x53 + x143*x59 + 0.5*x149*x65 + x155*x71 +
x161*x77 + 0.5*x167*x83 =E= 1;
e201.. 0.5*x90*x6 + x96*x12 + x102*x18 + x108*x24 + x114*x30 + x120*x36 + 0.5*
x126*x42 + x132*x48 + x138*x54 + x144*x60 + 0.5*x150*x66 + x156*x72 +
x162*x78 + 0.5*x168*x84 =E= 1;
e202.. x85*x1 =L= 0.15;
e203.. x86*x2 =L= 0.15;
e204.. x87*x3 =L= 0.15;
e205.. x88*x4 =L= 0.15;
e206.. x89*x5 =L= 0.15;
e207.. x90*x6 =L= 0.15;
e208.. x91*x7 =L= 0.15;
e209.. x92*x8 =L= 0.15;
e210.. x93*x9 =L= 0.15;
e211.. x94*x10 =L= 0.15;
e212.. x95*x11 =L= 0.15;
e213.. x96*x12 =L= 0.15;
e214.. x97*x13 =L= 0.15;
e215.. x98*x14 =L= 0.15;
e216.. x99*x15 =L= 0.15;
e217.. x100*x16 =L= 0.15;
e218.. x101*x17 =L= 0.15;
e219.. x102*x18 =L= 0.15;
e220.. x103*x19 =L= 0.15;
e221.. x104*x20 =L= 0.15;
e222.. x105*x21 =L= 0.15;
e223.. x106*x22 =L= 0.15;
e224.. x107*x23 =L= 0.15;
e225.. x108*x24 =L= 0.15;
e226.. x109*x25 =L= 0.15;
e227.. x110*x26 =L= 0.15;
e228.. x111*x27 =L= 0.15;
e229.. x112*x28 =L= 0.15;
e230.. x113*x29 =L= 0.15;
e231.. x114*x30 =L= 0.15;
e232.. x115*x31 =L= 0.15;
e233.. x116*x32 =L= 0.15;
e234.. x117*x33 =L= 0.15;
e235.. x118*x34 =L= 0.15;
e236.. x119*x35 =L= 0.15;
e237.. x120*x36 =L= 0.15;
e238.. x121*x37 =L= 0.15;
e239.. x122*x38 =L= 0.15;
e240.. x123*x39 =L= 0.15;
e241.. x124*x40 =L= 0.15;
e242.. x125*x41 =L= 0.15;
e243.. x126*x42 =L= 0.15;
e244.. x127*x43 =L= 0.15;
e245.. x128*x44 =L= 0.15;
e246.. x129*x45 =L= 0.15;
e247.. x130*x46 =L= 0.15;
e248.. x131*x47 =L= 0.15;
e249.. x132*x48 =L= 0.15;
e250.. x133*x49 =L= 0.15;
e251.. x134*x50 =L= 0.15;
e252.. x135*x51 =L= 0.15;
e253.. x136*x52 =L= 0.15;
e254.. x137*x53 =L= 0.15;
e255.. x138*x54 =L= 0.15;
e256.. x139*x55 =L= 0.15;
e257.. x140*x56 =L= 0.15;
e258.. x141*x57 =L= 0.15;
e259.. x142*x58 =L= 0.15;
e260.. x143*x59 =L= 0.15;
e261.. x144*x60 =L= 0.15;
e262.. x145*x61 =L= 0.15;
e263.. x146*x62 =L= 0.15;
e264.. x147*x63 =L= 0.15;
e265.. x148*x64 =L= 0.15;
e266.. x149*x65 =L= 0.15;
e267.. x150*x66 =L= 0.15;
e268.. x151*x67 =L= 0.15;
e269.. x152*x68 =L= 0.15;
e270.. x153*x69 =L= 0.15;
e271.. x154*x70 =L= 0.15;
e272.. x155*x71 =L= 0.15;
e273.. x156*x72 =L= 0.15;
e274.. x157*x73 =L= 0.15;
e275.. x158*x74 =L= 0.15;
e276.. x159*x75 =L= 0.15;
e277.. x160*x76 =L= 0.15;
e278.. x161*x77 =L= 0.15;
e279.. x162*x78 =L= 0.15;
e280.. x163*x79 =L= 0.15;
e281.. x164*x80 =L= 0.15;
e282.. x165*x81 =L= 0.15;
e283.. x166*x82 =L= 0.15;
e284.. x167*x83 =L= 0.15;
e285.. x168*x84 =L= 0.15;
e286.. -(0.5*b175*x90 + b187*x96 + b199*x102 + b211*x108 + b223*x114 + b235*
x120 + 0.5*b247*x126 + b259*x132 + b271*x138 + b283*x144 + 0.5*b295*x150
+ b307*x156 + b319*x162 + 0.5*b331*x168) + x344 =E= 0;
e287.. -(0.5*b176*x90 + b188*x96 + b200*x102 + b212*x108 + b224*x114 + b236*
x120 + 0.5*b248*x126 + b260*x132 + b272*x138 + b284*x144 + 0.5*b296*x150
+ b308*x156 + b320*x162 + 0.5*b332*x168) + x345 =E= 0;
e288.. -(0.5*b177*x90 + b189*x96 + b201*x102 + b213*x108 + b225*x114 + b237*
x120 + 0.5*b249*x126 + b261*x132 + b273*x138 + b285*x144 + 0.5*b297*x150
+ b309*x156 + b321*x162 + 0.5*b333*x168) + x346 =E= 0;
e289.. -(0.5*b178*x90 + b190*x96 + b202*x102 + b214*x108 + b226*x114 + b238*
x120 + 0.5*b250*x126 + b262*x132 + b274*x138 + b286*x144 + 0.5*b298*x150
+ b310*x156 + b322*x162 + 0.5*b334*x168) + x347 =E= 0;
e290.. -(0.5*b179*x90 + b191*x96 + b203*x102 + b215*x108 + b227*x114 + b239*
x120 + 0.5*b251*x126 + b263*x132 + b275*x138 + b287*x144 + 0.5*b299*x150
+ b311*x156 + b323*x162 + 0.5*b335*x168) + x348 =E= 0;
e291.. -(0.5*b180*x90 + b192*x96 + b204*x102 + b216*x108 + b228*x114 + b240*
x120 + 0.5*b252*x126 + b264*x132 + b276*x138 + b288*x144 + 0.5*b300*x150
+ b312*x156 + b324*x162 + 0.5*b336*x168) + x349 =E= 0;
e292.. -(0.5*b181*x90 + b193*x96 + b205*x102 + b217*x108 + b229*x114 + b241*
x120 + 0.5*b253*x126 + b265*x132 + b277*x138 + b289*x144 + 0.5*b301*x150
+ b313*x156 + b325*x162 + 0.5*b337*x168) + x350 =E= 0;
e293.. -(0.5*b182*x90 + b194*x96 + b206*x102 + b218*x108 + b230*x114 + b242*
x120 + 0.5*b254*x126 + b266*x132 + b278*x138 + b290*x144 + 0.5*b302*x150
+ b314*x156 + b326*x162 + 0.5*b338*x168) + x351 =E= 0;
e294.. -(0.5*b183*x90 + b195*x96 + b207*x102 + b219*x108 + b231*x114 + b243*
x120 + 0.5*b255*x126 + b267*x132 + b279*x138 + b291*x144 + 0.5*b303*x150
+ b315*x156 + b327*x162 + 0.5*b339*x168) + x352 =E= 0;
e295.. b175 - b247 =E= 0;
e296.. b176 - b248 =E= 0;
e297.. b177 - b249 =E= 0;
e298.. b178 - b250 =E= 0;
e299.. b179 - b251 =E= 0;
e300.. b180 - b252 =E= 0;
e301.. b181 - b253 =E= 0;
e302.. b182 - b254 =E= 0;
e303.. b183 - b255 =E= 0;
e304.. b184 - b256 =E= 0;
e305.. b185 - b257 =E= 0;
e306.. b186 - b258 =E= 0;
e307.. b295 - b331 =E= 0;
e308.. b296 - b332 =E= 0;
e309.. b297 - b333 =E= 0;
e310.. b298 - b334 =E= 0;
e311.. b299 - b335 =E= 0;
e312.. b300 - b336 =E= 0;
e313.. b301 - b337 =E= 0;
e314.. b302 - b338 =E= 0;
e315.. b303 - b339 =E= 0;
e316.. b304 - b340 =E= 0;
e317.. b305 - b341 =E= 0;
e318.. b306 - b342 =E= 0;
* set non-default levels
x1.l = 0.0892857142857143;
x2.l = 0.0892857142857143;
x3.l = 0.0892857142857143;
x4.l = 0.0892857142857143;
x5.l = 0.0892857142857143;
x6.l = 0.0892857142857143;
x7.l = 0.0892857142857143;
x8.l = 0.0892857142857143;
x9.l = 0.0892857142857143;
x10.l = 0.0892857142857143;
x11.l = 0.0892857142857143;
x12.l = 0.0892857142857143;
x13.l = 0.0892857142857143;
x14.l = 0.0892857142857143;
x15.l = 0.0892857142857143;
x16.l = 0.0892857142857143;
x17.l = 0.0892857142857143;
x18.l = 0.0892857142857143;
x19.l = 0.0892857142857143;
x20.l = 0.0892857142857143;
x21.l = 0.0892857142857143;
x22.l = 0.0892857142857143;
x23.l = 0.0892857142857143;
x24.l = 0.0892857142857143;
x25.l = 0.0892857142857143;
x26.l = 0.0892857142857143;
x27.l = 0.0892857142857143;
x28.l = 0.0892857142857143;
x29.l = 0.0892857142857143;
x30.l = 0.0892857142857143;
x31.l = 0.0892857142857143;
x32.l = 0.0892857142857143;
x33.l = 0.0892857142857143;
x34.l = 0.0892857142857143;
x35.l = 0.0892857142857143;
x36.l = 0.0892857142857143;
x37.l = 0.0892857142857143;
x38.l = 0.0892857142857143;
x39.l = 0.0892857142857143;
x40.l = 0.0892857142857143;
x41.l = 0.0892857142857143;
x42.l = 0.0892857142857143;
x43.l = 0.0892857142857143;
x44.l = 0.0892857142857143;
x45.l = 0.0892857142857143;
x46.l = 0.0892857142857143;
x47.l = 0.0892857142857143;
x48.l = 0.0892857142857143;
x49.l = 0.0892857142857143;
x50.l = 0.0892857142857143;
x51.l = 0.0892857142857143;
x52.l = 0.0892857142857143;
x53.l = 0.0892857142857143;
x54.l = 0.0892857142857143;
x55.l = 0.0892857142857143;
x56.l = 0.0892857142857143;
x57.l = 0.0892857142857143;
x58.l = 0.0892857142857143;
x59.l = 0.0892857142857143;
x60.l = 0.0892857142857143;
x61.l = 0.0892857142857143;
x62.l = 0.0892857142857143;
x63.l = 0.0892857142857143;
x64.l = 0.0892857142857143;
x65.l = 0.0892857142857143;
x66.l = 0.0892857142857143;
x67.l = 0.0892857142857143;
x68.l = 0.0892857142857143;
x69.l = 0.0892857142857143;
x70.l = 0.0892857142857143;
x71.l = 0.0892857142857143;
x72.l = 0.0892857142857143;
x73.l = 0.0892857142857143;
x74.l = 0.0892857142857143;
x75.l = 0.0892857142857143;
x76.l = 0.0892857142857143;
x77.l = 0.0892857142857143;
x78.l = 0.0892857142857143;
x79.l = 0.0892857142857143;
x80.l = 0.0892857142857143;
x81.l = 0.0892857142857143;
x82.l = 0.0892857142857143;
x83.l = 0.0892857142857143;
x84.l = 0.0892857142857143;
x85.l = 1.25;
x86.l = 1.25;
x87.l = 1.25;
x88.l = 1.25;
x89.l = 1.25;
x90.l = 1.25;
x91.l = 1.25;
x92.l = 1.25;
x93.l = 1.25;
x94.l = 1.25;
x95.l = 1.25;
x96.l = 1.25;
x97.l = 1.25;
x98.l = 1.25;
x99.l = 1.25;
x100.l = 1.25;
x101.l = 1.25;
x102.l = 1.25;
x103.l = 1.25;
x104.l = 1.25;
x105.l = 1.25;
x106.l = 1.25;
x107.l = 1.25;
x108.l = 1.25;
x109.l = 1.25;
x110.l = 1.25;
x111.l = 1.25;
x112.l = 1.25;
x113.l = 1.25;
x114.l = 1.25;
x115.l = 1.25;
x116.l = 1.25;
x117.l = 1.25;
x118.l = 1.25;
x119.l = 1.25;
x120.l = 1.25;
x121.l = 1.25;
x122.l = 1.25;
x123.l = 1.25;
x124.l = 1.25;
x125.l = 1.25;
x126.l = 1.25;
x127.l = 1.25;
x128.l = 1.25;
x129.l = 1.25;
x130.l = 1.25;
x131.l = 1.25;
x132.l = 1.25;
x133.l = 1.25;
x134.l = 1.25;
x135.l = 1.25;
x136.l = 1.25;
x137.l = 1.25;
x138.l = 1.25;
x139.l = 1.25;
x140.l = 1.25;
x141.l = 1.25;
x142.l = 1.25;
x143.l = 1.25;
x144.l = 1.25;
x145.l = 1.25;
x146.l = 1.25;
x147.l = 1.25;
x148.l = 1.25;
x149.l = 1.25;
x150.l = 1.25;
x151.l = 1.25;
x152.l = 1.25;
x153.l = 1.25;
x154.l = 1.25;
x155.l = 1.25;
x156.l = 1.25;
x157.l = 1.25;
x158.l = 1.25;
x159.l = 1.25;
x160.l = 1.25;
x161.l = 1.25;
x162.l = 1.25;
x163.l = 1.25;
x164.l = 1.25;
x165.l = 1.25;
x166.l = 1.25;
x167.l = 1.25;
x168.l = 1.25;
x169.l = 0.956145;
x170.l = 0.956145;
x171.l = 0.956145;
x172.l = 0.956145;
x173.l = 0.956145;
x174.l = 0.956145;
b175.l = 0.0714285714285714;
b176.l = 0.0714285714285714;
b177.l = 0.0714285714285714;
b178.l = 0.0714285714285714;
b179.l = 0.0714285714285714;
b180.l = 0.0714285714285714;
b181.l = 0.0714285714285714;
b182.l = 0.0714285714285714;
b183.l = 0.0714285714285714;
b184.l = 0.0714285714285714;
b185.l = 0.0714285714285714;
b186.l = 0.0714285714285714;
b187.l = 0.0714285714285714;
b188.l = 0.0714285714285714;
b189.l = 0.0714285714285714;
b190.l = 0.0714285714285714;
b191.l = 0.0714285714285714;
b192.l = 0.0714285714285714;
b193.l = 0.0714285714285714;
b194.l = 0.0714285714285714;
b195.l = 0.0714285714285714;
b196.l = 0.0714285714285714;
b197.l = 0.0714285714285714;
b198.l = 0.0714285714285714;
b199.l = 0.0714285714285714;
b200.l = 0.0714285714285714;
b201.l = 0.0714285714285714;
b202.l = 0.0714285714285714;
b203.l = 0.0714285714285714;
b204.l = 0.0714285714285714;
b205.l = 0.0714285714285714;
b206.l = 0.0714285714285714;
b207.l = 0.0714285714285714;
b208.l = 0.0714285714285714;
b209.l = 0.0714285714285714;
b210.l = 0.0714285714285714;
b211.l = 0.0714285714285714;
b212.l = 0.0714285714285714;
b213.l = 0.0714285714285714;
b214.l = 0.0714285714285714;
b215.l = 0.0714285714285714;
b216.l = 0.0714285714285714;
b217.l = 0.0714285714285714;
b218.l = 0.0714285714285714;
b219.l = 0.0714285714285714;
b220.l = 0.0714285714285714;
b221.l = 0.0714285714285714;
b222.l = 0.0714285714285714;
b223.l = 0.0714285714285714;
b224.l = 0.0714285714285714;
b225.l = 0.0714285714285714;
b226.l = 0.0714285714285714;
b227.l = 0.0714285714285714;
b228.l = 0.0714285714285714;
b229.l = 0.0714285714285714;
b230.l = 0.0714285714285714;
b231.l = 0.0714285714285714;
b232.l = 0.0714285714285714;
b233.l = 0.0714285714285714;
b234.l = 0.0714285714285714;
b235.l = 0.0714285714285714;
b236.l = 0.0714285714285714;
b237.l = 0.0714285714285714;
b238.l = 0.0714285714285714;
b239.l = 0.0714285714285714;
b240.l = 0.0714285714285714;
b241.l = 0.0714285714285714;
b242.l = 0.0714285714285714;
b243.l = 0.0714285714285714;
b244.l = 0.0714285714285714;
b245.l = 0.0714285714285714;
b246.l = 0.0714285714285714;
b247.l = 0.0714285714285714;
b248.l = 0.0714285714285714;
b249.l = 0.0714285714285714;
b250.l = 0.0714285714285714;
b251.l = 0.0714285714285714;
b252.l = 0.0714285714285714;
b253.l = 0.0714285714285714;
b254.l = 0.0714285714285714;
b255.l = 0.0714285714285714;
b256.l = 0.0714285714285714;
b257.l = 0.0714285714285714;
b258.l = 0.0714285714285714;
b259.l = 0.0714285714285714;
b260.l = 0.0714285714285714;
b261.l = 0.0714285714285714;
b262.l = 0.0714285714285714;
b263.l = 0.0714285714285714;
b264.l = 0.0714285714285714;
b265.l = 0.0714285714285714;
b266.l = 0.0714285714285714;
b267.l = 0.0714285714285714;
b268.l = 0.0714285714285714;
b269.l = 0.0714285714285714;
b270.l = 0.0714285714285714;
b271.l = 0.0714285714285714;
b272.l = 0.0714285714285714;
b273.l = 0.0714285714285714;
b274.l = 0.0714285714285714;
b275.l = 0.0714285714285714;
b276.l = 0.0714285714285714;
b277.l = 0.0714285714285714;
b278.l = 0.0714285714285714;
b279.l = 0.0714285714285714;
b280.l = 0.0714285714285714;
b281.l = 0.0714285714285714;
b282.l = 0.0714285714285714;
b283.l = 0.0714285714285714;
b284.l = 0.0714285714285714;
b285.l = 0.0714285714285714;
b286.l = 0.0714285714285714;
b287.l = 0.0714285714285714;
b288.l = 0.0714285714285714;
b289.l = 0.0714285714285714;
b290.l = 0.0714285714285714;
b291.l = 0.0714285714285714;
b292.l = 0.0714285714285714;
b293.l = 0.0714285714285714;
b294.l = 0.0714285714285714;
b295.l = 0.0714285714285714;
b296.l = 0.0714285714285714;
b297.l = 0.0714285714285714;
b298.l = 0.0714285714285714;
b299.l = 0.0714285714285714;
b300.l = 0.0714285714285714;
b301.l = 0.0714285714285714;
b302.l = 0.0714285714285714;
b303.l = 0.0714285714285714;
b304.l = 0.0714285714285714;
b305.l = 0.0714285714285714;
b306.l = 0.0714285714285714;
b307.l = 0.0714285714285714;
b308.l = 0.0714285714285714;
b309.l = 0.0714285714285714;
b310.l = 0.0714285714285714;
b311.l = 0.0714285714285714;
b312.l = 0.0714285714285714;
b313.l = 0.0714285714285714;
b314.l = 0.0714285714285714;
b315.l = 0.0714285714285714;
b316.l = 0.0714285714285714;
b317.l = 0.0714285714285714;
b318.l = 0.0714285714285714;
b319.l = 0.0714285714285714;
b320.l = 0.0714285714285714;
b321.l = 0.0714285714285714;
b322.l = 0.0714285714285714;
b323.l = 0.0714285714285714;
b324.l = 0.0714285714285714;
b325.l = 0.0714285714285714;
b326.l = 0.0714285714285714;
b327.l = 0.0714285714285714;
b328.l = 0.0714285714285714;
b329.l = 0.0714285714285714;
b330.l = 0.0714285714285714;
b331.l = 0.0714285714285714;
b332.l = 0.0714285714285714;
b333.l = 0.0714285714285714;
b334.l = 0.0714285714285714;
b335.l = 0.0714285714285714;
b336.l = 0.0714285714285714;
b337.l = 0.0714285714285714;
b338.l = 0.0714285714285714;
b339.l = 0.0714285714285714;
b340.l = 0.0714285714285714;
b341.l = 0.0714285714285714;
b342.l = 0.0714285714285714;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
