Instance p_ball_10b_5p_4d_h
Select 5-points in 4-dimensional balls, such that the l1-distance between all points is minimized. Only one point can be assigned to each ball, and in total there are 10 balls with radius one. This is a convex-hull formulation.
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 27.38681273 (ALPHAECP) 71.37194791 (ANTIGONE) 71.37190432 (BARON) 71.37194794 (BONMIN) 71.37191576 (COUENNE) 71.37194797 (LINDO) 71.37194373 (SCIP) 0.00000000 (SHOT) |
| Referencesⓘ | Kronqvist, Jan and Misener, Ruth, A disjunctive cut strengthening technique for convex MINLP, Tech. Rep., 2020. |
| Sourceⓘ | p_ball_10b_5p_4d_H.gms with the epsilon in the perspective formulation changed to 1e-4, contributed by Jan Kronqvist and Ruth Misener |
| Applicationⓘ | Geometry |
| Added to libraryⓘ | 26 Aug 2020 |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 310 |
| #Binary Variablesⓘ | 50 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 250 |
| #Nonlinear Binary Variablesⓘ | 50 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 40 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 369 |
| #Linear Constraintsⓘ | 319 |
| #Quadratic Constraintsⓘ | 0 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 50 |
| Operands in Gen. Nonlin. Functionsⓘ | div mul sqr |
| Constraints curvatureⓘ | convex |
| #Nonzeros in Jacobianⓘ | 1218 |
| #Nonlinear Nonzeros in Jacobianⓘ | 250 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 650 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 250 |
| #Blocks in Hessian of Lagrangianⓘ | 50 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 5 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 5 |
| Average blocksize in Hessian of Lagrangianⓘ | 5.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-04 |
| Maximal coefficientⓘ | 1.0000e+01 |
| Infeasibility of initial pointⓘ | 1 |

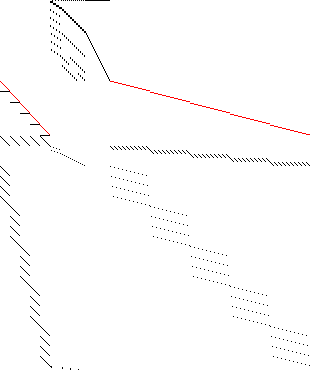

| Sparsity Jacobianⓘ |  |

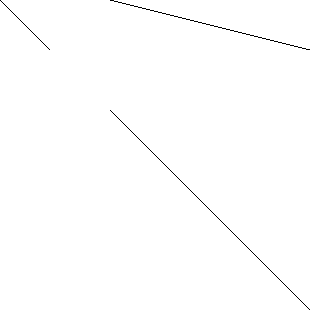

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 370 26 0 344 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 311 261 50 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1259 1009 250 0
*
* Solve m using MINLP minimizing objvar;
Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17,b18,b19
,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34,b35,b36
,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,b49,b50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,objvar;
Positive Variables x51,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64
,x65,x66,x67,x68,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81
,x82,x83,x84,x85,x86,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98
,x99,x100,x101,x102,x103,x104,x105,x106,x107,x108,x109,x110,x111
,x112,x113,x114,x115,x116,x117,x118,x119,x120,x121,x122,x123,x124
,x125,x126,x127,x128,x129,x130,x131,x132,x133,x134,x135,x136,x137
,x138,x139,x140,x141,x142,x143,x144,x145,x146,x147,x148,x149,x150
,x151,x152,x153,x154,x155,x156,x157,x158,x159,x160,x161,x162,x163
,x164,x165,x166,x167,x168,x169,x170,x171,x172,x173,x174,x175,x176
,x177,x178,x179,x180,x181,x182,x183,x184,x185,x186,x187,x188,x189
,x190,x191,x192,x193,x194,x195,x196,x197,x198,x199,x200,x201,x202
,x203,x204,x205,x206,x207,x208,x209,x210,x211,x212,x213,x214,x215
,x216,x217,x218,x219,x220,x221,x222,x223,x224,x225,x226,x227,x228
,x229,x230,x231,x232,x233,x234,x235,x236,x237,x238,x239,x240,x241
,x242,x243,x244,x245,x246,x247,x248,x249,x250,x251,x252,x253,x254
,x255,x256,x257,x258,x259,x260,x261,x262,x263,x264,x265,x266,x267
,x268,x269,x270,x271,x272,x273,x274,x275,x276,x277,x278,x279,x280
,x281,x282,x283,x284,x285,x286,x287,x288,x289,x290,x291,x292,x293
,x294,x295,x296,x297,x298,x299,x300,x301,x302,x303,x304,x305,x306
,x307,x308,x309,x310;
Binary Variables b1,b2,b3,b4,b5,b6,b7,b8,b9,b10,b11,b12,b13,b14,b15,b16,b17
,b18,b19,b20,b21,b22,b23,b24,b25,b26,b27,b28,b29,b30,b31,b32,b33,b34
,b35,b36,b37,b38,b39,b40,b41,b42,b43,b44,b45,b46,b47,b48,b49,b50;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370;
e1.. x51 - x52 - x53 =L= 0;
e2.. - x51 + x52 - x53 =L= 0;
e3.. x54 - x55 - x56 =L= 0;
e4.. - x54 + x55 - x56 =L= 0;
e5.. x57 - x58 - x59 =L= 0;
e6.. - x57 + x58 - x59 =L= 0;
e7.. x60 - x61 - x62 =L= 0;
e8.. - x60 + x61 - x62 =L= 0;
e9.. x51 - x63 - x64 =L= 0;
e10.. - x51 + x63 - x64 =L= 0;
e11.. x54 - x65 - x66 =L= 0;
e12.. - x54 + x65 - x66 =L= 0;
e13.. x57 - x67 - x68 =L= 0;
e14.. - x57 + x67 - x68 =L= 0;
e15.. x60 - x69 - x70 =L= 0;
e16.. - x60 + x69 - x70 =L= 0;
e17.. x51 - x71 - x72 =L= 0;
e18.. - x51 + x71 - x72 =L= 0;
e19.. x54 - x73 - x74 =L= 0;
e20.. - x54 + x73 - x74 =L= 0;
e21.. x57 - x75 - x76 =L= 0;
e22.. - x57 + x75 - x76 =L= 0;
e23.. x60 - x77 - x78 =L= 0;
e24.. - x60 + x77 - x78 =L= 0;
e25.. x51 - x79 - x80 =L= 0;
e26.. - x51 + x79 - x80 =L= 0;
e27.. x54 - x81 - x82 =L= 0;
e28.. - x54 + x81 - x82 =L= 0;
e29.. x57 - x83 - x84 =L= 0;
e30.. - x57 + x83 - x84 =L= 0;
e31.. x60 - x85 - x86 =L= 0;
e32.. - x60 + x85 - x86 =L= 0;
e33.. x52 - x63 - x87 =L= 0;
e34.. - x52 + x63 - x87 =L= 0;
e35.. x55 - x65 - x88 =L= 0;
e36.. - x55 + x65 - x88 =L= 0;
e37.. x58 - x67 - x89 =L= 0;
e38.. - x58 + x67 - x89 =L= 0;
e39.. x61 - x69 - x90 =L= 0;
e40.. - x61 + x69 - x90 =L= 0;
e41.. x52 - x71 - x91 =L= 0;
e42.. - x52 + x71 - x91 =L= 0;
e43.. x55 - x73 - x92 =L= 0;
e44.. - x55 + x73 - x92 =L= 0;
e45.. x58 - x75 - x93 =L= 0;
e46.. - x58 + x75 - x93 =L= 0;
e47.. x61 - x77 - x94 =L= 0;
e48.. - x61 + x77 - x94 =L= 0;
e49.. x52 - x79 - x95 =L= 0;
e50.. - x52 + x79 - x95 =L= 0;
e51.. x55 - x81 - x96 =L= 0;
e52.. - x55 + x81 - x96 =L= 0;
e53.. x58 - x83 - x97 =L= 0;
e54.. - x58 + x83 - x97 =L= 0;
e55.. x61 - x85 - x98 =L= 0;
e56.. - x61 + x85 - x98 =L= 0;
e57.. x63 - x71 - x99 =L= 0;
e58.. - x63 + x71 - x99 =L= 0;
e59.. x65 - x73 - x100 =L= 0;
e60.. - x65 + x73 - x100 =L= 0;
e61.. x67 - x75 - x101 =L= 0;
e62.. - x67 + x75 - x101 =L= 0;
e63.. x69 - x77 - x102 =L= 0;
e64.. - x69 + x77 - x102 =L= 0;
e65.. x63 - x79 - x103 =L= 0;
e66.. - x63 + x79 - x103 =L= 0;
e67.. x65 - x81 - x104 =L= 0;
e68.. - x65 + x81 - x104 =L= 0;
e69.. x67 - x83 - x105 =L= 0;
e70.. - x67 + x83 - x105 =L= 0;
e71.. x69 - x85 - x106 =L= 0;
e72.. - x69 + x85 - x106 =L= 0;
e73.. x71 - x79 - x107 =L= 0;
e74.. - x71 + x79 - x107 =L= 0;
e75.. x73 - x81 - x108 =L= 0;
e76.. - x73 + x81 - x108 =L= 0;
e77.. x75 - x83 - x109 =L= 0;
e78.. - x75 + x83 - x109 =L= 0;
e79.. x77 - x85 - x110 =L= 0;
e80.. - x77 + x85 - x110 =L= 0;
e81.. (-1 + sqr(0.305036966445776 - x111/(0.0001 + 0.9999*b1)) + sqr(
0.634555091335016 - x112/(0.0001 + 0.9999*b1)) + sqr(6.814471824267 -
x113/(0.0001 + 0.9999*b1)) + sqr(9.81321087468808 - x114/(0.0001 + 0.9999
*b1)))*(0.0001 + 0.9999*b1) + 0.0142231841629663*b1
=L= 0.0142231841629663;
e82.. (-1 + sqr(9.87450535964623 - x115/(0.0001 + 0.9999*b2)) + sqr(
8.74510685597449 - x116/(0.0001 + 0.9999*b2)) + sqr(6.66545658580281 -
x117/(0.0001 + 0.9999*b2)) + sqr(2.5700184949339 - x118/(0.0001 + 0.9999*
b2)))*(0.0001 + 0.9999*b2) + 0.0224016056581619*b2 =L= 0.0224016056581619
;
e83.. (-1 + sqr(2.82885264202444 - x119/(0.0001 + 0.9999*b3)) + sqr(
8.4688333544494 - x120/(0.0001 + 0.9999*b3)) + sqr(5.84225640580202 -
x121/(0.0001 + 0.9999*b3)) + sqr(1.07461001324769 - x122/(0.0001 + 0.9999
*b3)))*(0.0001 + 0.9999*b3) + 0.011401029224743*b3 =L= 0.011401029224743;
e84.. (-1 + sqr(0.650176203261921 - x123/(0.0001 + 0.9999*b4)) + sqr(
3.12451267411524 - x124/(0.0001 + 0.9999*b4)) + sqr(7.75486658597646 -
x125/(0.0001 + 0.9999*b4)) + sqr(3.46468314918323 - x126/(0.0001 + 0.9999
*b4)))*(0.0001 + 0.9999*b4) + 0.00813272936365233*b4
=L= 0.00813272936365233;
e85.. (-1 + sqr(2.16828333327622 - x127/(0.0001 + 0.9999*b5)) + sqr(
4.30483407264652 - x128/(0.0001 + 0.9999*b5)) + sqr(6.42640527388037 -
x129/(0.0001 + 0.9999*b5)) + sqr(4.13540922307827 - x130/(0.0001 + 0.9999
*b5)))*(0.0001 + 0.9999*b5) + 0.00806333431928601*b5
=L= 0.00806333431928601;
e86.. (-1 + sqr(6.57828234352298 - x131/(0.0001 + 0.9999*b6)) + sqr(
9.35099743244299 - x132/(0.0001 + 0.9999*b6)) + sqr(8.54696402332509 -
x133/(0.0001 + 0.9999*b6)) + sqr(5.04321305427267 - x134/(0.0001 + 0.9999
*b6)))*(0.0001 + 0.9999*b6) + 0.0228199543499461*b6
=L= 0.0228199543499461;
e87.. (-1 + sqr(0.121730249080358 - x135/(0.0001 + 0.9999*b7)) + sqr(
5.5819132952254 - x136/(0.0001 + 0.9999*b7)) + sqr(1.11962957591948 -
x137/(0.0001 + 0.9999*b7)) + sqr(8.91043826758874 - x138/(0.0001 + 0.9999
*b7)))*(0.0001 + 0.9999*b7) + 0.0110822054796739*b7
=L= 0.0110822054796739;
e88.. (-1 + sqr(8.98297692267813 - x139/(0.0001 + 0.9999*b8)) + sqr(
1.57278944121016 - x140/(0.0001 + 0.9999*b8)) + sqr(0.373424527008207 -
x141/(0.0001 + 0.9999*b8)) + sqr(5.31728541389757 - x142/(0.0001 + 0.9999
*b8)))*(0.0001 + 0.9999*b8) + 0.0110580511069969*b8
=L= 0.0110580511069969;
e89.. (-1 + sqr(3.80876590973847 - x143/(0.0001 + 0.9999*b9)) + sqr(
4.52554072865087 - x144/(0.0001 + 0.9999*b9)) + sqr(2.95832977799596 -
x145/(0.0001 + 0.9999*b9)) + sqr(2.45196796627015 - x146/(0.0001 + 0.9999
*b9)))*(0.0001 + 0.9999*b9) + 0.00487510786248563*b9
=L= 0.00487510786248563;
e90.. (-1 + sqr(1.8357554909519 - x147/(0.0001 + 0.9999*b10)) + sqr(
7.66347281114004 - x148/(0.0001 + 0.9999*b10)) + sqr(6.23276665994841 -
x149/(0.0001 + 0.9999*b10)) + sqr(9.07661262817776 - x150/(0.0001 +
0.9999*b10)))*(0.0001 + 0.9999*b10) + 0.0182331090789003*b10
=L= 0.0182331090789003;
e91.. b1 + b2 + b3 + b4 + b5 + b6 + b7 + b8 + b9 + b10 =E= 1;
e92.. (-1 + sqr(0.305036966445776 - x151/(0.0001 + 0.9999*b11)) + sqr(
0.634555091335016 - x152/(0.0001 + 0.9999*b11)) + sqr(6.814471824267 -
x153/(0.0001 + 0.9999*b11)) + sqr(9.81321087468808 - x154/(0.0001 +
0.9999*b11)))*(0.0001 + 0.9999*b11) + 0.0142231841629663*b11
=L= 0.0142231841629663;
e93.. (-1 + sqr(9.87450535964623 - x155/(0.0001 + 0.9999*b12)) + sqr(
8.74510685597449 - x156/(0.0001 + 0.9999*b12)) + sqr(6.66545658580281 -
x157/(0.0001 + 0.9999*b12)) + sqr(2.5700184949339 - x158/(0.0001 + 0.9999
*b12)))*(0.0001 + 0.9999*b12) + 0.0224016056581619*b12
=L= 0.0224016056581619;
e94.. (-1 + sqr(2.82885264202444 - x159/(0.0001 + 0.9999*b13)) + sqr(
8.4688333544494 - x160/(0.0001 + 0.9999*b13)) + sqr(5.84225640580202 -
x161/(0.0001 + 0.9999*b13)) + sqr(1.07461001324769 - x162/(0.0001 +
0.9999*b13)))*(0.0001 + 0.9999*b13) + 0.011401029224743*b13
=L= 0.011401029224743;
e95.. (-1 + sqr(0.650176203261921 - x163/(0.0001 + 0.9999*b14)) + sqr(
3.12451267411524 - x164/(0.0001 + 0.9999*b14)) + sqr(7.75486658597646 -
x165/(0.0001 + 0.9999*b14)) + sqr(3.46468314918323 - x166/(0.0001 +
0.9999*b14)))*(0.0001 + 0.9999*b14) + 0.00813272936365233*b14
=L= 0.00813272936365233;
e96.. (-1 + sqr(2.16828333327622 - x167/(0.0001 + 0.9999*b15)) + sqr(
4.30483407264652 - x168/(0.0001 + 0.9999*b15)) + sqr(6.42640527388037 -
x169/(0.0001 + 0.9999*b15)) + sqr(4.13540922307827 - x170/(0.0001 +
0.9999*b15)))*(0.0001 + 0.9999*b15) + 0.00806333431928601*b15
=L= 0.00806333431928601;
e97.. (-1 + sqr(6.57828234352298 - x171/(0.0001 + 0.9999*b16)) + sqr(
9.35099743244299 - x172/(0.0001 + 0.9999*b16)) + sqr(8.54696402332509 -
x173/(0.0001 + 0.9999*b16)) + sqr(5.04321305427267 - x174/(0.0001 +
0.9999*b16)))*(0.0001 + 0.9999*b16) + 0.0228199543499461*b16
=L= 0.0228199543499461;
e98.. (-1 + sqr(0.121730249080358 - x175/(0.0001 + 0.9999*b17)) + sqr(
5.5819132952254 - x176/(0.0001 + 0.9999*b17)) + sqr(1.11962957591948 -
x177/(0.0001 + 0.9999*b17)) + sqr(8.91043826758874 - x178/(0.0001 +
0.9999*b17)))*(0.0001 + 0.9999*b17) + 0.0110822054796739*b17
=L= 0.0110822054796739;
e99.. (-1 + sqr(8.98297692267813 - x179/(0.0001 + 0.9999*b18)) + sqr(
1.57278944121016 - x180/(0.0001 + 0.9999*b18)) + sqr(0.373424527008207 -
x181/(0.0001 + 0.9999*b18)) + sqr(5.31728541389757 - x182/(0.0001 +
0.9999*b18)))*(0.0001 + 0.9999*b18) + 0.0110580511069969*b18
=L= 0.0110580511069969;
e100.. (-1 + sqr(3.80876590973847 - x183/(0.0001 + 0.9999*b19)) + sqr(
4.52554072865087 - x184/(0.0001 + 0.9999*b19)) + sqr(2.95832977799596 -
x185/(0.0001 + 0.9999*b19)) + sqr(2.45196796627015 - x186/(0.0001 +
0.9999*b19)))*(0.0001 + 0.9999*b19) + 0.00487510786248563*b19
=L= 0.00487510786248563;
e101.. (-1 + sqr(1.8357554909519 - x187/(0.0001 + 0.9999*b20)) + sqr(
7.66347281114004 - x188/(0.0001 + 0.9999*b20)) + sqr(6.23276665994841 -
x189/(0.0001 + 0.9999*b20)) + sqr(9.07661262817776 - x190/(0.0001 +
0.9999*b20)))*(0.0001 + 0.9999*b20) + 0.0182331090789003*b20
=L= 0.0182331090789003;
e102.. b11 + b12 + b13 + b14 + b15 + b16 + b17 + b18 + b19 + b20 =E= 1;
e103.. (-1 + sqr(0.305036966445776 - x191/(0.0001 + 0.9999*b21)) + sqr(
0.634555091335016 - x192/(0.0001 + 0.9999*b21)) + sqr(6.814471824267 -
x193/(0.0001 + 0.9999*b21)) + sqr(9.81321087468808 - x194/(0.0001 +
0.9999*b21)))*(0.0001 + 0.9999*b21) + 0.0142231841629663*b21
=L= 0.0142231841629663;
e104.. (-1 + sqr(9.87450535964623 - x195/(0.0001 + 0.9999*b22)) + sqr(
8.74510685597449 - x196/(0.0001 + 0.9999*b22)) + sqr(6.66545658580281 -
x197/(0.0001 + 0.9999*b22)) + sqr(2.5700184949339 - x198/(0.0001 +
0.9999*b22)))*(0.0001 + 0.9999*b22) + 0.0224016056581619*b22
=L= 0.0224016056581619;
e105.. (-1 + sqr(2.82885264202444 - x199/(0.0001 + 0.9999*b23)) + sqr(
8.4688333544494 - x200/(0.0001 + 0.9999*b23)) + sqr(5.84225640580202 -
x201/(0.0001 + 0.9999*b23)) + sqr(1.07461001324769 - x202/(0.0001 +
0.9999*b23)))*(0.0001 + 0.9999*b23) + 0.011401029224743*b23
=L= 0.011401029224743;
e106.. (-1 + sqr(0.650176203261921 - x203/(0.0001 + 0.9999*b24)) + sqr(
3.12451267411524 - x204/(0.0001 + 0.9999*b24)) + sqr(7.75486658597646 -
x205/(0.0001 + 0.9999*b24)) + sqr(3.46468314918323 - x206/(0.0001 +
0.9999*b24)))*(0.0001 + 0.9999*b24) + 0.00813272936365233*b24
=L= 0.00813272936365233;
e107.. (-1 + sqr(2.16828333327622 - x207/(0.0001 + 0.9999*b25)) + sqr(
4.30483407264652 - x208/(0.0001 + 0.9999*b25)) + sqr(6.42640527388037 -
x209/(0.0001 + 0.9999*b25)) + sqr(4.13540922307827 - x210/(0.0001 +
0.9999*b25)))*(0.0001 + 0.9999*b25) + 0.00806333431928601*b25
=L= 0.00806333431928601;
e108.. (-1 + sqr(6.57828234352298 - x211/(0.0001 + 0.9999*b26)) + sqr(
9.35099743244299 - x212/(0.0001 + 0.9999*b26)) + sqr(8.54696402332509 -
x213/(0.0001 + 0.9999*b26)) + sqr(5.04321305427267 - x214/(0.0001 +
0.9999*b26)))*(0.0001 + 0.9999*b26) + 0.0228199543499461*b26
=L= 0.0228199543499461;
e109.. (-1 + sqr(0.121730249080358 - x215/(0.0001 + 0.9999*b27)) + sqr(
5.5819132952254 - x216/(0.0001 + 0.9999*b27)) + sqr(1.11962957591948 -
x217/(0.0001 + 0.9999*b27)) + sqr(8.91043826758874 - x218/(0.0001 +
0.9999*b27)))*(0.0001 + 0.9999*b27) + 0.0110822054796739*b27
=L= 0.0110822054796739;
e110.. (-1 + sqr(8.98297692267813 - x219/(0.0001 + 0.9999*b28)) + sqr(
1.57278944121016 - x220/(0.0001 + 0.9999*b28)) + sqr(0.373424527008207
- x221/(0.0001 + 0.9999*b28)) + sqr(5.31728541389757 - x222/(0.0001 +
0.9999*b28)))*(0.0001 + 0.9999*b28) + 0.0110580511069969*b28
=L= 0.0110580511069969;
e111.. (-1 + sqr(3.80876590973847 - x223/(0.0001 + 0.9999*b29)) + sqr(
4.52554072865087 - x224/(0.0001 + 0.9999*b29)) + sqr(2.95832977799596 -
x225/(0.0001 + 0.9999*b29)) + sqr(2.45196796627015 - x226/(0.0001 +
0.9999*b29)))*(0.0001 + 0.9999*b29) + 0.00487510786248563*b29
=L= 0.00487510786248563;
e112.. (-1 + sqr(1.8357554909519 - x227/(0.0001 + 0.9999*b30)) + sqr(
7.66347281114004 - x228/(0.0001 + 0.9999*b30)) + sqr(6.23276665994841 -
x229/(0.0001 + 0.9999*b30)) + sqr(9.07661262817776 - x230/(0.0001 +
0.9999*b30)))*(0.0001 + 0.9999*b30) + 0.0182331090789003*b30
=L= 0.0182331090789003;
e113.. b21 + b22 + b23 + b24 + b25 + b26 + b27 + b28 + b29 + b30 =E= 1;
e114.. (-1 + sqr(0.305036966445776 - x231/(0.0001 + 0.9999*b31)) + sqr(
0.634555091335016 - x232/(0.0001 + 0.9999*b31)) + sqr(6.814471824267 -
x233/(0.0001 + 0.9999*b31)) + sqr(9.81321087468808 - x234/(0.0001 +
0.9999*b31)))*(0.0001 + 0.9999*b31) + 0.0142231841629663*b31
=L= 0.0142231841629663;
e115.. (-1 + sqr(9.87450535964623 - x235/(0.0001 + 0.9999*b32)) + sqr(
8.74510685597449 - x236/(0.0001 + 0.9999*b32)) + sqr(6.66545658580281 -
x237/(0.0001 + 0.9999*b32)) + sqr(2.5700184949339 - x238/(0.0001 +
0.9999*b32)))*(0.0001 + 0.9999*b32) + 0.0224016056581619*b32
=L= 0.0224016056581619;
e116.. (-1 + sqr(2.82885264202444 - x239/(0.0001 + 0.9999*b33)) + sqr(
8.4688333544494 - x240/(0.0001 + 0.9999*b33)) + sqr(5.84225640580202 -
x241/(0.0001 + 0.9999*b33)) + sqr(1.07461001324769 - x242/(0.0001 +
0.9999*b33)))*(0.0001 + 0.9999*b33) + 0.011401029224743*b33
=L= 0.011401029224743;
e117.. (-1 + sqr(0.650176203261921 - x243/(0.0001 + 0.9999*b34)) + sqr(
3.12451267411524 - x244/(0.0001 + 0.9999*b34)) + sqr(7.75486658597646 -
x245/(0.0001 + 0.9999*b34)) + sqr(3.46468314918323 - x246/(0.0001 +
0.9999*b34)))*(0.0001 + 0.9999*b34) + 0.00813272936365233*b34
=L= 0.00813272936365233;
e118.. (-1 + sqr(2.16828333327622 - x247/(0.0001 + 0.9999*b35)) + sqr(
4.30483407264652 - x248/(0.0001 + 0.9999*b35)) + sqr(6.42640527388037 -
x249/(0.0001 + 0.9999*b35)) + sqr(4.13540922307827 - x250/(0.0001 +
0.9999*b35)))*(0.0001 + 0.9999*b35) + 0.00806333431928601*b35
=L= 0.00806333431928601;
e119.. (-1 + sqr(6.57828234352298 - x251/(0.0001 + 0.9999*b36)) + sqr(
9.35099743244299 - x252/(0.0001 + 0.9999*b36)) + sqr(8.54696402332509 -
x253/(0.0001 + 0.9999*b36)) + sqr(5.04321305427267 - x254/(0.0001 +
0.9999*b36)))*(0.0001 + 0.9999*b36) + 0.0228199543499461*b36
=L= 0.0228199543499461;
e120.. (-1 + sqr(0.121730249080358 - x255/(0.0001 + 0.9999*b37)) + sqr(
5.5819132952254 - x256/(0.0001 + 0.9999*b37)) + sqr(1.11962957591948 -
x257/(0.0001 + 0.9999*b37)) + sqr(8.91043826758874 - x258/(0.0001 +
0.9999*b37)))*(0.0001 + 0.9999*b37) + 0.0110822054796739*b37
=L= 0.0110822054796739;
e121.. (-1 + sqr(8.98297692267813 - x259/(0.0001 + 0.9999*b38)) + sqr(
1.57278944121016 - x260/(0.0001 + 0.9999*b38)) + sqr(0.373424527008207
- x261/(0.0001 + 0.9999*b38)) + sqr(5.31728541389757 - x262/(0.0001 +
0.9999*b38)))*(0.0001 + 0.9999*b38) + 0.0110580511069969*b38
=L= 0.0110580511069969;
e122.. (-1 + sqr(3.80876590973847 - x263/(0.0001 + 0.9999*b39)) + sqr(
4.52554072865087 - x264/(0.0001 + 0.9999*b39)) + sqr(2.95832977799596 -
x265/(0.0001 + 0.9999*b39)) + sqr(2.45196796627015 - x266/(0.0001 +
0.9999*b39)))*(0.0001 + 0.9999*b39) + 0.00487510786248563*b39
=L= 0.00487510786248563;
e123.. (-1 + sqr(1.8357554909519 - x267/(0.0001 + 0.9999*b40)) + sqr(
7.66347281114004 - x268/(0.0001 + 0.9999*b40)) + sqr(6.23276665994841 -
x269/(0.0001 + 0.9999*b40)) + sqr(9.07661262817776 - x270/(0.0001 +
0.9999*b40)))*(0.0001 + 0.9999*b40) + 0.0182331090789003*b40
=L= 0.0182331090789003;
e124.. b31 + b32 + b33 + b34 + b35 + b36 + b37 + b38 + b39 + b40 =E= 1;
e125.. (-1 + sqr(0.305036966445776 - x271/(0.0001 + 0.9999*b41)) + sqr(
0.634555091335016 - x272/(0.0001 + 0.9999*b41)) + sqr(6.814471824267 -
x273/(0.0001 + 0.9999*b41)) + sqr(9.81321087468808 - x274/(0.0001 +
0.9999*b41)))*(0.0001 + 0.9999*b41) + 0.0142231841629663*b41
=L= 0.0142231841629663;
e126.. (-1 + sqr(9.87450535964623 - x275/(0.0001 + 0.9999*b42)) + sqr(
8.74510685597449 - x276/(0.0001 + 0.9999*b42)) + sqr(6.66545658580281 -
x277/(0.0001 + 0.9999*b42)) + sqr(2.5700184949339 - x278/(0.0001 +
0.9999*b42)))*(0.0001 + 0.9999*b42) + 0.0224016056581619*b42
=L= 0.0224016056581619;
e127.. (-1 + sqr(2.82885264202444 - x279/(0.0001 + 0.9999*b43)) + sqr(
8.4688333544494 - x280/(0.0001 + 0.9999*b43)) + sqr(5.84225640580202 -
x281/(0.0001 + 0.9999*b43)) + sqr(1.07461001324769 - x282/(0.0001 +
0.9999*b43)))*(0.0001 + 0.9999*b43) + 0.011401029224743*b43
=L= 0.011401029224743;
e128.. (-1 + sqr(0.650176203261921 - x283/(0.0001 + 0.9999*b44)) + sqr(
3.12451267411524 - x284/(0.0001 + 0.9999*b44)) + sqr(7.75486658597646 -
x285/(0.0001 + 0.9999*b44)) + sqr(3.46468314918323 - x286/(0.0001 +
0.9999*b44)))*(0.0001 + 0.9999*b44) + 0.00813272936365233*b44
=L= 0.00813272936365233;
e129.. (-1 + sqr(2.16828333327622 - x287/(0.0001 + 0.9999*b45)) + sqr(
4.30483407264652 - x288/(0.0001 + 0.9999*b45)) + sqr(6.42640527388037 -
x289/(0.0001 + 0.9999*b45)) + sqr(4.13540922307827 - x290/(0.0001 +
0.9999*b45)))*(0.0001 + 0.9999*b45) + 0.00806333431928601*b45
=L= 0.00806333431928601;
e130.. (-1 + sqr(6.57828234352298 - x291/(0.0001 + 0.9999*b46)) + sqr(
9.35099743244299 - x292/(0.0001 + 0.9999*b46)) + sqr(8.54696402332509 -
x293/(0.0001 + 0.9999*b46)) + sqr(5.04321305427267 - x294/(0.0001 +
0.9999*b46)))*(0.0001 + 0.9999*b46) + 0.0228199543499461*b46
=L= 0.0228199543499461;
e131.. (-1 + sqr(0.121730249080358 - x295/(0.0001 + 0.9999*b47)) + sqr(
5.5819132952254 - x296/(0.0001 + 0.9999*b47)) + sqr(1.11962957591948 -
x297/(0.0001 + 0.9999*b47)) + sqr(8.91043826758874 - x298/(0.0001 +
0.9999*b47)))*(0.0001 + 0.9999*b47) + 0.0110822054796739*b47
=L= 0.0110822054796739;
e132.. (-1 + sqr(8.98297692267813 - x299/(0.0001 + 0.9999*b48)) + sqr(
1.57278944121016 - x300/(0.0001 + 0.9999*b48)) + sqr(0.373424527008207
- x301/(0.0001 + 0.9999*b48)) + sqr(5.31728541389757 - x302/(0.0001 +
0.9999*b48)))*(0.0001 + 0.9999*b48) + 0.0110580511069969*b48
=L= 0.0110580511069969;
e133.. (-1 + sqr(3.80876590973847 - x303/(0.0001 + 0.9999*b49)) + sqr(
4.52554072865087 - x304/(0.0001 + 0.9999*b49)) + sqr(2.95832977799596 -
x305/(0.0001 + 0.9999*b49)) + sqr(2.45196796627015 - x306/(0.0001 +
0.9999*b49)))*(0.0001 + 0.9999*b49) + 0.00487510786248563*b49
=L= 0.00487510786248563;
e134.. (-1 + sqr(1.8357554909519 - x307/(0.0001 + 0.9999*b50)) + sqr(
7.66347281114004 - x308/(0.0001 + 0.9999*b50)) + sqr(6.23276665994841 -
x309/(0.0001 + 0.9999*b50)) + sqr(9.07661262817776 - x310/(0.0001 +
0.9999*b50)))*(0.0001 + 0.9999*b50) + 0.0182331090789003*b50
=L= 0.0182331090789003;
e135.. b41 + b42 + b43 + b44 + b45 + b46 + b47 + b48 + b49 + b50 =E= 1;
e136.. b1 + b11 + b21 + b31 + b41 =L= 1;
e137.. b2 + b12 + b22 + b32 + b42 =L= 1;
e138.. b3 + b13 + b23 + b33 + b43 =L= 1;
e139.. b4 + b14 + b24 + b34 + b44 =L= 1;
e140.. b5 + b15 + b25 + b35 + b45 =L= 1;
e141.. b6 + b16 + b26 + b36 + b46 =L= 1;
e142.. b7 + b17 + b27 + b37 + b47 =L= 1;
e143.. b8 + b18 + b28 + b38 + b48 =L= 1;
e144.. b9 + b19 + b29 + b39 + b49 =L= 1;
e145.. b10 + b20 + b30 + b40 + b50 =L= 1;
e146.. - x51 + x111 + x115 + x119 + x123 + x127 + x131 + x135 + x139 + x143
+ x147 =E= 0;
e147.. - x54 + x112 + x116 + x120 + x124 + x128 + x132 + x136 + x140 + x144
+ x148 =E= 0;
e148.. - x57 + x113 + x117 + x121 + x125 + x129 + x133 + x137 + x141 + x145
+ x149 =E= 0;
e149.. - x60 + x114 + x118 + x122 + x126 + x130 + x134 + x138 + x142 + x146
+ x150 =E= 0;
e150.. - x52 + x151 + x155 + x159 + x163 + x167 + x171 + x175 + x179 + x183
+ x187 =E= 0;
e151.. - x55 + x152 + x156 + x160 + x164 + x168 + x172 + x176 + x180 + x184
+ x188 =E= 0;
e152.. - x58 + x153 + x157 + x161 + x165 + x169 + x173 + x177 + x181 + x185
+ x189 =E= 0;
e153.. - x61 + x154 + x158 + x162 + x166 + x170 + x174 + x178 + x182 + x186
+ x190 =E= 0;
e154.. - x63 + x191 + x195 + x199 + x203 + x207 + x211 + x215 + x219 + x223
+ x227 =E= 0;
e155.. - x65 + x192 + x196 + x200 + x204 + x208 + x212 + x216 + x220 + x224
+ x228 =E= 0;
e156.. - x67 + x193 + x197 + x201 + x205 + x209 + x213 + x217 + x221 + x225
+ x229 =E= 0;
e157.. - x69 + x194 + x198 + x202 + x206 + x210 + x214 + x218 + x222 + x226
+ x230 =E= 0;
e158.. - x71 + x231 + x235 + x239 + x243 + x247 + x251 + x255 + x259 + x263
+ x267 =E= 0;
e159.. - x73 + x232 + x236 + x240 + x244 + x248 + x252 + x256 + x260 + x264
+ x268 =E= 0;
e160.. - x75 + x233 + x237 + x241 + x245 + x249 + x253 + x257 + x261 + x265
+ x269 =E= 0;
e161.. - x77 + x234 + x238 + x242 + x246 + x250 + x254 + x258 + x262 + x266
+ x270 =E= 0;
e162.. - x79 + x271 + x275 + x279 + x283 + x287 + x291 + x295 + x299 + x303
+ x307 =E= 0;
e163.. - x81 + x272 + x276 + x280 + x284 + x288 + x292 + x296 + x300 + x304
+ x308 =E= 0;
e164.. - x83 + x273 + x277 + x281 + x285 + x289 + x293 + x297 + x301 + x305
+ x309 =E= 0;
e165.. - x85 + x274 + x278 + x282 + x286 + x290 + x294 + x298 + x302 + x306
+ x310 =E= 0;
e166.. - 10*b1 + x111 =L= 0;
e167.. - 10*b2 + x115 =L= 0;
e168.. - 10*b3 + x119 =L= 0;
e169.. - 10*b4 + x123 =L= 0;
e170.. - 10*b5 + x127 =L= 0;
e171.. - 10*b6 + x131 =L= 0;
e172.. - 10*b7 + x135 =L= 0;
e173.. - 10*b8 + x139 =L= 0;
e174.. - 10*b9 + x143 =L= 0;
e175.. - 10*b10 + x147 =L= 0;
e176.. - 10*b1 + x112 =L= 0;
e177.. - 10*b2 + x116 =L= 0;
e178.. - 10*b3 + x120 =L= 0;
e179.. - 10*b4 + x124 =L= 0;
e180.. - 10*b5 + x128 =L= 0;
e181.. - 10*b6 + x132 =L= 0;
e182.. - 10*b7 + x136 =L= 0;
e183.. - 10*b8 + x140 =L= 0;
e184.. - 10*b9 + x144 =L= 0;
e185.. - 10*b10 + x148 =L= 0;
e186.. - 10*b1 + x113 =L= 0;
e187.. - 10*b2 + x117 =L= 0;
e188.. - 10*b3 + x121 =L= 0;
e189.. - 10*b4 + x125 =L= 0;
e190.. - 10*b5 + x129 =L= 0;
e191.. - 10*b6 + x133 =L= 0;
e192.. - 10*b7 + x137 =L= 0;
e193.. - 10*b8 + x141 =L= 0;
e194.. - 10*b9 + x145 =L= 0;
e195.. - 10*b10 + x149 =L= 0;
e196.. - 10*b1 + x114 =L= 0;
e197.. - 10*b2 + x118 =L= 0;
e198.. - 10*b3 + x122 =L= 0;
e199.. - 10*b4 + x126 =L= 0;
e200.. - 10*b5 + x130 =L= 0;
e201.. - 10*b6 + x134 =L= 0;
e202.. - 10*b7 + x138 =L= 0;
e203.. - 10*b8 + x142 =L= 0;
e204.. - 10*b9 + x146 =L= 0;
e205.. - 10*b10 + x150 =L= 0;
e206.. - 10*b11 + x151 =L= 0;
e207.. - 10*b12 + x155 =L= 0;
e208.. - 10*b13 + x159 =L= 0;
e209.. - 10*b14 + x163 =L= 0;
e210.. - 10*b15 + x167 =L= 0;
e211.. - 10*b16 + x171 =L= 0;
e212.. - 10*b17 + x175 =L= 0;
e213.. - 10*b18 + x179 =L= 0;
e214.. - 10*b19 + x183 =L= 0;
e215.. - 10*b20 + x187 =L= 0;
e216.. - 10*b11 + x152 =L= 0;
e217.. - 10*b12 + x156 =L= 0;
e218.. - 10*b13 + x160 =L= 0;
e219.. - 10*b14 + x164 =L= 0;
e220.. - 10*b15 + x168 =L= 0;
e221.. - 10*b16 + x172 =L= 0;
e222.. - 10*b17 + x176 =L= 0;
e223.. - 10*b18 + x180 =L= 0;
e224.. - 10*b19 + x184 =L= 0;
e225.. - 10*b20 + x188 =L= 0;
e226.. - 10*b11 + x153 =L= 0;
e227.. - 10*b12 + x157 =L= 0;
e228.. - 10*b13 + x161 =L= 0;
e229.. - 10*b14 + x165 =L= 0;
e230.. - 10*b15 + x169 =L= 0;
e231.. - 10*b16 + x173 =L= 0;
e232.. - 10*b17 + x177 =L= 0;
e233.. - 10*b18 + x181 =L= 0;
e234.. - 10*b19 + x185 =L= 0;
e235.. - 10*b20 + x189 =L= 0;
e236.. - 10*b11 + x154 =L= 0;
e237.. - 10*b12 + x158 =L= 0;
e238.. - 10*b13 + x162 =L= 0;
e239.. - 10*b14 + x166 =L= 0;
e240.. - 10*b15 + x170 =L= 0;
e241.. - 10*b16 + x174 =L= 0;
e242.. - 10*b17 + x178 =L= 0;
e243.. - 10*b18 + x182 =L= 0;
e244.. - 10*b19 + x186 =L= 0;
e245.. - 10*b20 + x190 =L= 0;
e246.. - 10*b21 + x191 =L= 0;
e247.. - 10*b22 + x195 =L= 0;
e248.. - 10*b23 + x199 =L= 0;
e249.. - 10*b24 + x203 =L= 0;
e250.. - 10*b25 + x207 =L= 0;
e251.. - 10*b26 + x211 =L= 0;
e252.. - 10*b27 + x215 =L= 0;
e253.. - 10*b28 + x219 =L= 0;
e254.. - 10*b29 + x223 =L= 0;
e255.. - 10*b30 + x227 =L= 0;
e256.. - 10*b21 + x192 =L= 0;
e257.. - 10*b22 + x196 =L= 0;
e258.. - 10*b23 + x200 =L= 0;
e259.. - 10*b24 + x204 =L= 0;
e260.. - 10*b25 + x208 =L= 0;
e261.. - 10*b26 + x212 =L= 0;
e262.. - 10*b27 + x216 =L= 0;
e263.. - 10*b28 + x220 =L= 0;
e264.. - 10*b29 + x224 =L= 0;
e265.. - 10*b30 + x228 =L= 0;
e266.. - 10*b21 + x193 =L= 0;
e267.. - 10*b22 + x197 =L= 0;
e268.. - 10*b23 + x201 =L= 0;
e269.. - 10*b24 + x205 =L= 0;
e270.. - 10*b25 + x209 =L= 0;
e271.. - 10*b26 + x213 =L= 0;
e272.. - 10*b27 + x217 =L= 0;
e273.. - 10*b28 + x221 =L= 0;
e274.. - 10*b29 + x225 =L= 0;
e275.. - 10*b30 + x229 =L= 0;
e276.. - 10*b21 + x194 =L= 0;
e277.. - 10*b22 + x198 =L= 0;
e278.. - 10*b23 + x202 =L= 0;
e279.. - 10*b24 + x206 =L= 0;
e280.. - 10*b25 + x210 =L= 0;
e281.. - 10*b26 + x214 =L= 0;
e282.. - 10*b27 + x218 =L= 0;
e283.. - 10*b28 + x222 =L= 0;
e284.. - 10*b29 + x226 =L= 0;
e285.. - 10*b30 + x230 =L= 0;
e286.. - 10*b31 + x231 =L= 0;
e287.. - 10*b32 + x235 =L= 0;
e288.. - 10*b33 + x239 =L= 0;
e289.. - 10*b34 + x243 =L= 0;
e290.. - 10*b35 + x247 =L= 0;
e291.. - 10*b36 + x251 =L= 0;
e292.. - 10*b37 + x255 =L= 0;
e293.. - 10*b38 + x259 =L= 0;
e294.. - 10*b39 + x263 =L= 0;
e295.. - 10*b40 + x267 =L= 0;
e296.. - 10*b31 + x232 =L= 0;
e297.. - 10*b32 + x236 =L= 0;
e298.. - 10*b33 + x240 =L= 0;
e299.. - 10*b34 + x244 =L= 0;
e300.. - 10*b35 + x248 =L= 0;
e301.. - 10*b36 + x252 =L= 0;
e302.. - 10*b37 + x256 =L= 0;
e303.. - 10*b38 + x260 =L= 0;
e304.. - 10*b39 + x264 =L= 0;
e305.. - 10*b40 + x268 =L= 0;
e306.. - 10*b31 + x233 =L= 0;
e307.. - 10*b32 + x237 =L= 0;
e308.. - 10*b33 + x241 =L= 0;
e309.. - 10*b34 + x245 =L= 0;
e310.. - 10*b35 + x249 =L= 0;
e311.. - 10*b36 + x253 =L= 0;
e312.. - 10*b37 + x257 =L= 0;
e313.. - 10*b38 + x261 =L= 0;
e314.. - 10*b39 + x265 =L= 0;
e315.. - 10*b40 + x269 =L= 0;
e316.. - 10*b31 + x234 =L= 0;
e317.. - 10*b32 + x238 =L= 0;
e318.. - 10*b33 + x242 =L= 0;
e319.. - 10*b34 + x246 =L= 0;
e320.. - 10*b35 + x250 =L= 0;
e321.. - 10*b36 + x254 =L= 0;
e322.. - 10*b37 + x258 =L= 0;
e323.. - 10*b38 + x262 =L= 0;
e324.. - 10*b39 + x266 =L= 0;
e325.. - 10*b40 + x270 =L= 0;
e326.. - 10*b41 + x271 =L= 0;
e327.. - 10*b42 + x275 =L= 0;
e328.. - 10*b43 + x279 =L= 0;
e329.. - 10*b44 + x283 =L= 0;
e330.. - 10*b45 + x287 =L= 0;
e331.. - 10*b46 + x291 =L= 0;
e332.. - 10*b47 + x295 =L= 0;
e333.. - 10*b48 + x299 =L= 0;
e334.. - 10*b49 + x303 =L= 0;
e335.. - 10*b50 + x307 =L= 0;
e336.. - 10*b41 + x272 =L= 0;
e337.. - 10*b42 + x276 =L= 0;
e338.. - 10*b43 + x280 =L= 0;
e339.. - 10*b44 + x284 =L= 0;
e340.. - 10*b45 + x288 =L= 0;
e341.. - 10*b46 + x292 =L= 0;
e342.. - 10*b47 + x296 =L= 0;
e343.. - 10*b48 + x300 =L= 0;
e344.. - 10*b49 + x304 =L= 0;
e345.. - 10*b50 + x308 =L= 0;
e346.. - 10*b41 + x273 =L= 0;
e347.. - 10*b42 + x277 =L= 0;
e348.. - 10*b43 + x281 =L= 0;
e349.. - 10*b44 + x285 =L= 0;
e350.. - 10*b45 + x289 =L= 0;
e351.. - 10*b46 + x293 =L= 0;
e352.. - 10*b47 + x297 =L= 0;
e353.. - 10*b48 + x301 =L= 0;
e354.. - 10*b49 + x305 =L= 0;
e355.. - 10*b50 + x309 =L= 0;
e356.. - 10*b41 + x274 =L= 0;
e357.. - 10*b42 + x278 =L= 0;
e358.. - 10*b43 + x282 =L= 0;
e359.. - 10*b44 + x286 =L= 0;
e360.. - 10*b45 + x290 =L= 0;
e361.. - 10*b46 + x294 =L= 0;
e362.. - 10*b47 + x298 =L= 0;
e363.. - 10*b48 + x302 =L= 0;
e364.. - 10*b49 + x306 =L= 0;
e365.. - 10*b50 + x310 =L= 0;
e366.. x51 - x52 =L= 0;
e367.. x52 - x63 =L= 0;
e368.. x63 - x71 =L= 0;
e369.. x71 - x79 =L= 0;
e370.. - x53 - x56 - x59 - x62 - x64 - x66 - x68 - x70 - x72 - x74 - x76 - x78
- x80 - x82 - x84 - x86 - x87 - x88 - x89 - x90 - x91 - x92 - x93 - x94
- x95 - x96 - x97 - x98 - x99 - x100 - x101 - x102 - x103 - x104 - x105
- x106 - x107 - x108 - x109 - x110 + objvar =E= 0;
* set non-default bounds
x51.up = 10;
x52.up = 10;
x53.up = 10;
x54.up = 10;
x55.up = 10;
x56.up = 10;
x57.up = 10;
x58.up = 10;
x59.up = 10;
x60.up = 10;
x61.up = 10;
x62.up = 10;
x63.up = 10;
x64.up = 10;
x65.up = 10;
x66.up = 10;
x67.up = 10;
x68.up = 10;
x69.up = 10;
x70.up = 10;
x71.up = 10;
x72.up = 10;
x73.up = 10;
x74.up = 10;
x75.up = 10;
x76.up = 10;
x77.up = 10;
x78.up = 10;
x79.up = 10;
x80.up = 10;
x81.up = 10;
x82.up = 10;
x83.up = 10;
x84.up = 10;
x85.up = 10;
x86.up = 10;
x87.up = 10;
x88.up = 10;
x89.up = 10;
x90.up = 10;
x91.up = 10;
x92.up = 10;
x93.up = 10;
x94.up = 10;
x95.up = 10;
x96.up = 10;
x97.up = 10;
x98.up = 10;
x99.up = 10;
x100.up = 10;
x101.up = 10;
x102.up = 10;
x103.up = 10;
x104.up = 10;
x105.up = 10;
x106.up = 10;
x107.up = 10;
x108.up = 10;
x109.up = 10;
x110.up = 10;
x111.up = 10;
x112.up = 10;
x113.up = 10;
x114.up = 10;
x115.up = 10;
x116.up = 10;
x117.up = 10;
x118.up = 10;
x119.up = 10;
x120.up = 10;
x121.up = 10;
x122.up = 10;
x123.up = 10;
x124.up = 10;
x125.up = 10;
x126.up = 10;
x127.up = 10;
x128.up = 10;
x129.up = 10;
x130.up = 10;
x131.up = 10;
x132.up = 10;
x133.up = 10;
x134.up = 10;
x135.up = 10;
x136.up = 10;
x137.up = 10;
x138.up = 10;
x139.up = 10;
x140.up = 10;
x141.up = 10;
x142.up = 10;
x143.up = 10;
x144.up = 10;
x145.up = 10;
x146.up = 10;
x147.up = 10;
x148.up = 10;
x149.up = 10;
x150.up = 10;
x151.up = 10;
x152.up = 10;
x153.up = 10;
x154.up = 10;
x155.up = 10;
x156.up = 10;
x157.up = 10;
x158.up = 10;
x159.up = 10;
x160.up = 10;
x161.up = 10;
x162.up = 10;
x163.up = 10;
x164.up = 10;
x165.up = 10;
x166.up = 10;
x167.up = 10;
x168.up = 10;
x169.up = 10;
x170.up = 10;
x171.up = 10;
x172.up = 10;
x173.up = 10;
x174.up = 10;
x175.up = 10;
x176.up = 10;
x177.up = 10;
x178.up = 10;
x179.up = 10;
x180.up = 10;
x181.up = 10;
x182.up = 10;
x183.up = 10;
x184.up = 10;
x185.up = 10;
x186.up = 10;
x187.up = 10;
x188.up = 10;
x189.up = 10;
x190.up = 10;
x191.up = 10;
x192.up = 10;
x193.up = 10;
x194.up = 10;
x195.up = 10;
x196.up = 10;
x197.up = 10;
x198.up = 10;
x199.up = 10;
x200.up = 10;
x201.up = 10;
x202.up = 10;
x203.up = 10;
x204.up = 10;
x205.up = 10;
x206.up = 10;
x207.up = 10;
x208.up = 10;
x209.up = 10;
x210.up = 10;
x211.up = 10;
x212.up = 10;
x213.up = 10;
x214.up = 10;
x215.up = 10;
x216.up = 10;
x217.up = 10;
x218.up = 10;
x219.up = 10;
x220.up = 10;
x221.up = 10;
x222.up = 10;
x223.up = 10;
x224.up = 10;
x225.up = 10;
x226.up = 10;
x227.up = 10;
x228.up = 10;
x229.up = 10;
x230.up = 10;
x231.up = 10;
x232.up = 10;
x233.up = 10;
x234.up = 10;
x235.up = 10;
x236.up = 10;
x237.up = 10;
x238.up = 10;
x239.up = 10;
x240.up = 10;
x241.up = 10;
x242.up = 10;
x243.up = 10;
x244.up = 10;
x245.up = 10;
x246.up = 10;
x247.up = 10;
x248.up = 10;
x249.up = 10;
x250.up = 10;
x251.up = 10;
x252.up = 10;
x253.up = 10;
x254.up = 10;
x255.up = 10;
x256.up = 10;
x257.up = 10;
x258.up = 10;
x259.up = 10;
x260.up = 10;
x261.up = 10;
x262.up = 10;
x263.up = 10;
x264.up = 10;
x265.up = 10;
x266.up = 10;
x267.up = 10;
x268.up = 10;
x269.up = 10;
x270.up = 10;
x271.up = 10;
x272.up = 10;
x273.up = 10;
x274.up = 10;
x275.up = 10;
x276.up = 10;
x277.up = 10;
x278.up = 10;
x279.up = 10;
x280.up = 10;
x281.up = 10;
x282.up = 10;
x283.up = 10;
x284.up = 10;
x285.up = 10;
x286.up = 10;
x287.up = 10;
x288.up = 10;
x289.up = 10;
x290.up = 10;
x291.up = 10;
x292.up = 10;
x293.up = 10;
x294.up = 10;
x295.up = 10;
x296.up = 10;
x297.up = 10;
x298.up = 10;
x299.up = 10;
x300.up = 10;
x301.up = 10;
x302.up = 10;
x303.up = 10;
x304.up = 10;
x305.up = 10;
x306.up = 10;
x307.up = 10;
x308.up = 10;
x309.up = 10;
x310.up = 10;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
