Instance powerflow0057p
Optimal Power Flow problem modeled using trigonometric functions (polar coordinates)
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 0.00000000 (COUENNE) 0.00000000 (LINDO) 0.00000000 (SCIP) |
| Referencesⓘ | Hijazi, H L, Coffrin, C, and Van Hentenryck, P, Convex Quadratic Relaxations of Nonlinear Programs in Power Systems, Tech. Rep. 2013-09, Optimization Online, 2013. |
| Applicationⓘ | Electricity Networks |
| Added to libraryⓘ | 18 Aug 2014 |
| Problem typeⓘ | NLP |
| #Variablesⓘ | 440 |
| #Binary Variablesⓘ | 0 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 433 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | quadratic |
| Objective curvatureⓘ | convex |
| #Nonzeros in Objectiveⓘ | 7 |
| #Nonlinear Nonzeros in Objectiveⓘ | 7 |
| #Constraintsⓘ | 1037 |
| #Linear Constraintsⓘ | 569 |
| #Quadratic Constraintsⓘ | 156 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 312 |
| Operands in Gen. Nonlin. Functionsⓘ | cos mul sin sqr |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 2965 |
| #Nonlinear Nonzeros in Jacobianⓘ | 1560 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 1171 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 433 |
| #Blocks in Hessian of Lagrangianⓘ | 320 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 1 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 114 |
| Average blocksize in Hessian of Lagrangianⓘ | 1.353125 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 6.1300e-01 |
| Maximal coefficientⓘ | 4.0000e+03 |
| Infeasibility of initial pointⓘ | 3.77 |

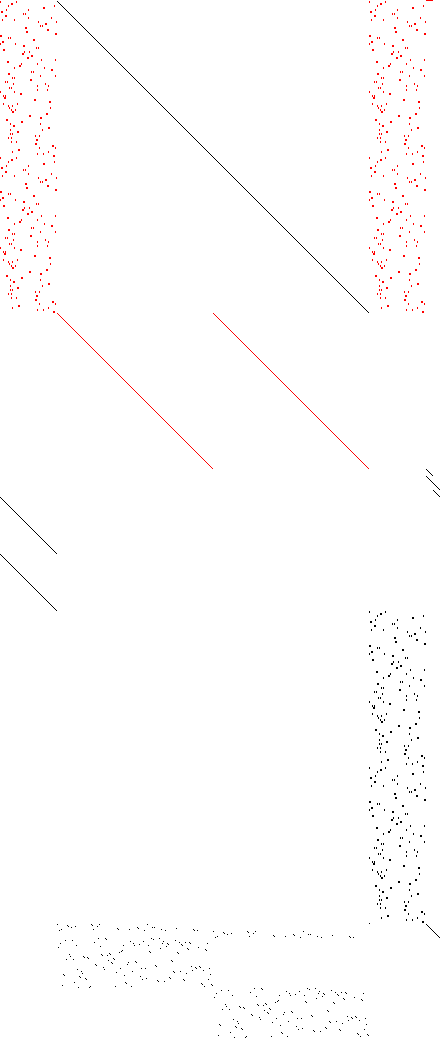

| Sparsity Jacobianⓘ |  |

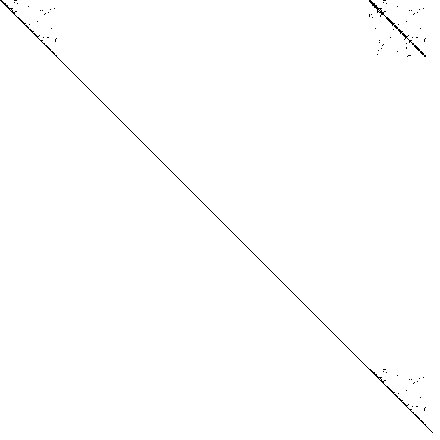

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 1038 428 227 383 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 441 441 0 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 2973 1406 1567 0
*
* Solve m using NLP minimizing objvar;
Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18,x19
,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35,x36
,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311
,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324
,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337
,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349,x350
,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362,x363
,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375,x376
,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388,x389
,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401,x402
,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413,x414,x415
,x416,x417,x418,x419,x420,x421,x422,x423,x424,x425,x426,x427,x428
,x429,x430,x431,x432,x433,x434,x435,x436,x437,x438,x439,x440,objvar;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709,e710,e711,e712,e713,e714
,e715,e716,e717,e718,e719,e720,e721,e722,e723,e724,e725,e726,e727
,e728,e729,e730,e731,e732,e733,e734,e735,e736,e737,e738,e739,e740
,e741,e742,e743,e744,e745,e746,e747,e748,e749,e750,e751,e752,e753
,e754,e755,e756,e757,e758,e759,e760,e761,e762,e763,e764,e765,e766
,e767,e768,e769,e770,e771,e772,e773,e774,e775,e776,e777,e778,e779
,e780,e781,e782,e783,e784,e785,e786,e787,e788,e789,e790,e791,e792
,e793,e794,e795,e796,e797,e798,e799,e800,e801,e802,e803,e804,e805
,e806,e807,e808,e809,e810,e811,e812,e813,e814,e815,e816,e817,e818
,e819,e820,e821,e822,e823,e824,e825,e826,e827,e828,e829,e830,e831
,e832,e833,e834,e835,e836,e837,e838,e839,e840,e841,e842,e843,e844
,e845,e846,e847,e848,e849,e850,e851,e852,e853,e854,e855,e856,e857
,e858,e859,e860,e861,e862,e863,e864,e865,e866,e867,e868,e869,e870
,e871,e872,e873,e874,e875,e876,e877,e878,e879,e880,e881,e882,e883
,e884,e885,e886,e887,e888,e889,e890,e891,e892,e893,e894,e895,e896
,e897,e898,e899,e900,e901,e902,e903,e904,e905,e906,e907,e908,e909
,e910,e911,e912,e913,e914,e915,e916,e917,e918,e919,e920,e921,e922
,e923,e924,e925,e926,e927,e928,e929,e930,e931,e932,e933,e934,e935
,e936,e937,e938,e939,e940,e941,e942,e943,e944,e945,e946,e947,e948
,e949,e950,e951,e952,e953,e954,e955,e956,e957,e958,e959,e960,e961
,e962,e963,e964,e965,e966,e967,e968,e969,e970,e971,e972,e973,e974
,e975,e976,e977,e978,e979,e980,e981,e982,e983,e984,e985,e986,e987
,e988,e989,e990,e991,e992,e993,e994,e995,e996,e997,e998,e999,e1000
,e1001,e1002,e1003,e1004,e1005,e1006,e1007,e1008,e1009,e1010,e1011
,e1012,e1013,e1014,e1015,e1016,e1017,e1018,e1019,e1020,e1021,e1022
,e1023,e1024,e1025,e1026,e1027,e1028,e1029,e1030,e1031,e1032,e1033
,e1034,e1035,e1036,e1037,e1038;
e1.. 775.795*sqr(x427) + 2000*x427 + 100*sqr(x428) + 4000*x428 + 2500*sqr(x429)
+ 2000*x429 + 100*sqr(x430) + 4000*x430 + 222.222*sqr(x431) + 2000*x431
+ 100*sqr(x432) + 4000*x432 + 322.581*sqr(x433) + 2000*x433 - objvar
=E= 0;
e2.. 1.94596433161849*x1*x17*cos(x370 - x386) - 1.94596433161849*sqr(x1) -
8.83042637877296*x1*x17*sin(x370 - x386) + x58 =E= 0;
e3.. 1.94596433161849*x17*x1*cos(x386 - x370) - 1.94596433161849*sqr(x17) -
8.83042637877296*x17*x1*sin(x386 - x370) + x59 =E= 0;
e4.. 4.83585268579998*x12*x13*cos(x381 - x382) - 4.83585268579998*sqr(x12) -
15.7572727964269*x12*x13*sin(x381 - x382) + x60 =E= 0;
e5.. 4.83585268579998*x13*x12*cos(x382 - x381) - 4.83585268579998*sqr(x13) -
15.7572727964269*x13*x12*sin(x382 - x381) + x61 =E= 0;
e6.. -8.29875518672199*x9*x55*sin(x378 - x424) + x62 =E= 0;
e7.. -8.29875518672199*x55*x9*sin(x424 - x378) + x63 =E= 0;
e8.. 3.22991397248362*x44*x45*cos(x413 - x414) - 3.22991397248362*sqr(x44) -
6.4287710798472*x44*x45*sin(x413 - x414) + x64 =E= 0;
e9.. 3.22991397248362*x45*x44*cos(x414 - x413) - 3.22991397248362*sqr(x45) -
6.4287710798472*x45*x44*sin(x414 - x413) + x65 =E= 0;
e10.. -15.4320987654321*x7*x29*sin(x376 - x398) + x66 =E= 0;
e11.. -15.4320987654321*x29*x7*sin(x398 - x376) + x67 =E= 0;
e12.. 3.67309910958161*x2*x3*cos(x371 - x372) - 3.67309910958161*sqr(x2) -
10.4769605474643*x2*x3*sin(x371 - x372) + x68 =E= 0;
e13.. 3.67309910958161*x3*x2*cos(x372 - x371) - 3.67309910958161*sqr(x3) -
10.4769605474643*x3*x2*sin(x372 - x371) + x69 =E= 0;
e14.. -21.1416490486258*x24*x26*sin(x393 - x395) + x70 =E= 0;
e15.. -21.1416490486258*x26*x24*sin(x395 - x393) + x71 =E= 0;
e16.. 1.85116623472788*x6*x7*cos(x375 - x376) - 1.85116623472788*sqr(x6) -
9.44094779711218*x6*x7*sin(x375 - x376) + x72 =E= 0;
e17.. 1.85116623472788*x7*x6*cos(x376 - x375) - 1.85116623472788*sqr(x7) -
9.44094779711218*x7*x6*sin(x376 - x375) + x73 =E= 0;
e18.. 2.58596077947529*x29*x52*cos(x398 - x421) - 2.58596077947529*sqr(x29) -
3.35349976256504*x29*x52*sin(x398 - x421) + x74 =E= 0;
e19.. 2.58596077947529*x52*x29*cos(x421 - x398) - 2.58596077947529*sqr(x52) -
3.35349976256504*x52*x29*sin(x421 - x398) + x75 =E= 0;
e20.. 5.27439897898054*x3*x15*cos(x372 - x384) - 5.27439897898054*sqr(x3) -
17.2557497460475*x3*x15*sin(x372 - x384) + x76 =E= 0;
e21.. 5.27439897898054*x15*x3*cos(x384 - x372) - 5.27439897898054*sqr(x15) -
17.2557497460475*x15*x3*sin(x384 - x372) + x77 =E= 0;
e22.. -0.738007380073801*x39*x57*sin(x408 - x426) + x78 =E= 0;
e23.. -0.738007380073801*x57*x39*sin(x426 - x408) + x79 =E= 0;
e24.. 4.46341936735882*x46*x47*cos(x415 - x416) - 4.46341936735882*sqr(x46) -
13.1961963904522*x46*x47*sin(x415 - x416) + x80 =E= 0;
e25.. 4.46341936735882*x47*x46*cos(x416 - x415) - 4.46341936735882*sqr(x47) -
13.1961963904522*x47*x46*sin(x416 - x415) + x81 =E= 0;
e26.. -2.42718446601942*x41*x43*sin(x410 - x412) + x82 =E= 0;
e27.. -2.42718446601942*x43*x41*sin(x412 - x410) + x83 =E= 0;
e28.. 1.79854154630972*x26*x27*cos(x395 - x396) - 1.79854154630972*sqr(x26) -
2.76866395613739*x26*x27*sin(x395 - x396) + x84 =E= 0;
e29.. 1.79854154630972*x27*x26*cos(x396 - x395) - 1.79854154630972*sqr(x27) -
2.76866395613739*x27*x26*sin(x396 - x395) + x85 =E= 0;
e30.. 3.53441349078001*x48*x49*cos(x417 - x418) - 3.53441349078001*sqr(x48) -
5.46689856487556*x48*x49*sin(x417 - x418) + x86 =E= 0;
e31.. 3.53441349078001*x49*x48*cos(x418 - x417) - 3.53441349078001*sqr(x49) -
5.46689856487556*x49*x48*sin(x418 - x417) + x87 =E= 0;
e32.. 4.78313364911303*x27*x28*cos(x396 - x397) - 4.78313364911303*sqr(x27) -
7.38367233212594*x27*x28*sin(x396 - x397) + x88 =E= 0;
e33.. 4.78313364911303*x28*x27*cos(x397 - x396) - 4.78313364911303*sqr(x28) -
7.38367233212594*x28*x27*sin(x397 - x396) + x89 =E= 0;
e34.. 1.77775961420573*x57*x56*cos(x426 - x425) - 1.77775961420573*sqr(x57) -
2.65642241203155*x57*x56*sin(x426 - x425) + x90 =E= 0;
e35.. 1.77775961420573*x56*x57*cos(x425 - x426) - 1.77775961420573*sqr(x56) -
2.65642241203155*x56*x57*sin(x425 - x426) + x91 =E= 0;
e36.. 9.73161837986141*x1*x2*cos(x370 - x371) - 9.73161837986141*sqr(x1) -
32.8295559802554*x1*x2*sin(x370 - x371) + x92 =E= 0;
e37.. 9.73161837986141*x2*x1*cos(x371 - x370) - 9.73161837986141*sqr(x2) -
32.8295559802554*x2*x1*sin(x371 - x370) + x93 =E= 0;
e38.. 3.28382981106523*x9*x11*cos(x378 - x380) - 3.28382981106523*sqr(x9) -
10.7933630999353*x9*x11*sin(x378 - x380) + x94 =E= 0;
e39.. 3.28382981106523*x11*x9*cos(x380 - x378) - 3.28382981106523*sqr(x11) -
10.7933630999353*x11*x9*sin(x380 - x378) + x95 =E= 0;
e40.. 5.91715976331361*x34*x35*cos(x403 - x404) - 5.91715976331361*sqr(x34) -
8.87573964497041*x34*x35*sin(x403 - x404) + x96 =E= 0;
e41.. 5.91715976331361*x35*x34*cos(x404 - x403) - 5.91715976331361*sqr(x35) -
8.87573964497041*x35*x34*sin(x404 - x403) + x97 =E= 0;
e42.. 7.64505119453925*x3*x4*cos(x372 - x373) - 7.64505119453925*sqr(x3) -
24.9829351535836*x3*x4*sin(x372 - x373) + x98 =E= 0;
e43.. 7.64505119453925*x4*x3*cos(x373 - x372) - 7.64505119453925*sqr(x4) -
24.9829351535836*x4*x3*sin(x373 - x372) + x99 =E= 0;
e44.. 1.02028983422762*x1*x16*cos(x370 - x385) - 1.02028983422762*sqr(x1) -
4.62950893944692*x1*x16*sin(x370 - x385) + x100 =E= 0;
e45.. 1.02028983422762*x16*x1*cos(x385 - x370) - 1.02028983422762*sqr(x16) -
4.62950893944692*x16*x1*sin(x385 - x370) + x101 =E= 0;
e46.. -1.65903181874417*x24*x25*sin(x393 - x394) + x102 =E= 0;
e47.. -1.65903181874417*x25*x24*sin(x394 - x393) + x103 =E= 0;
e48.. 11.9046433089927*x37*x39*cos(x406 - x408) - 11.9046433089927*sqr(x37) -
18.8780745360178*x37*x39*sin(x406 - x408) + x104 =E= 0;
e49.. 11.9046433089927*x39*x37*cos(x408 - x406) - 11.9046433089927*sqr(x39) -
18.8780745360178*x39*x37*sin(x408 - x406) + x105 =E= 0;
e50.. 2.9301109926044*x4*x5*cos(x373 - x374) - 2.9301109926044*sqr(x4) -
6.18839441638049*x4*x5*sin(x373 - x374) + x106 =E= 0;
e51.. 2.9301109926044*x5*x4*cos(x374 - x373) - 2.9301109926044*sqr(x5) -
6.18839441638049*x5*x4*sin(x374 - x373) + x107 =E= 0;
e52.. 2.287011468939*x25*x30*cos(x394 - x399) - 2.287011468939*sqr(x25) -
3.42204679056057*x25*x30*sin(x394 - x399) + x108 =E= 0;
e53.. 2.287011468939*x30*x25*cos(x399 - x394) - 2.287011468939*sqr(x30) -
3.42204679056057*x30*x25*sin(x399 - x394) + x109 =E= 0;
e54.. 1.78318222833326*x23*x24*cos(x392 - x393) - 1.78318222833326*sqr(x23) -
2.74996777381515*x23*x24*sin(x392 - x393) + x110 =E= 0;
e55.. 1.78318222833326*x24*x23*cos(x393 - x392) - 1.78318222833326*sqr(x24) -
2.74996777381515*x24*x23*sin(x393 - x392) + x111 =E= 0;
e56.. 13.8386805241753*x32*x33*cos(x401 - x402) - 13.8386805241753*sqr(x32) -
12.7089923181202*x32*x33*sin(x401 - x402) + x112 =E= 0;
e57.. 13.8386805241753*x33*x32*cos(x402 - x401) - 13.8386805241753*sqr(x33) -
12.7089923181202*x33*x32*sin(x402 - x401) + x113 =E= 0;
e58.. 8.0494056341988*x28*x29*cos(x397 - x398) - 8.0494056341988*sqr(x28) -
11.3038304001787*x28*x29*sin(x397 - x398) + x114 =E= 0;
e59.. 8.0494056341988*x29*x28*cos(x398 - x397) - 8.0494056341988*sqr(x29) -
11.3038304001787*x29*x28*sin(x398 - x397) + x115 =E= 0;
e60.. 1.24653719300355*x56*x42*cos(x425 - x411) - 1.24653719300355*sqr(x56) -
2.07658431210945*x56*x42*sin(x425 - x411) + x116 =E= 0;
e61.. 1.24653719300355*x42*x56*cos(x411 - x425) - 1.24653719300355*sqr(x42) -
2.07658431210945*x42*x56*sin(x411 - x425) + x117 =E= 0;
e62.. 3.73830364088118*x8*x9*cos(x377 - x378) - 3.73830364088118*sqr(x8) -
19.0691246327777*x8*x9*sin(x377 - x378) + x118 =E= 0;
e63.. 3.73830364088118*x9*x8*cos(x378 - x377) - 3.73830364088118*sqr(x9) -
19.0691246327777*x9*x8*sin(x378 - x377) + x119 =E= 0;
e64.. 15.4977439482117*x22*x38*cos(x391 - x407) - 15.4977439482117*sqr(x22) -
23.8116378370961*x22*x38*sin(x391 - x407) + x120 =E= 0;
e65.. 15.4977439482117*x38*x22*cos(x407 - x391) - 15.4977439482117*sqr(x38) -
23.8116378370961*x38*x22*sin(x407 - x391) + x121 =E= 0;
e66.. -1.28749839062701*x21*x20*sin(x390 - x389) + x122 =E= 0;
e67.. -1.28749839062701*x20*x21*sin(x389 - x390) + x123 =E= 0;
e68.. -9.59692898272553*x15*x45*sin(x384 - x414) + x124 =E= 0;
e69.. -9.59692898272553*x45*x15*sin(x414 - x384) + x125 =E= 0;
e70.. 4.91962037575053*x52*x53*cos(x421 - x422) - 4.91962037575053*sqr(x52) -
6.3528956033314*x52*x53*sin(x421 - x422) + x126 =E= 0;
e71.. 4.91962037575053*x53*x52*cos(x422 - x421) - 4.91962037575053*sqr(x53) -
6.3528956033314*x53*x52*sin(x422 - x421) + x127 =E= 0;
e72.. -1.04931794333683*x34*x32*sin(x403 - x401) + x128 =E= 0;
e73.. -1.04931794333683*x32*x34*sin(x401 - x403) + x129 =E= 0;
e74.. 1.2486456086589*x9*x10*cos(x378 - x379) - 1.2486456086589*sqr(x9) -
5.6815067125699*x9*x10*sin(x378 - x379) + x130 =E= 0;
e75.. 1.2486456086589*x10*x9*cos(x379 - x378) - 1.2486456086589*sqr(x10) -
5.6815067125699*x10*x9*sin(x379 - x378) + x131 =E= 0;
e76.. 0.910722814182902*x56*x41*cos(x425 - x410) - 0.910722814182902*sqr(x56)
- 0.904135307389536*x56*x41*sin(x425 - x410) + x132 =E= 0;
e77.. 0.910722814182902*x41*x56*cos(x410 - x425) - 0.910722814182902*sqr(x41)
- 0.904135307389536*x41*x56*sin(x410 - x425) + x133 =E= 0;
e78.. 3.25066886439273*x13*x15*cos(x382 - x384) - 3.25066886439273*sqr(x13) -
10.5012313872018*x13*x15*sin(x382 - x384) + x134 =E= 0;
e79.. 3.25066886439273*x15*x13*cos(x384 - x382) - 3.25066886439273*sqr(x15) -
10.5012313872018*x15*x13*sin(x384 - x382) + x135 =E= 0;
e80.. 0.613004398639058*x31*x32*cos(x400 - x401) - 0.613004398639058*sqr(x31)
- 0.912856648860924*x31*x32*sin(x400 - x401) + x136 =E= 0;
e81.. 0.613004398639058*x32*x31*cos(x401 - x400) - 0.613004398639058*sqr(x32)
- 0.912856648860924*x32*x31*sin(x401 - x400) + x137 =E= 0;
e82.. 1.09079641330694*x6*x8*cos(x375 - x377) - 1.09079641330694*sqr(x6) -
5.56660116525373*x6*x8*sin(x375 - x377) + x138 =E= 0;
e83.. 1.09079641330694*x8*x6*cos(x377 - x375) - 1.09079641330694*sqr(x8) -
5.56660116525373*x8*x6*sin(x377 - x375) + x139 =E= 0;
e84.. -13.6054421768707*x14*x46*sin(x383 - x415) + x140 =E= 0;
e85.. -13.6054421768707*x46*x14*sin(x415 - x383) + x141 =E= 0;
e86.. 2.58113749607218*x38*x49*cos(x407 - x418) - 2.58113749607218*sqr(x38) -
3.97270727656327*x38*x49*sin(x407 - x418) + x142 =E= 0;
e87.. 2.58113749607218*x49*x38*cos(x418 - x407) - 2.58113749607218*sqr(x49) -
3.97270727656327*x49*x38*sin(x418 - x407) + x143 =E= 0;
e88.. 1.659305619535*x10*x12*cos(x379 - x381) - 1.659305619535*sqr(x10) -
7.55972451932552*x10*x12*sin(x379 - x381) + x144 =E= 0;
e89.. 1.659305619535*x12*x10*cos(x381 - x379) - 1.659305619535*sqr(x12) -
7.55972451932552*x12*x10*sin(x381 - x379) + x145 =E= 0;
e90.. 9.46406687940595*x38*x48*cos(x407 - x417) - 9.46406687940595*sqr(x38) -
14.6207699867746*x38*x48*sin(x407 - x417) + x146 =E= 0;
e91.. 9.46406687940595*x48*x38*cos(x417 - x407) - 9.46406687940595*sqr(x48) -
14.6207699867746*x48*x38*sin(x417 - x407) + x147 =E= 0;
e92.. 2.07028742102668*x1*x15*cos(x370 - x384) - 2.07028742102668*sqr(x1) -
10.5840536692937*x1*x15*sin(x370 - x384) + x148 =E= 0;
e93.. 2.07028742102668*x15*x1*cos(x384 - x370) - 2.07028742102668*sqr(x15) -
10.5840536692937*x15*x1*sin(x384 - x370) + x149 =E= 0;
e94.. 3.85220109327142*x21*x22*cos(x390 - x391) - 3.85220109327142*sqr(x21) -
6.12374358577114*x21*x22*sin(x390 - x391) + x150 =E= 0;
e95.. 3.85220109327142*x22*x21*cos(x391 - x390) - 3.85220109327142*sqr(x22) -
6.12374358577114*x22*x21*sin(x391 - x390) + x151 =E= 0;
e96.. 1.81029764661306*x4*x6*cos(x373 - x375) - 1.81029764661306*sqr(x4) -
6.23079189997053*x4*x6*sin(x373 - x375) + x152 =E= 0;
e97.. 1.81029764661306*x6*x4*cos(x375 - x373) - 1.81029764661306*sqr(x6) -
6.23079189997053*x6*x4*sin(x375 - x373) + x153 =E= 0;
e98.. 6.01491779280401*x5*x6*cos(x374 - x375) - 6.01491779280401*sqr(x5) -
12.7667625999582*x5*x6*sin(x374 - x375) + x154 =E= 0;
e99.. 6.01491779280401*x6*x5*cos(x375 - x374) - 6.01491779280401*sqr(x6) -
12.7667625999582*x6*x5*sin(x375 - x374) + x155 =E= 0;
e100.. 9.08574193534755*x35*x36*cos(x404 - x405) - 9.08574193534755*sqr(x35) -
11.3466126029805*x35*x36*sin(x404 - x405) + x156 =E= 0;
e101.. 9.08574193534755*x36*x35*cos(x405 - x404) - 9.08574193534755*sqr(x36) -
11.3466126029805*x36*x35*sin(x405 - x404) + x157 =E= 0;
e102.. 2.04999381747896*x50*x51*cos(x419 - x420) - 2.04999381747896*sqr(x50) -
3.2539584404428*x50*x51*sin(x419 - x420) + x158 =E= 0;
e103.. 2.04999381747896*x51*x50*cos(x420 - x419) - 2.04999381747896*sqr(x51) -
3.2539584404428*x51*x50*sin(x420 - x419) + x159 =E= 0;
e104.. -4.1273831971573*x4*x18*sin(x373 - x387) + x160 =E= 0;
e105.. -4.1273831971573*x18*x4*sin(x387 - x373) + x161 =E= 0;
e106.. 1.76335096806502*x9*x13*cos(x378 - x382) - 1.76335096806502*sqr(x9) -
5.79229631921565*x9*x13*sin(x378 - x382) + x162 =E= 0;
e107.. 1.76335096806502*x13*x9*cos(x382 - x378) - 1.76335096806502*sqr(x13) -
5.79229631921565*x13*x9*sin(x382 - x378) + x163 =E= 0;
e108.. -14.0449438202247*x10*x51*sin(x379 - x420) + x164 =E= 0;
e109.. -14.0449438202247*x51*x10*sin(x420 - x379) + x165 =E= 0;
e110.. 2.59602030087875*x12*x16*cos(x381 - x385) - 2.59602030087875*sqr(x12) -
11.725358358969*x12*x16*sin(x381 - x385) + x166 =E= 0;
e111.. 2.59602030087875*x16*x12*cos(x385 - x381) - 2.59602030087875*sqr(x16) -
11.725358358969*x16*x12*sin(x385 - x381) + x167 =E= 0;
e112.. 6.41461755272621*x13*x14*cos(x382 - x383) - 6.41461755272621*sqr(x13) -
21.0904849839635*x13*x14*sin(x382 - x383) + x168 =E= 0;
e113.. 6.41461755272621*x14*x13*cos(x383 - x382) - 6.41461755272621*sqr(x14) -
21.0904849839635*x14*x13*sin(x383 - x382) + x169 =E= 0;
e114.. 20.8207017262879*x47*x48*cos(x416 - x417) - 20.8207017262879*sqr(x47) -
26.6550741880498*x47*x48*sin(x416 - x417) + x170 =E= 0;
e115.. 20.8207017262879*x48*x47*cos(x417 - x416) - 20.8207017262879*sqr(x48) -
26.6550741880498*x48*x47*sin(x417 - x416) + x171 =E= 0;
e116.. 0.922767737096112*x30*x31*cos(x399 - x400) - 0.922767737096112*sqr(x30)
- 1.40679621268947*x30*x31*sin(x399 - x400) + x172 =E= 0;
e117.. 0.922767737096112*x31*x30*cos(x400 - x399) - 0.922767737096112*sqr(x31)
- 1.40679621268947*x31*x30*sin(x400 - x399) + x173 =E= 0;
e118.. 1.24135697708587*x41*x42*cos(x410 - x411) - 1.24135697708587*sqr(x41) -
2.11090655040689*x41*x42*sin(x410 - x411) + x174 =E= 0;
e119.. 1.24135697708587*x42*x41*cos(x411 - x410) - 1.24135697708587*sqr(x42) -
2.11090655040689*x42*x41*sin(x411 - x410) + x175 =E= 0;
e120.. 2.64125488109603*x7*x8*cos(x376 - x377) - 2.64125488109603*sqr(x7) -
13.5293055779883*x7*x8*sin(x376 - x377) + x176 =E= 0;
e121.. 2.64125488109603*x8*x7*cos(x377 - x376) - 2.64125488109603*sqr(x8) -
13.5293055779883*x8*x7*sin(x377 - x376) + x177 =E= 0;
e122.. 30.0866129767513*x22*x23*cos(x391 - x392) - 30.0866129767513*sqr(x22) -
46.1935876006686*x22*x23*sin(x391 - x392) + x178 =E= 0;
e123.. 30.0866129767513*x23*x22*cos(x392 - x391) - 30.0866129767513*sqr(x23) -
46.1935876006686*x23*x22*sin(x392 - x391) + x179 =E= 0;
e124.. -1.33511348464619*x11*x41*sin(x380 - x410) + x180 =E= 0;
e125.. -1.33511348464619*x41*x11*sin(x410 - x380) + x181 =E= 0;
e126.. 5.20627188308723*x14*x15*cos(x383 - x384) - 5.20627188308723*sqr(x14) -
16.6539808189983*x14*x15*sin(x383 - x384) + x182 =E= 0;
e127.. 5.20627188308723*x15*x14*cos(x384 - x383) - 5.20627188308723*sqr(x15) -
16.6539808189983*x15*x14*sin(x384 - x383) + x183 =E= 0;
e128.. 3.51315635387879*x49*x50*cos(x418 - x419) - 3.51315635387879*sqr(x49) -
5.61403262542429*x49*x50*sin(x418 - x419) + x184 =E= 0;
e129.. 3.51315635387879*x50*x49*cos(x419 - x418) - 3.51315635387879*sqr(x50) -
5.61403262542429*x50*x49*sin(x419 - x418) + x185 =E= 0;
e130.. -6.5359477124183*x11*x43*sin(x380 - x412) + x186 =E= 0;
e131.. -6.5359477124183*x43*x11*sin(x412 - x380) + x187 =E= 0;
e132.. 0.676204920894292*x18*x19*cos(x387 - x388) - 0.676204920894292*sqr(x18)
- 1.00477303863902*x18*x19*sin(x387 - x388) + x188 =E= 0;
e133.. 0.676204920894292*x19*x18*cos(x388 - x387) - 0.676204920894292*sqr(x19)
- 1.00477303863902*x19*x18*sin(x388 - x387) + x189 =E= 0;
e134.. 3.80836576706122*x11*x13*cos(x380 - x382) - 3.80836576706122*sqr(x11) -
12.5010033250619*x11*x13*sin(x380 - x382) + x190 =E= 0;
e135.. 3.80836576706122*x13*x11*cos(x382 - x380) - 3.80836576706122*sqr(x13) -
12.5010033250619*x13*x11*sin(x382 - x380) + x191 =E= 0;
e136.. 9.76702392269726*x36*x40*cos(x405 - x409) - 9.76702392269726*sqr(x36) -
15.1714438265897*x36*x40*sin(x405 - x409) + x192 =E= 0;
e137.. 9.76702392269726*x40*x36*cos(x409 - x405) - 9.76702392269726*sqr(x40) -
15.1714438265897*x40*x36*sin(x409 - x405) + x193 =E= 0;
e138.. 0.710339072902274*x9*x12*cos(x378 - x381) - 0.710339072902274*sqr(x9) -
3.23379670534214*x9*x12*sin(x378 - x381) + x194 =E= 0;
e139.. 0.710339072902274*x12*x9*cos(x381 - x378) - 0.710339072902274*sqr(x12)
- 3.23379670534214*x12*x9*sin(x381 - x378) + x195 =E= 0;
e140.. 4.51493256729746*x37*x38*cos(x406 - x407) - 4.51493256729746*sqr(x37) -
6.99779871029668*x37*x38*sin(x406 - x407) + x196 =E= 0;
e141.. 4.51493256729746*x38*x37*cos(x407 - x406) - 4.51493256729746*sqr(x38) -
6.99779871029668*x38*x37*sin(x407 - x406) + x197 =E= 0;
e142.. 1.18094695287427*x12*x17*cos(x381 - x386) - 1.18094695287427*sqr(x12) -
5.32467265905526*x12*x17*sin(x381 - x386) + x198 =E= 0;
e143.. 1.18094695287427*x17*x12*cos(x386 - x381) - 1.18094695287427*sqr(x17) -
5.32467265905526*x17*x12*sin(x386 - x381) + x199 =E= 0;
e144.. 13.2993359503981*x36*x37*cos(x405 - x406) - 13.2993359503981*sqr(x36) -
16.7846791649851*x36*x37*sin(x405 - x406) + x200 =E= 0;
e145.. 13.2993359503981*x37*x36*cos(x406 - x405) - 13.2993359503981*sqr(x37) -
16.7846791649851*x37*x36*sin(x406 - x405) + x201 =E= 0;
e146.. 2.1079134978748*x53*x54*cos(x422 - x423) - 2.1079134978748*sqr(x53) -
2.60402519439273*x53*x54*sin(x422 - x423) + x202 =E= 0;
e147.. 2.1079134978748*x54*x53*cos(x423 - x422) - 2.1079134978748*sqr(x54) -
2.60402519439273*x54*x53*sin(x423 - x422) + x203 =E= 0;
e148.. -0.836820083682008*x40*x56*sin(x409 - x425) + x204 =E= 0;
e149.. -0.836820083682008*x56*x40*sin(x425 - x409) + x205 =E= 0;
e150.. 1.05421967255862*x19*x20*cos(x388 - x389) - 1.05421967255862*sqr(x19) -
1.6167185084468*x19*x20*sin(x388 - x389) + x206 =E= 0;
e151.. 1.05421967255862*x20*x19*cos(x389 - x388) - 1.05421967255862*sqr(x20) -
1.6167185084468*x20*x19*sin(x389 - x388) + x207 =E= 0;
e152.. -5.23560209424084*x13*x49*sin(x382 - x418) + x208 =E= 0;
e153.. -5.23560209424084*x49*x13*sin(x418 - x382) + x209 =E= 0;
e154.. 6.78808491447952*x38*x44*cos(x407 - x413) - 6.78808491447952*sqr(x38) -
13.7405871106246*x38*x44*sin(x407 - x413) + x210 =E= 0;
e155.. 6.78808491447952*x44*x38*cos(x413 - x407) - 6.78808491447952*sqr(x44) -
13.7405871106246*x44*x38*sin(x413 - x407) + x211 =E= 0;
e156.. 2.13036846395391*x54*x55*cos(x423 - x424) - 2.13036846395391*sqr(x54) -
2.78596106862333*x54*x55*sin(x423 - x424) + x212 =E= 0;
e157.. 2.13036846395391*x55*x54*cos(x424 - x423) - 2.13036846395391*sqr(x55) -
2.78596106862333*x55*x54*sin(x424 - x423) + x213 =E= 0;
e158.. 8.83042637877296*x1*x17*cos(x370 - x386) - 8.81612637877296*sqr(x1) +
1.94596433161849*x1*x17*sin(x370 - x386) + x214 =E= 0;
e159.. 8.83042637877296*x17*x1*cos(x386 - x370) - 8.81612637877296*sqr(x17) +
1.94596433161849*x17*x1*sin(x386 - x370) + x215 =E= 0;
e160.. 15.7572727964269*x12*x13*cos(x381 - x382) - 15.7270727964269*sqr(x12) +
4.83585268579998*x12*x13*sin(x381 - x382) + x216 =E= 0;
e161.. 15.7572727964269*x13*x12*cos(x382 - x381) - 15.7270727964269*sqr(x13) +
4.83585268579998*x13*x12*sin(x382 - x381) + x217 =E= 0;
e162.. 8.29875518672199*x9*x55*cos(x378 - x424) - 8.29875518672199*sqr(x9)
+ x218 =E= 0;
e163.. 8.29875518672199*x55*x9*cos(x424 - x378) - 8.29875518672199*sqr(x55)
+ x219 =E= 0;
e164.. 6.4287710798472*x44*x45*cos(x413 - x414) - 6.4267710798472*sqr(x44) +
3.22991397248362*x44*x45*sin(x413 - x414) + x220 =E= 0;
e165.. 6.4287710798472*x45*x44*cos(x414 - x413) - 6.4267710798472*sqr(x45) +
3.22991397248362*x45*x44*sin(x414 - x413) + x221 =E= 0;
e166.. 15.4320987654321*x7*x29*cos(x376 - x398) - 15.4320987654321*sqr(x7)
+ x222 =E= 0;
e167.. 15.4320987654321*x29*x7*cos(x398 - x376) - 15.4320987654321*sqr(x29)
+ x223 =E= 0;
e168.. 10.4769605474643*x2*x3*cos(x371 - x372) - 10.4360605474643*sqr(x2) +
3.67309910958161*x2*x3*sin(x371 - x372) + x224 =E= 0;
e169.. 10.4769605474643*x3*x2*cos(x372 - x371) - 10.4360605474643*sqr(x3) +
3.67309910958161*x3*x2*sin(x372 - x371) + x225 =E= 0;
e170.. 21.1416490486258*x24*x26*cos(x393 - x395) - 21.1416490486258*sqr(x24)
+ x226 =E= 0;
e171.. 21.1416490486258*x26*x24*cos(x395 - x393) - 21.1416490486258*sqr(x26)
+ x227 =E= 0;
e172.. 9.44094779711218*x6*x7*cos(x375 - x376) - 9.42714779711218*sqr(x6) +
1.85116623472788*x6*x7*sin(x375 - x376) + x228 =E= 0;
e173.. 9.44094779711218*x7*x6*cos(x376 - x375) - 9.42714779711218*sqr(x7) +
1.85116623472788*x7*x6*sin(x376 - x375) + x229 =E= 0;
e174.. 3.35349976256504*x29*x52*cos(x398 - x421) - 3.35349976256504*sqr(x29) +
2.58596077947529*x29*x52*sin(x398 - x421) + x230 =E= 0;
e175.. 3.35349976256504*x52*x29*cos(x421 - x398) - 3.35349976256504*sqr(x52) +
2.58596077947529*x52*x29*sin(x421 - x398) + x231 =E= 0;
e176.. 17.2557497460475*x3*x15*cos(x372 - x384) - 17.2285497460475*sqr(x3) +
5.27439897898054*x3*x15*sin(x372 - x384) + x232 =E= 0;
e177.. 17.2557497460475*x15*x3*cos(x384 - x372) - 17.2285497460475*sqr(x15) +
5.27439897898054*x15*x3*sin(x384 - x372) + x233 =E= 0;
e178.. 0.738007380073801*x39*x57*cos(x408 - x426) - 0.738007380073801*sqr(x39)
+ x234 =E= 0;
e179.. 0.738007380073801*x57*x39*cos(x426 - x408) - 0.738007380073801*sqr(x57)
+ x235 =E= 0;
e180.. 13.1961963904522*x46*x47*cos(x415 - x416) - 13.1945963904522*sqr(x46) +
4.46341936735882*x46*x47*sin(x415 - x416) + x236 =E= 0;
e181.. 13.1961963904522*x47*x46*cos(x416 - x415) - 13.1945963904522*sqr(x47) +
4.46341936735882*x47*x46*sin(x416 - x415) + x237 =E= 0;
e182.. 2.42718446601942*x41*x43*cos(x410 - x412) - 2.42718446601942*sqr(x41)
+ x238 =E= 0;
e183.. 2.42718446601942*x43*x41*cos(x412 - x410) - 2.42718446601942*sqr(x43)
+ x239 =E= 0;
e184.. 2.76866395613739*x26*x27*cos(x395 - x396) - 2.76866395613739*sqr(x26) +
1.79854154630972*x26*x27*sin(x395 - x396) + x240 =E= 0;
e185.. 2.76866395613739*x27*x26*cos(x396 - x395) - 2.76866395613739*sqr(x27) +
1.79854154630972*x27*x26*sin(x396 - x395) + x241 =E= 0;
e186.. 5.46689856487556*x48*x49*cos(x417 - x418) - 5.46449856487556*sqr(x48) +
3.53441349078001*x48*x49*sin(x417 - x418) + x242 =E= 0;
e187.. 5.46689856487556*x49*x48*cos(x418 - x417) - 5.46449856487556*sqr(x49) +
3.53441349078001*x49*x48*sin(x418 - x417) + x243 =E= 0;
e188.. 7.38367233212594*x27*x28*cos(x396 - x397) - 7.38367233212594*sqr(x27) +
4.78313364911303*x27*x28*sin(x396 - x397) + x244 =E= 0;
e189.. 7.38367233212594*x28*x27*cos(x397 - x396) - 7.38367233212594*sqr(x28) +
4.78313364911303*x28*x27*sin(x397 - x396) + x245 =E= 0;
e190.. 2.65642241203155*x57*x56*cos(x426 - x425) - 2.65642241203155*sqr(x57) +
1.77775961420573*x57*x56*sin(x426 - x425) + x246 =E= 0;
e191.. 2.65642241203155*x56*x57*cos(x425 - x426) - 2.65642241203155*sqr(x56) +
1.77775961420573*x56*x57*sin(x425 - x426) + x247 =E= 0;
e192.. 32.8295559802554*x1*x2*cos(x370 - x371) - 32.7650559802554*sqr(x1) +
9.73161837986141*x1*x2*sin(x370 - x371) + x248 =E= 0;
e193.. 32.8295559802554*x2*x1*cos(x371 - x370) - 32.7650559802554*sqr(x2) +
9.73161837986141*x2*x1*sin(x371 - x370) + x249 =E= 0;
e194.. 10.7933630999353*x9*x11*cos(x378 - x380) - 10.7824630999353*sqr(x9) +
3.28382981106523*x9*x11*sin(x378 - x380) + x250 =E= 0;
e195.. 10.7933630999353*x11*x9*cos(x380 - x378) - 10.7824630999353*sqr(x11) +
3.28382981106523*x11*x9*sin(x380 - x378) + x251 =E= 0;
e196.. 8.87573964497041*x34*x35*cos(x403 - x404) - 8.87413964497041*sqr(x34) +
5.91715976331361*x34*x35*sin(x403 - x404) + x252 =E= 0;
e197.. 8.87573964497041*x35*x34*cos(x404 - x403) - 8.87413964497041*sqr(x35) +
5.91715976331361*x35*x34*sin(x404 - x403) + x253 =E= 0;
e198.. 24.9829351535836*x3*x4*cos(x372 - x373) - 24.9639351535836*sqr(x3) +
7.64505119453925*x3*x4*sin(x372 - x373) + x254 =E= 0;
e199.. 24.9829351535836*x4*x3*cos(x373 - x372) - 24.9639351535836*sqr(x4) +
7.64505119453925*x4*x3*sin(x373 - x372) + x255 =E= 0;
e200.. 4.62950893944692*x1*x16*cos(x370 - x385) - 4.60220893944692*sqr(x1) +
1.02028983422762*x1*x16*sin(x370 - x385) + x256 =E= 0;
e201.. 4.62950893944692*x16*x1*cos(x385 - x370) - 4.60220893944692*sqr(x16) +
1.02028983422762*x16*x1*sin(x385 - x370) + x257 =E= 0;
e202.. 1.65903181874417*x24*x25*cos(x393 - x394) - 1.65903181874417*sqr(x24)
+ x258 =E= 0;
e203.. 1.65903181874417*x25*x24*cos(x394 - x393) - 1.65903181874417*sqr(x25)
+ x259 =E= 0;
e204.. 18.8780745360178*x37*x39*cos(x406 - x408) - 18.8780745360178*sqr(x37) +
11.9046433089927*x37*x39*sin(x406 - x408) + x260 =E= 0;
e205.. 18.8780745360178*x39*x37*cos(x408 - x406) - 18.8780745360178*sqr(x39) +
11.9046433089927*x39*x37*sin(x408 - x406) + x261 =E= 0;
e206.. 6.18839441638049*x4*x5*cos(x373 - x374) - 6.17549441638049*sqr(x4) +
2.9301109926044*x4*x5*sin(x373 - x374) + x262 =E= 0;
e207.. 6.18839441638049*x5*x4*cos(x374 - x373) - 6.17549441638049*sqr(x5) +
2.9301109926044*x5*x4*sin(x374 - x373) + x263 =E= 0;
e208.. 3.42204679056057*x25*x30*cos(x394 - x399) - 3.42204679056057*sqr(x25) +
2.287011468939*x25*x30*sin(x394 - x399) + x264 =E= 0;
e209.. 3.42204679056057*x30*x25*cos(x399 - x394) - 3.42204679056057*sqr(x30) +
2.287011468939*x30*x25*sin(x399 - x394) + x265 =E= 0;
e210.. 2.74996777381515*x23*x24*cos(x392 - x393) - 2.74576777381515*sqr(x23) +
1.78318222833326*x23*x24*sin(x392 - x393) + x266 =E= 0;
e211.. 2.74996777381515*x24*x23*cos(x393 - x392) - 2.74576777381515*sqr(x24) +
1.78318222833326*x24*x23*sin(x393 - x392) + x267 =E= 0;
e212.. 12.7089923181202*x32*x33*cos(x401 - x402) - 12.7089923181202*sqr(x32) +
13.8386805241753*x32*x33*sin(x401 - x402) + x268 =E= 0;
e213.. 12.7089923181202*x33*x32*cos(x402 - x401) - 12.7089923181202*sqr(x33) +
13.8386805241753*x33*x32*sin(x402 - x401) + x269 =E= 0;
e214.. 11.3038304001787*x28*x29*cos(x397 - x398) - 11.3038304001787*sqr(x28) +
8.0494056341988*x28*x29*sin(x397 - x398) + x270 =E= 0;
e215.. 11.3038304001787*x29*x28*cos(x398 - x397) - 11.3038304001787*sqr(x29) +
8.0494056341988*x29*x28*sin(x398 - x397) + x271 =E= 0;
e216.. 2.07658431210945*x56*x42*cos(x425 - x411) - 2.07658431210945*sqr(x56) +
1.24653719300355*x56*x42*sin(x425 - x411) + x272 =E= 0;
e217.. 2.07658431210945*x42*x56*cos(x411 - x425) - 2.07658431210945*sqr(x42) +
1.24653719300355*x42*x56*sin(x411 - x425) + x273 =E= 0;
e218.. 19.0691246327777*x8*x9*cos(x377 - x378) - 19.0417246327777*sqr(x8) +
3.73830364088118*x8*x9*sin(x377 - x378) + x274 =E= 0;
e219.. 19.0691246327777*x9*x8*cos(x378 - x377) - 19.0417246327777*sqr(x9) +
3.73830364088118*x9*x8*sin(x378 - x377) + x275 =E= 0;
e220.. 23.8116378370961*x22*x38*cos(x391 - x407) - 23.8116378370961*sqr(x22) +
15.4977439482117*x22*x38*sin(x391 - x407) + x276 =E= 0;
e221.. 23.8116378370961*x38*x22*cos(x407 - x391) - 23.8116378370961*sqr(x38) +
15.4977439482117*x38*x22*sin(x407 - x391) + x277 =E= 0;
e222.. 1.28749839062701*x21*x20*cos(x390 - x389) - 1.28749839062701*sqr(x21)
+ x278 =E= 0;
e223.. 1.28749839062701*x20*x21*cos(x389 - x390) - 1.28749839062701*sqr(x20)
+ x279 =E= 0;
e224.. 9.59692898272553*x15*x45*cos(x384 - x414) - 9.59692898272553*sqr(x15)
+ x280 =E= 0;
e225.. 9.59692898272553*x45*x15*cos(x414 - x384) - 9.59692898272553*sqr(x45)
+ x281 =E= 0;
e226.. 6.3528956033314*x52*x53*cos(x421 - x422) - 6.3528956033314*sqr(x52) +
4.91962037575053*x52*x53*sin(x421 - x422) + x282 =E= 0;
e227.. 6.3528956033314*x53*x52*cos(x422 - x421) - 6.3528956033314*sqr(x53) +
4.91962037575053*x53*x52*sin(x422 - x421) + x283 =E= 0;
e228.. 1.04931794333683*x34*x32*cos(x403 - x401) - 1.04931794333683*sqr(x34)
+ x284 =E= 0;
e229.. 1.04931794333683*x32*x34*cos(x401 - x403) - 1.04931794333683*sqr(x32)
+ x285 =E= 0;
e230.. 5.6815067125699*x9*x10*cos(x378 - x379) - 5.6595067125699*sqr(x9) +
1.2486456086589*x9*x10*sin(x378 - x379) + x286 =E= 0;
e231.. 5.6815067125699*x10*x9*cos(x379 - x378) - 5.6595067125699*sqr(x10) +
1.2486456086589*x10*x9*sin(x379 - x378) + x287 =E= 0;
e232.. 0.904135307389536*x56*x41*cos(x425 - x410) - 0.904135307389536*sqr(x56)
+ 0.910722814182902*x56*x41*sin(x425 - x410) + x288 =E= 0;
e233.. 0.904135307389536*x41*x56*cos(x410 - x425) - 0.904135307389536*sqr(x41)
+ 0.910722814182902*x41*x56*sin(x410 - x425) + x289 =E= 0;
e234.. 10.5012313872018*x13*x15*cos(x382 - x384) - 10.4897313872018*sqr(x13) +
3.25066886439273*x13*x15*sin(x382 - x384) + x290 =E= 0;
e235.. 10.5012313872018*x15*x13*cos(x384 - x382) - 10.4897313872018*sqr(x15) +
3.25066886439273*x15*x13*sin(x384 - x382) + x291 =E= 0;
e236.. 0.912856648860924*x31*x32*cos(x400 - x401) - 0.912856648860924*sqr(x31)
+ 0.613004398639058*x31*x32*sin(x400 - x401) + x292 =E= 0;
e237.. 0.912856648860924*x32*x31*cos(x401 - x400) - 0.912856648860924*sqr(x32)
+ 0.613004398639058*x32*x31*sin(x401 - x400) + x293 =E= 0;
e238.. 5.56660116525373*x6*x8*cos(x375 - x377) - 5.54310116525373*sqr(x6) +
1.09079641330694*x6*x8*sin(x375 - x377) + x294 =E= 0;
e239.. 5.56660116525373*x8*x6*cos(x377 - x375) - 5.54310116525373*sqr(x8) +
1.09079641330694*x8*x6*sin(x377 - x375) + x295 =E= 0;
e240.. 13.6054421768707*x14*x46*cos(x383 - x415) - 13.6054421768707*sqr(x14)
+ x296 =E= 0;
e241.. 13.6054421768707*x46*x14*cos(x415 - x383) - 13.6054421768707*sqr(x46)
+ x297 =E= 0;
e242.. 3.97270727656327*x38*x49*cos(x407 - x418) - 3.97120727656327*sqr(x38) +
2.58113749607218*x38*x49*sin(x407 - x418) + x298 =E= 0;
e243.. 3.97270727656327*x49*x38*cos(x418 - x407) - 3.97120727656327*sqr(x49) +
2.58113749607218*x49*x38*sin(x418 - x407) + x299 =E= 0;
e244.. 7.55972451932552*x10*x12*cos(x379 - x381) - 7.54332451932552*sqr(x10) +
1.659305619535*x10*x12*sin(x379 - x381) + x300 =E= 0;
e245.. 7.55972451932552*x12*x10*cos(x381 - x379) - 7.54332451932552*sqr(x12) +
1.659305619535*x12*x10*sin(x381 - x379) + x301 =E= 0;
e246.. 14.6207699867746*x38*x48*cos(x407 - x417) - 14.6207699867746*sqr(x38) +
9.46406687940595*x38*x48*sin(x407 - x417) + x302 =E= 0;
e247.. 14.6207699867746*x48*x38*cos(x417 - x407) - 14.6207699867746*sqr(x48) +
9.46406687940595*x48*x38*sin(x417 - x407) + x303 =E= 0;
e248.. 10.5840536692937*x1*x15*cos(x370 - x384) - 10.5346536692937*sqr(x1) +
2.07028742102668*x1*x15*sin(x370 - x384) + x304 =E= 0;
e249.. 10.5840536692937*x15*x1*cos(x384 - x370) - 10.5346536692937*sqr(x15) +
2.07028742102668*x15*x1*sin(x384 - x370) + x305 =E= 0;
e250.. 6.12374358577114*x21*x22*cos(x390 - x391) - 6.12374358577114*sqr(x21) +
3.85220109327142*x21*x22*sin(x390 - x391) + x306 =E= 0;
e251.. 6.12374358577114*x22*x21*cos(x391 - x390) - 6.12374358577114*sqr(x22) +
3.85220109327142*x22*x21*sin(x391 - x390) + x307 =E= 0;
e252.. 6.23079189997053*x4*x6*cos(x373 - x375) - 6.21339189997053*sqr(x4) +
1.81029764661306*x4*x6*sin(x373 - x375) + x308 =E= 0;
e253.. 6.23079189997053*x6*x4*cos(x375 - x373) - 6.21339189997053*sqr(x6) +
1.81029764661306*x6*x4*sin(x375 - x373) + x309 =E= 0;
e254.. 12.7667625999582*x5*x6*cos(x374 - x375) - 12.7605625999582*sqr(x5) +
6.01491779280401*x5*x6*sin(x374 - x375) + x310 =E= 0;
e255.. 12.7667625999582*x6*x5*cos(x375 - x374) - 12.7605625999582*sqr(x6) +
6.01491779280401*x6*x5*sin(x375 - x374) + x311 =E= 0;
e256.. 11.3466126029805*x35*x36*cos(x404 - x405) - 11.3458126029805*sqr(x35) +
9.08574193534755*x35*x36*sin(x404 - x405) + x312 =E= 0;
e257.. 11.3466126029805*x36*x35*cos(x405 - x404) - 11.3458126029805*sqr(x36) +
9.08574193534755*x36*x35*sin(x405 - x404) + x313 =E= 0;
e258.. 3.2539584404428*x50*x51*cos(x419 - x420) - 3.2539584404428*sqr(x50) +
2.04999381747896*x50*x51*sin(x419 - x420) + x314 =E= 0;
e259.. 3.2539584404428*x51*x50*cos(x420 - x419) - 3.2539584404428*sqr(x51) +
2.04999381747896*x51*x50*sin(x420 - x419) + x315 =E= 0;
e260.. 4.1273831971573*x4*x18*cos(x373 - x387) - 4.1273831971573*sqr(x4) + x316
=E= 0;
e261.. 4.1273831971573*x18*x4*cos(x387 - x373) - 4.1273831971573*sqr(x18)
+ x317 =E= 0;
e262.. 5.79229631921565*x9*x13*cos(x378 - x382) - 5.77199631921565*sqr(x9) +
1.76335096806502*x9*x13*sin(x378 - x382) + x318 =E= 0;
e263.. 5.79229631921565*x13*x9*cos(x382 - x378) - 5.77199631921565*sqr(x13) +
1.76335096806502*x13*x9*sin(x382 - x378) + x319 =E= 0;
e264.. 14.0449438202247*x10*x51*cos(x379 - x420) - 14.0449438202247*sqr(x10)
+ x320 =E= 0;
e265.. 14.0449438202247*x51*x10*cos(x420 - x379) - 14.0449438202247*sqr(x51)
+ x321 =E= 0;
e266.. 11.725358358969*x12*x16*cos(x381 - x385) - 11.714558358969*sqr(x12) +
2.59602030087875*x12*x16*sin(x381 - x385) + x322 =E= 0;
e267.. 11.725358358969*x16*x12*cos(x385 - x381) - 11.714558358969*sqr(x16) +
2.59602030087875*x16*x12*sin(x385 - x381) + x323 =E= 0;
e268.. 21.0904849839635*x13*x14*cos(x382 - x383) - 21.0849849839635*sqr(x13) +
6.41461755272621*x13*x14*sin(x382 - x383) + x324 =E= 0;
e269.. 21.0904849839635*x14*x13*cos(x383 - x382) - 21.0849849839635*sqr(x14) +
6.41461755272621*x14*x13*sin(x383 - x382) + x325 =E= 0;
e270.. 26.6550741880498*x47*x48*cos(x416 - x417) - 26.6550741880498*sqr(x47) +
20.8207017262879*x47*x48*sin(x416 - x417) + x326 =E= 0;
e271.. 26.6550741880498*x48*x47*cos(x417 - x416) - 26.6550741880498*sqr(x48) +
20.8207017262879*x48*x47*sin(x417 - x416) + x327 =E= 0;
e272.. 1.40679621268947*x30*x31*cos(x399 - x400) - 1.40679621268947*sqr(x30) +
0.922767737096112*x30*x31*sin(x399 - x400) + x328 =E= 0;
e273.. 1.40679621268947*x31*x30*cos(x400 - x399) - 1.40679621268947*sqr(x31) +
0.922767737096112*x31*x30*sin(x400 - x399) + x329 =E= 0;
e274.. 2.11090655040689*x41*x42*cos(x410 - x411) - 2.11090655040689*sqr(x41) +
1.24135697708587*x41*x42*sin(x410 - x411) + x330 =E= 0;
e275.. 2.11090655040689*x42*x41*cos(x411 - x410) - 2.11090655040689*sqr(x42) +
1.24135697708587*x42*x41*sin(x411 - x410) + x331 =E= 0;
e276.. 13.5293055779883*x7*x8*cos(x376 - x377) - 13.5196055779883*sqr(x7) +
2.64125488109603*x7*x8*sin(x376 - x377) + x332 =E= 0;
e277.. 13.5293055779883*x8*x7*cos(x377 - x376) - 13.5196055779883*sqr(x8) +
2.64125488109603*x8*x7*sin(x377 - x376) + x333 =E= 0;
e278.. 46.1935876006686*x22*x23*cos(x391 - x392) - 46.1935876006686*sqr(x22) +
30.0866129767513*x22*x23*sin(x391 - x392) + x334 =E= 0;
e279.. 46.1935876006686*x23*x22*cos(x392 - x391) - 46.1935876006686*sqr(x23) +
30.0866129767513*x23*x22*sin(x392 - x391) + x335 =E= 0;
e280.. 1.33511348464619*x11*x41*cos(x380 - x410) - 1.33511348464619*sqr(x11)
+ x336 =E= 0;
e281.. 1.33511348464619*x41*x11*cos(x410 - x380) - 1.33511348464619*sqr(x41)
+ x337 =E= 0;
e282.. 16.6539808189983*x14*x15*cos(x383 - x384) - 16.6465808189983*sqr(x14) +
5.20627188308723*x14*x15*sin(x383 - x384) + x338 =E= 0;
e283.. 16.6539808189983*x15*x14*cos(x384 - x383) - 16.6465808189983*sqr(x15) +
5.20627188308723*x15*x14*sin(x384 - x383) + x339 =E= 0;
e284.. 5.61403262542429*x49*x50*cos(x418 - x419) - 5.61403262542429*sqr(x49) +
3.51315635387879*x49*x50*sin(x418 - x419) + x340 =E= 0;
e285.. 5.61403262542429*x50*x49*cos(x419 - x418) - 5.61403262542429*sqr(x50) +
3.51315635387879*x50*x49*sin(x419 - x418) + x341 =E= 0;
e286.. 6.5359477124183*x11*x43*cos(x380 - x412) - 6.5359477124183*sqr(x11)
+ x342 =E= 0;
e287.. 6.5359477124183*x43*x11*cos(x412 - x380) - 6.5359477124183*sqr(x43)
+ x343 =E= 0;
e288.. 1.00477303863902*x18*x19*cos(x387 - x388) - 1.00477303863902*sqr(x18) +
0.676204920894292*x18*x19*sin(x387 - x388) + x344 =E= 0;
e289.. 1.00477303863902*x19*x18*cos(x388 - x387) - 1.00477303863902*sqr(x19) +
0.676204920894292*x19*x18*sin(x388 - x387) + x345 =E= 0;
e290.. 12.5010033250619*x11*x13*cos(x380 - x382) - 12.491603325062*sqr(x11) +
3.80836576706122*x11*x13*sin(x380 - x382) + x346 =E= 0;
e291.. 12.5010033250619*x13*x11*cos(x382 - x380) - 12.491603325062*sqr(x13) +
3.80836576706122*x13*x11*sin(x382 - x380) + x347 =E= 0;
e292.. 15.1714438265897*x36*x40*cos(x405 - x409) - 15.1714438265897*sqr(x36) +
9.76702392269726*x36*x40*sin(x405 - x409) + x348 =E= 0;
e293.. 15.1714438265897*x40*x36*cos(x409 - x405) - 15.1714438265897*sqr(x40) +
9.76702392269726*x40*x36*sin(x409 - x405) + x349 =E= 0;
e294.. 3.23379670534214*x9*x12*cos(x378 - x381) - 3.19519670534214*sqr(x9) +
0.710339072902274*x9*x12*sin(x378 - x381) + x350 =E= 0;
e295.. 3.23379670534214*x12*x9*cos(x381 - x378) - 3.19519670534214*sqr(x12) +
0.710339072902274*x12*x9*sin(x381 - x378) + x351 =E= 0;
e296.. 6.99779871029668*x37*x38*cos(x406 - x407) - 6.99679871029668*sqr(x37) +
4.51493256729746*x37*x38*sin(x406 - x407) + x352 =E= 0;
e297.. 6.99779871029668*x38*x37*cos(x407 - x406) - 6.99679871029668*sqr(x38) +
4.51493256729746*x38*x37*sin(x407 - x406) + x353 =E= 0;
e298.. 5.32467265905526*x12*x17*cos(x381 - x386) - 5.30087265905526*sqr(x12) +
1.18094695287427*x12*x17*sin(x381 - x386) + x354 =E= 0;
e299.. 5.32467265905526*x17*x12*cos(x386 - x381) - 5.30087265905526*sqr(x17) +
1.18094695287427*x17*x12*sin(x386 - x381) + x355 =E= 0;
e300.. 16.7846791649851*x36*x37*cos(x405 - x406) - 16.7846791649851*sqr(x36) +
13.2993359503981*x36*x37*sin(x405 - x406) + x356 =E= 0;
e301.. 16.7846791649851*x37*x36*cos(x406 - x405) - 16.7846791649851*sqr(x37) +
13.2993359503981*x37*x36*sin(x406 - x405) + x357 =E= 0;
e302.. 2.60402519439273*x53*x54*cos(x422 - x423) - 2.60402519439273*sqr(x53) +
2.1079134978748*x53*x54*sin(x422 - x423) + x358 =E= 0;
e303.. 2.60402519439273*x54*x53*cos(x423 - x422) - 2.60402519439273*sqr(x54) +
2.1079134978748*x54*x53*sin(x423 - x422) + x359 =E= 0;
e304.. 0.836820083682008*x40*x56*cos(x409 - x425) - 0.836820083682008*sqr(x40)
+ x360 =E= 0;
e305.. 0.836820083682008*x56*x40*cos(x425 - x409) - 0.836820083682008*sqr(x56)
+ x361 =E= 0;
e306.. 1.6167185084468*x19*x20*cos(x388 - x389) - 1.6167185084468*sqr(x19) +
1.05421967255862*x19*x20*sin(x388 - x389) + x362 =E= 0;
e307.. 1.6167185084468*x20*x19*cos(x389 - x388) - 1.6167185084468*sqr(x20) +
1.05421967255862*x20*x19*sin(x389 - x388) + x363 =E= 0;
e308.. 5.23560209424084*x13*x49*cos(x382 - x418) - 5.23560209424084*sqr(x13)
+ x364 =E= 0;
e309.. 5.23560209424084*x49*x13*cos(x418 - x382) - 5.23560209424084*sqr(x49)
+ x365 =E= 0;
e310.. 13.7405871106246*x38*x44*cos(x407 - x413) - 13.7395871106246*sqr(x38) +
6.78808491447952*x38*x44*sin(x407 - x413) + x366 =E= 0;
e311.. 13.7405871106246*x44*x38*cos(x413 - x407) - 13.7395871106246*sqr(x44) +
6.78808491447952*x44*x38*sin(x413 - x407) + x367 =E= 0;
e312.. 2.78596106862333*x54*x55*cos(x423 - x424) - 2.78596106862333*sqr(x54) +
2.13036846395391*x54*x55*sin(x423 - x424) + x368 =E= 0;
e313.. 2.78596106862333*x55*x54*cos(x424 - x423) - 2.78596106862333*sqr(x55) +
2.13036846395391*x55*x54*sin(x424 - x423) + x369 =E= 0;
e314.. sqr(x58) + sqr(x214) =L= 9801;
e315.. sqr(x59) + sqr(x215) =L= 9801;
e316.. sqr(x60) + sqr(x216) =L= 9801;
e317.. sqr(x61) + sqr(x217) =L= 9801;
e318.. sqr(x62) + sqr(x218) =L= 9801;
e319.. sqr(x63) + sqr(x219) =L= 9801;
e320.. sqr(x64) + sqr(x220) =L= 9801;
e321.. sqr(x65) + sqr(x221) =L= 9801;
e322.. sqr(x66) + sqr(x222) =L= 9801;
e323.. sqr(x67) + sqr(x223) =L= 9801;
e324.. sqr(x68) + sqr(x224) =L= 9801;
e325.. sqr(x69) + sqr(x225) =L= 9801;
e326.. sqr(x70) + sqr(x226) =L= 9801;
e327.. sqr(x71) + sqr(x227) =L= 9801;
e328.. sqr(x72) + sqr(x228) =L= 9801;
e329.. sqr(x73) + sqr(x229) =L= 9801;
e330.. sqr(x74) + sqr(x230) =L= 9801;
e331.. sqr(x75) + sqr(x231) =L= 9801;
e332.. sqr(x76) + sqr(x232) =L= 9801;
e333.. sqr(x77) + sqr(x233) =L= 9801;
e334.. sqr(x78) + sqr(x234) =L= 9801;
e335.. sqr(x79) + sqr(x235) =L= 9801;
e336.. sqr(x80) + sqr(x236) =L= 9801;
e337.. sqr(x81) + sqr(x237) =L= 9801;
e338.. sqr(x82) + sqr(x238) =L= 9801;
e339.. sqr(x83) + sqr(x239) =L= 9801;
e340.. sqr(x84) + sqr(x240) =L= 9801;
e341.. sqr(x85) + sqr(x241) =L= 9801;
e342.. sqr(x86) + sqr(x242) =L= 9801;
e343.. sqr(x87) + sqr(x243) =L= 9801;
e344.. sqr(x88) + sqr(x244) =L= 9801;
e345.. sqr(x89) + sqr(x245) =L= 9801;
e346.. sqr(x90) + sqr(x246) =L= 9801;
e347.. sqr(x91) + sqr(x247) =L= 9801;
e348.. sqr(x92) + sqr(x248) =L= 9801;
e349.. sqr(x93) + sqr(x249) =L= 9801;
e350.. sqr(x94) + sqr(x250) =L= 9801;
e351.. sqr(x95) + sqr(x251) =L= 9801;
e352.. sqr(x96) + sqr(x252) =L= 9801;
e353.. sqr(x97) + sqr(x253) =L= 9801;
e354.. sqr(x98) + sqr(x254) =L= 9801;
e355.. sqr(x99) + sqr(x255) =L= 9801;
e356.. sqr(x100) + sqr(x256) =L= 9801;
e357.. sqr(x101) + sqr(x257) =L= 9801;
e358.. sqr(x102) + sqr(x258) =L= 9801;
e359.. sqr(x103) + sqr(x259) =L= 9801;
e360.. sqr(x104) + sqr(x260) =L= 9801;
e361.. sqr(x105) + sqr(x261) =L= 9801;
e362.. sqr(x106) + sqr(x262) =L= 9801;
e363.. sqr(x107) + sqr(x263) =L= 9801;
e364.. sqr(x108) + sqr(x264) =L= 9801;
e365.. sqr(x109) + sqr(x265) =L= 9801;
e366.. sqr(x110) + sqr(x266) =L= 9801;
e367.. sqr(x111) + sqr(x267) =L= 9801;
e368.. sqr(x112) + sqr(x268) =L= 9801;
e369.. sqr(x113) + sqr(x269) =L= 9801;
e370.. sqr(x114) + sqr(x270) =L= 9801;
e371.. sqr(x115) + sqr(x271) =L= 9801;
e372.. sqr(x116) + sqr(x272) =L= 9801;
e373.. sqr(x117) + sqr(x273) =L= 9801;
e374.. sqr(x118) + sqr(x274) =L= 9801;
e375.. sqr(x119) + sqr(x275) =L= 9801;
e376.. sqr(x120) + sqr(x276) =L= 9801;
e377.. sqr(x121) + sqr(x277) =L= 9801;
e378.. sqr(x122) + sqr(x278) =L= 9801;
e379.. sqr(x123) + sqr(x279) =L= 9801;
e380.. sqr(x124) + sqr(x280) =L= 9801;
e381.. sqr(x125) + sqr(x281) =L= 9801;
e382.. sqr(x126) + sqr(x282) =L= 9801;
e383.. sqr(x127) + sqr(x283) =L= 9801;
e384.. sqr(x128) + sqr(x284) =L= 9801;
e385.. sqr(x129) + sqr(x285) =L= 9801;
e386.. sqr(x130) + sqr(x286) =L= 9801;
e387.. sqr(x131) + sqr(x287) =L= 9801;
e388.. sqr(x132) + sqr(x288) =L= 9801;
e389.. sqr(x133) + sqr(x289) =L= 9801;
e390.. sqr(x134) + sqr(x290) =L= 9801;
e391.. sqr(x135) + sqr(x291) =L= 9801;
e392.. sqr(x136) + sqr(x292) =L= 9801;
e393.. sqr(x137) + sqr(x293) =L= 9801;
e394.. sqr(x138) + sqr(x294) =L= 9801;
e395.. sqr(x139) + sqr(x295) =L= 9801;
e396.. sqr(x140) + sqr(x296) =L= 9801;
e397.. sqr(x141) + sqr(x297) =L= 9801;
e398.. sqr(x142) + sqr(x298) =L= 9801;
e399.. sqr(x143) + sqr(x299) =L= 9801;
e400.. sqr(x144) + sqr(x300) =L= 9801;
e401.. sqr(x145) + sqr(x301) =L= 9801;
e402.. sqr(x146) + sqr(x302) =L= 9801;
e403.. sqr(x147) + sqr(x303) =L= 9801;
e404.. sqr(x148) + sqr(x304) =L= 9801;
e405.. sqr(x149) + sqr(x305) =L= 9801;
e406.. sqr(x150) + sqr(x306) =L= 9801;
e407.. sqr(x151) + sqr(x307) =L= 9801;
e408.. sqr(x152) + sqr(x308) =L= 9801;
e409.. sqr(x153) + sqr(x309) =L= 9801;
e410.. sqr(x154) + sqr(x310) =L= 9801;
e411.. sqr(x155) + sqr(x311) =L= 9801;
e412.. sqr(x156) + sqr(x312) =L= 9801;
e413.. sqr(x157) + sqr(x313) =L= 9801;
e414.. sqr(x158) + sqr(x314) =L= 9801;
e415.. sqr(x159) + sqr(x315) =L= 9801;
e416.. sqr(x160) + sqr(x316) =L= 9801;
e417.. sqr(x161) + sqr(x317) =L= 9801;
e418.. sqr(x162) + sqr(x318) =L= 9801;
e419.. sqr(x163) + sqr(x319) =L= 9801;
e420.. sqr(x164) + sqr(x320) =L= 9801;
e421.. sqr(x165) + sqr(x321) =L= 9801;
e422.. sqr(x166) + sqr(x322) =L= 9801;
e423.. sqr(x167) + sqr(x323) =L= 9801;
e424.. sqr(x168) + sqr(x324) =L= 9801;
e425.. sqr(x169) + sqr(x325) =L= 9801;
e426.. sqr(x170) + sqr(x326) =L= 9801;
e427.. sqr(x171) + sqr(x327) =L= 9801;
e428.. sqr(x172) + sqr(x328) =L= 9801;
e429.. sqr(x173) + sqr(x329) =L= 9801;
e430.. sqr(x174) + sqr(x330) =L= 9801;
e431.. sqr(x175) + sqr(x331) =L= 9801;
e432.. sqr(x176) + sqr(x332) =L= 9801;
e433.. sqr(x177) + sqr(x333) =L= 9801;
e434.. sqr(x178) + sqr(x334) =L= 9801;
e435.. sqr(x179) + sqr(x335) =L= 9801;
e436.. sqr(x180) + sqr(x336) =L= 9801;
e437.. sqr(x181) + sqr(x337) =L= 9801;
e438.. sqr(x182) + sqr(x338) =L= 9801;
e439.. sqr(x183) + sqr(x339) =L= 9801;
e440.. sqr(x184) + sqr(x340) =L= 9801;
e441.. sqr(x185) + sqr(x341) =L= 9801;
e442.. sqr(x186) + sqr(x342) =L= 9801;
e443.. sqr(x187) + sqr(x343) =L= 9801;
e444.. sqr(x188) + sqr(x344) =L= 9801;
e445.. sqr(x189) + sqr(x345) =L= 9801;
e446.. sqr(x190) + sqr(x346) =L= 9801;
e447.. sqr(x191) + sqr(x347) =L= 9801;
e448.. sqr(x192) + sqr(x348) =L= 9801;
e449.. sqr(x193) + sqr(x349) =L= 9801;
e450.. sqr(x194) + sqr(x350) =L= 9801;
e451.. sqr(x195) + sqr(x351) =L= 9801;
e452.. sqr(x196) + sqr(x352) =L= 9801;
e453.. sqr(x197) + sqr(x353) =L= 9801;
e454.. sqr(x198) + sqr(x354) =L= 9801;
e455.. sqr(x199) + sqr(x355) =L= 9801;
e456.. sqr(x200) + sqr(x356) =L= 9801;
e457.. sqr(x201) + sqr(x357) =L= 9801;
e458.. sqr(x202) + sqr(x358) =L= 9801;
e459.. sqr(x203) + sqr(x359) =L= 9801;
e460.. sqr(x204) + sqr(x360) =L= 9801;
e461.. sqr(x205) + sqr(x361) =L= 9801;
e462.. sqr(x206) + sqr(x362) =L= 9801;
e463.. sqr(x207) + sqr(x363) =L= 9801;
e464.. sqr(x208) + sqr(x364) =L= 9801;
e465.. sqr(x209) + sqr(x365) =L= 9801;
e466.. sqr(x210) + sqr(x366) =L= 9801;
e467.. sqr(x211) + sqr(x367) =L= 9801;
e468.. sqr(x212) + sqr(x368) =L= 9801;
e469.. sqr(x213) + sqr(x369) =L= 9801;
e470.. x427 =L= 5.7588;
e471.. x428 =L= 1;
e472.. x429 =L= 1.4;
e473.. x430 =L= 1;
e474.. x431 =L= 5.5;
e475.. x432 =L= 1;
e476.. x433 =L= 4.1;
e477.. x427 =G= 0;
e478.. x428 =G= 0;
e479.. x429 =G= 0;
e480.. x430 =G= 0;
e481.. x431 =G= 0;
e482.. x432 =G= 0;
e483.. x433 =G= 0;
e484.. x434 =L= 2;
e485.. x435 =L= 0.5;
e486.. x436 =L= 0.6;
e487.. x437 =L= 0.25;
e488.. x438 =L= 2;
e489.. x439 =L= 0.09;
e490.. x440 =L= 1.55;
e491.. x434 =G= -1.4;
e492.. x435 =G= -0.17;
e493.. x436 =G= -0.1;
e494.. x437 =G= -0.08;
e495.. x438 =G= -1.4;
e496.. x439 =G= -0.03;
e497.. x440 =G= -1.5;
e498.. x1 =L= 1.06;
e499.. x2 =L= 1.06;
e500.. x3 =L= 1.06;
e501.. x4 =L= 1.06;
e502.. x5 =L= 1.06;
e503.. x6 =L= 1.06;
e504.. x7 =L= 1.06;
e505.. x8 =L= 1.06;
e506.. x9 =L= 1.06;
e507.. x10 =L= 1.06;
e508.. x11 =L= 1.06;
e509.. x12 =L= 1.06;
e510.. x13 =L= 1.06;
e511.. x14 =L= 1.06;
e512.. x15 =L= 1.06;
e513.. x16 =L= 1.06;
e514.. x17 =L= 1.06;
e515.. x18 =L= 1.06;
e516.. x19 =L= 1.06;
e517.. x20 =L= 1.06;
e518.. x21 =L= 1.06;
e519.. x22 =L= 1.06;
e520.. x23 =L= 1.06;
e521.. x24 =L= 1.06;
e522.. x25 =L= 1.06;
e523.. x26 =L= 1.06;
e524.. x27 =L= 1.06;
e525.. x28 =L= 1.06;
e526.. x29 =L= 1.06;
e527.. x30 =L= 1.06;
e528.. x31 =L= 1.06;
e529.. x32 =L= 1.06;
e530.. x33 =L= 1.06;
e531.. x34 =L= 1.06;
e532.. x35 =L= 1.06;
e533.. x36 =L= 1.06;
e534.. x37 =L= 1.06;
e535.. x38 =L= 1.06;
e536.. x39 =L= 1.06;
e537.. x40 =L= 1.06;
e538.. x41 =L= 1.06;
e539.. x42 =L= 1.06;
e540.. x43 =L= 1.06;
e541.. x44 =L= 1.06;
e542.. x45 =L= 1.06;
e543.. x46 =L= 1.06;
e544.. x47 =L= 1.06;
e545.. x48 =L= 1.06;
e546.. x49 =L= 1.06;
e547.. x50 =L= 1.06;
e548.. x51 =L= 1.06;
e549.. x52 =L= 1.06;
e550.. x53 =L= 1.06;
e551.. x54 =L= 1.06;
e552.. x55 =L= 1.06;
e553.. x56 =L= 1.06;
e554.. x57 =L= 1.06;
e555.. x1 =G= 0.94;
e556.. x2 =G= 0.94;
e557.. x3 =G= 0.94;
e558.. x4 =G= 0.94;
e559.. x5 =G= 0.94;
e560.. x6 =G= 0.94;
e561.. x7 =G= 0.94;
e562.. x8 =G= 0.94;
e563.. x9 =G= 0.94;
e564.. x10 =G= 0.94;
e565.. x11 =G= 0.94;
e566.. x12 =G= 0.94;
e567.. x13 =G= 0.94;
e568.. x14 =G= 0.94;
e569.. x15 =G= 0.94;
e570.. x16 =G= 0.94;
e571.. x17 =G= 0.94;
e572.. x18 =G= 0.94;
e573.. x19 =G= 0.94;
e574.. x20 =G= 0.94;
e575.. x21 =G= 0.94;
e576.. x22 =G= 0.94;
e577.. x23 =G= 0.94;
e578.. x24 =G= 0.94;
e579.. x25 =G= 0.94;
e580.. x26 =G= 0.94;
e581.. x27 =G= 0.94;
e582.. x28 =G= 0.94;
e583.. x29 =G= 0.94;
e584.. x30 =G= 0.94;
e585.. x31 =G= 0.94;
e586.. x32 =G= 0.94;
e587.. x33 =G= 0.94;
e588.. x34 =G= 0.94;
e589.. x35 =G= 0.94;
e590.. x36 =G= 0.94;
e591.. x37 =G= 0.94;
e592.. x38 =G= 0.94;
e593.. x39 =G= 0.94;
e594.. x40 =G= 0.94;
e595.. x41 =G= 0.94;
e596.. x42 =G= 0.94;
e597.. x43 =G= 0.94;
e598.. x44 =G= 0.94;
e599.. x45 =G= 0.94;
e600.. x46 =G= 0.94;
e601.. x47 =G= 0.94;
e602.. x48 =G= 0.94;
e603.. x49 =G= 0.94;
e604.. x50 =G= 0.94;
e605.. x51 =G= 0.94;
e606.. x52 =G= 0.94;
e607.. x53 =G= 0.94;
e608.. x54 =G= 0.94;
e609.. x55 =G= 0.94;
e610.. x56 =G= 0.94;
e611.. x57 =G= 0.94;
e612.. x370 - x386 =G= -0.26;
e613.. - x370 + x386 =G= -0.26;
e614.. x381 - x382 =G= -0.26;
e615.. - x381 + x382 =G= -0.26;
e616.. x378 - x424 =G= -0.26;
e617.. - x378 + x424 =G= -0.26;
e618.. x413 - x414 =G= -0.26;
e619.. - x413 + x414 =G= -0.26;
e620.. x376 - x398 =G= -0.26;
e621.. - x376 + x398 =G= -0.26;
e622.. x371 - x372 =G= -0.26;
e623.. - x371 + x372 =G= -0.26;
e624.. x393 - x395 =G= -0.26;
e625.. - x393 + x395 =G= -0.26;
e626.. x375 - x376 =G= -0.26;
e627.. - x375 + x376 =G= -0.26;
e628.. x398 - x421 =G= -0.26;
e629.. - x398 + x421 =G= -0.26;
e630.. x372 - x384 =G= -0.26;
e631.. - x372 + x384 =G= -0.26;
e632.. x408 - x426 =G= -0.26;
e633.. - x408 + x426 =G= -0.26;
e634.. x415 - x416 =G= -0.26;
e635.. - x415 + x416 =G= -0.26;
e636.. x410 - x412 =G= -0.26;
e637.. - x410 + x412 =G= -0.26;
e638.. x395 - x396 =G= -0.26;
e639.. - x395 + x396 =G= -0.26;
e640.. x417 - x418 =G= -0.26;
e641.. - x417 + x418 =G= -0.26;
e642.. x396 - x397 =G= -0.26;
e643.. - x396 + x397 =G= -0.26;
e644.. - x425 + x426 =G= -0.26;
e645.. x425 - x426 =G= -0.26;
e646.. x370 - x371 =G= -0.26;
e647.. - x370 + x371 =G= -0.26;
e648.. x378 - x380 =G= -0.26;
e649.. - x378 + x380 =G= -0.26;
e650.. x403 - x404 =G= -0.26;
e651.. - x403 + x404 =G= -0.26;
e652.. x372 - x373 =G= -0.26;
e653.. - x372 + x373 =G= -0.26;
e654.. x370 - x385 =G= -0.26;
e655.. - x370 + x385 =G= -0.26;
e656.. x393 - x394 =G= -0.26;
e657.. - x393 + x394 =G= -0.26;
e658.. x406 - x408 =G= -0.26;
e659.. - x406 + x408 =G= -0.26;
e660.. x373 - x374 =G= -0.26;
e661.. - x373 + x374 =G= -0.26;
e662.. x394 - x399 =G= -0.26;
e663.. - x394 + x399 =G= -0.26;
e664.. x392 - x393 =G= -0.26;
e665.. - x392 + x393 =G= -0.26;
e666.. x401 - x402 =G= -0.26;
e667.. - x401 + x402 =G= -0.26;
e668.. x397 - x398 =G= -0.26;
e669.. - x397 + x398 =G= -0.26;
e670.. - x411 + x425 =G= -0.26;
e671.. x411 - x425 =G= -0.26;
e672.. x377 - x378 =G= -0.26;
e673.. - x377 + x378 =G= -0.26;
e674.. x391 - x407 =G= -0.26;
e675.. - x391 + x407 =G= -0.26;
e676.. - x389 + x390 =G= -0.26;
e677.. x389 - x390 =G= -0.26;
e678.. x384 - x414 =G= -0.26;
e679.. - x384 + x414 =G= -0.26;
e680.. x421 - x422 =G= -0.26;
e681.. - x421 + x422 =G= -0.26;
e682.. - x401 + x403 =G= -0.26;
e683.. x401 - x403 =G= -0.26;
e684.. x378 - x379 =G= -0.26;
e685.. - x378 + x379 =G= -0.26;
e686.. - x410 + x425 =G= -0.26;
e687.. x410 - x425 =G= -0.26;
e688.. x382 - x384 =G= -0.26;
e689.. - x382 + x384 =G= -0.26;
e690.. x400 - x401 =G= -0.26;
e691.. - x400 + x401 =G= -0.26;
e692.. x375 - x377 =G= -0.26;
e693.. - x375 + x377 =G= -0.26;
e694.. x383 - x415 =G= -0.26;
e695.. - x383 + x415 =G= -0.26;
e696.. x407 - x418 =G= -0.26;
e697.. - x407 + x418 =G= -0.26;
e698.. x379 - x381 =G= -0.26;
e699.. - x379 + x381 =G= -0.26;
e700.. x407 - x417 =G= -0.26;
e701.. - x407 + x417 =G= -0.26;
e702.. x370 - x384 =G= -0.26;
e703.. - x370 + x384 =G= -0.26;
e704.. x390 - x391 =G= -0.26;
e705.. - x390 + x391 =G= -0.26;
e706.. x373 - x375 =G= -0.26;
e707.. - x373 + x375 =G= -0.26;
e708.. x374 - x375 =G= -0.26;
e709.. - x374 + x375 =G= -0.26;
e710.. x404 - x405 =G= -0.26;
e711.. - x404 + x405 =G= -0.26;
e712.. x419 - x420 =G= -0.26;
e713.. - x419 + x420 =G= -0.26;
e714.. x373 - x387 =G= -0.26;
e715.. - x373 + x387 =G= -0.26;
e716.. x378 - x382 =G= -0.26;
e717.. - x378 + x382 =G= -0.26;
e718.. x379 - x420 =G= -0.26;
e719.. - x379 + x420 =G= -0.26;
e720.. x381 - x385 =G= -0.26;
e721.. - x381 + x385 =G= -0.26;
e722.. x382 - x383 =G= -0.26;
e723.. - x382 + x383 =G= -0.26;
e724.. x416 - x417 =G= -0.26;
e725.. - x416 + x417 =G= -0.26;
e726.. x399 - x400 =G= -0.26;
e727.. - x399 + x400 =G= -0.26;
e728.. x410 - x411 =G= -0.26;
e729.. - x410 + x411 =G= -0.26;
e730.. x376 - x377 =G= -0.26;
e731.. - x376 + x377 =G= -0.26;
e732.. x391 - x392 =G= -0.26;
e733.. - x391 + x392 =G= -0.26;
e734.. x380 - x410 =G= -0.26;
e735.. - x380 + x410 =G= -0.26;
e736.. x383 - x384 =G= -0.26;
e737.. - x383 + x384 =G= -0.26;
e738.. x418 - x419 =G= -0.26;
e739.. - x418 + x419 =G= -0.26;
e740.. x380 - x412 =G= -0.26;
e741.. - x380 + x412 =G= -0.26;
e742.. x387 - x388 =G= -0.26;
e743.. - x387 + x388 =G= -0.26;
e744.. x380 - x382 =G= -0.26;
e745.. - x380 + x382 =G= -0.26;
e746.. x405 - x409 =G= -0.26;
e747.. - x405 + x409 =G= -0.26;
e748.. x378 - x381 =G= -0.26;
e749.. - x378 + x381 =G= -0.26;
e750.. x406 - x407 =G= -0.26;
e751.. - x406 + x407 =G= -0.26;
e752.. x381 - x386 =G= -0.26;
e753.. - x381 + x386 =G= -0.26;
e754.. x405 - x406 =G= -0.26;
e755.. - x405 + x406 =G= -0.26;
e756.. x422 - x423 =G= -0.26;
e757.. - x422 + x423 =G= -0.26;
e758.. x409 - x425 =G= -0.26;
e759.. - x409 + x425 =G= -0.26;
e760.. x388 - x389 =G= -0.26;
e761.. - x388 + x389 =G= -0.26;
e762.. x382 - x418 =G= -0.26;
e763.. - x382 + x418 =G= -0.26;
e764.. x407 - x413 =G= -0.26;
e765.. - x407 + x413 =G= -0.26;
e766.. x423 - x424 =G= -0.26;
e767.. - x423 + x424 =G= -0.26;
e768.. x370 - x386 =L= 0.26;
e769.. - x370 + x386 =L= 0.26;
e770.. x381 - x382 =L= 0.26;
e771.. - x381 + x382 =L= 0.26;
e772.. x378 - x424 =L= 0.26;
e773.. - x378 + x424 =L= 0.26;
e774.. x413 - x414 =L= 0.26;
e775.. - x413 + x414 =L= 0.26;
e776.. x376 - x398 =L= 0.26;
e777.. - x376 + x398 =L= 0.26;
e778.. x371 - x372 =L= 0.26;
e779.. - x371 + x372 =L= 0.26;
e780.. x393 - x395 =L= 0.26;
e781.. - x393 + x395 =L= 0.26;
e782.. x375 - x376 =L= 0.26;
e783.. - x375 + x376 =L= 0.26;
e784.. x398 - x421 =L= 0.26;
e785.. - x398 + x421 =L= 0.26;
e786.. x372 - x384 =L= 0.26;
e787.. - x372 + x384 =L= 0.26;
e788.. x408 - x426 =L= 0.26;
e789.. - x408 + x426 =L= 0.26;
e790.. x415 - x416 =L= 0.26;
e791.. - x415 + x416 =L= 0.26;
e792.. x410 - x412 =L= 0.26;
e793.. - x410 + x412 =L= 0.26;
e794.. x395 - x396 =L= 0.26;
e795.. - x395 + x396 =L= 0.26;
e796.. x417 - x418 =L= 0.26;
e797.. - x417 + x418 =L= 0.26;
e798.. x396 - x397 =L= 0.26;
e799.. - x396 + x397 =L= 0.26;
e800.. - x425 + x426 =L= 0.26;
e801.. x425 - x426 =L= 0.26;
e802.. x370 - x371 =L= 0.26;
e803.. - x370 + x371 =L= 0.26;
e804.. x378 - x380 =L= 0.26;
e805.. - x378 + x380 =L= 0.26;
e806.. x403 - x404 =L= 0.26;
e807.. - x403 + x404 =L= 0.26;
e808.. x372 - x373 =L= 0.26;
e809.. - x372 + x373 =L= 0.26;
e810.. x370 - x385 =L= 0.26;
e811.. - x370 + x385 =L= 0.26;
e812.. x393 - x394 =L= 0.26;
e813.. - x393 + x394 =L= 0.26;
e814.. x406 - x408 =L= 0.26;
e815.. - x406 + x408 =L= 0.26;
e816.. x373 - x374 =L= 0.26;
e817.. - x373 + x374 =L= 0.26;
e818.. x394 - x399 =L= 0.26;
e819.. - x394 + x399 =L= 0.26;
e820.. x392 - x393 =L= 0.26;
e821.. - x392 + x393 =L= 0.26;
e822.. x401 - x402 =L= 0.26;
e823.. - x401 + x402 =L= 0.26;
e824.. x397 - x398 =L= 0.26;
e825.. - x397 + x398 =L= 0.26;
e826.. - x411 + x425 =L= 0.26;
e827.. x411 - x425 =L= 0.26;
e828.. x377 - x378 =L= 0.26;
e829.. - x377 + x378 =L= 0.26;
e830.. x391 - x407 =L= 0.26;
e831.. - x391 + x407 =L= 0.26;
e832.. - x389 + x390 =L= 0.26;
e833.. x389 - x390 =L= 0.26;
e834.. x384 - x414 =L= 0.26;
e835.. - x384 + x414 =L= 0.26;
e836.. x421 - x422 =L= 0.26;
e837.. - x421 + x422 =L= 0.26;
e838.. - x401 + x403 =L= 0.26;
e839.. x401 - x403 =L= 0.26;
e840.. x378 - x379 =L= 0.26;
e841.. - x378 + x379 =L= 0.26;
e842.. - x410 + x425 =L= 0.26;
e843.. x410 - x425 =L= 0.26;
e844.. x382 - x384 =L= 0.26;
e845.. - x382 + x384 =L= 0.26;
e846.. x400 - x401 =L= 0.26;
e847.. - x400 + x401 =L= 0.26;
e848.. x375 - x377 =L= 0.26;
e849.. - x375 + x377 =L= 0.26;
e850.. x383 - x415 =L= 0.26;
e851.. - x383 + x415 =L= 0.26;
e852.. x407 - x418 =L= 0.26;
e853.. - x407 + x418 =L= 0.26;
e854.. x379 - x381 =L= 0.26;
e855.. - x379 + x381 =L= 0.26;
e856.. x407 - x417 =L= 0.26;
e857.. - x407 + x417 =L= 0.26;
e858.. x370 - x384 =L= 0.26;
e859.. - x370 + x384 =L= 0.26;
e860.. x390 - x391 =L= 0.26;
e861.. - x390 + x391 =L= 0.26;
e862.. x373 - x375 =L= 0.26;
e863.. - x373 + x375 =L= 0.26;
e864.. x374 - x375 =L= 0.26;
e865.. - x374 + x375 =L= 0.26;
e866.. x404 - x405 =L= 0.26;
e867.. - x404 + x405 =L= 0.26;
e868.. x419 - x420 =L= 0.26;
e869.. - x419 + x420 =L= 0.26;
e870.. x373 - x387 =L= 0.26;
e871.. - x373 + x387 =L= 0.26;
e872.. x378 - x382 =L= 0.26;
e873.. - x378 + x382 =L= 0.26;
e874.. x379 - x420 =L= 0.26;
e875.. - x379 + x420 =L= 0.26;
e876.. x381 - x385 =L= 0.26;
e877.. - x381 + x385 =L= 0.26;
e878.. x382 - x383 =L= 0.26;
e879.. - x382 + x383 =L= 0.26;
e880.. x416 - x417 =L= 0.26;
e881.. - x416 + x417 =L= 0.26;
e882.. x399 - x400 =L= 0.26;
e883.. - x399 + x400 =L= 0.26;
e884.. x410 - x411 =L= 0.26;
e885.. - x410 + x411 =L= 0.26;
e886.. x376 - x377 =L= 0.26;
e887.. - x376 + x377 =L= 0.26;
e888.. x391 - x392 =L= 0.26;
e889.. - x391 + x392 =L= 0.26;
e890.. x380 - x410 =L= 0.26;
e891.. - x380 + x410 =L= 0.26;
e892.. x383 - x384 =L= 0.26;
e893.. - x383 + x384 =L= 0.26;
e894.. x418 - x419 =L= 0.26;
e895.. - x418 + x419 =L= 0.26;
e896.. x380 - x412 =L= 0.26;
e897.. - x380 + x412 =L= 0.26;
e898.. x387 - x388 =L= 0.26;
e899.. - x387 + x388 =L= 0.26;
e900.. x380 - x382 =L= 0.26;
e901.. - x380 + x382 =L= 0.26;
e902.. x405 - x409 =L= 0.26;
e903.. - x405 + x409 =L= 0.26;
e904.. x378 - x381 =L= 0.26;
e905.. - x378 + x381 =L= 0.26;
e906.. x406 - x407 =L= 0.26;
e907.. - x406 + x407 =L= 0.26;
e908.. x381 - x386 =L= 0.26;
e909.. - x381 + x386 =L= 0.26;
e910.. x405 - x406 =L= 0.26;
e911.. - x405 + x406 =L= 0.26;
e912.. x422 - x423 =L= 0.26;
e913.. - x422 + x423 =L= 0.26;
e914.. x409 - x425 =L= 0.26;
e915.. - x409 + x425 =L= 0.26;
e916.. x388 - x389 =L= 0.26;
e917.. - x388 + x389 =L= 0.26;
e918.. x382 - x418 =L= 0.26;
e919.. - x382 + x418 =L= 0.26;
e920.. x407 - x413 =L= 0.26;
e921.. - x407 + x413 =L= 0.26;
e922.. x423 - x424 =L= 0.26;
e923.. - x423 + x424 =L= 0.26;
e924.. x370 =E= 0;
e925.. x58 + x92 + x100 + x148 - x427 =E= -0.55;
e926.. x68 + x93 - x428 =E= -0.03;
e927.. x69 + x76 + x98 - x429 =E= -0.41;
e928.. x72 + x138 + x153 + x155 - x430 =E= -0.75;
e929.. x118 + x139 + x177 - x431 =E= -1.5;
e930.. x62 + x94 + x119 + x130 + x162 + x194 - x432 =E= -1.21;
e931.. x60 + x145 + x166 + x195 + x198 - x433 =E= -3.77;
e932.. x214 + x248 + x256 + x304 - x434 =E= -0.17;
e933.. x224 + x249 - x435 =E= -0.88;
e934.. x225 + x232 + x254 - x436 =E= -0.21;
e935.. x228 + x294 + x309 + x311 - x437 =E= -0.02;
e936.. x274 + x295 + x333 - x438 =E= -0.22;
e937.. x218 + x250 + x275 + x286 + x318 + x350 - x439 =E= -0.26;
e938.. x216 + x301 + x322 + x351 + x354 - x440 =E= -0.24;
e939.. x99 + x106 + x152 + x160 =E= 0;
e940.. x107 + x154 =E= -0.13;
e941.. x66 + x73 + x176 =E= 0;
e942.. x131 + x144 + x164 =E= -0.05;
e943.. x95 + x180 + x186 + x190 =E= 0;
e944.. x61 + x134 + x163 + x168 + x191 + x208 =E= -0.18;
e945.. x140 + x169 + x182 =E= -0.105;
e946.. x77 + x124 + x135 + x149 + x183 =E= -0.22;
e947.. x101 + x167 =E= -0.43;
e948.. x59 + x199 =E= -0.42;
e949.. x161 + x188 =E= -0.272;
e950.. x189 + x206 =E= -0.033;
e951.. x123 + x207 =E= -0.023;
e952.. x122 + x150 =E= 0;
e953.. x120 + x151 + x178 =E= 0;
e954.. x110 + x179 =E= -0.063;
e955.. x70 + x102 + x111 =E= 0;
e956.. x103 + x108 =E= -0.063;
e957.. x71 + x84 =E= 0;
e958.. x85 + x88 =E= -0.093;
e959.. x89 + x114 =E= -0.046;
e960.. x67 + x74 + x115 =E= -0.17;
e961.. x109 + x172 =E= -0.036;
e962.. x136 + x173 =E= -0.058;
e963.. x112 + x129 + x137 =E= -0.016;
e964.. x113 =E= -0.038;
e965.. x96 + x128 =E= 0;
e966.. x97 + x156 =E= -0.06;
e967.. x157 + x192 + x200 =E= 0;
e968.. x104 + x196 + x201 =E= 0;
e969.. x121 + x142 + x146 + x197 + x210 =E= -0.14;
e970.. x78 + x105 =E= 0;
e971.. x193 + x204 =E= 0;
e972.. x82 + x133 + x174 + x181 =E= -0.063;
e973.. x117 + x175 =E= -0.071;
e974.. x83 + x187 =E= -0.02;
e975.. x64 + x211 =E= -0.12;
e976.. x65 + x125 =E= 0;
e977.. x80 + x141 =E= 0;
e978.. x81 + x170 =E= -0.297;
e979.. x86 + x147 + x171 =E= 0;
e980.. x87 + x143 + x184 + x209 =E= -0.18;
e981.. x158 + x185 =E= -0.21;
e982.. x159 + x165 =E= -0.18;
e983.. x75 + x126 =E= -0.049;
e984.. x127 + x202 =E= -0.2;
e985.. x203 + x212 =E= -0.041;
e986.. x63 + x213 =E= -0.068;
e987.. x91 + x116 + x132 + x205 =E= -0.076;
e988.. x79 + x90 =E= -0.067;
e989.. x255 + x262 + x308 + x316 =E= 0;
e990.. x263 + x310 =E= -0.04;
e991.. x222 + x229 + x332 =E= 0;
e992.. x287 + x300 + x320 =E= -0.02;
e993.. x251 + x336 + x342 + x346 =E= 0;
e994.. x217 + x290 + x319 + x324 + x347 + x364 =E= -0.023;
e995.. x296 + x325 + x338 =E= -0.053;
e996.. x233 + x280 + x291 + x305 + x339 =E= -0.05;
e997.. x257 + x323 =E= -0.03;
e998.. x215 + x355 =E= -0.08;
e999.. x317 + x344 =E= -0.098;
e1000.. x345 + x362 =E= -0.006;
e1001.. x279 + x363 =E= -0.01;
e1002.. x278 + x306 =E= 0;
e1003.. x276 + x307 + x334 =E= 0;
e1004.. x266 + x335 =E= -0.021;
e1005.. x226 + x258 + x267 =E= 0;
e1006.. x259 + x264 =E= -0.032;
e1007.. x227 + x240 =E= 0;
e1008.. x241 + x244 =E= -0.005;
e1009.. x245 + x270 =E= -0.023;
e1010.. x223 + x230 + x271 =E= -0.026;
e1011.. x265 + x328 =E= -0.018;
e1012.. x292 + x329 =E= -0.029;
e1013.. x268 + x285 + x293 =E= -0.008;
e1014.. x269 =E= -0.019;
e1015.. x252 + x284 =E= 0;
e1016.. x253 + x312 =E= -0.03;
e1017.. x313 + x348 + x356 =E= 0;
e1018.. x260 + x352 + x357 =E= 0;
e1019.. x277 + x298 + x302 + x353 + x366 =E= -0.07;
e1020.. x234 + x261 =E= 0;
e1021.. x349 + x360 =E= 0;
e1022.. x238 + x289 + x330 + x337 =E= -0.03;
e1023.. x273 + x331 =E= -0.044;
e1024.. x239 + x343 =E= -0.01;
e1025.. x220 + x367 =E= -0.018;
e1026.. x221 + x281 =E= 0;
e1027.. x236 + x297 =E= 0;
e1028.. x237 + x326 =E= -0.116;
e1029.. x242 + x303 + x327 =E= 0;
e1030.. x243 + x299 + x340 + x365 =E= -0.085;
e1031.. x314 + x341 =E= -0.105;
e1032.. x315 + x321 =E= -0.053;
e1033.. x231 + x282 =E= -0.022;
e1034.. x283 + x358 =E= -0.1;
e1035.. x359 + x368 =E= -0.014;
e1036.. x219 + x369 =E= -0.034;
e1037.. x247 + x272 + x288 + x361 =E= -0.022;
e1038.. x235 + x246 =E= -0.02;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set NLP $set NLP NLP
Solve m using %NLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
