Removed Instance robot50
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | -250000000000.00000000 (COUENNE) |
| Referencesⓘ | Dolan, E D and More, J J, Benchmarking Optimization Software with COPS, Tech. Rep. ANL/MCS-246, Mathematics and Computer Science Division, 2000. |
| Sourceⓘ | GAMS Model Library model robot, Constrained Optimization Problem Set (COPS), Nonlinear Optimization Models by Vanderbei |
| Applicationⓘ | Robotics |
| Added to libraryⓘ | 31 Jul 2001 |
| Removed from libraryⓘ | 16 Feb 2022 |
| Removed becauseⓘ | Formulation seems unbounded, while model should be bounded (minimizes time). |
| Problem typeⓘ | NLP |
| #Variablesⓘ | 562 |
| #Binary Variablesⓘ | 0 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 511 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 1 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 402 |
| #Linear Constraintsⓘ | 0 |
| #Quadratic Constraintsⓘ | 251 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 100 |
| #General Nonlinear Constraintsⓘ | 51 |
| Operands in Gen. Nonlin. Functionsⓘ | mul sin sqr |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1955 |
| #Nonlinear Nonzeros in Jacobianⓘ | 1253 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 1326 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 204 |
| #Blocks in Hessian of Lagrangianⓘ | 52 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 1 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 460 |
| Average blocksize in Hessian of Lagrangianⓘ | 9.826923 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-01 |
| Maximal coefficientⓘ | 5.0000e+01 |
| Infeasibility of initial pointⓘ | 4.189 |

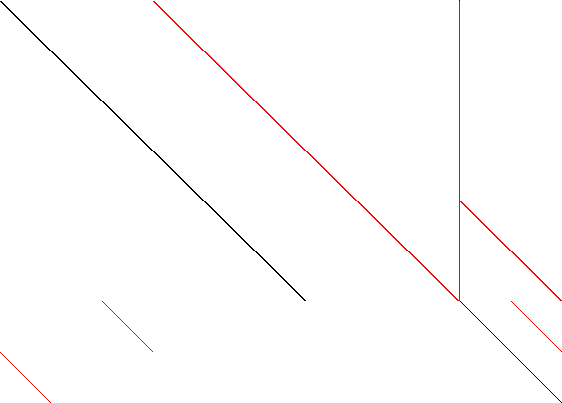

| Sparsity Jacobianⓘ |  |

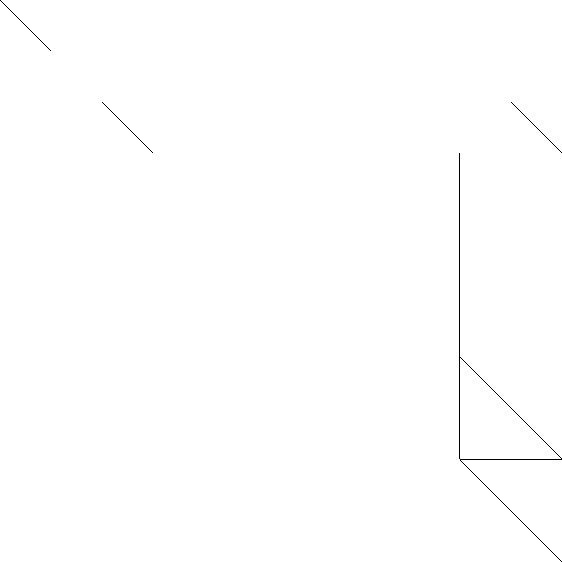

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 403 403 0 0 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 563 563 0 0 0 0 0 0
* FX 16
*
* Nonzero counts
* Total const NL DLL
* 1957 704 1253 0
*
* Solve m using NLP minimizing objvar;
Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18,x19
,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35,x36
,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155
,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168
,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181
,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194
,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207
,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220
,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233
,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246
,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259
,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272
,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285
,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298
,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310,x311
,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323,x324
,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336,x337
,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349,x350
,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362,x363
,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375,x376
,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388,x389
,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401,x402
,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413,x414,x415
,x416,x417,x418,x419,x420,x421,x422,x423,x424,x425,x426,x427,x428
,x429,x430,x431,x432,x433,x434,x435,x436,x437,x438,x439,x440,x441
,x442,x443,x444,x445,x446,x447,x448,x449,x450,x451,x452,x453,x454
,x455,x456,x457,x458,x459,x460,objvar,x462,x463,x464,x465,x466,x467
,x468,x469,x470,x471,x472,x473,x474,x475,x476,x477,x478,x479,x480
,x481,x482,x483,x484,x485,x486,x487,x488,x489,x490,x491,x492,x493
,x494,x495,x496,x497,x498,x499,x500,x501,x502,x503,x504,x505,x506
,x507,x508,x509,x510,x511,x512,x513,x514,x515,x516,x517,x518,x519
,x520,x521,x522,x523,x524,x525,x526,x527,x528,x529,x530,x531,x532
,x533,x534,x535,x536,x537,x538,x539,x540,x541,x542,x543,x544,x545
,x546,x547,x548,x549,x550,x551,x552,x553,x554,x555,x556,x557,x558
,x559,x560,x561,x562,x563;
Positive Variables x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34
,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50
,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116
,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129
,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142
,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403;
e1.. - 50*x460 + objvar =E= 0;
e2.. -0.5*x460*(x154 + x155) - x1 + x2 =E= 0;
e3.. -0.5*x460*(x155 + x156) - x2 + x3 =E= 0;
e4.. -0.5*x460*(x156 + x157) - x3 + x4 =E= 0;
e5.. -0.5*x460*(x157 + x158) - x4 + x5 =E= 0;
e6.. -0.5*x460*(x158 + x159) - x5 + x6 =E= 0;
e7.. -0.5*x460*(x159 + x160) - x6 + x7 =E= 0;
e8.. -0.5*x460*(x160 + x161) - x7 + x8 =E= 0;
e9.. -0.5*x460*(x161 + x162) - x8 + x9 =E= 0;
e10.. -0.5*x460*(x162 + x163) - x9 + x10 =E= 0;
e11.. -0.5*x460*(x163 + x164) - x10 + x11 =E= 0;
e12.. -0.5*x460*(x164 + x165) - x11 + x12 =E= 0;
e13.. -0.5*x460*(x165 + x166) - x12 + x13 =E= 0;
e14.. -0.5*x460*(x166 + x167) - x13 + x14 =E= 0;
e15.. -0.5*x460*(x167 + x168) - x14 + x15 =E= 0;
e16.. -0.5*x460*(x168 + x169) - x15 + x16 =E= 0;
e17.. -0.5*x460*(x169 + x170) - x16 + x17 =E= 0;
e18.. -0.5*x460*(x170 + x171) - x17 + x18 =E= 0;
e19.. -0.5*x460*(x171 + x172) - x18 + x19 =E= 0;
e20.. -0.5*x460*(x172 + x173) - x19 + x20 =E= 0;
e21.. -0.5*x460*(x173 + x174) - x20 + x21 =E= 0;
e22.. -0.5*x460*(x174 + x175) - x21 + x22 =E= 0;
e23.. -0.5*x460*(x175 + x176) - x22 + x23 =E= 0;
e24.. -0.5*x460*(x176 + x177) - x23 + x24 =E= 0;
e25.. -0.5*x460*(x177 + x178) - x24 + x25 =E= 0;
e26.. -0.5*x460*(x178 + x179) - x25 + x26 =E= 0;
e27.. -0.5*x460*(x179 + x180) - x26 + x27 =E= 0;
e28.. -0.5*x460*(x180 + x181) - x27 + x28 =E= 0;
e29.. -0.5*x460*(x181 + x182) - x28 + x29 =E= 0;
e30.. -0.5*x460*(x182 + x183) - x29 + x30 =E= 0;
e31.. -0.5*x460*(x183 + x184) - x30 + x31 =E= 0;
e32.. -0.5*x460*(x184 + x185) - x31 + x32 =E= 0;
e33.. -0.5*x460*(x185 + x186) - x32 + x33 =E= 0;
e34.. -0.5*x460*(x186 + x187) - x33 + x34 =E= 0;
e35.. -0.5*x460*(x187 + x188) - x34 + x35 =E= 0;
e36.. -0.5*x460*(x188 + x189) - x35 + x36 =E= 0;
e37.. -0.5*x460*(x189 + x190) - x36 + x37 =E= 0;
e38.. -0.5*x460*(x190 + x191) - x37 + x38 =E= 0;
e39.. -0.5*x460*(x191 + x192) - x38 + x39 =E= 0;
e40.. -0.5*x460*(x192 + x193) - x39 + x40 =E= 0;
e41.. -0.5*x460*(x193 + x194) - x40 + x41 =E= 0;
e42.. -0.5*x460*(x194 + x195) - x41 + x42 =E= 0;
e43.. -0.5*x460*(x195 + x196) - x42 + x43 =E= 0;
e44.. -0.5*x460*(x196 + x197) - x43 + x44 =E= 0;
e45.. -0.5*x460*(x197 + x198) - x44 + x45 =E= 0;
e46.. -0.5*x460*(x198 + x199) - x45 + x46 =E= 0;
e47.. -0.5*x460*(x199 + x200) - x46 + x47 =E= 0;
e48.. -0.5*x460*(x200 + x201) - x47 + x48 =E= 0;
e49.. -0.5*x460*(x201 + x202) - x48 + x49 =E= 0;
e50.. -0.5*x460*(x202 + x203) - x49 + x50 =E= 0;
e51.. -0.5*x460*(x203 + x204) - x50 + x51 =E= 0;
e52.. -0.5*x460*(x205 + x206) - x52 + x53 =E= 0;
e53.. -0.5*x460*(x206 + x207) - x53 + x54 =E= 0;
e54.. -0.5*x460*(x207 + x208) - x54 + x55 =E= 0;
e55.. -0.5*x460*(x208 + x209) - x55 + x56 =E= 0;
e56.. -0.5*x460*(x209 + x210) - x56 + x57 =E= 0;
e57.. -0.5*x460*(x210 + x211) - x57 + x58 =E= 0;
e58.. -0.5*x460*(x211 + x212) - x58 + x59 =E= 0;
e59.. -0.5*x460*(x212 + x213) - x59 + x60 =E= 0;
e60.. -0.5*x460*(x213 + x214) - x60 + x61 =E= 0;
e61.. -0.5*x460*(x214 + x215) - x61 + x62 =E= 0;
e62.. -0.5*x460*(x215 + x216) - x62 + x63 =E= 0;
e63.. -0.5*x460*(x216 + x217) - x63 + x64 =E= 0;
e64.. -0.5*x460*(x217 + x218) - x64 + x65 =E= 0;
e65.. -0.5*x460*(x218 + x219) - x65 + x66 =E= 0;
e66.. -0.5*x460*(x219 + x220) - x66 + x67 =E= 0;
e67.. -0.5*x460*(x220 + x221) - x67 + x68 =E= 0;
e68.. -0.5*x460*(x221 + x222) - x68 + x69 =E= 0;
e69.. -0.5*x460*(x222 + x223) - x69 + x70 =E= 0;
e70.. -0.5*x460*(x223 + x224) - x70 + x71 =E= 0;
e71.. -0.5*x460*(x224 + x225) - x71 + x72 =E= 0;
e72.. -0.5*x460*(x225 + x226) - x72 + x73 =E= 0;
e73.. -0.5*x460*(x226 + x227) - x73 + x74 =E= 0;
e74.. -0.5*x460*(x227 + x228) - x74 + x75 =E= 0;
e75.. -0.5*x460*(x228 + x229) - x75 + x76 =E= 0;
e76.. -0.5*x460*(x229 + x230) - x76 + x77 =E= 0;
e77.. -0.5*x460*(x230 + x231) - x77 + x78 =E= 0;
e78.. -0.5*x460*(x231 + x232) - x78 + x79 =E= 0;
e79.. -0.5*x460*(x232 + x233) - x79 + x80 =E= 0;
e80.. -0.5*x460*(x233 + x234) - x80 + x81 =E= 0;
e81.. -0.5*x460*(x234 + x235) - x81 + x82 =E= 0;
e82.. -0.5*x460*(x235 + x236) - x82 + x83 =E= 0;
e83.. -0.5*x460*(x236 + x237) - x83 + x84 =E= 0;
e84.. -0.5*x460*(x237 + x238) - x84 + x85 =E= 0;
e85.. -0.5*x460*(x238 + x239) - x85 + x86 =E= 0;
e86.. -0.5*x460*(x239 + x240) - x86 + x87 =E= 0;
e87.. -0.5*x460*(x240 + x241) - x87 + x88 =E= 0;
e88.. -0.5*x460*(x241 + x242) - x88 + x89 =E= 0;
e89.. -0.5*x460*(x242 + x243) - x89 + x90 =E= 0;
e90.. -0.5*x460*(x243 + x244) - x90 + x91 =E= 0;
e91.. -0.5*x460*(x244 + x245) - x91 + x92 =E= 0;
e92.. -0.5*x460*(x245 + x246) - x92 + x93 =E= 0;
e93.. -0.5*x460*(x246 + x247) - x93 + x94 =E= 0;
e94.. -0.5*x460*(x247 + x248) - x94 + x95 =E= 0;
e95.. -0.5*x460*(x248 + x249) - x95 + x96 =E= 0;
e96.. -0.5*x460*(x249 + x250) - x96 + x97 =E= 0;
e97.. -0.5*x460*(x250 + x251) - x97 + x98 =E= 0;
e98.. -0.5*x460*(x251 + x252) - x98 + x99 =E= 0;
e99.. -0.5*x460*(x252 + x253) - x99 + x100 =E= 0;
e100.. -0.5*x460*(x253 + x254) - x100 + x101 =E= 0;
e101.. -0.5*x460*(x254 + x255) - x101 + x102 =E= 0;
e102.. -0.5*x460*(x256 + x257) - x103 + x104 =E= 0;
e103.. -0.5*x460*(x257 + x258) - x104 + x105 =E= 0;
e104.. -0.5*x460*(x258 + x259) - x105 + x106 =E= 0;
e105.. -0.5*x460*(x259 + x260) - x106 + x107 =E= 0;
e106.. -0.5*x460*(x260 + x261) - x107 + x108 =E= 0;
e107.. -0.5*x460*(x261 + x262) - x108 + x109 =E= 0;
e108.. -0.5*x460*(x262 + x263) - x109 + x110 =E= 0;
e109.. -0.5*x460*(x263 + x264) - x110 + x111 =E= 0;
e110.. -0.5*x460*(x264 + x265) - x111 + x112 =E= 0;
e111.. -0.5*x460*(x265 + x266) - x112 + x113 =E= 0;
e112.. -0.5*x460*(x266 + x267) - x113 + x114 =E= 0;
e113.. -0.5*x460*(x267 + x268) - x114 + x115 =E= 0;
e114.. -0.5*x460*(x268 + x269) - x115 + x116 =E= 0;
e115.. -0.5*x460*(x269 + x270) - x116 + x117 =E= 0;
e116.. -0.5*x460*(x270 + x271) - x117 + x118 =E= 0;
e117.. -0.5*x460*(x271 + x272) - x118 + x119 =E= 0;
e118.. -0.5*x460*(x272 + x273) - x119 + x120 =E= 0;
e119.. -0.5*x460*(x273 + x274) - x120 + x121 =E= 0;
e120.. -0.5*x460*(x274 + x275) - x121 + x122 =E= 0;
e121.. -0.5*x460*(x275 + x276) - x122 + x123 =E= 0;
e122.. -0.5*x460*(x276 + x277) - x123 + x124 =E= 0;
e123.. -0.5*x460*(x277 + x278) - x124 + x125 =E= 0;
e124.. -0.5*x460*(x278 + x279) - x125 + x126 =E= 0;
e125.. -0.5*x460*(x279 + x280) - x126 + x127 =E= 0;
e126.. -0.5*x460*(x280 + x281) - x127 + x128 =E= 0;
e127.. -0.5*x460*(x281 + x282) - x128 + x129 =E= 0;
e128.. -0.5*x460*(x282 + x283) - x129 + x130 =E= 0;
e129.. -0.5*x460*(x283 + x284) - x130 + x131 =E= 0;
e130.. -0.5*x460*(x284 + x285) - x131 + x132 =E= 0;
e131.. -0.5*x460*(x285 + x286) - x132 + x133 =E= 0;
e132.. -0.5*x460*(x286 + x287) - x133 + x134 =E= 0;
e133.. -0.5*x460*(x287 + x288) - x134 + x135 =E= 0;
e134.. -0.5*x460*(x288 + x289) - x135 + x136 =E= 0;
e135.. -0.5*x460*(x289 + x290) - x136 + x137 =E= 0;
e136.. -0.5*x460*(x290 + x291) - x137 + x138 =E= 0;
e137.. -0.5*x460*(x291 + x292) - x138 + x139 =E= 0;
e138.. -0.5*x460*(x292 + x293) - x139 + x140 =E= 0;
e139.. -0.5*x460*(x293 + x294) - x140 + x141 =E= 0;
e140.. -0.5*x460*(x294 + x295) - x141 + x142 =E= 0;
e141.. -0.5*x460*(x295 + x296) - x142 + x143 =E= 0;
e142.. -0.5*x460*(x296 + x297) - x143 + x144 =E= 0;
e143.. -0.5*x460*(x297 + x298) - x144 + x145 =E= 0;
e144.. -0.5*x460*(x298 + x299) - x145 + x146 =E= 0;
e145.. -0.5*x460*(x299 + x300) - x146 + x147 =E= 0;
e146.. -0.5*x460*(x300 + x301) - x147 + x148 =E= 0;
e147.. -0.5*x460*(x301 + x302) - x148 + x149 =E= 0;
e148.. -0.5*x460*(x302 + x303) - x149 + x150 =E= 0;
e149.. -0.5*x460*(x303 + x304) - x150 + x151 =E= 0;
e150.. -0.5*x460*(x304 + x305) - x151 + x152 =E= 0;
e151.. -0.5*x460*(x305 + x306) - x152 + x153 =E= 0;
e152.. -0.1*x460*(x307 + x308) - x154 + x155 =E= 0;
e153.. -0.1*x460*(x308 + x309) - x155 + x156 =E= 0;
e154.. -0.1*x460*(x309 + x310) - x156 + x157 =E= 0;
e155.. -0.1*x460*(x310 + x311) - x157 + x158 =E= 0;
e156.. -0.1*x460*(x311 + x312) - x158 + x159 =E= 0;
e157.. -0.1*x460*(x312 + x313) - x159 + x160 =E= 0;
e158.. -0.1*x460*(x313 + x314) - x160 + x161 =E= 0;
e159.. -0.1*x460*(x314 + x315) - x161 + x162 =E= 0;
e160.. -0.1*x460*(x315 + x316) - x162 + x163 =E= 0;
e161.. -0.1*x460*(x316 + x317) - x163 + x164 =E= 0;
e162.. -0.1*x460*(x317 + x318) - x164 + x165 =E= 0;
e163.. -0.1*x460*(x318 + x319) - x165 + x166 =E= 0;
e164.. -0.1*x460*(x319 + x320) - x166 + x167 =E= 0;
e165.. -0.1*x460*(x320 + x321) - x167 + x168 =E= 0;
e166.. -0.1*x460*(x321 + x322) - x168 + x169 =E= 0;
e167.. -0.1*x460*(x322 + x323) - x169 + x170 =E= 0;
e168.. -0.1*x460*(x323 + x324) - x170 + x171 =E= 0;
e169.. -0.1*x460*(x324 + x325) - x171 + x172 =E= 0;
e170.. -0.1*x460*(x325 + x326) - x172 + x173 =E= 0;
e171.. -0.1*x460*(x326 + x327) - x173 + x174 =E= 0;
e172.. -0.1*x460*(x327 + x328) - x174 + x175 =E= 0;
e173.. -0.1*x460*(x328 + x329) - x175 + x176 =E= 0;
e174.. -0.1*x460*(x329 + x330) - x176 + x177 =E= 0;
e175.. -0.1*x460*(x330 + x331) - x177 + x178 =E= 0;
e176.. -0.1*x460*(x331 + x332) - x178 + x179 =E= 0;
e177.. -0.1*x460*(x332 + x333) - x179 + x180 =E= 0;
e178.. -0.1*x460*(x333 + x334) - x180 + x181 =E= 0;
e179.. -0.1*x460*(x334 + x335) - x181 + x182 =E= 0;
e180.. -0.1*x460*(x335 + x336) - x182 + x183 =E= 0;
e181.. -0.1*x460*(x336 + x337) - x183 + x184 =E= 0;
e182.. -0.1*x460*(x337 + x338) - x184 + x185 =E= 0;
e183.. -0.1*x460*(x338 + x339) - x185 + x186 =E= 0;
e184.. -0.1*x460*(x339 + x340) - x186 + x187 =E= 0;
e185.. -0.1*x460*(x340 + x341) - x187 + x188 =E= 0;
e186.. -0.1*x460*(x341 + x342) - x188 + x189 =E= 0;
e187.. -0.1*x460*(x342 + x343) - x189 + x190 =E= 0;
e188.. -0.1*x460*(x343 + x344) - x190 + x191 =E= 0;
e189.. -0.1*x460*(x344 + x345) - x191 + x192 =E= 0;
e190.. -0.1*x460*(x345 + x346) - x192 + x193 =E= 0;
e191.. -0.1*x460*(x346 + x347) - x193 + x194 =E= 0;
e192.. -0.1*x460*(x347 + x348) - x194 + x195 =E= 0;
e193.. -0.1*x460*(x348 + x349) - x195 + x196 =E= 0;
e194.. -0.1*x460*(x349 + x350) - x196 + x197 =E= 0;
e195.. -0.1*x460*(x350 + x351) - x197 + x198 =E= 0;
e196.. -0.1*x460*(x351 + x352) - x198 + x199 =E= 0;
e197.. -0.1*x460*(x352 + x353) - x199 + x200 =E= 0;
e198.. -0.1*x460*(x353 + x354) - x200 + x201 =E= 0;
e199.. -0.1*x460*(x354 + x355) - x201 + x202 =E= 0;
e200.. -0.1*x460*(x355 + x356) - x202 + x203 =E= 0;
e201.. -0.1*x460*(x356 + x357) - x203 + x204 =E= 0;
e202.. -0.5*(x359/x463 + x358/x462)*x460 - x205 + x206 =E= 0;
e203.. -0.5*(x360/x464 + x359/x463)*x460 - x206 + x207 =E= 0;
e204.. -0.5*(x361/x465 + x360/x464)*x460 - x207 + x208 =E= 0;
e205.. -0.5*(x362/x466 + x361/x465)*x460 - x208 + x209 =E= 0;
e206.. -0.5*(x363/x467 + x362/x466)*x460 - x209 + x210 =E= 0;
e207.. -0.5*(x364/x468 + x363/x467)*x460 - x210 + x211 =E= 0;
e208.. -0.5*(x365/x469 + x364/x468)*x460 - x211 + x212 =E= 0;
e209.. -0.5*(x366/x470 + x365/x469)*x460 - x212 + x213 =E= 0;
e210.. -0.5*(x367/x471 + x366/x470)*x460 - x213 + x214 =E= 0;
e211.. -0.5*(x368/x472 + x367/x471)*x460 - x214 + x215 =E= 0;
e212.. -0.5*(x369/x473 + x368/x472)*x460 - x215 + x216 =E= 0;
e213.. -0.5*(x370/x474 + x369/x473)*x460 - x216 + x217 =E= 0;
e214.. -0.5*(x371/x475 + x370/x474)*x460 - x217 + x218 =E= 0;
e215.. -0.5*(x372/x476 + x371/x475)*x460 - x218 + x219 =E= 0;
e216.. -0.5*(x373/x477 + x372/x476)*x460 - x219 + x220 =E= 0;
e217.. -0.5*(x374/x478 + x373/x477)*x460 - x220 + x221 =E= 0;
e218.. -0.5*(x375/x479 + x374/x478)*x460 - x221 + x222 =E= 0;
e219.. -0.5*(x376/x480 + x375/x479)*x460 - x222 + x223 =E= 0;
e220.. -0.5*(x377/x481 + x376/x480)*x460 - x223 + x224 =E= 0;
e221.. -0.5*(x378/x482 + x377/x481)*x460 - x224 + x225 =E= 0;
e222.. -0.5*(x379/x483 + x378/x482)*x460 - x225 + x226 =E= 0;
e223.. -0.5*(x380/x484 + x379/x483)*x460 - x226 + x227 =E= 0;
e224.. -0.5*(x381/x485 + x380/x484)*x460 - x227 + x228 =E= 0;
e225.. -0.5*(x382/x486 + x381/x485)*x460 - x228 + x229 =E= 0;
e226.. -0.5*(x383/x487 + x382/x486)*x460 - x229 + x230 =E= 0;
e227.. -0.5*(x384/x488 + x383/x487)*x460 - x230 + x231 =E= 0;
e228.. -0.5*(x385/x489 + x384/x488)*x460 - x231 + x232 =E= 0;
e229.. -0.5*(x386/x490 + x385/x489)*x460 - x232 + x233 =E= 0;
e230.. -0.5*(x387/x491 + x386/x490)*x460 - x233 + x234 =E= 0;
e231.. -0.5*(x388/x492 + x387/x491)*x460 - x234 + x235 =E= 0;
e232.. -0.5*(x389/x493 + x388/x492)*x460 - x235 + x236 =E= 0;
e233.. -0.5*(x390/x494 + x389/x493)*x460 - x236 + x237 =E= 0;
e234.. -0.5*(x391/x495 + x390/x494)*x460 - x237 + x238 =E= 0;
e235.. -0.5*(x392/x496 + x391/x495)*x460 - x238 + x239 =E= 0;
e236.. -0.5*(x393/x497 + x392/x496)*x460 - x239 + x240 =E= 0;
e237.. -0.5*(x394/x498 + x393/x497)*x460 - x240 + x241 =E= 0;
e238.. -0.5*(x395/x499 + x394/x498)*x460 - x241 + x242 =E= 0;
e239.. -0.5*(x396/x500 + x395/x499)*x460 - x242 + x243 =E= 0;
e240.. -0.5*(x397/x501 + x396/x500)*x460 - x243 + x244 =E= 0;
e241.. -0.5*(x398/x502 + x397/x501)*x460 - x244 + x245 =E= 0;
e242.. -0.5*(x399/x503 + x398/x502)*x460 - x245 + x246 =E= 0;
e243.. -0.5*(x400/x504 + x399/x503)*x460 - x246 + x247 =E= 0;
e244.. -0.5*(x401/x505 + x400/x504)*x460 - x247 + x248 =E= 0;
e245.. -0.5*(x402/x506 + x401/x505)*x460 - x248 + x249 =E= 0;
e246.. -0.5*(x403/x507 + x402/x506)*x460 - x249 + x250 =E= 0;
e247.. -0.5*(x404/x508 + x403/x507)*x460 - x250 + x251 =E= 0;
e248.. -0.5*(x405/x509 + x404/x508)*x460 - x251 + x252 =E= 0;
e249.. -0.5*(x406/x510 + x405/x509)*x460 - x252 + x253 =E= 0;
e250.. -0.5*(x407/x511 + x406/x510)*x460 - x253 + x254 =E= 0;
e251.. -0.5*(x408/x512 + x407/x511)*x460 - x254 + x255 =E= 0;
e252.. -0.5*(x410/x514 + x409/x513)*x460 - x256 + x257 =E= 0;
e253.. -0.5*(x411/x515 + x410/x514)*x460 - x257 + x258 =E= 0;
e254.. -0.5*(x412/x516 + x411/x515)*x460 - x258 + x259 =E= 0;
e255.. -0.5*(x413/x517 + x412/x516)*x460 - x259 + x260 =E= 0;
e256.. -0.5*(x414/x518 + x413/x517)*x460 - x260 + x261 =E= 0;
e257.. -0.5*(x415/x519 + x414/x518)*x460 - x261 + x262 =E= 0;
e258.. -0.5*(x416/x520 + x415/x519)*x460 - x262 + x263 =E= 0;
e259.. -0.5*(x417/x521 + x416/x520)*x460 - x263 + x264 =E= 0;
e260.. -0.5*(x418/x522 + x417/x521)*x460 - x264 + x265 =E= 0;
e261.. -0.5*(x419/x523 + x418/x522)*x460 - x265 + x266 =E= 0;
e262.. -0.5*(x420/x524 + x419/x523)*x460 - x266 + x267 =E= 0;
e263.. -0.5*(x421/x525 + x420/x524)*x460 - x267 + x268 =E= 0;
e264.. -0.5*(x422/x526 + x421/x525)*x460 - x268 + x269 =E= 0;
e265.. -0.5*(x423/x527 + x422/x526)*x460 - x269 + x270 =E= 0;
e266.. -0.5*(x424/x528 + x423/x527)*x460 - x270 + x271 =E= 0;
e267.. -0.5*(x425/x529 + x424/x528)*x460 - x271 + x272 =E= 0;
e268.. -0.5*(x426/x530 + x425/x529)*x460 - x272 + x273 =E= 0;
e269.. -0.5*(x427/x531 + x426/x530)*x460 - x273 + x274 =E= 0;
e270.. -0.5*(x428/x532 + x427/x531)*x460 - x274 + x275 =E= 0;
e271.. -0.5*(x429/x533 + x428/x532)*x460 - x275 + x276 =E= 0;
e272.. -0.5*(x430/x534 + x429/x533)*x460 - x276 + x277 =E= 0;
e273.. -0.5*(x431/x535 + x430/x534)*x460 - x277 + x278 =E= 0;
e274.. -0.5*(x432/x536 + x431/x535)*x460 - x278 + x279 =E= 0;
e275.. -0.5*(x433/x537 + x432/x536)*x460 - x279 + x280 =E= 0;
e276.. -0.5*(x434/x538 + x433/x537)*x460 - x280 + x281 =E= 0;
e277.. -0.5*(x435/x539 + x434/x538)*x460 - x281 + x282 =E= 0;
e278.. -0.5*(x436/x540 + x435/x539)*x460 - x282 + x283 =E= 0;
e279.. -0.5*(x437/x541 + x436/x540)*x460 - x283 + x284 =E= 0;
e280.. -0.5*(x438/x542 + x437/x541)*x460 - x284 + x285 =E= 0;
e281.. -0.5*(x439/x543 + x438/x542)*x460 - x285 + x286 =E= 0;
e282.. -0.5*(x440/x544 + x439/x543)*x460 - x286 + x287 =E= 0;
e283.. -0.5*(x441/x545 + x440/x544)*x460 - x287 + x288 =E= 0;
e284.. -0.5*(x442/x546 + x441/x545)*x460 - x288 + x289 =E= 0;
e285.. -0.5*(x443/x547 + x442/x546)*x460 - x289 + x290 =E= 0;
e286.. -0.5*(x444/x548 + x443/x547)*x460 - x290 + x291 =E= 0;
e287.. -0.5*(x445/x549 + x444/x548)*x460 - x291 + x292 =E= 0;
e288.. -0.5*(x446/x550 + x445/x549)*x460 - x292 + x293 =E= 0;
e289.. -0.5*(x447/x551 + x446/x550)*x460 - x293 + x294 =E= 0;
e290.. -0.5*(x448/x552 + x447/x551)*x460 - x294 + x295 =E= 0;
e291.. -0.5*(x449/x553 + x448/x552)*x460 - x295 + x296 =E= 0;
e292.. -0.5*(x450/x554 + x449/x553)*x460 - x296 + x297 =E= 0;
e293.. -0.5*(x451/x555 + x450/x554)*x460 - x297 + x298 =E= 0;
e294.. -0.5*(x452/x556 + x451/x555)*x460 - x298 + x299 =E= 0;
e295.. -0.5*(x453/x557 + x452/x556)*x460 - x299 + x300 =E= 0;
e296.. -0.5*(x454/x558 + x453/x557)*x460 - x300 + x301 =E= 0;
e297.. -0.5*(x455/x559 + x454/x558)*x460 - x301 + x302 =E= 0;
e298.. -0.5*(x456/x560 + x455/x559)*x460 - x302 + x303 =E= 0;
e299.. -0.5*(x457/x561 + x456/x560)*x460 - x303 + x304 =E= 0;
e300.. -0.5*(x458/x562 + x457/x561)*x460 - x304 + x305 =E= 0;
e301.. -0.5*(x459/x563 + x458/x562)*x460 - x305 + x306 =E= 0;
e302.. -sqr(sin(x103))*x513 + x462 =E= 0;
e303.. -sqr(sin(x104))*x514 + x463 =E= 0;
e304.. -sqr(sin(x105))*x515 + x464 =E= 0;
e305.. -sqr(sin(x106))*x516 + x465 =E= 0;
e306.. -sqr(sin(x107))*x517 + x466 =E= 0;
e307.. -sqr(sin(x108))*x518 + x467 =E= 0;
e308.. -sqr(sin(x109))*x519 + x468 =E= 0;
e309.. -sqr(sin(x110))*x520 + x469 =E= 0;
e310.. -sqr(sin(x111))*x521 + x470 =E= 0;
e311.. -sqr(sin(x112))*x522 + x471 =E= 0;
e312.. -sqr(sin(x113))*x523 + x472 =E= 0;
e313.. -sqr(sin(x114))*x524 + x473 =E= 0;
e314.. -sqr(sin(x115))*x525 + x474 =E= 0;
e315.. -sqr(sin(x116))*x526 + x475 =E= 0;
e316.. -sqr(sin(x117))*x527 + x476 =E= 0;
e317.. -sqr(sin(x118))*x528 + x477 =E= 0;
e318.. -sqr(sin(x119))*x529 + x478 =E= 0;
e319.. -sqr(sin(x120))*x530 + x479 =E= 0;
e320.. -sqr(sin(x121))*x531 + x480 =E= 0;
e321.. -sqr(sin(x122))*x532 + x481 =E= 0;
e322.. -sqr(sin(x123))*x533 + x482 =E= 0;
e323.. -sqr(sin(x124))*x534 + x483 =E= 0;
e324.. -sqr(sin(x125))*x535 + x484 =E= 0;
e325.. -sqr(sin(x126))*x536 + x485 =E= 0;
e326.. -sqr(sin(x127))*x537 + x486 =E= 0;
e327.. -sqr(sin(x128))*x538 + x487 =E= 0;
e328.. -sqr(sin(x129))*x539 + x488 =E= 0;
e329.. -sqr(sin(x130))*x540 + x489 =E= 0;
e330.. -sqr(sin(x131))*x541 + x490 =E= 0;
e331.. -sqr(sin(x132))*x542 + x491 =E= 0;
e332.. -sqr(sin(x133))*x543 + x492 =E= 0;
e333.. -sqr(sin(x134))*x544 + x493 =E= 0;
e334.. -sqr(sin(x135))*x545 + x494 =E= 0;
e335.. -sqr(sin(x136))*x546 + x495 =E= 0;
e336.. -sqr(sin(x137))*x547 + x496 =E= 0;
e337.. -sqr(sin(x138))*x548 + x497 =E= 0;
e338.. -sqr(sin(x139))*x549 + x498 =E= 0;
e339.. -sqr(sin(x140))*x550 + x499 =E= 0;
e340.. -sqr(sin(x141))*x551 + x500 =E= 0;
e341.. -sqr(sin(x142))*x552 + x501 =E= 0;
e342.. -sqr(sin(x143))*x553 + x502 =E= 0;
e343.. -sqr(sin(x144))*x554 + x503 =E= 0;
e344.. -sqr(sin(x145))*x555 + x504 =E= 0;
e345.. -sqr(sin(x146))*x556 + x505 =E= 0;
e346.. -sqr(sin(x147))*x557 + x506 =E= 0;
e347.. -sqr(sin(x148))*x558 + x507 =E= 0;
e348.. -sqr(sin(x149))*x559 + x508 =E= 0;
e349.. -sqr(sin(x150))*x560 + x509 =E= 0;
e350.. -sqr(sin(x151))*x561 + x510 =E= 0;
e351.. -sqr(sin(x152))*x562 + x511 =E= 0;
e352.. -sqr(sin(x153))*x563 + x512 =E= 0;
e353.. -0.333333333333333*(POWER(5 - x1,3) + POWER(x1,3)) + x513 =E= 0;
e354.. -0.333333333333333*(POWER(5 - x2,3) + POWER(x2,3)) + x514 =E= 0;
e355.. -0.333333333333333*(POWER(5 - x3,3) + POWER(x3,3)) + x515 =E= 0;
e356.. -0.333333333333333*(POWER(5 - x4,3) + POWER(x4,3)) + x516 =E= 0;
e357.. -0.333333333333333*(POWER(5 - x5,3) + POWER(x5,3)) + x517 =E= 0;
e358.. -0.333333333333333*(POWER(5 - x6,3) + POWER(x6,3)) + x518 =E= 0;
e359.. -0.333333333333333*(POWER(5 - x7,3) + POWER(x7,3)) + x519 =E= 0;
e360.. -0.333333333333333*(POWER(5 - x8,3) + POWER(x8,3)) + x520 =E= 0;
e361.. -0.333333333333333*(POWER(5 - x9,3) + POWER(x9,3)) + x521 =E= 0;
e362.. -0.333333333333333*(POWER(5 - x10,3) + POWER(x10,3)) + x522 =E= 0;
e363.. -0.333333333333333*(POWER(5 - x11,3) + POWER(x11,3)) + x523 =E= 0;
e364.. -0.333333333333333*(POWER(5 - x12,3) + POWER(x12,3)) + x524 =E= 0;
e365.. -0.333333333333333*(POWER(5 - x13,3) + POWER(x13,3)) + x525 =E= 0;
e366.. -0.333333333333333*(POWER(5 - x14,3) + POWER(x14,3)) + x526 =E= 0;
e367.. -0.333333333333333*(POWER(5 - x15,3) + POWER(x15,3)) + x527 =E= 0;
e368.. -0.333333333333333*(POWER(5 - x16,3) + POWER(x16,3)) + x528 =E= 0;
e369.. -0.333333333333333*(POWER(5 - x17,3) + POWER(x17,3)) + x529 =E= 0;
e370.. -0.333333333333333*(POWER(5 - x18,3) + POWER(x18,3)) + x530 =E= 0;
e371.. -0.333333333333333*(POWER(5 - x19,3) + POWER(x19,3)) + x531 =E= 0;
e372.. -0.333333333333333*(POWER(5 - x20,3) + POWER(x20,3)) + x532 =E= 0;
e373.. -0.333333333333333*(POWER(5 - x21,3) + POWER(x21,3)) + x533 =E= 0;
e374.. -0.333333333333333*(POWER(5 - x22,3) + POWER(x22,3)) + x534 =E= 0;
e375.. -0.333333333333333*(POWER(5 - x23,3) + POWER(x23,3)) + x535 =E= 0;
e376.. -0.333333333333333*(POWER(5 - x24,3) + POWER(x24,3)) + x536 =E= 0;
e377.. -0.333333333333333*(POWER(5 - x25,3) + POWER(x25,3)) + x537 =E= 0;
e378.. -0.333333333333333*(POWER(5 - x26,3) + POWER(x26,3)) + x538 =E= 0;
e379.. -0.333333333333333*(POWER(5 - x27,3) + POWER(x27,3)) + x539 =E= 0;
e380.. -0.333333333333333*(POWER(5 - x28,3) + POWER(x28,3)) + x540 =E= 0;
e381.. -0.333333333333333*(POWER(5 - x29,3) + POWER(x29,3)) + x541 =E= 0;
e382.. -0.333333333333333*(POWER(5 - x30,3) + POWER(x30,3)) + x542 =E= 0;
e383.. -0.333333333333333*(POWER(5 - x31,3) + POWER(x31,3)) + x543 =E= 0;
e384.. -0.333333333333333*(POWER(5 - x32,3) + POWER(x32,3)) + x544 =E= 0;
e385.. -0.333333333333333*(POWER(5 - x33,3) + POWER(x33,3)) + x545 =E= 0;
e386.. -0.333333333333333*(POWER(5 - x34,3) + POWER(x34,3)) + x546 =E= 0;
e387.. -0.333333333333333*(POWER(5 - x35,3) + POWER(x35,3)) + x547 =E= 0;
e388.. -0.333333333333333*(POWER(5 - x36,3) + POWER(x36,3)) + x548 =E= 0;
e389.. -0.333333333333333*(POWER(5 - x37,3) + POWER(x37,3)) + x549 =E= 0;
e390.. -0.333333333333333*(POWER(5 - x38,3) + POWER(x38,3)) + x550 =E= 0;
e391.. -0.333333333333333*(POWER(5 - x39,3) + POWER(x39,3)) + x551 =E= 0;
e392.. -0.333333333333333*(POWER(5 - x40,3) + POWER(x40,3)) + x552 =E= 0;
e393.. -0.333333333333333*(POWER(5 - x41,3) + POWER(x41,3)) + x553 =E= 0;
e394.. -0.333333333333333*(POWER(5 - x42,3) + POWER(x42,3)) + x554 =E= 0;
e395.. -0.333333333333333*(POWER(5 - x43,3) + POWER(x43,3)) + x555 =E= 0;
e396.. -0.333333333333333*(POWER(5 - x44,3) + POWER(x44,3)) + x556 =E= 0;
e397.. -0.333333333333333*(POWER(5 - x45,3) + POWER(x45,3)) + x557 =E= 0;
e398.. -0.333333333333333*(POWER(5 - x46,3) + POWER(x46,3)) + x558 =E= 0;
e399.. -0.333333333333333*(POWER(5 - x47,3) + POWER(x47,3)) + x559 =E= 0;
e400.. -0.333333333333333*(POWER(5 - x48,3) + POWER(x48,3)) + x560 =E= 0;
e401.. -0.333333333333333*(POWER(5 - x49,3) + POWER(x49,3)) + x561 =E= 0;
e402.. -0.333333333333333*(POWER(5 - x50,3) + POWER(x50,3)) + x562 =E= 0;
e403.. -0.333333333333333*(POWER(5 - x51,3) + POWER(x51,3)) + x563 =E= 0;
* set non-default bounds
x1.fx = 4.5;
x2.up = 5;
x3.up = 5;
x4.up = 5;
x5.up = 5;
x6.up = 5;
x7.up = 5;
x8.up = 5;
x9.up = 5;
x10.up = 5;
x11.up = 5;
x12.up = 5;
x13.up = 5;
x14.up = 5;
x15.up = 5;
x16.up = 5;
x17.up = 5;
x18.up = 5;
x19.up = 5;
x20.up = 5;
x21.up = 5;
x22.up = 5;
x23.up = 5;
x24.up = 5;
x25.up = 5;
x26.up = 5;
x27.up = 5;
x28.up = 5;
x29.up = 5;
x30.up = 5;
x31.up = 5;
x32.up = 5;
x33.up = 5;
x34.up = 5;
x35.up = 5;
x36.up = 5;
x37.up = 5;
x38.up = 5;
x39.up = 5;
x40.up = 5;
x41.up = 5;
x42.up = 5;
x43.up = 5;
x44.up = 5;
x45.up = 5;
x46.up = 5;
x47.up = 5;
x48.up = 5;
x49.up = 5;
x50.up = 5;
x51.fx = 4.5;
x52.fx = 0;
x53.lo = -3.14159265358979; x53.up = 3.14159265358979;
x54.lo = -3.14159265358979; x54.up = 3.14159265358979;
x55.lo = -3.14159265358979; x55.up = 3.14159265358979;
x56.lo = -3.14159265358979; x56.up = 3.14159265358979;
x57.lo = -3.14159265358979; x57.up = 3.14159265358979;
x58.lo = -3.14159265358979; x58.up = 3.14159265358979;
x59.lo = -3.14159265358979; x59.up = 3.14159265358979;
x60.lo = -3.14159265358979; x60.up = 3.14159265358979;
x61.lo = -3.14159265358979; x61.up = 3.14159265358979;
x62.lo = -3.14159265358979; x62.up = 3.14159265358979;
x63.lo = -3.14159265358979; x63.up = 3.14159265358979;
x64.lo = -3.14159265358979; x64.up = 3.14159265358979;
x65.lo = -3.14159265358979; x65.up = 3.14159265358979;
x66.lo = -3.14159265358979; x66.up = 3.14159265358979;
x67.lo = -3.14159265358979; x67.up = 3.14159265358979;
x68.lo = -3.14159265358979; x68.up = 3.14159265358979;
x69.lo = -3.14159265358979; x69.up = 3.14159265358979;
x70.lo = -3.14159265358979; x70.up = 3.14159265358979;
x71.lo = -3.14159265358979; x71.up = 3.14159265358979;
x72.lo = -3.14159265358979; x72.up = 3.14159265358979;
x73.lo = -3.14159265358979; x73.up = 3.14159265358979;
x74.lo = -3.14159265358979; x74.up = 3.14159265358979;
x75.lo = -3.14159265358979; x75.up = 3.14159265358979;
x76.lo = -3.14159265358979; x76.up = 3.14159265358979;
x77.lo = -3.14159265358979; x77.up = 3.14159265358979;
x78.lo = -3.14159265358979; x78.up = 3.14159265358979;
x79.lo = -3.14159265358979; x79.up = 3.14159265358979;
x80.lo = -3.14159265358979; x80.up = 3.14159265358979;
x81.lo = -3.14159265358979; x81.up = 3.14159265358979;
x82.lo = -3.14159265358979; x82.up = 3.14159265358979;
x83.lo = -3.14159265358979; x83.up = 3.14159265358979;
x84.lo = -3.14159265358979; x84.up = 3.14159265358979;
x85.lo = -3.14159265358979; x85.up = 3.14159265358979;
x86.lo = -3.14159265358979; x86.up = 3.14159265358979;
x87.lo = -3.14159265358979; x87.up = 3.14159265358979;
x88.lo = -3.14159265358979; x88.up = 3.14159265358979;
x89.lo = -3.14159265358979; x89.up = 3.14159265358979;
x90.lo = -3.14159265358979; x90.up = 3.14159265358979;
x91.lo = -3.14159265358979; x91.up = 3.14159265358979;
x92.lo = -3.14159265358979; x92.up = 3.14159265358979;
x93.lo = -3.14159265358979; x93.up = 3.14159265358979;
x94.lo = -3.14159265358979; x94.up = 3.14159265358979;
x95.lo = -3.14159265358979; x95.up = 3.14159265358979;
x96.lo = -3.14159265358979; x96.up = 3.14159265358979;
x97.lo = -3.14159265358979; x97.up = 3.14159265358979;
x98.lo = -3.14159265358979; x98.up = 3.14159265358979;
x99.lo = -3.14159265358979; x99.up = 3.14159265358979;
x100.lo = -3.14159265358979; x100.up = 3.14159265358979;
x101.lo = -3.14159265358979; x101.up = 3.14159265358979;
x102.fx = 2.0943951023932;
x103.fx = 0.785398163397448;
x104.up = 3.14159265358979;
x105.up = 3.14159265358979;
x106.up = 3.14159265358979;
x107.up = 3.14159265358979;
x108.up = 3.14159265358979;
x109.up = 3.14159265358979;
x110.up = 3.14159265358979;
x111.up = 3.14159265358979;
x112.up = 3.14159265358979;
x113.up = 3.14159265358979;
x114.up = 3.14159265358979;
x115.up = 3.14159265358979;
x116.up = 3.14159265358979;
x117.up = 3.14159265358979;
x118.up = 3.14159265358979;
x119.up = 3.14159265358979;
x120.up = 3.14159265358979;
x121.up = 3.14159265358979;
x122.up = 3.14159265358979;
x123.up = 3.14159265358979;
x124.up = 3.14159265358979;
x125.up = 3.14159265358979;
x126.up = 3.14159265358979;
x127.up = 3.14159265358979;
x128.up = 3.14159265358979;
x129.up = 3.14159265358979;
x130.up = 3.14159265358979;
x131.up = 3.14159265358979;
x132.up = 3.14159265358979;
x133.up = 3.14159265358979;
x134.up = 3.14159265358979;
x135.up = 3.14159265358979;
x136.up = 3.14159265358979;
x137.up = 3.14159265358979;
x138.up = 3.14159265358979;
x139.up = 3.14159265358979;
x140.up = 3.14159265358979;
x141.up = 3.14159265358979;
x142.up = 3.14159265358979;
x143.up = 3.14159265358979;
x144.up = 3.14159265358979;
x145.up = 3.14159265358979;
x146.up = 3.14159265358979;
x147.up = 3.14159265358979;
x148.up = 3.14159265358979;
x149.up = 3.14159265358979;
x150.up = 3.14159265358979;
x151.up = 3.14159265358979;
x152.up = 3.14159265358979;
x153.fx = 0.785398163397448;
x154.fx = 0;
x204.fx = 0;
x205.fx = 0;
x255.fx = 0;
x256.fx = 0;
x306.fx = 0;
x307.lo = -1; x307.up = 1;
x308.lo = -1; x308.up = 1;
x309.lo = -1; x309.up = 1;
x310.lo = -1; x310.up = 1;
x311.lo = -1; x311.up = 1;
x312.lo = -1; x312.up = 1;
x313.lo = -1; x313.up = 1;
x314.lo = -1; x314.up = 1;
x315.lo = -1; x315.up = 1;
x316.lo = -1; x316.up = 1;
x317.lo = -1; x317.up = 1;
x318.lo = -1; x318.up = 1;
x319.lo = -1; x319.up = 1;
x320.lo = -1; x320.up = 1;
x321.lo = -1; x321.up = 1;
x322.lo = -1; x322.up = 1;
x323.lo = -1; x323.up = 1;
x324.lo = -1; x324.up = 1;
x325.lo = -1; x325.up = 1;
x326.lo = -1; x326.up = 1;
x327.lo = -1; x327.up = 1;
x328.lo = -1; x328.up = 1;
x329.lo = -1; x329.up = 1;
x330.lo = -1; x330.up = 1;
x331.lo = -1; x331.up = 1;
x332.lo = -1; x332.up = 1;
x333.lo = -1; x333.up = 1;
x334.lo = -1; x334.up = 1;
x335.lo = -1; x335.up = 1;
x336.lo = -1; x336.up = 1;
x337.lo = -1; x337.up = 1;
x338.lo = -1; x338.up = 1;
x339.lo = -1; x339.up = 1;
x340.lo = -1; x340.up = 1;
x341.lo = -1; x341.up = 1;
x342.lo = -1; x342.up = 1;
x343.lo = -1; x343.up = 1;
x344.lo = -1; x344.up = 1;
x345.lo = -1; x345.up = 1;
x346.lo = -1; x346.up = 1;
x347.lo = -1; x347.up = 1;
x348.lo = -1; x348.up = 1;
x349.lo = -1; x349.up = 1;
x350.lo = -1; x350.up = 1;
x351.lo = -1; x351.up = 1;
x352.lo = -1; x352.up = 1;
x353.lo = -1; x353.up = 1;
x354.lo = -1; x354.up = 1;
x355.lo = -1; x355.up = 1;
x356.lo = -1; x356.up = 1;
x357.lo = -1; x357.up = 1;
x358.lo = -1; x358.up = 1;
x359.lo = -1; x359.up = 1;
x360.lo = -1; x360.up = 1;
x361.lo = -1; x361.up = 1;
x362.lo = -1; x362.up = 1;
x363.lo = -1; x363.up = 1;
x364.lo = -1; x364.up = 1;
x365.lo = -1; x365.up = 1;
x366.lo = -1; x366.up = 1;
x367.lo = -1; x367.up = 1;
x368.lo = -1; x368.up = 1;
x369.lo = -1; x369.up = 1;
x370.lo = -1; x370.up = 1;
x371.lo = -1; x371.up = 1;
x372.lo = -1; x372.up = 1;
x373.lo = -1; x373.up = 1;
x374.lo = -1; x374.up = 1;
x375.lo = -1; x375.up = 1;
x376.lo = -1; x376.up = 1;
x377.lo = -1; x377.up = 1;
x378.lo = -1; x378.up = 1;
x379.lo = -1; x379.up = 1;
x380.lo = -1; x380.up = 1;
x381.lo = -1; x381.up = 1;
x382.lo = -1; x382.up = 1;
x383.lo = -1; x383.up = 1;
x384.lo = -1; x384.up = 1;
x385.lo = -1; x385.up = 1;
x386.lo = -1; x386.up = 1;
x387.lo = -1; x387.up = 1;
x388.lo = -1; x388.up = 1;
x389.lo = -1; x389.up = 1;
x390.lo = -1; x390.up = 1;
x391.lo = -1; x391.up = 1;
x392.lo = -1; x392.up = 1;
x393.lo = -1; x393.up = 1;
x394.lo = -1; x394.up = 1;
x395.lo = -1; x395.up = 1;
x396.lo = -1; x396.up = 1;
x397.lo = -1; x397.up = 1;
x398.lo = -1; x398.up = 1;
x399.lo = -1; x399.up = 1;
x400.lo = -1; x400.up = 1;
x401.lo = -1; x401.up = 1;
x402.lo = -1; x402.up = 1;
x403.lo = -1; x403.up = 1;
x404.lo = -1; x404.up = 1;
x405.lo = -1; x405.up = 1;
x406.lo = -1; x406.up = 1;
x407.lo = -1; x407.up = 1;
x408.lo = -1; x408.up = 1;
x409.lo = -1; x409.up = 1;
x410.lo = -1; x410.up = 1;
x411.lo = -1; x411.up = 1;
x412.lo = -1; x412.up = 1;
x413.lo = -1; x413.up = 1;
x414.lo = -1; x414.up = 1;
x415.lo = -1; x415.up = 1;
x416.lo = -1; x416.up = 1;
x417.lo = -1; x417.up = 1;
x418.lo = -1; x418.up = 1;
x419.lo = -1; x419.up = 1;
x420.lo = -1; x420.up = 1;
x421.lo = -1; x421.up = 1;
x422.lo = -1; x422.up = 1;
x423.lo = -1; x423.up = 1;
x424.lo = -1; x424.up = 1;
x425.lo = -1; x425.up = 1;
x426.lo = -1; x426.up = 1;
x427.lo = -1; x427.up = 1;
x428.lo = -1; x428.up = 1;
x429.lo = -1; x429.up = 1;
x430.lo = -1; x430.up = 1;
x431.lo = -1; x431.up = 1;
x432.lo = -1; x432.up = 1;
x433.lo = -1; x433.up = 1;
x434.lo = -1; x434.up = 1;
x435.lo = -1; x435.up = 1;
x436.lo = -1; x436.up = 1;
x437.lo = -1; x437.up = 1;
x438.lo = -1; x438.up = 1;
x439.lo = -1; x439.up = 1;
x440.lo = -1; x440.up = 1;
x441.lo = -1; x441.up = 1;
x442.lo = -1; x442.up = 1;
x443.lo = -1; x443.up = 1;
x444.lo = -1; x444.up = 1;
x445.lo = -1; x445.up = 1;
x446.lo = -1; x446.up = 1;
x447.lo = -1; x447.up = 1;
x448.lo = -1; x448.up = 1;
x449.lo = -1; x449.up = 1;
x450.lo = -1; x450.up = 1;
x451.lo = -1; x451.up = 1;
x452.lo = -1; x452.up = 1;
x453.lo = -1; x453.up = 1;
x454.lo = -1; x454.up = 1;
x455.lo = -1; x455.up = 1;
x456.lo = -1; x456.up = 1;
x457.lo = -1; x457.up = 1;
x458.lo = -1; x458.up = 1;
x459.lo = -1; x459.up = 1;
x462.fx = 15.2083333333333;
x463.lo = 0.0001;
x464.lo = 0.0001;
x465.lo = 0.0001;
x466.lo = 0.0001;
x467.lo = 0.0001;
x468.lo = 0.0001;
x469.lo = 0.0001;
x470.lo = 0.0001;
x471.lo = 0.0001;
x472.lo = 0.0001;
x473.lo = 0.0001;
x474.lo = 0.0001;
x475.lo = 0.0001;
x476.lo = 0.0001;
x477.lo = 0.0001;
x478.lo = 0.0001;
x479.lo = 0.0001;
x480.lo = 0.0001;
x481.lo = 0.0001;
x482.lo = 0.0001;
x483.lo = 0.0001;
x484.lo = 0.0001;
x485.lo = 0.0001;
x486.lo = 0.0001;
x487.lo = 0.0001;
x488.lo = 0.0001;
x489.lo = 0.0001;
x490.lo = 0.0001;
x491.lo = 0.0001;
x492.lo = 0.0001;
x493.lo = 0.0001;
x494.lo = 0.0001;
x495.lo = 0.0001;
x496.lo = 0.0001;
x497.lo = 0.0001;
x498.lo = 0.0001;
x499.lo = 0.0001;
x500.lo = 0.0001;
x501.lo = 0.0001;
x502.lo = 0.0001;
x503.lo = 0.0001;
x504.lo = 0.0001;
x505.lo = 0.0001;
x506.lo = 0.0001;
x507.lo = 0.0001;
x508.lo = 0.0001;
x509.lo = 0.0001;
x510.lo = 0.0001;
x511.lo = 0.0001;
x512.fx = 15.2083333333333;
x513.fx = 30.4166666666667;
x514.lo = 0.0001;
x515.lo = 0.0001;
x516.lo = 0.0001;
x517.lo = 0.0001;
x518.lo = 0.0001;
x519.lo = 0.0001;
x520.lo = 0.0001;
x521.lo = 0.0001;
x522.lo = 0.0001;
x523.lo = 0.0001;
x524.lo = 0.0001;
x525.lo = 0.0001;
x526.lo = 0.0001;
x527.lo = 0.0001;
x528.lo = 0.0001;
x529.lo = 0.0001;
x530.lo = 0.0001;
x531.lo = 0.0001;
x532.lo = 0.0001;
x533.lo = 0.0001;
x534.lo = 0.0001;
x535.lo = 0.0001;
x536.lo = 0.0001;
x537.lo = 0.0001;
x538.lo = 0.0001;
x539.lo = 0.0001;
x540.lo = 0.0001;
x541.lo = 0.0001;
x542.lo = 0.0001;
x543.lo = 0.0001;
x544.lo = 0.0001;
x545.lo = 0.0001;
x546.lo = 0.0001;
x547.lo = 0.0001;
x548.lo = 0.0001;
x549.lo = 0.0001;
x550.lo = 0.0001;
x551.lo = 0.0001;
x552.lo = 0.0001;
x553.lo = 0.0001;
x554.lo = 0.0001;
x555.lo = 0.0001;
x556.lo = 0.0001;
x557.lo = 0.0001;
x558.lo = 0.0001;
x559.lo = 0.0001;
x560.lo = 0.0001;
x561.lo = 0.0001;
x562.lo = 0.0001;
x563.fx = 30.4166666666667;
* set non-default levels
x2.l = 4.5;
x3.l = 4.5;
x4.l = 4.5;
x5.l = 4.5;
x6.l = 4.5;
x7.l = 4.5;
x8.l = 4.5;
x9.l = 4.5;
x10.l = 4.5;
x11.l = 4.5;
x12.l = 4.5;
x13.l = 4.5;
x14.l = 4.5;
x15.l = 4.5;
x16.l = 4.5;
x17.l = 4.5;
x18.l = 4.5;
x19.l = 4.5;
x20.l = 4.5;
x21.l = 4.5;
x22.l = 4.5;
x23.l = 4.5;
x24.l = 4.5;
x25.l = 4.5;
x26.l = 4.5;
x27.l = 4.5;
x28.l = 4.5;
x29.l = 4.5;
x30.l = 4.5;
x31.l = 4.5;
x32.l = 4.5;
x33.l = 4.5;
x34.l = 4.5;
x35.l = 4.5;
x36.l = 4.5;
x37.l = 4.5;
x38.l = 4.5;
x39.l = 4.5;
x40.l = 4.5;
x41.l = 4.5;
x42.l = 4.5;
x43.l = 4.5;
x44.l = 4.5;
x45.l = 4.5;
x46.l = 4.5;
x47.l = 4.5;
x48.l = 4.5;
x49.l = 4.5;
x50.l = 4.5;
x53.l = 0.00335103216382911;
x54.l = 0.0075398223686155;
x55.l = 0.0134041286553164;
x56.l = 0.020943951023932;
x57.l = 0.030159289474462;
x58.l = 0.0410501440069066;
x59.l = 0.0536165146212658;
x60.l = 0.0678584013175395;
x61.l = 0.0837758040957278;
x62.l = 0.101368722955831;
x63.l = 0.120637157897848;
x64.l = 0.14158110892178;
x65.l = 0.164200576027627;
x66.l = 0.188495559215388;
x67.l = 0.214466058485063;
x68.l = 0.242112073836653;
x69.l = 0.271433605270158;
x70.l = 0.302430652785577;
x71.l = 0.335103216382911;
x72.l = 0.36945129606216;
x73.l = 0.405474891823323;
x74.l = 0.4431740036664;
x75.l = 0.482548631591392;
x76.l = 0.523598775598299;
x77.l = 0.56632443568712;
x78.l = 0.610725611857856;
x79.l = 0.656802304110506;
x80.l = 0.704554512445071;
x81.l = 0.75398223686155;
x82.l = 0.805085477359944;
x83.l = 0.857864233940253;
x84.l = 0.912318506602476;
x85.l = 0.968448295346614;
x86.l = 1.02625360017267;
x87.l = 1.08573442108063;
x88.l = 1.14689075807051;
x89.l = 1.20972261114231;
x90.l = 1.27422998029602;
x91.l = 1.34041286553165;
x92.l = 1.40827126684918;
x93.l = 1.47780518424864;
x94.l = 1.54901461773001;
x95.l = 1.62189956729329;
x96.l = 1.69646003293849;
x97.l = 1.7726960146656;
x98.l = 1.85060751247463;
x99.l = 1.93019452636557;
x100.l = 2.01145705633842;
x101.l = 2.0943951023932;
x104.l = 0.785398163397448;
x105.l = 0.785398163397448;
x106.l = 0.785398163397448;
x107.l = 0.785398163397448;
x108.l = 0.785398163397448;
x109.l = 0.785398163397448;
x110.l = 0.785398163397448;
x111.l = 0.785398163397448;
x112.l = 0.785398163397448;
x113.l = 0.785398163397448;
x114.l = 0.785398163397448;
x115.l = 0.785398163397448;
x116.l = 0.785398163397448;
x117.l = 0.785398163397448;
x118.l = 0.785398163397448;
x119.l = 0.785398163397448;
x120.l = 0.785398163397448;
x121.l = 0.785398163397448;
x122.l = 0.785398163397448;
x123.l = 0.785398163397448;
x124.l = 0.785398163397448;
x125.l = 0.785398163397448;
x126.l = 0.785398163397448;
x127.l = 0.785398163397448;
x128.l = 0.785398163397448;
x129.l = 0.785398163397448;
x130.l = 0.785398163397448;
x131.l = 0.785398163397448;
x132.l = 0.785398163397448;
x133.l = 0.785398163397448;
x134.l = 0.785398163397448;
x135.l = 0.785398163397448;
x136.l = 0.785398163397448;
x137.l = 0.785398163397448;
x138.l = 0.785398163397448;
x139.l = 0.785398163397448;
x140.l = 0.785398163397448;
x141.l = 0.785398163397448;
x142.l = 0.785398163397448;
x143.l = 0.785398163397448;
x144.l = 0.785398163397448;
x145.l = 0.785398163397448;
x146.l = 0.785398163397448;
x147.l = 0.785398163397448;
x148.l = 0.785398163397448;
x149.l = 0.785398163397448;
x150.l = 0.785398163397448;
x151.l = 0.785398163397448;
x152.l = 0.785398163397448;
x206.l = 0.167551608191456;
x207.l = 0.251327412287183;
x208.l = 0.335103216382911;
x209.l = 0.418879020478639;
x210.l = 0.502654824574367;
x211.l = 0.586430628670095;
x212.l = 0.670206432765822;
x213.l = 0.75398223686155;
x214.l = 0.837758040957278;
x215.l = 0.921533845053006;
x216.l = 1.00530964914873;
x217.l = 1.08908545324446;
x218.l = 1.17286125734019;
x219.l = 1.25663706143592;
x220.l = 1.34041286553164;
x221.l = 1.42418866962737;
x222.l = 1.5079644737231;
x223.l = 1.59174027781883;
x224.l = 1.67551608191456;
x225.l = 1.75929188601028;
x226.l = 1.84306769010601;
x227.l = 1.92684349420174;
x228.l = 2.01061929829747;
x229.l = 2.0943951023932;
x230.l = 2.17817090648892;
x231.l = 2.26194671058465;
x232.l = 2.34572251468038;
x233.l = 2.42949831877611;
x234.l = 2.51327412287183;
x235.l = 2.59704992696756;
x236.l = 2.68082573106329;
x237.l = 2.76460153515902;
x238.l = 2.84837733925475;
x239.l = 2.93215314335047;
x240.l = 3.0159289474462;
x241.l = 3.09970475154193;
x242.l = 3.18348055563766;
x243.l = 3.26725635973338;
x244.l = 3.35103216382911;
x245.l = 3.43480796792484;
x246.l = 3.51858377202057;
x247.l = 3.6023595761163;
x248.l = 3.68613538021202;
x249.l = 3.76991118430775;
x250.l = 3.85368698840348;
x251.l = 3.93746279249921;
x252.l = 4.02123859659493;
x253.l = 4.10501440069066;
x254.l = 4.18879020478639;
x307.l = 0.001;
x308.l = 0.001;
x309.l = 0.001;
x310.l = 0.001;
x311.l = 0.001;
x312.l = 0.001;
x313.l = 0.001;
x314.l = 0.001;
x315.l = 0.001;
x316.l = 0.001;
x317.l = 0.001;
x318.l = 0.001;
x319.l = 0.001;
x320.l = 0.001;
x321.l = 0.001;
x322.l = 0.001;
x323.l = 0.001;
x324.l = 0.001;
x325.l = 0.001;
x326.l = 0.001;
x327.l = 0.001;
x328.l = 0.001;
x329.l = 0.001;
x330.l = 0.001;
x331.l = 0.001;
x332.l = 0.001;
x333.l = 0.001;
x334.l = 0.001;
x335.l = 0.001;
x336.l = 0.001;
x337.l = 0.001;
x338.l = 0.001;
x339.l = 0.001;
x340.l = 0.001;
x341.l = 0.001;
x342.l = 0.001;
x343.l = 0.001;
x344.l = 0.001;
x345.l = 0.001;
x346.l = 0.001;
x347.l = 0.001;
x348.l = 0.001;
x349.l = 0.001;
x350.l = 0.001;
x351.l = 0.001;
x352.l = 0.001;
x353.l = 0.001;
x354.l = 0.001;
x355.l = 0.001;
x356.l = 0.001;
x357.l = 0.001;
x358.l = 0.001;
x359.l = 0.001;
x360.l = 0.001;
x361.l = 0.001;
x362.l = 0.001;
x363.l = 0.001;
x364.l = 0.001;
x365.l = 0.001;
x366.l = 0.001;
x367.l = 0.001;
x368.l = 0.001;
x369.l = 0.001;
x370.l = 0.001;
x371.l = 0.001;
x372.l = 0.001;
x373.l = 0.001;
x374.l = 0.001;
x375.l = 0.001;
x376.l = 0.001;
x377.l = 0.001;
x378.l = 0.001;
x379.l = 0.001;
x380.l = 0.001;
x381.l = 0.001;
x382.l = 0.001;
x383.l = 0.001;
x384.l = 0.001;
x385.l = 0.001;
x386.l = 0.001;
x387.l = 0.001;
x388.l = 0.001;
x389.l = 0.001;
x390.l = 0.001;
x391.l = 0.001;
x392.l = 0.001;
x393.l = 0.001;
x394.l = 0.001;
x395.l = 0.001;
x396.l = 0.001;
x397.l = 0.001;
x398.l = 0.001;
x399.l = 0.001;
x400.l = 0.001;
x401.l = 0.001;
x402.l = 0.001;
x403.l = 0.001;
x404.l = 0.001;
x405.l = 0.001;
x406.l = 0.001;
x407.l = 0.001;
x408.l = 0.001;
x409.l = 0.001;
x410.l = 0.001;
x411.l = 0.001;
x412.l = 0.001;
x413.l = 0.001;
x414.l = 0.001;
x415.l = 0.001;
x416.l = 0.001;
x417.l = 0.001;
x418.l = 0.001;
x419.l = 0.001;
x420.l = 0.001;
x421.l = 0.001;
x422.l = 0.001;
x423.l = 0.001;
x424.l = 0.001;
x425.l = 0.001;
x426.l = 0.001;
x427.l = 0.001;
x428.l = 0.001;
x429.l = 0.001;
x430.l = 0.001;
x431.l = 0.001;
x432.l = 0.001;
x433.l = 0.001;
x434.l = 0.001;
x435.l = 0.001;
x436.l = 0.001;
x437.l = 0.001;
x438.l = 0.001;
x439.l = 0.001;
x440.l = 0.001;
x441.l = 0.001;
x442.l = 0.001;
x443.l = 0.001;
x444.l = 0.001;
x445.l = 0.001;
x446.l = 0.001;
x447.l = 0.001;
x448.l = 0.001;
x449.l = 0.001;
x450.l = 0.001;
x451.l = 0.001;
x452.l = 0.001;
x453.l = 0.001;
x454.l = 0.001;
x455.l = 0.001;
x456.l = 0.001;
x457.l = 0.001;
x458.l = 0.001;
x459.l = 0.001;
x460.l = 0.02;
x463.l = 15.2083333333333;
x464.l = 15.2083333333333;
x465.l = 15.2083333333333;
x466.l = 15.2083333333333;
x467.l = 15.2083333333333;
x468.l = 15.2083333333333;
x469.l = 15.2083333333333;
x470.l = 15.2083333333333;
x471.l = 15.2083333333333;
x472.l = 15.2083333333333;
x473.l = 15.2083333333333;
x474.l = 15.2083333333333;
x475.l = 15.2083333333333;
x476.l = 15.2083333333333;
x477.l = 15.2083333333333;
x478.l = 15.2083333333333;
x479.l = 15.2083333333333;
x480.l = 15.2083333333333;
x481.l = 15.2083333333333;
x482.l = 15.2083333333333;
x483.l = 15.2083333333333;
x484.l = 15.2083333333333;
x485.l = 15.2083333333333;
x486.l = 15.2083333333333;
x487.l = 15.2083333333333;
x488.l = 15.2083333333333;
x489.l = 15.2083333333333;
x490.l = 15.2083333333333;
x491.l = 15.2083333333333;
x492.l = 15.2083333333333;
x493.l = 15.2083333333333;
x494.l = 15.2083333333333;
x495.l = 15.2083333333333;
x496.l = 15.2083333333333;
x497.l = 15.2083333333333;
x498.l = 15.2083333333333;
x499.l = 15.2083333333333;
x500.l = 15.2083333333333;
x501.l = 15.2083333333333;
x502.l = 15.2083333333333;
x503.l = 15.2083333333333;
x504.l = 15.2083333333333;
x505.l = 15.2083333333333;
x506.l = 15.2083333333333;
x507.l = 15.2083333333333;
x508.l = 15.2083333333333;
x509.l = 15.2083333333333;
x510.l = 15.2083333333333;
x511.l = 15.2083333333333;
x514.l = 30.4166666666667;
x515.l = 30.4166666666667;
x516.l = 30.4166666666667;
x517.l = 30.4166666666667;
x518.l = 30.4166666666667;
x519.l = 30.4166666666667;
x520.l = 30.4166666666667;
x521.l = 30.4166666666667;
x522.l = 30.4166666666667;
x523.l = 30.4166666666667;
x524.l = 30.4166666666667;
x525.l = 30.4166666666667;
x526.l = 30.4166666666667;
x527.l = 30.4166666666667;
x528.l = 30.4166666666667;
x529.l = 30.4166666666667;
x530.l = 30.4166666666667;
x531.l = 30.4166666666667;
x532.l = 30.4166666666667;
x533.l = 30.4166666666667;
x534.l = 30.4166666666667;
x535.l = 30.4166666666667;
x536.l = 30.4166666666667;
x537.l = 30.4166666666667;
x538.l = 30.4166666666667;
x539.l = 30.4166666666667;
x540.l = 30.4166666666667;
x541.l = 30.4166666666667;
x542.l = 30.4166666666667;
x543.l = 30.4166666666667;
x544.l = 30.4166666666667;
x545.l = 30.4166666666667;
x546.l = 30.4166666666667;
x547.l = 30.4166666666667;
x548.l = 30.4166666666667;
x549.l = 30.4166666666667;
x550.l = 30.4166666666667;
x551.l = 30.4166666666667;
x552.l = 30.4166666666667;
x553.l = 30.4166666666667;
x554.l = 30.4166666666667;
x555.l = 30.4166666666667;
x556.l = 30.4166666666667;
x557.l = 30.4166666666667;
x558.l = 30.4166666666667;
x559.l = 30.4166666666667;
x560.l = 30.4166666666667;
x561.l = 30.4166666666667;
x562.l = 30.4166666666667;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set NLP $set NLP NLP
Solve m using %NLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
