Instance rsyn0840m
Redesign of existing plants to increase throughput, reduce energy consumption, improve yields, and reduce waste generation. Given limited capital investments to make process improvements and cost estimations over a given time horizon, the problem is to identify the modifications that yield the highest economic improvement which is defined as the income from product sales minus the cost of raw materials, energy, and process modifications.
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 325.63902000 (ALPHAECP) 325.55468010 (ANTIGONE) 325.55450870 (BARON) 876.58138000 (BONMIN) 1610.32142800 (COUENNE) 325.55450960 (LINDO) 325.55462900 (SCIP) 338.79315960 (SHOT) |
| Referencesⓘ | Sawaya, Nicolas W, Reformulations, relaxations and cutting planes for generalized disjunctive programming, PhD thesis, Carnegie Mellon University, 2006. |
| Sourceⓘ | RSyn0840M.gms from CMU-IBM MINLP solver project page |
| Applicationⓘ | Retrofit Planning |
| Added to libraryⓘ | 28 Sep 2013 |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 280 |
| #Binary Variablesⓘ | 104 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 28 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 101 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 484 |
| #Linear Constraintsⓘ | 456 |
| #Quadratic Constraintsⓘ | 0 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 28 |
| Operands in Gen. Nonlin. Functionsⓘ | log |
| Constraints curvatureⓘ | convex |
| #Nonzeros in Jacobianⓘ | 1189 |
| #Nonlinear Nonzeros in Jacobianⓘ | 28 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 28 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 28 |
| #Blocks in Hessian of Lagrangianⓘ | 28 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 1 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 1 |
| Average blocksize in Hessian of Lagrangianⓘ | 1.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 2.0000e-01 |
| Maximal coefficientⓘ | 3.5000e+02 |
| Infeasibility of initial pointⓘ | 1.4 |

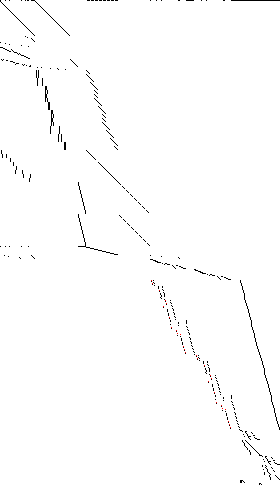

| Sparsity Jacobianⓘ |  |
| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 485 90 150 245 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 281 177 104 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1291 1263 28 0
*
* Solve m using MINLP maximizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,b88,b89,b90,b91,b92,b93,b94,b95,b96,b97,b98,b99,b100,b101,b102
,b103,b104,b105,b106,b107,b108,b109,b110,b111,b112,b113,b114,b115
,b116,b117,b118,b119,b120,b121,b122,b123,b124,b125,b126,b127,b128
,b129,b130,b131,b132,b133,b134,b135,b136,b137,b138,b139,b140,b141
,b142,b143,b144,b145,b146,b147,b148,b149,b150,b151,x152,x153,x154
,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180
,x181,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193
,x194,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206
,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219
,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232
,x233,x234,x235,x236,x237,x238,x239,x240,x241,b242,b243,b244,b245
,b246,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258
,b259,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271
,b272,b273,b274,b275,b276,b277,b278,b279,b280,b281;
Positive Variables x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34
,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51
,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68
,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85
,x86,x87,x152,x153,x154,x155,x156,x157,x158,x159,x160,x161,x162,x163
,x164,x165,x166,x167,x168,x169,x170,x171,x172,x173,x174,x175,x176
,x177,x178,x179,x180,x181,x182,x183,x184,x185,x186,x187,x188,x189
,x190,x191,x192,x193,x194,x195,x196,x197,x198,x199,x200,x201,x202
,x203,x204,x205,x206,x207,x208,x209,x210,x211,x212,x213,x214,x215
,x216,x217,x218,x219,x220,x221,x222,x223,x224,x225,x226,x227,x228
,x229,x230,x231,x232,x233,x234,x235,x236,x237,x238,x239,x240,x241;
Binary Variables b88,b89,b90,b91,b92,b93,b94,b95,b96,b97,b98,b99,b100,b101
,b102,b103,b104,b105,b106,b107,b108,b109,b110,b111,b112,b113,b114
,b115,b116,b117,b118,b119,b120,b121,b122,b123,b124,b125,b126,b127
,b128,b129,b130,b131,b132,b133,b134,b135,b136,b137,b138,b139,b140
,b141,b142,b143,b144,b145,b146,b147,b148,b149,b150,b151,b242,b243
,b244,b245,b246,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256
,b257,b258,b259,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269
,b270,b271,b272,b273,b274,b275,b276,b277,b278,b279,b280,b281;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485;
e1.. objvar + 10*x2 + 15*x7 + 18*x11 + 19*x23 - 35*x27 - 28*x29 + 16*x30
- 2*x33 - 3*x34 - 5*x35 - 4*x36 + 6*b89 + 40*b90 + 46*b91 + 7*b93
+ 30*b94 + 37*b95 + 7*b97 + 15*b98 + 22*b99 + 11*b101 + 13*b102 + 24*b103
+ 10*b105 + 13*b106 + 23*b107 + 9*b109 + 30*b110 + 39*b111 + 8*b113
+ 20*b114 + 28*b115 + 8*b117 + 15*b118 + 23*b119 + x152 - 5*x158 + 2*x163
+ 10*x180 + 5*x181 - 40*x188 - 15*x189 - 10*x190 - 30*x191 - 35*x192
- 20*x193 - 25*x194 - 15*x195 - 30*x203 + x208 + 5*x225 + x226 - 120*x233
- 140*x234 - 90*x235 - 80*x236 - 285*x237 - 290*x238 - 280*x239
- 290*x240 - 350*x241 + 5*b242 + 8*b243 + 6*b244 + 10*b245 + 6*b246
+ 7*b247 + 4*b248 + 5*b249 + 2*b250 + 4*b251 + 3*b252 + 7*b253 + 3*b254
+ 2*b255 + 4*b256 + 2*b257 + 3*b258 + 5*b259 + 2*b260 + b261 + 2*b262
+ 9*b263 + 5*b264 + 2*b265 + 10*b266 + 4*b267 + 7*b268 + 4*b269 + 2*b270
+ 8*b271 + 9*b272 + 3*b273 + 5*b274 + 5*b275 + 6*b276 + 2*b277 + 6*b278
+ 3*b279 + 5*b280 + 9*b281 =E= 0;
e2.. x2 - 0.2*x37 =E= 0;
e3.. x3 - 0.2*x38 =E= 0;
e4.. x4 - 0.2*x39 =E= 0;
e5.. x5 - 0.2*x40 =E= 0;
e6.. x6 - 0.2*x41 =E= 0;
e7.. x7 - 0.5*x42 =E= 0;
e8.. x8 - 0.5*x43 =E= 0;
e9.. x9 - 0.7*x44 =E= 0;
e10.. x10 - 0.7*x45 =E= 0;
e11.. x11 - 1.2*x46 =E= 0;
e12.. x12 - 1.2*x47 =E= 0;
e13.. x13 - 0.5*x48 =E= 0;
e14.. x14 - 0.7*x49 =E= 0;
e15.. x15 - 1.2*x50 =E= 0;
e16.. x16 - 1.2*x51 =E= 0;
e17.. x17 - 1.2*x52 =E= 0;
e18.. x18 - 1.2*x53 =E= 0;
e19.. x19 - 0.3*x54 =E= 0;
e20.. x20 - 0.9*x55 =E= 0;
e21.. x21 - 0.3*x56 =E= 0;
e22.. x22 - 0.9*x57 =E= 0;
e23.. x23 - 0.4*x58 =E= 0;
e24.. x24 - 0.4*x59 =E= 0;
e25.. x25 - 0.4*x60 =E= 0;
e26.. x26 - 1.6*x61 =E= 0;
e27.. x27 - 1.6*x62 =E= 0;
e28.. x28 - 1.1*x63 =E= 0;
e29.. x29 - 1.1*x64 =E= 0;
e30.. x30 - 0.7*x65 =E= 0;
e31.. x31 - 0.7*x66 =E= 0;
e32.. x32 - 0.7*x67 =E= 0;
e33.. x33 - 0.2*x68 =E= 0;
e34.. x34 - 0.7*x69 =E= 0;
e35.. x35 - 0.3*x70 =E= 0;
e36.. x36 - 0.9*x71 =E= 0;
e37.. x27 =G= 1.2;
e38.. x29 =G= 1.2;
e39.. x33 =G= 1.1;
e40.. x34 =G= 1.1;
e41.. x35 =G= 1.4;
e42.. x36 =G= 1.3;
e43.. x2 =L= 35;
e44.. x7 =L= 36;
e45.. x11 =L= 25;
e46.. x23 =L= 24;
e47.. x30 =L= 30;
e48.. x2 - x3 - x4 =E= 0;
e49.. x5 - x6 =E= 0;
e50.. x7 - x8 + x13 =E= 0;
e51.. x9 - x10 + x14 =E= 0;
e52.. x11 - x12 - x15 =E= 0;
e53.. x16 - x17 - x18 =E= 0;
e54.. x19 - x21 =E= 0;
e55.. x20 - x22 =E= 0;
e56.. x23 - x24 - x25 =E= 0;
e57.. x26 - x27 =E= 0;
e58.. x28 - x29 =E= 0;
e59.. x30 - x31 =E= 0;
e60.. x3 - x5 - x72 =E= 0;
e61.. x4 + x8 - x9 - x73 =E= 0;
e62.. x12 - x13 - x14 - x74 =E= 0;
e63.. x15 - x16 - x75 =E= 0;
e64.. x18 - x19 - x20 - x76 =E= 0;
e65.. x17 + x24 - x26 - x77 =E= 0;
e66.. x25 - x28 + x32 - x78 =E= 0;
e67.. x31 - x32 - x79 =E= 0;
e68.. x39 - x43 =L= 0;
e69.. x52 - x59 =L= 0;
e70.. x60 - x67 =L= 0;
e71.. - 0.8*x38 + x40 + 148.75*b88 =L= 148.75;
e72.. - 0.85*x38 + x40 + 148.75*b89 =L= 148.75;
e73.. - 0.8*x38 + x40 + 148.75*b90 =L= 148.75;
e74.. - 0.85*x38 + x40 + 148.75*b91 =L= 148.75;
e75.. - 0.8*x38 + x40 - 148.75*b88 =G= -148.75;
e76.. - 0.85*x38 + x40 - 148.75*b89 =G= -148.75;
e77.. - 0.8*x38 + x40 - 148.75*b90 =G= -148.75;
e78.. - 0.85*x38 + x40 - 148.75*b91 =G= -148.75;
e79.. - 0.9*x39 + x44 + 254.045833333333*b92 =L= 254.045833333333;
e80.. - 0.95*x39 + x44 + 254.045833333333*b93 =L= 254.045833333333;
e81.. - 0.9*x39 + x44 + 254.045833333333*b94 =L= 254.045833333333;
e82.. - 0.95*x39 + x44 + 254.045833333333*b95 =L= 254.045833333333;
e83.. - 0.9*x39 + x44 - 166.25*b92 =G= -166.25;
e84.. - 0.95*x39 + x44 - 166.25*b93 =G= -166.25;
e85.. - 0.9*x39 + x44 - 166.25*b94 =G= -166.25;
e86.. - 0.95*x39 + x44 - 166.25*b95 =G= -166.25;
e87.. - 0.85*x47 + x48 + 20.4166666666667*b96 =L= 20.4166666666667;
e88.. - 0.98*x47 + x48 + 20.4166666666667*b97 =L= 20.4166666666667;
e89.. - 0.85*x47 + x48 + 20.4166666666667*b98 =L= 20.4166666666667;
e90.. - 0.98*x47 + x48 + 20.4166666666667*b99 =L= 20.4166666666667;
e91.. - 0.85*x47 + x49 + 20.4166666666667*b96 =L= 20.4166666666667;
e92.. - 0.98*x47 + x49 + 20.4166666666667*b97 =L= 20.4166666666667;
e93.. - 0.85*x47 + x49 + 20.4166666666667*b98 =L= 20.4166666666667;
e94.. - 0.98*x47 + x49 + 20.4166666666667*b99 =L= 20.4166666666667;
e95.. - 0.85*x47 + x48 - 20.4166666666667*b96 =G= -20.4166666666667;
e96.. - 0.98*x47 + x48 - 20.4166666666667*b97 =G= -20.4166666666667;
e97.. - 0.85*x47 + x48 - 20.4166666666667*b98 =G= -20.4166666666667;
e98.. - 0.98*x47 + x48 - 20.4166666666667*b99 =G= -20.4166666666667;
e99.. - 0.85*x47 + x49 - 20.4166666666667*b96 =G= -20.4166666666667;
e100.. - 0.98*x47 + x49 - 20.4166666666667*b97 =G= -20.4166666666667;
e101.. - 0.85*x47 + x49 - 20.4166666666667*b98 =G= -20.4166666666667;
e102.. - 0.98*x47 + x49 - 20.4166666666667*b99 =G= -20.4166666666667;
e103.. - 0.85*x50 + x51 + 18.75*b100 =L= 18.75;
e104.. - 0.9*x50 + x51 + 18.75*b101 =L= 18.75;
e105.. - 0.85*x50 + x51 + 18.75*b102 =L= 18.75;
e106.. - 0.9*x50 + x51 + 18.75*b103 =L= 18.75;
e107.. - 0.85*x50 + x51 - 18.75*b100 =G= -18.75;
e108.. - 0.9*x50 + x51 - 18.75*b101 =G= -18.75;
e109.. - 0.85*x50 + x51 - 18.75*b102 =G= -18.75;
e110.. - 0.9*x50 + x51 - 18.75*b103 =G= -18.75;
e111.. - 0.75*x53 + x54 + 17.8125*b104 =L= 17.8125;
e112.. - 0.95*x53 + x54 + 17.8125*b105 =L= 17.8125;
e113.. - 0.9*x53 + x54 + 17.8125*b106 =L= 17.8125;
e114.. - 0.95*x53 + x54 + 17.8125*b107 =L= 17.8125;
e115.. - 0.75*x53 + x55 + 17.8125*b104 =L= 17.8125;
e116.. - 0.95*x53 + x55 + 17.8125*b105 =L= 17.8125;
e117.. - 0.9*x53 + x55 + 17.8125*b106 =L= 17.8125;
e118.. - 0.95*x53 + x55 + 17.8125*b107 =L= 17.8125;
e119.. - 0.75*x53 + x54 - 17.8125*b104 =G= -17.8125;
e120.. - 0.95*x53 + x54 - 17.8125*b105 =G= -17.8125;
e121.. - 0.9*x53 + x54 - 17.8125*b106 =G= -17.8125;
e122.. - 0.95*x53 + x54 - 17.8125*b107 =G= -17.8125;
e123.. - 0.75*x53 + x55 - 17.8125*b104 =G= -17.8125;
e124.. - 0.95*x53 + x55 - 17.8125*b105 =G= -17.8125;
e125.. - 0.9*x53 + x55 - 17.8125*b106 =G= -17.8125;
e126.. - 0.95*x53 + x55 - 17.8125*b107 =G= -17.8125;
e127.. - 0.8*x52 + x61 + 66.9375*b108 =L= 66.9375;
e128.. - 0.85*x52 + x61 + 66.9375*b109 =L= 66.9375;
e129.. - 0.8*x52 + x61 + 66.9375*b110 =L= 66.9375;
e130.. - 0.85*x52 + x61 + 66.9375*b111 =L= 66.9375;
e131.. - 0.8*x52 + x61 - 15.9375*b108 =G= -15.9375;
e132.. - 0.85*x52 + x61 - 15.9375*b109 =G= -15.9375;
e133.. - 0.8*x52 + x61 - 15.9375*b110 =G= -15.9375;
e134.. - 0.85*x52 + x61 - 15.9375*b111 =G= -15.9375;
e135.. - 0.85*x60 + x63 + 94.4571428571429*b112 =L= 94.4571428571429;
e136.. - 0.95*x60 + x63 + 94.4571428571429*b113 =L= 94.4571428571429;
e137.. - 0.85*x60 + x63 + 94.4571428571429*b114 =L= 94.4571428571429;
e138.. - 0.95*x60 + x63 + 94.4571428571429*b115 =L= 94.4571428571429;
e139.. - 0.85*x60 + x63 - 57*b112 =G= -57;
e140.. - 0.95*x60 + x63 - 57*b113 =G= -57;
e141.. - 0.85*x60 + x63 - 57*b114 =G= -57;
e142.. - 0.95*x60 + x63 - 57*b115 =G= -57;
e143.. - 0.8*x66 + x67 + 39.4285714285714*b116 =L= 39.4285714285714;
e144.. - 0.92*x66 + x67 + 39.4285714285714*b117 =L= 39.4285714285714;
e145.. - 0.8*x66 + x67 + 39.4285714285714*b118 =L= 39.4285714285714;
e146.. - 0.92*x66 + x67 + 39.4285714285714*b119 =L= 39.4285714285714;
e147.. - 0.8*x66 + x67 - 39.4285714285714*b116 =G= -39.4285714285714;
e148.. - 0.92*x66 + x67 - 39.4285714285714*b117 =G= -39.4285714285714;
e149.. - 0.8*x66 + x67 - 39.4285714285714*b118 =G= -39.4285714285714;
e150.. - 0.92*x66 + x67 - 39.4285714285714*b119 =G= -39.4285714285714;
e151.. x3 + 25*b88 =L= 35;
e152.. x3 + 25*b89 =L= 35;
e153.. x3 - 15*b90 =L= 35;
e154.. x3 - 15*b91 =L= 35;
e155.. x4 + x8 + 56*b92 =L= 96;
e156.. x4 + x8 + 56*b93 =L= 96;
e157.. x4 + x8 + 36*b94 =L= 96;
e158.. x4 + x8 + 36*b95 =L= 96;
e159.. x12 + 10*b96 =L= 25;
e160.. x12 + 10*b97 =L= 25;
e161.. x12 =L= 25;
e162.. x12 =L= 25;
e163.. x15 + 10*b100 =L= 25;
e164.. x15 + 10*b101 =L= 25;
e165.. x15 + 5*b102 =L= 25;
e166.. x15 + 5*b103 =L= 25;
e167.. x18 + 15*b104 =L= 25;
e168.. x18 + 15*b105 =L= 25;
e169.. x18 + 5*b106 =L= 25;
e170.. x18 + 5*b107 =L= 25;
e171.. x17 + x24 + 29*b108 =L= 49;
e172.. x17 + x24 + 29*b109 =L= 49;
e173.. x17 + x24 - 6*b110 =L= 49;
e174.. x17 + x24 - 6*b111 =L= 49;
e175.. x25 + x32 + 29*b112 =L= 54;
e176.. x25 + x32 + 29*b113 =L= 54;
e177.. x25 + x32 + 4*b114 =L= 54;
e178.. x25 + x32 + 4*b115 =L= 54;
e179.. x31 + 15*b116 =L= 30;
e180.. x31 + 15*b117 =L= 30;
e181.. x31 - 5*b118 =L= 30;
e182.. x31 - 5*b119 =L= 30;
e183.. x80 + 46*b120 =L= 46;
e184.. x80 + 40*b121 =L= 46;
e185.. x80 + 6*b122 =L= 46;
e186.. x80 =L= 46;
e187.. x81 + 37*b124 =L= 37;
e188.. x81 + 30*b125 =L= 37;
e189.. x81 + 7*b126 =L= 37;
e190.. x81 =L= 37;
e191.. x82 + 22*b128 =L= 22;
e192.. x82 + 15*b129 =L= 22;
e193.. x82 + 7*b130 =L= 22;
e194.. x82 =L= 22;
e195.. x83 + 24*b132 =L= 24;
e196.. x83 + 13*b133 =L= 24;
e197.. x83 + 11*b134 =L= 24;
e198.. x83 =L= 24;
e199.. x84 + 23*b136 =L= 23;
e200.. x84 + 13*b137 =L= 23;
e201.. x84 + 10*b138 =L= 23;
e202.. x84 =L= 23;
e203.. x85 + 39*b140 =L= 39;
e204.. x85 + 30*b141 =L= 39;
e205.. x85 + 9*b142 =L= 39;
e206.. x85 =L= 39;
e207.. x86 + 28*b144 =L= 28;
e208.. x86 + 20*b145 =L= 28;
e209.. x86 + 8*b146 =L= 28;
e210.. x86 =L= 28;
e211.. x87 + 23*b148 =L= 23;
e212.. x87 + 15*b149 =L= 23;
e213.. x87 + 8*b150 =L= 23;
e214.. x87 =L= 23;
e215.. x80 =G= 0;
e216.. x80 - 6*b121 =G= 0;
e217.. x80 - 40*b122 =G= 0;
e218.. x80 - 46*b123 =G= 0;
e219.. x81 =G= 0;
e220.. x81 - 7*b125 =G= 0;
e221.. x81 - 30*b126 =G= 0;
e222.. x81 - 37*b127 =G= 0;
e223.. x82 =G= 0;
e224.. x82 - 7*b129 =G= 0;
e225.. x82 - 15*b130 =G= 0;
e226.. x82 - 22*b131 =G= 0;
e227.. x83 =G= 0;
e228.. x83 - 11*b133 =G= 0;
e229.. x83 - 13*b134 =G= 0;
e230.. x83 - 24*b135 =G= 0;
e231.. x84 =G= 0;
e232.. x84 - 10*b137 =G= 0;
e233.. x84 - 13*b138 =G= 0;
e234.. x84 - 23*b139 =G= 0;
e235.. x85 =G= 0;
e236.. x85 - 9*b141 =G= 0;
e237.. x85 - 30*b142 =G= 0;
e238.. x85 - 39*b143 =G= 0;
e239.. x86 =G= 0;
e240.. x86 - 8*b145 =G= 0;
e241.. x86 - 20*b146 =G= 0;
e242.. x86 - 28*b147 =G= 0;
e243.. x87 =G= 0;
e244.. x87 - 8*b149 =G= 0;
e245.. x87 - 15*b150 =G= 0;
e246.. x87 - 23*b151 =G= 0;
e247.. 10*x2 + 15*x7 + 18*x11 + 19*x23 + 16*x30 + x80 + x81 + x82 + x83
+ x84 + x85 + x86 + x87 =L= 4000;
e248.. b88 + b89 + b90 + b91 =E= 1;
e249.. b92 + b93 + b94 + b95 =E= 1;
e250.. b96 + b97 + b98 + b99 =E= 1;
e251.. b100 + b101 + b102 + b103 =E= 1;
e252.. b104 + b105 + b106 + b107 =E= 1;
e253.. b108 + b109 + b110 + b111 =E= 1;
e254.. b112 + b113 + b114 + b115 =E= 1;
e255.. b116 + b117 + b118 + b119 =E= 1;
e256.. x6 - x33 - x152 =E= 0;
e257.. x10 - x34 - x163 =E= 0;
e258.. x21 - x35 - x180 =E= 0;
e259.. x22 - x36 - x181 =E= 0;
e260.. x152 - x153 - x154 =E= 0;
e261.. - x155 - x156 + x157 =E= 0;
e262.. x157 - x158 - x159 =E= 0;
e263.. x159 - x160 - x161 - x162 =E= 0;
e264.. x164 - x167 - x168 =E= 0;
e265.. x166 - x169 - x170 - x171 =E= 0;
e266.. x174 - x178 - x179 =E= 0;
e267.. - x175 - x181 + x182 =E= 0;
e268.. x176 - x183 - x184 =E= 0;
e269.. x177 - x185 - x186 - x187 =E= 0;
e270.. x196 - x197 =E= 0;
e271.. x197 - x198 - x199 =E= 0;
e272.. - x200 - x201 + x202 =E= 0;
e273.. x202 - x203 - x204 =E= 0;
e274.. x204 - x205 - x206 - x207 =E= 0;
e275.. x209 - x212 - x213 =E= 0;
e276.. x211 - x214 - x215 - x216 =E= 0;
e277.. x219 - x223 - x224 =E= 0;
e278.. - x220 - x226 + x227 =E= 0;
e279.. x221 - x228 - x229 =E= 0;
e280.. x222 - x230 - x231 - x232 =E= 0;
e281.. -log(1 + x153) + x155 + b242 =L= 1;
e282.. x153 - 40*b242 =L= 0;
e283.. x155 - 3.71357206670431*b242 =L= 0;
e284.. -1.2*log(1 + x154) + x156 + b243 =L= 1;
e285.. x154 - 40*b243 =L= 0;
e286.. x156 - 4.45628648004517*b243 =L= 0;
e287.. - 0.75*x160 + x164 + b244 =L= 1;
e288.. - 0.75*x160 + x164 - b244 =G= -1;
e289.. x160 - 4.45628648004517*b244 =L= 0;
e290.. x164 - 3.34221486003388*b244 =L= 0;
e291.. -1.5*log(1 + x161) + x165 + b245 =L= 1;
e292.. x161 - 4.45628648004517*b245 =L= 0;
e293.. x165 - 2.54515263975353*b245 =L= 0;
e294.. - x162 + x166 + b246 =L= 1;
e295.. - x162 + x166 - b246 =G= -1;
e296.. - 0.5*x163 + x166 + b246 =L= 1;
e297.. - 0.5*x163 + x166 - b246 =G= -1;
e298.. x162 - 4.45628648004517*b246 =L= 0;
e299.. x163 - 30*b246 =L= 0;
e300.. x166 - 15*b246 =L= 0;
e301.. -1.25*log(1 + x167) + x172 + b247 =L= 1;
e302.. x167 - 3.34221486003388*b247 =L= 0;
e303.. x172 - 1.83548069293539*b247 =L= 0;
e304.. -0.9*log(1 + x168) + x173 + b248 =L= 1;
e305.. x168 - 3.34221486003388*b248 =L= 0;
e306.. x173 - 1.32154609891348*b248 =L= 0;
e307.. -log(1 + x165) + x174 + b249 =L= 1;
e308.. x165 - 2.54515263975353*b249 =L= 0;
e309.. x174 - 1.26558121681553*b249 =L= 0;
e310.. - 0.9*x169 + x175 + b250 =L= 1;
e311.. - 0.9*x169 + x175 - b250 =G= -1;
e312.. x169 - 15*b250 =L= 0;
e313.. x175 - 13.5*b250 =L= 0;
e314.. - 0.6*x170 + x176 + b251 =L= 1;
e315.. - 0.6*x170 + x176 - b251 =G= -1;
e316.. x170 - 15*b251 =L= 0;
e317.. x176 - 9*b251 =L= 0;
e318.. -1.1*log(1 + x171) + x177 + b252 =L= 1;
e319.. x171 - 15*b252 =L= 0;
e320.. x177 - 3.04984759446376*b252 =L= 0;
e321.. - 0.9*x172 + x188 + b253 =L= 1;
e322.. - 0.9*x172 + x188 - b253 =G= -1;
e323.. - x180 + x188 + b253 =L= 1;
e324.. - x180 + x188 - b253 =G= -1;
e325.. x172 - 1.83548069293539*b253 =L= 0;
e326.. x180 - 20*b253 =L= 0;
e327.. x188 - 20*b253 =L= 0;
e328.. -log(1 + x173) + x189 + b254 =L= 1;
e329.. x173 - 1.32154609891348*b254 =L= 0;
e330.. x189 - 0.842233385663186*b254 =L= 0;
e331.. -0.7*log(1 + x178) + x190 + b255 =L= 1;
e332.. x178 - 1.26558121681553*b255 =L= 0;
e333.. x190 - 0.572481933717686*b255 =L= 0;
e334.. -0.65*log(1 + x179) + x191 + b256 =L= 1;
e335.. -0.65*log(1 + x182) + x191 + b256 =L= 1;
e336.. x179 - 1.26558121681553*b256 =L= 0;
e337.. x182 - 33.5*b256 =L= 0;
e338.. x191 - 2.30162356062425*b256 =L= 0;
e339.. - x183 + x192 + b257 =L= 1;
e340.. - x183 + x192 - b257 =G= -1;
e341.. x183 - 9*b257 =L= 0;
e342.. x192 - 9*b257 =L= 0;
e343.. - x184 + x193 + b258 =L= 1;
e344.. - x184 + x193 - b258 =G= -1;
e345.. x184 - 9*b258 =L= 0;
e346.. x193 - 9*b258 =L= 0;
e347.. -0.75*log(1 + x185) + x194 + b259 =L= 1;
e348.. x185 - 3.04984759446376*b259 =L= 0;
e349.. x194 - 1.04900943706034*b259 =L= 0;
e350.. -0.8*log(1 + x186) + x195 + b260 =L= 1;
e351.. x186 - 3.04984759446376*b260 =L= 0;
e352.. x195 - 1.11894339953103*b260 =L= 0;
e353.. -0.85*log(1 + x187) + x196 + b261 =L= 1;
e354.. x187 - 3.04984759446376*b261 =L= 0;
e355.. x196 - 1.18887736200171*b261 =L= 0;
e356.. -log(1 + x198) + x200 + b262 =L= 1;
e357.. x198 - 1.18887736200171*b262 =L= 0;
e358.. x200 - 0.78338879230327*b262 =L= 0;
e359.. -1.2*log(1 + x199) + x201 + b263 =L= 1;
e360.. x199 - 1.18887736200171*b263 =L= 0;
e361.. x201 - 0.940066550763924*b263 =L= 0;
e362.. - 0.75*x205 + x209 + b264 =L= 1;
e363.. - 0.75*x205 + x209 - b264 =G= -1;
e364.. x205 - 0.940066550763924*b264 =L= 0;
e365.. x209 - 0.705049913072943*b264 =L= 0;
e366.. -1.5*log(1 + x206) + x210 + b265 =L= 1;
e367.. x206 - 0.940066550763924*b265 =L= 0;
e368.. x210 - 0.994083415506506*b265 =L= 0;
e369.. - x207 + x211 + b266 =L= 1;
e370.. - x207 + x211 - b266 =G= -1;
e371.. - 0.5*x208 + x211 + b266 =L= 1;
e372.. - 0.5*x208 + x211 - b266 =G= -1;
e373.. x207 - 0.940066550763924*b266 =L= 0;
e374.. x208 - 30*b266 =L= 0;
e375.. x211 - 15*b266 =L= 0;
e376.. -1.25*log(1 + x212) + x217 + b267 =L= 1;
e377.. x212 - 0.705049913072943*b267 =L= 0;
e378.. x217 - 0.666992981045719*b267 =L= 0;
e379.. -0.9*log(1 + x213) + x218 + b268 =L= 1;
e380.. x213 - 0.705049913072943*b268 =L= 0;
e381.. x218 - 0.480234946352917*b268 =L= 0;
e382.. -log(1 + x210) + x219 + b269 =L= 1;
e383.. x210 - 0.994083415506506*b269 =L= 0;
e384.. x219 - 0.690184503917672*b269 =L= 0;
e385.. - 0.9*x214 + x220 + b270 =L= 1;
e386.. - 0.9*x214 + x220 - b270 =G= -1;
e387.. x214 - 15*b270 =L= 0;
e388.. x220 - 13.5*b270 =L= 0;
e389.. - 0.6*x215 + x221 + b271 =L= 1;
e390.. - 0.6*x215 + x221 - b271 =G= -1;
e391.. x215 - 15*b271 =L= 0;
e392.. x221 - 9*b271 =L= 0;
e393.. -1.1*log(1 + x216) + x222 + b272 =L= 1;
e394.. x216 - 15*b272 =L= 0;
e395.. x222 - 3.04984759446376*b272 =L= 0;
e396.. - 0.9*x217 + x233 + b273 =L= 1;
e397.. - 0.9*x217 + x233 - b273 =G= -1;
e398.. - x225 + x233 + b273 =L= 1;
e399.. - x225 + x233 - b273 =G= -1;
e400.. x217 - 0.666992981045719*b273 =L= 0;
e401.. x225 - 25*b273 =L= 0;
e402.. x233 - 25*b273 =L= 0;
e403.. -log(1 + x218) + x234 + b274 =L= 1;
e404.. x218 - 0.480234946352917*b274 =L= 0;
e405.. x234 - 0.392200822712722*b274 =L= 0;
e406.. -0.7*log(1 + x223) + x235 + b275 =L= 1;
e407.. x223 - 0.690184503917672*b275 =L= 0;
e408.. x235 - 0.367386387824208*b275 =L= 0;
e409.. -0.65*log(1 + x224) + x236 + b276 =L= 1;
e410.. -0.65*log(1 + x227) + x236 + b276 =L= 1;
e411.. x224 - 0.690184503917672*b276 =L= 0;
e412.. x227 - 38.5*b276 =L= 0;
e413.. x236 - 2.3895954367396*b276 =L= 0;
e414.. - x228 + x237 + b277 =L= 1;
e415.. - x228 + x237 - b277 =G= -1;
e416.. x228 - 9*b277 =L= 0;
e417.. x237 - 9*b277 =L= 0;
e418.. - x229 + x238 + b278 =L= 1;
e419.. - x229 + x238 - b278 =G= -1;
e420.. x229 - 9*b278 =L= 0;
e421.. x238 - 9*b278 =L= 0;
e422.. -0.75*log(1 + x230) + x239 + b279 =L= 1;
e423.. x230 - 3.04984759446376*b279 =L= 0;
e424.. x239 - 1.04900943706034*b279 =L= 0;
e425.. -0.8*log(1 + x231) + x240 + b280 =L= 1;
e426.. x231 - 3.04984759446376*b280 =L= 0;
e427.. x240 - 1.11894339953103*b280 =L= 0;
e428.. -0.85*log(1 + x232) + x241 + b281 =L= 1;
e429.. x232 - 3.04984759446376*b281 =L= 0;
e430.. x241 - 1.18887736200171*b281 =L= 0;
e431.. b242 + b243 =E= 1;
e432.. - b244 + b247 + b248 =G= 0;
e433.. - b247 + b253 =G= 0;
e434.. - b248 + b254 =G= 0;
e435.. - b245 + b249 =G= 0;
e436.. - b249 + b255 + b256 =G= 0;
e437.. - b246 + b250 + b251 + b252 =G= 0;
e438.. - b250 + b256 =G= 0;
e439.. - b251 + b257 + b258 =G= 0;
e440.. - b252 + b259 + b260 + b261 =G= 0;
e441.. b244 - b247 =G= 0;
e442.. b244 - b248 =G= 0;
e443.. b245 - b249 =G= 0;
e444.. b246 - b250 =G= 0;
e445.. b246 - b251 =G= 0;
e446.. b246 - b252 =G= 0;
e447.. b247 - b253 =G= 0;
e448.. b248 - b254 =G= 0;
e449.. b249 - b255 =G= 0;
e450.. b249 - b256 =G= 0;
e451.. b251 - b257 =G= 0;
e452.. b251 - b258 =G= 0;
e453.. b252 - b259 =G= 0;
e454.. b252 - b260 =G= 0;
e455.. b252 - b261 =G= 0;
e456.. - b261 + b262 + b263 =G= 0;
e457.. - b264 + b267 + b268 =G= 0;
e458.. - b267 + b273 =G= 0;
e459.. - b268 + b274 =G= 0;
e460.. - b265 + b269 =G= 0;
e461.. - b269 + b275 + b276 =G= 0;
e462.. - b266 + b270 + b271 + b272 =G= 0;
e463.. - b270 + b276 =G= 0;
e464.. - b271 + b277 + b278 =G= 0;
e465.. - b272 + b279 + b280 + b281 =G= 0;
e466.. b264 - b267 =G= 0;
e467.. b264 - b268 =G= 0;
e468.. b267 - b273 =G= 0;
e469.. b268 - b274 =G= 0;
e470.. b265 - b269 =G= 0;
e471.. b269 - b275 =G= 0;
e472.. b269 - b276 =G= 0;
e473.. b266 - b270 =G= 0;
e474.. b266 - b271 =G= 0;
e475.. b266 - b272 =G= 0;
e476.. b271 - b277 =G= 0;
e477.. b271 - b278 =G= 0;
e478.. b272 - b279 =G= 0;
e479.. b272 - b280 =G= 0;
e480.. b272 - b281 =G= 0;
e481.. b242 + b243 - b244 =G= 0;
e482.. b242 + b243 - b245 =G= 0;
e483.. b242 + b243 - b246 =G= 0;
e484.. b261 - b262 =G= 0;
e485.. b261 - b263 =G= 0;
* set non-default bounds
x152.up = 40;
x163.up = 30;
x180.up = 20;
x181.up = 20;
x208.up = 30;
x225.up = 25;
x226.up = 25;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
