Instance space25a
| Formatsⓘ | ams gms lp mod nl osil pip py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 72.46240000 (ANTIGONE) 156.71968590 (BARON) 83.69131325 (COUENNE) 484.32864420 (GUROBI) 97.06559900 (LINDO) 106.84935010 (SCIP) 72.46238638 (SHOT) |
| Sourceⓘ | modified MacMINLP model space-25-r.mod with space-25-r.dat, Francis Tin-Loi Model Collection |
| Applicationⓘ | Synthesis of Space Truss |
| Added to libraryⓘ | 01 May 2001 |
| Problem typeⓘ | MBQCP |
| #Variablesⓘ | 383 |
| #Binary Variablesⓘ | 240 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 43 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 25 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 201 |
| #Linear Constraintsⓘ | 176 |
| #Quadratic Constraintsⓘ | 25 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1487 |
| #Nonlinear Nonzeros in Jacobianⓘ | 111 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 172 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 0 |
| #Blocks in Hessian of Lagrangianⓘ | 1 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 43 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 43 |
| Average blocksize in Hessian of Lagrangianⓘ | 43.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-01 |
| Maximal coefficientⓘ | 1.3333e+02 |
| Infeasibility of initial pointⓘ | 10 |

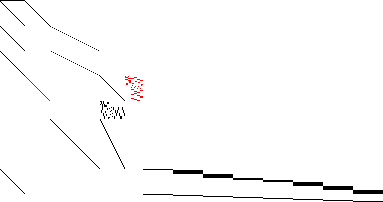

| Sparsity Jacobianⓘ |  |

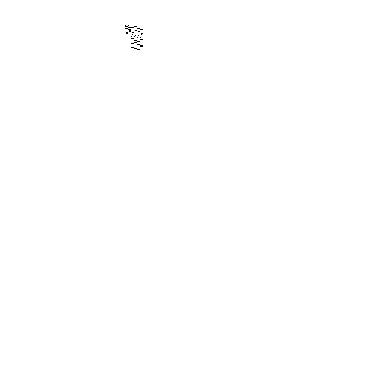

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 202 152 0 50 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 384 144 240 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1513 1402 111 0
*
* Solve m using MINLP minimizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
,x142,x143,x144,b145,b146,b147,b148,b149,b150,b151,b152,b153,b154
,b155,b156,b157,b158,b159,b160,b161,b162,b163,b164,b165,b166,b167
,b168,b169,b170,b171,b172,b173,b174,b175,b176,b177,b178,b179,b180
,b181,b182,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193
,b194,b195,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206
,b207,b208,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219
,b220,b221,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232
,b233,b234,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245
,b246,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258
,b259,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271
,b272,b273,b274,b275,b276,b277,b278,b279,b280,b281,b282,b283,b284
,b285,b286,b287,b288,b289,b290,b291,b292,b293,b294,b295,b296,b297
,b298,b299,b300,b301,b302,b303,b304,b305,b306,b307,b308,b309,b310
,b311,b312,b313,b314,b315,b316,b317,b318,b319,b320,b321,b322,b323
,b324,b325,b326,b327,b328,b329,b330,b331,b332,b333,b334,b335,b336
,b337,b338,b339,b340,b341,b342,b343,b344,b345,b346,b347,b348,b349
,b350,b351,b352,b353,b354,b355,b356,b357,b358,b359,b360,b361,b362
,b363,b364,b365,b366,b367,b368,b369,b370,b371,b372,b373,b374,b375
,b376,b377,b378,b379,b380,b381,b382,b383,b384;
Binary Variables b145,b146,b147,b148,b149,b150,b151,b152,b153,b154,b155,b156
,b157,b158,b159,b160,b161,b162,b163,b164,b165,b166,b167,b168,b169
,b170,b171,b172,b173,b174,b175,b176,b177,b178,b179,b180,b181,b182
,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193,b194,b195
,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206,b207,b208
,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219,b220,b221
,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232,b233,b234
,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245,b246,b247
,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258,b259,b260
,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271,b272,b273
,b274,b275,b276,b277,b278,b279,b280,b281,b282,b283,b284,b285,b286
,b287,b288,b289,b290,b291,b292,b293,b294,b295,b296,b297,b298,b299
,b300,b301,b302,b303,b304,b305,b306,b307,b308,b309,b310,b311,b312
,b313,b314,b315,b316,b317,b318,b319,b320,b321,b322,b323,b324,b325
,b326,b327,b328,b329,b330,b331,b332,b333,b334,b335,b336,b337,b338
,b339,b340,b341,b342,b343,b344,b345,b346,b347,b348,b349,b350,b351
,b352,b353,b354,b355,b356,b357,b358,b359,b360,b361,b362,b363,b364
,b365,b366,b367,b368,b369,b370,b371,b372,b373,b374,b375,b376,b377
,b378,b379,b380,b381,b382,b383,b384;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202;
e1.. objvar - 7.5*x2 - 13.0503831361382*x3 - 13.0503831361382*x4
- 13.0503831361382*x5 - 13.0503831361382*x6 - 10.6800046816469*x7
- 10.6800046816469*x8 - 10.6800046816469*x9 - 10.6800046816469*x10
- 7.5*x11 - 7.5*x12 - 7.5*x13 - 7.5*x14 - 18.1142209327368*x15
- 18.1142209327368*x16 - 18.1142209327368*x17 - 18.1142209327368*x18
- 18.1142209327368*x19 - 18.1142209327368*x20 - 18.1142209327368*x21
- 18.1142209327368*x22 - 13.3463478150391*x23 - 13.3463478150391*x24
- 13.3463478150391*x25 - 13.3463478150391*x26 =E= 0;
e2.. - 133.333333333333*x2 + x27 =E= 0;
e3.. - 76.6261028176921*x3 + x28 =E= 0;
e4.. - 76.6261028176921*x4 + x29 =E= 0;
e5.. - 76.6261028176921*x5 + x30 =E= 0;
e6.. - 76.6261028176921*x6 + x31 =E= 0;
e7.. - 93.6329177569045*x7 + x32 =E= 0;
e8.. - 93.6329177569045*x8 + x33 =E= 0;
e9.. - 93.6329177569045*x9 + x34 =E= 0;
e10.. - 93.6329177569045*x10 + x35 =E= 0;
e11.. - 133.333333333333*x11 + x36 =E= 0;
e12.. - 133.333333333333*x12 + x37 =E= 0;
e13.. - 133.333333333333*x13 + x38 =E= 0;
e14.. - 133.333333333333*x14 + x39 =E= 0;
e15.. - 55.2052447473883*x15 + x40 =E= 0;
e16.. - 55.2052447473883*x16 + x41 =E= 0;
e17.. - 55.2052447473883*x17 + x42 =E= 0;
e18.. - 55.2052447473883*x18 + x43 =E= 0;
e19.. - 55.2052447473883*x19 + x44 =E= 0;
e20.. - 55.2052447473883*x20 + x45 =E= 0;
e21.. - 55.2052447473883*x21 + x46 =E= 0;
e22.. - 55.2052447473883*x22 + x47 =E= 0;
e23.. - 74.9268649265355*x23 + x48 =E= 0;
e24.. - 74.9268649265355*x24 + x49 =E= 0;
e25.. - 74.9268649265355*x25 + x50 =E= 0;
e26.. - 74.9268649265355*x26 + x51 =E= 0;
e27.. - 40*x2 + x52 =E= 0;
e28.. - 40*x3 + x54 =E= 0;
e29.. - 40*x4 + x56 =E= 0;
e30.. - 40*x5 + x58 =E= 0;
e31.. - 40*x6 + x60 =E= 0;
e32.. - 40*x7 + x62 =E= 0;
e33.. - 40*x8 + x64 =E= 0;
e34.. - 40*x9 + x66 =E= 0;
e35.. - 40*x10 + x68 =E= 0;
e36.. - 40*x11 + x70 =E= 0;
e37.. - 40*x12 + x72 =E= 0;
e38.. - 40*x13 + x74 =E= 0;
e39.. - 40*x14 + x76 =E= 0;
e40.. - 40*x15 + x78 =E= 0;
e41.. - 40*x16 + x80 =E= 0;
e42.. - 40*x17 + x82 =E= 0;
e43.. - 40*x18 + x84 =E= 0;
e44.. - 40*x19 + x86 =E= 0;
e45.. - 40*x20 + x88 =E= 0;
e46.. - 40*x21 + x90 =E= 0;
e47.. - 40*x22 + x92 =E= 0;
e48.. - 40*x23 + x94 =E= 0;
e49.. - 40*x24 + x96 =E= 0;
e50.. - 40*x25 + x98 =E= 0;
e51.. - 40*x26 + x100 =E= 0;
e52.. - 40*x2 + x53 =E= 0;
e53.. - 40*x3 + x55 =E= 0;
e54.. - 40*x4 + x57 =E= 0;
e55.. - 40*x5 + x59 =E= 0;
e56.. - 40*x6 + x61 =E= 0;
e57.. - 40*x7 + x63 =E= 0;
e58.. - 40*x8 + x65 =E= 0;
e59.. - 40*x9 + x67 =E= 0;
e60.. - 40*x10 + x69 =E= 0;
e61.. - 40*x11 + x71 =E= 0;
e62.. - 40*x12 + x73 =E= 0;
e63.. - 40*x13 + x75 =E= 0;
e64.. - 40*x14 + x77 =E= 0;
e65.. - 40*x15 + x79 =E= 0;
e66.. - 40*x16 + x81 =E= 0;
e67.. - 40*x17 + x83 =E= 0;
e68.. - 40*x18 + x85 =E= 0;
e69.. - 40*x19 + x87 =E= 0;
e70.. - 40*x20 + x89 =E= 0;
e71.. - 40*x21 + x91 =E= 0;
e72.. - 40*x22 + x93 =E= 0;
e73.. - 40*x23 + x95 =E= 0;
e74.. - 40*x24 + x97 =E= 0;
e75.. - 40*x25 + x99 =E= 0;
e76.. - 40*x26 + x101 =E= 0;
e77.. x27*(x130 - x127) - x102 =E= 0;
e78.. x28*(-0.574695771132691*x127 - 0.287347885566345*x128 + 0.766261028176921
*x129 + 0.574695771132691*x136 + 0.287347885566345*x137 -
0.766261028176921*x138) - x103 =E= 0;
e79.. x29*(0.574695771132691*x130 - 0.287347885566345*x131 + 0.766261028176921*
x132 - 0.574695771132691*x133 + 0.287347885566345*x134 -
0.766261028176921*x135) - x104 =E= 0;
e80.. x30*(0.287347885566345*x128 - 0.574695771132691*x127 + 0.766261028176921*
x129 + 0.574695771132691*x139 - 0.287347885566345*x140 -
0.766261028176921*x141) - x105 =E= 0;
e81.. x31*(0.574695771132691*x130 + 0.287347885566345*x131 + 0.766261028176921*
x132 - 0.574695771132691*x142 - 0.287347885566345*x143 -
0.766261028176921*x144) - x106 =E= 0;
e82.. x32*(0.936329177569045*x132 - 0.351123441588392*x131 + 0.351123441588392*
x137 - 0.936329177569045*x138) - x107 =E= 0;
e83.. x33*(0.351123441588392*x131 + 0.936329177569045*x132 - 0.351123441588392*
x140 - 0.936329177569045*x141) - x108 =E= 0;
e84.. x34*(0.936329177569045*x129 - 0.351123441588392*x128 + 0.351123441588392*
x134 - 0.936329177569045*x135) - x109 =E= 0;
e85.. x35*(0.351123441588392*x128 + 0.936329177569045*x129 - 0.351123441588392*
x143 - 0.936329177569045*x144) - x110 =E= 0;
e86.. x36*(x134 - x143) - x111 =E= 0;
e87.. x37*(x137 - x140) - x112 =E= 0;
e88.. x38*(x136 - x133) - x113 =E= 0;
e89.. x39*(x139 - x142) - x114 =E= 0;
e90.. x40*(0.345032779671177*x133 + 0.75907211527659*x134 + 0.552052447473883*
x135) - x115 =E= 0;
e91.. x41*(0.345032779671177*x142 - 0.75907211527659*x143 + 0.552052447473883*
x144) - x116 =E= 0;
e92.. x42*(0.75907211527659*x137 - 0.345032779671177*x136 + 0.552052447473883*
x138) - x117 =E= 0;
e93.. x43*(-0.345032779671177*x139 - 0.75907211527659*x140 + 0.552052447473883*
x141) - x118 =E= 0;
e94.. x44*(0.75907211527659*x136 - 0.345032779671177*x137 + 0.552052447473883*
x138) - x119 =E= 0;
e95.. x45*(-0.75907211527659*x133 - 0.345032779671177*x134 + 0.552052447473883*
x135) - x120 =E= 0;
e96.. x46*(0.75907211527659*x139 + 0.345032779671177*x140 + 0.552052447473883*
x141) - x121 =E= 0;
e97.. x47*(0.345032779671177*x143 - 0.75907211527659*x142 + 0.552052447473883*
x144) - x122 =E= 0;
e98.. x48*(0.468292905790847*x142 + 0.468292905790847*x143 + 0.749268649265355*
x144) - x123 =E= 0;
e99.. x49*(0.468292905790847*x133 - 0.468292905790847*x134 + 0.749268649265355*
x135) - x124 =E= 0;
e100.. x50*(-0.468292905790847*x136 - 0.468292905790847*x137 +
0.749268649265355*x138) - x125 =E= 0;
e101.. x51*(0.468292905790847*x140 - 0.468292905790847*x139 + 0.749268649265355
*x141) - x126 =E= 0;
e102.. - x102 - 0.574695771132691*x103 - 0.574695771132691*x105 =E= 1;
e103.. - 0.287347885566345*x103 + 0.287347885566345*x105
- 0.351123441588392*x109 + 0.351123441588392*x110 =E= 10;
e104.. 0.766261028176921*x103 + 0.766261028176921*x105
+ 0.936329177569045*x109 + 0.936329177569045*x110 =E= -10;
e105.. x102 + 0.574695771132691*x104 + 0.574695771132691*x106 =E= 0;
e106.. - 0.287347885566345*x104 + 0.287347885566345*x106
- 0.351123441588392*x107 + 0.351123441588392*x108 =E= 10;
e107.. 0.766261028176921*x104 + 0.766261028176921*x106
+ 0.936329177569045*x107 + 0.936329177569045*x108 =E= -10;
e108.. - 0.574695771132691*x104 - x113 + 0.345032779671177*x115
- 0.75907211527659*x120 + 0.468292905790847*x124 =E= 0.5;
e109.. 0.287347885566345*x104 + 0.351123441588392*x109 + x111
+ 0.75907211527659*x115 - 0.345032779671177*x120
- 0.468292905790847*x124 =E= 0;
e110.. - 0.766261028176921*x104 - 0.936329177569045*x109
+ 0.552052447473883*x115 + 0.552052447473883*x120
+ 0.749268649265355*x124 =E= 0;
e111.. 0.574695771132691*x103 + x113 - 0.345032779671177*x117
+ 0.75907211527659*x119 - 0.468292905790847*x125 =E= 0;
e112.. 0.287347885566345*x103 + 0.351123441588392*x107 + x112
+ 0.75907211527659*x117 - 0.345032779671177*x119
- 0.468292905790847*x125 =E= 0;
e113.. - 0.766261028176921*x103 - 0.936329177569045*x107
+ 0.552052447473883*x117 + 0.552052447473883*x119
+ 0.749268649265355*x125 =E= 0;
e114.. 0.574695771132691*x105 + x114 - 0.345032779671177*x118
+ 0.75907211527659*x121 - 0.468292905790847*x126 =E= 0;
e115.. - 0.287347885566345*x105 - 0.351123441588392*x108 - x112
- 0.75907211527659*x118 + 0.345032779671177*x121
+ 0.468292905790847*x126 =E= 0;
e116.. - 0.766261028176921*x105 - 0.936329177569045*x108
+ 0.552052447473883*x118 + 0.552052447473883*x121
+ 0.749268649265355*x126 =E= 0;
e117.. - 0.574695771132691*x106 - x114 + 0.345032779671177*x116
- 0.75907211527659*x122 + 0.468292905790847*x123 =E= 0.6;
e118.. - 0.287347885566345*x106 - 0.351123441588392*x110 - x111
- 0.75907211527659*x116 + 0.345032779671177*x122
+ 0.468292905790847*x123 =E= 0;
e119.. - 0.766261028176921*x106 - 0.936329177569045*x110
+ 0.552052447473883*x116 + 0.552052447473883*x122
+ 0.749268649265355*x123 =E= 0;
e120.. - x52 + x102 =L= 0;
e121.. - x53 - x102 =L= 0;
e122.. - x54 + x103 =L= 0;
e123.. - x55 - x103 =L= 0;
e124.. - x56 + x104 =L= 0;
e125.. - x57 - x104 =L= 0;
e126.. - x58 + x105 =L= 0;
e127.. - x59 - x105 =L= 0;
e128.. - x60 + x106 =L= 0;
e129.. - x61 - x106 =L= 0;
e130.. - x62 + x107 =L= 0;
e131.. - x63 - x107 =L= 0;
e132.. - x64 + x108 =L= 0;
e133.. - x65 - x108 =L= 0;
e134.. - x66 + x109 =L= 0;
e135.. - x67 - x109 =L= 0;
e136.. - x68 + x110 =L= 0;
e137.. - x69 - x110 =L= 0;
e138.. - x70 + x111 =L= 0;
e139.. - x71 - x111 =L= 0;
e140.. - x72 + x112 =L= 0;
e141.. - x73 - x112 =L= 0;
e142.. - x74 + x113 =L= 0;
e143.. - x75 - x113 =L= 0;
e144.. - x76 + x114 =L= 0;
e145.. - x77 - x114 =L= 0;
e146.. - x78 + x115 =L= 0;
e147.. - x79 - x115 =L= 0;
e148.. - x80 + x116 =L= 0;
e149.. - x81 - x116 =L= 0;
e150.. - x82 + x117 =L= 0;
e151.. - x83 - x117 =L= 0;
e152.. - x84 + x118 =L= 0;
e153.. - x85 - x118 =L= 0;
e154.. - x86 + x119 =L= 0;
e155.. - x87 - x119 =L= 0;
e156.. - x88 + x120 =L= 0;
e157.. - x89 - x120 =L= 0;
e158.. - x90 + x121 =L= 0;
e159.. - x91 - x121 =L= 0;
e160.. - x92 + x122 =L= 0;
e161.. - x93 - x122 =L= 0;
e162.. - x94 + x123 =L= 0;
e163.. - x95 - x123 =L= 0;
e164.. - x96 + x124 =L= 0;
e165.. - x97 - x124 =L= 0;
e166.. - x98 + x125 =L= 0;
e167.. - x99 - x125 =L= 0;
e168.. - x100 + x126 =L= 0;
e169.. - x101 - x126 =L= 0;
e170.. - x2 + 0.1*b145 + 0.2*b146 + 0.3*b147 + 0.4*b148 + 0.5*b149 + 0.6*b150
+ 0.7*b151 + 0.8*b152 + 0.9*b153 + b154 + 1.1*b155 + 1.2*b156
+ 1.3*b157 + 1.4*b158 + 1.5*b159 + 1.6*b160 + 1.7*b161 + 1.8*b162
+ 1.9*b163 + 2*b164 + 2.1*b165 + 2.2*b166 + 2.3*b167 + 2.4*b168
+ 2.5*b169 + 2.6*b170 + 2.8*b171 + 3*b172 + 3.2*b173 + 3.4*b174 =E= 0;
e171.. - x3 + 0.1*b175 + 0.2*b176 + 0.3*b177 + 0.4*b178 + 0.5*b179 + 0.6*b180
+ 0.7*b181 + 0.8*b182 + 0.9*b183 + b184 + 1.1*b185 + 1.2*b186
+ 1.3*b187 + 1.4*b188 + 1.5*b189 + 1.6*b190 + 1.7*b191 + 1.8*b192
+ 1.9*b193 + 2*b194 + 2.1*b195 + 2.2*b196 + 2.3*b197 + 2.4*b198
+ 2.5*b199 + 2.6*b200 + 2.8*b201 + 3*b202 + 3.2*b203 + 3.4*b204 =E= 0;
e172.. - x4 + 0.1*b175 + 0.2*b176 + 0.3*b177 + 0.4*b178 + 0.5*b179 + 0.6*b180
+ 0.7*b181 + 0.8*b182 + 0.9*b183 + b184 + 1.1*b185 + 1.2*b186
+ 1.3*b187 + 1.4*b188 + 1.5*b189 + 1.6*b190 + 1.7*b191 + 1.8*b192
+ 1.9*b193 + 2*b194 + 2.1*b195 + 2.2*b196 + 2.3*b197 + 2.4*b198
+ 2.5*b199 + 2.6*b200 + 2.8*b201 + 3*b202 + 3.2*b203 + 3.4*b204 =E= 0;
e173.. - x5 + 0.1*b175 + 0.2*b176 + 0.3*b177 + 0.4*b178 + 0.5*b179 + 0.6*b180
+ 0.7*b181 + 0.8*b182 + 0.9*b183 + b184 + 1.1*b185 + 1.2*b186
+ 1.3*b187 + 1.4*b188 + 1.5*b189 + 1.6*b190 + 1.7*b191 + 1.8*b192
+ 1.9*b193 + 2*b194 + 2.1*b195 + 2.2*b196 + 2.3*b197 + 2.4*b198
+ 2.5*b199 + 2.6*b200 + 2.8*b201 + 3*b202 + 3.2*b203 + 3.4*b204 =E= 0;
e174.. - x6 + 0.1*b175 + 0.2*b176 + 0.3*b177 + 0.4*b178 + 0.5*b179 + 0.6*b180
+ 0.7*b181 + 0.8*b182 + 0.9*b183 + b184 + 1.1*b185 + 1.2*b186
+ 1.3*b187 + 1.4*b188 + 1.5*b189 + 1.6*b190 + 1.7*b191 + 1.8*b192
+ 1.9*b193 + 2*b194 + 2.1*b195 + 2.2*b196 + 2.3*b197 + 2.4*b198
+ 2.5*b199 + 2.6*b200 + 2.8*b201 + 3*b202 + 3.2*b203 + 3.4*b204 =E= 0;
e175.. - x7 + 0.1*b205 + 0.2*b206 + 0.3*b207 + 0.4*b208 + 0.5*b209 + 0.6*b210
+ 0.7*b211 + 0.8*b212 + 0.9*b213 + b214 + 1.1*b215 + 1.2*b216
+ 1.3*b217 + 1.4*b218 + 1.5*b219 + 1.6*b220 + 1.7*b221 + 1.8*b222
+ 1.9*b223 + 2*b224 + 2.1*b225 + 2.2*b226 + 2.3*b227 + 2.4*b228
+ 2.5*b229 + 2.6*b230 + 2.8*b231 + 3*b232 + 3.2*b233 + 3.4*b234 =E= 0;
e176.. - x8 + 0.1*b205 + 0.2*b206 + 0.3*b207 + 0.4*b208 + 0.5*b209 + 0.6*b210
+ 0.7*b211 + 0.8*b212 + 0.9*b213 + b214 + 1.1*b215 + 1.2*b216
+ 1.3*b217 + 1.4*b218 + 1.5*b219 + 1.6*b220 + 1.7*b221 + 1.8*b222
+ 1.9*b223 + 2*b224 + 2.1*b225 + 2.2*b226 + 2.3*b227 + 2.4*b228
+ 2.5*b229 + 2.6*b230 + 2.8*b231 + 3*b232 + 3.2*b233 + 3.4*b234 =E= 0;
e177.. - x9 + 0.1*b205 + 0.2*b206 + 0.3*b207 + 0.4*b208 + 0.5*b209 + 0.6*b210
+ 0.7*b211 + 0.8*b212 + 0.9*b213 + b214 + 1.1*b215 + 1.2*b216
+ 1.3*b217 + 1.4*b218 + 1.5*b219 + 1.6*b220 + 1.7*b221 + 1.8*b222
+ 1.9*b223 + 2*b224 + 2.1*b225 + 2.2*b226 + 2.3*b227 + 2.4*b228
+ 2.5*b229 + 2.6*b230 + 2.8*b231 + 3*b232 + 3.2*b233 + 3.4*b234 =E= 0;
e178.. - x10 + 0.1*b205 + 0.2*b206 + 0.3*b207 + 0.4*b208 + 0.5*b209 + 0.6*b210
+ 0.7*b211 + 0.8*b212 + 0.9*b213 + b214 + 1.1*b215 + 1.2*b216
+ 1.3*b217 + 1.4*b218 + 1.5*b219 + 1.6*b220 + 1.7*b221 + 1.8*b222
+ 1.9*b223 + 2*b224 + 2.1*b225 + 2.2*b226 + 2.3*b227 + 2.4*b228
+ 2.5*b229 + 2.6*b230 + 2.8*b231 + 3*b232 + 3.2*b233 + 3.4*b234 =E= 0;
e179.. - x11 + 0.1*b235 + 0.2*b236 + 0.3*b237 + 0.4*b238 + 0.5*b239 + 0.6*b240
+ 0.7*b241 + 0.8*b242 + 0.9*b243 + b244 + 1.1*b245 + 1.2*b246
+ 1.3*b247 + 1.4*b248 + 1.5*b249 + 1.6*b250 + 1.7*b251 + 1.8*b252
+ 1.9*b253 + 2*b254 + 2.1*b255 + 2.2*b256 + 2.3*b257 + 2.4*b258
+ 2.5*b259 + 2.6*b260 + 2.8*b261 + 3*b262 + 3.2*b263 + 3.4*b264 =E= 0;
e180.. - x12 + 0.1*b235 + 0.2*b236 + 0.3*b237 + 0.4*b238 + 0.5*b239 + 0.6*b240
+ 0.7*b241 + 0.8*b242 + 0.9*b243 + b244 + 1.1*b245 + 1.2*b246
+ 1.3*b247 + 1.4*b248 + 1.5*b249 + 1.6*b250 + 1.7*b251 + 1.8*b252
+ 1.9*b253 + 2*b254 + 2.1*b255 + 2.2*b256 + 2.3*b257 + 2.4*b258
+ 2.5*b259 + 2.6*b260 + 2.8*b261 + 3*b262 + 3.2*b263 + 3.4*b264 =E= 0;
e181.. - x13 + 0.1*b265 + 0.2*b266 + 0.3*b267 + 0.4*b268 + 0.5*b269 + 0.6*b270
+ 0.7*b271 + 0.8*b272 + 0.9*b273 + b274 + 1.1*b275 + 1.2*b276
+ 1.3*b277 + 1.4*b278 + 1.5*b279 + 1.6*b280 + 1.7*b281 + 1.8*b282
+ 1.9*b283 + 2*b284 + 2.1*b285 + 2.2*b286 + 2.3*b287 + 2.4*b288
+ 2.5*b289 + 2.6*b290 + 2.8*b291 + 3*b292 + 3.2*b293 + 3.4*b294 =E= 0;
e182.. - x14 + 0.1*b265 + 0.2*b266 + 0.3*b267 + 0.4*b268 + 0.5*b269 + 0.6*b270
+ 0.7*b271 + 0.8*b272 + 0.9*b273 + b274 + 1.1*b275 + 1.2*b276
+ 1.3*b277 + 1.4*b278 + 1.5*b279 + 1.6*b280 + 1.7*b281 + 1.8*b282
+ 1.9*b283 + 2*b284 + 2.1*b285 + 2.2*b286 + 2.3*b287 + 2.4*b288
+ 2.5*b289 + 2.6*b290 + 2.8*b291 + 3*b292 + 3.2*b293 + 3.4*b294 =E= 0;
e183.. - x15 + 0.1*b295 + 0.2*b296 + 0.3*b297 + 0.4*b298 + 0.5*b299 + 0.6*b300
+ 0.7*b301 + 0.8*b302 + 0.9*b303 + b304 + 1.1*b305 + 1.2*b306
+ 1.3*b307 + 1.4*b308 + 1.5*b309 + 1.6*b310 + 1.7*b311 + 1.8*b312
+ 1.9*b313 + 2*b314 + 2.1*b315 + 2.2*b316 + 2.3*b317 + 2.4*b318
+ 2.5*b319 + 2.6*b320 + 2.8*b321 + 3*b322 + 3.2*b323 + 3.4*b324 =E= 0;
e184.. - x16 + 0.1*b295 + 0.2*b296 + 0.3*b297 + 0.4*b298 + 0.5*b299 + 0.6*b300
+ 0.7*b301 + 0.8*b302 + 0.9*b303 + b304 + 1.1*b305 + 1.2*b306
+ 1.3*b307 + 1.4*b308 + 1.5*b309 + 1.6*b310 + 1.7*b311 + 1.8*b312
+ 1.9*b313 + 2*b314 + 2.1*b315 + 2.2*b316 + 2.3*b317 + 2.4*b318
+ 2.5*b319 + 2.6*b320 + 2.8*b321 + 3*b322 + 3.2*b323 + 3.4*b324 =E= 0;
e185.. - x17 + 0.1*b295 + 0.2*b296 + 0.3*b297 + 0.4*b298 + 0.5*b299 + 0.6*b300
+ 0.7*b301 + 0.8*b302 + 0.9*b303 + b304 + 1.1*b305 + 1.2*b306
+ 1.3*b307 + 1.4*b308 + 1.5*b309 + 1.6*b310 + 1.7*b311 + 1.8*b312
+ 1.9*b313 + 2*b314 + 2.1*b315 + 2.2*b316 + 2.3*b317 + 2.4*b318
+ 2.5*b319 + 2.6*b320 + 2.8*b321 + 3*b322 + 3.2*b323 + 3.4*b324 =E= 0;
e186.. - x18 + 0.1*b295 + 0.2*b296 + 0.3*b297 + 0.4*b298 + 0.5*b299 + 0.6*b300
+ 0.7*b301 + 0.8*b302 + 0.9*b303 + b304 + 1.1*b305 + 1.2*b306
+ 1.3*b307 + 1.4*b308 + 1.5*b309 + 1.6*b310 + 1.7*b311 + 1.8*b312
+ 1.9*b313 + 2*b314 + 2.1*b315 + 2.2*b316 + 2.3*b317 + 2.4*b318
+ 2.5*b319 + 2.6*b320 + 2.8*b321 + 3*b322 + 3.2*b323 + 3.4*b324 =E= 0;
e187.. - x19 + 0.1*b325 + 0.2*b326 + 0.3*b327 + 0.4*b328 + 0.5*b329 + 0.6*b330
+ 0.7*b331 + 0.8*b332 + 0.9*b333 + b334 + 1.1*b335 + 1.2*b336
+ 1.3*b337 + 1.4*b338 + 1.5*b339 + 1.6*b340 + 1.7*b341 + 1.8*b342
+ 1.9*b343 + 2*b344 + 2.1*b345 + 2.2*b346 + 2.3*b347 + 2.4*b348
+ 2.5*b349 + 2.6*b350 + 2.8*b351 + 3*b352 + 3.2*b353 + 3.4*b354 =E= 0;
e188.. - x20 + 0.1*b325 + 0.2*b326 + 0.3*b327 + 0.4*b328 + 0.5*b329 + 0.6*b330
+ 0.7*b331 + 0.8*b332 + 0.9*b333 + b334 + 1.1*b335 + 1.2*b336
+ 1.3*b337 + 1.4*b338 + 1.5*b339 + 1.6*b340 + 1.7*b341 + 1.8*b342
+ 1.9*b343 + 2*b344 + 2.1*b345 + 2.2*b346 + 2.3*b347 + 2.4*b348
+ 2.5*b349 + 2.6*b350 + 2.8*b351 + 3*b352 + 3.2*b353 + 3.4*b354 =E= 0;
e189.. - x21 + 0.1*b325 + 0.2*b326 + 0.3*b327 + 0.4*b328 + 0.5*b329 + 0.6*b330
+ 0.7*b331 + 0.8*b332 + 0.9*b333 + b334 + 1.1*b335 + 1.2*b336
+ 1.3*b337 + 1.4*b338 + 1.5*b339 + 1.6*b340 + 1.7*b341 + 1.8*b342
+ 1.9*b343 + 2*b344 + 2.1*b345 + 2.2*b346 + 2.3*b347 + 2.4*b348
+ 2.5*b349 + 2.6*b350 + 2.8*b351 + 3*b352 + 3.2*b353 + 3.4*b354 =E= 0;
e190.. - x22 + 0.1*b325 + 0.2*b326 + 0.3*b327 + 0.4*b328 + 0.5*b329 + 0.6*b330
+ 0.7*b331 + 0.8*b332 + 0.9*b333 + b334 + 1.1*b335 + 1.2*b336
+ 1.3*b337 + 1.4*b338 + 1.5*b339 + 1.6*b340 + 1.7*b341 + 1.8*b342
+ 1.9*b343 + 2*b344 + 2.1*b345 + 2.2*b346 + 2.3*b347 + 2.4*b348
+ 2.5*b349 + 2.6*b350 + 2.8*b351 + 3*b352 + 3.2*b353 + 3.4*b354 =E= 0;
e191.. - x23 + 0.1*b355 + 0.2*b356 + 0.3*b357 + 0.4*b358 + 0.5*b359 + 0.6*b360
+ 0.7*b361 + 0.8*b362 + 0.9*b363 + b364 + 1.1*b365 + 1.2*b366
+ 1.3*b367 + 1.4*b368 + 1.5*b369 + 1.6*b370 + 1.7*b371 + 1.8*b372
+ 1.9*b373 + 2*b374 + 2.1*b375 + 2.2*b376 + 2.3*b377 + 2.4*b378
+ 2.5*b379 + 2.6*b380 + 2.8*b381 + 3*b382 + 3.2*b383 + 3.4*b384 =E= 0;
e192.. - x24 + 0.1*b355 + 0.2*b356 + 0.3*b357 + 0.4*b358 + 0.5*b359 + 0.6*b360
+ 0.7*b361 + 0.8*b362 + 0.9*b363 + b364 + 1.1*b365 + 1.2*b366
+ 1.3*b367 + 1.4*b368 + 1.5*b369 + 1.6*b370 + 1.7*b371 + 1.8*b372
+ 1.9*b373 + 2*b374 + 2.1*b375 + 2.2*b376 + 2.3*b377 + 2.4*b378
+ 2.5*b379 + 2.6*b380 + 2.8*b381 + 3*b382 + 3.2*b383 + 3.4*b384 =E= 0;
e193.. - x25 + 0.1*b355 + 0.2*b356 + 0.3*b357 + 0.4*b358 + 0.5*b359 + 0.6*b360
+ 0.7*b361 + 0.8*b362 + 0.9*b363 + b364 + 1.1*b365 + 1.2*b366
+ 1.3*b367 + 1.4*b368 + 1.5*b369 + 1.6*b370 + 1.7*b371 + 1.8*b372
+ 1.9*b373 + 2*b374 + 2.1*b375 + 2.2*b376 + 2.3*b377 + 2.4*b378
+ 2.5*b379 + 2.6*b380 + 2.8*b381 + 3*b382 + 3.2*b383 + 3.4*b384 =E= 0;
e194.. - x26 + 0.1*b355 + 0.2*b356 + 0.3*b357 + 0.4*b358 + 0.5*b359 + 0.6*b360
+ 0.7*b361 + 0.8*b362 + 0.9*b363 + b364 + 1.1*b365 + 1.2*b366
+ 1.3*b367 + 1.4*b368 + 1.5*b369 + 1.6*b370 + 1.7*b371 + 1.8*b372
+ 1.9*b373 + 2*b374 + 2.1*b375 + 2.2*b376 + 2.3*b377 + 2.4*b378
+ 2.5*b379 + 2.6*b380 + 2.8*b381 + 3*b382 + 3.2*b383 + 3.4*b384 =E= 0;
e195.. b145 + b146 + b147 + b148 + b149 + b150 + b151 + b152 + b153 + b154
+ b155 + b156 + b157 + b158 + b159 + b160 + b161 + b162 + b163 + b164
+ b165 + b166 + b167 + b168 + b169 + b170 + b171 + b172 + b173 + b174
=E= 1;
e196.. b175 + b176 + b177 + b178 + b179 + b180 + b181 + b182 + b183 + b184
+ b185 + b186 + b187 + b188 + b189 + b190 + b191 + b192 + b193 + b194
+ b195 + b196 + b197 + b198 + b199 + b200 + b201 + b202 + b203 + b204
=E= 1;
e197.. b205 + b206 + b207 + b208 + b209 + b210 + b211 + b212 + b213 + b214
+ b215 + b216 + b217 + b218 + b219 + b220 + b221 + b222 + b223 + b224
+ b225 + b226 + b227 + b228 + b229 + b230 + b231 + b232 + b233 + b234
=E= 1;
e198.. b235 + b236 + b237 + b238 + b239 + b240 + b241 + b242 + b243 + b244
+ b245 + b246 + b247 + b248 + b249 + b250 + b251 + b252 + b253 + b254
+ b255 + b256 + b257 + b258 + b259 + b260 + b261 + b262 + b263 + b264
=E= 1;
e199.. b265 + b266 + b267 + b268 + b269 + b270 + b271 + b272 + b273 + b274
+ b275 + b276 + b277 + b278 + b279 + b280 + b281 + b282 + b283 + b284
+ b285 + b286 + b287 + b288 + b289 + b290 + b291 + b292 + b293 + b294
=E= 1;
e200.. b295 + b296 + b297 + b298 + b299 + b300 + b301 + b302 + b303 + b304
+ b305 + b306 + b307 + b308 + b309 + b310 + b311 + b312 + b313 + b314
+ b315 + b316 + b317 + b318 + b319 + b320 + b321 + b322 + b323 + b324
=E= 1;
e201.. b325 + b326 + b327 + b328 + b329 + b330 + b331 + b332 + b333 + b334
+ b335 + b336 + b337 + b338 + b339 + b340 + b341 + b342 + b343 + b344
+ b345 + b346 + b347 + b348 + b349 + b350 + b351 + b352 + b353 + b354
=E= 1;
e202.. b355 + b356 + b357 + b358 + b359 + b360 + b361 + b362 + b363 + b364
+ b365 + b366 + b367 + b368 + b369 + b370 + b371 + b372 + b373 + b374
+ b375 + b376 + b377 + b378 + b379 + b380 + b381 + b382 + b383 + b384
=E= 1;
* set non-default bounds
x2.lo = 0.1; x2.up = 3.4;
x3.lo = 0.1; x3.up = 3.4;
x4.lo = 0.1; x4.up = 3.4;
x5.lo = 0.1; x5.up = 3.4;
x6.lo = 0.1; x6.up = 3.4;
x7.lo = 0.1; x7.up = 3.4;
x8.lo = 0.1; x8.up = 3.4;
x9.lo = 0.1; x9.up = 3.4;
x10.lo = 0.1; x10.up = 3.4;
x11.lo = 0.1; x11.up = 3.4;
x12.lo = 0.1; x12.up = 3.4;
x13.lo = 0.1; x13.up = 3.4;
x14.lo = 0.1; x14.up = 3.4;
x15.lo = 0.1; x15.up = 3.4;
x16.lo = 0.1; x16.up = 3.4;
x17.lo = 0.1; x17.up = 3.4;
x18.lo = 0.1; x18.up = 3.4;
x19.lo = 0.1; x19.up = 3.4;
x20.lo = 0.1; x20.up = 3.4;
x21.lo = 0.1; x21.up = 3.4;
x22.lo = 0.1; x22.up = 3.4;
x23.lo = 0.1; x23.up = 3.4;
x24.lo = 0.1; x24.up = 3.4;
x25.lo = 0.1; x25.up = 3.4;
x26.lo = 0.1; x26.up = 3.4;
x127.lo = -0.35; x127.up = 0.35;
x128.lo = -0.35; x128.up = 0.35;
x130.lo = -0.35; x130.up = 0.35;
x131.lo = -0.35; x131.up = 0.35;
* set non-default levels
x27.l = 13.3333333333333;
x28.l = 7.66261028176921;
x29.l = 7.66261028176921;
x30.l = 7.66261028176921;
x31.l = 7.66261028176921;
x32.l = 9.36329177569045;
x33.l = 9.36329177569045;
x34.l = 9.36329177569045;
x35.l = 9.36329177569045;
x36.l = 13.3333333333333;
x37.l = 13.3333333333333;
x38.l = 13.3333333333333;
x39.l = 13.3333333333333;
x40.l = 5.52052447473883;
x41.l = 5.52052447473883;
x42.l = 5.52052447473883;
x43.l = 5.52052447473883;
x44.l = 5.52052447473883;
x45.l = 5.52052447473883;
x46.l = 5.52052447473883;
x47.l = 5.52052447473883;
x48.l = 7.49268649265355;
x49.l = 7.49268649265355;
x50.l = 7.49268649265355;
x51.l = 7.49268649265355;
x52.l = 4;
x53.l = 4;
x54.l = 4;
x55.l = 4;
x56.l = 4;
x57.l = 4;
x58.l = 4;
x59.l = 4;
x60.l = 4;
x61.l = 4;
x62.l = 4;
x63.l = 4;
x64.l = 4;
x65.l = 4;
x66.l = 4;
x67.l = 4;
x68.l = 4;
x69.l = 4;
x70.l = 4;
x71.l = 4;
x72.l = 4;
x73.l = 4;
x74.l = 4;
x75.l = 4;
x76.l = 4;
x77.l = 4;
x78.l = 4;
x79.l = 4;
x80.l = 4;
x81.l = 4;
x82.l = 4;
x83.l = 4;
x84.l = 4;
x85.l = 4;
x86.l = 4;
x87.l = 4;
x88.l = 4;
x89.l = 4;
x90.l = 4;
x91.l = 4;
x92.l = 4;
x93.l = 4;
x94.l = 4;
x95.l = 4;
x96.l = 4;
x97.l = 4;
x98.l = 4;
x99.l = 4;
x100.l = 4;
x101.l = 4;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
