Instance syn10m04hfsg
Selection of optimal configuration and parameters for a processing system selected from a superstructure containing alternative processing units and interconnections. Equivalent perspective reformulation of syn10m04.
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 4557.10749700 (ALPHAECP) 4557.47876900 (ANTIGONE) 4557.06235300 (BARON) 4557.06233800 (BONMIN) 4557.06244000 (COUENNE) 4557.06233800 (LINDO) 4557.06356700 (SCIP) 10255.42665000 (SHOT) |
| Referencesⓘ | Duran, Marco A and Grossmann, I E, An Outer-Approximation Algorithm for a Class of Mixed-integer Nonlinear Programs, Mathematical Programming, 36:3, 1986, 307-339. Türkay, Metin and Grossmann, I E, Logic-based MINLP Algorithms for optimal synthesis of process networks, Computers and Chemical Engineering, 20:8, 1996, 959-978. Kevin C. Furman, Nicolas W. Sawaya, Ignacio E. Grossmann, A computationally useful algebraic representation of nonlinear disjunctive convex sets using the perspective function, Tech. Rep., 2019. |
| Applicationⓘ | Synthesis of processing system |
| Added to libraryⓘ | 25 Sep 2019 |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 388 |
| #Binary Variablesⓘ | 80 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 72 |
| #Nonlinear Binary Variablesⓘ | 24 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 76 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 708 |
| #Linear Constraintsⓘ | 684 |
| #Quadratic Constraintsⓘ | 0 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 24 |
| Operands in Gen. Nonlin. Functionsⓘ | div log mul |
| Constraints curvatureⓘ | convex |
| #Nonzeros in Jacobianⓘ | 1548 |
| #Nonlinear Nonzeros in Jacobianⓘ | 72 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 144 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 48 |
| #Blocks in Hessian of Lagrangianⓘ | 24 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 3 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 3 |
| Average blocksize in Hessian of Lagrangianⓘ | 3.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-03 |
| Maximal coefficientⓘ | 4.3000e+02 |
| Infeasibility of initial pointⓘ | 1 |

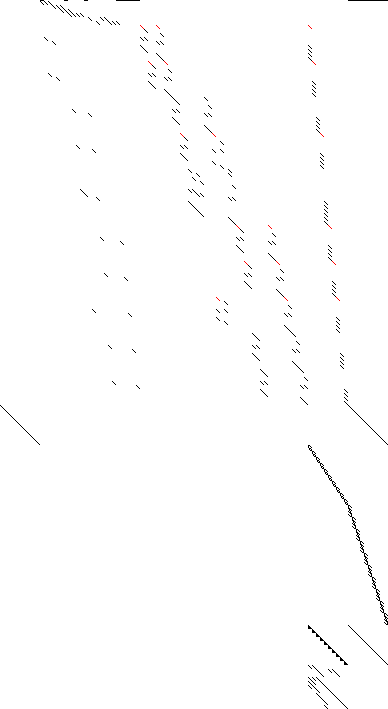

| Sparsity Jacobianⓘ |  |

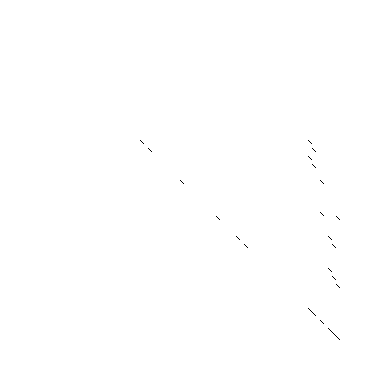

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 709 257 40 412 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 389 309 80 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1625 1553 72 0
*
* Solve m using MINLP maximizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154
,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180
,x181,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193
,x194,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206
,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219
,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232
,x233,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245
,x246,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258
,x259,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271
,x272,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284
,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297
,x298,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,b310
,b311,b312,b313,b314,b315,b316,b317,b318,b319,b320,b321,b322,b323
,b324,b325,b326,b327,b328,b329,b330,b331,b332,b333,b334,b335,b336
,b337,b338,b339,b340,b341,b342,b343,b344,b345,b346,b347,b348,b349
,b350,b351,b352,b353,b354,b355,b356,b357,b358,b359,b360,b361,b362
,b363,b364,b365,b366,b367,b368,b369,b370,b371,b372,b373,b374,b375
,b376,b377,b378,b379,b380,b381,b382,b383,b384,b385,b386,b387,b388
,b389;
Positive Variables x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52,x53,x54,x55
,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70,x71,x72
,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87,x88,x89
,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102,x103,x104
,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115,x116,x117
,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128,x129,x130
,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141,x142,x143
,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154,x155,x156
,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167,x168,x169
,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180,x181,x182
,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193,x194,x195
,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206,x207,x208
,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219,x220,x221
,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232,x233,x234
,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245,x246,x247
,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258,x259,x260
,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271,x272,x273
,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284,x285,x286
,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297,x298,x299
,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309;
Binary Variables b310,b311,b312,b313,b314,b315,b316,b317,b318,b319,b320,b321
,b322,b323,b324,b325,b326,b327,b328,b329,b330,b331,b332,b333,b334
,b335,b336,b337,b338,b339,b340,b341,b342,b343,b344,b345,b346,b347
,b348,b349,b350,b351,b352,b353,b354,b355,b356,b357,b358,b359,b360
,b361,b362,b363,b364,b365,b366,b367,b368,b369,b370,b371,b372,b373
,b374,b375,b376,b377,b378,b379,b380,b381,b382,b383,b384,b385,b386
,b387,b388,b389;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709;
e1.. objvar + x42 + x43 + x44 + x45 - 5*x66 - 10*x67 - 5*x68 - 10*x69
+ 2*x86 + x87 + 2*x88 + x89 - 80*x118 - 90*x119 - 120*x120 - 100*x121
- 285*x122 - 390*x123 - 350*x124 - 300*x125 - 290*x126 - 405*x127
- 190*x128 - 340*x129 - 280*x130 - 400*x131 - 430*x132 - 260*x133
- 290*x134 - 300*x135 - 240*x136 - 310*x137 - 350*x138 - 250*x139
- 300*x140 - 400*x141 + 5*b350 + 4*b351 + 6*b352 + 3*b353 + 8*b354
+ 7*b355 + 6*b356 + 5*b357 + 6*b358 + 9*b359 + 4*b360 + 3*b361 + 10*b362
+ 9*b363 + 5*b364 + 6*b365 + 6*b366 + 10*b367 + 6*b368 + 9*b369 + 7*b370
+ 7*b371 + 4*b372 + 2*b373 + 4*b374 + 3*b375 + 2*b376 + 8*b377 + 5*b378
+ 6*b379 + 7*b380 + 4*b381 + 2*b382 + 5*b383 + 2*b384 + 6*b385 + 4*b386
+ 7*b387 + 4*b388 + 7*b389 =E= 0;
e2.. x42 - x46 - x50 =E= 0;
e3.. x43 - x47 - x51 =E= 0;
e4.. x44 - x48 - x52 =E= 0;
e5.. x45 - x49 - x53 =E= 0;
e6.. - x54 - x58 + x62 =E= 0;
e7.. - x55 - x59 + x63 =E= 0;
e8.. - x56 - x60 + x64 =E= 0;
e9.. - x57 - x61 + x65 =E= 0;
e10.. x62 - x66 - x70 =E= 0;
e11.. x63 - x67 - x71 =E= 0;
e12.. x64 - x68 - x72 =E= 0;
e13.. x65 - x69 - x73 =E= 0;
e14.. x70 - x74 - x78 - x82 =E= 0;
e15.. x71 - x75 - x79 - x83 =E= 0;
e16.. x72 - x76 - x80 - x84 =E= 0;
e17.. x73 - x77 - x81 - x85 =E= 0;
e18.. x90 - x102 - x106 =E= 0;
e19.. x91 - x103 - x107 =E= 0;
e20.. x92 - x104 - x108 =E= 0;
e21.. x93 - x105 - x109 =E= 0;
e22.. x98 - x110 - x114 - x118 =E= 0;
e23.. x99 - x111 - x115 - x119 =E= 0;
e24.. x100 - x112 - x116 - x120 =E= 0;
e25.. x101 - x113 - x117 - x121 =E= 0;
e26.. (x158/(0.001 + 0.999*b310) - log(1 + x142/(0.001 + 0.999*b310)))*(0.001
+ 0.999*b310) =L= 0;
e27.. (x159/(0.001 + 0.999*b311) - log(1 + x143/(0.001 + 0.999*b311)))*(0.001
+ 0.999*b311) =L= 0;
e28.. (x160/(0.001 + 0.999*b312) - log(1 + x144/(0.001 + 0.999*b312)))*(0.001
+ 0.999*b312) =L= 0;
e29.. (x161/(0.001 + 0.999*b313) - log(1 + x145/(0.001 + 0.999*b313)))*(0.001
+ 0.999*b313) =L= 0;
e30.. x146 =E= 0;
e31.. x147 =E= 0;
e32.. x148 =E= 0;
e33.. x149 =E= 0;
e34.. x162 =E= 0;
e35.. x163 =E= 0;
e36.. x164 =E= 0;
e37.. x165 =E= 0;
e38.. x46 - x142 - x146 =E= 0;
e39.. x47 - x143 - x147 =E= 0;
e40.. x48 - x144 - x148 =E= 0;
e41.. x49 - x145 - x149 =E= 0;
e42.. x54 - x158 - x162 =E= 0;
e43.. x55 - x159 - x163 =E= 0;
e44.. x56 - x160 - x164 =E= 0;
e45.. x57 - x161 - x165 =E= 0;
e46.. x142 - 40*b310 =L= 0;
e47.. x143 - 40*b311 =L= 0;
e48.. x144 - 40*b312 =L= 0;
e49.. x145 - 40*b313 =L= 0;
e50.. x146 + 40*b310 =L= 40;
e51.. x147 + 40*b311 =L= 40;
e52.. x148 + 40*b312 =L= 40;
e53.. x149 + 40*b313 =L= 40;
e54.. x158 - 3.71357206670431*b310 =L= 0;
e55.. x159 - 3.71357206670431*b311 =L= 0;
e56.. x160 - 3.71357206670431*b312 =L= 0;
e57.. x161 - 3.71357206670431*b313 =L= 0;
e58.. x162 + 3.71357206670431*b310 =L= 3.71357206670431;
e59.. x163 + 3.71357206670431*b311 =L= 3.71357206670431;
e60.. x164 + 3.71357206670431*b312 =L= 3.71357206670431;
e61.. x165 + 3.71357206670431*b313 =L= 3.71357206670431;
e62.. (x166/(0.001 + 0.999*b314) - 1.2*log(1 + x150/(0.001 + 0.999*b314)))*(
0.001 + 0.999*b314) =L= 0;
e63.. (x167/(0.001 + 0.999*b315) - 1.2*log(1 + x151/(0.001 + 0.999*b315)))*(
0.001 + 0.999*b315) =L= 0;
e64.. (x168/(0.001 + 0.999*b316) - 1.2*log(1 + x152/(0.001 + 0.999*b316)))*(
0.001 + 0.999*b316) =L= 0;
e65.. (x169/(0.001 + 0.999*b317) - 1.2*log(1 + x153/(0.001 + 0.999*b317)))*(
0.001 + 0.999*b317) =L= 0;
e66.. x154 =E= 0;
e67.. x155 =E= 0;
e68.. x156 =E= 0;
e69.. x157 =E= 0;
e70.. x170 =E= 0;
e71.. x171 =E= 0;
e72.. x172 =E= 0;
e73.. x173 =E= 0;
e74.. x50 - x150 - x154 =E= 0;
e75.. x51 - x151 - x155 =E= 0;
e76.. x52 - x152 - x156 =E= 0;
e77.. x53 - x153 - x157 =E= 0;
e78.. x58 - x166 - x170 =E= 0;
e79.. x59 - x167 - x171 =E= 0;
e80.. x60 - x168 - x172 =E= 0;
e81.. x61 - x169 - x173 =E= 0;
e82.. x150 - 40*b314 =L= 0;
e83.. x151 - 40*b315 =L= 0;
e84.. x152 - 40*b316 =L= 0;
e85.. x153 - 40*b317 =L= 0;
e86.. x154 + 40*b314 =L= 40;
e87.. x155 + 40*b315 =L= 40;
e88.. x156 + 40*b316 =L= 40;
e89.. x157 + 40*b317 =L= 40;
e90.. x166 - 4.45628648004517*b314 =L= 0;
e91.. x167 - 4.45628648004517*b315 =L= 0;
e92.. x168 - 4.45628648004517*b316 =L= 0;
e93.. x169 - 4.45628648004517*b317 =L= 0;
e94.. x170 + 4.45628648004517*b314 =L= 4.45628648004517;
e95.. x171 + 4.45628648004517*b315 =L= 4.45628648004517;
e96.. x172 + 4.45628648004517*b316 =L= 4.45628648004517;
e97.. x173 + 4.45628648004517*b317 =L= 4.45628648004517;
e98.. - 0.75*x174 + x206 =E= 0;
e99.. - 0.75*x175 + x207 =E= 0;
e100.. - 0.75*x176 + x208 =E= 0;
e101.. - 0.75*x177 + x209 =E= 0;
e102.. x178 =E= 0;
e103.. x179 =E= 0;
e104.. x180 =E= 0;
e105.. x181 =E= 0;
e106.. x210 =E= 0;
e107.. x211 =E= 0;
e108.. x212 =E= 0;
e109.. x213 =E= 0;
e110.. x74 - x174 - x178 =E= 0;
e111.. x75 - x175 - x179 =E= 0;
e112.. x76 - x176 - x180 =E= 0;
e113.. x77 - x177 - x181 =E= 0;
e114.. x90 - x206 - x210 =E= 0;
e115.. x91 - x207 - x211 =E= 0;
e116.. x92 - x208 - x212 =E= 0;
e117.. x93 - x209 - x213 =E= 0;
e118.. x174 - 4.45628648004517*b318 =L= 0;
e119.. x175 - 4.45628648004517*b319 =L= 0;
e120.. x176 - 4.45628648004517*b320 =L= 0;
e121.. x177 - 4.45628648004517*b321 =L= 0;
e122.. x178 + 4.45628648004517*b318 =L= 4.45628648004517;
e123.. x179 + 4.45628648004517*b319 =L= 4.45628648004517;
e124.. x180 + 4.45628648004517*b320 =L= 4.45628648004517;
e125.. x181 + 4.45628648004517*b321 =L= 4.45628648004517;
e126.. x206 - 3.34221486003388*b318 =L= 0;
e127.. x207 - 3.34221486003388*b319 =L= 0;
e128.. x208 - 3.34221486003388*b320 =L= 0;
e129.. x209 - 3.34221486003388*b321 =L= 0;
e130.. x210 + 3.34221486003388*b318 =L= 3.34221486003388;
e131.. x211 + 3.34221486003388*b319 =L= 3.34221486003388;
e132.. x212 + 3.34221486003388*b320 =L= 3.34221486003388;
e133.. x213 + 3.34221486003388*b321 =L= 3.34221486003388;
e134.. (x214/(0.001 + 0.999*b322) - 1.5*log(1 + x182/(0.001 + 0.999*b322)))*(
0.001 + 0.999*b322) =L= 0;
e135.. (x215/(0.001 + 0.999*b323) - 1.5*log(1 + x183/(0.001 + 0.999*b323)))*(
0.001 + 0.999*b323) =L= 0;
e136.. (x216/(0.001 + 0.999*b324) - 1.5*log(1 + x184/(0.001 + 0.999*b324)))*(
0.001 + 0.999*b324) =L= 0;
e137.. (x217/(0.001 + 0.999*b325) - 1.5*log(1 + x185/(0.001 + 0.999*b325)))*(
0.001 + 0.999*b325) =L= 0;
e138.. x186 =E= 0;
e139.. x187 =E= 0;
e140.. x188 =E= 0;
e141.. x189 =E= 0;
e142.. x222 =E= 0;
e143.. x223 =E= 0;
e144.. x224 =E= 0;
e145.. x225 =E= 0;
e146.. x78 - x182 - x186 =E= 0;
e147.. x79 - x183 - x187 =E= 0;
e148.. x80 - x184 - x188 =E= 0;
e149.. x81 - x185 - x189 =E= 0;
e150.. x94 - x214 - x222 =E= 0;
e151.. x95 - x215 - x223 =E= 0;
e152.. x96 - x216 - x224 =E= 0;
e153.. x97 - x217 - x225 =E= 0;
e154.. x182 - 4.45628648004517*b322 =L= 0;
e155.. x183 - 4.45628648004517*b323 =L= 0;
e156.. x184 - 4.45628648004517*b324 =L= 0;
e157.. x185 - 4.45628648004517*b325 =L= 0;
e158.. x186 + 4.45628648004517*b322 =L= 4.45628648004517;
e159.. x187 + 4.45628648004517*b323 =L= 4.45628648004517;
e160.. x188 + 4.45628648004517*b324 =L= 4.45628648004517;
e161.. x189 + 4.45628648004517*b325 =L= 4.45628648004517;
e162.. x214 - 2.54515263975353*b322 =L= 0;
e163.. x215 - 2.54515263975353*b323 =L= 0;
e164.. x216 - 2.54515263975353*b324 =L= 0;
e165.. x217 - 2.54515263975353*b325 =L= 0;
e166.. x222 + 2.54515263975353*b322 =L= 2.54515263975353;
e167.. x223 + 2.54515263975353*b323 =L= 2.54515263975353;
e168.. x224 + 2.54515263975353*b324 =L= 2.54515263975353;
e169.. x225 + 2.54515263975353*b325 =L= 2.54515263975353;
e170.. - x190 + x230 =E= 0;
e171.. - x191 + x231 =E= 0;
e172.. - x192 + x232 =E= 0;
e173.. - x193 + x233 =E= 0;
e174.. - 0.5*x198 + x230 =E= 0;
e175.. - 0.5*x199 + x231 =E= 0;
e176.. - 0.5*x200 + x232 =E= 0;
e177.. - 0.5*x201 + x233 =E= 0;
e178.. x194 =E= 0;
e179.. x195 =E= 0;
e180.. x196 =E= 0;
e181.. x197 =E= 0;
e182.. x202 =E= 0;
e183.. x203 =E= 0;
e184.. x204 =E= 0;
e185.. x205 =E= 0;
e186.. x234 =E= 0;
e187.. x235 =E= 0;
e188.. x236 =E= 0;
e189.. x237 =E= 0;
e190.. x82 - x190 - x194 =E= 0;
e191.. x83 - x191 - x195 =E= 0;
e192.. x84 - x192 - x196 =E= 0;
e193.. x85 - x193 - x197 =E= 0;
e194.. x86 - x198 - x202 =E= 0;
e195.. x87 - x199 - x203 =E= 0;
e196.. x88 - x200 - x204 =E= 0;
e197.. x89 - x201 - x205 =E= 0;
e198.. x98 - x230 - x234 =E= 0;
e199.. x99 - x231 - x235 =E= 0;
e200.. x100 - x232 - x236 =E= 0;
e201.. x101 - x233 - x237 =E= 0;
e202.. x190 - 4.45628648004517*b326 =L= 0;
e203.. x191 - 4.45628648004517*b327 =L= 0;
e204.. x192 - 4.45628648004517*b328 =L= 0;
e205.. x193 - 4.45628648004517*b329 =L= 0;
e206.. x194 + 4.45628648004517*b326 =L= 4.45628648004517;
e207.. x195 + 4.45628648004517*b327 =L= 4.45628648004517;
e208.. x196 + 4.45628648004517*b328 =L= 4.45628648004517;
e209.. x197 + 4.45628648004517*b329 =L= 4.45628648004517;
e210.. x198 - 30*b326 =L= 0;
e211.. x199 - 30*b327 =L= 0;
e212.. x200 - 30*b328 =L= 0;
e213.. x201 - 30*b329 =L= 0;
e214.. x202 + 30*b326 =L= 30;
e215.. x203 + 30*b327 =L= 30;
e216.. x204 + 30*b328 =L= 30;
e217.. x205 + 30*b329 =L= 30;
e218.. x230 - 15*b326 =L= 0;
e219.. x231 - 15*b327 =L= 0;
e220.. x232 - 15*b328 =L= 0;
e221.. x233 - 15*b329 =L= 0;
e222.. x234 + 15*b326 =L= 15;
e223.. x235 + 15*b327 =L= 15;
e224.. x236 + 15*b328 =L= 15;
e225.. x237 + 15*b329 =L= 15;
e226.. (x270/(0.001 + 0.999*b330) - 1.25*log(1 + x238/(0.001 + 0.999*b330)))*(
0.001 + 0.999*b330) =L= 0;
e227.. (x271/(0.001 + 0.999*b331) - 1.25*log(1 + x239/(0.001 + 0.999*b331)))*(
0.001 + 0.999*b331) =L= 0;
e228.. (x272/(0.001 + 0.999*b332) - 1.25*log(1 + x240/(0.001 + 0.999*b332)))*(
0.001 + 0.999*b332) =L= 0;
e229.. (x273/(0.001 + 0.999*b333) - 1.25*log(1 + x241/(0.001 + 0.999*b333)))*(
0.001 + 0.999*b333) =L= 0;
e230.. x242 =E= 0;
e231.. x243 =E= 0;
e232.. x244 =E= 0;
e233.. x245 =E= 0;
e234.. x274 =E= 0;
e235.. x275 =E= 0;
e236.. x276 =E= 0;
e237.. x277 =E= 0;
e238.. x102 - x238 - x242 =E= 0;
e239.. x103 - x239 - x243 =E= 0;
e240.. x104 - x240 - x244 =E= 0;
e241.. x105 - x241 - x245 =E= 0;
e242.. x122 - x270 - x274 =E= 0;
e243.. x123 - x271 - x275 =E= 0;
e244.. x124 - x272 - x276 =E= 0;
e245.. x125 - x273 - x277 =E= 0;
e246.. x238 - 3.34221486003388*b330 =L= 0;
e247.. x239 - 3.34221486003388*b331 =L= 0;
e248.. x240 - 3.34221486003388*b332 =L= 0;
e249.. x241 - 3.34221486003388*b333 =L= 0;
e250.. x242 + 3.34221486003388*b330 =L= 3.34221486003388;
e251.. x243 + 3.34221486003388*b331 =L= 3.34221486003388;
e252.. x244 + 3.34221486003388*b332 =L= 3.34221486003388;
e253.. x245 + 3.34221486003388*b333 =L= 3.34221486003388;
e254.. x270 - 1.83548069293539*b330 =L= 0;
e255.. x271 - 1.83548069293539*b331 =L= 0;
e256.. x272 - 1.83548069293539*b332 =L= 0;
e257.. x273 - 1.83548069293539*b333 =L= 0;
e258.. x274 + 1.83548069293539*b330 =L= 1.83548069293539;
e259.. x275 + 1.83548069293539*b331 =L= 1.83548069293539;
e260.. x276 + 1.83548069293539*b332 =L= 1.83548069293539;
e261.. x277 + 1.83548069293539*b333 =L= 1.83548069293539;
e262.. (x278/(0.001 + 0.999*b334) - 0.9*log(1 + x246/(0.001 + 0.999*b334)))*(
0.001 + 0.999*b334) =L= 0;
e263.. (x279/(0.001 + 0.999*b335) - 0.9*log(1 + x247/(0.001 + 0.999*b335)))*(
0.001 + 0.999*b335) =L= 0;
e264.. (x280/(0.001 + 0.999*b336) - 0.9*log(1 + x248/(0.001 + 0.999*b336)))*(
0.001 + 0.999*b336) =L= 0;
e265.. (x281/(0.001 + 0.999*b337) - 0.9*log(1 + x249/(0.001 + 0.999*b337)))*(
0.001 + 0.999*b337) =L= 0;
e266.. x250 =E= 0;
e267.. x251 =E= 0;
e268.. x252 =E= 0;
e269.. x253 =E= 0;
e270.. x282 =E= 0;
e271.. x283 =E= 0;
e272.. x284 =E= 0;
e273.. x285 =E= 0;
e274.. x106 - x246 - x250 =E= 0;
e275.. x107 - x247 - x251 =E= 0;
e276.. x108 - x248 - x252 =E= 0;
e277.. x109 - x249 - x253 =E= 0;
e278.. x126 - x278 - x282 =E= 0;
e279.. x127 - x279 - x283 =E= 0;
e280.. x128 - x280 - x284 =E= 0;
e281.. x129 - x281 - x285 =E= 0;
e282.. x246 - 3.34221486003388*b334 =L= 0;
e283.. x247 - 3.34221486003388*b335 =L= 0;
e284.. x248 - 3.34221486003388*b336 =L= 0;
e285.. x249 - 3.34221486003388*b337 =L= 0;
e286.. x250 + 3.34221486003388*b334 =L= 3.34221486003388;
e287.. x251 + 3.34221486003388*b335 =L= 3.34221486003388;
e288.. x252 + 3.34221486003388*b336 =L= 3.34221486003388;
e289.. x253 + 3.34221486003388*b337 =L= 3.34221486003388;
e290.. x278 - 1.32154609891348*b334 =L= 0;
e291.. x279 - 1.32154609891348*b335 =L= 0;
e292.. x280 - 1.32154609891348*b336 =L= 0;
e293.. x281 - 1.32154609891348*b337 =L= 0;
e294.. x282 + 1.32154609891348*b334 =L= 1.32154609891348;
e295.. x283 + 1.32154609891348*b335 =L= 1.32154609891348;
e296.. x284 + 1.32154609891348*b336 =L= 1.32154609891348;
e297.. x285 + 1.32154609891348*b337 =L= 1.32154609891348;
e298.. (x286/(0.001 + 0.999*b338) - log(1 + x218/(0.001 + 0.999*b338)))*(0.001
+ 0.999*b338) =L= 0;
e299.. (x287/(0.001 + 0.999*b339) - log(1 + x219/(0.001 + 0.999*b339)))*(0.001
+ 0.999*b339) =L= 0;
e300.. (x288/(0.001 + 0.999*b340) - log(1 + x220/(0.001 + 0.999*b340)))*(0.001
+ 0.999*b340) =L= 0;
e301.. (x289/(0.001 + 0.999*b341) - log(1 + x221/(0.001 + 0.999*b341)))*(0.001
+ 0.999*b341) =L= 0;
e302.. x226 =E= 0;
e303.. x227 =E= 0;
e304.. x228 =E= 0;
e305.. x229 =E= 0;
e306.. x290 =E= 0;
e307.. x291 =E= 0;
e308.. x292 =E= 0;
e309.. x293 =E= 0;
e310.. x94 - x218 - x226 =E= 0;
e311.. x95 - x219 - x227 =E= 0;
e312.. x96 - x220 - x228 =E= 0;
e313.. x97 - x221 - x229 =E= 0;
e314.. x130 - x286 - x290 =E= 0;
e315.. x131 - x287 - x291 =E= 0;
e316.. x132 - x288 - x292 =E= 0;
e317.. x133 - x289 - x293 =E= 0;
e318.. x218 - 2.54515263975353*b338 =L= 0;
e319.. x219 - 2.54515263975353*b339 =L= 0;
e320.. x220 - 2.54515263975353*b340 =L= 0;
e321.. x221 - 2.54515263975353*b341 =L= 0;
e322.. x226 + 2.54515263975353*b338 =L= 2.54515263975353;
e323.. x227 + 2.54515263975353*b339 =L= 2.54515263975353;
e324.. x228 + 2.54515263975353*b340 =L= 2.54515263975353;
e325.. x229 + 2.54515263975353*b341 =L= 2.54515263975353;
e326.. x286 - 1.26558121681553*b338 =L= 0;
e327.. x287 - 1.26558121681553*b339 =L= 0;
e328.. x288 - 1.26558121681553*b340 =L= 0;
e329.. x289 - 1.26558121681553*b341 =L= 0;
e330.. x290 + 1.26558121681553*b338 =L= 1.26558121681553;
e331.. x291 + 1.26558121681553*b339 =L= 1.26558121681553;
e332.. x292 + 1.26558121681553*b340 =L= 1.26558121681553;
e333.. x293 + 1.26558121681553*b341 =L= 1.26558121681553;
e334.. - 0.9*x254 + x294 =E= 0;
e335.. - 0.9*x255 + x295 =E= 0;
e336.. - 0.9*x256 + x296 =E= 0;
e337.. - 0.9*x257 + x297 =E= 0;
e338.. x258 =E= 0;
e339.. x259 =E= 0;
e340.. x260 =E= 0;
e341.. x261 =E= 0;
e342.. x298 =E= 0;
e343.. x299 =E= 0;
e344.. x300 =E= 0;
e345.. x301 =E= 0;
e346.. x110 - x254 - x258 =E= 0;
e347.. x111 - x255 - x259 =E= 0;
e348.. x112 - x256 - x260 =E= 0;
e349.. x113 - x257 - x261 =E= 0;
e350.. x134 - x294 - x298 =E= 0;
e351.. x135 - x295 - x299 =E= 0;
e352.. x136 - x296 - x300 =E= 0;
e353.. x137 - x297 - x301 =E= 0;
e354.. x254 - 15*b342 =L= 0;
e355.. x255 - 15*b343 =L= 0;
e356.. x256 - 15*b344 =L= 0;
e357.. x257 - 15*b345 =L= 0;
e358.. x258 + 15*b342 =L= 15;
e359.. x259 + 15*b343 =L= 15;
e360.. x260 + 15*b344 =L= 15;
e361.. x261 + 15*b345 =L= 15;
e362.. x294 - 13.5*b342 =L= 0;
e363.. x295 - 13.5*b343 =L= 0;
e364.. x296 - 13.5*b344 =L= 0;
e365.. x297 - 13.5*b345 =L= 0;
e366.. x298 + 13.5*b342 =L= 13.5;
e367.. x299 + 13.5*b343 =L= 13.5;
e368.. x300 + 13.5*b344 =L= 13.5;
e369.. x301 + 13.5*b345 =L= 13.5;
e370.. - 0.6*x262 + x302 =E= 0;
e371.. - 0.6*x263 + x303 =E= 0;
e372.. - 0.6*x264 + x304 =E= 0;
e373.. - 0.6*x265 + x305 =E= 0;
e374.. x266 =E= 0;
e375.. x267 =E= 0;
e376.. x268 =E= 0;
e377.. x269 =E= 0;
e378.. x306 =E= 0;
e379.. x307 =E= 0;
e380.. x308 =E= 0;
e381.. x309 =E= 0;
e382.. x114 - x262 - x266 =E= 0;
e383.. x115 - x263 - x267 =E= 0;
e384.. x116 - x264 - x268 =E= 0;
e385.. x117 - x265 - x269 =E= 0;
e386.. x138 - x302 - x306 =E= 0;
e387.. x139 - x303 - x307 =E= 0;
e388.. x140 - x304 - x308 =E= 0;
e389.. x141 - x305 - x309 =E= 0;
e390.. x262 - 15*b346 =L= 0;
e391.. x263 - 15*b347 =L= 0;
e392.. x264 - 15*b348 =L= 0;
e393.. x265 - 15*b349 =L= 0;
e394.. x266 + 15*b346 =L= 15;
e395.. x267 + 15*b347 =L= 15;
e396.. x268 + 15*b348 =L= 15;
e397.. x269 + 15*b349 =L= 15;
e398.. x302 - 9*b346 =L= 0;
e399.. x303 - 9*b347 =L= 0;
e400.. x304 - 9*b348 =L= 0;
e401.. x305 - 9*b349 =L= 0;
e402.. x306 + 9*b346 =L= 9;
e403.. x307 + 9*b347 =L= 9;
e404.. x308 + 9*b348 =L= 9;
e405.. x309 + 9*b349 =L= 9;
e406.. x2 + 5*b350 =E= 0;
e407.. x3 + 4*b351 =E= 0;
e408.. x4 + 6*b352 =E= 0;
e409.. x5 + 3*b353 =E= 0;
e410.. x6 + 8*b354 =E= 0;
e411.. x7 + 7*b355 =E= 0;
e412.. x8 + 6*b356 =E= 0;
e413.. x9 + 5*b357 =E= 0;
e414.. x10 + 6*b358 =E= 0;
e415.. x11 + 9*b359 =E= 0;
e416.. x12 + 4*b360 =E= 0;
e417.. x13 + 3*b361 =E= 0;
e418.. x14 + 10*b362 =E= 0;
e419.. x15 + 9*b363 =E= 0;
e420.. x16 + 5*b364 =E= 0;
e421.. x17 + 6*b365 =E= 0;
e422.. x18 + 6*b366 =E= 0;
e423.. x19 + 10*b367 =E= 0;
e424.. x20 + 6*b368 =E= 0;
e425.. x21 + 9*b369 =E= 0;
e426.. x22 + 7*b370 =E= 0;
e427.. x23 + 7*b371 =E= 0;
e428.. x24 + 4*b372 =E= 0;
e429.. x25 + 2*b373 =E= 0;
e430.. x26 + 4*b374 =E= 0;
e431.. x27 + 3*b375 =E= 0;
e432.. x28 + 2*b376 =E= 0;
e433.. x29 + 8*b377 =E= 0;
e434.. x30 + 5*b378 =E= 0;
e435.. x31 + 6*b379 =E= 0;
e436.. x32 + 7*b380 =E= 0;
e437.. x33 + 4*b381 =E= 0;
e438.. x34 + 2*b382 =E= 0;
e439.. x35 + 5*b383 =E= 0;
e440.. x36 + 2*b384 =E= 0;
e441.. x37 + 6*b385 =E= 0;
e442.. x38 + 4*b386 =E= 0;
e443.. x39 + 7*b387 =E= 0;
e444.. x40 + 4*b388 =E= 0;
e445.. x41 + 7*b389 =E= 0;
e446.. b310 - b311 =L= 0;
e447.. b310 - b312 =L= 0;
e448.. b310 - b313 =L= 0;
e449.. b311 - b312 =L= 0;
e450.. b311 - b313 =L= 0;
e451.. b312 - b313 =L= 0;
e452.. b314 - b315 =L= 0;
e453.. b314 - b316 =L= 0;
e454.. b314 - b317 =L= 0;
e455.. b315 - b316 =L= 0;
e456.. b315 - b317 =L= 0;
e457.. b316 - b317 =L= 0;
e458.. b318 - b319 =L= 0;
e459.. b318 - b320 =L= 0;
e460.. b318 - b321 =L= 0;
e461.. b319 - b320 =L= 0;
e462.. b319 - b321 =L= 0;
e463.. b320 - b321 =L= 0;
e464.. b322 - b323 =L= 0;
e465.. b322 - b324 =L= 0;
e466.. b322 - b325 =L= 0;
e467.. b323 - b324 =L= 0;
e468.. b323 - b325 =L= 0;
e469.. b324 - b325 =L= 0;
e470.. b326 - b327 =L= 0;
e471.. b326 - b328 =L= 0;
e472.. b326 - b329 =L= 0;
e473.. b327 - b328 =L= 0;
e474.. b327 - b329 =L= 0;
e475.. b328 - b329 =L= 0;
e476.. b330 - b331 =L= 0;
e477.. b330 - b332 =L= 0;
e478.. b330 - b333 =L= 0;
e479.. b331 - b332 =L= 0;
e480.. b331 - b333 =L= 0;
e481.. b332 - b333 =L= 0;
e482.. b334 - b335 =L= 0;
e483.. b334 - b336 =L= 0;
e484.. b334 - b337 =L= 0;
e485.. b335 - b336 =L= 0;
e486.. b335 - b337 =L= 0;
e487.. b336 - b337 =L= 0;
e488.. b338 - b339 =L= 0;
e489.. b338 - b340 =L= 0;
e490.. b338 - b341 =L= 0;
e491.. b339 - b340 =L= 0;
e492.. b339 - b341 =L= 0;
e493.. b340 - b341 =L= 0;
e494.. b342 - b343 =L= 0;
e495.. b342 - b344 =L= 0;
e496.. b342 - b345 =L= 0;
e497.. b343 - b344 =L= 0;
e498.. b343 - b345 =L= 0;
e499.. b344 - b345 =L= 0;
e500.. b346 - b347 =L= 0;
e501.. b346 - b348 =L= 0;
e502.. b346 - b349 =L= 0;
e503.. b347 - b348 =L= 0;
e504.. b347 - b349 =L= 0;
e505.. b348 - b349 =L= 0;
e506.. b350 + b351 =L= 1;
e507.. b350 + b352 =L= 1;
e508.. b350 + b353 =L= 1;
e509.. b350 + b351 =L= 1;
e510.. b351 + b352 =L= 1;
e511.. b351 + b353 =L= 1;
e512.. b350 + b352 =L= 1;
e513.. b351 + b352 =L= 1;
e514.. b352 + b353 =L= 1;
e515.. b350 + b353 =L= 1;
e516.. b351 + b353 =L= 1;
e517.. b352 + b353 =L= 1;
e518.. b354 + b355 =L= 1;
e519.. b354 + b356 =L= 1;
e520.. b354 + b357 =L= 1;
e521.. b354 + b355 =L= 1;
e522.. b355 + b356 =L= 1;
e523.. b355 + b357 =L= 1;
e524.. b354 + b356 =L= 1;
e525.. b355 + b356 =L= 1;
e526.. b356 + b357 =L= 1;
e527.. b354 + b357 =L= 1;
e528.. b355 + b357 =L= 1;
e529.. b356 + b357 =L= 1;
e530.. b358 + b359 =L= 1;
e531.. b358 + b360 =L= 1;
e532.. b358 + b361 =L= 1;
e533.. b358 + b359 =L= 1;
e534.. b359 + b360 =L= 1;
e535.. b359 + b361 =L= 1;
e536.. b358 + b360 =L= 1;
e537.. b359 + b360 =L= 1;
e538.. b360 + b361 =L= 1;
e539.. b358 + b361 =L= 1;
e540.. b359 + b361 =L= 1;
e541.. b360 + b361 =L= 1;
e542.. b362 + b363 =L= 1;
e543.. b362 + b364 =L= 1;
e544.. b362 + b365 =L= 1;
e545.. b362 + b363 =L= 1;
e546.. b363 + b364 =L= 1;
e547.. b363 + b365 =L= 1;
e548.. b362 + b364 =L= 1;
e549.. b363 + b364 =L= 1;
e550.. b364 + b365 =L= 1;
e551.. b362 + b365 =L= 1;
e552.. b363 + b365 =L= 1;
e553.. b364 + b365 =L= 1;
e554.. b366 + b367 =L= 1;
e555.. b366 + b368 =L= 1;
e556.. b366 + b369 =L= 1;
e557.. b366 + b367 =L= 1;
e558.. b367 + b368 =L= 1;
e559.. b367 + b369 =L= 1;
e560.. b366 + b368 =L= 1;
e561.. b367 + b368 =L= 1;
e562.. b368 + b369 =L= 1;
e563.. b366 + b369 =L= 1;
e564.. b367 + b369 =L= 1;
e565.. b368 + b369 =L= 1;
e566.. b370 + b371 =L= 1;
e567.. b370 + b372 =L= 1;
e568.. b370 + b373 =L= 1;
e569.. b370 + b371 =L= 1;
e570.. b371 + b372 =L= 1;
e571.. b371 + b373 =L= 1;
e572.. b370 + b372 =L= 1;
e573.. b371 + b372 =L= 1;
e574.. b372 + b373 =L= 1;
e575.. b370 + b373 =L= 1;
e576.. b371 + b373 =L= 1;
e577.. b372 + b373 =L= 1;
e578.. b374 + b375 =L= 1;
e579.. b374 + b376 =L= 1;
e580.. b374 + b377 =L= 1;
e581.. b374 + b375 =L= 1;
e582.. b375 + b376 =L= 1;
e583.. b375 + b377 =L= 1;
e584.. b374 + b376 =L= 1;
e585.. b375 + b376 =L= 1;
e586.. b376 + b377 =L= 1;
e587.. b374 + b377 =L= 1;
e588.. b375 + b377 =L= 1;
e589.. b376 + b377 =L= 1;
e590.. b378 + b379 =L= 1;
e591.. b378 + b380 =L= 1;
e592.. b378 + b381 =L= 1;
e593.. b378 + b379 =L= 1;
e594.. b379 + b380 =L= 1;
e595.. b379 + b381 =L= 1;
e596.. b378 + b380 =L= 1;
e597.. b379 + b380 =L= 1;
e598.. b380 + b381 =L= 1;
e599.. b378 + b381 =L= 1;
e600.. b379 + b381 =L= 1;
e601.. b380 + b381 =L= 1;
e602.. b382 + b383 =L= 1;
e603.. b382 + b384 =L= 1;
e604.. b382 + b385 =L= 1;
e605.. b382 + b383 =L= 1;
e606.. b383 + b384 =L= 1;
e607.. b383 + b385 =L= 1;
e608.. b382 + b384 =L= 1;
e609.. b383 + b384 =L= 1;
e610.. b384 + b385 =L= 1;
e611.. b382 + b385 =L= 1;
e612.. b383 + b385 =L= 1;
e613.. b384 + b385 =L= 1;
e614.. b386 + b387 =L= 1;
e615.. b386 + b388 =L= 1;
e616.. b386 + b389 =L= 1;
e617.. b386 + b387 =L= 1;
e618.. b387 + b388 =L= 1;
e619.. b387 + b389 =L= 1;
e620.. b386 + b388 =L= 1;
e621.. b387 + b388 =L= 1;
e622.. b388 + b389 =L= 1;
e623.. b386 + b389 =L= 1;
e624.. b387 + b389 =L= 1;
e625.. b388 + b389 =L= 1;
e626.. b310 - b350 =L= 0;
e627.. - b310 + b311 - b351 =L= 0;
e628.. - b310 - b311 + b312 - b352 =L= 0;
e629.. - b310 - b311 - b312 + b313 - b353 =L= 0;
e630.. b314 - b354 =L= 0;
e631.. - b314 + b315 - b355 =L= 0;
e632.. - b314 - b315 + b316 - b356 =L= 0;
e633.. - b314 - b315 - b316 + b317 - b357 =L= 0;
e634.. b318 - b358 =L= 0;
e635.. - b318 + b319 - b359 =L= 0;
e636.. - b318 - b319 + b320 - b360 =L= 0;
e637.. - b318 - b319 - b320 + b321 - b361 =L= 0;
e638.. b322 - b362 =L= 0;
e639.. - b322 + b323 - b363 =L= 0;
e640.. - b322 - b323 + b324 - b364 =L= 0;
e641.. - b322 - b323 - b324 + b325 - b365 =L= 0;
e642.. b326 - b366 =L= 0;
e643.. - b326 + b327 - b367 =L= 0;
e644.. - b326 - b327 + b328 - b368 =L= 0;
e645.. - b326 - b327 - b328 + b329 - b369 =L= 0;
e646.. b330 - b370 =L= 0;
e647.. - b330 + b331 - b371 =L= 0;
e648.. - b330 - b331 + b332 - b372 =L= 0;
e649.. - b330 - b331 - b332 + b333 - b373 =L= 0;
e650.. b334 - b374 =L= 0;
e651.. - b334 + b335 - b375 =L= 0;
e652.. - b334 - b335 + b336 - b376 =L= 0;
e653.. - b334 - b335 - b336 + b337 - b377 =L= 0;
e654.. b338 - b378 =L= 0;
e655.. - b338 + b339 - b379 =L= 0;
e656.. - b338 - b339 + b340 - b380 =L= 0;
e657.. - b338 - b339 - b340 + b341 - b381 =L= 0;
e658.. b342 - b382 =L= 0;
e659.. - b342 + b343 - b383 =L= 0;
e660.. - b342 - b343 + b344 - b384 =L= 0;
e661.. - b342 - b343 - b344 + b345 - b385 =L= 0;
e662.. b346 - b386 =L= 0;
e663.. - b346 + b347 - b387 =L= 0;
e664.. - b346 - b347 + b348 - b388 =L= 0;
e665.. - b346 - b347 - b348 + b349 - b389 =L= 0;
e666.. b310 + b314 =E= 1;
e667.. b311 + b315 =E= 1;
e668.. b312 + b316 =E= 1;
e669.. b313 + b317 =E= 1;
e670.. - b318 + b330 + b334 =G= 0;
e671.. - b319 + b331 + b335 =G= 0;
e672.. - b320 + b332 + b336 =G= 0;
e673.. - b321 + b333 + b337 =G= 0;
e674.. - b322 + b338 =G= 0;
e675.. - b323 + b339 =G= 0;
e676.. - b324 + b340 =G= 0;
e677.. - b325 + b341 =G= 0;
e678.. b310 + b314 - b318 =G= 0;
e679.. b311 + b315 - b319 =G= 0;
e680.. b312 + b316 - b320 =G= 0;
e681.. b313 + b317 - b321 =G= 0;
e682.. b310 + b314 - b322 =G= 0;
e683.. b311 + b315 - b323 =G= 0;
e684.. b312 + b316 - b324 =G= 0;
e685.. b313 + b317 - b325 =G= 0;
e686.. b310 + b314 - b326 =G= 0;
e687.. b311 + b315 - b327 =G= 0;
e688.. b312 + b316 - b328 =G= 0;
e689.. b313 + b317 - b329 =G= 0;
e690.. b318 - b330 =G= 0;
e691.. b319 - b331 =G= 0;
e692.. b320 - b332 =G= 0;
e693.. b321 - b333 =G= 0;
e694.. b318 - b334 =G= 0;
e695.. b319 - b335 =G= 0;
e696.. b320 - b336 =G= 0;
e697.. b321 - b337 =G= 0;
e698.. b322 - b338 =G= 0;
e699.. b323 - b339 =G= 0;
e700.. b324 - b340 =G= 0;
e701.. b325 - b341 =G= 0;
e702.. b326 - b342 =G= 0;
e703.. b327 - b343 =G= 0;
e704.. b328 - b344 =G= 0;
e705.. b329 - b345 =G= 0;
e706.. b326 - b346 =G= 0;
e707.. b327 - b347 =G= 0;
e708.. b328 - b348 =G= 0;
e709.. b329 - b349 =G= 0;
* set non-default bounds
x42.up = 40;
x43.up = 40;
x44.up = 40;
x45.up = 40;
x86.up = 30;
x87.up = 30;
x88.up = 30;
x89.up = 30;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
