Removed Instance syn15m03h
Selection of optimal configuration and parameters for a processing system selected from a superstructure containing alternative processing units and interconnections.
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 3850.18716200 (ALPHAECP) 3850.18227400 (ANTIGONE) 3850.18227400 (BARON) 3850.18227100 (BONMIN) 3850.18227000 (COUENNE) 3850.18227000 (LINDO) 3850.18273800 (SCIP) 3850.18294000 (SHOT) |
| Referencesⓘ | Duran, Marco A and Grossmann, I E, An Outer-Approximation Algorithm for a Class of Mixed-integer Nonlinear Programs, Mathematical Programming, 36:3, 1986, 307-339. Türkay, Metin and Grossmann, I E, Logic-based MINLP Algorithms for optimal synthesis of process networks, Computers and Chemical Engineering, 20:8, 1996, 959-978. |
| Sourceⓘ | Syn15M03H.gms from CMU-IBM MINLP solver project page |
| Applicationⓘ | Synthesis of processing system |
| Added to libraryⓘ | 28 Sep 2013 |
| Removed from libraryⓘ | 16 Feb 2022 |
| Removed becauseⓘ | Superseded by syn15m03hfsg. |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 453 |
| #Binary Variablesⓘ | 90 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 93 |
| #Nonlinear Binary Variablesⓘ | 30 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 78 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 768 |
| #Linear Constraintsⓘ | 735 |
| #Quadratic Constraintsⓘ | 0 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 33 |
| Operands in Gen. Nonlin. Functionsⓘ | div log mul |
| Constraints curvatureⓘ | convex |
| #Nonzeros in Jacobianⓘ | 1674 |
| #Nonlinear Nonzeros in Jacobianⓘ | 99 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 189 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 63 |
| #Blocks in Hessian of Lagrangianⓘ | 30 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 3 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 4 |
| Average blocksize in Hessian of Lagrangianⓘ | 3.1 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-06 |
| Maximal coefficientⓘ | 6.0000e+02 |
| Infeasibility of initial pointⓘ | 1 |

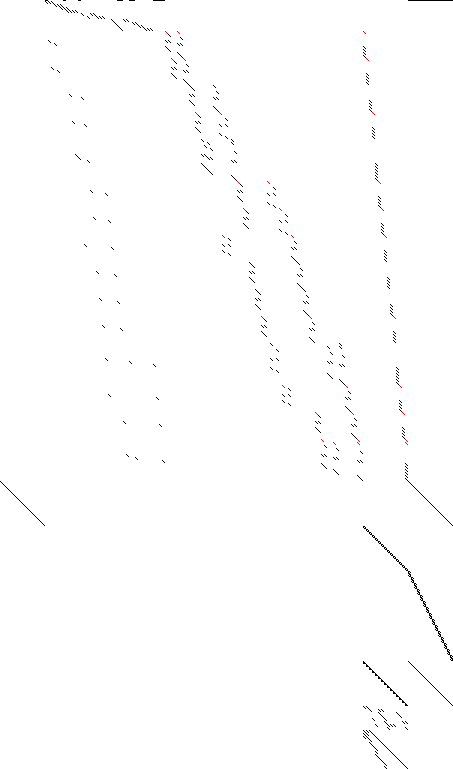

| Sparsity Jacobianⓘ |  |

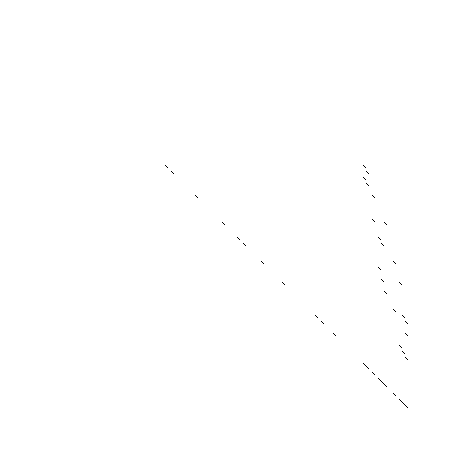

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 769 298 60 411 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 454 364 90 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1753 1654 99 0
*
* Solve m using MINLP maximizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154
,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180
,x181,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193
,x194,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206
,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219
,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232
,x233,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245
,x246,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258
,x259,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271
,x272,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284
,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297
,x298,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310
,x311,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323
,x324,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336
,x337,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349
,x350,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362
,x363,x364,b365,b366,b367,b368,b369,b370,b371,b372,b373,b374,b375
,b376,b377,b378,b379,b380,b381,b382,b383,b384,b385,b386,b387,b388
,b389,b390,b391,b392,b393,b394,b395,b396,b397,b398,b399,b400,b401
,b402,b403,b404,b405,b406,b407,b408,b409,b410,b411,b412,b413,b414
,b415,b416,b417,b418,b419,b420,b421,b422,b423,b424,b425,b426,b427
,b428,b429,b430,b431,b432,b433,b434,b435,b436,b437,b438,b439,b440
,b441,b442,b443,b444,b445,b446,b447,b448,b449,b450,b451,b452,b453
,b454;
Positive Variables x47,x48,x49,x50,x51,x52,x53,x54,x55,x56,x57,x58,x59,x60
,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70,x71,x72,x73,x74,x75,x76,x77
,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87,x88,x89,x90,x91,x92,x93,x94
,x95,x96,x97,x98,x99,x100,x101,x102,x103,x104,x105,x106,x107,x108
,x109,x110,x111,x112,x113,x114,x115,x116,x117,x118,x119,x120,x121
,x122,x123,x124,x125,x126,x127,x128,x129,x130,x131,x132,x133,x134
,x135,x136,x137,x138,x139,x140,x141,x142,x143,x144,x145,x146,x147
,x148,x149,x150,x151,x152,x153,x154,x155,x156,x157,x158,x159,x160
,x161,x162,x163,x164,x165,x166,x167,x168,x169,x170,x171,x172,x173
,x174,x175,x176,x177,x178,x179,x180,x181,x182,x183,x184,x185,x186
,x187,x188,x189,x190,x191,x192,x193,x194,x195,x196,x197,x198,x199
,x200,x201,x202,x203,x204,x205,x206,x207,x208,x209,x210,x211,x212
,x213,x214,x215,x216,x217,x218,x219,x220,x221,x222,x223,x224,x225
,x226,x227,x228,x229,x230,x231,x232,x233,x234,x235,x236,x237,x238
,x239,x240,x241,x242,x243,x244,x245,x246,x247,x248,x249,x250,x251
,x252,x253,x254,x255,x256,x257,x258,x259,x260,x261,x262,x263,x264
,x265,x266,x267,x268,x269,x270,x271,x272,x273,x274,x275,x276,x277
,x278,x279,x280,x281,x282,x283,x284,x285,x286,x287,x288,x289,x290
,x291,x292,x293,x294,x295,x296,x297,x298,x299,x300,x301,x302,x303
,x304,x305,x306,x307,x308,x309,x310,x311,x312,x313,x314,x315,x316
,x317,x318,x319,x320,x321,x322,x323,x324,x325,x326,x327,x328,x329
,x330,x331,x332,x333,x334,x335,x336,x337,x338,x339,x340,x341,x342
,x343,x344,x345,x346,x347,x348,x349,x350,x351,x352,x353,x354,x355
,x356,x357,x358,x359,x360,x361,x362,x363,x364;
Binary Variables b365,b366,b367,b368,b369,b370,b371,b372,b373,b374,b375,b376
,b377,b378,b379,b380,b381,b382,b383,b384,b385,b386,b387,b388,b389
,b390,b391,b392,b393,b394,b395,b396,b397,b398,b399,b400,b401,b402
,b403,b404,b405,b406,b407,b408,b409,b410,b411,b412,b413,b414,b415
,b416,b417,b418,b419,b420,b421,b422,b423,b424,b425,b426,b427,b428
,b429,b430,b431,b432,b433,b434,b435,b436,b437,b438,b439,b440,b441
,b442,b443,b444,b445,b446,b447,b448,b449,b450,b451,b452,b453,b454;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709,e710,e711,e712,e713,e714
,e715,e716,e717,e718,e719,e720,e721,e722,e723,e724,e725,e726,e727
,e728,e729,e730,e731,e732,e733,e734,e735,e736,e737,e738,e739,e740
,e741,e742,e743,e744,e745,e746,e747,e748,e749,e750,e751,e752,e753
,e754,e755,e756,e757,e758,e759,e760,e761,e762,e763,e764,e765,e766
,e767,e768,e769;
e1.. objvar + x47 + x48 + x49 - 5*x65 - 10*x66 - 5*x67 + 2*x80 + x81 + 2*x82
- 500*x119 - 600*x120 - 350*x121 - 350*x122 - 400*x123 - 450*x124
+ 10*x131 + 5*x132 + 5*x133 + 5*x134 + 5*x135 + 5*x136 - 80*x155
- 130*x156 - 215*x157 - 110*x158 - 120*x159 - 125*x160 - 110*x161
- 130*x162 - 140*x163 - 80*x164 - 90*x165 - 120*x166 + 5*b410 + 4*b411
+ 6*b412 + 8*b413 + 7*b414 + 6*b415 + 6*b416 + 9*b417 + 4*b418 + 10*b419
+ 9*b420 + 5*b421 + 6*b422 + 10*b423 + 6*b424 + 7*b425 + 7*b426 + 4*b427
+ 4*b428 + 3*b429 + 2*b430 + 5*b431 + 6*b432 + 7*b433 + 2*b434 + 5*b435
+ 2*b436 + 4*b437 + 7*b438 + 4*b439 + 3*b440 + 9*b441 + 3*b442 + 7*b443
+ 2*b444 + 9*b445 + 3*b446 + b447 + 9*b448 + 2*b449 + 6*b450 + 3*b451
+ 4*b452 + 8*b453 + b454 =E= 0;
e2.. x47 - x50 - x53 =E= 0;
e3.. x48 - x51 - x54 =E= 0;
e4.. x49 - x52 - x55 =E= 0;
e5.. - x56 - x59 + x62 =E= 0;
e6.. - x57 - x60 + x63 =E= 0;
e7.. - x58 - x61 + x64 =E= 0;
e8.. x62 - x65 - x68 =E= 0;
e9.. x63 - x66 - x69 =E= 0;
e10.. x64 - x67 - x70 =E= 0;
e11.. x68 - x71 - x74 - x77 =E= 0;
e12.. x69 - x72 - x75 - x78 =E= 0;
e13.. x70 - x73 - x76 - x79 =E= 0;
e14.. x83 - x92 - x95 =E= 0;
e15.. x84 - x93 - x96 =E= 0;
e16.. x85 - x94 - x97 =E= 0;
e17.. x89 - x98 - x101 - x104 =E= 0;
e18.. x90 - x99 - x102 - x105 =E= 0;
e19.. x91 - x100 - x103 - x106 =E= 0;
e20.. x113 - x125 - x128 =E= 0;
e21.. x114 - x126 - x129 =E= 0;
e22.. x115 - x127 - x130 =E= 0;
e23.. - x116 - x134 + x137 =E= 0;
e24.. - x117 - x135 + x138 =E= 0;
e25.. - x118 - x136 + x139 =E= 0;
e26.. x119 - x140 - x143 =E= 0;
e27.. x120 - x141 - x144 =E= 0;
e28.. x121 - x142 - x145 =E= 0;
e29.. x122 - x146 - x149 - x152 =E= 0;
e30.. x123 - x147 - x150 - x153 =E= 0;
e31.. x124 - x148 - x151 - x154 =E= 0;
e32.. (x179/(1e-6 + b365) - log(1 + x167/(1e-6 + b365)))*(1e-6 + b365) =L= 0;
e33.. (x180/(1e-6 + b366) - log(1 + x168/(1e-6 + b366)))*(1e-6 + b366) =L= 0;
e34.. (x181/(1e-6 + b367) - log(1 + x169/(1e-6 + b367)))*(1e-6 + b367) =L= 0;
e35.. x170 =E= 0;
e36.. x171 =E= 0;
e37.. x172 =E= 0;
e38.. x182 =E= 0;
e39.. x183 =E= 0;
e40.. x184 =E= 0;
e41.. x50 - x167 - x170 =E= 0;
e42.. x51 - x168 - x171 =E= 0;
e43.. x52 - x169 - x172 =E= 0;
e44.. x56 - x179 - x182 =E= 0;
e45.. x57 - x180 - x183 =E= 0;
e46.. x58 - x181 - x184 =E= 0;
e47.. x167 - 40*b365 =L= 0;
e48.. x168 - 40*b366 =L= 0;
e49.. x169 - 40*b367 =L= 0;
e50.. x170 + 40*b365 =L= 40;
e51.. x171 + 40*b366 =L= 40;
e52.. x172 + 40*b367 =L= 40;
e53.. x179 - 3.71357206670431*b365 =L= 0;
e54.. x180 - 3.71357206670431*b366 =L= 0;
e55.. x181 - 3.71357206670431*b367 =L= 0;
e56.. x182 + 3.71357206670431*b365 =L= 3.71357206670431;
e57.. x183 + 3.71357206670431*b366 =L= 3.71357206670431;
e58.. x184 + 3.71357206670431*b367 =L= 3.71357206670431;
e59.. (x185/(1e-6 + b368) - 1.2*log(1 + x173/(1e-6 + b368)))*(1e-6 + b368)
=L= 0;
e60.. (x186/(1e-6 + b369) - 1.2*log(1 + x174/(1e-6 + b369)))*(1e-6 + b369)
=L= 0;
e61.. (x187/(1e-6 + b370) - 1.2*log(1 + x175/(1e-6 + b370)))*(1e-6 + b370)
=L= 0;
e62.. x176 =E= 0;
e63.. x177 =E= 0;
e64.. x178 =E= 0;
e65.. x188 =E= 0;
e66.. x189 =E= 0;
e67.. x190 =E= 0;
e68.. x53 - x173 - x176 =E= 0;
e69.. x54 - x174 - x177 =E= 0;
e70.. x55 - x175 - x178 =E= 0;
e71.. x59 - x185 - x188 =E= 0;
e72.. x60 - x186 - x189 =E= 0;
e73.. x61 - x187 - x190 =E= 0;
e74.. x173 - 40*b368 =L= 0;
e75.. x174 - 40*b369 =L= 0;
e76.. x175 - 40*b370 =L= 0;
e77.. x176 + 40*b368 =L= 40;
e78.. x177 + 40*b369 =L= 40;
e79.. x178 + 40*b370 =L= 40;
e80.. x185 - 4.45628648004517*b368 =L= 0;
e81.. x186 - 4.45628648004517*b369 =L= 0;
e82.. x187 - 4.45628648004517*b370 =L= 0;
e83.. x188 + 4.45628648004517*b368 =L= 4.45628648004517;
e84.. x189 + 4.45628648004517*b369 =L= 4.45628648004517;
e85.. x190 + 4.45628648004517*b370 =L= 4.45628648004517;
e86.. - 0.75*x191 + x215 =E= 0;
e87.. - 0.75*x192 + x216 =E= 0;
e88.. - 0.75*x193 + x217 =E= 0;
e89.. x194 =E= 0;
e90.. x195 =E= 0;
e91.. x196 =E= 0;
e92.. x218 =E= 0;
e93.. x219 =E= 0;
e94.. x220 =E= 0;
e95.. x71 - x191 - x194 =E= 0;
e96.. x72 - x192 - x195 =E= 0;
e97.. x73 - x193 - x196 =E= 0;
e98.. x83 - x215 - x218 =E= 0;
e99.. x84 - x216 - x219 =E= 0;
e100.. x85 - x217 - x220 =E= 0;
e101.. x191 - 4.45628648004517*b371 =L= 0;
e102.. x192 - 4.45628648004517*b372 =L= 0;
e103.. x193 - 4.45628648004517*b373 =L= 0;
e104.. x194 + 4.45628648004517*b371 =L= 4.45628648004517;
e105.. x195 + 4.45628648004517*b372 =L= 4.45628648004517;
e106.. x196 + 4.45628648004517*b373 =L= 4.45628648004517;
e107.. x215 - 3.34221486003388*b371 =L= 0;
e108.. x216 - 3.34221486003388*b372 =L= 0;
e109.. x217 - 3.34221486003388*b373 =L= 0;
e110.. x218 + 3.34221486003388*b371 =L= 3.34221486003388;
e111.. x219 + 3.34221486003388*b372 =L= 3.34221486003388;
e112.. x220 + 3.34221486003388*b373 =L= 3.34221486003388;
e113.. (x221/(1e-6 + b374) - 1.5*log(1 + x197/(1e-6 + b374)))*(1e-6 + b374)
=L= 0;
e114.. (x222/(1e-6 + b375) - 1.5*log(1 + x198/(1e-6 + b375)))*(1e-6 + b375)
=L= 0;
e115.. (x223/(1e-6 + b376) - 1.5*log(1 + x199/(1e-6 + b376)))*(1e-6 + b376)
=L= 0;
e116.. x200 =E= 0;
e117.. x201 =E= 0;
e118.. x202 =E= 0;
e119.. x227 =E= 0;
e120.. x228 =E= 0;
e121.. x229 =E= 0;
e122.. x74 - x197 - x200 =E= 0;
e123.. x75 - x198 - x201 =E= 0;
e124.. x76 - x199 - x202 =E= 0;
e125.. x86 - x221 - x227 =E= 0;
e126.. x87 - x222 - x228 =E= 0;
e127.. x88 - x223 - x229 =E= 0;
e128.. x197 - 4.45628648004517*b374 =L= 0;
e129.. x198 - 4.45628648004517*b375 =L= 0;
e130.. x199 - 4.45628648004517*b376 =L= 0;
e131.. x200 + 4.45628648004517*b374 =L= 4.45628648004517;
e132.. x201 + 4.45628648004517*b375 =L= 4.45628648004517;
e133.. x202 + 4.45628648004517*b376 =L= 4.45628648004517;
e134.. x221 - 2.54515263975353*b374 =L= 0;
e135.. x222 - 2.54515263975353*b375 =L= 0;
e136.. x223 - 2.54515263975353*b376 =L= 0;
e137.. x227 + 2.54515263975353*b374 =L= 2.54515263975353;
e138.. x228 + 2.54515263975353*b375 =L= 2.54515263975353;
e139.. x229 + 2.54515263975353*b376 =L= 2.54515263975353;
e140.. - x203 + x233 =E= 0;
e141.. - x204 + x234 =E= 0;
e142.. - x205 + x235 =E= 0;
e143.. - 0.5*x209 + x233 =E= 0;
e144.. - 0.5*x210 + x234 =E= 0;
e145.. - 0.5*x211 + x235 =E= 0;
e146.. x206 =E= 0;
e147.. x207 =E= 0;
e148.. x208 =E= 0;
e149.. x212 =E= 0;
e150.. x213 =E= 0;
e151.. x214 =E= 0;
e152.. x236 =E= 0;
e153.. x237 =E= 0;
e154.. x238 =E= 0;
e155.. x77 - x203 - x206 =E= 0;
e156.. x78 - x204 - x207 =E= 0;
e157.. x79 - x205 - x208 =E= 0;
e158.. x80 - x209 - x212 =E= 0;
e159.. x81 - x210 - x213 =E= 0;
e160.. x82 - x211 - x214 =E= 0;
e161.. x89 - x233 - x236 =E= 0;
e162.. x90 - x234 - x237 =E= 0;
e163.. x91 - x235 - x238 =E= 0;
e164.. x203 - 4.45628648004517*b377 =L= 0;
e165.. x204 - 4.45628648004517*b378 =L= 0;
e166.. x205 - 4.45628648004517*b379 =L= 0;
e167.. x206 + 4.45628648004517*b377 =L= 4.45628648004517;
e168.. x207 + 4.45628648004517*b378 =L= 4.45628648004517;
e169.. x208 + 4.45628648004517*b379 =L= 4.45628648004517;
e170.. x209 - 30*b377 =L= 0;
e171.. x210 - 30*b378 =L= 0;
e172.. x211 - 30*b379 =L= 0;
e173.. x212 + 30*b377 =L= 30;
e174.. x213 + 30*b378 =L= 30;
e175.. x214 + 30*b379 =L= 30;
e176.. x233 - 15*b377 =L= 0;
e177.. x234 - 15*b378 =L= 0;
e178.. x235 - 15*b379 =L= 0;
e179.. x236 + 15*b377 =L= 15;
e180.. x237 + 15*b378 =L= 15;
e181.. x238 + 15*b379 =L= 15;
e182.. (x269/(1e-6 + b380) - 1.25*log(1 + x239/(1e-6 + b380)))*(1e-6 + b380)
=L= 0;
e183.. (x270/(1e-6 + b381) - 1.25*log(1 + x240/(1e-6 + b381)))*(1e-6 + b381)
=L= 0;
e184.. (x271/(1e-6 + b382) - 1.25*log(1 + x241/(1e-6 + b382)))*(1e-6 + b382)
=L= 0;
e185.. x242 =E= 0;
e186.. x243 =E= 0;
e187.. x244 =E= 0;
e188.. x275 =E= 0;
e189.. x276 =E= 0;
e190.. x277 =E= 0;
e191.. x92 - x239 - x242 =E= 0;
e192.. x93 - x240 - x243 =E= 0;
e193.. x94 - x241 - x244 =E= 0;
e194.. x107 - x269 - x275 =E= 0;
e195.. x108 - x270 - x276 =E= 0;
e196.. x109 - x271 - x277 =E= 0;
e197.. x239 - 3.34221486003388*b380 =L= 0;
e198.. x240 - 3.34221486003388*b381 =L= 0;
e199.. x241 - 3.34221486003388*b382 =L= 0;
e200.. x242 + 3.34221486003388*b380 =L= 3.34221486003388;
e201.. x243 + 3.34221486003388*b381 =L= 3.34221486003388;
e202.. x244 + 3.34221486003388*b382 =L= 3.34221486003388;
e203.. x269 - 1.83548069293539*b380 =L= 0;
e204.. x270 - 1.83548069293539*b381 =L= 0;
e205.. x271 - 1.83548069293539*b382 =L= 0;
e206.. x275 + 1.83548069293539*b380 =L= 1.83548069293539;
e207.. x276 + 1.83548069293539*b381 =L= 1.83548069293539;
e208.. x277 + 1.83548069293539*b382 =L= 1.83548069293539;
e209.. (x281/(1e-6 + b383) - 0.9*log(1 + x245/(1e-6 + b383)))*(1e-6 + b383)
=L= 0;
e210.. (x282/(1e-6 + b384) - 0.9*log(1 + x246/(1e-6 + b384)))*(1e-6 + b384)
=L= 0;
e211.. (x283/(1e-6 + b385) - 0.9*log(1 + x247/(1e-6 + b385)))*(1e-6 + b385)
=L= 0;
e212.. x248 =E= 0;
e213.. x249 =E= 0;
e214.. x250 =E= 0;
e215.. x287 =E= 0;
e216.. x288 =E= 0;
e217.. x289 =E= 0;
e218.. x95 - x245 - x248 =E= 0;
e219.. x96 - x246 - x249 =E= 0;
e220.. x97 - x247 - x250 =E= 0;
e221.. x110 - x281 - x287 =E= 0;
e222.. x111 - x282 - x288 =E= 0;
e223.. x112 - x283 - x289 =E= 0;
e224.. x245 - 3.34221486003388*b383 =L= 0;
e225.. x246 - 3.34221486003388*b384 =L= 0;
e226.. x247 - 3.34221486003388*b385 =L= 0;
e227.. x248 + 3.34221486003388*b383 =L= 3.34221486003388;
e228.. x249 + 3.34221486003388*b384 =L= 3.34221486003388;
e229.. x250 + 3.34221486003388*b385 =L= 3.34221486003388;
e230.. x281 - 1.32154609891348*b383 =L= 0;
e231.. x282 - 1.32154609891348*b384 =L= 0;
e232.. x283 - 1.32154609891348*b385 =L= 0;
e233.. x287 + 1.32154609891348*b383 =L= 1.32154609891348;
e234.. x288 + 1.32154609891348*b384 =L= 1.32154609891348;
e235.. x289 + 1.32154609891348*b385 =L= 1.32154609891348;
e236.. (x293/(1e-6 + b386) - log(1 + x224/(1e-6 + b386)))*(1e-6 + b386) =L= 0;
e237.. (x294/(1e-6 + b387) - log(1 + x225/(1e-6 + b387)))*(1e-6 + b387) =L= 0;
e238.. (x295/(1e-6 + b388) - log(1 + x226/(1e-6 + b388)))*(1e-6 + b388) =L= 0;
e239.. x230 =E= 0;
e240.. x231 =E= 0;
e241.. x232 =E= 0;
e242.. x296 =E= 0;
e243.. x297 =E= 0;
e244.. x298 =E= 0;
e245.. x86 - x224 - x230 =E= 0;
e246.. x87 - x225 - x231 =E= 0;
e247.. x88 - x226 - x232 =E= 0;
e248.. x113 - x293 - x296 =E= 0;
e249.. x114 - x294 - x297 =E= 0;
e250.. x115 - x295 - x298 =E= 0;
e251.. x224 - 2.54515263975353*b386 =L= 0;
e252.. x225 - 2.54515263975353*b387 =L= 0;
e253.. x226 - 2.54515263975353*b388 =L= 0;
e254.. x230 + 2.54515263975353*b386 =L= 2.54515263975353;
e255.. x231 + 2.54515263975353*b387 =L= 2.54515263975353;
e256.. x232 + 2.54515263975353*b388 =L= 2.54515263975353;
e257.. x293 - 1.26558121681553*b386 =L= 0;
e258.. x294 - 1.26558121681553*b387 =L= 0;
e259.. x295 - 1.26558121681553*b388 =L= 0;
e260.. x296 + 1.26558121681553*b386 =L= 1.26558121681553;
e261.. x297 + 1.26558121681553*b387 =L= 1.26558121681553;
e262.. x298 + 1.26558121681553*b388 =L= 1.26558121681553;
e263.. - 0.9*x251 + x299 =E= 0;
e264.. - 0.9*x252 + x300 =E= 0;
e265.. - 0.9*x253 + x301 =E= 0;
e266.. x254 =E= 0;
e267.. x255 =E= 0;
e268.. x256 =E= 0;
e269.. x302 =E= 0;
e270.. x303 =E= 0;
e271.. x304 =E= 0;
e272.. x98 - x251 - x254 =E= 0;
e273.. x99 - x252 - x255 =E= 0;
e274.. x100 - x253 - x256 =E= 0;
e275.. x116 - x299 - x302 =E= 0;
e276.. x117 - x300 - x303 =E= 0;
e277.. x118 - x301 - x304 =E= 0;
e278.. x251 - 15*b389 =L= 0;
e279.. x252 - 15*b390 =L= 0;
e280.. x253 - 15*b391 =L= 0;
e281.. x254 + 15*b389 =L= 15;
e282.. x255 + 15*b390 =L= 15;
e283.. x256 + 15*b391 =L= 15;
e284.. x299 - 13.5*b389 =L= 0;
e285.. x300 - 13.5*b390 =L= 0;
e286.. x301 - 13.5*b391 =L= 0;
e287.. x302 + 13.5*b389 =L= 13.5;
e288.. x303 + 13.5*b390 =L= 13.5;
e289.. x304 + 13.5*b391 =L= 13.5;
e290.. - 0.6*x257 + x305 =E= 0;
e291.. - 0.6*x258 + x306 =E= 0;
e292.. - 0.6*x259 + x307 =E= 0;
e293.. x260 =E= 0;
e294.. x261 =E= 0;
e295.. x262 =E= 0;
e296.. x308 =E= 0;
e297.. x309 =E= 0;
e298.. x310 =E= 0;
e299.. x101 - x257 - x260 =E= 0;
e300.. x102 - x258 - x261 =E= 0;
e301.. x103 - x259 - x262 =E= 0;
e302.. x119 - x305 - x308 =E= 0;
e303.. x120 - x306 - x309 =E= 0;
e304.. x121 - x307 - x310 =E= 0;
e305.. x257 - 15*b392 =L= 0;
e306.. x258 - 15*b393 =L= 0;
e307.. x259 - 15*b394 =L= 0;
e308.. x260 + 15*b392 =L= 15;
e309.. x261 + 15*b393 =L= 15;
e310.. x262 + 15*b394 =L= 15;
e311.. x305 - 9*b392 =L= 0;
e312.. x306 - 9*b393 =L= 0;
e313.. x307 - 9*b394 =L= 0;
e314.. x308 + 9*b392 =L= 9;
e315.. x309 + 9*b393 =L= 9;
e316.. x310 + 9*b394 =L= 9;
e317.. (x311/(1e-6 + b395) - 1.1*log(1 + x263/(1e-6 + b395)))*(1e-6 + b395)
=L= 0;
e318.. (x312/(1e-6 + b396) - 1.1*log(1 + x264/(1e-6 + b396)))*(1e-6 + b396)
=L= 0;
e319.. (x313/(1e-6 + b397) - 1.1*log(1 + x265/(1e-6 + b397)))*(1e-6 + b397)
=L= 0;
e320.. x266 =E= 0;
e321.. x267 =E= 0;
e322.. x268 =E= 0;
e323.. x314 =E= 0;
e324.. x315 =E= 0;
e325.. x316 =E= 0;
e326.. x104 - x263 - x266 =E= 0;
e327.. x105 - x264 - x267 =E= 0;
e328.. x106 - x265 - x268 =E= 0;
e329.. x122 - x311 - x314 =E= 0;
e330.. x123 - x312 - x315 =E= 0;
e331.. x124 - x313 - x316 =E= 0;
e332.. x263 - 15*b395 =L= 0;
e333.. x264 - 15*b396 =L= 0;
e334.. x265 - 15*b397 =L= 0;
e335.. x266 + 15*b395 =L= 15;
e336.. x267 + 15*b396 =L= 15;
e337.. x268 + 15*b397 =L= 15;
e338.. x311 - 3.04984759446376*b395 =L= 0;
e339.. x312 - 3.04984759446376*b396 =L= 0;
e340.. x313 - 3.04984759446376*b397 =L= 0;
e341.. x314 + 3.04984759446376*b395 =L= 3.04984759446376;
e342.. x315 + 3.04984759446376*b396 =L= 3.04984759446376;
e343.. x316 + 3.04984759446376*b397 =L= 3.04984759446376;
e344.. - 0.9*x272 + x341 =E= 0;
e345.. - 0.9*x273 + x342 =E= 0;
e346.. - 0.9*x274 + x343 =E= 0;
e347.. - x329 + x341 =E= 0;
e348.. - x330 + x342 =E= 0;
e349.. - x331 + x343 =E= 0;
e350.. x278 =E= 0;
e351.. x279 =E= 0;
e352.. x280 =E= 0;
e353.. x332 =E= 0;
e354.. x333 =E= 0;
e355.. x334 =E= 0;
e356.. x344 =E= 0;
e357.. x345 =E= 0;
e358.. x346 =E= 0;
e359.. x107 - x272 - x278 =E= 0;
e360.. x108 - x273 - x279 =E= 0;
e361.. x109 - x274 - x280 =E= 0;
e362.. x131 - x329 - x332 =E= 0;
e363.. x132 - x330 - x333 =E= 0;
e364.. x133 - x331 - x334 =E= 0;
e365.. x155 - x341 - x344 =E= 0;
e366.. x156 - x342 - x345 =E= 0;
e367.. x157 - x343 - x346 =E= 0;
e368.. x272 - 1.83548069293539*b398 =L= 0;
e369.. x273 - 1.83548069293539*b399 =L= 0;
e370.. x274 - 1.83548069293539*b400 =L= 0;
e371.. x278 + 1.83548069293539*b398 =L= 1.83548069293539;
e372.. x279 + 1.83548069293539*b399 =L= 1.83548069293539;
e373.. x280 + 1.83548069293539*b400 =L= 1.83548069293539;
e374.. x329 - 20*b398 =L= 0;
e375.. x330 - 20*b399 =L= 0;
e376.. x331 - 20*b400 =L= 0;
e377.. x332 + 20*b398 =L= 20;
e378.. x333 + 20*b399 =L= 20;
e379.. x334 + 20*b400 =L= 20;
e380.. x341 - 20*b398 =L= 0;
e381.. x342 - 20*b399 =L= 0;
e382.. x343 - 20*b400 =L= 0;
e383.. x344 + 20*b398 =L= 20;
e384.. x345 + 20*b399 =L= 20;
e385.. x346 + 20*b400 =L= 20;
e386.. (x347/(1e-6 + b401) - log(1 + x284/(1e-6 + b401)))*(1e-6 + b401) =L= 0;
e387.. (x348/(1e-6 + b402) - log(1 + x285/(1e-6 + b402)))*(1e-6 + b402) =L= 0;
e388.. (x349/(1e-6 + b403) - log(1 + x286/(1e-6 + b403)))*(1e-6 + b403) =L= 0;
e389.. x290 =E= 0;
e390.. x291 =E= 0;
e391.. x292 =E= 0;
e392.. x350 =E= 0;
e393.. x351 =E= 0;
e394.. x352 =E= 0;
e395.. x110 - x284 - x290 =E= 0;
e396.. x111 - x285 - x291 =E= 0;
e397.. x112 - x286 - x292 =E= 0;
e398.. x158 - x347 - x350 =E= 0;
e399.. x159 - x348 - x351 =E= 0;
e400.. x160 - x349 - x352 =E= 0;
e401.. x284 - 1.32154609891348*b401 =L= 0;
e402.. x285 - 1.32154609891348*b402 =L= 0;
e403.. x286 - 1.32154609891348*b403 =L= 0;
e404.. x290 + 1.32154609891348*b401 =L= 1.32154609891348;
e405.. x291 + 1.32154609891348*b402 =L= 1.32154609891348;
e406.. x292 + 1.32154609891348*b403 =L= 1.32154609891348;
e407.. x347 - 0.842233385663186*b401 =L= 0;
e408.. x348 - 0.842233385663186*b402 =L= 0;
e409.. x349 - 0.842233385663186*b403 =L= 0;
e410.. x350 + 0.842233385663186*b401 =L= 0.842233385663186;
e411.. x351 + 0.842233385663186*b402 =L= 0.842233385663186;
e412.. x352 + 0.842233385663186*b403 =L= 0.842233385663186;
e413.. (x353/(1e-6 + b404) - 0.7*log(1 + x317/(1e-6 + b404)))*(1e-6 + b404)
=L= 0;
e414.. (x354/(1e-6 + b405) - 0.7*log(1 + x318/(1e-6 + b405)))*(1e-6 + b405)
=L= 0;
e415.. (x355/(1e-6 + b406) - 0.7*log(1 + x319/(1e-6 + b406)))*(1e-6 + b406)
=L= 0;
e416.. x320 =E= 0;
e417.. x321 =E= 0;
e418.. x322 =E= 0;
e419.. x356 =E= 0;
e420.. x357 =E= 0;
e421.. x358 =E= 0;
e422.. x125 - x317 - x320 =E= 0;
e423.. x126 - x318 - x321 =E= 0;
e424.. x127 - x319 - x322 =E= 0;
e425.. x161 - x353 - x356 =E= 0;
e426.. x162 - x354 - x357 =E= 0;
e427.. x163 - x355 - x358 =E= 0;
e428.. x317 - 1.26558121681553*b404 =L= 0;
e429.. x318 - 1.26558121681553*b405 =L= 0;
e430.. x319 - 1.26558121681553*b406 =L= 0;
e431.. x320 + 1.26558121681553*b404 =L= 1.26558121681553;
e432.. x321 + 1.26558121681553*b405 =L= 1.26558121681553;
e433.. x322 + 1.26558121681553*b406 =L= 1.26558121681553;
e434.. x353 - 0.572481933717686*b404 =L= 0;
e435.. x354 - 0.572481933717686*b405 =L= 0;
e436.. x355 - 0.572481933717686*b406 =L= 0;
e437.. x356 + 0.572481933717686*b404 =L= 0.572481933717686;
e438.. x357 + 0.572481933717686*b405 =L= 0.572481933717686;
e439.. x358 + 0.572481933717686*b406 =L= 0.572481933717686;
e440.. (x359/(1e-6 + b407) - 0.65*log(1 + x323/(1e-6 + b407)))*(1e-6 + b407)
=L= 0;
e441.. (x360/(1e-6 + b408) - 0.65*log(1 + x324/(1e-6 + b408)))*(1e-6 + b408)
=L= 0;
e442.. (x361/(1e-6 + b409) - 0.65*log(1 + x325/(1e-6 + b409)))*(1e-6 + b409)
=L= 0;
e443.. (x359/(1e-6 + b407) - 0.65*log(1 + x335/(1e-6 + b407)))*(1e-6 + b407)
=L= 0;
e444.. (x360/(1e-6 + b408) - 0.65*log(1 + x336/(1e-6 + b408)))*(1e-6 + b408)
=L= 0;
e445.. (x361/(1e-6 + b409) - 0.65*log(1 + x337/(1e-6 + b409)))*(1e-6 + b409)
=L= 0;
e446.. x326 =E= 0;
e447.. x327 =E= 0;
e448.. x328 =E= 0;
e449.. x338 =E= 0;
e450.. x339 =E= 0;
e451.. x340 =E= 0;
e452.. x362 =E= 0;
e453.. x363 =E= 0;
e454.. x364 =E= 0;
e455.. x128 - x323 - x326 =E= 0;
e456.. x129 - x324 - x327 =E= 0;
e457.. x130 - x325 - x328 =E= 0;
e458.. x137 - x335 - x338 =E= 0;
e459.. x138 - x336 - x339 =E= 0;
e460.. x139 - x337 - x340 =E= 0;
e461.. x164 - x359 - x362 =E= 0;
e462.. x165 - x360 - x363 =E= 0;
e463.. x166 - x361 - x364 =E= 0;
e464.. x323 - 1.26558121681553*b407 =L= 0;
e465.. x324 - 1.26558121681553*b408 =L= 0;
e466.. x325 - 1.26558121681553*b409 =L= 0;
e467.. x326 + 1.26558121681553*b407 =L= 1.26558121681553;
e468.. x327 + 1.26558121681553*b408 =L= 1.26558121681553;
e469.. x328 + 1.26558121681553*b409 =L= 1.26558121681553;
e470.. x335 - 33.5*b407 =L= 0;
e471.. x336 - 33.5*b408 =L= 0;
e472.. x337 - 33.5*b409 =L= 0;
e473.. x338 + 33.5*b407 =L= 33.5;
e474.. x339 + 33.5*b408 =L= 33.5;
e475.. x340 + 33.5*b409 =L= 33.5;
e476.. x359 - 2.30162356062425*b407 =L= 0;
e477.. x360 - 2.30162356062425*b408 =L= 0;
e478.. x361 - 2.30162356062425*b409 =L= 0;
e479.. x362 + 2.30162356062425*b407 =L= 2.30162356062425;
e480.. x363 + 2.30162356062425*b408 =L= 2.30162356062425;
e481.. x364 + 2.30162356062425*b409 =L= 2.30162356062425;
e482.. x2 + 5*b410 =E= 0;
e483.. x3 + 4*b411 =E= 0;
e484.. x4 + 6*b412 =E= 0;
e485.. x5 + 8*b413 =E= 0;
e486.. x6 + 7*b414 =E= 0;
e487.. x7 + 6*b415 =E= 0;
e488.. x8 + 6*b416 =E= 0;
e489.. x9 + 9*b417 =E= 0;
e490.. x10 + 4*b418 =E= 0;
e491.. x11 + 10*b419 =E= 0;
e492.. x12 + 9*b420 =E= 0;
e493.. x13 + 5*b421 =E= 0;
e494.. x14 + 6*b422 =E= 0;
e495.. x15 + 10*b423 =E= 0;
e496.. x16 + 6*b424 =E= 0;
e497.. x17 + 7*b425 =E= 0;
e498.. x18 + 7*b426 =E= 0;
e499.. x19 + 4*b427 =E= 0;
e500.. x20 + 4*b428 =E= 0;
e501.. x21 + 3*b429 =E= 0;
e502.. x22 + 2*b430 =E= 0;
e503.. x23 + 5*b431 =E= 0;
e504.. x24 + 6*b432 =E= 0;
e505.. x25 + 7*b433 =E= 0;
e506.. x26 + 2*b434 =E= 0;
e507.. x27 + 5*b435 =E= 0;
e508.. x28 + 2*b436 =E= 0;
e509.. x29 + 4*b437 =E= 0;
e510.. x30 + 7*b438 =E= 0;
e511.. x31 + 4*b439 =E= 0;
e512.. x32 + 3*b440 =E= 0;
e513.. x33 + 9*b441 =E= 0;
e514.. x34 + 3*b442 =E= 0;
e515.. x35 + 7*b443 =E= 0;
e516.. x36 + 2*b444 =E= 0;
e517.. x37 + 9*b445 =E= 0;
e518.. x38 + 3*b446 =E= 0;
e519.. x39 + b447 =E= 0;
e520.. x40 + 9*b448 =E= 0;
e521.. x41 + 2*b449 =E= 0;
e522.. x42 + 6*b450 =E= 0;
e523.. x43 + 3*b451 =E= 0;
e524.. x44 + 4*b452 =E= 0;
e525.. x45 + 8*b453 =E= 0;
e526.. x46 + b454 =E= 0;
e527.. b365 - b366 =L= 0;
e528.. b365 - b367 =L= 0;
e529.. b366 - b367 =L= 0;
e530.. b368 - b369 =L= 0;
e531.. b368 - b370 =L= 0;
e532.. b369 - b370 =L= 0;
e533.. b371 - b372 =L= 0;
e534.. b371 - b373 =L= 0;
e535.. b372 - b373 =L= 0;
e536.. b374 - b375 =L= 0;
e537.. b374 - b376 =L= 0;
e538.. b375 - b376 =L= 0;
e539.. b377 - b378 =L= 0;
e540.. b377 - b379 =L= 0;
e541.. b378 - b379 =L= 0;
e542.. b380 - b381 =L= 0;
e543.. b380 - b382 =L= 0;
e544.. b381 - b382 =L= 0;
e545.. b383 - b384 =L= 0;
e546.. b383 - b385 =L= 0;
e547.. b384 - b385 =L= 0;
e548.. b386 - b387 =L= 0;
e549.. b386 - b388 =L= 0;
e550.. b387 - b388 =L= 0;
e551.. b389 - b390 =L= 0;
e552.. b389 - b391 =L= 0;
e553.. b390 - b391 =L= 0;
e554.. b392 - b393 =L= 0;
e555.. b392 - b394 =L= 0;
e556.. b393 - b394 =L= 0;
e557.. b395 - b396 =L= 0;
e558.. b395 - b397 =L= 0;
e559.. b396 - b397 =L= 0;
e560.. b398 - b399 =L= 0;
e561.. b398 - b400 =L= 0;
e562.. b399 - b400 =L= 0;
e563.. b401 - b402 =L= 0;
e564.. b401 - b403 =L= 0;
e565.. b402 - b403 =L= 0;
e566.. b404 - b405 =L= 0;
e567.. b404 - b406 =L= 0;
e568.. b405 - b406 =L= 0;
e569.. b407 - b408 =L= 0;
e570.. b407 - b409 =L= 0;
e571.. b408 - b409 =L= 0;
e572.. b410 + b411 =L= 1;
e573.. b410 + b412 =L= 1;
e574.. b410 + b411 =L= 1;
e575.. b411 + b412 =L= 1;
e576.. b410 + b412 =L= 1;
e577.. b411 + b412 =L= 1;
e578.. b413 + b414 =L= 1;
e579.. b413 + b415 =L= 1;
e580.. b413 + b414 =L= 1;
e581.. b414 + b415 =L= 1;
e582.. b413 + b415 =L= 1;
e583.. b414 + b415 =L= 1;
e584.. b416 + b417 =L= 1;
e585.. b416 + b418 =L= 1;
e586.. b416 + b417 =L= 1;
e587.. b417 + b418 =L= 1;
e588.. b416 + b418 =L= 1;
e589.. b417 + b418 =L= 1;
e590.. b419 + b420 =L= 1;
e591.. b419 + b421 =L= 1;
e592.. b419 + b420 =L= 1;
e593.. b420 + b421 =L= 1;
e594.. b419 + b421 =L= 1;
e595.. b420 + b421 =L= 1;
e596.. b422 + b423 =L= 1;
e597.. b422 + b424 =L= 1;
e598.. b422 + b423 =L= 1;
e599.. b423 + b424 =L= 1;
e600.. b422 + b424 =L= 1;
e601.. b423 + b424 =L= 1;
e602.. b425 + b426 =L= 1;
e603.. b425 + b427 =L= 1;
e604.. b425 + b426 =L= 1;
e605.. b426 + b427 =L= 1;
e606.. b425 + b427 =L= 1;
e607.. b426 + b427 =L= 1;
e608.. b428 + b429 =L= 1;
e609.. b428 + b430 =L= 1;
e610.. b428 + b429 =L= 1;
e611.. b429 + b430 =L= 1;
e612.. b428 + b430 =L= 1;
e613.. b429 + b430 =L= 1;
e614.. b431 + b432 =L= 1;
e615.. b431 + b433 =L= 1;
e616.. b431 + b432 =L= 1;
e617.. b432 + b433 =L= 1;
e618.. b431 + b433 =L= 1;
e619.. b432 + b433 =L= 1;
e620.. b434 + b435 =L= 1;
e621.. b434 + b436 =L= 1;
e622.. b434 + b435 =L= 1;
e623.. b435 + b436 =L= 1;
e624.. b434 + b436 =L= 1;
e625.. b435 + b436 =L= 1;
e626.. b437 + b438 =L= 1;
e627.. b437 + b439 =L= 1;
e628.. b437 + b438 =L= 1;
e629.. b438 + b439 =L= 1;
e630.. b437 + b439 =L= 1;
e631.. b438 + b439 =L= 1;
e632.. b440 + b441 =L= 1;
e633.. b440 + b442 =L= 1;
e634.. b440 + b441 =L= 1;
e635.. b441 + b442 =L= 1;
e636.. b440 + b442 =L= 1;
e637.. b441 + b442 =L= 1;
e638.. b443 + b444 =L= 1;
e639.. b443 + b445 =L= 1;
e640.. b443 + b444 =L= 1;
e641.. b444 + b445 =L= 1;
e642.. b443 + b445 =L= 1;
e643.. b444 + b445 =L= 1;
e644.. b446 + b447 =L= 1;
e645.. b446 + b448 =L= 1;
e646.. b446 + b447 =L= 1;
e647.. b447 + b448 =L= 1;
e648.. b446 + b448 =L= 1;
e649.. b447 + b448 =L= 1;
e650.. b449 + b450 =L= 1;
e651.. b449 + b451 =L= 1;
e652.. b449 + b450 =L= 1;
e653.. b450 + b451 =L= 1;
e654.. b449 + b451 =L= 1;
e655.. b450 + b451 =L= 1;
e656.. b452 + b453 =L= 1;
e657.. b452 + b454 =L= 1;
e658.. b452 + b453 =L= 1;
e659.. b453 + b454 =L= 1;
e660.. b452 + b454 =L= 1;
e661.. b453 + b454 =L= 1;
e662.. b365 - b410 =L= 0;
e663.. - b365 + b366 - b411 =L= 0;
e664.. - b365 - b366 + b367 - b412 =L= 0;
e665.. b368 - b413 =L= 0;
e666.. - b368 + b369 - b414 =L= 0;
e667.. - b368 - b369 + b370 - b415 =L= 0;
e668.. b371 - b416 =L= 0;
e669.. - b371 + b372 - b417 =L= 0;
e670.. - b371 - b372 + b373 - b418 =L= 0;
e671.. b374 - b419 =L= 0;
e672.. - b374 + b375 - b420 =L= 0;
e673.. - b374 - b375 + b376 - b421 =L= 0;
e674.. b377 - b422 =L= 0;
e675.. - b377 + b378 - b423 =L= 0;
e676.. - b377 - b378 + b379 - b424 =L= 0;
e677.. b380 - b425 =L= 0;
e678.. - b380 + b381 - b426 =L= 0;
e679.. - b380 - b381 + b382 - b427 =L= 0;
e680.. b383 - b428 =L= 0;
e681.. - b383 + b384 - b429 =L= 0;
e682.. - b383 - b384 + b385 - b430 =L= 0;
e683.. b386 - b431 =L= 0;
e684.. - b386 + b387 - b432 =L= 0;
e685.. - b386 - b387 + b388 - b433 =L= 0;
e686.. b389 - b434 =L= 0;
e687.. - b389 + b390 - b435 =L= 0;
e688.. - b389 - b390 + b391 - b436 =L= 0;
e689.. b392 - b437 =L= 0;
e690.. - b392 + b393 - b438 =L= 0;
e691.. - b392 - b393 + b394 - b439 =L= 0;
e692.. b395 - b440 =L= 0;
e693.. - b395 + b396 - b441 =L= 0;
e694.. - b395 - b396 + b397 - b442 =L= 0;
e695.. b398 - b443 =L= 0;
e696.. - b398 + b399 - b444 =L= 0;
e697.. - b398 - b399 + b400 - b445 =L= 0;
e698.. b401 - b446 =L= 0;
e699.. - b401 + b402 - b447 =L= 0;
e700.. - b401 - b402 + b403 - b448 =L= 0;
e701.. b404 - b449 =L= 0;
e702.. - b404 + b405 - b450 =L= 0;
e703.. - b404 - b405 + b406 - b451 =L= 0;
e704.. b407 - b452 =L= 0;
e705.. - b407 + b408 - b453 =L= 0;
e706.. - b407 - b408 + b409 - b454 =L= 0;
e707.. b365 + b368 =E= 1;
e708.. b366 + b369 =E= 1;
e709.. b367 + b370 =E= 1;
e710.. - b371 + b380 + b383 =G= 0;
e711.. - b372 + b381 + b384 =G= 0;
e712.. - b373 + b382 + b385 =G= 0;
e713.. - b380 + b398 =G= 0;
e714.. - b381 + b399 =G= 0;
e715.. - b382 + b400 =G= 0;
e716.. - b383 + b401 =G= 0;
e717.. - b384 + b402 =G= 0;
e718.. - b385 + b403 =G= 0;
e719.. - b374 + b386 =G= 0;
e720.. - b375 + b387 =G= 0;
e721.. - b376 + b388 =G= 0;
e722.. - b386 + b404 + b407 =G= 0;
e723.. - b387 + b405 + b408 =G= 0;
e724.. - b388 + b406 + b409 =G= 0;
e725.. - b377 + b389 + b392 + b395 =G= 0;
e726.. - b378 + b390 + b393 + b396 =G= 0;
e727.. - b379 + b391 + b394 + b397 =G= 0;
e728.. - b389 + b407 =G= 0;
e729.. - b390 + b408 =G= 0;
e730.. - b391 + b409 =G= 0;
e731.. b365 + b368 - b371 =G= 0;
e732.. b366 + b369 - b372 =G= 0;
e733.. b367 + b370 - b373 =G= 0;
e734.. b365 + b368 - b374 =G= 0;
e735.. b366 + b369 - b375 =G= 0;
e736.. b367 + b370 - b376 =G= 0;
e737.. b365 + b368 - b377 =G= 0;
e738.. b366 + b369 - b378 =G= 0;
e739.. b367 + b370 - b379 =G= 0;
e740.. b371 - b380 =G= 0;
e741.. b372 - b381 =G= 0;
e742.. b373 - b382 =G= 0;
e743.. b371 - b383 =G= 0;
e744.. b372 - b384 =G= 0;
e745.. b373 - b385 =G= 0;
e746.. b374 - b386 =G= 0;
e747.. b375 - b387 =G= 0;
e748.. b376 - b388 =G= 0;
e749.. b377 - b389 =G= 0;
e750.. b378 - b390 =G= 0;
e751.. b379 - b391 =G= 0;
e752.. b377 - b392 =G= 0;
e753.. b378 - b393 =G= 0;
e754.. b379 - b394 =G= 0;
e755.. b377 - b395 =G= 0;
e756.. b378 - b396 =G= 0;
e757.. b379 - b397 =G= 0;
e758.. b380 - b398 =G= 0;
e759.. b381 - b399 =G= 0;
e760.. b382 - b400 =G= 0;
e761.. b383 - b401 =G= 0;
e762.. b384 - b402 =G= 0;
e763.. b385 - b403 =G= 0;
e764.. b386 - b404 =G= 0;
e765.. b387 - b405 =G= 0;
e766.. b388 - b406 =G= 0;
e767.. b386 - b407 =G= 0;
e768.. b387 - b408 =G= 0;
e769.. b388 - b409 =G= 0;
* set non-default bounds
x47.up = 40;
x48.up = 40;
x49.up = 40;
x80.up = 30;
x81.up = 30;
x82.up = 30;
x131.up = 20;
x132.up = 20;
x133.up = 20;
x134.up = 20;
x135.up = 20;
x136.up = 20;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
