Instance syn20m04m
Selection of optimal configuration and parameters for a processing system selected from a superstructure containing alternative processing units and interconnections.
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 3532.82310000 (ALPHAECP) 3532.74446400 (ANTIGONE) 3532.74402100 (BARON) 6376.55813400 (COUENNE) 3532.74408700 (LINDO) 3532.74462300 (SCIP) 3532.91139900 (SHOT) |
| Referencesⓘ | Duran, Marco A and Grossmann, I E, An Outer-Approximation Algorithm for a Class of Mixed-integer Nonlinear Programs, Mathematical Programming, 36:3, 1986, 307-339. Türkay, Metin and Grossmann, I E, Logic-based MINLP Algorithms for optimal synthesis of process networks, Computers and Chemical Engineering, 20:8, 1996, 959-978. |
| Sourceⓘ | Syn20M04M.gms from CMU-IBM MINLP solver project page |
| Applicationⓘ | Synthesis of processing system |
| Added to libraryⓘ | 28 Sep 2013 |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 420 |
| #Binary Variablesⓘ | 160 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 56 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 136 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 1052 |
| #Linear Constraintsⓘ | 996 |
| #Quadratic Constraintsⓘ | 0 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 56 |
| Operands in Gen. Nonlin. Functionsⓘ | log |
| Constraints curvatureⓘ | convex |
| #Nonzeros in Jacobianⓘ | 2444 |
| #Nonlinear Nonzeros in Jacobianⓘ | 56 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 56 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 56 |
| #Blocks in Hessian of Lagrangianⓘ | 56 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 1 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 1 |
| Average blocksize in Hessian of Lagrangianⓘ | 1.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 5.0000e-01 |
| Maximal coefficientⓘ | 4.3000e+02 |
| Infeasibility of initial pointⓘ | 1 |

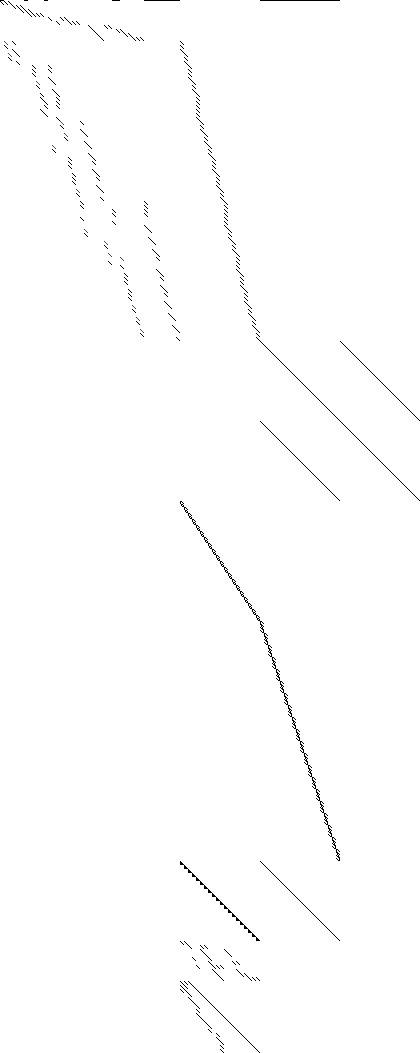

| Sparsity Jacobianⓘ |  |

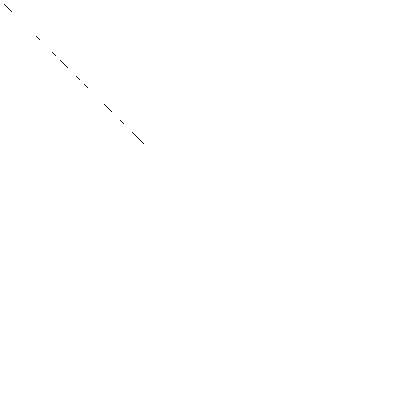

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 1053 45 224 784 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 421 261 160 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 2581 2525 56 0
*
* Solve m using MINLP maximizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154
,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180
,x181,b182,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193
,b194,b195,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206
,b207,b208,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219
,b220,b221,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232
,b233,b234,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245
,b246,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258
,b259,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271
,b272,b273,b274,b275,b276,b277,b278,b279,b280,b281,b282,b283,b284
,b285,b286,b287,b288,b289,b290,b291,b292,b293,b294,b295,b296,b297
,b298,b299,b300,b301,b302,b303,b304,b305,b306,b307,b308,b309,b310
,b311,b312,b313,b314,b315,b316,b317,b318,b319,b320,b321,b322,b323
,b324,b325,b326,b327,b328,b329,b330,b331,b332,b333,b334,b335,b336
,b337,b338,b339,b340,b341,x342,x343,x344,x345,x346,x347,x348,x349
,x350,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362
,x363,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375
,x376,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388
,x389,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401
,x402,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413,x414
,x415,x416,x417,x418,x419,x420,x421;
Positive Variables x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34
,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51
,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68
,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85
,x86,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101
,x102,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114
,x115,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127
,x128,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140
,x141,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153
,x154,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166
,x167,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179
,x180,x181;
Binary Variables b182,b183,b184,b185,b186,b187,b188,b189,b190,b191,b192,b193
,b194,b195,b196,b197,b198,b199,b200,b201,b202,b203,b204,b205,b206
,b207,b208,b209,b210,b211,b212,b213,b214,b215,b216,b217,b218,b219
,b220,b221,b222,b223,b224,b225,b226,b227,b228,b229,b230,b231,b232
,b233,b234,b235,b236,b237,b238,b239,b240,b241,b242,b243,b244,b245
,b246,b247,b248,b249,b250,b251,b252,b253,b254,b255,b256,b257,b258
,b259,b260,b261,b262,b263,b264,b265,b266,b267,b268,b269,b270,b271
,b272,b273,b274,b275,b276,b277,b278,b279,b280,b281,b282,b283,b284
,b285,b286,b287,b288,b289,b290,b291,b292,b293,b294,b295,b296,b297
,b298,b299,b300,b301,b302,b303,b304,b305,b306,b307,b308,b309,b310
,b311,b312,b313,b314,b315,b316,b317,b318,b319,b320,b321,b322,b323
,b324,b325,b326,b327,b328,b329,b330,b331,b332,b333,b334,b335,b336
,b337,b338,b339,b340,b341;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709,e710,e711,e712,e713,e714
,e715,e716,e717,e718,e719,e720,e721,e722,e723,e724,e725,e726,e727
,e728,e729,e730,e731,e732,e733,e734,e735,e736,e737,e738,e739,e740
,e741,e742,e743,e744,e745,e746,e747,e748,e749,e750,e751,e752,e753
,e754,e755,e756,e757,e758,e759,e760,e761,e762,e763,e764,e765,e766
,e767,e768,e769,e770,e771,e772,e773,e774,e775,e776,e777,e778,e779
,e780,e781,e782,e783,e784,e785,e786,e787,e788,e789,e790,e791,e792
,e793,e794,e795,e796,e797,e798,e799,e800,e801,e802,e803,e804,e805
,e806,e807,e808,e809,e810,e811,e812,e813,e814,e815,e816,e817,e818
,e819,e820,e821,e822,e823,e824,e825,e826,e827,e828,e829,e830,e831
,e832,e833,e834,e835,e836,e837,e838,e839,e840,e841,e842,e843,e844
,e845,e846,e847,e848,e849,e850,e851,e852,e853,e854,e855,e856,e857
,e858,e859,e860,e861,e862,e863,e864,e865,e866,e867,e868,e869,e870
,e871,e872,e873,e874,e875,e876,e877,e878,e879,e880,e881,e882,e883
,e884,e885,e886,e887,e888,e889,e890,e891,e892,e893,e894,e895,e896
,e897,e898,e899,e900,e901,e902,e903,e904,e905,e906,e907,e908,e909
,e910,e911,e912,e913,e914,e915,e916,e917,e918,e919,e920,e921,e922
,e923,e924,e925,e926,e927,e928,e929,e930,e931,e932,e933,e934,e935
,e936,e937,e938,e939,e940,e941,e942,e943,e944,e945,e946,e947,e948
,e949,e950,e951,e952,e953,e954,e955,e956,e957,e958,e959,e960,e961
,e962,e963,e964,e965,e966,e967,e968,e969,e970,e971,e972,e973,e974
,e975,e976,e977,e978,e979,e980,e981,e982,e983,e984,e985,e986,e987
,e988,e989,e990,e991,e992,e993,e994,e995,e996,e997,e998,e999,e1000
,e1001,e1002,e1003,e1004,e1005,e1006,e1007,e1008,e1009,e1010,e1011
,e1012,e1013,e1014,e1015,e1016,e1017,e1018,e1019,e1020,e1021,e1022
,e1023,e1024,e1025,e1026,e1027,e1028,e1029,e1030,e1031,e1032,e1033
,e1034,e1035,e1036,e1037,e1038,e1039,e1040,e1041,e1042,e1043,e1044
,e1045,e1046,e1047,e1048,e1049,e1050,e1051,e1052,e1053;
e1.. objvar + x2 + x3 + x4 + x5 - 5*x26 - 10*x27 - 5*x28 - 10*x29 + 2*x46
+ x47 + 2*x48 + x49 + 10*x114 + 5*x115 + 5*x116 + 10*x117 + 5*x118
+ 5*x119 + 5*x120 + 10*x121 - 80*x146 - 130*x147 - 215*x148 - 210*x149
- 110*x150 - 120*x151 - 125*x152 - 130*x153 - 110*x154 - 130*x155
- 140*x156 - 140*x157 - 80*x158 - 90*x159 - 120*x160 - 100*x161
- 285*x162 - 390*x163 - 350*x164 - 300*x165 - 290*x166 - 405*x167
- 190*x168 - 340*x169 - 280*x170 - 400*x171 - 430*x172 - 260*x173
- 290*x174 - 300*x175 - 240*x176 - 310*x177 - 350*x178 - 250*x179
- 300*x180 - 400*x181 + 5*b262 + 4*b263 + 6*b264 + 3*b265 + 8*b266
+ 7*b267 + 6*b268 + 5*b269 + 6*b270 + 9*b271 + 4*b272 + 3*b273 + 10*b274
+ 9*b275 + 5*b276 + 6*b277 + 6*b278 + 10*b279 + 6*b280 + 9*b281 + 7*b282
+ 7*b283 + 4*b284 + 2*b285 + 4*b286 + 3*b287 + 2*b288 + 8*b289 + 5*b290
+ 6*b291 + 7*b292 + 4*b293 + 2*b294 + 5*b295 + 2*b296 + 6*b297 + 4*b298
+ 7*b299 + 4*b300 + 7*b301 + 3*b302 + 9*b303 + 3*b304 + 6*b305 + 7*b306
+ 2*b307 + 9*b308 + 6*b309 + 3*b310 + b311 + 9*b312 + 10*b313 + 2*b314
+ 6*b315 + 3*b316 + 7*b317 + 4*b318 + 8*b319 + b320 + 4*b321 + 2*b322
+ 5*b323 + 2*b324 + 5*b325 + 3*b326 + 4*b327 + 3*b328 + 7*b329 + 5*b330
+ 7*b331 + 6*b332 + 2*b333 + 2*b334 + 8*b335 + 4*b336 + 2*b337 + b338
+ 4*b339 + b340 + b341 =E= 0;
e2.. x2 - x6 - x10 =E= 0;
e3.. x3 - x7 - x11 =E= 0;
e4.. x4 - x8 - x12 =E= 0;
e5.. x5 - x9 - x13 =E= 0;
e6.. - x14 - x18 + x22 =E= 0;
e7.. - x15 - x19 + x23 =E= 0;
e8.. - x16 - x20 + x24 =E= 0;
e9.. - x17 - x21 + x25 =E= 0;
e10.. x22 - x26 - x30 =E= 0;
e11.. x23 - x27 - x31 =E= 0;
e12.. x24 - x28 - x32 =E= 0;
e13.. x25 - x29 - x33 =E= 0;
e14.. x30 - x34 - x38 - x42 =E= 0;
e15.. x31 - x35 - x39 - x43 =E= 0;
e16.. x32 - x36 - x40 - x44 =E= 0;
e17.. x33 - x37 - x41 - x45 =E= 0;
e18.. x50 - x62 - x66 =E= 0;
e19.. x51 - x63 - x67 =E= 0;
e20.. x52 - x64 - x68 =E= 0;
e21.. x53 - x65 - x69 =E= 0;
e22.. x58 - x70 - x74 - x78 =E= 0;
e23.. x59 - x71 - x75 - x79 =E= 0;
e24.. x60 - x72 - x76 - x80 =E= 0;
e25.. x61 - x73 - x77 - x81 =E= 0;
e26.. x90 - x106 - x110 =E= 0;
e27.. x91 - x107 - x111 =E= 0;
e28.. x92 - x108 - x112 =E= 0;
e29.. x93 - x109 - x113 =E= 0;
e30.. - x94 - x118 + x122 =E= 0;
e31.. - x95 - x119 + x123 =E= 0;
e32.. - x96 - x120 + x124 =E= 0;
e33.. - x97 - x121 + x125 =E= 0;
e34.. x98 - x126 - x130 =E= 0;
e35.. x99 - x127 - x131 =E= 0;
e36.. x100 - x128 - x132 =E= 0;
e37.. x101 - x129 - x133 =E= 0;
e38.. x102 - x134 - x138 - x142 =E= 0;
e39.. x103 - x135 - x139 - x143 =E= 0;
e40.. x104 - x136 - x140 - x144 =E= 0;
e41.. x105 - x137 - x141 - x145 =E= 0;
e42.. -log(1 + x6) + x14 + b182 =L= 1;
e43.. -log(1 + x7) + x15 + b183 =L= 1;
e44.. -log(1 + x8) + x16 + b184 =L= 1;
e45.. -log(1 + x9) + x17 + b185 =L= 1;
e46.. x6 - 40*b182 =L= 0;
e47.. x7 - 40*b183 =L= 0;
e48.. x8 - 40*b184 =L= 0;
e49.. x9 - 40*b185 =L= 0;
e50.. x14 - 3.71357206670431*b182 =L= 0;
e51.. x15 - 3.71357206670431*b183 =L= 0;
e52.. x16 - 3.71357206670431*b184 =L= 0;
e53.. x17 - 3.71357206670431*b185 =L= 0;
e54.. -1.2*log(1 + x10) + x18 + b186 =L= 1;
e55.. -1.2*log(1 + x11) + x19 + b187 =L= 1;
e56.. -1.2*log(1 + x12) + x20 + b188 =L= 1;
e57.. -1.2*log(1 + x13) + x21 + b189 =L= 1;
e58.. x10 - 40*b186 =L= 0;
e59.. x11 - 40*b187 =L= 0;
e60.. x12 - 40*b188 =L= 0;
e61.. x13 - 40*b189 =L= 0;
e62.. x18 - 4.45628648004517*b186 =L= 0;
e63.. x19 - 4.45628648004517*b187 =L= 0;
e64.. x20 - 4.45628648004517*b188 =L= 0;
e65.. x21 - 4.45628648004517*b189 =L= 0;
e66.. - 0.75*x34 + x50 + b190 =L= 1;
e67.. - 0.75*x35 + x51 + b191 =L= 1;
e68.. - 0.75*x36 + x52 + b192 =L= 1;
e69.. - 0.75*x37 + x53 + b193 =L= 1;
e70.. - 0.75*x34 + x50 - b190 =G= -1;
e71.. - 0.75*x35 + x51 - b191 =G= -1;
e72.. - 0.75*x36 + x52 - b192 =G= -1;
e73.. - 0.75*x37 + x53 - b193 =G= -1;
e74.. x34 - 4.45628648004517*b190 =L= 0;
e75.. x35 - 4.45628648004517*b191 =L= 0;
e76.. x36 - 4.45628648004517*b192 =L= 0;
e77.. x37 - 4.45628648004517*b193 =L= 0;
e78.. x50 - 3.34221486003388*b190 =L= 0;
e79.. x51 - 3.34221486003388*b191 =L= 0;
e80.. x52 - 3.34221486003388*b192 =L= 0;
e81.. x53 - 3.34221486003388*b193 =L= 0;
e82.. -1.5*log(1 + x38) + x54 + b194 =L= 1;
e83.. -1.5*log(1 + x39) + x55 + b195 =L= 1;
e84.. -1.5*log(1 + x40) + x56 + b196 =L= 1;
e85.. -1.5*log(1 + x41) + x57 + b197 =L= 1;
e86.. x38 - 4.45628648004517*b194 =L= 0;
e87.. x39 - 4.45628648004517*b195 =L= 0;
e88.. x40 - 4.45628648004517*b196 =L= 0;
e89.. x41 - 4.45628648004517*b197 =L= 0;
e90.. x54 - 2.54515263975353*b194 =L= 0;
e91.. x55 - 2.54515263975353*b195 =L= 0;
e92.. x56 - 2.54515263975353*b196 =L= 0;
e93.. x57 - 2.54515263975353*b197 =L= 0;
e94.. - x42 + x58 + b198 =L= 1;
e95.. - x43 + x59 + b199 =L= 1;
e96.. - x44 + x60 + b200 =L= 1;
e97.. - x45 + x61 + b201 =L= 1;
e98.. - x42 + x58 - b198 =G= -1;
e99.. - x43 + x59 - b199 =G= -1;
e100.. - x44 + x60 - b200 =G= -1;
e101.. - x45 + x61 - b201 =G= -1;
e102.. - 0.5*x46 + x58 + b198 =L= 1;
e103.. - 0.5*x47 + x59 + b199 =L= 1;
e104.. - 0.5*x48 + x60 + b200 =L= 1;
e105.. - 0.5*x49 + x61 + b201 =L= 1;
e106.. - 0.5*x46 + x58 - b198 =G= -1;
e107.. - 0.5*x47 + x59 - b199 =G= -1;
e108.. - 0.5*x48 + x60 - b200 =G= -1;
e109.. - 0.5*x49 + x61 - b201 =G= -1;
e110.. x42 - 4.45628648004517*b198 =L= 0;
e111.. x43 - 4.45628648004517*b199 =L= 0;
e112.. x44 - 4.45628648004517*b200 =L= 0;
e113.. x45 - 4.45628648004517*b201 =L= 0;
e114.. x46 - 30*b198 =L= 0;
e115.. x47 - 30*b199 =L= 0;
e116.. x48 - 30*b200 =L= 0;
e117.. x49 - 30*b201 =L= 0;
e118.. x58 - 15*b198 =L= 0;
e119.. x59 - 15*b199 =L= 0;
e120.. x60 - 15*b200 =L= 0;
e121.. x61 - 15*b201 =L= 0;
e122.. -1.25*log(1 + x62) + x82 + b202 =L= 1;
e123.. -1.25*log(1 + x63) + x83 + b203 =L= 1;
e124.. -1.25*log(1 + x64) + x84 + b204 =L= 1;
e125.. -1.25*log(1 + x65) + x85 + b205 =L= 1;
e126.. x62 - 3.34221486003388*b202 =L= 0;
e127.. x63 - 3.34221486003388*b203 =L= 0;
e128.. x64 - 3.34221486003388*b204 =L= 0;
e129.. x65 - 3.34221486003388*b205 =L= 0;
e130.. x82 - 1.83548069293539*b202 =L= 0;
e131.. x83 - 1.83548069293539*b203 =L= 0;
e132.. x84 - 1.83548069293539*b204 =L= 0;
e133.. x85 - 1.83548069293539*b205 =L= 0;
e134.. -0.9*log(1 + x66) + x86 + b206 =L= 1;
e135.. -0.9*log(1 + x67) + x87 + b207 =L= 1;
e136.. -0.9*log(1 + x68) + x88 + b208 =L= 1;
e137.. -0.9*log(1 + x69) + x89 + b209 =L= 1;
e138.. x66 - 3.34221486003388*b206 =L= 0;
e139.. x67 - 3.34221486003388*b207 =L= 0;
e140.. x68 - 3.34221486003388*b208 =L= 0;
e141.. x69 - 3.34221486003388*b209 =L= 0;
e142.. x86 - 1.32154609891348*b206 =L= 0;
e143.. x87 - 1.32154609891348*b207 =L= 0;
e144.. x88 - 1.32154609891348*b208 =L= 0;
e145.. x89 - 1.32154609891348*b209 =L= 0;
e146.. -log(1 + x54) + x90 + b210 =L= 1;
e147.. -log(1 + x55) + x91 + b211 =L= 1;
e148.. -log(1 + x56) + x92 + b212 =L= 1;
e149.. -log(1 + x57) + x93 + b213 =L= 1;
e150.. x54 - 2.54515263975353*b210 =L= 0;
e151.. x55 - 2.54515263975353*b211 =L= 0;
e152.. x56 - 2.54515263975353*b212 =L= 0;
e153.. x57 - 2.54515263975353*b213 =L= 0;
e154.. x90 - 1.26558121681553*b210 =L= 0;
e155.. x91 - 1.26558121681553*b211 =L= 0;
e156.. x92 - 1.26558121681553*b212 =L= 0;
e157.. x93 - 1.26558121681553*b213 =L= 0;
e158.. - 0.9*x70 + x94 + b214 =L= 1;
e159.. - 0.9*x71 + x95 + b215 =L= 1;
e160.. - 0.9*x72 + x96 + b216 =L= 1;
e161.. - 0.9*x73 + x97 + b217 =L= 1;
e162.. - 0.9*x70 + x94 - b214 =G= -1;
e163.. - 0.9*x71 + x95 - b215 =G= -1;
e164.. - 0.9*x72 + x96 - b216 =G= -1;
e165.. - 0.9*x73 + x97 - b217 =G= -1;
e166.. x70 - 15*b214 =L= 0;
e167.. x71 - 15*b215 =L= 0;
e168.. x72 - 15*b216 =L= 0;
e169.. x73 - 15*b217 =L= 0;
e170.. x94 - 13.5*b214 =L= 0;
e171.. x95 - 13.5*b215 =L= 0;
e172.. x96 - 13.5*b216 =L= 0;
e173.. x97 - 13.5*b217 =L= 0;
e174.. - 0.6*x74 + x98 + b218 =L= 1;
e175.. - 0.6*x75 + x99 + b219 =L= 1;
e176.. - 0.6*x76 + x100 + b220 =L= 1;
e177.. - 0.6*x77 + x101 + b221 =L= 1;
e178.. - 0.6*x74 + x98 - b218 =G= -1;
e179.. - 0.6*x75 + x99 - b219 =G= -1;
e180.. - 0.6*x76 + x100 - b220 =G= -1;
e181.. - 0.6*x77 + x101 - b221 =G= -1;
e182.. x74 - 15*b218 =L= 0;
e183.. x75 - 15*b219 =L= 0;
e184.. x76 - 15*b220 =L= 0;
e185.. x77 - 15*b221 =L= 0;
e186.. x98 - 9*b218 =L= 0;
e187.. x99 - 9*b219 =L= 0;
e188.. x100 - 9*b220 =L= 0;
e189.. x101 - 9*b221 =L= 0;
e190.. -1.1*log(1 + x78) + x102 + b222 =L= 1;
e191.. -1.1*log(1 + x79) + x103 + b223 =L= 1;
e192.. -1.1*log(1 + x80) + x104 + b224 =L= 1;
e193.. -1.1*log(1 + x81) + x105 + b225 =L= 1;
e194.. x78 - 15*b222 =L= 0;
e195.. x79 - 15*b223 =L= 0;
e196.. x80 - 15*b224 =L= 0;
e197.. x81 - 15*b225 =L= 0;
e198.. x102 - 3.04984759446376*b222 =L= 0;
e199.. x103 - 3.04984759446376*b223 =L= 0;
e200.. x104 - 3.04984759446376*b224 =L= 0;
e201.. x105 - 3.04984759446376*b225 =L= 0;
e202.. - 0.9*x82 + x146 + b226 =L= 1;
e203.. - 0.9*x83 + x147 + b227 =L= 1;
e204.. - 0.9*x84 + x148 + b228 =L= 1;
e205.. - 0.9*x85 + x149 + b229 =L= 1;
e206.. - 0.9*x82 + x146 - b226 =G= -1;
e207.. - 0.9*x83 + x147 - b227 =G= -1;
e208.. - 0.9*x84 + x148 - b228 =G= -1;
e209.. - 0.9*x85 + x149 - b229 =G= -1;
e210.. - x114 + x146 + b226 =L= 1;
e211.. - x115 + x147 + b227 =L= 1;
e212.. - x116 + x148 + b228 =L= 1;
e213.. - x117 + x149 + b229 =L= 1;
e214.. - x114 + x146 - b226 =G= -1;
e215.. - x115 + x147 - b227 =G= -1;
e216.. - x116 + x148 - b228 =G= -1;
e217.. - x117 + x149 - b229 =G= -1;
e218.. x82 - 1.83548069293539*b226 =L= 0;
e219.. x83 - 1.83548069293539*b227 =L= 0;
e220.. x84 - 1.83548069293539*b228 =L= 0;
e221.. x85 - 1.83548069293539*b229 =L= 0;
e222.. x114 - 20*b226 =L= 0;
e223.. x115 - 20*b227 =L= 0;
e224.. x116 - 20*b228 =L= 0;
e225.. x117 - 20*b229 =L= 0;
e226.. x146 - 20*b226 =L= 0;
e227.. x147 - 20*b227 =L= 0;
e228.. x148 - 20*b228 =L= 0;
e229.. x149 - 20*b229 =L= 0;
e230.. -log(1 + x86) + x150 + b230 =L= 1;
e231.. -log(1 + x87) + x151 + b231 =L= 1;
e232.. -log(1 + x88) + x152 + b232 =L= 1;
e233.. -log(1 + x89) + x153 + b233 =L= 1;
e234.. x86 - 1.32154609891348*b230 =L= 0;
e235.. x87 - 1.32154609891348*b231 =L= 0;
e236.. x88 - 1.32154609891348*b232 =L= 0;
e237.. x89 - 1.32154609891348*b233 =L= 0;
e238.. x150 - 0.842233385663186*b230 =L= 0;
e239.. x151 - 0.842233385663186*b231 =L= 0;
e240.. x152 - 0.842233385663186*b232 =L= 0;
e241.. x153 - 0.842233385663186*b233 =L= 0;
e242.. -0.7*log(1 + x106) + x154 + b234 =L= 1;
e243.. -0.7*log(1 + x107) + x155 + b235 =L= 1;
e244.. -0.7*log(1 + x108) + x156 + b236 =L= 1;
e245.. -0.7*log(1 + x109) + x157 + b237 =L= 1;
e246.. x106 - 1.26558121681553*b234 =L= 0;
e247.. x107 - 1.26558121681553*b235 =L= 0;
e248.. x108 - 1.26558121681553*b236 =L= 0;
e249.. x109 - 1.26558121681553*b237 =L= 0;
e250.. x154 - 0.572481933717686*b234 =L= 0;
e251.. x155 - 0.572481933717686*b235 =L= 0;
e252.. x156 - 0.572481933717686*b236 =L= 0;
e253.. x157 - 0.572481933717686*b237 =L= 0;
e254.. -0.65*log(1 + x110) + x158 + b238 =L= 1;
e255.. -0.65*log(1 + x111) + x159 + b239 =L= 1;
e256.. -0.65*log(1 + x112) + x160 + b240 =L= 1;
e257.. -0.65*log(1 + x113) + x161 + b241 =L= 1;
e258.. -0.65*log(1 + x122) + x158 + b238 =L= 1;
e259.. -0.65*log(1 + x123) + x159 + b239 =L= 1;
e260.. -0.65*log(1 + x124) + x160 + b240 =L= 1;
e261.. -0.65*log(1 + x125) + x161 + b241 =L= 1;
e262.. x110 - 1.26558121681553*b238 =L= 0;
e263.. x111 - 1.26558121681553*b239 =L= 0;
e264.. x112 - 1.26558121681553*b240 =L= 0;
e265.. x113 - 1.26558121681553*b241 =L= 0;
e266.. x122 - 33.5*b238 =L= 0;
e267.. x123 - 33.5*b239 =L= 0;
e268.. x124 - 33.5*b240 =L= 0;
e269.. x125 - 33.5*b241 =L= 0;
e270.. x158 - 2.30162356062425*b238 =L= 0;
e271.. x159 - 2.30162356062425*b239 =L= 0;
e272.. x160 - 2.30162356062425*b240 =L= 0;
e273.. x161 - 2.30162356062425*b241 =L= 0;
e274.. - x126 + x162 + b242 =L= 1;
e275.. - x127 + x163 + b243 =L= 1;
e276.. - x128 + x164 + b244 =L= 1;
e277.. - x129 + x165 + b245 =L= 1;
e278.. - x126 + x162 - b242 =G= -1;
e279.. - x127 + x163 - b243 =G= -1;
e280.. - x128 + x164 - b244 =G= -1;
e281.. - x129 + x165 - b245 =G= -1;
e282.. x126 - 9*b242 =L= 0;
e283.. x127 - 9*b243 =L= 0;
e284.. x128 - 9*b244 =L= 0;
e285.. x129 - 9*b245 =L= 0;
e286.. x162 - 9*b242 =L= 0;
e287.. x163 - 9*b243 =L= 0;
e288.. x164 - 9*b244 =L= 0;
e289.. x165 - 9*b245 =L= 0;
e290.. - x130 + x166 + b246 =L= 1;
e291.. - x131 + x167 + b247 =L= 1;
e292.. - x132 + x168 + b248 =L= 1;
e293.. - x133 + x169 + b249 =L= 1;
e294.. - x130 + x166 - b246 =G= -1;
e295.. - x131 + x167 - b247 =G= -1;
e296.. - x132 + x168 - b248 =G= -1;
e297.. - x133 + x169 - b249 =G= -1;
e298.. x130 - 9*b246 =L= 0;
e299.. x131 - 9*b247 =L= 0;
e300.. x132 - 9*b248 =L= 0;
e301.. x133 - 9*b249 =L= 0;
e302.. x166 - 9*b246 =L= 0;
e303.. x167 - 9*b247 =L= 0;
e304.. x168 - 9*b248 =L= 0;
e305.. x169 - 9*b249 =L= 0;
e306.. -0.75*log(1 + x134) + x170 + b250 =L= 1;
e307.. -0.75*log(1 + x135) + x171 + b251 =L= 1;
e308.. -0.75*log(1 + x136) + x172 + b252 =L= 1;
e309.. -0.75*log(1 + x137) + x173 + b253 =L= 1;
e310.. x134 - 3.04984759446376*b250 =L= 0;
e311.. x135 - 3.04984759446376*b251 =L= 0;
e312.. x136 - 3.04984759446376*b252 =L= 0;
e313.. x137 - 3.04984759446376*b253 =L= 0;
e314.. x170 - 1.04900943706034*b250 =L= 0;
e315.. x171 - 1.04900943706034*b251 =L= 0;
e316.. x172 - 1.04900943706034*b252 =L= 0;
e317.. x173 - 1.04900943706034*b253 =L= 0;
e318.. -0.8*log(1 + x138) + x174 + b254 =L= 1;
e319.. -0.8*log(1 + x139) + x175 + b255 =L= 1;
e320.. -0.8*log(1 + x140) + x176 + b256 =L= 1;
e321.. -0.8*log(1 + x141) + x177 + b257 =L= 1;
e322.. x138 - 3.04984759446376*b254 =L= 0;
e323.. x139 - 3.04984759446376*b255 =L= 0;
e324.. x140 - 3.04984759446376*b256 =L= 0;
e325.. x141 - 3.04984759446376*b257 =L= 0;
e326.. x174 - 1.11894339953103*b254 =L= 0;
e327.. x175 - 1.11894339953103*b255 =L= 0;
e328.. x176 - 1.11894339953103*b256 =L= 0;
e329.. x177 - 1.11894339953103*b257 =L= 0;
e330.. -0.85*log(1 + x142) + x178 + b258 =L= 1;
e331.. -0.85*log(1 + x143) + x179 + b259 =L= 1;
e332.. -0.85*log(1 + x144) + x180 + b260 =L= 1;
e333.. -0.85*log(1 + x145) + x181 + b261 =L= 1;
e334.. x142 - 3.04984759446376*b258 =L= 0;
e335.. x143 - 3.04984759446376*b259 =L= 0;
e336.. x144 - 3.04984759446376*b260 =L= 0;
e337.. x145 - 3.04984759446376*b261 =L= 0;
e338.. x178 - 1.18887736200171*b258 =L= 0;
e339.. x179 - 1.18887736200171*b259 =L= 0;
e340.. x180 - 1.18887736200171*b260 =L= 0;
e341.. x181 - 1.18887736200171*b261 =L= 0;
e342.. 5*b262 + x342 =L= 0;
e343.. 4*b263 + x343 =L= 0;
e344.. 6*b264 + x344 =L= 0;
e345.. 3*b265 + x345 =L= 0;
e346.. 8*b266 + x346 =L= 0;
e347.. 7*b267 + x347 =L= 0;
e348.. 6*b268 + x348 =L= 0;
e349.. 5*b269 + x349 =L= 0;
e350.. 6*b270 + x350 =L= 0;
e351.. 9*b271 + x351 =L= 0;
e352.. 4*b272 + x352 =L= 0;
e353.. 3*b273 + x353 =L= 0;
e354.. 10*b274 + x354 =L= 0;
e355.. 9*b275 + x355 =L= 0;
e356.. 5*b276 + x356 =L= 0;
e357.. 6*b277 + x357 =L= 0;
e358.. 6*b278 + x358 =L= 0;
e359.. 10*b279 + x359 =L= 0;
e360.. 6*b280 + x360 =L= 0;
e361.. 9*b281 + x361 =L= 0;
e362.. 7*b282 + x362 =L= 0;
e363.. 7*b283 + x363 =L= 0;
e364.. 4*b284 + x364 =L= 0;
e365.. 2*b285 + x365 =L= 0;
e366.. 4*b286 + x366 =L= 0;
e367.. 3*b287 + x367 =L= 0;
e368.. 2*b288 + x368 =L= 0;
e369.. 8*b289 + x369 =L= 0;
e370.. 5*b290 + x370 =L= 0;
e371.. 6*b291 + x371 =L= 0;
e372.. 7*b292 + x372 =L= 0;
e373.. 4*b293 + x373 =L= 0;
e374.. 2*b294 + x374 =L= 0;
e375.. 5*b295 + x375 =L= 0;
e376.. 2*b296 + x376 =L= 0;
e377.. 6*b297 + x377 =L= 0;
e378.. 4*b298 + x378 =L= 0;
e379.. 7*b299 + x379 =L= 0;
e380.. 4*b300 + x380 =L= 0;
e381.. 7*b301 + x381 =L= 0;
e382.. 3*b302 + x382 =L= 0;
e383.. 9*b303 + x383 =L= 0;
e384.. 3*b304 + x384 =L= 0;
e385.. 6*b305 + x385 =L= 0;
e386.. 7*b306 + x386 =L= 0;
e387.. 2*b307 + x387 =L= 0;
e388.. 9*b308 + x388 =L= 0;
e389.. 6*b309 + x389 =L= 0;
e390.. 3*b310 + x390 =L= 0;
e391.. b311 + x391 =L= 0;
e392.. 9*b312 + x392 =L= 0;
e393.. 10*b313 + x393 =L= 0;
e394.. 2*b314 + x394 =L= 0;
e395.. 6*b315 + x395 =L= 0;
e396.. 3*b316 + x396 =L= 0;
e397.. 7*b317 + x397 =L= 0;
e398.. 4*b318 + x398 =L= 0;
e399.. 8*b319 + x399 =L= 0;
e400.. b320 + x400 =L= 0;
e401.. 4*b321 + x401 =L= 0;
e402.. 2*b322 + x402 =L= 0;
e403.. 5*b323 + x403 =L= 0;
e404.. 2*b324 + x404 =L= 0;
e405.. 5*b325 + x405 =L= 0;
e406.. 3*b326 + x406 =L= 0;
e407.. 4*b327 + x407 =L= 0;
e408.. 3*b328 + x408 =L= 0;
e409.. 7*b329 + x409 =L= 0;
e410.. 5*b330 + x410 =L= 0;
e411.. 7*b331 + x411 =L= 0;
e412.. 6*b332 + x412 =L= 0;
e413.. 2*b333 + x413 =L= 0;
e414.. 2*b334 + x414 =L= 0;
e415.. 8*b335 + x415 =L= 0;
e416.. 4*b336 + x416 =L= 0;
e417.. 2*b337 + x417 =L= 0;
e418.. b338 + x418 =L= 0;
e419.. 4*b339 + x419 =L= 0;
e420.. b340 + x420 =L= 0;
e421.. b341 + x421 =L= 0;
e422.. 5*b262 + x342 =G= 0;
e423.. 4*b263 + x343 =G= 0;
e424.. 6*b264 + x344 =G= 0;
e425.. 3*b265 + x345 =G= 0;
e426.. 8*b266 + x346 =G= 0;
e427.. 7*b267 + x347 =G= 0;
e428.. 6*b268 + x348 =G= 0;
e429.. 5*b269 + x349 =G= 0;
e430.. 6*b270 + x350 =G= 0;
e431.. 9*b271 + x351 =G= 0;
e432.. 4*b272 + x352 =G= 0;
e433.. 3*b273 + x353 =G= 0;
e434.. 10*b274 + x354 =G= 0;
e435.. 9*b275 + x355 =G= 0;
e436.. 5*b276 + x356 =G= 0;
e437.. 6*b277 + x357 =G= 0;
e438.. 6*b278 + x358 =G= 0;
e439.. 10*b279 + x359 =G= 0;
e440.. 6*b280 + x360 =G= 0;
e441.. 9*b281 + x361 =G= 0;
e442.. 7*b282 + x362 =G= 0;
e443.. 7*b283 + x363 =G= 0;
e444.. 4*b284 + x364 =G= 0;
e445.. 2*b285 + x365 =G= 0;
e446.. 4*b286 + x366 =G= 0;
e447.. 3*b287 + x367 =G= 0;
e448.. 2*b288 + x368 =G= 0;
e449.. 8*b289 + x369 =G= 0;
e450.. 5*b290 + x370 =G= 0;
e451.. 6*b291 + x371 =G= 0;
e452.. 7*b292 + x372 =G= 0;
e453.. 4*b293 + x373 =G= 0;
e454.. 2*b294 + x374 =G= 0;
e455.. 5*b295 + x375 =G= 0;
e456.. 2*b296 + x376 =G= 0;
e457.. 6*b297 + x377 =G= 0;
e458.. 4*b298 + x378 =G= 0;
e459.. 7*b299 + x379 =G= 0;
e460.. 4*b300 + x380 =G= 0;
e461.. 7*b301 + x381 =G= 0;
e462.. 3*b302 + x382 =G= 0;
e463.. 9*b303 + x383 =G= 0;
e464.. 3*b304 + x384 =G= 0;
e465.. 6*b305 + x385 =G= 0;
e466.. 7*b306 + x386 =G= 0;
e467.. 2*b307 + x387 =G= 0;
e468.. 9*b308 + x388 =G= 0;
e469.. 6*b309 + x389 =G= 0;
e470.. 3*b310 + x390 =G= 0;
e471.. b311 + x391 =G= 0;
e472.. 9*b312 + x392 =G= 0;
e473.. 10*b313 + x393 =G= 0;
e474.. 2*b314 + x394 =G= 0;
e475.. 6*b315 + x395 =G= 0;
e476.. 3*b316 + x396 =G= 0;
e477.. 7*b317 + x397 =G= 0;
e478.. 4*b318 + x398 =G= 0;
e479.. 8*b319 + x399 =G= 0;
e480.. b320 + x400 =G= 0;
e481.. 4*b321 + x401 =G= 0;
e482.. 2*b322 + x402 =G= 0;
e483.. 5*b323 + x403 =G= 0;
e484.. 2*b324 + x404 =G= 0;
e485.. 5*b325 + x405 =G= 0;
e486.. 3*b326 + x406 =G= 0;
e487.. 4*b327 + x407 =G= 0;
e488.. 3*b328 + x408 =G= 0;
e489.. 7*b329 + x409 =G= 0;
e490.. 5*b330 + x410 =G= 0;
e491.. 7*b331 + x411 =G= 0;
e492.. 6*b332 + x412 =G= 0;
e493.. 2*b333 + x413 =G= 0;
e494.. 2*b334 + x414 =G= 0;
e495.. 8*b335 + x415 =G= 0;
e496.. 4*b336 + x416 =G= 0;
e497.. 2*b337 + x417 =G= 0;
e498.. b338 + x418 =G= 0;
e499.. 4*b339 + x419 =G= 0;
e500.. b340 + x420 =G= 0;
e501.. b341 + x421 =G= 0;
e502.. b182 - b183 =L= 0;
e503.. b182 - b184 =L= 0;
e504.. b182 - b185 =L= 0;
e505.. b183 - b184 =L= 0;
e506.. b183 - b185 =L= 0;
e507.. b184 - b185 =L= 0;
e508.. b186 - b187 =L= 0;
e509.. b186 - b188 =L= 0;
e510.. b186 - b189 =L= 0;
e511.. b187 - b188 =L= 0;
e512.. b187 - b189 =L= 0;
e513.. b188 - b189 =L= 0;
e514.. b190 - b191 =L= 0;
e515.. b190 - b192 =L= 0;
e516.. b190 - b193 =L= 0;
e517.. b191 - b192 =L= 0;
e518.. b191 - b193 =L= 0;
e519.. b192 - b193 =L= 0;
e520.. b194 - b195 =L= 0;
e521.. b194 - b196 =L= 0;
e522.. b194 - b197 =L= 0;
e523.. b195 - b196 =L= 0;
e524.. b195 - b197 =L= 0;
e525.. b196 - b197 =L= 0;
e526.. b198 - b199 =L= 0;
e527.. b198 - b200 =L= 0;
e528.. b198 - b201 =L= 0;
e529.. b199 - b200 =L= 0;
e530.. b199 - b201 =L= 0;
e531.. b200 - b201 =L= 0;
e532.. b202 - b203 =L= 0;
e533.. b202 - b204 =L= 0;
e534.. b202 - b205 =L= 0;
e535.. b203 - b204 =L= 0;
e536.. b203 - b205 =L= 0;
e537.. b204 - b205 =L= 0;
e538.. b206 - b207 =L= 0;
e539.. b206 - b208 =L= 0;
e540.. b206 - b209 =L= 0;
e541.. b207 - b208 =L= 0;
e542.. b207 - b209 =L= 0;
e543.. b208 - b209 =L= 0;
e544.. b210 - b211 =L= 0;
e545.. b210 - b212 =L= 0;
e546.. b210 - b213 =L= 0;
e547.. b211 - b212 =L= 0;
e548.. b211 - b213 =L= 0;
e549.. b212 - b213 =L= 0;
e550.. b214 - b215 =L= 0;
e551.. b214 - b216 =L= 0;
e552.. b214 - b217 =L= 0;
e553.. b215 - b216 =L= 0;
e554.. b215 - b217 =L= 0;
e555.. b216 - b217 =L= 0;
e556.. b218 - b219 =L= 0;
e557.. b218 - b220 =L= 0;
e558.. b218 - b221 =L= 0;
e559.. b219 - b220 =L= 0;
e560.. b219 - b221 =L= 0;
e561.. b220 - b221 =L= 0;
e562.. b222 - b223 =L= 0;
e563.. b222 - b224 =L= 0;
e564.. b222 - b225 =L= 0;
e565.. b223 - b224 =L= 0;
e566.. b223 - b225 =L= 0;
e567.. b224 - b225 =L= 0;
e568.. b226 - b227 =L= 0;
e569.. b226 - b228 =L= 0;
e570.. b226 - b229 =L= 0;
e571.. b227 - b228 =L= 0;
e572.. b227 - b229 =L= 0;
e573.. b228 - b229 =L= 0;
e574.. b230 - b231 =L= 0;
e575.. b230 - b232 =L= 0;
e576.. b230 - b233 =L= 0;
e577.. b231 - b232 =L= 0;
e578.. b231 - b233 =L= 0;
e579.. b232 - b233 =L= 0;
e580.. b234 - b235 =L= 0;
e581.. b234 - b236 =L= 0;
e582.. b234 - b237 =L= 0;
e583.. b235 - b236 =L= 0;
e584.. b235 - b237 =L= 0;
e585.. b236 - b237 =L= 0;
e586.. b238 - b239 =L= 0;
e587.. b238 - b240 =L= 0;
e588.. b238 - b241 =L= 0;
e589.. b239 - b240 =L= 0;
e590.. b239 - b241 =L= 0;
e591.. b240 - b241 =L= 0;
e592.. b242 - b243 =L= 0;
e593.. b242 - b244 =L= 0;
e594.. b242 - b245 =L= 0;
e595.. b243 - b244 =L= 0;
e596.. b243 - b245 =L= 0;
e597.. b244 - b245 =L= 0;
e598.. b246 - b247 =L= 0;
e599.. b246 - b248 =L= 0;
e600.. b246 - b249 =L= 0;
e601.. b247 - b248 =L= 0;
e602.. b247 - b249 =L= 0;
e603.. b248 - b249 =L= 0;
e604.. b250 - b251 =L= 0;
e605.. b250 - b252 =L= 0;
e606.. b250 - b253 =L= 0;
e607.. b251 - b252 =L= 0;
e608.. b251 - b253 =L= 0;
e609.. b252 - b253 =L= 0;
e610.. b254 - b255 =L= 0;
e611.. b254 - b256 =L= 0;
e612.. b254 - b257 =L= 0;
e613.. b255 - b256 =L= 0;
e614.. b255 - b257 =L= 0;
e615.. b256 - b257 =L= 0;
e616.. b258 - b259 =L= 0;
e617.. b258 - b260 =L= 0;
e618.. b258 - b261 =L= 0;
e619.. b259 - b260 =L= 0;
e620.. b259 - b261 =L= 0;
e621.. b260 - b261 =L= 0;
e622.. b262 + b263 =L= 1;
e623.. b262 + b264 =L= 1;
e624.. b262 + b265 =L= 1;
e625.. b262 + b263 =L= 1;
e626.. b263 + b264 =L= 1;
e627.. b263 + b265 =L= 1;
e628.. b262 + b264 =L= 1;
e629.. b263 + b264 =L= 1;
e630.. b264 + b265 =L= 1;
e631.. b262 + b265 =L= 1;
e632.. b263 + b265 =L= 1;
e633.. b264 + b265 =L= 1;
e634.. b266 + b267 =L= 1;
e635.. b266 + b268 =L= 1;
e636.. b266 + b269 =L= 1;
e637.. b266 + b267 =L= 1;
e638.. b267 + b268 =L= 1;
e639.. b267 + b269 =L= 1;
e640.. b266 + b268 =L= 1;
e641.. b267 + b268 =L= 1;
e642.. b268 + b269 =L= 1;
e643.. b266 + b269 =L= 1;
e644.. b267 + b269 =L= 1;
e645.. b268 + b269 =L= 1;
e646.. b270 + b271 =L= 1;
e647.. b270 + b272 =L= 1;
e648.. b270 + b273 =L= 1;
e649.. b270 + b271 =L= 1;
e650.. b271 + b272 =L= 1;
e651.. b271 + b273 =L= 1;
e652.. b270 + b272 =L= 1;
e653.. b271 + b272 =L= 1;
e654.. b272 + b273 =L= 1;
e655.. b270 + b273 =L= 1;
e656.. b271 + b273 =L= 1;
e657.. b272 + b273 =L= 1;
e658.. b274 + b275 =L= 1;
e659.. b274 + b276 =L= 1;
e660.. b274 + b277 =L= 1;
e661.. b274 + b275 =L= 1;
e662.. b275 + b276 =L= 1;
e663.. b275 + b277 =L= 1;
e664.. b274 + b276 =L= 1;
e665.. b275 + b276 =L= 1;
e666.. b276 + b277 =L= 1;
e667.. b274 + b277 =L= 1;
e668.. b275 + b277 =L= 1;
e669.. b276 + b277 =L= 1;
e670.. b278 + b279 =L= 1;
e671.. b278 + b280 =L= 1;
e672.. b278 + b281 =L= 1;
e673.. b278 + b279 =L= 1;
e674.. b279 + b280 =L= 1;
e675.. b279 + b281 =L= 1;
e676.. b278 + b280 =L= 1;
e677.. b279 + b280 =L= 1;
e678.. b280 + b281 =L= 1;
e679.. b278 + b281 =L= 1;
e680.. b279 + b281 =L= 1;
e681.. b280 + b281 =L= 1;
e682.. b282 + b283 =L= 1;
e683.. b282 + b284 =L= 1;
e684.. b282 + b285 =L= 1;
e685.. b282 + b283 =L= 1;
e686.. b283 + b284 =L= 1;
e687.. b283 + b285 =L= 1;
e688.. b282 + b284 =L= 1;
e689.. b283 + b284 =L= 1;
e690.. b284 + b285 =L= 1;
e691.. b282 + b285 =L= 1;
e692.. b283 + b285 =L= 1;
e693.. b284 + b285 =L= 1;
e694.. b286 + b287 =L= 1;
e695.. b286 + b288 =L= 1;
e696.. b286 + b289 =L= 1;
e697.. b286 + b287 =L= 1;
e698.. b287 + b288 =L= 1;
e699.. b287 + b289 =L= 1;
e700.. b286 + b288 =L= 1;
e701.. b287 + b288 =L= 1;
e702.. b288 + b289 =L= 1;
e703.. b286 + b289 =L= 1;
e704.. b287 + b289 =L= 1;
e705.. b288 + b289 =L= 1;
e706.. b290 + b291 =L= 1;
e707.. b290 + b292 =L= 1;
e708.. b290 + b293 =L= 1;
e709.. b290 + b291 =L= 1;
e710.. b291 + b292 =L= 1;
e711.. b291 + b293 =L= 1;
e712.. b290 + b292 =L= 1;
e713.. b291 + b292 =L= 1;
e714.. b292 + b293 =L= 1;
e715.. b290 + b293 =L= 1;
e716.. b291 + b293 =L= 1;
e717.. b292 + b293 =L= 1;
e718.. b294 + b295 =L= 1;
e719.. b294 + b296 =L= 1;
e720.. b294 + b297 =L= 1;
e721.. b294 + b295 =L= 1;
e722.. b295 + b296 =L= 1;
e723.. b295 + b297 =L= 1;
e724.. b294 + b296 =L= 1;
e725.. b295 + b296 =L= 1;
e726.. b296 + b297 =L= 1;
e727.. b294 + b297 =L= 1;
e728.. b295 + b297 =L= 1;
e729.. b296 + b297 =L= 1;
e730.. b298 + b299 =L= 1;
e731.. b298 + b300 =L= 1;
e732.. b298 + b301 =L= 1;
e733.. b298 + b299 =L= 1;
e734.. b299 + b300 =L= 1;
e735.. b299 + b301 =L= 1;
e736.. b298 + b300 =L= 1;
e737.. b299 + b300 =L= 1;
e738.. b300 + b301 =L= 1;
e739.. b298 + b301 =L= 1;
e740.. b299 + b301 =L= 1;
e741.. b300 + b301 =L= 1;
e742.. b302 + b303 =L= 1;
e743.. b302 + b304 =L= 1;
e744.. b302 + b305 =L= 1;
e745.. b302 + b303 =L= 1;
e746.. b303 + b304 =L= 1;
e747.. b303 + b305 =L= 1;
e748.. b302 + b304 =L= 1;
e749.. b303 + b304 =L= 1;
e750.. b304 + b305 =L= 1;
e751.. b302 + b305 =L= 1;
e752.. b303 + b305 =L= 1;
e753.. b304 + b305 =L= 1;
e754.. b306 + b307 =L= 1;
e755.. b306 + b308 =L= 1;
e756.. b306 + b309 =L= 1;
e757.. b306 + b307 =L= 1;
e758.. b307 + b308 =L= 1;
e759.. b307 + b309 =L= 1;
e760.. b306 + b308 =L= 1;
e761.. b307 + b308 =L= 1;
e762.. b308 + b309 =L= 1;
e763.. b306 + b309 =L= 1;
e764.. b307 + b309 =L= 1;
e765.. b308 + b309 =L= 1;
e766.. b310 + b311 =L= 1;
e767.. b310 + b312 =L= 1;
e768.. b310 + b313 =L= 1;
e769.. b310 + b311 =L= 1;
e770.. b311 + b312 =L= 1;
e771.. b311 + b313 =L= 1;
e772.. b310 + b312 =L= 1;
e773.. b311 + b312 =L= 1;
e774.. b312 + b313 =L= 1;
e775.. b310 + b313 =L= 1;
e776.. b311 + b313 =L= 1;
e777.. b312 + b313 =L= 1;
e778.. b314 + b315 =L= 1;
e779.. b314 + b316 =L= 1;
e780.. b314 + b317 =L= 1;
e781.. b314 + b315 =L= 1;
e782.. b315 + b316 =L= 1;
e783.. b315 + b317 =L= 1;
e784.. b314 + b316 =L= 1;
e785.. b315 + b316 =L= 1;
e786.. b316 + b317 =L= 1;
e787.. b314 + b317 =L= 1;
e788.. b315 + b317 =L= 1;
e789.. b316 + b317 =L= 1;
e790.. b318 + b319 =L= 1;
e791.. b318 + b320 =L= 1;
e792.. b318 + b321 =L= 1;
e793.. b318 + b319 =L= 1;
e794.. b319 + b320 =L= 1;
e795.. b319 + b321 =L= 1;
e796.. b318 + b320 =L= 1;
e797.. b319 + b320 =L= 1;
e798.. b320 + b321 =L= 1;
e799.. b318 + b321 =L= 1;
e800.. b319 + b321 =L= 1;
e801.. b320 + b321 =L= 1;
e802.. b322 + b323 =L= 1;
e803.. b322 + b324 =L= 1;
e804.. b322 + b325 =L= 1;
e805.. b322 + b323 =L= 1;
e806.. b323 + b324 =L= 1;
e807.. b323 + b325 =L= 1;
e808.. b322 + b324 =L= 1;
e809.. b323 + b324 =L= 1;
e810.. b324 + b325 =L= 1;
e811.. b322 + b325 =L= 1;
e812.. b323 + b325 =L= 1;
e813.. b324 + b325 =L= 1;
e814.. b326 + b327 =L= 1;
e815.. b326 + b328 =L= 1;
e816.. b326 + b329 =L= 1;
e817.. b326 + b327 =L= 1;
e818.. b327 + b328 =L= 1;
e819.. b327 + b329 =L= 1;
e820.. b326 + b328 =L= 1;
e821.. b327 + b328 =L= 1;
e822.. b328 + b329 =L= 1;
e823.. b326 + b329 =L= 1;
e824.. b327 + b329 =L= 1;
e825.. b328 + b329 =L= 1;
e826.. b330 + b331 =L= 1;
e827.. b330 + b332 =L= 1;
e828.. b330 + b333 =L= 1;
e829.. b330 + b331 =L= 1;
e830.. b331 + b332 =L= 1;
e831.. b331 + b333 =L= 1;
e832.. b330 + b332 =L= 1;
e833.. b331 + b332 =L= 1;
e834.. b332 + b333 =L= 1;
e835.. b330 + b333 =L= 1;
e836.. b331 + b333 =L= 1;
e837.. b332 + b333 =L= 1;
e838.. b334 + b335 =L= 1;
e839.. b334 + b336 =L= 1;
e840.. b334 + b337 =L= 1;
e841.. b334 + b335 =L= 1;
e842.. b335 + b336 =L= 1;
e843.. b335 + b337 =L= 1;
e844.. b334 + b336 =L= 1;
e845.. b335 + b336 =L= 1;
e846.. b336 + b337 =L= 1;
e847.. b334 + b337 =L= 1;
e848.. b335 + b337 =L= 1;
e849.. b336 + b337 =L= 1;
e850.. b338 + b339 =L= 1;
e851.. b338 + b340 =L= 1;
e852.. b338 + b341 =L= 1;
e853.. b338 + b339 =L= 1;
e854.. b339 + b340 =L= 1;
e855.. b339 + b341 =L= 1;
e856.. b338 + b340 =L= 1;
e857.. b339 + b340 =L= 1;
e858.. b340 + b341 =L= 1;
e859.. b338 + b341 =L= 1;
e860.. b339 + b341 =L= 1;
e861.. b340 + b341 =L= 1;
e862.. b182 - b262 =L= 0;
e863.. - b182 + b183 - b263 =L= 0;
e864.. - b182 - b183 + b184 - b264 =L= 0;
e865.. - b182 - b183 - b184 + b185 - b265 =L= 0;
e866.. b186 - b266 =L= 0;
e867.. - b186 + b187 - b267 =L= 0;
e868.. - b186 - b187 + b188 - b268 =L= 0;
e869.. - b186 - b187 - b188 + b189 - b269 =L= 0;
e870.. b190 - b270 =L= 0;
e871.. - b190 + b191 - b271 =L= 0;
e872.. - b190 - b191 + b192 - b272 =L= 0;
e873.. - b190 - b191 - b192 + b193 - b273 =L= 0;
e874.. b194 - b274 =L= 0;
e875.. - b194 + b195 - b275 =L= 0;
e876.. - b194 - b195 + b196 - b276 =L= 0;
e877.. - b194 - b195 - b196 + b197 - b277 =L= 0;
e878.. b198 - b278 =L= 0;
e879.. - b198 + b199 - b279 =L= 0;
e880.. - b198 - b199 + b200 - b280 =L= 0;
e881.. - b198 - b199 - b200 + b201 - b281 =L= 0;
e882.. b202 - b282 =L= 0;
e883.. - b202 + b203 - b283 =L= 0;
e884.. - b202 - b203 + b204 - b284 =L= 0;
e885.. - b202 - b203 - b204 + b205 - b285 =L= 0;
e886.. b206 - b286 =L= 0;
e887.. - b206 + b207 - b287 =L= 0;
e888.. - b206 - b207 + b208 - b288 =L= 0;
e889.. - b206 - b207 - b208 + b209 - b289 =L= 0;
e890.. b210 - b290 =L= 0;
e891.. - b210 + b211 - b291 =L= 0;
e892.. - b210 - b211 + b212 - b292 =L= 0;
e893.. - b210 - b211 - b212 + b213 - b293 =L= 0;
e894.. b214 - b294 =L= 0;
e895.. - b214 + b215 - b295 =L= 0;
e896.. - b214 - b215 + b216 - b296 =L= 0;
e897.. - b214 - b215 - b216 + b217 - b297 =L= 0;
e898.. b218 - b298 =L= 0;
e899.. - b218 + b219 - b299 =L= 0;
e900.. - b218 - b219 + b220 - b300 =L= 0;
e901.. - b218 - b219 - b220 + b221 - b301 =L= 0;
e902.. b222 - b302 =L= 0;
e903.. - b222 + b223 - b303 =L= 0;
e904.. - b222 - b223 + b224 - b304 =L= 0;
e905.. - b222 - b223 - b224 + b225 - b305 =L= 0;
e906.. b226 - b306 =L= 0;
e907.. - b226 + b227 - b307 =L= 0;
e908.. - b226 - b227 + b228 - b308 =L= 0;
e909.. - b226 - b227 - b228 + b229 - b309 =L= 0;
e910.. b230 - b310 =L= 0;
e911.. - b230 + b231 - b311 =L= 0;
e912.. - b230 - b231 + b232 - b312 =L= 0;
e913.. - b230 - b231 - b232 + b233 - b313 =L= 0;
e914.. b234 - b314 =L= 0;
e915.. - b234 + b235 - b315 =L= 0;
e916.. - b234 - b235 + b236 - b316 =L= 0;
e917.. - b234 - b235 - b236 + b237 - b317 =L= 0;
e918.. b238 - b318 =L= 0;
e919.. - b238 + b239 - b319 =L= 0;
e920.. - b238 - b239 + b240 - b320 =L= 0;
e921.. - b238 - b239 - b240 + b241 - b321 =L= 0;
e922.. b242 - b322 =L= 0;
e923.. - b242 + b243 - b323 =L= 0;
e924.. - b242 - b243 + b244 - b324 =L= 0;
e925.. - b242 - b243 - b244 + b245 - b325 =L= 0;
e926.. b246 - b326 =L= 0;
e927.. - b246 + b247 - b327 =L= 0;
e928.. - b246 - b247 + b248 - b328 =L= 0;
e929.. - b246 - b247 - b248 + b249 - b329 =L= 0;
e930.. b250 - b330 =L= 0;
e931.. - b250 + b251 - b331 =L= 0;
e932.. - b250 - b251 + b252 - b332 =L= 0;
e933.. - b250 - b251 - b252 + b253 - b333 =L= 0;
e934.. b254 - b334 =L= 0;
e935.. - b254 + b255 - b335 =L= 0;
e936.. - b254 - b255 + b256 - b336 =L= 0;
e937.. - b254 - b255 - b256 + b257 - b337 =L= 0;
e938.. b258 - b338 =L= 0;
e939.. - b258 + b259 - b339 =L= 0;
e940.. - b258 - b259 + b260 - b340 =L= 0;
e941.. - b258 - b259 - b260 + b261 - b341 =L= 0;
e942.. b182 + b186 =E= 1;
e943.. b183 + b187 =E= 1;
e944.. b184 + b188 =E= 1;
e945.. b185 + b189 =E= 1;
e946.. - b190 + b202 + b206 =G= 0;
e947.. - b191 + b203 + b207 =G= 0;
e948.. - b192 + b204 + b208 =G= 0;
e949.. - b193 + b205 + b209 =G= 0;
e950.. - b202 + b226 =G= 0;
e951.. - b203 + b227 =G= 0;
e952.. - b204 + b228 =G= 0;
e953.. - b205 + b229 =G= 0;
e954.. - b206 + b230 =G= 0;
e955.. - b207 + b231 =G= 0;
e956.. - b208 + b232 =G= 0;
e957.. - b209 + b233 =G= 0;
e958.. - b194 + b210 =G= 0;
e959.. - b195 + b211 =G= 0;
e960.. - b196 + b212 =G= 0;
e961.. - b197 + b213 =G= 0;
e962.. - b210 + b234 + b238 =G= 0;
e963.. - b211 + b235 + b239 =G= 0;
e964.. - b212 + b236 + b240 =G= 0;
e965.. - b213 + b237 + b241 =G= 0;
e966.. - b198 + b214 + b218 + b222 =G= 0;
e967.. - b199 + b215 + b219 + b223 =G= 0;
e968.. - b200 + b216 + b220 + b224 =G= 0;
e969.. - b201 + b217 + b221 + b225 =G= 0;
e970.. - b214 + b238 =G= 0;
e971.. - b215 + b239 =G= 0;
e972.. - b216 + b240 =G= 0;
e973.. - b217 + b241 =G= 0;
e974.. - b218 + b242 + b246 =G= 0;
e975.. - b219 + b243 + b247 =G= 0;
e976.. - b220 + b244 + b248 =G= 0;
e977.. - b221 + b245 + b249 =G= 0;
e978.. - b222 + b250 + b254 + b258 =G= 0;
e979.. - b223 + b251 + b255 + b259 =G= 0;
e980.. - b224 + b252 + b256 + b260 =G= 0;
e981.. - b225 + b253 + b257 + b261 =G= 0;
e982.. b182 + b186 - b190 =G= 0;
e983.. b183 + b187 - b191 =G= 0;
e984.. b184 + b188 - b192 =G= 0;
e985.. b185 + b189 - b193 =G= 0;
e986.. b182 + b186 - b194 =G= 0;
e987.. b183 + b187 - b195 =G= 0;
e988.. b184 + b188 - b196 =G= 0;
e989.. b185 + b189 - b197 =G= 0;
e990.. b182 + b186 - b198 =G= 0;
e991.. b183 + b187 - b199 =G= 0;
e992.. b184 + b188 - b200 =G= 0;
e993.. b185 + b189 - b201 =G= 0;
e994.. b190 - b202 =G= 0;
e995.. b191 - b203 =G= 0;
e996.. b192 - b204 =G= 0;
e997.. b193 - b205 =G= 0;
e998.. b190 - b206 =G= 0;
e999.. b191 - b207 =G= 0;
e1000.. b192 - b208 =G= 0;
e1001.. b193 - b209 =G= 0;
e1002.. b194 - b210 =G= 0;
e1003.. b195 - b211 =G= 0;
e1004.. b196 - b212 =G= 0;
e1005.. b197 - b213 =G= 0;
e1006.. b198 - b214 =G= 0;
e1007.. b199 - b215 =G= 0;
e1008.. b200 - b216 =G= 0;
e1009.. b201 - b217 =G= 0;
e1010.. b198 - b218 =G= 0;
e1011.. b199 - b219 =G= 0;
e1012.. b200 - b220 =G= 0;
e1013.. b201 - b221 =G= 0;
e1014.. b198 - b222 =G= 0;
e1015.. b199 - b223 =G= 0;
e1016.. b200 - b224 =G= 0;
e1017.. b201 - b225 =G= 0;
e1018.. b202 - b226 =G= 0;
e1019.. b203 - b227 =G= 0;
e1020.. b204 - b228 =G= 0;
e1021.. b205 - b229 =G= 0;
e1022.. b206 - b230 =G= 0;
e1023.. b207 - b231 =G= 0;
e1024.. b208 - b232 =G= 0;
e1025.. b209 - b233 =G= 0;
e1026.. b210 - b234 =G= 0;
e1027.. b211 - b235 =G= 0;
e1028.. b212 - b236 =G= 0;
e1029.. b213 - b237 =G= 0;
e1030.. b210 - b238 =G= 0;
e1031.. b211 - b239 =G= 0;
e1032.. b212 - b240 =G= 0;
e1033.. b213 - b241 =G= 0;
e1034.. b218 - b242 =G= 0;
e1035.. b219 - b243 =G= 0;
e1036.. b220 - b244 =G= 0;
e1037.. b221 - b245 =G= 0;
e1038.. b218 - b246 =G= 0;
e1039.. b219 - b247 =G= 0;
e1040.. b220 - b248 =G= 0;
e1041.. b221 - b249 =G= 0;
e1042.. b222 - b250 =G= 0;
e1043.. b223 - b251 =G= 0;
e1044.. b224 - b252 =G= 0;
e1045.. b225 - b253 =G= 0;
e1046.. b222 - b254 =G= 0;
e1047.. b223 - b255 =G= 0;
e1048.. b224 - b256 =G= 0;
e1049.. b225 - b257 =G= 0;
e1050.. b222 - b258 =G= 0;
e1051.. b223 - b259 =G= 0;
e1052.. b224 - b260 =G= 0;
e1053.. b225 - b261 =G= 0;
* set non-default bounds
x2.up = 40;
x3.up = 40;
x4.up = 40;
x5.up = 40;
x46.up = 30;
x47.up = 30;
x48.up = 30;
x49.up = 30;
x114.up = 20;
x115.up = 20;
x116.up = 20;
x117.up = 20;
x118.up = 20;
x119.up = 20;
x120.up = 20;
x121.up = 20;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
