Removed Instance syn40m02h
Selection of optimal configuration and parameters for a processing system selected from a superstructure containing alternative processing units and interconnections.
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 388.77381240 (ALPHAECP) 388.77273330 (ANTIGONE) 388.77273430 (BARON) 388.77273390 (BONMIN) 3820.28364400 (COUENNE) 388.77273290 (LINDO) 388.77381150 (SCIP) 388.77432440 (SHOT) |
| Referencesⓘ | Duran, Marco A and Grossmann, I E, An Outer-Approximation Algorithm for a Class of Mixed-integer Nonlinear Programs, Mathematical Programming, 36:3, 1986, 307-339. Türkay, Metin and Grossmann, I E, Logic-based MINLP Algorithms for optimal synthesis of process networks, Computers and Chemical Engineering, 20:8, 1996, 959-978. |
| Sourceⓘ | Syn40M02H.gms from CMU-IBM MINLP solver project page |
| Applicationⓘ | Synthesis of processing system |
| Added to libraryⓘ | 28 Sep 2013 |
| Removed from libraryⓘ | 16 Feb 2022 |
| Removed becauseⓘ | Superseded by syn40m02hfsg. |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 764 |
| #Binary Variablesⓘ | 160 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 160 |
| #Nonlinear Binary Variablesⓘ | 52 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | max |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 132 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 1212 |
| #Linear Constraintsⓘ | 1156 |
| #Quadratic Constraintsⓘ | 0 |
| #Polynomial Constraintsⓘ | 0 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 56 |
| Operands in Gen. Nonlin. Functionsⓘ | div log mul |
| Constraints curvatureⓘ | convex |
| #Nonzeros in Jacobianⓘ | 2608 |
| #Nonlinear Nonzeros in Jacobianⓘ | 168 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 324 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 108 |
| #Blocks in Hessian of Lagrangianⓘ | 52 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 3 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 4 |
| Average blocksize in Hessian of Lagrangianⓘ | 3.076923 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 0 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.0000e-06 |
| Maximal coefficientⓘ | 6.0000e+02 |
| Infeasibility of initial pointⓘ | 1 |

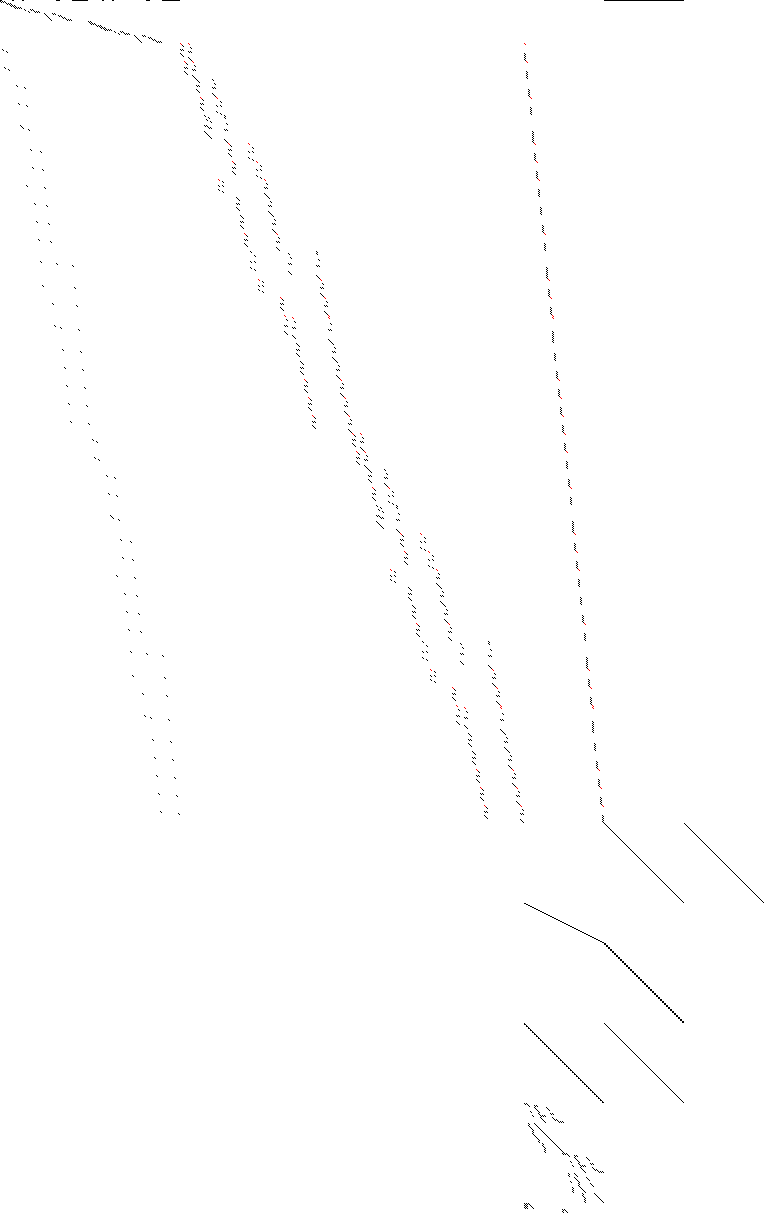

| Sparsity Jacobianⓘ |  |

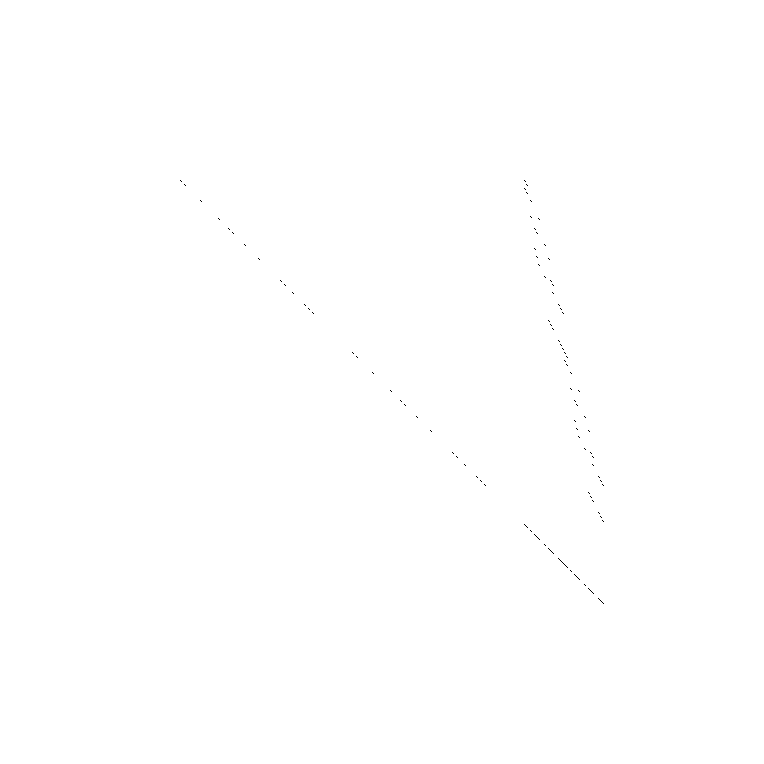

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 1213 505 108 600 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 765 605 160 0 0 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 2741 2573 168 0
*
* Solve m using MINLP maximizing objvar;
Variables objvar,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18
,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35
,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52
,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69
,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86
,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101,x102
,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114,x115
,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127,x128
,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140,x141
,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153,x154
,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166,x167
,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179,x180
,x181,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192,x193
,x194,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205,x206
,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218,x219
,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231,x232
,x233,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244,x245
,x246,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257,x258
,x259,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270,x271
,x272,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283,x284
,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296,x297
,x298,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309,x310
,x311,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322,x323
,x324,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335,x336
,x337,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348,x349
,x350,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361,x362
,x363,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374,x375
,x376,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387,x388
,x389,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400,x401
,x402,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413,x414
,x415,x416,x417,x418,x419,x420,x421,x422,x423,x424,x425,x426,x427
,x428,x429,x430,x431,x432,x433,x434,x435,x436,x437,x438,x439,x440
,x441,x442,x443,x444,x445,x446,x447,x448,x449,x450,x451,x452,x453
,x454,x455,x456,x457,x458,x459,x460,x461,x462,x463,x464,x465,x466
,x467,x468,x469,x470,x471,x472,x473,x474,x475,x476,x477,x478,x479
,x480,x481,x482,x483,x484,x485,x486,x487,x488,x489,x490,x491,x492
,x493,x494,x495,x496,x497,x498,x499,x500,x501,x502,x503,x504,x505
,x506,x507,x508,x509,x510,x511,x512,x513,x514,x515,x516,x517,x518
,x519,x520,x521,x522,x523,x524,x525,b526,b527,b528,b529,b530,b531
,b532,b533,b534,b535,b536,b537,b538,b539,b540,b541,b542,b543,b544
,b545,b546,b547,b548,b549,b550,b551,b552,b553,b554,b555,b556,b557
,b558,b559,b560,b561,b562,b563,b564,b565,b566,b567,b568,b569,b570
,b571,b572,b573,b574,b575,b576,b577,b578,b579,b580,b581,b582,b583
,b584,b585,b586,b587,b588,b589,b590,b591,b592,b593,b594,b595,b596
,b597,b598,b599,b600,b601,b602,b603,b604,b605,b606,b607,b608,b609
,b610,b611,b612,b613,b614,b615,b616,b617,b618,b619,b620,b621,b622
,b623,b624,b625,b626,b627,b628,b629,b630,b631,b632,b633,b634,b635
,b636,b637,b638,b639,b640,b641,b642,b643,b644,b645,b646,b647,b648
,b649,b650,b651,b652,b653,b654,b655,b656,b657,b658,b659,b660,b661
,b662,b663,b664,b665,b666,b667,b668,b669,b670,b671,b672,b673,b674
,b675,b676,b677,b678,b679,b680,b681,b682,b683,b684,b685,x686,x687
,x688,x689,x690,x691,x692,x693,x694,x695,x696,x697,x698,x699,x700
,x701,x702,x703,x704,x705,x706,x707,x708,x709,x710,x711,x712,x713
,x714,x715,x716,x717,x718,x719,x720,x721,x722,x723,x724,x725,x726
,x727,x728,x729,x730,x731,x732,x733,x734,x735,x736,x737,x738,x739
,x740,x741,x742,x743,x744,x745,x746,x747,x748,x749,x750,x751,x752
,x753,x754,x755,x756,x757,x758,x759,x760,x761,x762,x763,x764,x765;
Positive Variables x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34
,x35,x36,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51
,x52,x53,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68
,x69,x70,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85
,x86,x87,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,x98,x99,x100,x101
,x102,x103,x104,x105,x106,x107,x108,x109,x110,x111,x112,x113,x114
,x115,x116,x117,x118,x119,x120,x121,x122,x123,x124,x125,x126,x127
,x128,x129,x130,x131,x132,x133,x134,x135,x136,x137,x138,x139,x140
,x141,x142,x143,x144,x145,x146,x147,x148,x149,x150,x151,x152,x153
,x154,x155,x156,x157,x158,x159,x160,x161,x162,x163,x164,x165,x166
,x167,x168,x169,x170,x171,x172,x173,x174,x175,x176,x177,x178,x179
,x180,x181,x182,x183,x184,x185,x186,x187,x188,x189,x190,x191,x192
,x193,x194,x195,x196,x197,x198,x199,x200,x201,x202,x203,x204,x205
,x206,x207,x208,x209,x210,x211,x212,x213,x214,x215,x216,x217,x218
,x219,x220,x221,x222,x223,x224,x225,x226,x227,x228,x229,x230,x231
,x232,x233,x234,x235,x236,x237,x238,x239,x240,x241,x242,x243,x244
,x245,x246,x247,x248,x249,x250,x251,x252,x253,x254,x255,x256,x257
,x258,x259,x260,x261,x262,x263,x264,x265,x266,x267,x268,x269,x270
,x271,x272,x273,x274,x275,x276,x277,x278,x279,x280,x281,x282,x283
,x284,x285,x286,x287,x288,x289,x290,x291,x292,x293,x294,x295,x296
,x297,x298,x299,x300,x301,x302,x303,x304,x305,x306,x307,x308,x309
,x310,x311,x312,x313,x314,x315,x316,x317,x318,x319,x320,x321,x322
,x323,x324,x325,x326,x327,x328,x329,x330,x331,x332,x333,x334,x335
,x336,x337,x338,x339,x340,x341,x342,x343,x344,x345,x346,x347,x348
,x349,x350,x351,x352,x353,x354,x355,x356,x357,x358,x359,x360,x361
,x362,x363,x364,x365,x366,x367,x368,x369,x370,x371,x372,x373,x374
,x375,x376,x377,x378,x379,x380,x381,x382,x383,x384,x385,x386,x387
,x388,x389,x390,x391,x392,x393,x394,x395,x396,x397,x398,x399,x400
,x401,x402,x403,x404,x405,x406,x407,x408,x409,x410,x411,x412,x413
,x414,x415,x416,x417,x418,x419,x420,x421,x422,x423,x424,x425,x426
,x427,x428,x429,x430,x431,x432,x433,x434,x435,x436,x437,x438,x439
,x440,x441,x442,x443,x444,x445,x446,x447,x448,x449,x450,x451,x452
,x453,x454,x455,x456,x457,x458,x459,x460,x461,x462,x463,x464,x465
,x466,x467,x468,x469,x470,x471,x472,x473,x474,x475,x476,x477,x478
,x479,x480,x481,x482,x483,x484,x485,x486,x487,x488,x489,x490,x491
,x492,x493,x494,x495,x496,x497,x498,x499,x500,x501,x502,x503,x504
,x505,x506,x507,x508,x509,x510,x511,x512,x513,x514,x515,x516,x517
,x518,x519,x520,x521,x522,x523,x524,x525;
Binary Variables b526,b527,b528,b529,b530,b531,b532,b533,b534,b535,b536,b537
,b538,b539,b540,b541,b542,b543,b544,b545,b546,b547,b548,b549,b550
,b551,b552,b553,b554,b555,b556,b557,b558,b559,b560,b561,b562,b563
,b564,b565,b566,b567,b568,b569,b570,b571,b572,b573,b574,b575,b576
,b577,b578,b579,b580,b581,b582,b583,b584,b585,b586,b587,b588,b589
,b590,b591,b592,b593,b594,b595,b596,b597,b598,b599,b600,b601,b602
,b603,b604,b605,b606,b607,b608,b609,b610,b611,b612,b613,b614,b615
,b616,b617,b618,b619,b620,b621,b622,b623,b624,b625,b626,b627,b628
,b629,b630,b631,b632,b633,b634,b635,b636,b637,b638,b639,b640,b641
,b642,b643,b644,b645,b646,b647,b648,b649,b650,b651,b652,b653,b654
,b655,b656,b657,b658,b659,b660,b661,b662,b663,b664,b665,b666,b667
,b668,b669,b670,b671,b672,b673,b674,b675,b676,b677,b678,b679,b680
,b681,b682,b683,b684,b685;
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202,e203,e204,e205,e206,e207
,e208,e209,e210,e211,e212,e213,e214,e215,e216,e217,e218,e219,e220
,e221,e222,e223,e224,e225,e226,e227,e228,e229,e230,e231,e232,e233
,e234,e235,e236,e237,e238,e239,e240,e241,e242,e243,e244,e245,e246
,e247,e248,e249,e250,e251,e252,e253,e254,e255,e256,e257,e258,e259
,e260,e261,e262,e263,e264,e265,e266,e267,e268,e269,e270,e271,e272
,e273,e274,e275,e276,e277,e278,e279,e280,e281,e282,e283,e284,e285
,e286,e287,e288,e289,e290,e291,e292,e293,e294,e295,e296,e297,e298
,e299,e300,e301,e302,e303,e304,e305,e306,e307,e308,e309,e310,e311
,e312,e313,e314,e315,e316,e317,e318,e319,e320,e321,e322,e323,e324
,e325,e326,e327,e328,e329,e330,e331,e332,e333,e334,e335,e336,e337
,e338,e339,e340,e341,e342,e343,e344,e345,e346,e347,e348,e349,e350
,e351,e352,e353,e354,e355,e356,e357,e358,e359,e360,e361,e362,e363
,e364,e365,e366,e367,e368,e369,e370,e371,e372,e373,e374,e375,e376
,e377,e378,e379,e380,e381,e382,e383,e384,e385,e386,e387,e388,e389
,e390,e391,e392,e393,e394,e395,e396,e397,e398,e399,e400,e401,e402
,e403,e404,e405,e406,e407,e408,e409,e410,e411,e412,e413,e414,e415
,e416,e417,e418,e419,e420,e421,e422,e423,e424,e425,e426,e427,e428
,e429,e430,e431,e432,e433,e434,e435,e436,e437,e438,e439,e440,e441
,e442,e443,e444,e445,e446,e447,e448,e449,e450,e451,e452,e453,e454
,e455,e456,e457,e458,e459,e460,e461,e462,e463,e464,e465,e466,e467
,e468,e469,e470,e471,e472,e473,e474,e475,e476,e477,e478,e479,e480
,e481,e482,e483,e484,e485,e486,e487,e488,e489,e490,e491,e492,e493
,e494,e495,e496,e497,e498,e499,e500,e501,e502,e503,e504,e505,e506
,e507,e508,e509,e510,e511,e512,e513,e514,e515,e516,e517,e518,e519
,e520,e521,e522,e523,e524,e525,e526,e527,e528,e529,e530,e531,e532
,e533,e534,e535,e536,e537,e538,e539,e540,e541,e542,e543,e544,e545
,e546,e547,e548,e549,e550,e551,e552,e553,e554,e555,e556,e557,e558
,e559,e560,e561,e562,e563,e564,e565,e566,e567,e568,e569,e570,e571
,e572,e573,e574,e575,e576,e577,e578,e579,e580,e581,e582,e583,e584
,e585,e586,e587,e588,e589,e590,e591,e592,e593,e594,e595,e596,e597
,e598,e599,e600,e601,e602,e603,e604,e605,e606,e607,e608,e609,e610
,e611,e612,e613,e614,e615,e616,e617,e618,e619,e620,e621,e622,e623
,e624,e625,e626,e627,e628,e629,e630,e631,e632,e633,e634,e635,e636
,e637,e638,e639,e640,e641,e642,e643,e644,e645,e646,e647,e648,e649
,e650,e651,e652,e653,e654,e655,e656,e657,e658,e659,e660,e661,e662
,e663,e664,e665,e666,e667,e668,e669,e670,e671,e672,e673,e674,e675
,e676,e677,e678,e679,e680,e681,e682,e683,e684,e685,e686,e687,e688
,e689,e690,e691,e692,e693,e694,e695,e696,e697,e698,e699,e700,e701
,e702,e703,e704,e705,e706,e707,e708,e709,e710,e711,e712,e713,e714
,e715,e716,e717,e718,e719,e720,e721,e722,e723,e724,e725,e726,e727
,e728,e729,e730,e731,e732,e733,e734,e735,e736,e737,e738,e739,e740
,e741,e742,e743,e744,e745,e746,e747,e748,e749,e750,e751,e752,e753
,e754,e755,e756,e757,e758,e759,e760,e761,e762,e763,e764,e765,e766
,e767,e768,e769,e770,e771,e772,e773,e774,e775,e776,e777,e778,e779
,e780,e781,e782,e783,e784,e785,e786,e787,e788,e789,e790,e791,e792
,e793,e794,e795,e796,e797,e798,e799,e800,e801,e802,e803,e804,e805
,e806,e807,e808,e809,e810,e811,e812,e813,e814,e815,e816,e817,e818
,e819,e820,e821,e822,e823,e824,e825,e826,e827,e828,e829,e830,e831
,e832,e833,e834,e835,e836,e837,e838,e839,e840,e841,e842,e843,e844
,e845,e846,e847,e848,e849,e850,e851,e852,e853,e854,e855,e856,e857
,e858,e859,e860,e861,e862,e863,e864,e865,e866,e867,e868,e869,e870
,e871,e872,e873,e874,e875,e876,e877,e878,e879,e880,e881,e882,e883
,e884,e885,e886,e887,e888,e889,e890,e891,e892,e893,e894,e895,e896
,e897,e898,e899,e900,e901,e902,e903,e904,e905,e906,e907,e908,e909
,e910,e911,e912,e913,e914,e915,e916,e917,e918,e919,e920,e921,e922
,e923,e924,e925,e926,e927,e928,e929,e930,e931,e932,e933,e934,e935
,e936,e937,e938,e939,e940,e941,e942,e943,e944,e945,e946,e947,e948
,e949,e950,e951,e952,e953,e954,e955,e956,e957,e958,e959,e960,e961
,e962,e963,e964,e965,e966,e967,e968,e969,e970,e971,e972,e973,e974
,e975,e976,e977,e978,e979,e980,e981,e982,e983,e984,e985,e986,e987
,e988,e989,e990,e991,e992,e993,e994,e995,e996,e997,e998,e999,e1000
,e1001,e1002,e1003,e1004,e1005,e1006,e1007,e1008,e1009,e1010,e1011
,e1012,e1013,e1014,e1015,e1016,e1017,e1018,e1019,e1020,e1021,e1022
,e1023,e1024,e1025,e1026,e1027,e1028,e1029,e1030,e1031,e1032,e1033
,e1034,e1035,e1036,e1037,e1038,e1039,e1040,e1041,e1042,e1043,e1044
,e1045,e1046,e1047,e1048,e1049,e1050,e1051,e1052,e1053,e1054,e1055
,e1056,e1057,e1058,e1059,e1060,e1061,e1062,e1063,e1064,e1065,e1066
,e1067,e1068,e1069,e1070,e1071,e1072,e1073,e1074,e1075,e1076,e1077
,e1078,e1079,e1080,e1081,e1082,e1083,e1084,e1085,e1086,e1087,e1088
,e1089,e1090,e1091,e1092,e1093,e1094,e1095,e1096,e1097,e1098,e1099
,e1100,e1101,e1102,e1103,e1104,e1105,e1106,e1107,e1108,e1109,e1110
,e1111,e1112,e1113,e1114,e1115,e1116,e1117,e1118,e1119,e1120,e1121
,e1122,e1123,e1124,e1125,e1126,e1127,e1128,e1129,e1130,e1131,e1132
,e1133,e1134,e1135,e1136,e1137,e1138,e1139,e1140,e1141,e1142,e1143
,e1144,e1145,e1146,e1147,e1148,e1149,e1150,e1151,e1152,e1153,e1154
,e1155,e1156,e1157,e1158,e1159,e1160,e1161,e1162,e1163,e1164,e1165
,e1166,e1167,e1168,e1169,e1170,e1171,e1172,e1173,e1174,e1175,e1176
,e1177,e1178,e1179,e1180,e1181,e1182,e1183,e1184,e1185,e1186,e1187
,e1188,e1189,e1190,e1191,e1192,e1193,e1194,e1195,e1196,e1197,e1198
,e1199,e1200,e1201,e1202,e1203,e1204,e1205,e1206,e1207,e1208,e1209
,e1210,e1211,e1212,e1213;
e1.. objvar + x2 + x3 - 5*x14 - 10*x15 + x24 + x25 + 10*x58 + 5*x59 + 5*x60
+ 5*x61 - 40*x74 - 30*x75 - 15*x76 - 20*x77 - 10*x78 - 30*x79 - 30*x80
- 20*x81 - 35*x82 - 50*x83 - 20*x84 - 30*x85 - 25*x86 - 50*x87 - 15*x88
- 20*x89 - 30*x104 - 40*x105 + x114 + x115 + 5*x148 + 3*x149 + x150
+ x151 - 220*x164 - 210*x165 - 240*x166 - 220*x167 - 190*x168 - 160*x169
- 190*x170 - 190*x171 - 385*x172 - 490*x173 - 390*x174 - 505*x175
- 480*x176 - 600*x177 - 490*x178 - 600*x179 - 550*x180 - 550*x181
+ 5*b606 + 4*b607 + 8*b608 + 7*b609 + 6*b610 + 9*b611 + 10*b612 + 9*b613
+ 6*b614 + 10*b615 + 7*b616 + 7*b617 + 4*b618 + 3*b619 + 5*b620 + 6*b621
+ 2*b622 + 5*b623 + 4*b624 + 7*b625 + 3*b626 + 9*b627 + 7*b628 + 2*b629
+ 3*b630 + b631 + 2*b632 + 6*b633 + 4*b634 + 8*b635 + 2*b636 + 5*b637
+ 3*b638 + 4*b639 + 5*b640 + 7*b641 + 2*b642 + 8*b643 + b644 + 4*b645
+ 2*b646 + 5*b647 + 9*b648 + 2*b649 + 5*b650 + 8*b651 + 2*b652 + 3*b653
+ 10*b654 + 6*b655 + 4*b656 + 8*b657 + 7*b658 + 3*b659 + 4*b660 + 8*b661
+ 2*b662 + b663 + 8*b664 + 3*b665 + 9*b666 + 5*b667 + 3*b668 + 9*b669
+ 5*b670 + 3*b671 + 5*b672 + 3*b673 + 6*b674 + 4*b675 + 2*b676 + 6*b677
+ 6*b678 + 4*b679 + 3*b680 + 2*b681 + 5*b682 + 8*b683 + 9*b684 + 5*b685
=E= 0;
e2.. x2 - x4 - x6 =E= 0;
e3.. x3 - x5 - x7 =E= 0;
e4.. - x8 - x10 + x12 =E= 0;
e5.. - x9 - x11 + x13 =E= 0;
e6.. x12 - x14 - x16 =E= 0;
e7.. x13 - x15 - x17 =E= 0;
e8.. x16 - x18 - x20 - x22 =E= 0;
e9.. x17 - x19 - x21 - x23 =E= 0;
e10.. x26 - x32 - x34 =E= 0;
e11.. x27 - x33 - x35 =E= 0;
e12.. x30 - x36 - x38 - x40 =E= 0;
e13.. x31 - x37 - x39 - x41 =E= 0;
e14.. x46 - x54 - x56 =E= 0;
e15.. x47 - x55 - x57 =E= 0;
e16.. - x48 - x60 + x62 =E= 0;
e17.. - x49 - x61 + x63 =E= 0;
e18.. x50 - x64 - x66 =E= 0;
e19.. x51 - x65 - x67 =E= 0;
e20.. x52 - x68 - x70 - x72 =E= 0;
e21.. x53 - x69 - x71 - x73 =E= 0;
e22.. x90 - x92 =E= 0;
e23.. x91 - x93 =E= 0;
e24.. x92 - x94 - x96 =E= 0;
e25.. x93 - x95 - x97 =E= 0;
e26.. - x98 - x100 + x102 =E= 0;
e27.. - x99 - x101 + x103 =E= 0;
e28.. x102 - x104 - x106 =E= 0;
e29.. x103 - x105 - x107 =E= 0;
e30.. x106 - x108 - x110 - x112 =E= 0;
e31.. x107 - x109 - x111 - x113 =E= 0;
e32.. x116 - x122 - x124 =E= 0;
e33.. x117 - x123 - x125 =E= 0;
e34.. x120 - x126 - x128 - x130 =E= 0;
e35.. x121 - x127 - x129 - x131 =E= 0;
e36.. x136 - x144 - x146 =E= 0;
e37.. x137 - x145 - x147 =E= 0;
e38.. - x138 - x150 + x152 =E= 0;
e39.. - x139 - x151 + x153 =E= 0;
e40.. x140 - x154 - x156 =E= 0;
e41.. x141 - x155 - x157 =E= 0;
e42.. x142 - x158 - x160 - x162 =E= 0;
e43.. x143 - x159 - x161 - x163 =E= 0;
e44.. (x190/(1e-6 + b526) - log(1 + x182/(1e-6 + b526)))*(1e-6 + b526) =L= 0;
e45.. (x191/(1e-6 + b527) - log(1 + x183/(1e-6 + b527)))*(1e-6 + b527) =L= 0;
e46.. x184 =E= 0;
e47.. x185 =E= 0;
e48.. x192 =E= 0;
e49.. x193 =E= 0;
e50.. x4 - x182 - x184 =E= 0;
e51.. x5 - x183 - x185 =E= 0;
e52.. x8 - x190 - x192 =E= 0;
e53.. x9 - x191 - x193 =E= 0;
e54.. x182 - 10*b526 =L= 0;
e55.. x183 - 10*b527 =L= 0;
e56.. x184 + 10*b526 =L= 10;
e57.. x185 + 10*b527 =L= 10;
e58.. x190 - 2.39789527279837*b526 =L= 0;
e59.. x191 - 2.39789527279837*b527 =L= 0;
e60.. x192 + 2.39789527279837*b526 =L= 2.39789527279837;
e61.. x193 + 2.39789527279837*b527 =L= 2.39789527279837;
e62.. (x194/(1e-6 + b528) - 1.2*log(1 + x186/(1e-6 + b528)))*(1e-6 + b528)
=L= 0;
e63.. (x195/(1e-6 + b529) - 1.2*log(1 + x187/(1e-6 + b529)))*(1e-6 + b529)
=L= 0;
e64.. x188 =E= 0;
e65.. x189 =E= 0;
e66.. x196 =E= 0;
e67.. x197 =E= 0;
e68.. x6 - x186 - x188 =E= 0;
e69.. x7 - x187 - x189 =E= 0;
e70.. x10 - x194 - x196 =E= 0;
e71.. x11 - x195 - x197 =E= 0;
e72.. x186 - 10*b528 =L= 0;
e73.. x187 - 10*b529 =L= 0;
e74.. x188 + 10*b528 =L= 10;
e75.. x189 + 10*b529 =L= 10;
e76.. x194 - 2.87747432735804*b528 =L= 0;
e77.. x195 - 2.87747432735804*b529 =L= 0;
e78.. x196 + 2.87747432735804*b528 =L= 2.87747432735804;
e79.. x197 + 2.87747432735804*b529 =L= 2.87747432735804;
e80.. - 0.75*x198 + x214 =E= 0;
e81.. - 0.75*x199 + x215 =E= 0;
e82.. x200 =E= 0;
e83.. x201 =E= 0;
e84.. x216 =E= 0;
e85.. x217 =E= 0;
e86.. x18 - x198 - x200 =E= 0;
e87.. x19 - x199 - x201 =E= 0;
e88.. x26 - x214 - x216 =E= 0;
e89.. x27 - x215 - x217 =E= 0;
e90.. x198 - 2.87747432735804*b530 =L= 0;
e91.. x199 - 2.87747432735804*b531 =L= 0;
e92.. x200 + 2.87747432735804*b530 =L= 2.87747432735804;
e93.. x201 + 2.87747432735804*b531 =L= 2.87747432735804;
e94.. x214 - 2.15810574551853*b530 =L= 0;
e95.. x215 - 2.15810574551853*b531 =L= 0;
e96.. x216 + 2.15810574551853*b530 =L= 2.15810574551853;
e97.. x217 + 2.15810574551853*b531 =L= 2.15810574551853;
e98.. (x218/(1e-6 + b532) - 1.5*log(1 + x202/(1e-6 + b532)))*(1e-6 + b532)
=L= 0;
e99.. (x219/(1e-6 + b533) - 1.5*log(1 + x203/(1e-6 + b533)))*(1e-6 + b533)
=L= 0;
e100.. x204 =E= 0;
e101.. x205 =E= 0;
e102.. x222 =E= 0;
e103.. x223 =E= 0;
e104.. x20 - x202 - x204 =E= 0;
e105.. x21 - x203 - x205 =E= 0;
e106.. x28 - x218 - x222 =E= 0;
e107.. x29 - x219 - x223 =E= 0;
e108.. x202 - 2.87747432735804*b532 =L= 0;
e109.. x203 - 2.87747432735804*b533 =L= 0;
e110.. x204 + 2.87747432735804*b532 =L= 2.87747432735804;
e111.. x205 + 2.87747432735804*b533 =L= 2.87747432735804;
e112.. x218 - 2.03277599268042*b532 =L= 0;
e113.. x219 - 2.03277599268042*b533 =L= 0;
e114.. x222 + 2.03277599268042*b532 =L= 2.03277599268042;
e115.. x223 + 2.03277599268042*b533 =L= 2.03277599268042;
e116.. - x206 + x226 =E= 0;
e117.. - x207 + x227 =E= 0;
e118.. - 0.5*x210 + x226 =E= 0;
e119.. - 0.5*x211 + x227 =E= 0;
e120.. x208 =E= 0;
e121.. x209 =E= 0;
e122.. x212 =E= 0;
e123.. x213 =E= 0;
e124.. x228 =E= 0;
e125.. x229 =E= 0;
e126.. x22 - x206 - x208 =E= 0;
e127.. x23 - x207 - x209 =E= 0;
e128.. x24 - x210 - x212 =E= 0;
e129.. x25 - x211 - x213 =E= 0;
e130.. x30 - x226 - x228 =E= 0;
e131.. x31 - x227 - x229 =E= 0;
e132.. x206 - 2.87747432735804*b534 =L= 0;
e133.. x207 - 2.87747432735804*b535 =L= 0;
e134.. x208 + 2.87747432735804*b534 =L= 2.87747432735804;
e135.. x209 + 2.87747432735804*b535 =L= 2.87747432735804;
e136.. x210 - 7*b534 =L= 0;
e137.. x211 - 7*b535 =L= 0;
e138.. x212 + 7*b534 =L= 7;
e139.. x213 + 7*b535 =L= 7;
e140.. x226 - 3.5*b534 =L= 0;
e141.. x227 - 3.5*b535 =L= 0;
e142.. x228 + 3.5*b534 =L= 3.5;
e143.. x229 + 3.5*b535 =L= 3.5;
e144.. (x250/(1e-6 + b536) - 1.25*log(1 + x230/(1e-6 + b536)))*(1e-6 + b536)
=L= 0;
e145.. (x251/(1e-6 + b537) - 1.25*log(1 + x231/(1e-6 + b537)))*(1e-6 + b537)
=L= 0;
e146.. x232 =E= 0;
e147.. x233 =E= 0;
e148.. x254 =E= 0;
e149.. x255 =E= 0;
e150.. x32 - x230 - x232 =E= 0;
e151.. x33 - x231 - x233 =E= 0;
e152.. x42 - x250 - x254 =E= 0;
e153.. x43 - x251 - x255 =E= 0;
e154.. x230 - 2.15810574551853*b536 =L= 0;
e155.. x231 - 2.15810574551853*b537 =L= 0;
e156.. x232 + 2.15810574551853*b536 =L= 2.15810574551853;
e157.. x233 + 2.15810574551853*b537 =L= 2.15810574551853;
e158.. x250 - 1.43746550029693*b536 =L= 0;
e159.. x251 - 1.43746550029693*b537 =L= 0;
e160.. x254 + 1.43746550029693*b536 =L= 1.43746550029693;
e161.. x255 + 1.43746550029693*b537 =L= 1.43746550029693;
e162.. (x258/(1e-6 + b538) - 0.9*log(1 + x234/(1e-6 + b538)))*(1e-6 + b538)
=L= 0;
e163.. (x259/(1e-6 + b539) - 0.9*log(1 + x235/(1e-6 + b539)))*(1e-6 + b539)
=L= 0;
e164.. x236 =E= 0;
e165.. x237 =E= 0;
e166.. x262 =E= 0;
e167.. x263 =E= 0;
e168.. x34 - x234 - x236 =E= 0;
e169.. x35 - x235 - x237 =E= 0;
e170.. x44 - x258 - x262 =E= 0;
e171.. x45 - x259 - x263 =E= 0;
e172.. x234 - 2.15810574551853*b538 =L= 0;
e173.. x235 - 2.15810574551853*b539 =L= 0;
e174.. x236 + 2.15810574551853*b538 =L= 2.15810574551853;
e175.. x237 + 2.15810574551853*b539 =L= 2.15810574551853;
e176.. x258 - 1.03497516021379*b538 =L= 0;
e177.. x259 - 1.03497516021379*b539 =L= 0;
e178.. x262 + 1.03497516021379*b538 =L= 1.03497516021379;
e179.. x263 + 1.03497516021379*b539 =L= 1.03497516021379;
e180.. (x266/(1e-6 + b540) - log(1 + x220/(1e-6 + b540)))*(1e-6 + b540) =L= 0;
e181.. (x267/(1e-6 + b541) - log(1 + x221/(1e-6 + b541)))*(1e-6 + b541) =L= 0;
e182.. x224 =E= 0;
e183.. x225 =E= 0;
e184.. x268 =E= 0;
e185.. x269 =E= 0;
e186.. x28 - x220 - x224 =E= 0;
e187.. x29 - x221 - x225 =E= 0;
e188.. x46 - x266 - x268 =E= 0;
e189.. x47 - x267 - x269 =E= 0;
e190.. x220 - 2.03277599268042*b540 =L= 0;
e191.. x221 - 2.03277599268042*b541 =L= 0;
e192.. x224 + 2.03277599268042*b540 =L= 2.03277599268042;
e193.. x225 + 2.03277599268042*b541 =L= 2.03277599268042;
e194.. x266 - 1.10947836929589*b540 =L= 0;
e195.. x267 - 1.10947836929589*b541 =L= 0;
e196.. x268 + 1.10947836929589*b540 =L= 1.10947836929589;
e197.. x269 + 1.10947836929589*b541 =L= 1.10947836929589;
e198.. - 0.9*x238 + x270 =E= 0;
e199.. - 0.9*x239 + x271 =E= 0;
e200.. x240 =E= 0;
e201.. x241 =E= 0;
e202.. x272 =E= 0;
e203.. x273 =E= 0;
e204.. x36 - x238 - x240 =E= 0;
e205.. x37 - x239 - x241 =E= 0;
e206.. x48 - x270 - x272 =E= 0;
e207.. x49 - x271 - x273 =E= 0;
e208.. x238 - 3.5*b542 =L= 0;
e209.. x239 - 3.5*b543 =L= 0;
e210.. x240 + 3.5*b542 =L= 3.5;
e211.. x241 + 3.5*b543 =L= 3.5;
e212.. x270 - 3.15*b542 =L= 0;
e213.. x271 - 3.15*b543 =L= 0;
e214.. x272 + 3.15*b542 =L= 3.15;
e215.. x273 + 3.15*b543 =L= 3.15;
e216.. - 0.6*x242 + x274 =E= 0;
e217.. - 0.6*x243 + x275 =E= 0;
e218.. x244 =E= 0;
e219.. x245 =E= 0;
e220.. x276 =E= 0;
e221.. x277 =E= 0;
e222.. x38 - x242 - x244 =E= 0;
e223.. x39 - x243 - x245 =E= 0;
e224.. x50 - x274 - x276 =E= 0;
e225.. x51 - x275 - x277 =E= 0;
e226.. x242 - 3.5*b544 =L= 0;
e227.. x243 - 3.5*b545 =L= 0;
e228.. x244 + 3.5*b544 =L= 3.5;
e229.. x245 + 3.5*b545 =L= 3.5;
e230.. x274 - 2.1*b544 =L= 0;
e231.. x275 - 2.1*b545 =L= 0;
e232.. x276 + 2.1*b544 =L= 2.1;
e233.. x277 + 2.1*b545 =L= 2.1;
e234.. (x278/(1e-6 + b546) - 1.1*log(1 + x246/(1e-6 + b546)))*(1e-6 + b546)
=L= 0;
e235.. (x279/(1e-6 + b547) - 1.1*log(1 + x247/(1e-6 + b547)))*(1e-6 + b547)
=L= 0;
e236.. x248 =E= 0;
e237.. x249 =E= 0;
e238.. x280 =E= 0;
e239.. x281 =E= 0;
e240.. x40 - x246 - x248 =E= 0;
e241.. x41 - x247 - x249 =E= 0;
e242.. x52 - x278 - x280 =E= 0;
e243.. x53 - x279 - x281 =E= 0;
e244.. x246 - 3.5*b546 =L= 0;
e245.. x247 - 3.5*b547 =L= 0;
e246.. x248 + 3.5*b546 =L= 3.5;
e247.. x249 + 3.5*b547 =L= 3.5;
e248.. x278 - 1.6544851364539*b546 =L= 0;
e249.. x279 - 1.6544851364539*b547 =L= 0;
e250.. x280 + 1.6544851364539*b546 =L= 1.6544851364539;
e251.. x281 + 1.6544851364539*b547 =L= 1.6544851364539;
e252.. - 0.9*x252 + x318 =E= 0;
e253.. - 0.9*x253 + x319 =E= 0;
e254.. - x290 + x318 =E= 0;
e255.. - x291 + x319 =E= 0;
e256.. x256 =E= 0;
e257.. x257 =E= 0;
e258.. x292 =E= 0;
e259.. x293 =E= 0;
e260.. x320 =E= 0;
e261.. x321 =E= 0;
e262.. x42 - x252 - x256 =E= 0;
e263.. x43 - x253 - x257 =E= 0;
e264.. x58 - x290 - x292 =E= 0;
e265.. x59 - x291 - x293 =E= 0;
e266.. x74 - x318 - x320 =E= 0;
e267.. x75 - x319 - x321 =E= 0;
e268.. x252 - 1.43746550029693*b548 =L= 0;
e269.. x253 - 1.43746550029693*b549 =L= 0;
e270.. x256 + 1.43746550029693*b548 =L= 1.43746550029693;
e271.. x257 + 1.43746550029693*b549 =L= 1.43746550029693;
e272.. x290 - 7*b548 =L= 0;
e273.. x291 - 7*b549 =L= 0;
e274.. x292 + 7*b548 =L= 7;
e275.. x293 + 7*b549 =L= 7;
e276.. x318 - 7*b548 =L= 0;
e277.. x319 - 7*b549 =L= 0;
e278.. x320 + 7*b548 =L= 7;
e279.. x321 + 7*b549 =L= 7;
e280.. (x322/(1e-6 + b550) - log(1 + x260/(1e-6 + b550)))*(1e-6 + b550) =L= 0;
e281.. (x323/(1e-6 + b551) - log(1 + x261/(1e-6 + b551)))*(1e-6 + b551) =L= 0;
e282.. x264 =E= 0;
e283.. x265 =E= 0;
e284.. x324 =E= 0;
e285.. x325 =E= 0;
e286.. x44 - x260 - x264 =E= 0;
e287.. x45 - x261 - x265 =E= 0;
e288.. x76 - x322 - x324 =E= 0;
e289.. x77 - x323 - x325 =E= 0;
e290.. x260 - 1.03497516021379*b550 =L= 0;
e291.. x261 - 1.03497516021379*b551 =L= 0;
e292.. x264 + 1.03497516021379*b550 =L= 1.03497516021379;
e293.. x265 + 1.03497516021379*b551 =L= 1.03497516021379;
e294.. x322 - 0.710483612536911*b550 =L= 0;
e295.. x323 - 0.710483612536911*b551 =L= 0;
e296.. x324 + 0.710483612536911*b550 =L= 0.710483612536911;
e297.. x325 + 0.710483612536911*b551 =L= 0.710483612536911;
e298.. (x326/(1e-6 + b552) - 0.7*log(1 + x282/(1e-6 + b552)))*(1e-6 + b552)
=L= 0;
e299.. (x327/(1e-6 + b553) - 0.7*log(1 + x283/(1e-6 + b553)))*(1e-6 + b553)
=L= 0;
e300.. x284 =E= 0;
e301.. x285 =E= 0;
e302.. x328 =E= 0;
e303.. x329 =E= 0;
e304.. x54 - x282 - x284 =E= 0;
e305.. x55 - x283 - x285 =E= 0;
e306.. x78 - x326 - x328 =E= 0;
e307.. x79 - x327 - x329 =E= 0;
e308.. x282 - 1.10947836929589*b552 =L= 0;
e309.. x283 - 1.10947836929589*b553 =L= 0;
e310.. x284 + 1.10947836929589*b552 =L= 1.10947836929589;
e311.. x285 + 1.10947836929589*b553 =L= 1.10947836929589;
e312.. x326 - 0.522508489006913*b552 =L= 0;
e313.. x327 - 0.522508489006913*b553 =L= 0;
e314.. x328 + 0.522508489006913*b552 =L= 0.522508489006913;
e315.. x329 + 0.522508489006913*b553 =L= 0.522508489006913;
e316.. (x330/(1e-6 + b554) - 0.65*log(1 + x286/(1e-6 + b554)))*(1e-6 + b554)
=L= 0;
e317.. (x331/(1e-6 + b555) - 0.65*log(1 + x287/(1e-6 + b555)))*(1e-6 + b555)
=L= 0;
e318.. (x330/(1e-6 + b554) - 0.65*log(1 + x294/(1e-6 + b554)))*(1e-6 + b554)
=L= 0;
e319.. (x331/(1e-6 + b555) - 0.65*log(1 + x295/(1e-6 + b555)))*(1e-6 + b555)
=L= 0;
e320.. x288 =E= 0;
e321.. x289 =E= 0;
e322.. x296 =E= 0;
e323.. x297 =E= 0;
e324.. x332 =E= 0;
e325.. x333 =E= 0;
e326.. x56 - x286 - x288 =E= 0;
e327.. x57 - x287 - x289 =E= 0;
e328.. x62 - x294 - x296 =E= 0;
e329.. x63 - x295 - x297 =E= 0;
e330.. x80 - x330 - x332 =E= 0;
e331.. x81 - x331 - x333 =E= 0;
e332.. x286 - 1.10947836929589*b554 =L= 0;
e333.. x287 - 1.10947836929589*b555 =L= 0;
e334.. x288 + 1.10947836929589*b554 =L= 1.10947836929589;
e335.. x289 + 1.10947836929589*b555 =L= 1.10947836929589;
e336.. x294 - 8.15*b554 =L= 0;
e337.. x295 - 8.15*b555 =L= 0;
e338.. x296 + 8.15*b554 =L= 8.15;
e339.. x297 + 8.15*b555 =L= 8.15;
e340.. x330 - 1.43894002153683*b554 =L= 0;
e341.. x331 - 1.43894002153683*b555 =L= 0;
e342.. x332 + 1.43894002153683*b554 =L= 1.43894002153683;
e343.. x333 + 1.43894002153683*b555 =L= 1.43894002153683;
e344.. - x298 + x334 =E= 0;
e345.. - x299 + x335 =E= 0;
e346.. x300 =E= 0;
e347.. x301 =E= 0;
e348.. x336 =E= 0;
e349.. x337 =E= 0;
e350.. x64 - x298 - x300 =E= 0;
e351.. x65 - x299 - x301 =E= 0;
e352.. x82 - x334 - x336 =E= 0;
e353.. x83 - x335 - x337 =E= 0;
e354.. x298 - 2.1*b556 =L= 0;
e355.. x299 - 2.1*b557 =L= 0;
e356.. x300 + 2.1*b556 =L= 2.1;
e357.. x301 + 2.1*b557 =L= 2.1;
e358.. x334 - 2.1*b556 =L= 0;
e359.. x335 - 2.1*b557 =L= 0;
e360.. x336 + 2.1*b556 =L= 2.1;
e361.. x337 + 2.1*b557 =L= 2.1;
e362.. - x302 + x338 =E= 0;
e363.. - x303 + x339 =E= 0;
e364.. x304 =E= 0;
e365.. x305 =E= 0;
e366.. x340 =E= 0;
e367.. x341 =E= 0;
e368.. x66 - x302 - x304 =E= 0;
e369.. x67 - x303 - x305 =E= 0;
e370.. x84 - x338 - x340 =E= 0;
e371.. x85 - x339 - x341 =E= 0;
e372.. x302 - 2.1*b558 =L= 0;
e373.. x303 - 2.1*b559 =L= 0;
e374.. x304 + 2.1*b558 =L= 2.1;
e375.. x305 + 2.1*b559 =L= 2.1;
e376.. x338 - 2.1*b558 =L= 0;
e377.. x339 - 2.1*b559 =L= 0;
e378.. x340 + 2.1*b558 =L= 2.1;
e379.. x341 + 2.1*b559 =L= 2.1;
e380.. (x342/(1e-6 + b560) - 0.75*log(1 + x306/(1e-6 + b560)))*(1e-6 + b560)
=L= 0;
e381.. (x343/(1e-6 + b561) - 0.75*log(1 + x307/(1e-6 + b561)))*(1e-6 + b561)
=L= 0;
e382.. x308 =E= 0;
e383.. x309 =E= 0;
e384.. x344 =E= 0;
e385.. x345 =E= 0;
e386.. x68 - x306 - x308 =E= 0;
e387.. x69 - x307 - x309 =E= 0;
e388.. x86 - x342 - x344 =E= 0;
e389.. x87 - x343 - x345 =E= 0;
e390.. x306 - 1.6544851364539*b560 =L= 0;
e391.. x307 - 1.6544851364539*b561 =L= 0;
e392.. x308 + 1.6544851364539*b560 =L= 1.6544851364539;
e393.. x309 + 1.6544851364539*b561 =L= 1.6544851364539;
e394.. x342 - 0.732188035236726*b560 =L= 0;
e395.. x343 - 0.732188035236726*b561 =L= 0;
e396.. x344 + 0.732188035236726*b560 =L= 0.732188035236726;
e397.. x345 + 0.732188035236726*b561 =L= 0.732188035236726;
e398.. (x346/(1e-6 + b562) - 0.8*log(1 + x310/(1e-6 + b562)))*(1e-6 + b562)
=L= 0;
e399.. (x347/(1e-6 + b563) - 0.8*log(1 + x311/(1e-6 + b563)))*(1e-6 + b563)
=L= 0;
e400.. x312 =E= 0;
e401.. x313 =E= 0;
e402.. x348 =E= 0;
e403.. x349 =E= 0;
e404.. x70 - x310 - x312 =E= 0;
e405.. x71 - x311 - x313 =E= 0;
e406.. x88 - x346 - x348 =E= 0;
e407.. x89 - x347 - x349 =E= 0;
e408.. x310 - 1.6544851364539*b562 =L= 0;
e409.. x311 - 1.6544851364539*b563 =L= 0;
e410.. x312 + 1.6544851364539*b562 =L= 1.6544851364539;
e411.. x313 + 1.6544851364539*b563 =L= 1.6544851364539;
e412.. x346 - 0.781000570919175*b562 =L= 0;
e413.. x347 - 0.781000570919175*b563 =L= 0;
e414.. x348 + 0.781000570919175*b562 =L= 0.781000570919175;
e415.. x349 + 0.781000570919175*b563 =L= 0.781000570919175;
e416.. (x350/(1e-6 + b564) - 0.85*log(1 + x314/(1e-6 + b564)))*(1e-6 + b564)
=L= 0;
e417.. (x351/(1e-6 + b565) - 0.85*log(1 + x315/(1e-6 + b565)))*(1e-6 + b565)
=L= 0;
e418.. x316 =E= 0;
e419.. x317 =E= 0;
e420.. x352 =E= 0;
e421.. x353 =E= 0;
e422.. x72 - x314 - x316 =E= 0;
e423.. x73 - x315 - x317 =E= 0;
e424.. x90 - x350 - x352 =E= 0;
e425.. x91 - x351 - x353 =E= 0;
e426.. x314 - 1.6544851364539*b564 =L= 0;
e427.. x315 - 1.6544851364539*b565 =L= 0;
e428.. x316 + 1.6544851364539*b564 =L= 1.6544851364539;
e429.. x317 + 1.6544851364539*b565 =L= 1.6544851364539;
e430.. x350 - 0.829813106601623*b564 =L= 0;
e431.. x351 - 0.829813106601623*b565 =L= 0;
e432.. x352 + 0.829813106601623*b564 =L= 0.829813106601623;
e433.. x353 + 0.829813106601623*b565 =L= 0.829813106601623;
e434.. (x362/(1e-6 + b566) - log(1 + x354/(1e-6 + b566)))*(1e-6 + b566) =L= 0;
e435.. (x363/(1e-6 + b567) - log(1 + x355/(1e-6 + b567)))*(1e-6 + b567) =L= 0;
e436.. x356 =E= 0;
e437.. x357 =E= 0;
e438.. x364 =E= 0;
e439.. x365 =E= 0;
e440.. x94 - x354 - x356 =E= 0;
e441.. x95 - x355 - x357 =E= 0;
e442.. x98 - x362 - x364 =E= 0;
e443.. x99 - x363 - x365 =E= 0;
e444.. x354 - 0.829813106601623*b566 =L= 0;
e445.. x355 - 0.829813106601623*b567 =L= 0;
e446.. x356 + 0.829813106601623*b566 =L= 0.829813106601623;
e447.. x357 + 0.829813106601623*b567 =L= 0.829813106601623;
e448.. x362 - 0.604213834097861*b566 =L= 0;
e449.. x363 - 0.604213834097861*b567 =L= 0;
e450.. x364 + 0.604213834097861*b566 =L= 0.604213834097861;
e451.. x365 + 0.604213834097861*b567 =L= 0.604213834097861;
e452.. (x366/(1e-6 + b568) - 1.2*log(1 + x358/(1e-6 + b568)))*(1e-6 + b568)
=L= 0;
e453.. (x367/(1e-6 + b569) - 1.2*log(1 + x359/(1e-6 + b569)))*(1e-6 + b569)
=L= 0;
e454.. x360 =E= 0;
e455.. x361 =E= 0;
e456.. x368 =E= 0;
e457.. x369 =E= 0;
e458.. x96 - x358 - x360 =E= 0;
e459.. x97 - x359 - x361 =E= 0;
e460.. x100 - x366 - x368 =E= 0;
e461.. x101 - x367 - x369 =E= 0;
e462.. x358 - 0.829813106601623*b568 =L= 0;
e463.. x359 - 0.829813106601623*b569 =L= 0;
e464.. x360 + 0.829813106601623*b568 =L= 0.829813106601623;
e465.. x361 + 0.829813106601623*b569 =L= 0.829813106601623;
e466.. x366 - 0.725056600917433*b568 =L= 0;
e467.. x367 - 0.725056600917433*b569 =L= 0;
e468.. x368 + 0.725056600917433*b568 =L= 0.725056600917433;
e469.. x369 + 0.725056600917433*b569 =L= 0.725056600917433;
e470.. - 0.75*x370 + x386 =E= 0;
e471.. - 0.75*x371 + x387 =E= 0;
e472.. x372 =E= 0;
e473.. x373 =E= 0;
e474.. x388 =E= 0;
e475.. x389 =E= 0;
e476.. x108 - x370 - x372 =E= 0;
e477.. x109 - x371 - x373 =E= 0;
e478.. x116 - x386 - x388 =E= 0;
e479.. x117 - x387 - x389 =E= 0;
e480.. x370 - 0.725056600917433*b570 =L= 0;
e481.. x371 - 0.725056600917433*b571 =L= 0;
e482.. x372 + 0.725056600917433*b570 =L= 0.725056600917433;
e483.. x373 + 0.725056600917433*b571 =L= 0.725056600917433;
e484.. x386 - 0.543792450688075*b570 =L= 0;
e485.. x387 - 0.543792450688075*b571 =L= 0;
e486.. x388 + 0.543792450688075*b570 =L= 0.543792450688075;
e487.. x389 + 0.543792450688075*b571 =L= 0.543792450688075;
e488.. (x390/(1e-6 + b572) - 1.5*log(1 + x374/(1e-6 + b572)))*(1e-6 + b572)
=L= 0;
e489.. (x391/(1e-6 + b573) - 1.5*log(1 + x375/(1e-6 + b573)))*(1e-6 + b573)
=L= 0;
e490.. x376 =E= 0;
e491.. x377 =E= 0;
e492.. x394 =E= 0;
e493.. x395 =E= 0;
e494.. x110 - x374 - x376 =E= 0;
e495.. x111 - x375 - x377 =E= 0;
e496.. x118 - x390 - x394 =E= 0;
e497.. x119 - x391 - x395 =E= 0;
e498.. x374 - 0.725056600917433*b572 =L= 0;
e499.. x375 - 0.725056600917433*b573 =L= 0;
e500.. x376 + 0.725056600917433*b572 =L= 0.725056600917433;
e501.. x377 + 0.725056600917433*b573 =L= 0.725056600917433;
e502.. x390 - 0.817889793106597*b572 =L= 0;
e503.. x391 - 0.817889793106597*b573 =L= 0;
e504.. x394 + 0.817889793106597*b572 =L= 0.817889793106597;
e505.. x395 + 0.817889793106597*b573 =L= 0.817889793106597;
e506.. - x378 + x398 =E= 0;
e507.. - x379 + x399 =E= 0;
e508.. - 0.5*x382 + x398 =E= 0;
e509.. - 0.5*x383 + x399 =E= 0;
e510.. x380 =E= 0;
e511.. x381 =E= 0;
e512.. x384 =E= 0;
e513.. x385 =E= 0;
e514.. x400 =E= 0;
e515.. x401 =E= 0;
e516.. x112 - x378 - x380 =E= 0;
e517.. x113 - x379 - x381 =E= 0;
e518.. x114 - x382 - x384 =E= 0;
e519.. x115 - x383 - x385 =E= 0;
e520.. x120 - x398 - x400 =E= 0;
e521.. x121 - x399 - x401 =E= 0;
e522.. x378 - 0.725056600917433*b574 =L= 0;
e523.. x379 - 0.725056600917433*b575 =L= 0;
e524.. x380 + 0.725056600917433*b574 =L= 0.725056600917433;
e525.. x381 + 0.725056600917433*b575 =L= 0.725056600917433;
e526.. x382 - 7*b574 =L= 0;
e527.. x383 - 7*b575 =L= 0;
e528.. x384 + 7*b574 =L= 7;
e529.. x385 + 7*b575 =L= 7;
e530.. x398 - 3.5*b574 =L= 0;
e531.. x399 - 3.5*b575 =L= 0;
e532.. x400 + 3.5*b574 =L= 3.5;
e533.. x401 + 3.5*b575 =L= 3.5;
e534.. (x422/(1e-6 + b576) - 1.25*log(1 + x402/(1e-6 + b576)))*(1e-6 + b576)
=L= 0;
e535.. (x423/(1e-6 + b577) - 1.25*log(1 + x403/(1e-6 + b577)))*(1e-6 + b577)
=L= 0;
e536.. x404 =E= 0;
e537.. x405 =E= 0;
e538.. x426 =E= 0;
e539.. x427 =E= 0;
e540.. x122 - x402 - x404 =E= 0;
e541.. x123 - x403 - x405 =E= 0;
e542.. x132 - x422 - x426 =E= 0;
e543.. x133 - x423 - x427 =E= 0;
e544.. x402 - 0.543792450688075*b576 =L= 0;
e545.. x403 - 0.543792450688075*b577 =L= 0;
e546.. x404 + 0.543792450688075*b576 =L= 0.543792450688075;
e547.. x405 + 0.543792450688075*b577 =L= 0.543792450688075;
e548.. x422 - 0.542802524296876*b576 =L= 0;
e549.. x423 - 0.542802524296876*b577 =L= 0;
e550.. x426 + 0.542802524296876*b576 =L= 0.542802524296876;
e551.. x427 + 0.542802524296876*b577 =L= 0.542802524296876;
e552.. (x430/(1e-6 + b578) - 0.9*log(1 + x406/(1e-6 + b578)))*(1e-6 + b578)
=L= 0;
e553.. (x431/(1e-6 + b579) - 0.9*log(1 + x407/(1e-6 + b579)))*(1e-6 + b579)
=L= 0;
e554.. x408 =E= 0;
e555.. x409 =E= 0;
e556.. x434 =E= 0;
e557.. x435 =E= 0;
e558.. x124 - x406 - x408 =E= 0;
e559.. x125 - x407 - x409 =E= 0;
e560.. x134 - x430 - x434 =E= 0;
e561.. x135 - x431 - x435 =E= 0;
e562.. x406 - 0.543792450688075*b578 =L= 0;
e563.. x407 - 0.543792450688075*b579 =L= 0;
e564.. x408 + 0.543792450688075*b578 =L= 0.543792450688075;
e565.. x409 + 0.543792450688075*b579 =L= 0.543792450688075;
e566.. x430 - 0.39081781749375*b578 =L= 0;
e567.. x431 - 0.39081781749375*b579 =L= 0;
e568.. x434 + 0.39081781749375*b578 =L= 0.39081781749375;
e569.. x435 + 0.39081781749375*b579 =L= 0.39081781749375;
e570.. (x438/(1e-6 + b580) - log(1 + x392/(1e-6 + b580)))*(1e-6 + b580) =L= 0;
e571.. (x439/(1e-6 + b581) - log(1 + x393/(1e-6 + b581)))*(1e-6 + b581) =L= 0;
e572.. x396 =E= 0;
e573.. x397 =E= 0;
e574.. x440 =E= 0;
e575.. x441 =E= 0;
e576.. x118 - x392 - x396 =E= 0;
e577.. x119 - x393 - x397 =E= 0;
e578.. x136 - x438 - x440 =E= 0;
e579.. x137 - x439 - x441 =E= 0;
e580.. x392 - 0.817889793106597*b580 =L= 0;
e581.. x393 - 0.817889793106597*b581 =L= 0;
e582.. x396 + 0.817889793106597*b580 =L= 0.817889793106597;
e583.. x397 + 0.817889793106597*b581 =L= 0.817889793106597;
e584.. x438 - 0.597676374064473*b580 =L= 0;
e585.. x439 - 0.597676374064473*b581 =L= 0;
e586.. x440 + 0.597676374064473*b580 =L= 0.597676374064473;
e587.. x441 + 0.597676374064473*b581 =L= 0.597676374064473;
e588.. - 0.9*x410 + x442 =E= 0;
e589.. - 0.9*x411 + x443 =E= 0;
e590.. x412 =E= 0;
e591.. x413 =E= 0;
e592.. x444 =E= 0;
e593.. x445 =E= 0;
e594.. x126 - x410 - x412 =E= 0;
e595.. x127 - x411 - x413 =E= 0;
e596.. x138 - x442 - x444 =E= 0;
e597.. x139 - x443 - x445 =E= 0;
e598.. x410 - 3.5*b582 =L= 0;
e599.. x411 - 3.5*b583 =L= 0;
e600.. x412 + 3.5*b582 =L= 3.5;
e601.. x413 + 3.5*b583 =L= 3.5;
e602.. x442 - 3.15*b582 =L= 0;
e603.. x443 - 3.15*b583 =L= 0;
e604.. x444 + 3.15*b582 =L= 3.15;
e605.. x445 + 3.15*b583 =L= 3.15;
e606.. - 0.6*x414 + x446 =E= 0;
e607.. - 0.6*x415 + x447 =E= 0;
e608.. x416 =E= 0;
e609.. x417 =E= 0;
e610.. x448 =E= 0;
e611.. x449 =E= 0;
e612.. x128 - x414 - x416 =E= 0;
e613.. x129 - x415 - x417 =E= 0;
e614.. x140 - x446 - x448 =E= 0;
e615.. x141 - x447 - x449 =E= 0;
e616.. x414 - 3.5*b584 =L= 0;
e617.. x415 - 3.5*b585 =L= 0;
e618.. x416 + 3.5*b584 =L= 3.5;
e619.. x417 + 3.5*b585 =L= 3.5;
e620.. x446 - 2.1*b584 =L= 0;
e621.. x447 - 2.1*b585 =L= 0;
e622.. x448 + 2.1*b584 =L= 2.1;
e623.. x449 + 2.1*b585 =L= 2.1;
e624.. (x450/(1e-6 + b586) - 1.1*log(1 + x418/(1e-6 + b586)))*(1e-6 + b586)
=L= 0;
e625.. (x451/(1e-6 + b587) - 1.1*log(1 + x419/(1e-6 + b587)))*(1e-6 + b587)
=L= 0;
e626.. x420 =E= 0;
e627.. x421 =E= 0;
e628.. x452 =E= 0;
e629.. x453 =E= 0;
e630.. x130 - x418 - x420 =E= 0;
e631.. x131 - x419 - x421 =E= 0;
e632.. x142 - x450 - x452 =E= 0;
e633.. x143 - x451 - x453 =E= 0;
e634.. x418 - 3.5*b586 =L= 0;
e635.. x419 - 3.5*b587 =L= 0;
e636.. x420 + 3.5*b586 =L= 3.5;
e637.. x421 + 3.5*b587 =L= 3.5;
e638.. x450 - 1.6544851364539*b586 =L= 0;
e639.. x451 - 1.6544851364539*b587 =L= 0;
e640.. x452 + 1.6544851364539*b586 =L= 1.6544851364539;
e641.. x453 + 1.6544851364539*b587 =L= 1.6544851364539;
e642.. - 0.9*x424 + x490 =E= 0;
e643.. - 0.9*x425 + x491 =E= 0;
e644.. - x462 + x490 =E= 0;
e645.. - x463 + x491 =E= 0;
e646.. x428 =E= 0;
e647.. x429 =E= 0;
e648.. x464 =E= 0;
e649.. x465 =E= 0;
e650.. x492 =E= 0;
e651.. x493 =E= 0;
e652.. x132 - x424 - x428 =E= 0;
e653.. x133 - x425 - x429 =E= 0;
e654.. x148 - x462 - x464 =E= 0;
e655.. x149 - x463 - x465 =E= 0;
e656.. x164 - x490 - x492 =E= 0;
e657.. x165 - x491 - x493 =E= 0;
e658.. x424 - 0.542802524296876*b588 =L= 0;
e659.. x425 - 0.542802524296876*b589 =L= 0;
e660.. x428 + 0.542802524296876*b588 =L= 0.542802524296876;
e661.. x429 + 0.542802524296876*b589 =L= 0.542802524296876;
e662.. x462 - 7*b588 =L= 0;
e663.. x463 - 7*b589 =L= 0;
e664.. x464 + 7*b588 =L= 7;
e665.. x465 + 7*b589 =L= 7;
e666.. x490 - 7*b588 =L= 0;
e667.. x491 - 7*b589 =L= 0;
e668.. x492 + 7*b588 =L= 7;
e669.. x493 + 7*b589 =L= 7;
e670.. (x494/(1e-6 + b590) - log(1 + x432/(1e-6 + b590)))*(1e-6 + b590) =L= 0;
e671.. (x495/(1e-6 + b591) - log(1 + x433/(1e-6 + b591)))*(1e-6 + b591) =L= 0;
e672.. x436 =E= 0;
e673.. x437 =E= 0;
e674.. x496 =E= 0;
e675.. x497 =E= 0;
e676.. x134 - x432 - x436 =E= 0;
e677.. x135 - x433 - x437 =E= 0;
e678.. x166 - x494 - x496 =E= 0;
e679.. x167 - x495 - x497 =E= 0;
e680.. x432 - 0.39081781749375*b590 =L= 0;
e681.. x433 - 0.39081781749375*b591 =L= 0;
e682.. x436 + 0.39081781749375*b590 =L= 0.39081781749375;
e683.. x437 + 0.39081781749375*b591 =L= 0.39081781749375;
e684.. x494 - 0.329891932037118*b590 =L= 0;
e685.. x495 - 0.329891932037118*b591 =L= 0;
e686.. x496 + 0.329891932037118*b590 =L= 0.329891932037118;
e687.. x497 + 0.329891932037118*b591 =L= 0.329891932037118;
e688.. (x498/(1e-6 + b592) - 0.7*log(1 + x454/(1e-6 + b592)))*(1e-6 + b592)
=L= 0;
e689.. (x499/(1e-6 + b593) - 0.7*log(1 + x455/(1e-6 + b593)))*(1e-6 + b593)
=L= 0;
e690.. x456 =E= 0;
e691.. x457 =E= 0;
e692.. x500 =E= 0;
e693.. x501 =E= 0;
e694.. x144 - x454 - x456 =E= 0;
e695.. x145 - x455 - x457 =E= 0;
e696.. x168 - x498 - x500 =E= 0;
e697.. x169 - x499 - x501 =E= 0;
e698.. x454 - 0.597676374064473*b592 =L= 0;
e699.. x455 - 0.597676374064473*b593 =L= 0;
e700.. x456 + 0.597676374064473*b592 =L= 0.597676374064473;
e701.. x457 + 0.597676374064473*b593 =L= 0.597676374064473;
e702.. x498 - 0.327985215232756*b592 =L= 0;
e703.. x499 - 0.327985215232756*b593 =L= 0;
e704.. x500 + 0.327985215232756*b592 =L= 0.327985215232756;
e705.. x501 + 0.327985215232756*b593 =L= 0.327985215232756;
e706.. (x502/(1e-6 + b594) - 0.65*log(1 + x458/(1e-6 + b594)))*(1e-6 + b594)
=L= 0;
e707.. (x503/(1e-6 + b595) - 0.65*log(1 + x459/(1e-6 + b595)))*(1e-6 + b595)
=L= 0;
e708.. (x502/(1e-6 + b594) - 0.65*log(1 + x466/(1e-6 + b594)))*(1e-6 + b594)
=L= 0;
e709.. (x503/(1e-6 + b595) - 0.65*log(1 + x467/(1e-6 + b595)))*(1e-6 + b595)
=L= 0;
e710.. x460 =E= 0;
e711.. x461 =E= 0;
e712.. x468 =E= 0;
e713.. x469 =E= 0;
e714.. x504 =E= 0;
e715.. x505 =E= 0;
e716.. x146 - x458 - x460 =E= 0;
e717.. x147 - x459 - x461 =E= 0;
e718.. x152 - x466 - x468 =E= 0;
e719.. x153 - x467 - x469 =E= 0;
e720.. x170 - x502 - x504 =E= 0;
e721.. x171 - x503 - x505 =E= 0;
e722.. x458 - 0.597676374064473*b594 =L= 0;
e723.. x459 - 0.597676374064473*b595 =L= 0;
e724.. x460 + 0.597676374064473*b594 =L= 0.597676374064473;
e725.. x461 + 0.597676374064473*b595 =L= 0.597676374064473;
e726.. x466 - 8.15*b594 =L= 0;
e727.. x467 - 8.15*b595 =L= 0;
e728.. x468 + 8.15*b594 =L= 8.15;
e729.. x469 + 8.15*b595 =L= 8.15;
e730.. x502 - 1.43894002153683*b594 =L= 0;
e731.. x503 - 1.43894002153683*b595 =L= 0;
e732.. x504 + 1.43894002153683*b594 =L= 1.43894002153683;
e733.. x505 + 1.43894002153683*b595 =L= 1.43894002153683;
e734.. - x470 + x506 =E= 0;
e735.. - x471 + x507 =E= 0;
e736.. x472 =E= 0;
e737.. x473 =E= 0;
e738.. x508 =E= 0;
e739.. x509 =E= 0;
e740.. x154 - x470 - x472 =E= 0;
e741.. x155 - x471 - x473 =E= 0;
e742.. x172 - x506 - x508 =E= 0;
e743.. x173 - x507 - x509 =E= 0;
e744.. x470 - 2.1*b596 =L= 0;
e745.. x471 - 2.1*b597 =L= 0;
e746.. x472 + 2.1*b596 =L= 2.1;
e747.. x473 + 2.1*b597 =L= 2.1;
e748.. x506 - 2.1*b596 =L= 0;
e749.. x507 - 2.1*b597 =L= 0;
e750.. x508 + 2.1*b596 =L= 2.1;
e751.. x509 + 2.1*b597 =L= 2.1;
e752.. - x474 + x510 =E= 0;
e753.. - x475 + x511 =E= 0;
e754.. x476 =E= 0;
e755.. x477 =E= 0;
e756.. x512 =E= 0;
e757.. x513 =E= 0;
e758.. x156 - x474 - x476 =E= 0;
e759.. x157 - x475 - x477 =E= 0;
e760.. x174 - x510 - x512 =E= 0;
e761.. x175 - x511 - x513 =E= 0;
e762.. x474 - 2.1*b598 =L= 0;
e763.. x475 - 2.1*b599 =L= 0;
e764.. x476 + 2.1*b598 =L= 2.1;
e765.. x477 + 2.1*b599 =L= 2.1;
e766.. x510 - 2.1*b598 =L= 0;
e767.. x511 - 2.1*b599 =L= 0;
e768.. x512 + 2.1*b598 =L= 2.1;
e769.. x513 + 2.1*b599 =L= 2.1;
e770.. (x514/(1e-6 + b600) - 0.75*log(1 + x478/(1e-6 + b600)))*(1e-6 + b600)
=L= 0;
e771.. (x515/(1e-6 + b601) - 0.75*log(1 + x479/(1e-6 + b601)))*(1e-6 + b601)
=L= 0;
e772.. x480 =E= 0;
e773.. x481 =E= 0;
e774.. x516 =E= 0;
e775.. x517 =E= 0;
e776.. x158 - x478 - x480 =E= 0;
e777.. x159 - x479 - x481 =E= 0;
e778.. x176 - x514 - x516 =E= 0;
e779.. x177 - x515 - x517 =E= 0;
e780.. x478 - 1.6544851364539*b600 =L= 0;
e781.. x479 - 1.6544851364539*b601 =L= 0;
e782.. x480 + 1.6544851364539*b600 =L= 1.6544851364539;
e783.. x481 + 1.6544851364539*b601 =L= 1.6544851364539;
e784.. x514 - 0.732188035236726*b600 =L= 0;
e785.. x515 - 0.732188035236726*b601 =L= 0;
e786.. x516 + 0.732188035236726*b600 =L= 0.732188035236726;
e787.. x517 + 0.732188035236726*b601 =L= 0.732188035236726;
e788.. (x518/(1e-6 + b602) - 0.8*log(1 + x482/(1e-6 + b602)))*(1e-6 + b602)
=L= 0;
e789.. (x519/(1e-6 + b603) - 0.8*log(1 + x483/(1e-6 + b603)))*(1e-6 + b603)
=L= 0;
e790.. x484 =E= 0;
e791.. x485 =E= 0;
e792.. x520 =E= 0;
e793.. x521 =E= 0;
e794.. x160 - x482 - x484 =E= 0;
e795.. x161 - x483 - x485 =E= 0;
e796.. x178 - x518 - x520 =E= 0;
e797.. x179 - x519 - x521 =E= 0;
e798.. x482 - 1.6544851364539*b602 =L= 0;
e799.. x483 - 1.6544851364539*b603 =L= 0;
e800.. x484 + 1.6544851364539*b602 =L= 1.6544851364539;
e801.. x485 + 1.6544851364539*b603 =L= 1.6544851364539;
e802.. x518 - 0.781000570919175*b602 =L= 0;
e803.. x519 - 0.781000570919175*b603 =L= 0;
e804.. x520 + 0.781000570919175*b602 =L= 0.781000570919175;
e805.. x521 + 0.781000570919175*b603 =L= 0.781000570919175;
e806.. (x522/(1e-6 + b604) - 0.85*log(1 + x486/(1e-6 + b604)))*(1e-6 + b604)
=L= 0;
e807.. (x523/(1e-6 + b605) - 0.85*log(1 + x487/(1e-6 + b605)))*(1e-6 + b605)
=L= 0;
e808.. x488 =E= 0;
e809.. x489 =E= 0;
e810.. x524 =E= 0;
e811.. x525 =E= 0;
e812.. x162 - x486 - x488 =E= 0;
e813.. x163 - x487 - x489 =E= 0;
e814.. x180 - x522 - x524 =E= 0;
e815.. x181 - x523 - x525 =E= 0;
e816.. x486 - 1.6544851364539*b604 =L= 0;
e817.. x487 - 1.6544851364539*b605 =L= 0;
e818.. x488 + 1.6544851364539*b604 =L= 1.6544851364539;
e819.. x489 + 1.6544851364539*b605 =L= 1.6544851364539;
e820.. x522 - 0.829813106601623*b604 =L= 0;
e821.. x523 - 0.829813106601623*b605 =L= 0;
e822.. x524 + 0.829813106601623*b604 =L= 0.829813106601623;
e823.. x525 + 0.829813106601623*b605 =L= 0.829813106601623;
e824.. 5*b606 + x686 =E= 0;
e825.. 4*b607 + x687 =E= 0;
e826.. 8*b608 + x688 =E= 0;
e827.. 7*b609 + x689 =E= 0;
e828.. 6*b610 + x690 =E= 0;
e829.. 9*b611 + x691 =E= 0;
e830.. 10*b612 + x692 =E= 0;
e831.. 9*b613 + x693 =E= 0;
e832.. 6*b614 + x694 =E= 0;
e833.. 10*b615 + x695 =E= 0;
e834.. 7*b616 + x696 =E= 0;
e835.. 7*b617 + x697 =E= 0;
e836.. 4*b618 + x698 =E= 0;
e837.. 3*b619 + x699 =E= 0;
e838.. 5*b620 + x700 =E= 0;
e839.. 6*b621 + x701 =E= 0;
e840.. 2*b622 + x702 =E= 0;
e841.. 5*b623 + x703 =E= 0;
e842.. 4*b624 + x704 =E= 0;
e843.. 7*b625 + x705 =E= 0;
e844.. 3*b626 + x706 =E= 0;
e845.. 9*b627 + x707 =E= 0;
e846.. 7*b628 + x708 =E= 0;
e847.. 2*b629 + x709 =E= 0;
e848.. 3*b630 + x710 =E= 0;
e849.. b631 + x711 =E= 0;
e850.. 2*b632 + x712 =E= 0;
e851.. 6*b633 + x713 =E= 0;
e852.. 4*b634 + x714 =E= 0;
e853.. 8*b635 + x715 =E= 0;
e854.. 2*b636 + x716 =E= 0;
e855.. 5*b637 + x717 =E= 0;
e856.. 3*b638 + x718 =E= 0;
e857.. 4*b639 + x719 =E= 0;
e858.. 5*b640 + x720 =E= 0;
e859.. 7*b641 + x721 =E= 0;
e860.. 2*b642 + x722 =E= 0;
e861.. 8*b643 + x723 =E= 0;
e862.. b644 + x724 =E= 0;
e863.. 4*b645 + x725 =E= 0;
e864.. 2*b646 + x726 =E= 0;
e865.. 5*b647 + x727 =E= 0;
e866.. 9*b648 + x728 =E= 0;
e867.. 2*b649 + x729 =E= 0;
e868.. 5*b650 + x730 =E= 0;
e869.. 8*b651 + x731 =E= 0;
e870.. 2*b652 + x732 =E= 0;
e871.. 3*b653 + x733 =E= 0;
e872.. 10*b654 + x734 =E= 0;
e873.. 6*b655 + x735 =E= 0;
e874.. 4*b656 + x736 =E= 0;
e875.. 8*b657 + x737 =E= 0;
e876.. 7*b658 + x738 =E= 0;
e877.. 3*b659 + x739 =E= 0;
e878.. 4*b660 + x740 =E= 0;
e879.. 8*b661 + x741 =E= 0;
e880.. 2*b662 + x742 =E= 0;
e881.. b663 + x743 =E= 0;
e882.. 8*b664 + x744 =E= 0;
e883.. 3*b665 + x745 =E= 0;
e884.. 9*b666 + x746 =E= 0;
e885.. 5*b667 + x747 =E= 0;
e886.. 3*b668 + x748 =E= 0;
e887.. 9*b669 + x749 =E= 0;
e888.. 5*b670 + x750 =E= 0;
e889.. 3*b671 + x751 =E= 0;
e890.. 5*b672 + x752 =E= 0;
e891.. 3*b673 + x753 =E= 0;
e892.. 6*b674 + x754 =E= 0;
e893.. 4*b675 + x755 =E= 0;
e894.. 2*b676 + x756 =E= 0;
e895.. 6*b677 + x757 =E= 0;
e896.. 6*b678 + x758 =E= 0;
e897.. 4*b679 + x759 =E= 0;
e898.. 3*b680 + x760 =E= 0;
e899.. 2*b681 + x761 =E= 0;
e900.. 5*b682 + x762 =E= 0;
e901.. 8*b683 + x763 =E= 0;
e902.. 9*b684 + x764 =E= 0;
e903.. 5*b685 + x765 =E= 0;
e904.. b526 - b527 =L= 0;
e905.. b528 - b529 =L= 0;
e906.. b530 - b531 =L= 0;
e907.. b532 - b533 =L= 0;
e908.. b534 - b535 =L= 0;
e909.. b536 - b537 =L= 0;
e910.. b538 - b539 =L= 0;
e911.. b540 - b541 =L= 0;
e912.. b542 - b543 =L= 0;
e913.. b544 - b545 =L= 0;
e914.. b546 - b547 =L= 0;
e915.. b548 - b549 =L= 0;
e916.. b550 - b551 =L= 0;
e917.. b552 - b553 =L= 0;
e918.. b554 - b555 =L= 0;
e919.. b556 - b557 =L= 0;
e920.. b558 - b559 =L= 0;
e921.. b560 - b561 =L= 0;
e922.. b562 - b563 =L= 0;
e923.. b564 - b565 =L= 0;
e924.. b566 - b567 =L= 0;
e925.. b568 - b569 =L= 0;
e926.. b570 - b571 =L= 0;
e927.. b572 - b573 =L= 0;
e928.. b574 - b575 =L= 0;
e929.. b576 - b577 =L= 0;
e930.. b578 - b579 =L= 0;
e931.. b580 - b581 =L= 0;
e932.. b582 - b583 =L= 0;
e933.. b584 - b585 =L= 0;
e934.. b586 - b587 =L= 0;
e935.. b588 - b589 =L= 0;
e936.. b590 - b591 =L= 0;
e937.. b592 - b593 =L= 0;
e938.. b594 - b595 =L= 0;
e939.. b596 - b597 =L= 0;
e940.. b598 - b599 =L= 0;
e941.. b600 - b601 =L= 0;
e942.. b602 - b603 =L= 0;
e943.. b604 - b605 =L= 0;
e944.. b606 + b607 =L= 1;
e945.. b606 + b607 =L= 1;
e946.. b608 + b609 =L= 1;
e947.. b608 + b609 =L= 1;
e948.. b610 + b611 =L= 1;
e949.. b610 + b611 =L= 1;
e950.. b612 + b613 =L= 1;
e951.. b612 + b613 =L= 1;
e952.. b614 + b615 =L= 1;
e953.. b614 + b615 =L= 1;
e954.. b616 + b617 =L= 1;
e955.. b616 + b617 =L= 1;
e956.. b618 + b619 =L= 1;
e957.. b618 + b619 =L= 1;
e958.. b620 + b621 =L= 1;
e959.. b620 + b621 =L= 1;
e960.. b622 + b623 =L= 1;
e961.. b622 + b623 =L= 1;
e962.. b624 + b625 =L= 1;
e963.. b624 + b625 =L= 1;
e964.. b626 + b627 =L= 1;
e965.. b626 + b627 =L= 1;
e966.. b628 + b629 =L= 1;
e967.. b628 + b629 =L= 1;
e968.. b630 + b631 =L= 1;
e969.. b630 + b631 =L= 1;
e970.. b632 + b633 =L= 1;
e971.. b632 + b633 =L= 1;
e972.. b634 + b635 =L= 1;
e973.. b634 + b635 =L= 1;
e974.. b636 + b637 =L= 1;
e975.. b636 + b637 =L= 1;
e976.. b638 + b639 =L= 1;
e977.. b638 + b639 =L= 1;
e978.. b640 + b641 =L= 1;
e979.. b640 + b641 =L= 1;
e980.. b642 + b643 =L= 1;
e981.. b642 + b643 =L= 1;
e982.. b644 + b645 =L= 1;
e983.. b644 + b645 =L= 1;
e984.. b646 + b647 =L= 1;
e985.. b646 + b647 =L= 1;
e986.. b648 + b649 =L= 1;
e987.. b648 + b649 =L= 1;
e988.. b650 + b651 =L= 1;
e989.. b650 + b651 =L= 1;
e990.. b652 + b653 =L= 1;
e991.. b652 + b653 =L= 1;
e992.. b654 + b655 =L= 1;
e993.. b654 + b655 =L= 1;
e994.. b656 + b657 =L= 1;
e995.. b656 + b657 =L= 1;
e996.. b658 + b659 =L= 1;
e997.. b658 + b659 =L= 1;
e998.. b660 + b661 =L= 1;
e999.. b660 + b661 =L= 1;
e1000.. b662 + b663 =L= 1;
e1001.. b662 + b663 =L= 1;
e1002.. b664 + b665 =L= 1;
e1003.. b664 + b665 =L= 1;
e1004.. b666 + b667 =L= 1;
e1005.. b666 + b667 =L= 1;
e1006.. b668 + b669 =L= 1;
e1007.. b668 + b669 =L= 1;
e1008.. b670 + b671 =L= 1;
e1009.. b670 + b671 =L= 1;
e1010.. b672 + b673 =L= 1;
e1011.. b672 + b673 =L= 1;
e1012.. b674 + b675 =L= 1;
e1013.. b674 + b675 =L= 1;
e1014.. b676 + b677 =L= 1;
e1015.. b676 + b677 =L= 1;
e1016.. b678 + b679 =L= 1;
e1017.. b678 + b679 =L= 1;
e1018.. b680 + b681 =L= 1;
e1019.. b680 + b681 =L= 1;
e1020.. b682 + b683 =L= 1;
e1021.. b682 + b683 =L= 1;
e1022.. b684 + b685 =L= 1;
e1023.. b684 + b685 =L= 1;
e1024.. b526 - b606 =L= 0;
e1025.. - b526 + b527 - b607 =L= 0;
e1026.. b528 - b608 =L= 0;
e1027.. - b528 + b529 - b609 =L= 0;
e1028.. b530 - b610 =L= 0;
e1029.. - b530 + b531 - b611 =L= 0;
e1030.. b532 - b612 =L= 0;
e1031.. - b532 + b533 - b613 =L= 0;
e1032.. b534 - b614 =L= 0;
e1033.. - b534 + b535 - b615 =L= 0;
e1034.. b536 - b616 =L= 0;
e1035.. - b536 + b537 - b617 =L= 0;
e1036.. b538 - b618 =L= 0;
e1037.. - b538 + b539 - b619 =L= 0;
e1038.. b540 - b620 =L= 0;
e1039.. - b540 + b541 - b621 =L= 0;
e1040.. b542 - b622 =L= 0;
e1041.. - b542 + b543 - b623 =L= 0;
e1042.. b544 - b624 =L= 0;
e1043.. - b544 + b545 - b625 =L= 0;
e1044.. b546 - b626 =L= 0;
e1045.. - b546 + b547 - b627 =L= 0;
e1046.. b548 - b628 =L= 0;
e1047.. - b548 + b549 - b629 =L= 0;
e1048.. b550 - b630 =L= 0;
e1049.. - b550 + b551 - b631 =L= 0;
e1050.. b552 - b632 =L= 0;
e1051.. - b552 + b553 - b633 =L= 0;
e1052.. b554 - b634 =L= 0;
e1053.. - b554 + b555 - b635 =L= 0;
e1054.. b556 - b636 =L= 0;
e1055.. - b556 + b557 - b637 =L= 0;
e1056.. b558 - b638 =L= 0;
e1057.. - b558 + b559 - b639 =L= 0;
e1058.. b560 - b640 =L= 0;
e1059.. - b560 + b561 - b641 =L= 0;
e1060.. b562 - b642 =L= 0;
e1061.. - b562 + b563 - b643 =L= 0;
e1062.. b564 - b644 =L= 0;
e1063.. - b564 + b565 - b645 =L= 0;
e1064.. b566 - b646 =L= 0;
e1065.. - b566 + b567 - b647 =L= 0;
e1066.. b568 - b648 =L= 0;
e1067.. - b568 + b569 - b649 =L= 0;
e1068.. b570 - b650 =L= 0;
e1069.. - b570 + b571 - b651 =L= 0;
e1070.. b572 - b652 =L= 0;
e1071.. - b572 + b573 - b653 =L= 0;
e1072.. b574 - b654 =L= 0;
e1073.. - b574 + b575 - b655 =L= 0;
e1074.. b576 - b656 =L= 0;
e1075.. - b576 + b577 - b657 =L= 0;
e1076.. b578 - b658 =L= 0;
e1077.. - b578 + b579 - b659 =L= 0;
e1078.. b580 - b660 =L= 0;
e1079.. - b580 + b581 - b661 =L= 0;
e1080.. b582 - b662 =L= 0;
e1081.. - b582 + b583 - b663 =L= 0;
e1082.. b584 - b664 =L= 0;
e1083.. - b584 + b585 - b665 =L= 0;
e1084.. b586 - b666 =L= 0;
e1085.. - b586 + b587 - b667 =L= 0;
e1086.. b588 - b668 =L= 0;
e1087.. - b588 + b589 - b669 =L= 0;
e1088.. b590 - b670 =L= 0;
e1089.. - b590 + b591 - b671 =L= 0;
e1090.. b592 - b672 =L= 0;
e1091.. - b592 + b593 - b673 =L= 0;
e1092.. b594 - b674 =L= 0;
e1093.. - b594 + b595 - b675 =L= 0;
e1094.. b596 - b676 =L= 0;
e1095.. - b596 + b597 - b677 =L= 0;
e1096.. b598 - b678 =L= 0;
e1097.. - b598 + b599 - b679 =L= 0;
e1098.. b600 - b680 =L= 0;
e1099.. - b600 + b601 - b681 =L= 0;
e1100.. b602 - b682 =L= 0;
e1101.. - b602 + b603 - b683 =L= 0;
e1102.. b604 - b684 =L= 0;
e1103.. - b604 + b605 - b685 =L= 0;
e1104.. b526 + b528 =E= 1;
e1105.. b527 + b529 =E= 1;
e1106.. - b530 + b536 + b538 =G= 0;
e1107.. - b531 + b537 + b539 =G= 0;
e1108.. - b536 + b548 =G= 0;
e1109.. - b537 + b549 =G= 0;
e1110.. - b538 + b550 =G= 0;
e1111.. - b539 + b551 =G= 0;
e1112.. - b532 + b540 =G= 0;
e1113.. - b533 + b541 =G= 0;
e1114.. - b540 + b552 + b554 =G= 0;
e1115.. - b541 + b553 + b555 =G= 0;
e1116.. - b534 + b542 + b544 + b546 =G= 0;
e1117.. - b535 + b543 + b545 + b547 =G= 0;
e1118.. - b542 + b554 =G= 0;
e1119.. - b543 + b555 =G= 0;
e1120.. - b544 + b556 + b558 =G= 0;
e1121.. - b545 + b557 + b559 =G= 0;
e1122.. - b546 + b560 + b562 + b564 =G= 0;
e1123.. - b547 + b561 + b563 + b565 =G= 0;
e1124.. b530 - b536 =G= 0;
e1125.. b531 - b537 =G= 0;
e1126.. b530 - b538 =G= 0;
e1127.. b531 - b539 =G= 0;
e1128.. b532 - b540 =G= 0;
e1129.. b533 - b541 =G= 0;
e1130.. b534 - b542 =G= 0;
e1131.. b535 - b543 =G= 0;
e1132.. b534 - b544 =G= 0;
e1133.. b535 - b545 =G= 0;
e1134.. b534 - b546 =G= 0;
e1135.. b535 - b547 =G= 0;
e1136.. b536 - b548 =G= 0;
e1137.. b537 - b549 =G= 0;
e1138.. b538 - b550 =G= 0;
e1139.. b539 - b551 =G= 0;
e1140.. b540 - b552 =G= 0;
e1141.. b541 - b553 =G= 0;
e1142.. b540 - b554 =G= 0;
e1143.. b541 - b555 =G= 0;
e1144.. b544 - b556 =G= 0;
e1145.. b545 - b557 =G= 0;
e1146.. b544 - b558 =G= 0;
e1147.. b545 - b559 =G= 0;
e1148.. b546 - b560 =G= 0;
e1149.. b547 - b561 =G= 0;
e1150.. b546 - b562 =G= 0;
e1151.. b547 - b563 =G= 0;
e1152.. b546 - b564 =G= 0;
e1153.. b547 - b565 =G= 0;
e1154.. - b564 + b566 + b568 =G= 0;
e1155.. - b565 + b567 + b569 =G= 0;
e1156.. - b570 + b576 + b578 =G= 0;
e1157.. - b571 + b577 + b579 =G= 0;
e1158.. - b576 + b588 =G= 0;
e1159.. - b577 + b589 =G= 0;
e1160.. - b578 + b590 =G= 0;
e1161.. - b579 + b591 =G= 0;
e1162.. - b572 + b580 =G= 0;
e1163.. - b573 + b581 =G= 0;
e1164.. - b580 + b592 + b594 =G= 0;
e1165.. - b581 + b593 + b595 =G= 0;
e1166.. - b574 + b582 + b584 + b586 =G= 0;
e1167.. - b575 + b583 + b585 + b587 =G= 0;
e1168.. - b582 + b594 =G= 0;
e1169.. - b583 + b595 =G= 0;
e1170.. - b584 + b596 + b598 =G= 0;
e1171.. - b585 + b597 + b599 =G= 0;
e1172.. - b586 + b600 + b602 + b604 =G= 0;
e1173.. - b587 + b601 + b603 + b605 =G= 0;
e1174.. b570 - b576 =G= 0;
e1175.. b571 - b577 =G= 0;
e1176.. b570 - b578 =G= 0;
e1177.. b571 - b579 =G= 0;
e1178.. b576 - b588 =G= 0;
e1179.. b577 - b589 =G= 0;
e1180.. b578 - b590 =G= 0;
e1181.. b579 - b591 =G= 0;
e1182.. b572 - b580 =G= 0;
e1183.. b573 - b581 =G= 0;
e1184.. b580 - b592 =G= 0;
e1185.. b581 - b593 =G= 0;
e1186.. b580 - b594 =G= 0;
e1187.. b581 - b595 =G= 0;
e1188.. b574 - b582 =G= 0;
e1189.. b575 - b583 =G= 0;
e1190.. b574 - b584 =G= 0;
e1191.. b575 - b585 =G= 0;
e1192.. b574 - b586 =G= 0;
e1193.. b575 - b587 =G= 0;
e1194.. b584 - b596 =G= 0;
e1195.. b585 - b597 =G= 0;
e1196.. b584 - b598 =G= 0;
e1197.. b585 - b599 =G= 0;
e1198.. b586 - b600 =G= 0;
e1199.. b587 - b601 =G= 0;
e1200.. b586 - b602 =G= 0;
e1201.. b587 - b603 =G= 0;
e1202.. b586 - b604 =G= 0;
e1203.. b587 - b605 =G= 0;
e1204.. b526 + b528 - b530 =G= 0;
e1205.. b527 + b529 - b531 =G= 0;
e1206.. b526 + b528 - b532 =G= 0;
e1207.. b527 + b529 - b533 =G= 0;
e1208.. b526 + b528 - b534 =G= 0;
e1209.. b527 + b529 - b535 =G= 0;
e1210.. b564 - b566 =G= 0;
e1211.. b565 - b567 =G= 0;
e1212.. b564 - b568 =G= 0;
e1213.. b565 - b569 =G= 0;
* set non-default bounds
x2.up = 10;
x3.up = 10;
x24.up = 7;
x25.up = 7;
x58.up = 7;
x59.up = 7;
x60.up = 5;
x61.up = 5;
x114.up = 7;
x115.up = 7;
x148.up = 7;
x149.up = 7;
x150.up = 5;
x151.up = 5;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% maximizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
