Instance watersym2
| Formatsⓘ | ams gms mod nl osil py |
| Primal Bounds (infeas ≤ 1e-08)ⓘ | |
| Other points (infeas > 1e-08)ⓘ | |
| Dual Boundsⓘ | 902.09194260 (LINDO) 940.89895090 (SCIP) 0.00000000 (SHOT) |
| Referencesⓘ | Brooke, Anthony, Drud, Arne S, and Meeraus, Alexander, Modeling Systems and Nonlinear Programming in a Research Environment. In Ragavan, R and Rohde, S M, Eds, Computers in Engineering, Vol. III, ACME, 1985. Drud, Arne S and Rosenborg, A, Dimensioning Water Distribution Networks, Masters thesis, Institute of Mathematical Statistics and Operations Research, Technical University of Denmark, 1973. In Danish. |
| Sourceⓘ | modified GAMS Model Library model waterx |
| Applicationⓘ | Water Network Design |
| Added to libraryⓘ | 01 May 2001 |
| Problem typeⓘ | MBNLP |
| #Variablesⓘ | 321 |
| #Binary Variablesⓘ | 28 |
| #Integer Variablesⓘ | 0 |
| #Nonlinear Variablesⓘ | 60 |
| #Nonlinear Binary Variablesⓘ | 0 |
| #Nonlinear Integer Variablesⓘ | 0 |
| Objective Senseⓘ | min |
| Objective typeⓘ | linear |
| Objective curvatureⓘ | linear |
| #Nonzeros in Objectiveⓘ | 3 |
| #Nonlinear Nonzeros in Objectiveⓘ | 0 |
| #Constraintsⓘ | 201 |
| #Linear Constraintsⓘ | 172 |
| #Quadratic Constraintsⓘ | 1 |
| #Polynomial Constraintsⓘ | 28 |
| #Signomial Constraintsⓘ | 0 |
| #General Nonlinear Constraintsⓘ | 0 |
| Operands in Gen. Nonlin. Functionsⓘ | |
| Constraints curvatureⓘ | indefinite |
| #Nonzeros in Jacobianⓘ | 1243 |
| #Nonlinear Nonzeros in Jacobianⓘ | 60 |
| #Nonzeros in (Upper-Left) Hessian of Lagrangianⓘ | 88 |
| #Nonzeros in Diagonal of Hessian of Lagrangianⓘ | 28 |
| #Blocks in Hessian of Lagrangianⓘ | 30 |
| Minimal blocksize in Hessian of Lagrangianⓘ | 2 |
| Maximal blocksize in Hessian of Lagrangianⓘ | 2 |
| Average blocksize in Hessian of Lagrangianⓘ | 2.0 |
| #Semicontinuitiesⓘ | 0 |
| #Nonlinear Semicontinuitiesⓘ | 0 |
| #SOS type 1ⓘ | 28 |
| #SOS type 2ⓘ | 0 |
| Minimal coefficientⓘ | 1.3750e-02 |
| Maximal coefficientⓘ | 6.3468e+04 |
| Infeasibility of initial pointⓘ | 4859 |

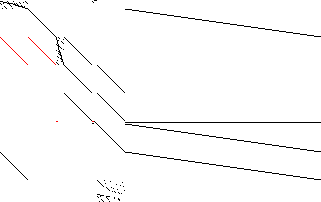

| Sparsity Jacobianⓘ |  |

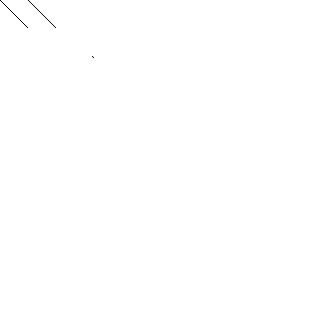

| Sparsity Hessian of Lagrangianⓘ |  |
$offlisting
*
* Equation counts
* Total E G L N X C B
* 202 96 36 70 0 0 0 0
*
* Variable counts
* x b i s1s s2s sc si
* Total cont binary integer sos1 sos2 scont sint
* 322 98 28 0 196 0 0 0
* FX 0
*
* Nonzero counts
* Total const NL DLL
* 1247 1187 60 0
*
* Solve m using MINLP minimizing objvar;
Sets s1 /127*133/,s2 /134*140/,s3 /141*147/,s4 /148*154/,s5 /155*161/
,s6 /162*168/,s7 /169*175/,s8 /176*182/,s9 /183*189/,s10 /190*196/
,s11 /197*203/,s12 /204*210/,s13 /211*217/,s14 /218*224/
,s15 /225*231/,s16 /232*238/,s17 /239*245/,s18 /246*252/
,s19 /253*259/,s20 /260*266/,s21 /267*273/,s22 /274*280/
,s23 /281*287/,s24 /288*294/,s25 /295*301/,s26 /302*308/
,s27 /309*315/,s28 /316*322/;
Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17,x18,x19
,x20,x21,x22,x23,x24,x25,x26,x27,x28,x29,x30,x31,x32,x33,x34,x35,x36
,x37,x38,x39,x40,x41,x42,x43,x44,x45,x46,x47,x48,x49,x50,x51,x52,x53
,x54,x55,x56,x57,x58,x59,x60,x61,x62,x63,x64,x65,x66,x67,x68,x69,x70
,x71,x72,x73,x74,x75,x76,x77,x78,x79,x80,x81,x82,x83,x84,x85,x86,x87
,x88,x89,x90,x91,x92,x93,x94,x95,x96,x97,objvar,b99,b100,b101,b102
,b103,b104,b105,b106,b107,b108,b109,b110,b111,b112,b113,b114,b115
,b116,b117,b118,b119,b120,b121,b122,b123,b124,b125,b126,s1s1(s1)
,s1s2(s2),s1s3(s3),s1s4(s4),s1s5(s5),s1s6(s6),s1s7(s7),s1s8(s8)
,s1s9(s9),s1s10(s10),s1s11(s11),s1s12(s12),s1s13(s13),s1s14(s14)
,s1s15(s15),s1s16(s16),s1s17(s17),s1s18(s18),s1s19(s19),s1s20(s20)
,s1s21(s21),s1s22(s22),s1s23(s23),s1s24(s24),s1s25(s25),s1s26(s26)
,s1s27(s27),s1s28(s28);
Positive Variables x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,x17
,x18,x19,x20,x21,x22,x23,x24,x25,x26,x27,x28,x93,x94;
Binary Variables b99,b100,b101,b102,b103,b104,b105,b106,b107,b108,b109,b110
,b111,b112,b113,b114,b115,b116,b117,b118,b119,b120,b121,b122,b123
,b124,b125,b126;
SOS1 Variables s1s1(s1),s1s2(s2),s1s3(s3),s1s4(s4),s1s5(s5),s1s6(s6),s1s7(s7)
,s1s8(s8),s1s9(s9),s1s10(s10),s1s11(s11),s1s12(s12),s1s13(s13)
,s1s14(s14),s1s15(s15),s1s16(s16),s1s17(s17),s1s18(s18),s1s19(s19)
,s1s20(s20),s1s21(s21),s1s22(s22),s1s23(s23),s1s24(s24),s1s25(s25)
,s1s26(s26),s1s27(s27),s1s28(s28);
Equations e1,e2,e3,e4,e5,e6,e7,e8,e9,e10,e11,e12,e13,e14,e15,e16,e17,e18,e19
,e20,e21,e22,e23,e24,e25,e26,e27,e28,e29,e30,e31,e32,e33,e34,e35,e36
,e37,e38,e39,e40,e41,e42,e43,e44,e45,e46,e47,e48,e49,e50,e51,e52,e53
,e54,e55,e56,e57,e58,e59,e60,e61,e62,e63,e64,e65,e66,e67,e68,e69,e70
,e71,e72,e73,e74,e75,e76,e77,e78,e79,e80,e81,e82,e83,e84,e85,e86,e87
,e88,e89,e90,e91,e92,e93,e94,e95,e96,e97,e98,e99,e100,e101,e102,e103
,e104,e105,e106,e107,e108,e109,e110,e111,e112,e113,e114,e115,e116
,e117,e118,e119,e120,e121,e122,e123,e124,e125,e126,e127,e128,e129
,e130,e131,e132,e133,e134,e135,e136,e137,e138,e139,e140,e141,e142
,e143,e144,e145,e146,e147,e148,e149,e150,e151,e152,e153,e154,e155
,e156,e157,e158,e159,e160,e161,e162,e163,e164,e165,e166,e167,e168
,e169,e170,e171,e172,e173,e174,e175,e176,e177,e178,e179,e180,e181
,e182,e183,e184,e185,e186,e187,e188,e189,e190,e191,e192,e193,e194
,e195,e196,e197,e198,e199,e200,e201,e202;
e1.. - x1 - x2 - x3 + x8 + x14 + x26 + x93 =E= 0;
e2.. - x4 - x5 - x6 - x7 + x9 + x20 + x24 + x27 + x94 =E= 0;
e3.. x1 + x4 - x8 - x9 - x10 - x11 - x12 - x13 + x15 + x17 + x21 + x28
=E= 1.212;
e4.. x2 + x10 - x14 - x15 - x16 + x18 =E= 0.452;
e5.. x11 + x16 - x17 - x18 - x19 + x22 =E= 0.245;
e6.. x5 + x12 + x19 - x20 - x21 - x22 - x23 + x25 =E= 0.652;
e7.. x6 + x23 - x24 - x25 =E= 0.252;
e8.. x3 + x7 + x13 - x26 - x27 - x28 =E= 0.456;
e9.. x29 - 38721.1970117411*s1s1('127') - 2543.8701482414*s1s1('128')
- 207.747320703761*s1s1('129') - 23.9314504121258*s1s1('130')
- 1.5722267648148*s1s1('131') - 0.181112645550961*s1s1('132')
- 0.0390863672545667*s1s1('133') =E= 0;
e10.. x30 - 32510.4890865135*s1s2('134') - 2135.84468132099*s1s2('135')
- 174.425573683688*s1s2('136') - 20.0929521164322*s1s2('137')
- 1.32004857865156*s1s2('138') - 0.152062982061963*s1s2('139')
- 0.0328170876451919*s1s2('140') =E= 0;
e11.. x31 - 63468.4628982673*s1s3('141') - 4169.69361956223*s1s3('142')
- 340.521578201805*s1s3('143') - 39.2263796008983*s1s3('144')
- 2.57705917665854*s1s3('145') - 0.296864304610023*s1s3('146')
- 0.0640670186196026*s1s3('147') =E= 0;
e12.. x32 - 50797.5773435889*s1s4('148') - 3337.25325093014*s1s4('149')
- 272.539627020641*s1s4('150') - 31.3951994533022*s1s4('151')
- 2.06257339263358*s1s4('152') - 0.237598120158509*s1s4('153')
- 0.0512766370081929*s1s4('154') =E= 0;
e13.. x33 - 59165.7349698592*s1s5('155') - 3887.01689524085*s1s5('156')
- 317.436542928413*s1s5('157') - 36.5670992066393*s1s5('158')
- 2.40235218067626*s1s5('159') - 0.27673893405488*s1s5('160')
- 0.0597237127048799*s1s5('161') =E= 0;
e14.. x34 - 32977.2294678044*s1s6('162') - 2166.50816836621*s1s6('163')
- 176.929733450444*s1s6('164') - 20.3814187742893*s1s6('165')
- 1.339*s1s6('166') - 0.154246090843839*s1s6('167')
- 0.0332882297421199*s1s6('168') =E= 0;
e15.. x35 - 33843.9321019273*s1s7('169') - 2223.4480134252*s1s7('170')
- 181.579774357788*s1s7('171') - 20.9170801874496*s1s7('172')
- 1.37419139860501*s1s7('173') - 0.158299963634093*s1s7('174')
- 0.0341631060391402*s1s7('175') =E= 0;
e16.. x36 - 38721.1970117411*s1s8('176') - 2543.8701482414*s1s8('177')
- 207.747320703761*s1s8('178') - 23.9314504121258*s1s8('179')
- 1.5722267648148*s1s8('180') - 0.181112645550961*s1s8('181')
- 0.0390863672545667*s1s8('182') =E= 0;
e17.. x37 - 50797.5773435889*s1s9('183') - 3337.25325093014*s1s9('184')
- 272.539627020641*s1s9('185') - 31.3951994533022*s1s9('186')
- 2.06257339263358*s1s9('187') - 0.237598120158509*s1s9('188')
- 0.0512766370081929*s1s9('189') =E= 0;
e18.. x38 - 31810.181054648*s1s10('190') - 2089.8364782095*s1s10('191')
- 170.668274619734*s1s10('192') - 19.660130090483*s1s10('193')
- 1.2916134290104*s1s10('194') - 0.148787395299671*s1s10('195')
- 0.0321101751776739*s1s10('196') =E= 0;
e19.. x39 - 39461.9459070343*s1s11('197') - 2592.53519858857*s1s11('198')
- 211.721593458417*s1s11('199') - 24.3892667200816*s1s11('200')
- 1.60230396616872*s1s11('201') - 0.184577388442944*s1s11('202')
- 0.0398341019735132*s1s11('203') =E= 0;
e20.. x40 - 32977.2294678044*s1s12('204') - 2166.50816836621*s1s12('205')
- 176.929733450444*s1s12('206') - 20.3814187742893*s1s12('207')
- 1.339*s1s12('208') - 0.154246090843839*s1s12('209')
- 0.0332882297421199*s1s12('210') =E= 0;
e21.. x41 - 52785.5148814787*s1s13('211') - 3467.85497167945*s1s13('212')
- 283.205327698691*s1s13('213') - 32.6238347301504*s1s13('214')
- 2.14329116080854*s1s13('215') - 0.246896402610059*s1s13('216')
- 0.0532833223041444*s1s13('217') =E= 0;
e22.. x42 - 32510.4890865135*s1s14('218') - 2135.84468132099*s1s14('219')
- 174.425573683688*s1s14('220') - 20.0929521164322*s1s14('221')
- 1.32004857865156*s1s14('222') - 0.152062982061963*s1s14('223')
- 0.0328170876451919*s1s14('224') =E= 0;
e23.. x43 - 31810.181054648*s1s15('225') - 2089.8364782095*s1s15('226')
- 170.668274619734*s1s15('227') - 19.660130090483*s1s15('228')
- 1.2916134290104*s1s15('229') - 0.148787395299671*s1s15('230')
- 0.0321101751776739*s1s15('231') =E= 0;
e24.. x44 - 30677.4142839491*s1s16('232') - 2015.41699236491*s1s16('233')
- 164.590743970989*s1s16('234') - 18.9600290116536*s1s16('235')
- 1.24561882211213*s1s16('236') - 0.143489047044288*s1s16('237')
- 0.0309667255575633*s1s16('238') =E= 0;
e25.. x45 - 39461.9459070343*s1s17('239') - 2592.53519858857*s1s17('240')
- 211.721593458417*s1s17('241') - 24.3892667200816*s1s17('242')
- 1.60230396616872*s1s17('243') - 0.184577388442944*s1s17('244')
- 0.0398341019735132*s1s17('245') =E= 0;
e26.. x46 - 30677.4142839491*s1s18('246') - 2015.41699236491*s1s18('247')
- 164.590743970989*s1s18('248') - 18.9600290116536*s1s18('249')
- 1.24561882211213*s1s18('250') - 0.143489047044288*s1s18('251')
- 0.0309667255575633*s1s18('252') =E= 0;
e27.. x47 - 28361.2795383154*s1s19('253') - 1863.25366856746*s1s19('254')
- 152.164196629274*s1s19('255') - 17.5285530220005*s1s19('256')
- 1.15157500841239*s1s19('257') - 0.132655670919396*s1s19('258')
- 0.0286287479053886*s1s19('259') =E= 0;
e28.. x48 - 59165.7349698592*s1s20('260') - 3887.01689524085*s1s20('261')
- 317.436542928413*s1s20('262') - 36.5670992066393*s1s20('263')
- 2.40235218067626*s1s20('264') - 0.27673893405488*s1s20('265')
- 0.0597237127048799*s1s20('266') =E= 0;
e29.. x49 - 32977.2294678044*s1s21('267') - 2166.50816836621*s1s21('268')
- 176.929733450444*s1s21('269') - 20.3814187742893*s1s21('270')
- 1.339*s1s21('271') - 0.154246090843839*s1s21('272')
- 0.0332882297421199*s1s21('273') =E= 0;
e30.. x50 - 28361.2795383154*s1s22('274') - 1863.25366856746*s1s22('275')
- 152.164196629274*s1s22('276') - 17.5285530220005*s1s22('277')
- 1.15157500841239*s1s22('278') - 0.132655670919396*s1s22('279')
- 0.0286287479053886*s1s22('280') =E= 0;
e31.. x51 - 50797.5773435889*s1s23('281') - 3337.25325093014*s1s23('282')
- 272.539627020641*s1s23('283') - 31.3951994533022*s1s23('284')
- 2.06257339263358*s1s23('285') - 0.237598120158509*s1s23('286')
- 0.0512766370081929*s1s23('287') =E= 0;
e32.. x52 - 32977.2294678044*s1s24('288') - 2166.50816836621*s1s24('289')
- 176.929733450444*s1s24('290') - 20.3814187742893*s1s24('291')
- 1.339*s1s24('292') - 0.154246090843839*s1s24('293')
- 0.0332882297421199*s1s24('294') =E= 0;
e33.. x53 - 50797.5773435889*s1s25('295') - 3337.25325093014*s1s25('296')
- 272.539627020641*s1s25('297') - 31.3951994533022*s1s25('298')
- 2.06257339263358*s1s25('299') - 0.237598120158509*s1s25('300')
- 0.0512766370081929*s1s25('301') =E= 0;
e34.. x54 - 63468.4628982673*s1s26('302') - 4169.69361956223*s1s26('303')
- 340.521578201805*s1s26('304') - 39.2263796008983*s1s26('305')
- 2.57705917665854*s1s26('306') - 0.296864304610023*s1s26('307')
- 0.0640670186196026*s1s26('308') =E= 0;
e35.. x55 - 33843.9321019273*s1s27('309') - 2223.4480134252*s1s27('310')
- 181.579774357788*s1s27('311') - 20.9170801874496*s1s27('312')
- 1.37419139860501*s1s27('313') - 0.158299963634093*s1s27('314')
- 0.0341631060391402*s1s27('315') =E= 0;
e36.. x56 - 52785.5148814787*s1s28('316') - 3467.85497167945*s1s28('317')
- 283.205327698691*s1s28('318') - 32.6238347301504*s1s28('319')
- 2.14329116080854*s1s28('320') - 0.246896402610059*s1s28('321')
- 0.0532833223041444*s1s28('322') =E= 0;
e37.. -sqr(x1)*x29 + x57 - x59 - x65 =E= 0;
e38.. -sqr(x2)*x30 + x57 - x60 - x66 =E= 0;
e39.. -sqr(x3)*x31 + x57 - x64 - x67 =E= 0;
e40.. -sqr(x4)*x32 + x58 - x59 - x68 =E= 0;
e41.. -sqr(x5)*x33 + x58 - x62 - x69 =E= 0;
e42.. -sqr(x6)*x34 + x58 - x63 - x70 =E= 0;
e43.. -sqr(x7)*x35 + x58 - x64 - x71 =E= 0;
e44.. -sqr(x8)*x36 - x57 + x59 - x72 =E= 0;
e45.. -sqr(x9)*x37 - x58 + x59 - x73 =E= 0;
e46.. -sqr(x10)*x38 + x59 - x60 - x74 =E= 0;
e47.. -sqr(x11)*x39 + x59 - x61 - x75 =E= 0;
e48.. -sqr(x12)*x40 + x59 - x62 - x76 =E= 0;
e49.. -sqr(x13)*x41 + x59 - x64 - x77 =E= 0;
e50.. -sqr(x14)*x42 - x57 + x60 - x78 =E= 0;
e51.. -sqr(x15)*x43 - x59 + x60 - x79 =E= 0;
e52.. -sqr(x16)*x44 + x60 - x61 - x80 =E= 0;
e53.. -sqr(x17)*x45 - x59 + x61 - x81 =E= 0;
e54.. -sqr(x18)*x46 - x60 + x61 - x82 =E= 0;
e55.. -sqr(x19)*x47 + x61 - x62 - x83 =E= 0;
e56.. -sqr(x20)*x48 - x58 + x62 - x84 =E= 0;
e57.. -sqr(x21)*x49 - x59 + x62 - x85 =E= 0;
e58.. -sqr(x22)*x50 - x61 + x62 - x86 =E= 0;
e59.. -sqr(x23)*x51 + x62 - x63 - x87 =E= 0;
e60.. -sqr(x24)*x52 - x58 + x63 - x88 =E= 0;
e61.. -sqr(x25)*x53 - x62 + x63 - x89 =E= 0;
e62.. -sqr(x26)*x54 - x57 + x64 - x90 =E= 0;
e63.. -sqr(x27)*x55 - x58 + x64 - x91 =E= 0;
e64.. -sqr(x28)*x56 - x59 + x64 - x92 =E= 0;
e65.. x65 + 12*b99 =L= 12;
e66.. x66 + 12*b100 =L= 12;
e67.. x67 + 12*b101 =L= 12;
e68.. x68 + 12*b102 =L= 12;
e69.. x69 + 12*b103 =L= 12;
e70.. x70 + 12*b104 =L= 12;
e71.. x71 + 12*b105 =L= 12;
e72.. x72 + 12*b106 =L= 12;
e73.. x73 + 12*b107 =L= 12;
e74.. x74 + 12*b108 =L= 12;
e75.. x75 + 12*b109 =L= 12;
e76.. x76 + 12*b110 =L= 12;
e77.. x77 + 12*b111 =L= 12;
e78.. x78 + 12*b112 =L= 12;
e79.. x79 + 12*b113 =L= 12;
e80.. x80 + 12*b114 =L= 12;
e81.. x81 + 12*b115 =L= 12;
e82.. x82 + 12*b116 =L= 12;
e83.. x83 + 12*b117 =L= 12;
e84.. x84 + 12*b118 =L= 12;
e85.. x85 + 12*b119 =L= 12;
e86.. x86 + 12*b120 =L= 12;
e87.. x87 + 12*b121 =L= 12;
e88.. x88 + 12*b122 =L= 12;
e89.. x89 + 12*b123 =L= 12;
e90.. x90 + 12*b124 =L= 12;
e91.. x91 + 12*b125 =L= 12;
e92.. x92 + 12*b126 =L= 12;
e93.. x65 - 12*b99 =G= -12;
e94.. x66 - 12*b100 =G= -12;
e95.. x67 - 12*b101 =G= -12;
e96.. x68 - 12*b102 =G= -12;
e97.. x69 - 12*b103 =G= -12;
e98.. x70 - 12*b104 =G= -12;
e99.. x71 - 12*b105 =G= -12;
e100.. x72 - 12*b106 =G= -12;
e101.. x73 - 12*b107 =G= -12;
e102.. x74 - 12*b108 =G= -12;
e103.. x75 - 12*b109 =G= -12;
e104.. x76 - 12*b110 =G= -12;
e105.. x77 - 12*b111 =G= -12;
e106.. x78 - 12*b112 =G= -12;
e107.. x79 - 12*b113 =G= -12;
e108.. x80 - 12*b114 =G= -12;
e109.. x81 - 12*b115 =G= -12;
e110.. x82 - 12*b116 =G= -12;
e111.. x83 - 12*b117 =G= -12;
e112.. x84 - 12*b118 =G= -12;
e113.. x85 - 12*b119 =G= -12;
e114.. x86 - 12*b120 =G= -12;
e115.. x87 - 12*b121 =G= -12;
e116.. x88 - 12*b122 =G= -12;
e117.. x89 - 12*b123 =G= -12;
e118.. x90 - 12*b124 =G= -12;
e119.. x91 - 12*b125 =G= -12;
e120.. x92 - 12*b126 =G= -12;
e121.. -(1.02*x93*(-6.5 + x57) + 1.02*x94*(-3.25 + x58)) + x95 =E= 0;
e122.. x96 - 9.11349113439539*s1s1('127') - 17.6144733325531*s1s1('128')
- 32.2986551864818*s1s1('129') - 54.4931814987685*s1s1('130')
- 105.323928905069*s1s1('131') - 177.698914733437*s1s1('132')
- 257.546555368226*s1s1('133') - 7.65172765642961*s1s2('134')
- 14.7891900880288*s1s2('135') - 27.118094428506*s1s2('136')
- 45.7527173518919*s1s2('137') - 88.4304387640365*s1s2('138')
- 149.196798497086*s1s2('139') - 216.237232413786*s1s2('140')
- 14.9380525029139*s1s3('141') - 28.8721329260735*s1s3('142')
- 52.941183552398*s1s3('143') - 89.3205462402005*s1s3('144')
- 172.637944844116*s1s3('145') - 291.268810037089*s1s3('146')
- 422.148209648796*s1s3('147') - 11.9558099050809*s1s4('148')
- 23.1080813747994*s1s4('149') - 42.3719709499612*s1s4('150')
- 71.4885338137291*s1s4('151') - 138.172392322055*s1s4('152')
- 233.119713791557*s1s4('153') - 337.870264236031*s1s4('154')
- 13.9253546563734*s1s5('155') - 26.9147996770731*s1s5('156')
- 49.3521332015331*s1s5('157') - 83.2652237802191*s1s5('158')
- 160.93427229773*s1s5('159') - 271.522775764452*s1s5('160')
- 393.529446744536*s1s5('161') - 7.76158051882097*s1s6('162')
- 15.0015127080393*s1s6('163') - 27.5074183079396*s1s6('164')
- 46.4095712271164*s1s6('165') - 89.7*s1s6('166')
- 151.338758602103*s1s6('167') - 219.341665817957*s1s6('168')
- 7.96556922221359*s1s7('169') - 15.3957802311063*s1s7('170')
- 28.2303641796868*s1s7('171') - 47.6293006671023*s1s7('172')
- 92.0574820424717*s1s7('173') - 155.316221319321*s1s7('174')
- 225.10637081608*s1s7('175') - 9.11349113439539*s1s8('176')
- 17.6144733325531*s1s8('177') - 32.2986551864818*s1s8('178')
- 54.4931814987685*s1s8('179') - 105.323928905069*s1s8('180')
- 177.698914733437*s1s8('181') - 257.546555368226*s1s8('182')
- 11.9558099050809*s1s9('183') - 23.1080813747994*s1s9('184')
- 42.3719709499612*s1s9('185') - 71.4885338137291*s1s9('186')
- 138.172392322055*s1s9('187') - 233.119713791557*s1s9('188')
- 337.870264236031*s1s9('189') - 7.48690188831565*s1s10('190')
- 14.4706163324673*s1s10('191') - 26.5339439013751*s1s10('192')
- 44.7671586494086*s1s10('193') - 86.5255598074927*s1s10('194')
- 145.982952158506*s1s10('195') - 211.579268940989*s1s10('196')
- 9.28783513744935*s1s11('197') - 17.9514438466182*s1s11('198')
- 32.916538800503*s1s11('199') - 55.5356535066454*s1s11('200')
- 107.338809384118*s1s11('201') - 181.098351861986*s1s11('202')
- 262.473503425068*s1s11('203') - 7.76158051882097*s1s12('204')
- 15.0015127080393*s1s12('205') - 27.5074183079396*s1s12('206')
- 46.4095712271164*s1s12('207') - 89.7*s1s12('208')
- 151.338758602103*s1s12('209') - 219.341665817957*s1s12('210')
- 12.4236944883441*s1s13('211') - 24.0124044704238*s1s13('212')
- 44.0301766363479*s1s13('213') - 74.2862014846846*s1s13('214')
- 143.579699122125*s1s13('215') - 242.242736071415*s1s13('216')
- 351.092646411238*s1s13('217') - 7.65172765642961*s1s14('218')
- 14.7891900880288*s1s14('219') - 27.118094428506*s1s14('220')
- 45.7527173518919*s1s14('221') - 88.4304387640365*s1s14('222')
- 149.196798497086*s1s14('223') - 216.237232413786*s1s14('224')
- 7.48690188831565*s1s15('225') - 14.4706163324673*s1s15('226')
- 26.5339439013751*s1s15('227') - 44.7671586494086*s1s15('228')
- 86.5255598074927*s1s15('229') - 145.982952158506*s1s15('230')
- 211.579268940989*s1s15('231') - 7.22029184733547*s1s16('232')
- 13.9553148538372*s1s16('233') - 25.5890649679471*s1s16('234')
- 43.1729913716576*s1s16('235') - 83.44436769489*s1s16('236')
- 140.784470672041*s1s16('237') - 204.044889780639*s1s16('238')
- 9.28783513744935*s1s17('239') - 17.9514438466182*s1s17('240')
- 32.916538800503*s1s17('241') - 55.5356535066454*s1s17('242')
- 107.338809384118*s1s17('243') - 181.098351861986*s1s17('244')
- 262.473503425068*s1s17('245') - 7.22029184733547*s1s18('246')
- 13.9553148538372*s1s18('247') - 25.5890649679471*s1s18('248')
- 43.1729913716576*s1s18('249') - 83.44436769489*s1s18('250')
- 140.784470672041*s1s18('251') - 204.044889780639*s1s18('252')
- 6.67516217420068*s1s19('253') - 12.9016931463472*s1s19('254')
- 23.6570989315674*s1s19('255') - 39.913444642481*s1s19('256')
- 77.1443452237428*s1s19('257') - 130.155289178744*s1s19('258')
- 188.639567333459*s1s19('259') - 13.9253546563734*s1s20('260')
- 26.9147996770731*s1s20('261') - 49.3521332015331*s1s20('262')
- 83.2652237802191*s1s20('263') - 160.93427229773*s1s20('264')
- 271.522775764452*s1s20('265') - 393.529446744536*s1s20('266')
- 7.76158051882097*s1s21('267') - 15.0015127080393*s1s21('268')
- 27.5074183079396*s1s21('269') - 46.4095712271164*s1s21('270')
- 89.7*s1s21('271') - 151.338758602103*s1s21('272')
- 219.341665817957*s1s21('273') - 6.67516217420068*s1s22('274')
- 12.9016931463472*s1s22('275') - 23.6570989315674*s1s22('276')
- 39.913444642481*s1s22('277') - 77.1443452237428*s1s22('278')
- 130.155289178744*s1s22('279') - 188.639567333459*s1s22('280')
- 11.9558099050809*s1s23('281') - 23.1080813747994*s1s23('282')
- 42.3719709499612*s1s23('283') - 71.4885338137291*s1s23('284')
- 138.172392322055*s1s23('285') - 233.119713791557*s1s23('286')
- 337.870264236031*s1s23('287') - 7.76158051882097*s1s24('288')
- 15.0015127080393*s1s24('289') - 27.5074183079396*s1s24('290')
- 46.4095712271164*s1s24('291') - 89.7*s1s24('292')
- 151.338758602103*s1s24('293') - 219.341665817957*s1s24('294')
- 11.9558099050809*s1s25('295') - 23.1080813747994*s1s25('296')
- 42.3719709499612*s1s25('297') - 71.4885338137291*s1s25('298')
- 138.172392322055*s1s25('299') - 233.119713791557*s1s25('300')
- 337.870264236031*s1s25('301') - 14.9380525029139*s1s26('302')
- 28.8721329260735*s1s26('303') - 52.941183552398*s1s26('304')
- 89.3205462402005*s1s26('305') - 172.637944844116*s1s26('306')
- 291.268810037089*s1s26('307') - 422.148209648796*s1s26('308')
- 7.96556922221359*s1s27('309') - 15.3957802311063*s1s27('310')
- 28.2303641796868*s1s27('311') - 47.6293006671023*s1s27('312')
- 92.0574820424717*s1s27('313') - 155.316221319321*s1s27('314')
- 225.10637081608*s1s27('315') - 12.4236944883441*s1s28('316')
- 24.0124044704238*s1s28('317') - 44.0301766363479*s1s28('318')
- 74.2862014846846*s1s28('319') - 143.579699122125*s1s28('320')
- 242.242736071415*s1s28('321') - 351.092646411238*s1s28('322') =E= 0;
e123.. - 0.2*x93 - 0.17*x94 + x97 =E= 0;
e124.. - 10*x95 - x96 - 10*x97 + objvar =E= 0;
e125.. - b99 + s1s1('127') + s1s1('128') + s1s1('129') + s1s1('130')
+ s1s1('131') + s1s1('132') + s1s1('133') =E= 0;
e126.. - b100 + s1s2('134') + s1s2('135') + s1s2('136') + s1s2('137')
+ s1s2('138') + s1s2('139') + s1s2('140') =E= 0;
e127.. - b101 + s1s3('141') + s1s3('142') + s1s3('143') + s1s3('144')
+ s1s3('145') + s1s3('146') + s1s3('147') =E= 0;
e128.. - b102 + s1s4('148') + s1s4('149') + s1s4('150') + s1s4('151')
+ s1s4('152') + s1s4('153') + s1s4('154') =E= 0;
e129.. - b103 + s1s5('155') + s1s5('156') + s1s5('157') + s1s5('158')
+ s1s5('159') + s1s5('160') + s1s5('161') =E= 0;
e130.. - b104 + s1s6('162') + s1s6('163') + s1s6('164') + s1s6('165')
+ s1s6('166') + s1s6('167') + s1s6('168') =E= 0;
e131.. - b105 + s1s7('169') + s1s7('170') + s1s7('171') + s1s7('172')
+ s1s7('173') + s1s7('174') + s1s7('175') =E= 0;
e132.. - b106 + s1s8('176') + s1s8('177') + s1s8('178') + s1s8('179')
+ s1s8('180') + s1s8('181') + s1s8('182') =E= 0;
e133.. - b107 + s1s9('183') + s1s9('184') + s1s9('185') + s1s9('186')
+ s1s9('187') + s1s9('188') + s1s9('189') =E= 0;
e134.. - b108 + s1s10('190') + s1s10('191') + s1s10('192') + s1s10('193')
+ s1s10('194') + s1s10('195') + s1s10('196') =E= 0;
e135.. - b109 + s1s11('197') + s1s11('198') + s1s11('199') + s1s11('200')
+ s1s11('201') + s1s11('202') + s1s11('203') =E= 0;
e136.. - b110 + s1s12('204') + s1s12('205') + s1s12('206') + s1s12('207')
+ s1s12('208') + s1s12('209') + s1s12('210') =E= 0;
e137.. - b111 + s1s13('211') + s1s13('212') + s1s13('213') + s1s13('214')
+ s1s13('215') + s1s13('216') + s1s13('217') =E= 0;
e138.. - b112 + s1s14('218') + s1s14('219') + s1s14('220') + s1s14('221')
+ s1s14('222') + s1s14('223') + s1s14('224') =E= 0;
e139.. - b113 + s1s15('225') + s1s15('226') + s1s15('227') + s1s15('228')
+ s1s15('229') + s1s15('230') + s1s15('231') =E= 0;
e140.. - b114 + s1s16('232') + s1s16('233') + s1s16('234') + s1s16('235')
+ s1s16('236') + s1s16('237') + s1s16('238') =E= 0;
e141.. - b115 + s1s17('239') + s1s17('240') + s1s17('241') + s1s17('242')
+ s1s17('243') + s1s17('244') + s1s17('245') =E= 0;
e142.. - b116 + s1s18('246') + s1s18('247') + s1s18('248') + s1s18('249')
+ s1s18('250') + s1s18('251') + s1s18('252') =E= 0;
e143.. - b117 + s1s19('253') + s1s19('254') + s1s19('255') + s1s19('256')
+ s1s19('257') + s1s19('258') + s1s19('259') =E= 0;
e144.. - b118 + s1s20('260') + s1s20('261') + s1s20('262') + s1s20('263')
+ s1s20('264') + s1s20('265') + s1s20('266') =E= 0;
e145.. - b119 + s1s21('267') + s1s21('268') + s1s21('269') + s1s21('270')
+ s1s21('271') + s1s21('272') + s1s21('273') =E= 0;
e146.. - b120 + s1s22('274') + s1s22('275') + s1s22('276') + s1s22('277')
+ s1s22('278') + s1s22('279') + s1s22('280') =E= 0;
e147.. - b121 + s1s23('281') + s1s23('282') + s1s23('283') + s1s23('284')
+ s1s23('285') + s1s23('286') + s1s23('287') =E= 0;
e148.. - b122 + s1s24('288') + s1s24('289') + s1s24('290') + s1s24('291')
+ s1s24('292') + s1s24('293') + s1s24('294') =E= 0;
e149.. - b123 + s1s25('295') + s1s25('296') + s1s25('297') + s1s25('298')
+ s1s25('299') + s1s25('300') + s1s25('301') =E= 0;
e150.. - b124 + s1s26('302') + s1s26('303') + s1s26('304') + s1s26('305')
+ s1s26('306') + s1s26('307') + s1s26('308') =E= 0;
e151.. - b125 + s1s27('309') + s1s27('310') + s1s27('311') + s1s27('312')
+ s1s27('313') + s1s27('314') + s1s27('315') =E= 0;
e152.. - b126 + s1s28('316') + s1s28('317') + s1s28('318') + s1s28('319')
+ s1s28('320') + s1s28('321') + s1s28('322') =E= 0;
e153.. x1 - 0.0176041976445841*s1s1('127') - 0.0686820348432157*s1s1('128')
- 0.240338257044582*s1s1('129') - 0.708118780382974*s1s1('130')
- 2*s1s1('131') - 2*s1s1('132') - 2*s1s1('133') =L= 0;
e154.. x2 - 0.0192122784105588*s1s2('134') - 0.0749558941482069*s1s2('135')
- 0.262292300976835*s1s2('136') - 0.772802909347502*s1s2('137')
- 2*s1s2('138') - 2*s1s2('139') - 2*s1s2('140') =L= 0;
e155.. x3 - 0.0137502828767635*s1s3('141') - 0.0536461488738445*s1s3('142')
- 0.187723353667753*s1s3('143') - 0.553097263345606*s1s3('144')
- 2*s1s3('145') - 2*s1s3('146') - 2*s1s3('147') =L= 0;
e156.. x4 - 0.0153698320860398*s1s4('148') - 0.0599647518268192*s1s4('149')
- 0.209833968534382*s1s4('150') - 0.618242703881818*s1s4('151')
- 2*s1s4('152') - 2*s1s4('153') - 2*s1s4('154') =L= 0;
e157.. x5 - 0.0142414920290718*s1s5('155') - 0.0555625806701283*s1s5('156')
- 0.194429501479406*s1s5('157') - 0.572855870518057*s1s5('158')
- 2*s1s5('159') - 2*s1s5('160') - 2*s1s5('161') =L= 0;
e158.. x6 - 0.0190758342372385*s1s6('162') - 0.0744235629590588*s1s6('163')
- 0.260429520550158*s1s6('164') - 0.767314520523847*s1s6('165')
- 2*s1s6('166') - 2*s1s6('167') - 2*s1s6('168') =L= 0;
e159.. x7 - 0.0188299954674205*s1s7('169') - 0.0734644333642121*s1s7('170')
- 0.257073249355929*s1s7('171') - 0.757425796631457*s1s7('172')
- 2*s1s7('173') - 2*s1s7('174') - 2*s1s7('175') =L= 0;
e160.. x8 - 0.0176041976445841*s1s8('176') - 0.0686820348432157*s1s8('177')
- 0.240338257044582*s1s8('178') - 0.708118780382974*s1s8('179')
- 2*s1s8('180') - 2*s1s8('181') - 2*s1s8('182') =L= 0;
e161.. x9 - 0.0153698320860398*s1s9('183') - 0.0599647518268192*s1s9('184')
- 0.209833968534382*s1s9('185') - 0.618242703881818*s1s9('186')
- 2*s1s9('187') - 2*s1s9('188') - 2*s1s9('189') =L= 0;
e162.. x10 - 0.0194226083350049*s1s10('190')
- 0.0757764874800376*s1s10('191') - 0.265163793814297*s1s10('192')
- 0.781263310246409*s1s10('193') - 2*s1s10('194') - 2*s1s10('195')
- 2*s1s10('196') =L= 0;
e163.. x11 - 0.0174381887671401*s1s11('197')
- 0.0680343582075014*s1s11('198') - 0.238071849619242*s1s11('199')
- 0.701441168247406*s1s11('200') - 2*s1s11('201') - 2*s1s11('202')
- 2*s1s11('203') =L= 0;
e164.. x12 - 0.0190758342372385*s1s12('204')
- 0.0744235629590588*s1s12('205') - 0.260429520550158*s1s12('206')
- 0.767314520523847*s1s12('207') - 2*s1s12('208') - 2*s1s12('209')
- 2*s1s12('210') =L= 0;
e165.. x13 - 0.0150776355652448*s1s13('211')
- 0.0588247594211735*s1s13('212') - 0.205844806180028*s1s13('213')
- 0.606489265973719*s1s13('214') - 2*s1s13('215') - 2*s1s13('216')
- 2*s1s13('217') =L= 0;
e166.. x14 - 0.0192122784105588*s1s14('218')
- 0.0749558941482069*s1s14('219') - 0.262292300976835*s1s14('220')
- 0.772802909347502*s1s14('221') - 2*s1s14('222') - 2*s1s14('223')
- 2*s1s14('224') =L= 0;
e167.. x15 - 0.0194226083350049*s1s15('225')
- 0.0757764874800376*s1s15('226') - 0.265163793814297*s1s15('227')
- 0.781263310246409*s1s15('228') - 2*s1s15('229') - 2*s1s15('230')
- 2*s1s15('231') =L= 0;
e168.. x16 - 0.0197779487583483*s1s16('232')
- 0.0771628331590627*s1s16('233') - 0.270015017353593*s1s16('234')
- 0.795556675515238*s1s16('235') - 2*s1s16('236') - 2*s1s16('237')
- 2*s1s16('238') =L= 0;
e169.. x17 - 0.0174381887671401*s1s17('239')
- 0.0680343582075014*s1s17('240') - 0.238071849619242*s1s17('241')
- 0.701441168247406*s1s17('242') - 2*s1s17('243') - 2*s1s17('244')
- 2*s1s17('245') =L= 0;
e170.. x18 - 0.0197779487583483*s1s18('246')
- 0.0771628331590627*s1s18('247') - 0.270015017353593*s1s18('248')
- 0.795556675515238*s1s18('249') - 2*s1s18('250') - 2*s1s18('251')
- 2*s1s18('252') =L= 0;
e171.. x19 - 0.02056968839856*s1s19('253') - 0.0802517719822704*s1s19('254')
- 0.280824105561038*s1s19('255') - 0.827403949655566*s1s19('256')
- 2*s1s19('257') - 2*s1s19('258') - 2*s1s19('259') =L= 0;
e172.. x20 - 0.0142414920290718*s1s20('260')
- 0.0555625806701283*s1s20('261') - 0.194429501479406*s1s20('262')
- 0.572855870518057*s1s20('263') - 2*s1s20('264') - 2*s1s20('265')
- 2*s1s20('266') =L= 0;
e173.. x21 - 0.0190758342372385*s1s21('267')
- 0.0744235629590588*s1s21('268') - 0.260429520550158*s1s21('269')
- 0.767314520523847*s1s21('270') - 2*s1s21('271') - 2*s1s21('272')
- 2*s1s21('273') =L= 0;
e174.. x22 - 0.02056968839856*s1s22('274') - 0.0802517719822704*s1s22('275')
- 0.280824105561038*s1s22('276') - 0.827403949655566*s1s22('277')
- 2*s1s22('278') - 2*s1s22('279') - 2*s1s22('280') =L= 0;
e175.. x23 - 0.0153698320860398*s1s23('281')
- 0.0599647518268192*s1s23('282') - 0.209833968534382*s1s23('283')
- 0.618242703881818*s1s23('284') - 2*s1s23('285') - 2*s1s23('286')
- 2*s1s23('287') =L= 0;
e176.. x24 - 0.0190758342372385*s1s24('288')
- 0.0744235629590588*s1s24('289') - 0.260429520550158*s1s24('290')
- 0.767314520523847*s1s24('291') - 2*s1s24('292') - 2*s1s24('293')
- 2*s1s24('294') =L= 0;
e177.. x25 - 0.0153698320860398*s1s25('295')
- 0.0599647518268192*s1s25('296') - 0.209833968534382*s1s25('297')
- 0.618242703881818*s1s25('298') - 2*s1s25('299') - 2*s1s25('300')
- 2*s1s25('301') =L= 0;
e178.. x26 - 0.0137502828767635*s1s26('302')
- 0.0536461488738445*s1s26('303') - 0.187723353667753*s1s26('304')
- 0.553097263345606*s1s26('305') - 2*s1s26('306') - 2*s1s26('307')
- 2*s1s26('308') =L= 0;
e179.. x27 - 0.0188299954674205*s1s27('309')
- 0.0734644333642121*s1s27('310') - 0.257073249355929*s1s27('311')
- 0.757425796631457*s1s27('312') - 2*s1s27('313') - 2*s1s27('314')
- 2*s1s27('315') =L= 0;
e180.. x28 - 0.0150776355652448*s1s28('316')
- 0.0588247594211735*s1s28('317') - 0.205844806180028*s1s28('318')
- 0.606489265973719*s1s28('319') - 2*s1s28('320') - 2*s1s28('321')
- 2*s1s28('322') =L= 0;
e181.. b99 + b106 =L= 1;
e182.. b100 + b112 =L= 1;
e183.. b101 + b124 =L= 1;
e184.. b102 + b107 =L= 1;
e185.. b103 + b118 =L= 1;
e186.. b104 + b122 =L= 1;
e187.. b105 + b125 =L= 1;
e188.. b108 + b113 =L= 1;
e189.. b109 + b115 =L= 1;
e190.. b110 + b119 =L= 1;
e191.. b111 + b126 =L= 1;
e192.. b114 + b116 =L= 1;
e193.. b117 + b120 =L= 1;
e194.. b121 + b123 =L= 1;
e195.. b99 + b100 + b101 =G= 2;
e196.. b102 + b103 + b104 + b105 =G= 2;
e197.. b99 + b102 + b108 + b109 + b110 + b111 =G= 2;
e198.. b100 + b108 + b116 =G= 2;
e199.. b109 + b116 + b120 =G= 2;
e200.. b103 + b110 + b120 + b121 =G= 2;
e201.. b104 + b121 =G= 2;
e202.. b101 + b105 + b111 =G= 2;
* set non-default bounds
x57.lo = 6.5;
x58.lo = 3.25;
x59.lo = 16.58;
x60.lo = 14.92;
x61.lo = 12.925;
x62.lo = 12.26;
x63.lo = 8.76;
x64.lo = 16.08;
x93.up = 2.5;
x94.up = 6;
* set non-default levels
x57.l = 11.5;
x58.l = 8.25;
x59.l = 21.58;
x60.l = 19.92;
x61.l = 17.925;
x62.l = 17.26;
x63.l = 13.76;
x64.l = 21.08;
x93.l = 0.961470588235294;
x94.l = 2.30752941176471;
b99.l = 0.5;
b100.l = 0.5;
b101.l = 0.5;
b102.l = 0.5;
b103.l = 0.5;
b104.l = 0.5;
b105.l = 0.5;
b106.l = 0.5;
b107.l = 0.5;
b108.l = 0.5;
b109.l = 0.5;
b110.l = 0.5;
b111.l = 0.5;
b112.l = 0.5;
b113.l = 0.5;
b114.l = 0.5;
b115.l = 0.5;
b116.l = 0.5;
b117.l = 0.5;
b118.l = 0.5;
b119.l = 0.5;
b120.l = 0.5;
b121.l = 0.5;
b122.l = 0.5;
b123.l = 0.5;
b124.l = 0.5;
b125.l = 0.5;
b126.l = 0.5;
s1s1.l('127') = 0.0714285714285714;
s1s1.l('128') = 0.0714285714285714;
s1s1.l('129') = 0.0714285714285714;
s1s1.l('130') = 0.0714285714285714;
s1s1.l('131') = 0.0714285714285714;
s1s1.l('132') = 0.0714285714285714;
s1s1.l('133') = 0.0714285714285714;
s1s2.l('134') = 0.0714285714285714;
s1s2.l('135') = 0.0714285714285714;
s1s2.l('136') = 0.0714285714285714;
s1s2.l('137') = 0.0714285714285714;
s1s2.l('138') = 0.0714285714285714;
s1s2.l('139') = 0.0714285714285714;
s1s2.l('140') = 0.0714285714285714;
s1s3.l('141') = 0.0714285714285714;
s1s3.l('142') = 0.0714285714285714;
s1s3.l('143') = 0.0714285714285714;
s1s3.l('144') = 0.0714285714285714;
s1s3.l('145') = 0.0714285714285714;
s1s3.l('146') = 0.0714285714285714;
s1s3.l('147') = 0.0714285714285714;
s1s4.l('148') = 0.0714285714285714;
s1s4.l('149') = 0.0714285714285714;
s1s4.l('150') = 0.0714285714285714;
s1s4.l('151') = 0.0714285714285714;
s1s4.l('152') = 0.0714285714285714;
s1s4.l('153') = 0.0714285714285714;
s1s4.l('154') = 0.0714285714285714;
s1s5.l('155') = 0.0714285714285714;
s1s5.l('156') = 0.0714285714285714;
s1s5.l('157') = 0.0714285714285714;
s1s5.l('158') = 0.0714285714285714;
s1s5.l('159') = 0.0714285714285714;
s1s5.l('160') = 0.0714285714285714;
s1s5.l('161') = 0.0714285714285714;
s1s6.l('162') = 0.0714285714285714;
s1s6.l('163') = 0.0714285714285714;
s1s6.l('164') = 0.0714285714285714;
s1s6.l('165') = 0.0714285714285714;
s1s6.l('166') = 0.0714285714285714;
s1s6.l('167') = 0.0714285714285714;
s1s6.l('168') = 0.0714285714285714;
s1s7.l('169') = 0.0714285714285714;
s1s7.l('170') = 0.0714285714285714;
s1s7.l('171') = 0.0714285714285714;
s1s7.l('172') = 0.0714285714285714;
s1s7.l('173') = 0.0714285714285714;
s1s7.l('174') = 0.0714285714285714;
s1s7.l('175') = 0.0714285714285714;
s1s10.l('190') = 0.0714285714285714;
s1s10.l('191') = 0.0714285714285714;
s1s10.l('192') = 0.0714285714285714;
s1s10.l('193') = 0.0714285714285714;
s1s10.l('194') = 0.0714285714285714;
s1s10.l('195') = 0.0714285714285714;
s1s10.l('196') = 0.0714285714285714;
s1s11.l('197') = 0.0714285714285714;
s1s11.l('198') = 0.0714285714285714;
s1s11.l('199') = 0.0714285714285714;
s1s11.l('200') = 0.0714285714285714;
s1s11.l('201') = 0.0714285714285714;
s1s11.l('202') = 0.0714285714285714;
s1s11.l('203') = 0.0714285714285714;
s1s12.l('204') = 0.0714285714285714;
s1s12.l('205') = 0.0714285714285714;
s1s12.l('206') = 0.0714285714285714;
s1s12.l('207') = 0.0714285714285714;
s1s12.l('208') = 0.0714285714285714;
s1s12.l('209') = 0.0714285714285714;
s1s12.l('210') = 0.0714285714285714;
s1s13.l('211') = 0.0714285714285714;
s1s13.l('212') = 0.0714285714285714;
s1s13.l('213') = 0.0714285714285714;
s1s13.l('214') = 0.0714285714285714;
s1s13.l('215') = 0.0714285714285714;
s1s13.l('216') = 0.0714285714285714;
s1s13.l('217') = 0.0714285714285714;
s1s18.l('246') = 0.0714285714285714;
s1s18.l('247') = 0.0714285714285714;
s1s18.l('248') = 0.0714285714285714;
s1s18.l('249') = 0.0714285714285714;
s1s18.l('250') = 0.0714285714285714;
s1s18.l('251') = 0.0714285714285714;
s1s18.l('252') = 0.0714285714285714;
s1s22.l('274') = 0.0714285714285714;
s1s22.l('275') = 0.0714285714285714;
s1s22.l('276') = 0.0714285714285714;
s1s22.l('277') = 0.0714285714285714;
s1s22.l('278') = 0.0714285714285714;
s1s22.l('279') = 0.0714285714285714;
s1s22.l('280') = 0.0714285714285714;
s1s23.l('281') = 0.0714285714285714;
s1s23.l('282') = 0.0714285714285714;
s1s23.l('283') = 0.0714285714285714;
s1s23.l('284') = 0.0714285714285714;
s1s23.l('285') = 0.0714285714285714;
s1s23.l('286') = 0.0714285714285714;
s1s23.l('287') = 0.0714285714285714;
Model m / all /;
m.limrow=0; m.limcol=0;
m.tolproj=0.0;
$if NOT '%gams.u1%' == '' $include '%gams.u1%'
$if not set MINLP $set MINLP MINLP
Solve m using %MINLP% minimizing objvar;
Last updated: 2024-12-17 Git hash: 8eaceb91
